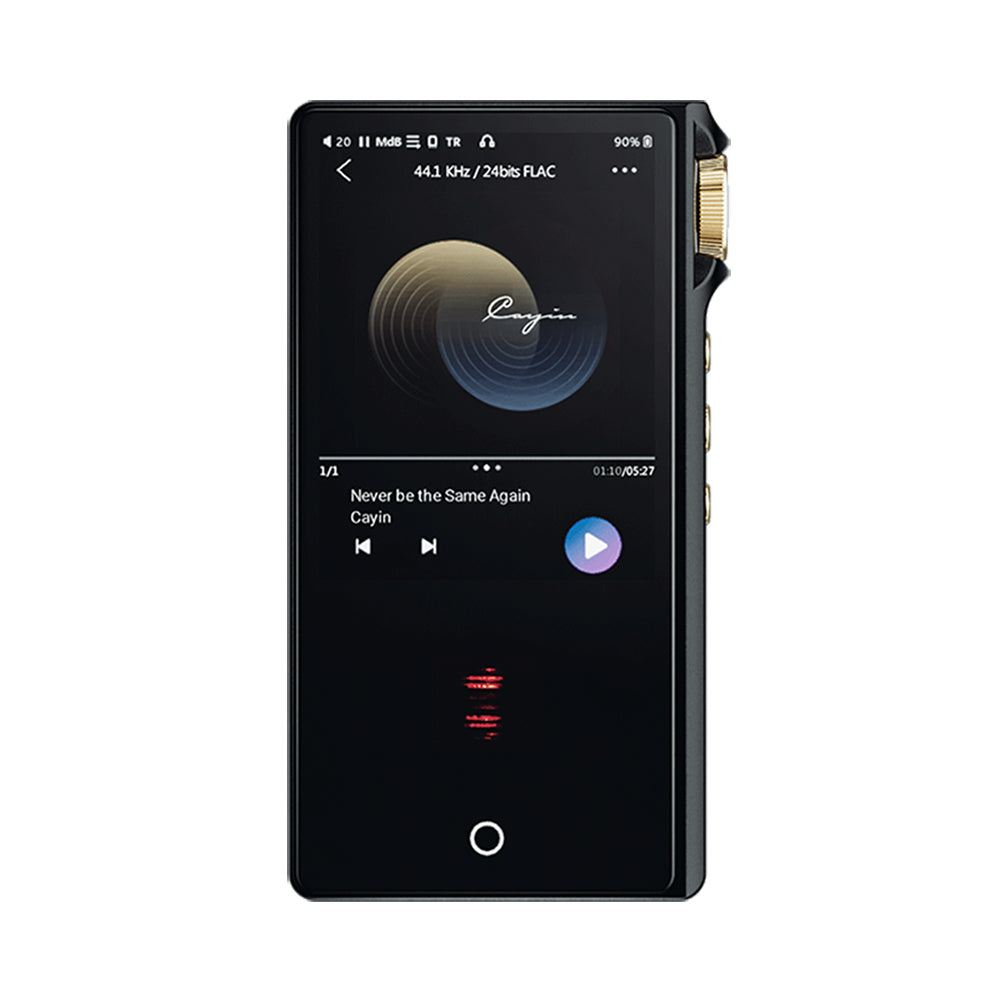

Cayin N3 Pro

Dual AK4493 DAC DSD256 Fully Balanced Dual Timbre Portable Digital Audio Player

    Dual Timbre: Vacuum Tube and Solid Dual (3.5mm single-ended only)
    Dual Operation Mode: Triode and Ultra-linear (3.5mm Tube only)

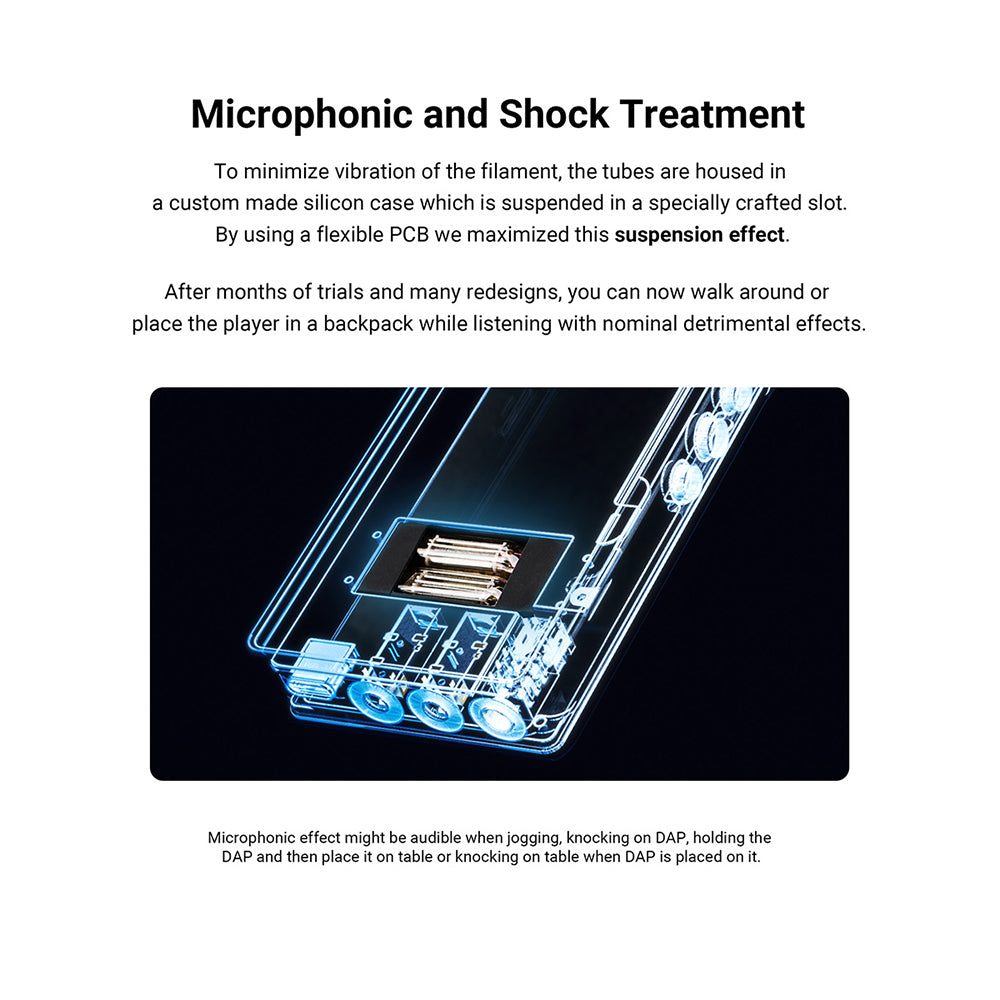

    Matched pair JAN6418 in mechanically suspended shock-absorption protection
    Dual AK4493 DAC decodes up to 32Bit/384kHz and DSD256 native
    Fully balanced design with 4.4mm and 3.5mm phone out
    Powerful Headphone output, up to 800mW@32Ω Balanced
    2 line out, 2 digital outputs, USB DAC
    Hi-Res Wireless DAC (LDAC, UAT, AAC)

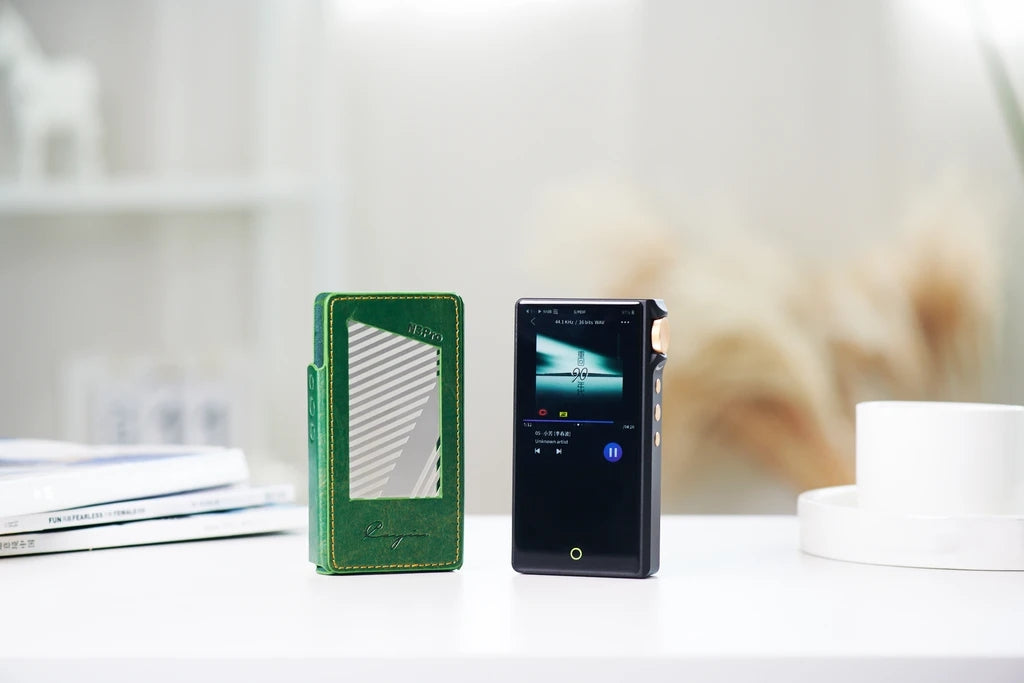

Case :
REVIEWS
Product Price
$16.00 USD
Subtotal:
Terms & conditions

Subcribe to back in stock notification

Free standard shipping to most countries

Free express shipping on orders over $270*. Enjoy free tax and duty paid to most countries. Please refer to our shipping FAQ to see if you apply.

Covid-19 Shipping Delay Notice

Shipping may be delayed due to covid-19 depending on your country regulations.
Free Shipping

Authenthic Products

Linsoul Audio is the authorized distributor. All products are authentic and genuine.

Free Shipping

Worldwide Free Shipping

We are located in China but send our products worldwide for free. T&Cs apply.

Warranty

1 Year Warranty

We provide 1 year warranty for the all products except the cables*.

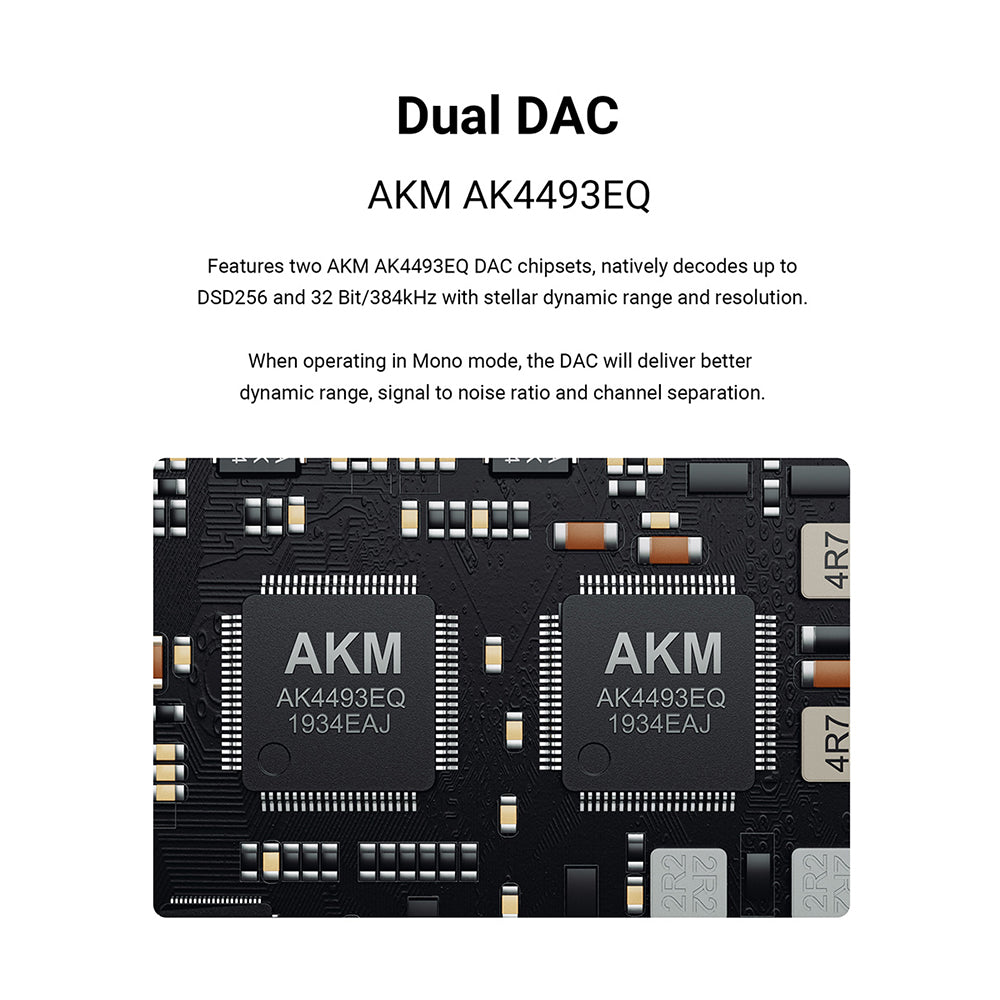

Dual DAC - AKM AK4493EQ

Features two AKM AK4493EQ DAC chipsets, natively decodes up to DSD256 and 32 Bit/384kHz with stellar dynamic range and resolution.
When operating in Mono mode, the DAC will deliver better dynamic range, signal to noise ratio and channel separation.

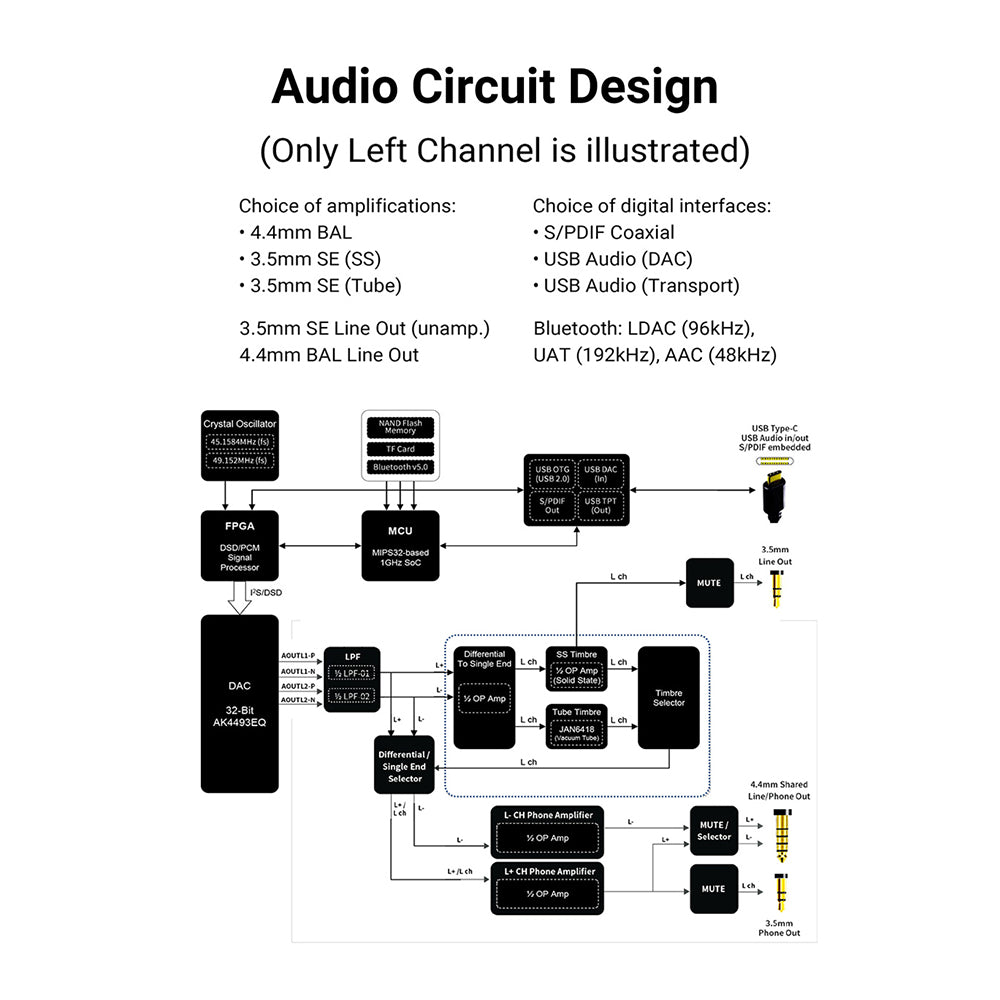

Fully Balanced Design - Powerful 800mW Headphone output

The DAC outputs the hot and cold signal streams identically except for the polarity.These will go through LPF and a headphone amplifier in parallel. When L+,L-,R+ and R- are transmitted and processed independently, common-mode noise will be cancelled out and cross-talk will be reduced. The differential headphone amplifier outputs the difference between the hot and cold signals, and this will increase the output power and channel separation significantly.

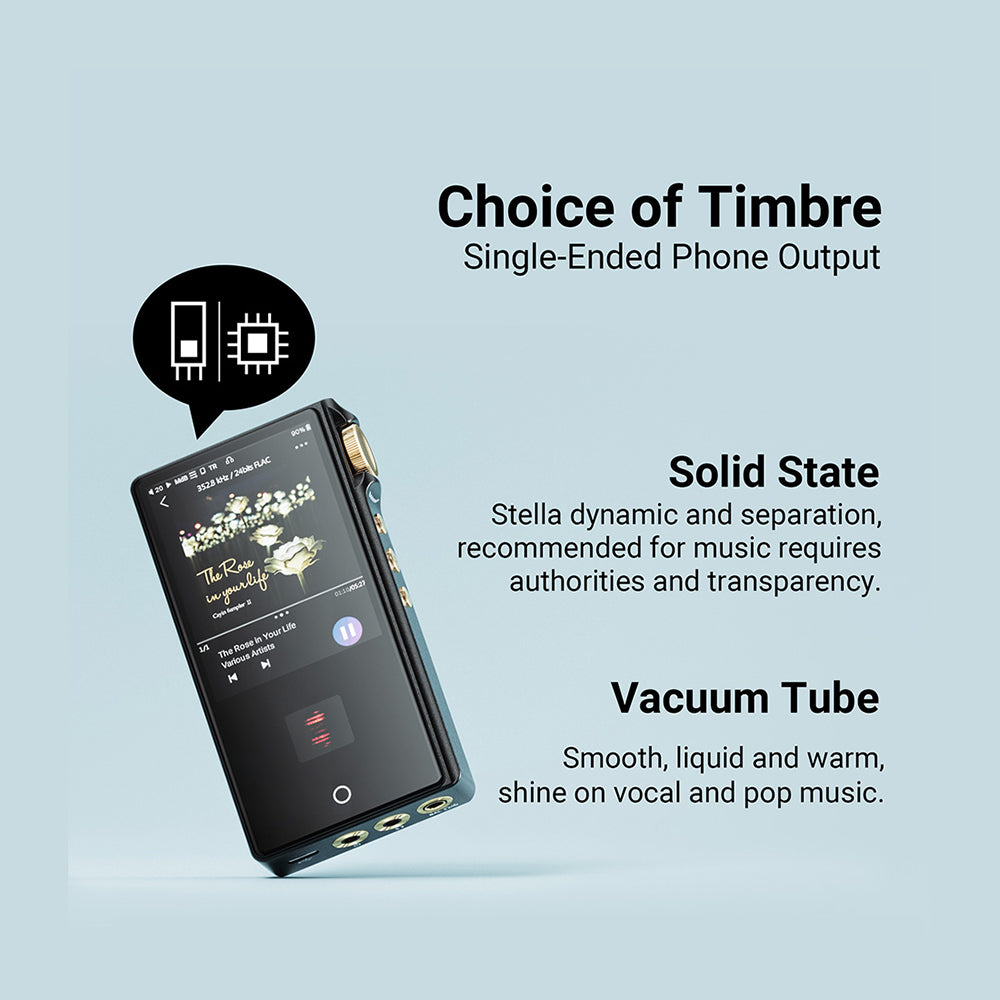

Choice of Timbre & Vintage Military Miniature Tube

Single-Ended Phone Output
Solid State - Stella dynamic and separation, recommended for music requires authorities and transparency.
Vacuum Tube - Smooth, liquid and warm, shine on vocal and pop music.


Dual RAYTHEON JAN6418
A low power consumption, only slightly warm pentode tube can be integrated for Triode or Ultra-linear mode.
lt was originally used in military communication applications and installed in high -end condenser microphones because of its "warm classic tube sound".

Dual Operation Mode - Triode and Ultra-linear Modes

Change output power and sound signature instantly Optimize your system for different music presentations
Triode Mode - Sophisticated and elegant,soundstage will tighten up.lmages is focused,mid-range will be more up-front.For string and vocal-based music,songs that are intimated and refined.
Ultra-linear Mode - Lively,clean and energetic, transient will be enhanced. Soundstage will open up, better sense of space and dimension. For instrumental, songs that requires, punch,dynamics and control

Hi-Res Wireless - Duplex Bluetooth v5.0

Pair with Bluetooth headphone or speakers. Enjoy music without being limited by physical connections.

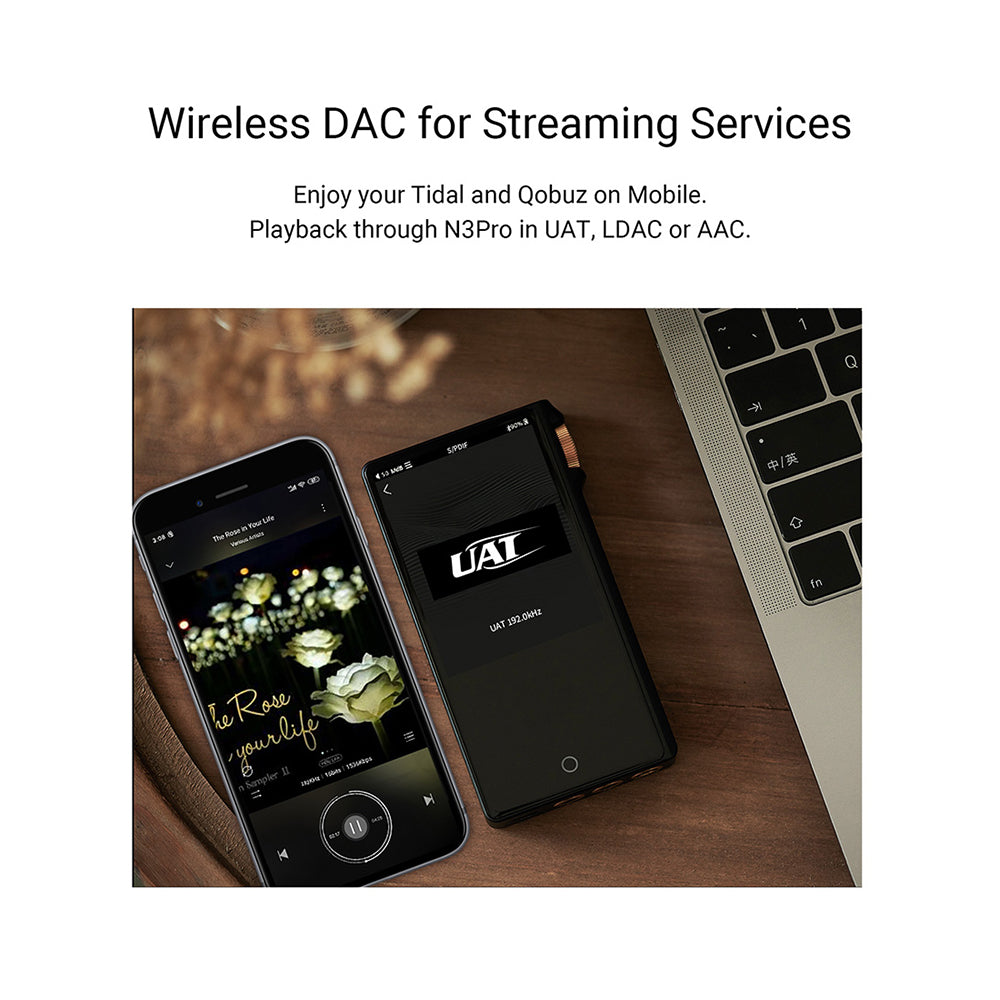

Wireless DAC for Streaming Services - Enjoy your Tidal and Qobuz on Mobile. Playback through N3Pro in UAT,LDAC or AAC.

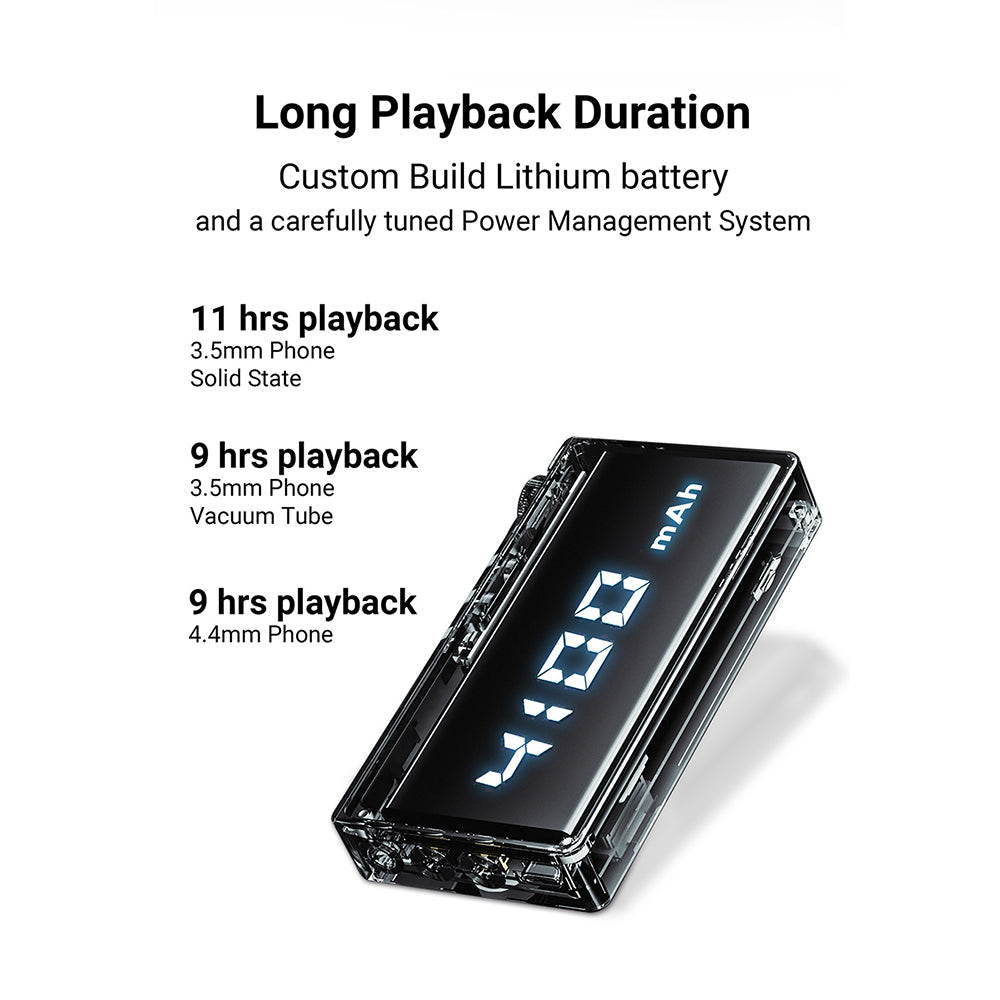

Long Playback Duration & Large Storage

Custom Build Lithium battery and a carefully tuned Power Management System
11 hrs playback @3.5mm Phone and Solid State; 9hrs playback @3.5mm Phone and Vacuum Tube; 9 hrs playback @4.4mm Phone
Expandable Local Storage to Carry Thousands of Albums - One TF card up to 1TB.
Playback music from USB OTG Storage directly via the Type-C connector.

PRODUCT SPECIFICATIONS
DAC
AK4493EQ x2
MCU
XBurst 1.0GHz,MIPS-based
Vacuum Tube
Raytueon JAN6418×2
Storage
one TF card,upto 1TB
Bluetooth
3v5.0(LDAC,UAT,AAC,SBC)
Display Screen
IPS 3.2”(480 x 360)
USB
Type-C (Digital Audio, charging, OTG)
Touch sensing
Capacitive touch screen
Battery
3.7V 4100mAh
WiFi
IEEE802.11,2.4GHz
Net Weight
195g (士10g)
Dimension
115.2x63.5x18.9(mm)
Freq.Response
20Hz-20kHz(土0.2dB,Fs=192kHz)
Battery Duration
9 Hours - Vacuum Tube @ 3.5mm Single-ended
11 Hours - Solid State @ 3.5mm Single-ended
9 Hours @ 4.4mm Balanced
Testing Condition: Screen off, all wireless disabled, mid gain, volume 30, 32Ohm earphone, playback 44.1kHz WAV music files
Charging Time
~3.5H @Standard Charger (5V-2A)
USB Audio out
Connector: USB-C
PCM:up to 32Bit/768kHz;
DSD : Up to DSD512(Native),DSD256(DoP),PCM 88.2kHz(D2P)
USB Audio DAC
Connector : USB-C, Asynchronous USB Audio Class 2.0
Support Windows(drivers required),Mac OS,Android(partial)
PCM: up to 32Bit/384kHz
DSD:up to DSD256 (Native),DSD128 (DoP)
S/PDIF , Coaxial
Connector : USB-C(75ohm)
PCM:up to 192kHz
DSD:up to DSD64(DoP)
Bluetooth
Transmit Codec: UAT(up to 192kHz),LDAC (up to 96kHz), AAC(up to 48kHz),sBC (up to 48kHz)
Receive Codec: UAT(up to 192kHz),LDAC (up to 96kHz), AAC(up to 48kHz),SBC (up to 48kHz)
Power Rating
250mW @32ohm/ Solid State /3.5PO
53mW @150ohm/ Solid State /3.5PO
27mW @300ohm/ Solid State /3.5PO
130mW @32ohm/ Vacuum Tube /3.5PO
30mW @150ohm/ Vacuum Tube /3.5PO
15mW @300ohm/Vacuum Tube /3.5PO
800mW @32ohm/4.4PO
220mW @150ohm/ 4.4PO
110mW @300ohm/ 4.4PO
Output lmpedance
0.6ohm @3.5PO ;
1ohm @4.4PO
THD+N
0.003% (@3.5PO,1kHz,Fs=44.1kHz;20Hz-20kHz, A-Weighted; Solid State)
0.002% (@4.4 PO, 1kHz,Fs=44.1kHz;20Hz-20kHz, A-Weighted; Solid State)
0.0008% (@3.5LO/4.4LO, 1kHz,Fs=44.1kHz; 20Hz-20kHz,A-Weighted)
Dynamic Range
118dB(@3.5PO, Fs=44.1kHz; 20Hz-20kHz,A-Weighted;Solid-State)
119dB (@4.4PO Fs=44.1kHz; 20Hz-20kHz,A-Weighted)
118dB (@3.5LO/4.4LOFs=44kHz;20Hz-20kHz,A-Weighted)
SN Ratio
118dB(@3.5PO, Fs=44.1kHz; 20Hz-20kHz,A-Weighted;Solid-State)
119dB (@4.4PO Fs=44.1kHz; 20Hz-20kHz,A-Weighted)
118dB (@3.5LO/4.4LOFs=44kHz;20Hz-20kHz,A-Weighted)
Channel Separation
75dB/100dB (@3.5PO/3.5LO 1kHz,Fs=44.1kHz)
110dB (@4.4PO/LO 1kHz,Fs=44.1kHz)
Output Level
2.0V/1.5V/1.0V(@10K ohm, 3.5LO)
4.0V/3.oV/2.oV(@600ohm,4.4LO)
