DDHiFi TC100S
USB-C to Digital Coaxial Converter Cable Wire for Audiophile (65cm)The detachable version of TC100-COA
- Bring New Life to Old Equipment
- 24 bit / 192 kHz Support
- Standard Female Socked for Connexting RCA Coaxial Cable
- Replaceable USB Cable
- Digital Audio Transformer
DDHiFi TC100S

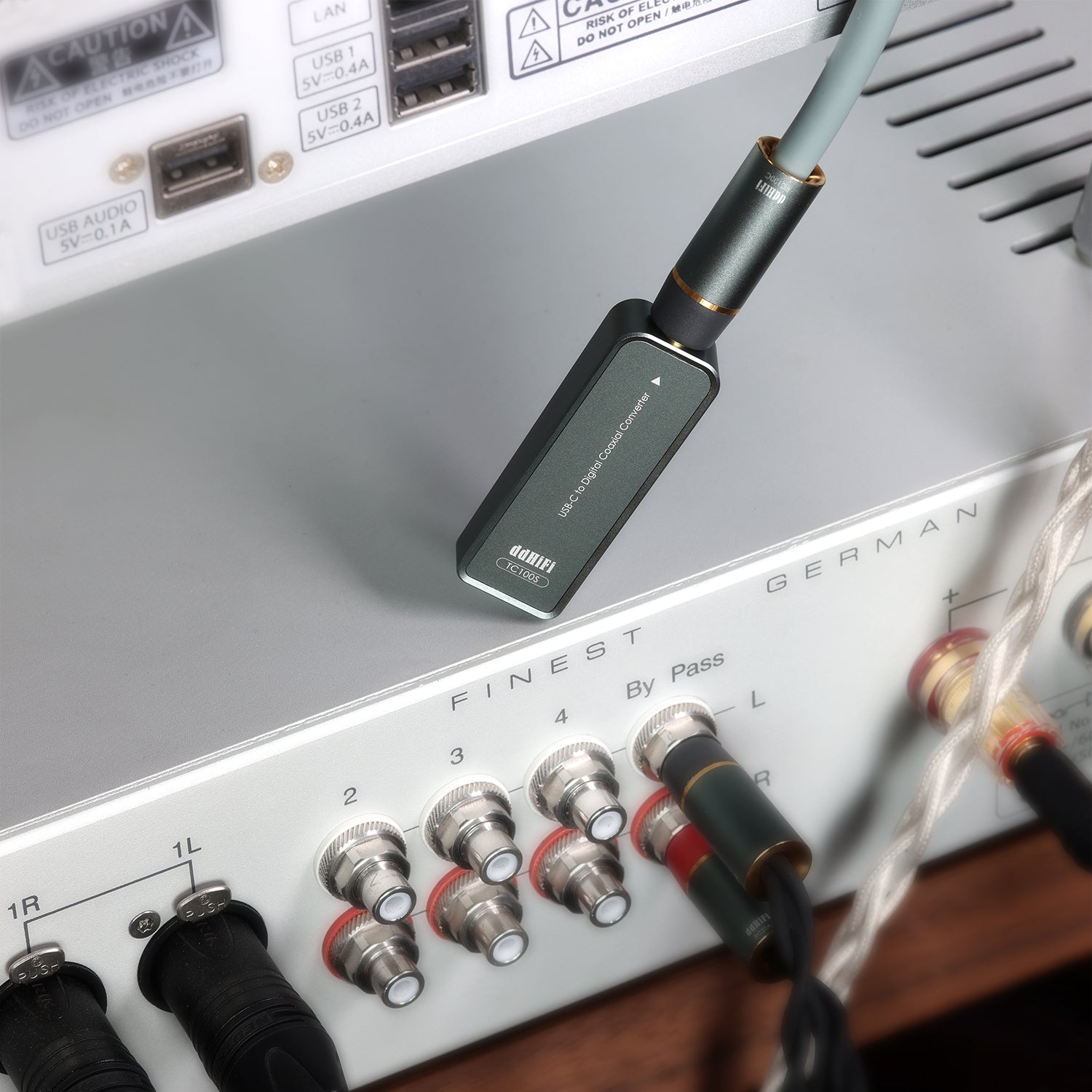

Bring New Life to Old Equipment
The early generations of DAC Amplifier devices have only the digital coaxial and optical input interfaces but do not feature a USB input. As a result, they could not directly interface with audio source devices which interface or the iPhones with the Lighting interface. The TC100S provides these old devices with a new lease of life and allows them to not only interface with the CD players, but also the latest digital devices via USB connection.

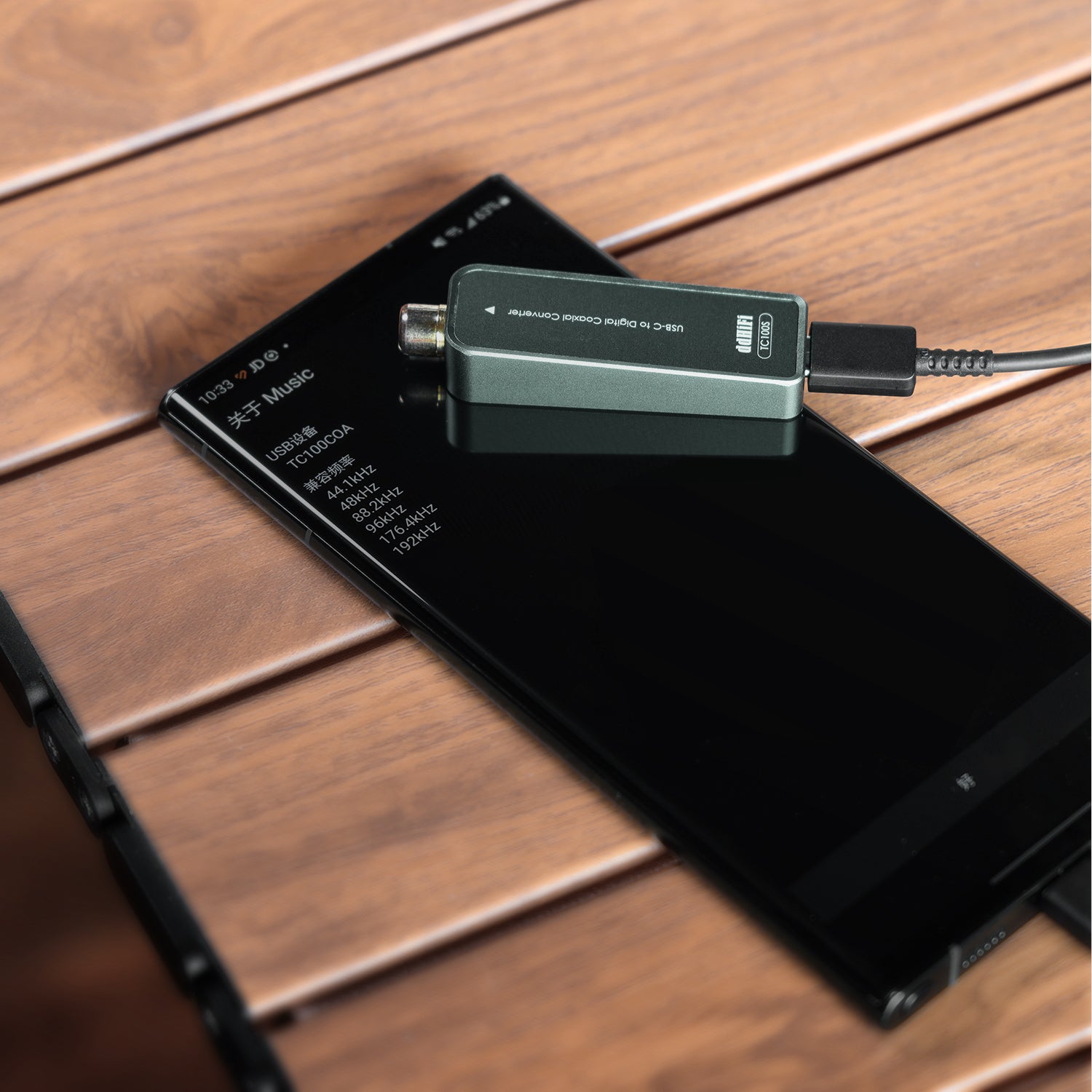

24 bit / 192 kHz Support
When using it with a smartphone, you can use Hi-Res music player apps to enjoy lossless music up to 24bit/192kHz. (The coaxial interface of most common decoding devices only supports signal input up to 24bit/192kHz.)

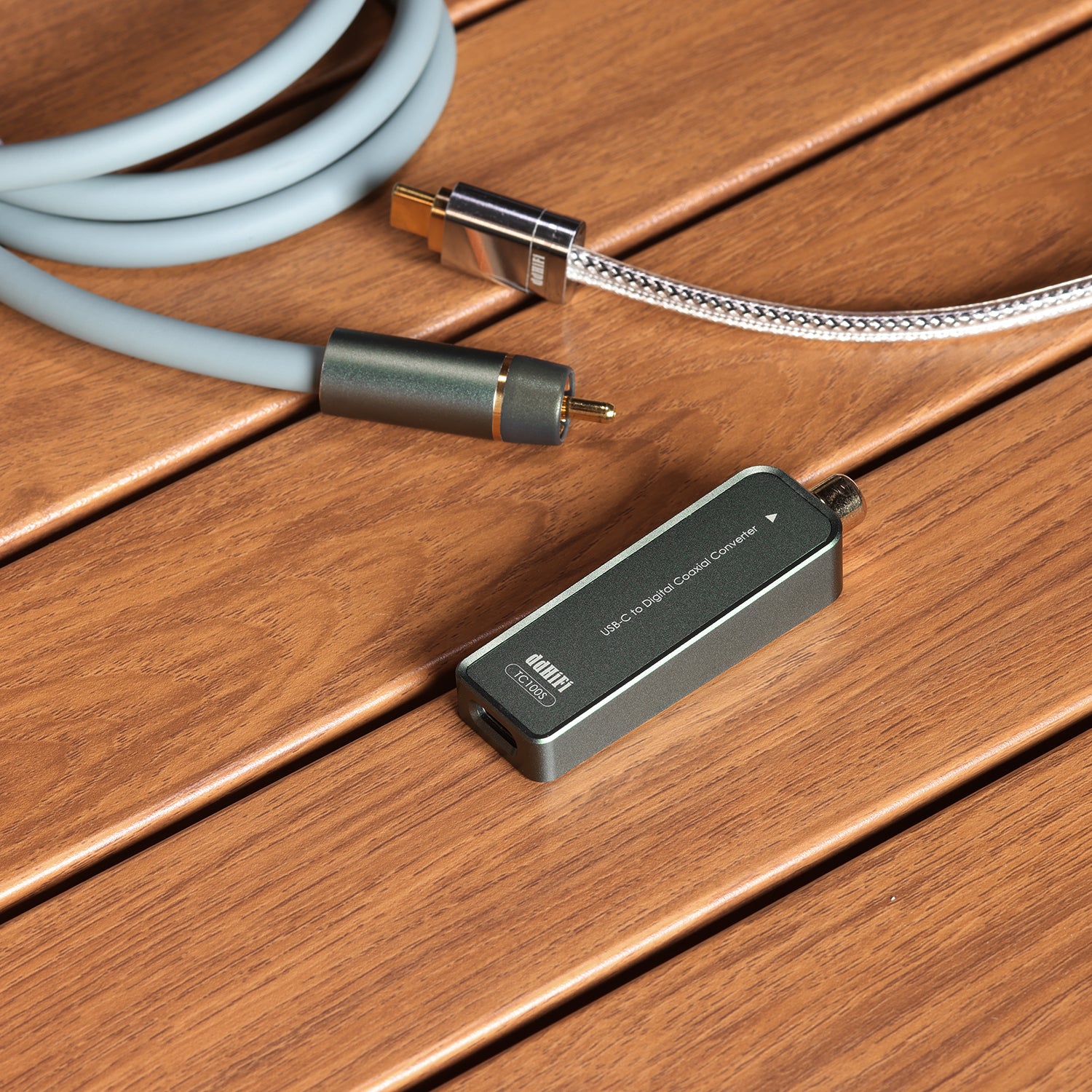

Standard Female Socked for Connexting RCA Coaxial Cable
You can connext coaxial cables as needed for your environment, and different materials of coaxial cables*may result in different sound performances.(It’s recommended to use with ddHiFi’s dedicated coaxial cable RC200C( to be purcheased separately)
Replaceable USB Cable

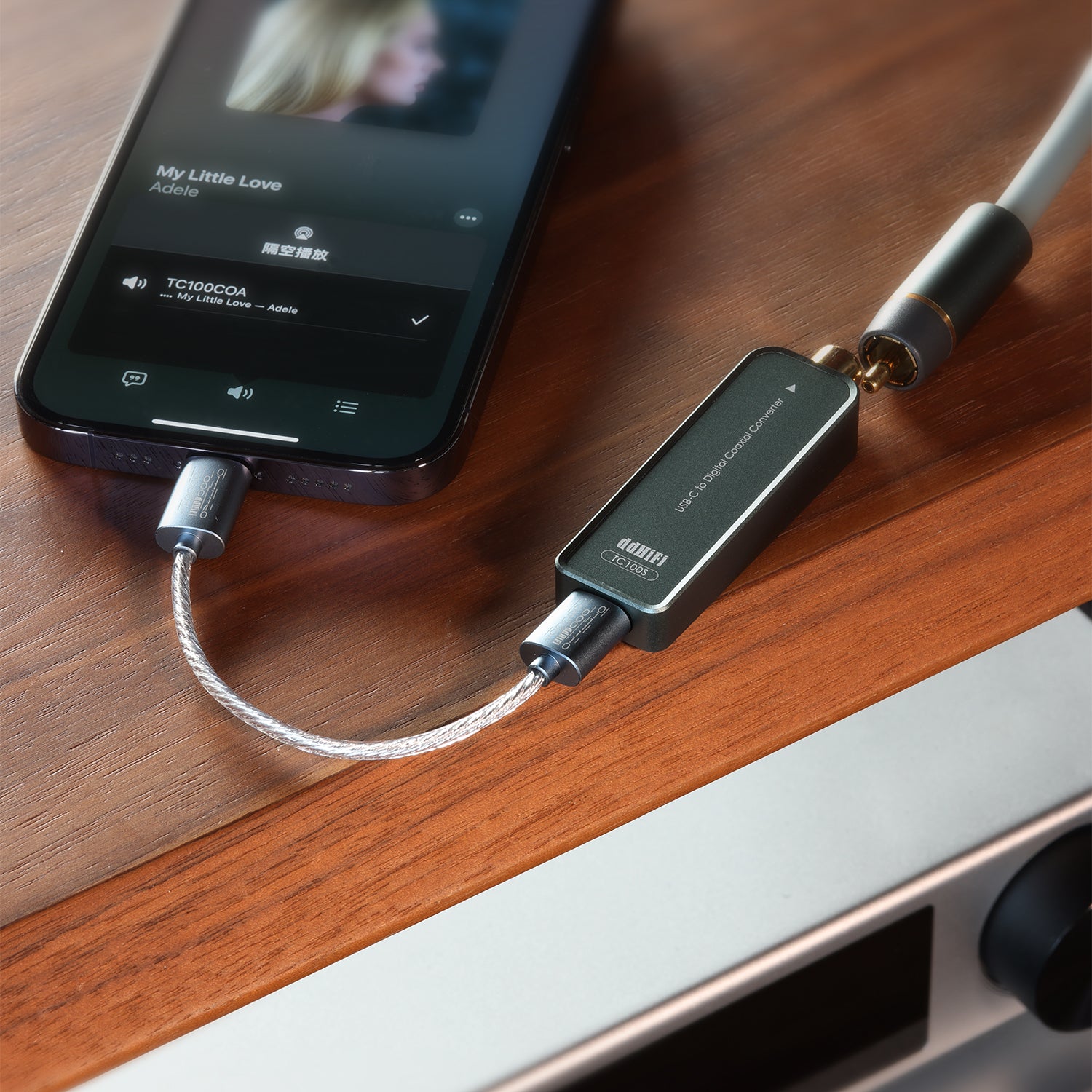

Due to adopting a USB-C female connector as its input, allows for the use of an array of interfaces when the TC100S is connected to digital devices, not limited to USB-C, USB-A and Lightning. One can select a suitable data cable to connect the digital device directly according to your need for different cable lengths.The USB cable* bundled with the smartphone can also be used, alternatively, it is recommended to use ddHiFi TCO9S and MFIO9S cable to get a better sound quality experience.
(*1. Some USB-C high-speed data cables may not be compatible with TC100-COA; please use a more conventional USB2.0 data cable. 2. When working with an iPhone, it is required to use the data cable with OTG functions, such as MFiO6S and MFiO9S, or the OTG adapter like ddHiFi TC28i and TC28i Pro. The conventional data cable without the OTG function cannot work for it.)
(*1. Some USB-C high-speed data cables may not be compatible with TC100-COA; please use a more conventional USB2.0 data cable. 2. When working with an iPhone, it is required to use the data cable with OTG functions, such as MFiO6S and MFiO9S, or the OTG adapter like ddHiFi TC28i and TC28i Pro. The conventional data cable without the OTG function cannot work for it.)
Digital Audio Transformer
For some inferior USB conversion devices, the ground of the USB is directly connected to one of the coaxial outputs or uses only one capacitor to create the isolation, as a result, this audio transmission would be unreliable. The TC100Sadopts a DA101Cdigital audio transformer from Murata company, which balances the USB input and coaxial output circuits, to ensure high-quality digital audio transmission.
Technical Details
- 1 x DDHiFi TC100S
- User Manual
