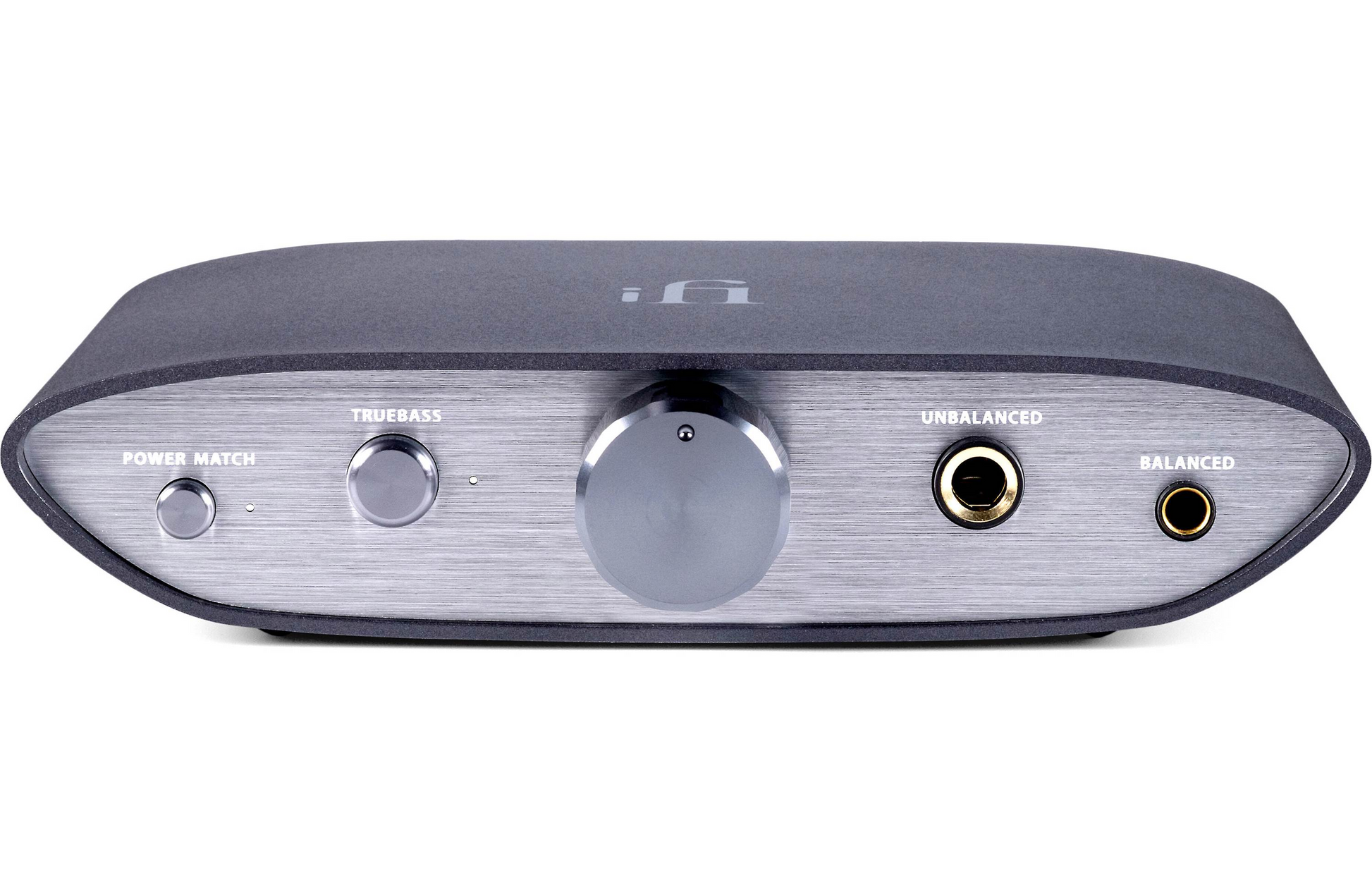

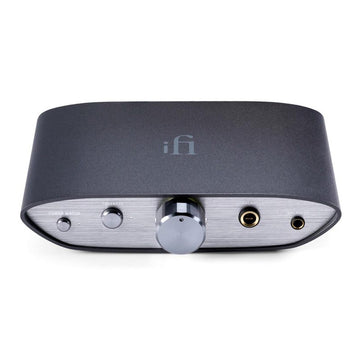

iFi Zen DAC V1

Desktop USB DAC and headphone amplifier

    S-balanced headphone amp
    Improves sound from your PC, laptop, digital music player, iPhone, and/or Android phone
    compact design with sturdy metal chassis
Regular price $189.99 USD
Sale price $189.99 USD Regular price

UPGRADE YOUR SYSTEM

With this state of the art compact Digital Analogue Converter for home audio, office, or desktop use, you will hear a difference and clarity in your audio system whether you use speakers or headphones

EASY CONNECTIVITY

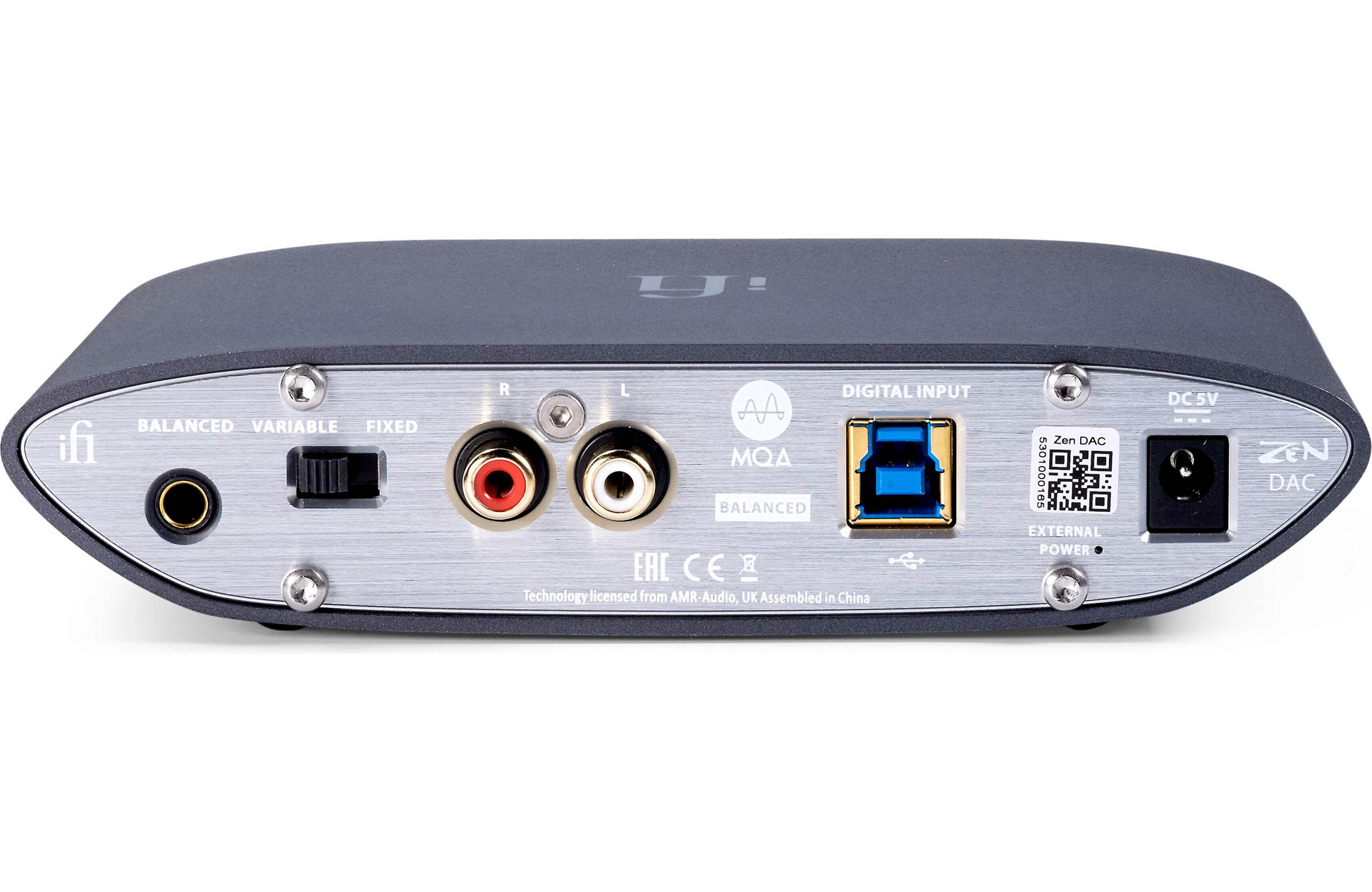

Connect via USB3.0 (USB2.0 compatible) input from your USB source such as a computer or Digital Audio Player (DAP). Output to headphones, active speakers, or amplifier with 6.3mm Unbalanced / 4.4mm Balanced / RCA connections

HIGH RESOLUTION AUDIO .

Hear familiar songs in a whole new light with rich detail and warm natural tones created by the Burr Brown True Native digital to analogue converter which can process any hi-res audio format up to PCM 24/384, DSD256, DXD 384kHz, and renders MQA all without additional conversion so you can listen exactly as the artist intended. Also perfect for upgrading the sound for streaming services such as Spotify, Tidal, Qobuz, and Amazon Music

TECH PACKED

With technology like: Variable analogue volume control, PowerMatch adjustment for iEMs/On & Over Ears, and TrueBass to add bass to iEMs, you can listen to your music with smoother, cleaner, playback

STYLISH AND SMART DESIGN.

Military Grade Aluminum makes up a sturdy and sleek exterior. The smooth curves and edges will bring a sense of peace and tranquility to your home or office.

Inside the Box

  • 1 x iFi Zen DAC V1
  • User Manual

1 Year Warranty

The iFi Zen DAC V1 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Input
USB 3.0 Type B (USB 2.0 compatible)
PCM
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
DSD
2.8 / 3.1 / 5.6 / 6.2 / 11.2 / 12.4 MHz
DXD
353 / 384 kHz
DAC
Bit-perfect DSD & DXD DAC by Burr Brown
Output
Unbalanced (RCA)
2.1V fixed; 1V - 3.3V max variable
Balanced (4.4mm)
4.2V fixed; 2V - 6.2V max variable
Z-out
<= 100 Ohm (unbalanced); <= 200 Ohm (balanced)
SNR
< -116dB (A) @ 0 dBFS (Unbal/Bal)
DNR
> 116dB (A) @ -60 dBFS (Unbal/Bal)
THD+N
> 0.0015% @ 0 dBFS (Unbal/Bal)
Unbalanced (1/4")
1V / 3.3V max (12 - 300 Ohm headphone)
Balanced (4.4mm)
2V / 6.2V max (12 - 600 Ohm headphone)
Output Power:
Unbalanced
> 280mW @ 32R; > 36mW @ 300R
Balanced
> 380mW @ 50R; > 70mW @ 600R
Output Impedance
< 1 ohm (Unbal/Bal)
THD+N
< 0.005% (125mW @ 32R)
SNR
>113dBA (3.3V Unbal / 6.2V Bal)
Power Consumption
~ 2.5W (max); ~0.5W (no signal)
Dimensions
Width 6.215", Height 1.375", Depth 4.709"

Authentic Products

Linsoul Audio is the authorized distributor. All products are authentic and genuine.

Worldwide Free Shipping

We are located in China but send our products worldwide for free. T&Cs apply.

1 Year Warranty

We provide 1 year warranty for the all products except the cables and accessories*.

Online Support

Need help?, we are here to assist you
Monday - Friday: 09:00 – 18:00 (UTC+8)

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
N
Nefo
An excellent dac / amp

I have been using this dac for a month and the truth is that it has fascinated me.

Let's start with its dimensions, it is large if you are used to dongles, but if you have already had one, it can be said that its size is small-medium.

Its construction is robust, nothing cheap that implies that we are facing a quality product, the only detail is its button panel since it is loose, that is, if you move this dac, they will sound like a rattle.

Its volume knob seems good and adequate to me, it is smooth and precise, behind it an LED lights up (depending on the file).

It has a good number of output ports, we have 2 balanced 4.4mm pentaconn, 1 professional output with its 3.5mm adapter, an amplifier output and its data and charging connection (it also has a power port but does not have the charger included Unfortunately).

Speaking of the sound, its performance is very good, it gives us a warm, rounded sound with excellent detail for its price, when activating the truebass we will obtain a much warmer sound, this will enhance the bass and sub-bass, but despite it keeps the music clean, it is not intrusive and it works better than a simple equalizer (I am not a fan of equalizing) but in this device using the truebass is fascinating.

Finally speaking of power, this dac / amp will cover all the needs of iems and even a large part of headband headphones, do not think that it will move you very demanding planars, if you use the balanced output and high gain you can move more demanding headphones (I would put limit 600 ohms to 95% of its capacity will move them).

In my opinion, this dac / amp is a safe purchase for anyone who starts or who only has mobile devices (dongles and low-end daps) and especially if you have headphones that are somewhat cold or balanced and you would like them to be more fun, colored and warm.
