Moondrop Concerto
xMEMS + Planar USB-C Hi-Fi IEM
- xMEMS Solid-state All-silicon Montara Driver
- 13mm Superlinear Planar Driver
- 32bit/384kHz Decoding Chip
- Innovative V-Shaped Acoustic Design
- Two-Channel Sound Separation
- VDSF Target Response Acoustic Tuning
Moondrop Concerto
Advanced xMEMS Montara Technology
The Concerto features the xMEMS solid-state all-silicon Montara driver, a revolutionary advancement in electroacoustic transducers. This cutting-edge driver offers faster mechanical transient response, precise treble phase, and a wider ultrasonic bandwidth. Despite its high cost and complex assembly, Moondrop has selected the Montara driver from xMEMS for its ultra-wide, ultra-smooth treble response and phase accuracy beyond 80kHz, delivering high-resolution sound for an immersive audio experience.
13mm Superlinear Planar Driver
The Concerto incorporates a new patented 13mm Superlinear Planar Driver, designed for exceptional audio performance. Combining the benefits of both planar magnetic and dynamic drivers, it achieves ultra-high resolution with powerful dynamics. This innovative driver offers over 10 times the energy conversion efficiency of traditional planar drivers and about 4 times that of dynamic drivers of the same size. With an ultra-low full-band nonlinear distortion below 0.05%, it delivers an expansive dynamic range even at low power, providing an extraordinary sound experience for in-ear headphones.
Innovative V-Shaped Acoustic Design
The Concerto employs an integrated natural coupling cavity to maximize the xMEMS Montara’s treble response and phase accuracy. Our compact V-shaped opposed acoustic arrangement aligns the vibration areas of the high and low-range drivers at a sharp angle, ensuring sound waves travel almost the same distance to the ear canal. This design achieves perfect phase consistency, enhancing the overall audio experience.
Two-Channel Sound Separation
The Concerto In-Ear Monitor features two-channel sound separation, independently driving xMEMS treble and planar mid-bass outputs. To fully harness the ultra-high resolution and precision of the xMEMS treble driver, we’ve integrated a USB decoding chip capable of 32bit/384kHz high-resolution audio decoding. Each xMEMS treble driver is powered by a dedicated Aptos power amplifier with Bias, while the planar driver operates through standard audio output channels, ensuring optimal performance across all frequencies.

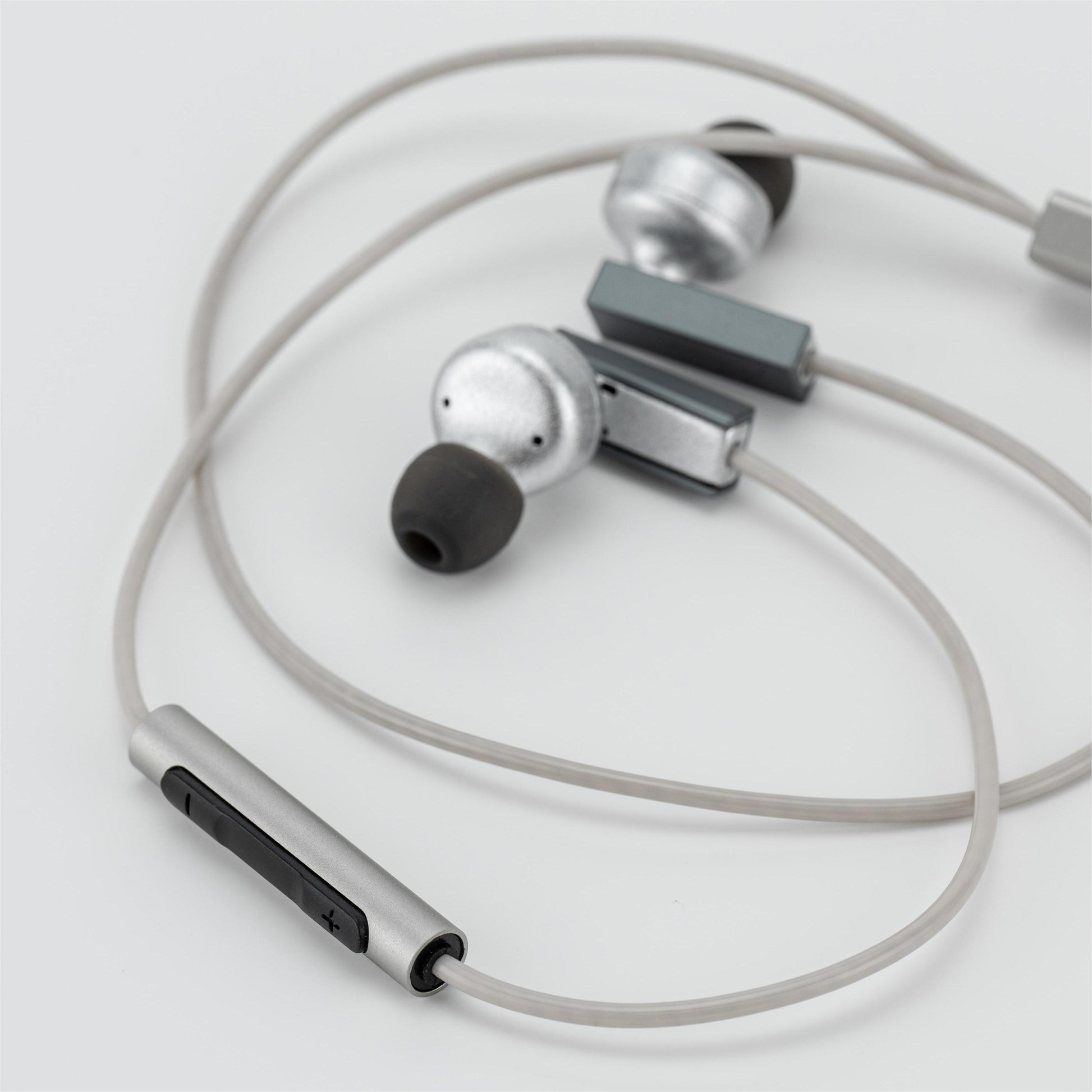

High-Quality Cable and Connector
In collaboration with ddHiFi, a well-known brand in HiFi audio cable industry, the Concerto features custom-designed cables and connectors for superior sound quality. The cable comprises an 85cm data transmission section and a 35cm signal cable. The data cable is wrapped in a durable cotton and polyester mesh, twisted for stability and interference reduction. The signal cable features a PVC coating from the U.S., with insulated internal coils. A CNC-processed splitter shell and light brown cable with titanium accents give it a sleek, screwless design that’s both durable and visually refined.
VDSF Target Response Acoustic Tuning
The Concerto is tuned to meet the VDSF Target Response, delivering accurate imaging, timbre, and high-resolution sound. This advanced driver ensures an ultra-wideband response, enhancing detail and providing a refreshing, immersive listening experience.

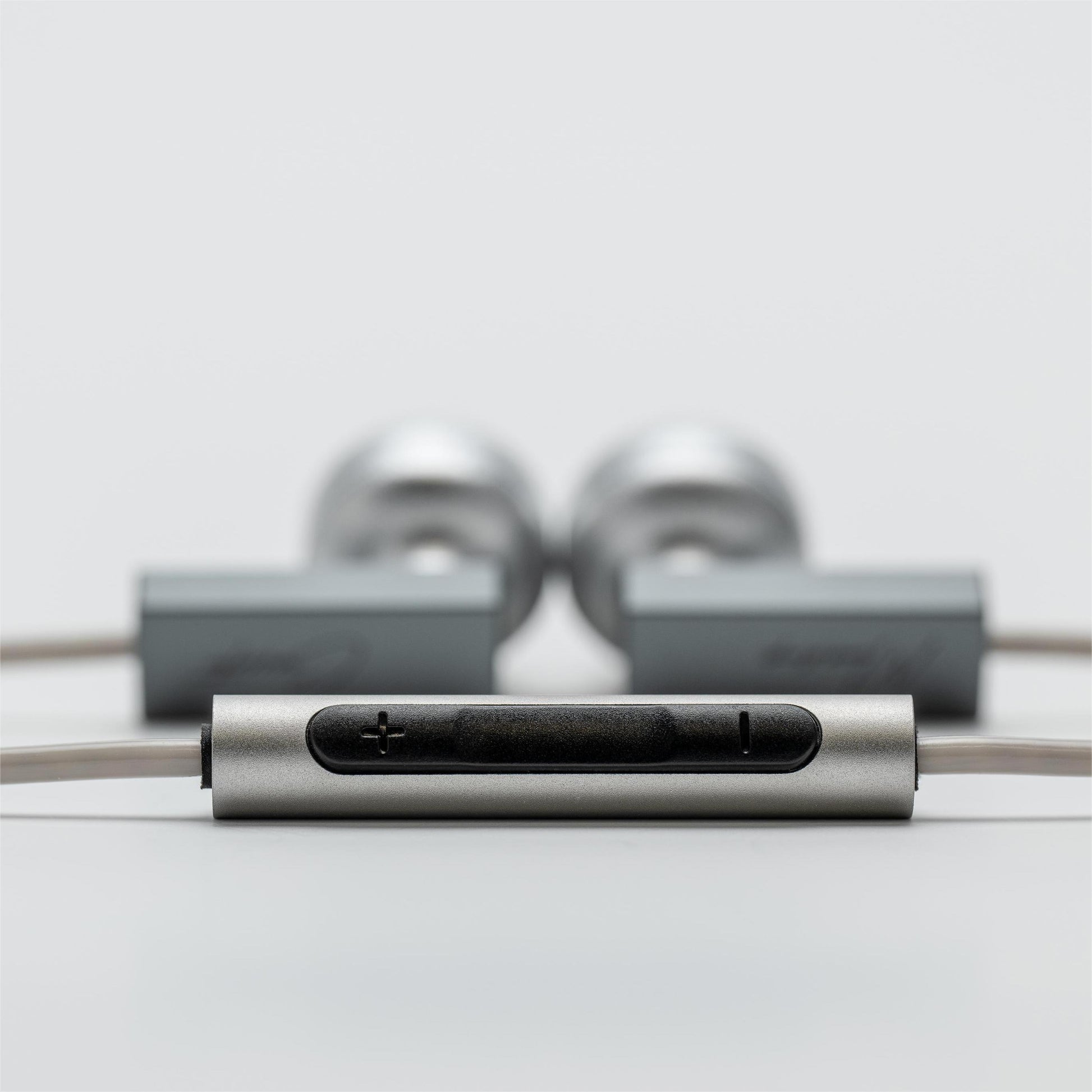

USB-C Audio with Line-Control
The Concerto supports UAC 2.0 and 3.0 audio protocols via a USB-C interface, ensuring compatibility with mobile phones, laptops, and PCs across iOS, Android, and Windows. Its integrated 32-bit/384kHz high-resolution decoding chip allows for lossless, delay-free wired transmission of high-quality master tracks from streaming services. Additionally, the three-button line-control microphone enhances convenience, offering easy control for calls and media playback.
Technical Details
- 1 x Moondrop Concerto
- User Manual
Processing Time
This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.
Pre-order Period: 2 to 4 weeks.
