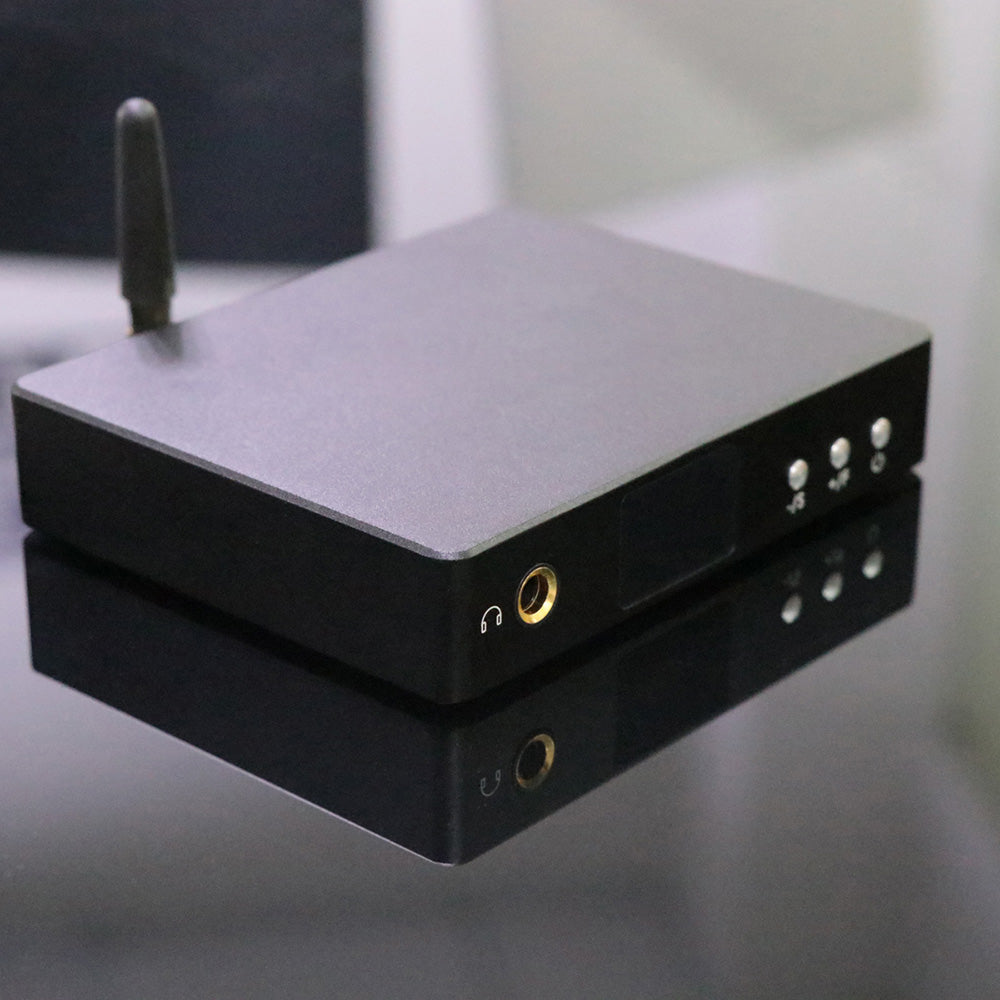

Multifunctional Decoder

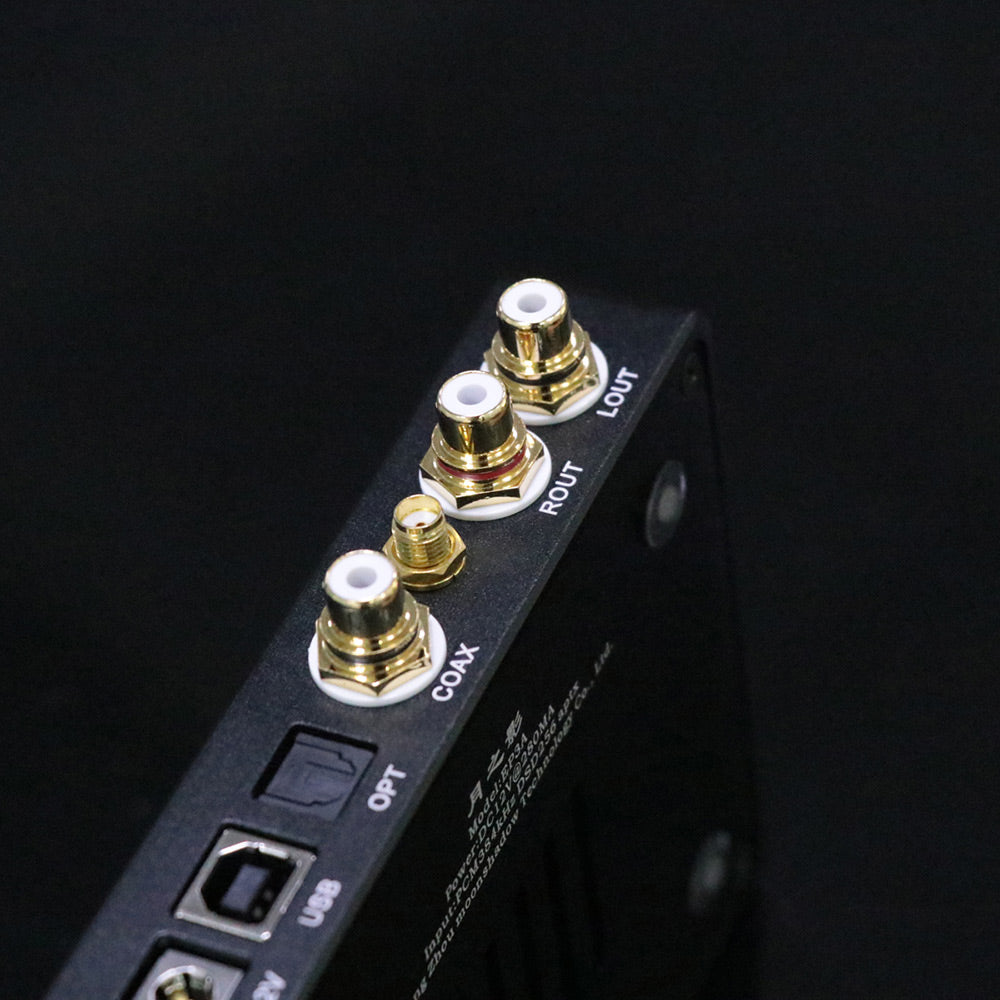

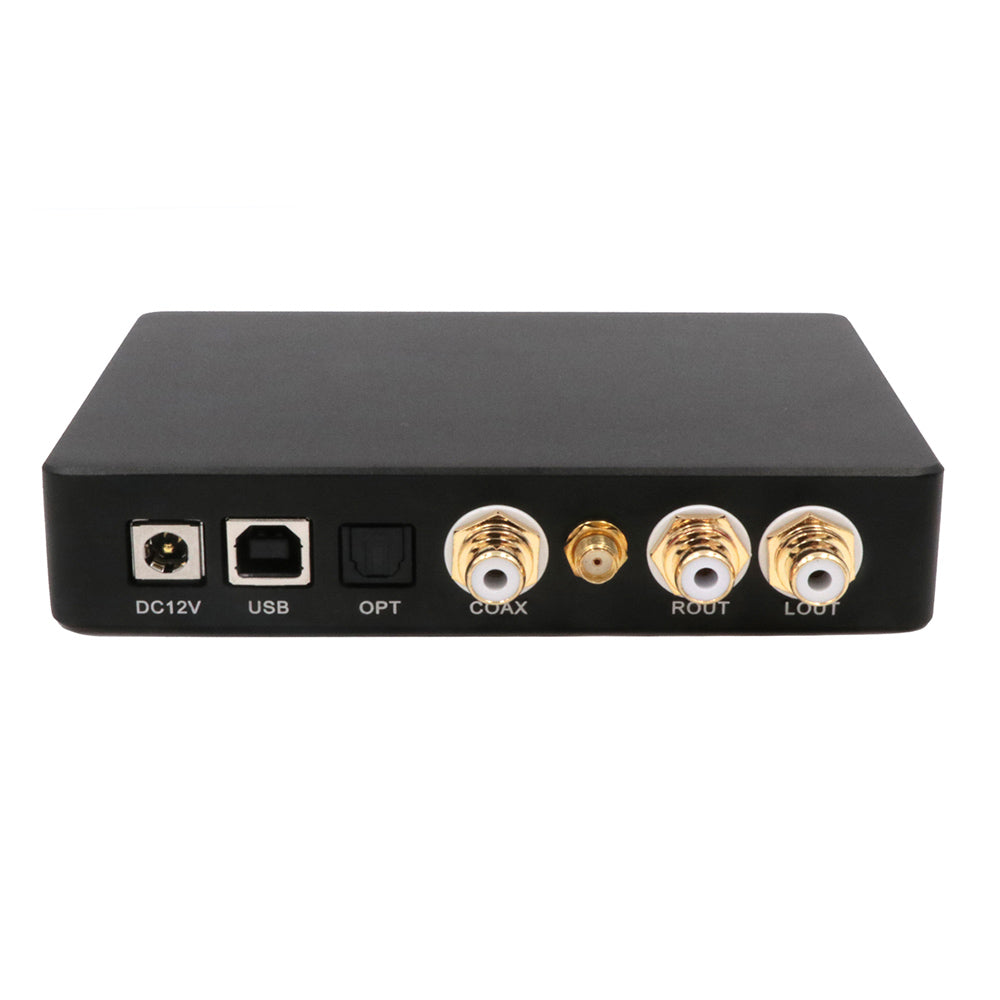

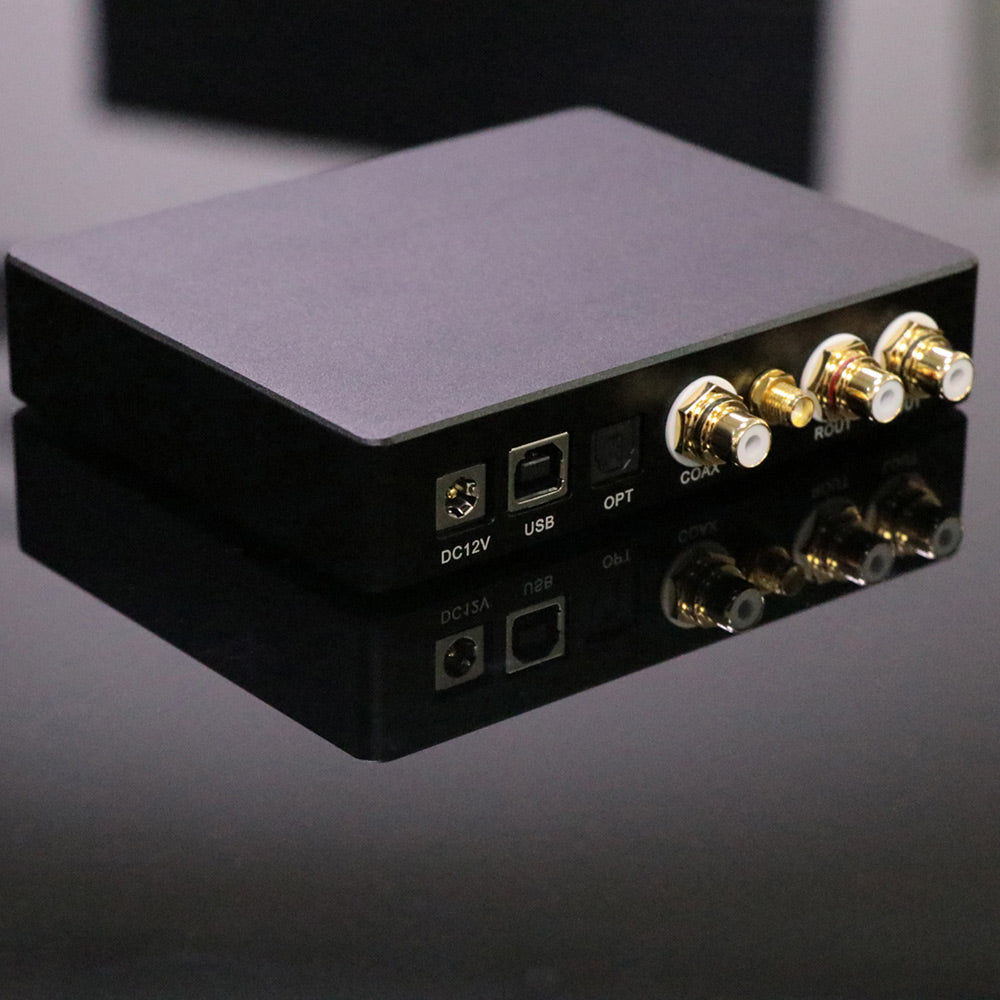

The Moonshadow EP3A mini decoder is equipped with a few inputs, USB Optical and Coxial. It¡¯s also a XMOS Bluetooth decoder, supporting Aptx, DSD, FPGA, Dop128 PCM768kHz DSD512. It¡¯s the best choice among most products in the market.

Mini and Lightweight

?This model is as small as your palm. You can take it anywhere anytime. It also features a 0.96 inch OLED screen, making every data readable and noticeable.?

Supreme Quality

Upgraded chip, CNC housing and gold plated RCA port make it an outstanding product with long lasting and stable quality.

A High Tech Decoder

The Moonshadow is above the ordinary because of its CPLD Clock Reforming Tech, Shaking-free and POP Noise cancelling Tech and FPGA Clock Management Tech. It adopts OP+Buffer program to suit for high impedance earphones.

Technical Details

Supply Voltage
DC12V
Supply Current
280ma
Distortion
THD+N<0.001%
Bluetooth PCM
44.1-48kHz
Sampling
USB  PCM 16-32bit 44.1-384kHz   DSD  DSD64-DSD256
COAX PCM16-32bit  44.1-384kHz   DSD Dop64-dop128
OPT PCM16-24bit  44.1-192kHz   DSD  Dop64
Net Weight
356g
Dimensions
125mm*100mm*25mm

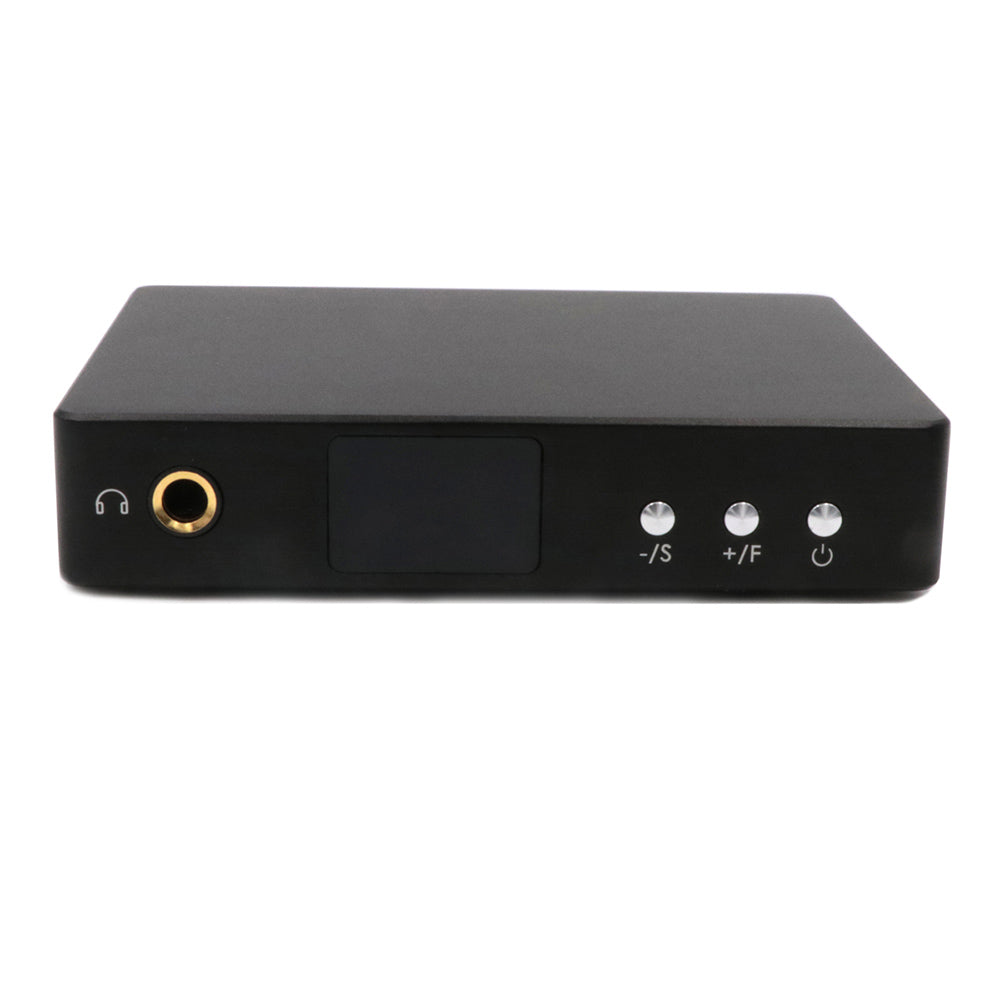

Button Instructions
-/S: Short press to exchange the input channel,long press to decrease the volume
+/F:Short press to exchange the filter, long press to increase the volume
Inside the Box
  • 1 x Moonshadow EP3A
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The Moonshadow EP3A Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.
