Singxer SU-6
Singxer SU-6
SU-6 is the latest xCORE-200 series USB digital interface products using XMOS.
The new generation of XMOS chips, using a more advanced process technology, doubles the performance of the older U8 chips to achieve 1000 MIPS of processing power.
using high-speed full isolation design
can very effectively isolate the interference noise between the computer and the interface. The SU-6 uses a very good circuit design, using a high-speed PGA to reform the digital audio signal after isolation, so that the signal after reforming is completely immune to the jitter of the isolated chip itself.

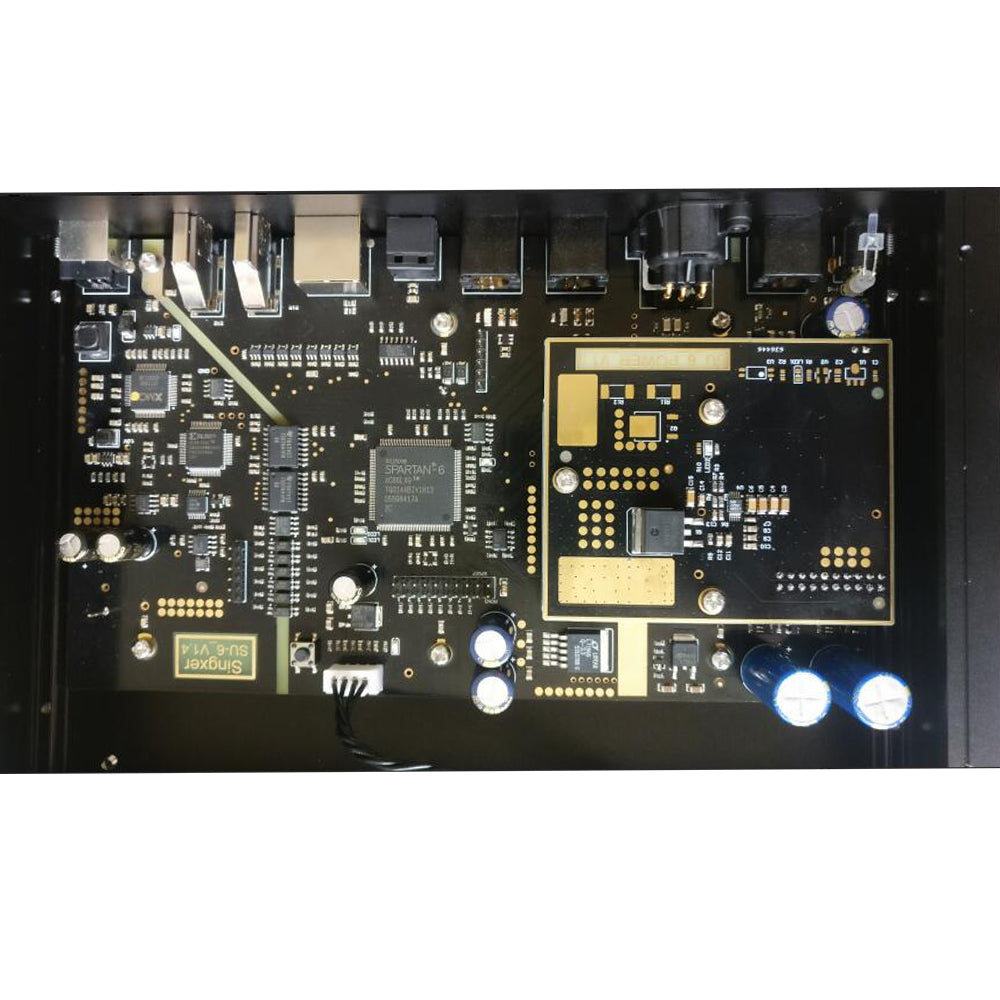

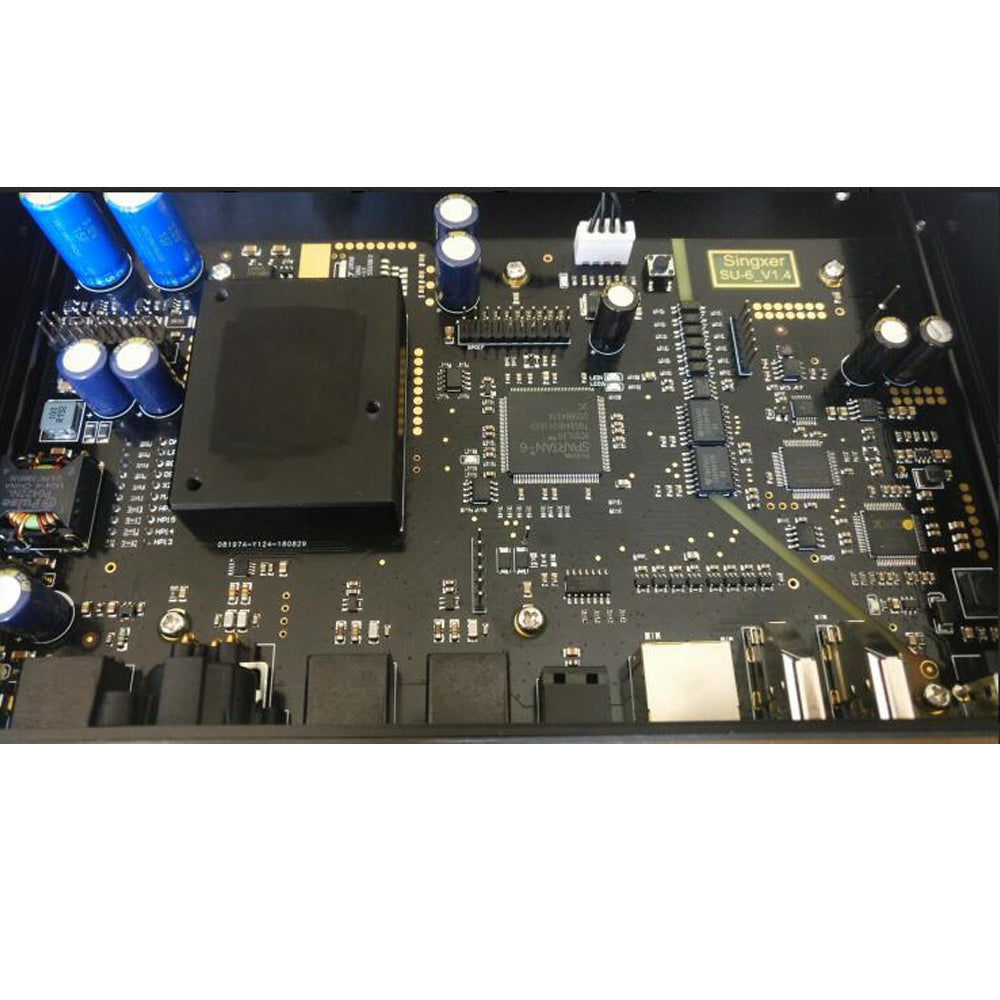

SU-6 internal motherboard adopts unified source synchronous clock technology,
PGA internally uses a special algorithm to strictly control the clock signal and digital audio signal, which can ensure that the digital audio signal will not be delayed and phased after passing through the isolation chip. Poor and extra distortion.
As we all know, the core of digital audio is the algorithm.
the core of digital audio is the algorithm. The Singxer team has been working in the digital audio field for many years and has received strong support from the XMOS AE team. We have implemented several technical improvements and algorithm optimizations based on the original firmware.
System compatibility:
1, Windows 7, Windows 8, Windows 10; 32/64 bit, need to install a dedicated driver
2, Native MacOS 10.6 and later, using the system comes with a driver
3, Native Linux with UAC2 compliant kernel, using the system's own driver, (tested on Ubuntu and Daphile systems, based on INTEL X86 platform)
4, Android OS 4.2 and above, the device needs to support OTG function, in general, the Android 5.0 system is supported by default, and the following 5.0 recommendations are used with a dedicated player.

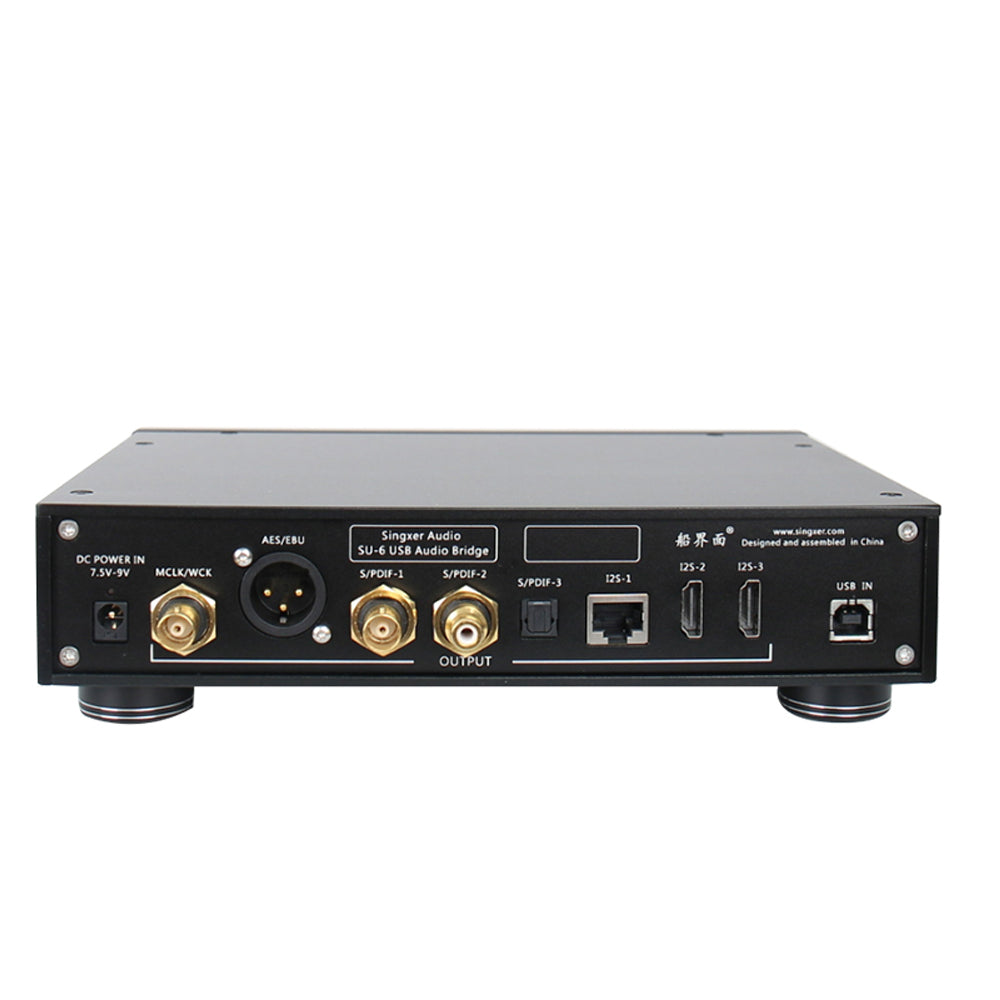

HDMI -I2S interface output:
1. LVDS differential signal with a level of 3.3V;
2.DSD ON signal, 5V power supply (small current), the internal PGA of the MUTE signal has been processed, and the MUTE signal will not need to be output;
3. The DSD ON signal can be defined by itself. The DSD ON signal can be arbitrarily output to the PIN13, 14, 15, and 16 pins of the socket.
4. The phase of PIN1-3 and PIN7-9 is adjustable, and the user can configure the phase of the two pairs of outputs through one switch.
Technical Details
- 1 x Singxer SU-6
- User Manual
