Bluetooth 5.1 High-End Chip QCC5125

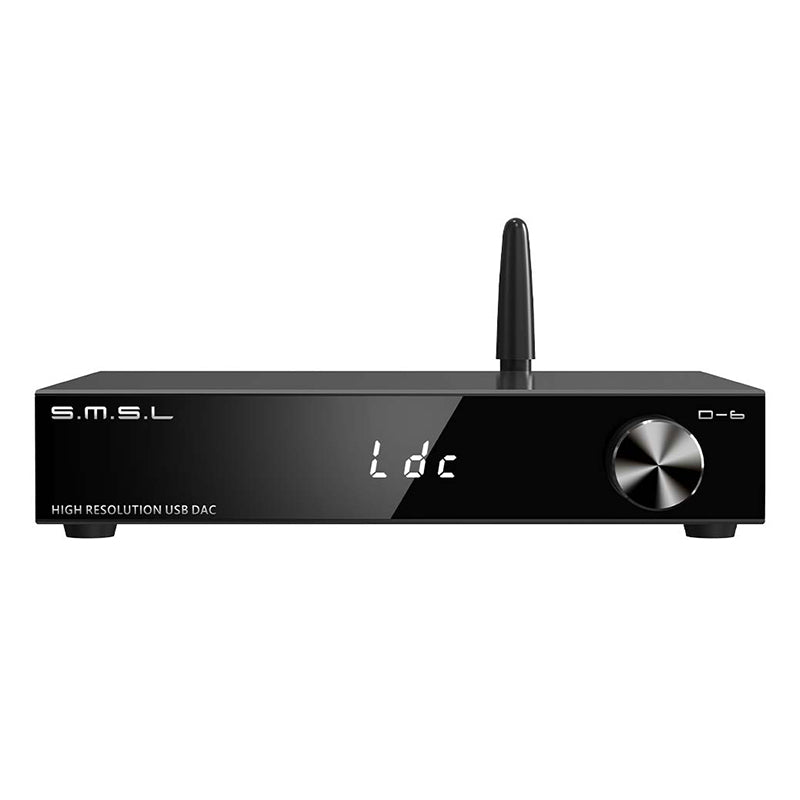

SMSL D-6 adopts Bluetooth 5.1 High-end Chip QCC5125 supporting SBC, AAC, APTX, APTX HD, and LDAC, and the corresponding format would be shown on the screen. This device also supports type-c to type-c and TRS balanced output.

Built-in Low Noise Power & Ultra-Low Jitter

Utilizing the CK-03 clock module used by high-end devices, D-6 also features a built-in high-performance power filtering system. The Japanese ultra-low phase noise clocks make the clock jitter of optical coaxial as low as USB, meaning D-6 can greatly reduce the system jitter.

Dual Ak4493s & 2nd Generation Asynchronous XMOS

Equipped with a dual new AK4493s decoding chip that can help the device climb an unprecedented 0.00011% after adjustment repeatedly, the SMSL D-6 adapts 2nd asynchronous XMOS solution supporting up to 32Bit/768kHz and DSD512.

Mini Handy Design & CNC Aluminum Alloy Housing

With the simple and stylish CNC integrated milling process, SMSL D-6 characterizes mini size design, which is very suitable for desktop use. Besides, this device features anodized CNC aluminum alloy housing. The use of non-magnetic raw materials can not only shield the interference of external magnetic fields but also have no magnetic fields.

Full-featured Remote Control

The SMSL D-6 follows Japan Electronics Association Hi-Res Audio certification. It also comes with a full-functional remote control that you can control the device with ease.

Technical Details

INPUTS:
USB / OPT/ COA/Bluetooth

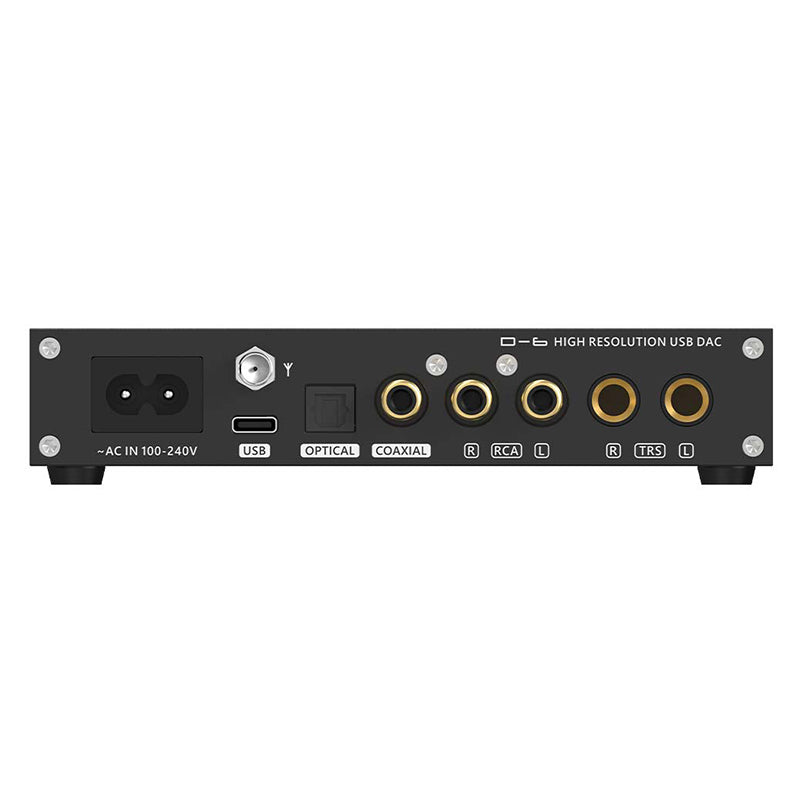

OUTPUTS:
RCA/TRS
OUTPUTS INDEXES:
TRS-4.0Vrms
RCA-2.0Vrms
THD+N:
A-weighted-0.00010%(119.5dB)
Dynamic Range:
TRS-123dB
RCA-120dB
SNR:
TRS-122dB
RCA-119dB
USB transmission:
Asynchronous
USB compatibility:
Mac OS X10.6以上、Linux
Bit depth:
USB-1bit ~ 32bit
OPT/COA-16bit ~ 24bit
Sampling:
•USB PCM-44.1kHz~768kHz
DSD-2.8224~22.5792MHz
•OPT/COA 2kHz~192kHz
USB transmission:
Asynchronous
Power consumption:
2W
Standby consumption:
<0.1w
Size:
1.48x27.5x112.8mm (WxHxD)
Weight:
450g
Inside the Box
  • 1 x SMSL D-6
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The SMSL D-6 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 2 to 4 weeks.

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
