The Come Back of Linear Amplifier

New LA90 is making a new breakthrough, reaching a new level of pristineness and accuracy. The unprecedented level of performance will bring you absolute amazement at the sound quality. The sound doesn't get any clearer than this.

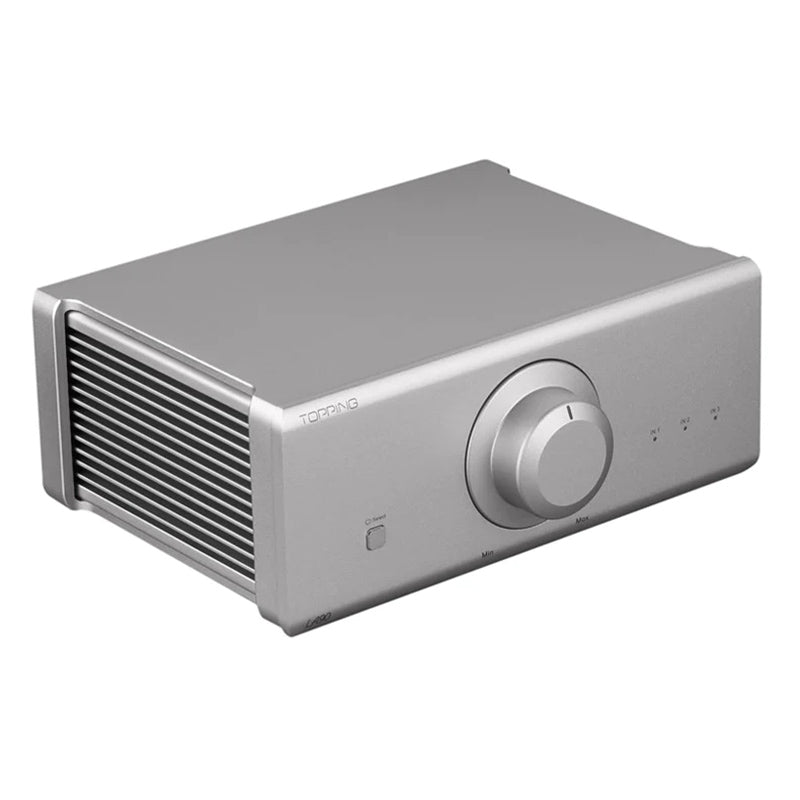

High-precision CNC-machined All-aluminum Housing

TOPPING LA90 adopts a high-precision CNC-machined all-aluminum housing, providing the product with exquisite details and solid protection. The built-in giant heat sink offers reliable and fast heat dissipation for the LA90'samplifier circuit.

Low Distortion While Outputting High Power

The LA90 features 0.00007%@8Q10W and 0.00008%@4Q20W typical THD+N, which is already as low as an excellent DAC. It is a more accurate reproduction of the music source. The LA90 has a wide working range with low distortion under load. Even in the commonly used 4¦¸ load 1W-60w output and 8¦¸ load 1W-40W output, the LA90 can control the distortion by around 0.0001%.

Selectable Working Modes & Mono

The TOPPING LA90 can be configured in a regular stereo two-channel mode, or in a high-power mono mode. When using mono, the minimum load is 8¦¸. You can control the volume, or set to bypass the volume control of LA90, and then you can use a better pre-amplifier for volume control. It is useful when synchronizing the volume of two LA90 in mono mode.

Designed for Various Purposes

As a pure power amplifier, Pre90 and LA90 can associate with the D90SE DAC£¬ which is almost the lowest distortion DAC + amplifier combination. When used as a pure power amplifier£¬ Pre90 is the best. The Pre90 brings better volume control, remote control, more inputs, and a high-power combination of 1x Pre90 + 2x LA90 can easily be achieved.

Technical Details

THD+N@1kHz(A-wt):
Stereo: <0.00009%@4Ω 5w
<0.00009%@8Ω 5w
Mono: <0.00001%@8Ω 5w
THD+N@No-wt (90kBw):
Stereo: <0.0017%@4Ω 5w
<0.0009%@8Ω 5w
Mono: <0.0012%@8Ω 5w
SNR @A-wt:
Stereo: 140dB
Mono: 142dB
Dynamic Range @A-wt:
Stereo: 140dB
Mono: 142dB
Frequency Response:
Stereo: 20Hz-40kHz(±0.2dB)
10Hz-100kHz(±1.0dB)
Mono: 20Hz-40kHz(±0.2dB)
10Hz-100kHz(±1.0dB)
Output Level:
Stereo: 51Vpp @4Ω
58Vpp @4Ω
Mono: 98Vpp @8Ω
Noise @A-wt:
Stereo: <2.0uVrms @G=L
<3.5uVrms @G=H
Mono: <2.8uVrms @G=L
<5.0uVrms @G=H
Channel Crosstalk @1kHz:
Stereo: -138dB
Mono: -
Input sensitivity:
Stereo: 6.9vrms @G=L
2.2Vrms @G=H
Mono: 6.9vrms @G=L
2.2Vrms @G=H
Gain:
Stereo: 9.5dB @G-L
19.2dB @G=H
Mono: 15.5dB @G-L
25.2dB @G=H
Channel Balance:
Stereo: 0.2dB
Mono: -
Output Impedance:
Stereo: <3mΩ
Mono: <5mΩ
Output Power:
Stereo: 110w× 2 @4Ω THD+N<10%
90w x 2@4Ω THD+N<1%
63w×2 @8Ω THD+N<10%
50Wx 2@8ΩTHD+N<1%
Mono: 220w× 1 @8Ω THD+N<10%
180Wx1@8ΩTHD+N<1%
Load Impedance:
Stereo: ≥4Ω
Mono: ≥8Ω
Inside the Box
  • 1 x TOPPING LA90
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The TOPPING LA90 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.
