Musician Pegasus Il

24BITS R2R + 6BITS DSD Architecture Decoder

  • True Innovation in Decoding Technology
  • ALTERA High Efficiency Chip
  • Sound Quality Enhancement
  • Customized Tailstock and RCA Ports
  • Encapsulated Linear Power Supply
  • Driver-Free Compatibility
  • Versatile Digital Inputs

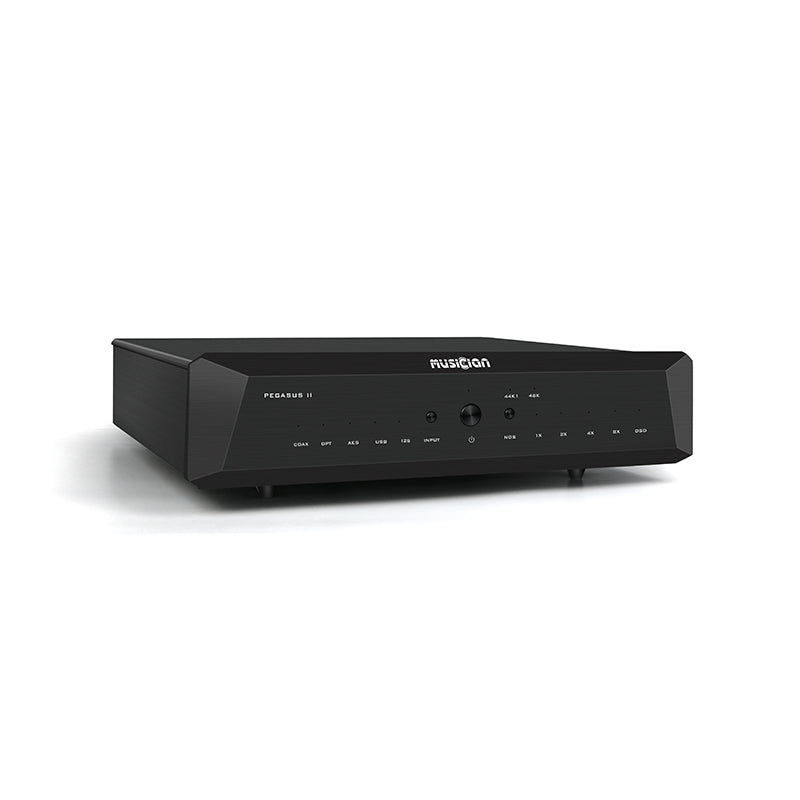

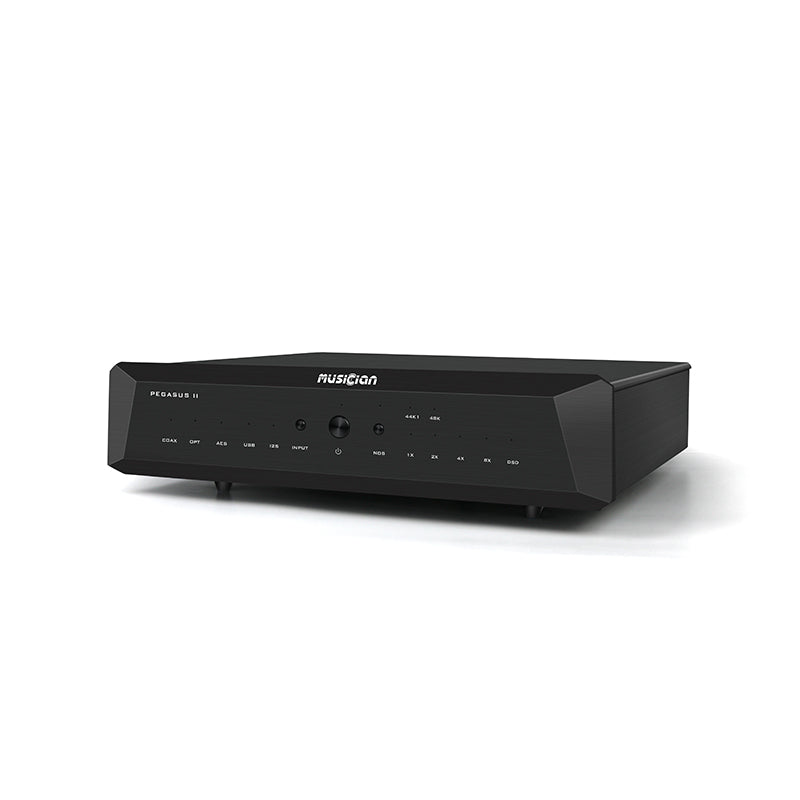

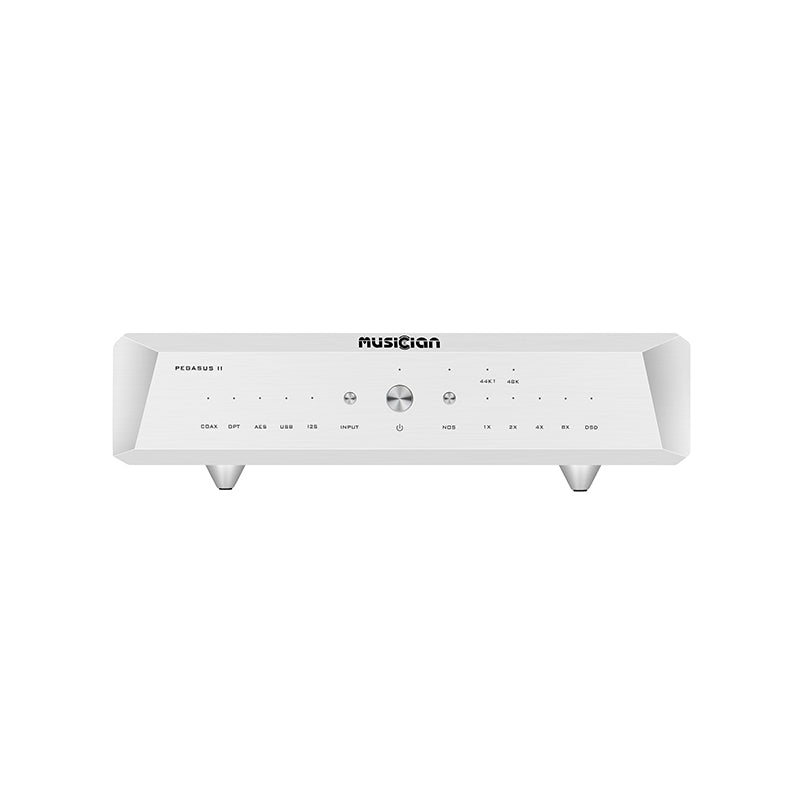

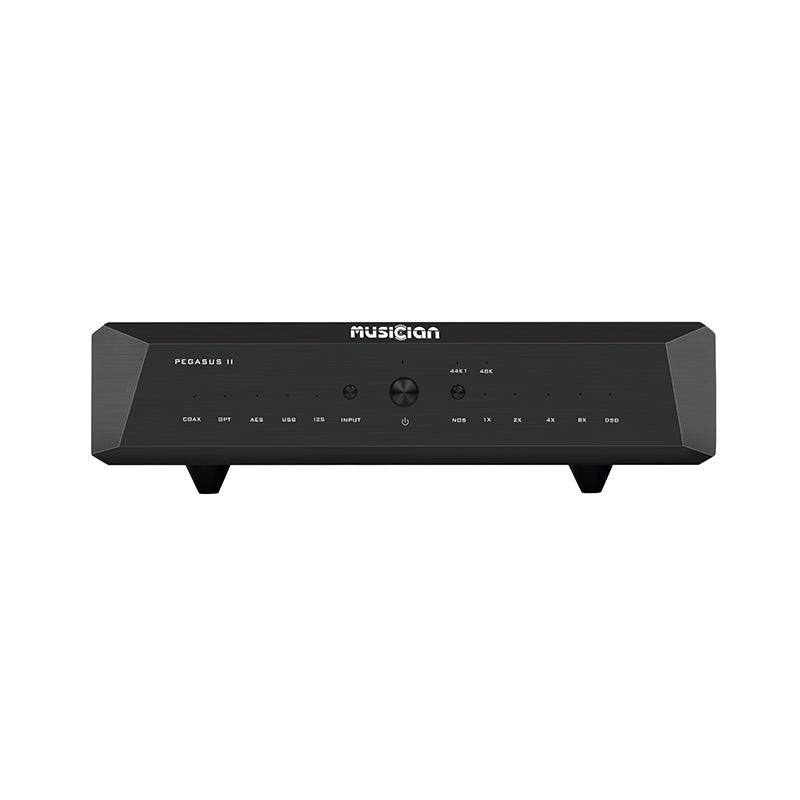

Black

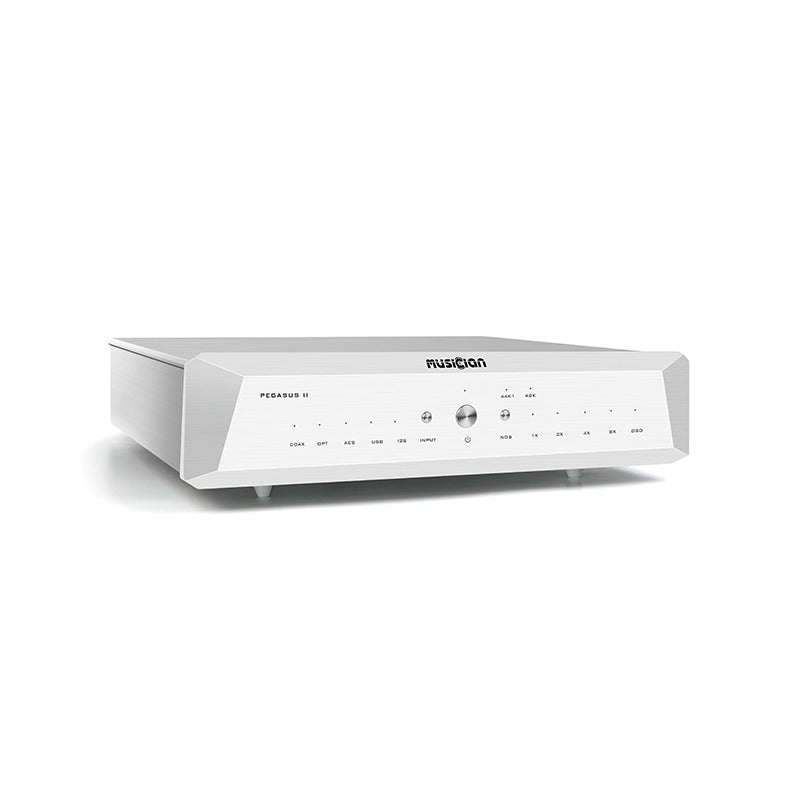

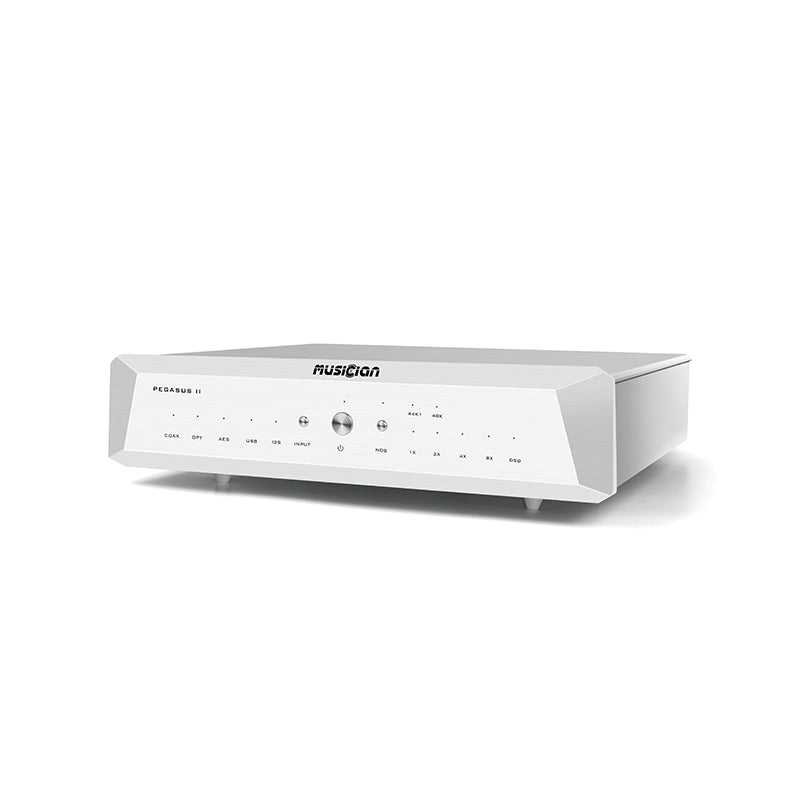

Silver
Regular price $1,099.99 USD
Sale price $1,099.99 USD Regular price

True Innovation in Decoding Technology

Experience the proprietary R2R + DSD ARCHITECTURE, featuring a true balanced 24BIT R2R + 6BIT DSD with a 32-step FIR filter. Unlike ordinary decoders that rely on chips, our discrete resistor network decoder, known as R2R, utilizes FPGAs for dynamic switching. This breakthrough approach allows for more flexible algorithm implementation, pushing past the limitations of traditional chip-based designs.

ALTERA High Efficiency Chip

Powered by the ALTERA high-efficiency chip, our DAC ensures distortion-free audio signal transmission, meeting HIFI standards. Renowned for flexibility, high reliability, and low power consumption, ALTERA enhances the overall performance of the Pegasus Il .

Sound Quality Enhancement

Setting the Pegasus Il  apart from its predecessor is the refined sound quality achieved through meticulous material optimization, delivering superior performance and enhanced cost-effectiveness.

Customized Tailstock and RCA Ports

Tailstock to PCB alignment employs multiple single crystal copper wire wraps, optimizing PCB alignment. Customized RCA ports further ensure efficient audio signal transmission.

Encapsulated Linear Power Supply

Experience stability and low noise with the encapsulated linear power supply. The multi-level power supply in the digital and analog parts, coupled with a linear regulator, ensures a consistent power supply voltage for the DAC.

Driver-Free Compatibility

For Mac and Linux users, seamless plug-and-play functionality is guaranteed, requiring no driver installation. Windows users can enjoy hassle-free connections with the licensed Thesycon USB driver.

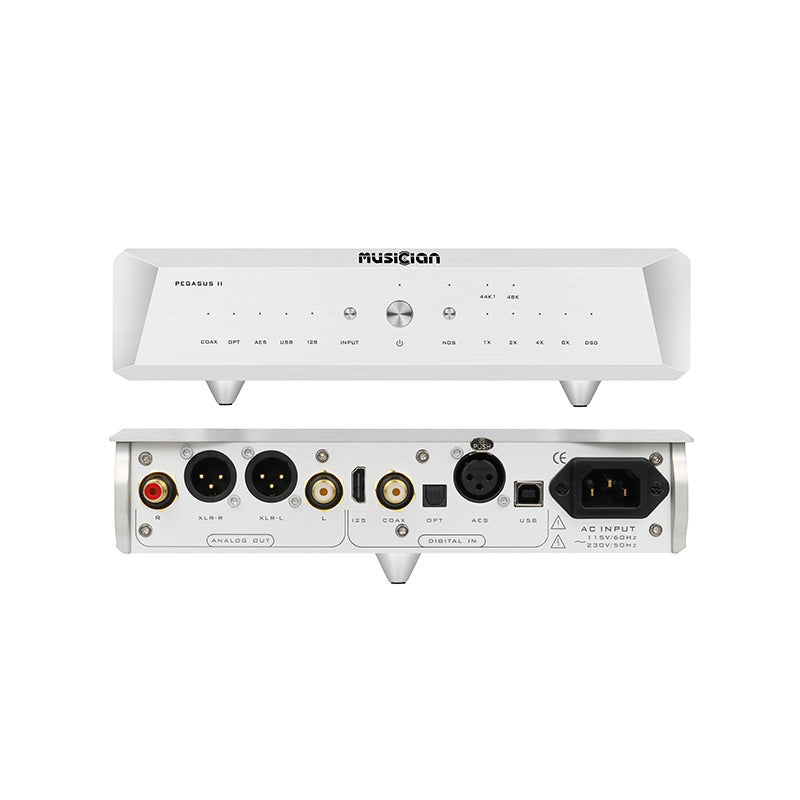

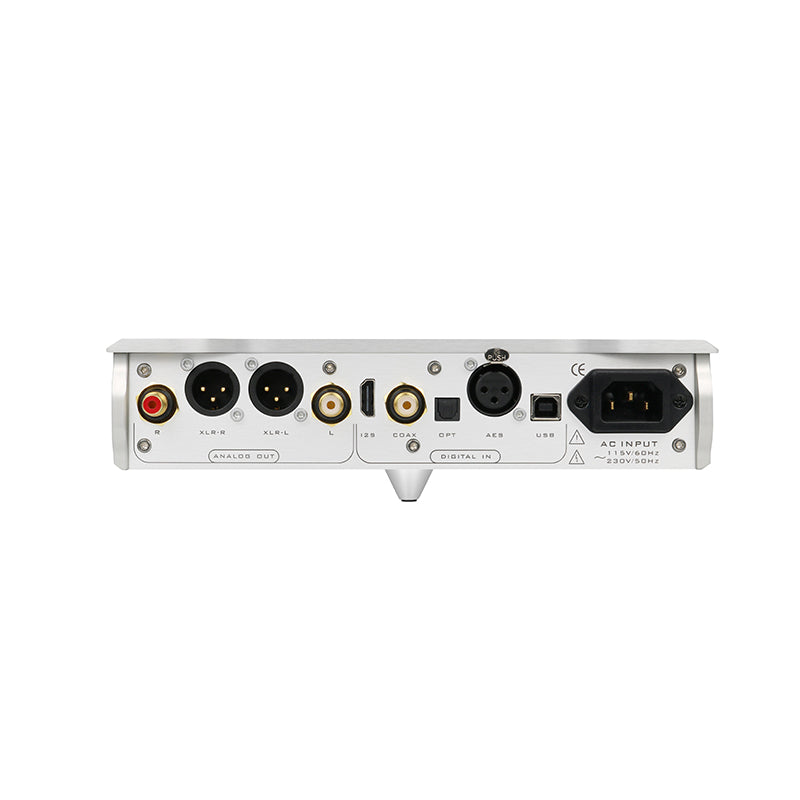

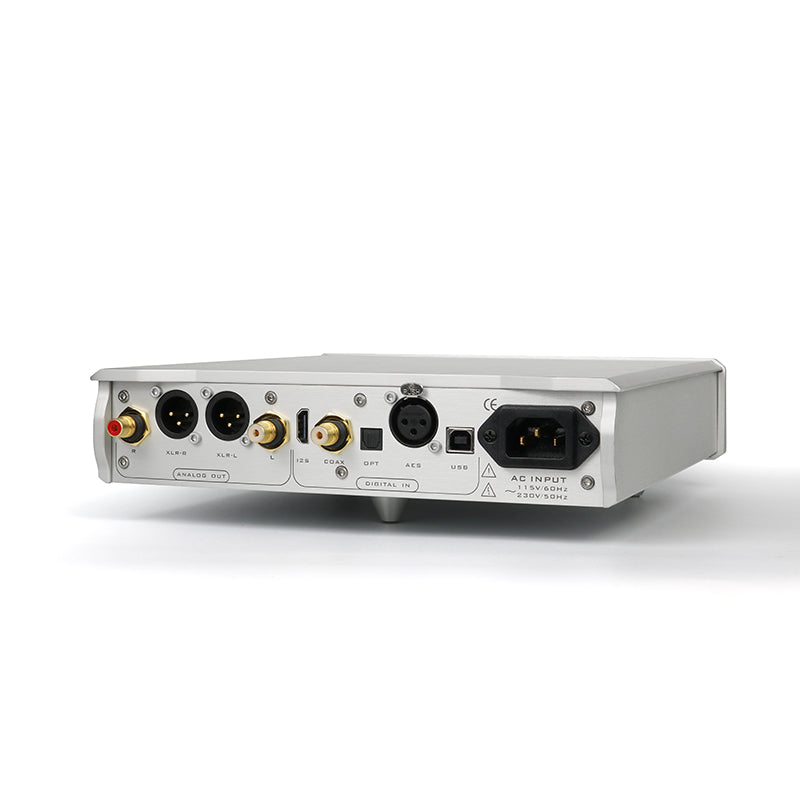

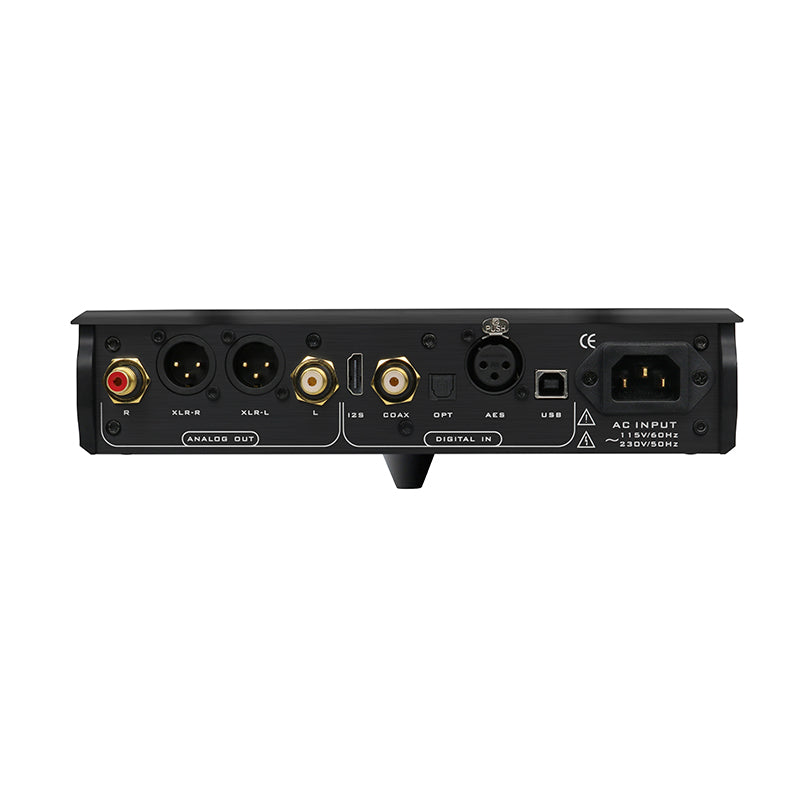

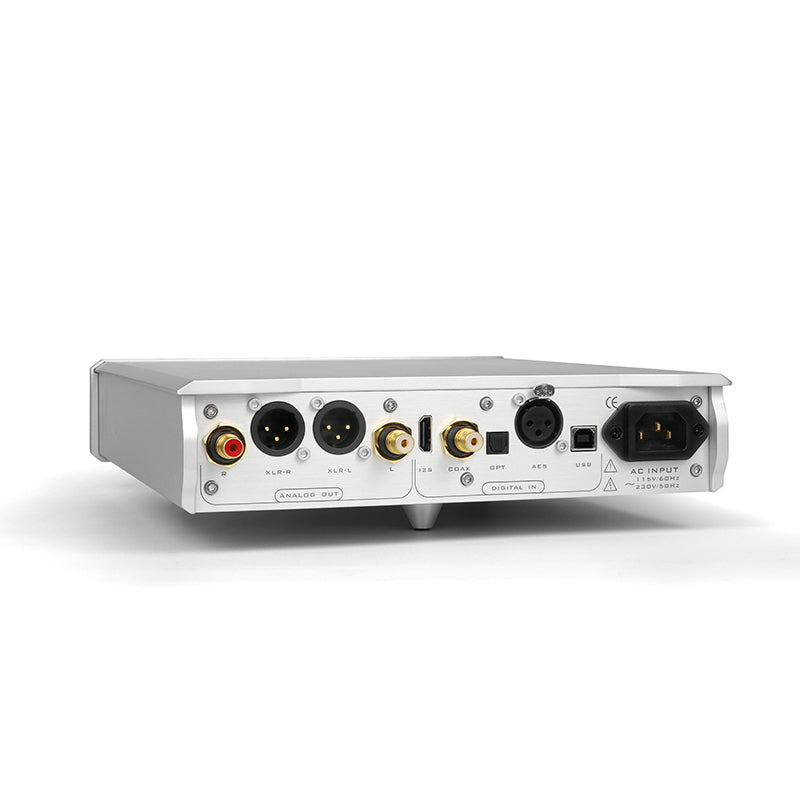

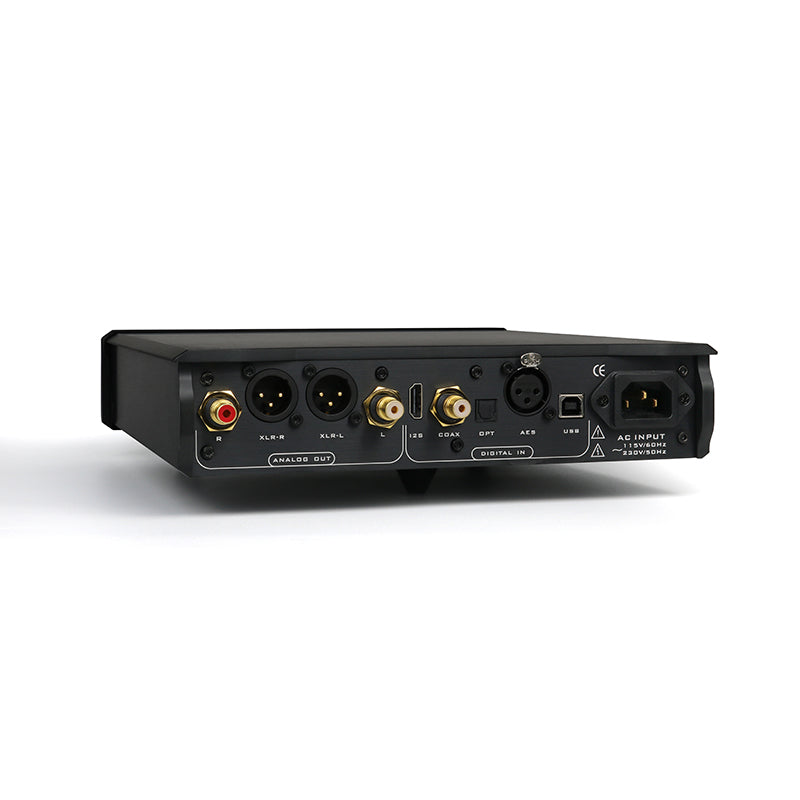

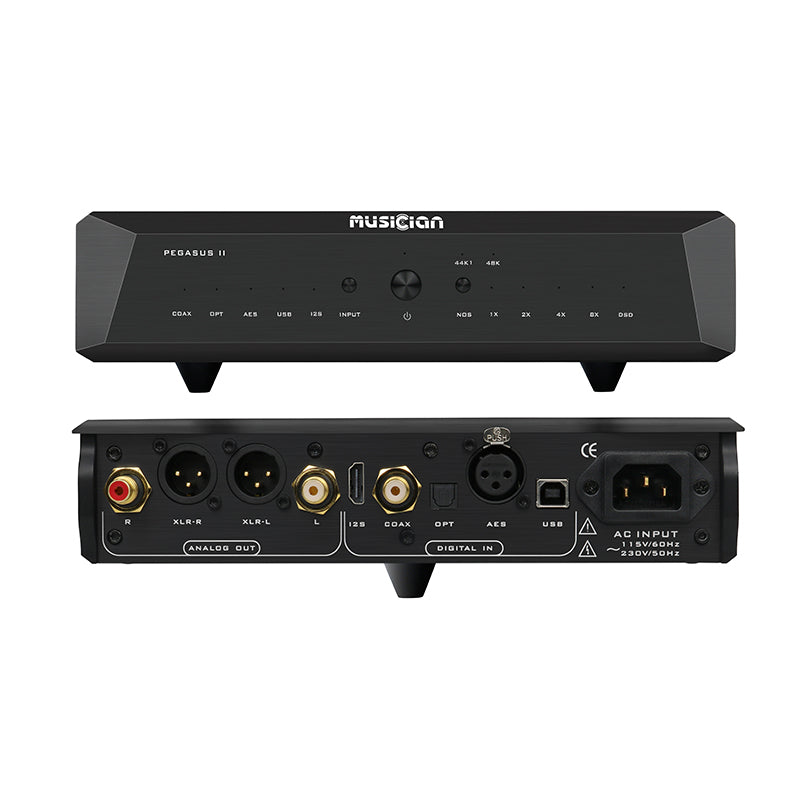

Versatile Digital Inputs

Pegasus Il  offers multiple digital input options, including coaxial, optical, AES, USB, and I2S inputs. Enjoy RCA single-ended and XLR balanced outputs, providing true balanced audio.

Inside the Box

  • 1 x Musician Pegasus Il
  • User Manual

1 Year Warranty

The Musician Pegasus Il Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Frequency Response
10Hz~60KHz
THD+N
0.00002
SNR
123dB(A-weighting)
Dynamic Range
>120dB
AC Power Supply
115V/60Hz~230V/50Hz
Power Consumption
≤20W
Analog Output
RCA(2.2Vrms),XLR(3.55Vrms)
Digital Input
Coaxial/Optical/USB/AES/12S
DSD
Supports DSD64 DoP, USB&I2S input supports DSD1024
PCM
All inputs support 24 bits/44.1K48K,88.2K,96K,176.4K,192KHz。USB input supports 1536kHz,12S input supports PCM 768KHz
Size
280 x 250x 50 mm
Weight
3.9 Kg
