Shanling M5 Ultra

High-End MTouch Portable Player

  • Unveiling a New Era of Design
  • The Latest Generation of MTouch System
  • Immersive Audio Experience
  • Elevate Your Audio Journey
Silver
Black
Regular price $589.00 USD
Sale price $589.00 USD Regular price

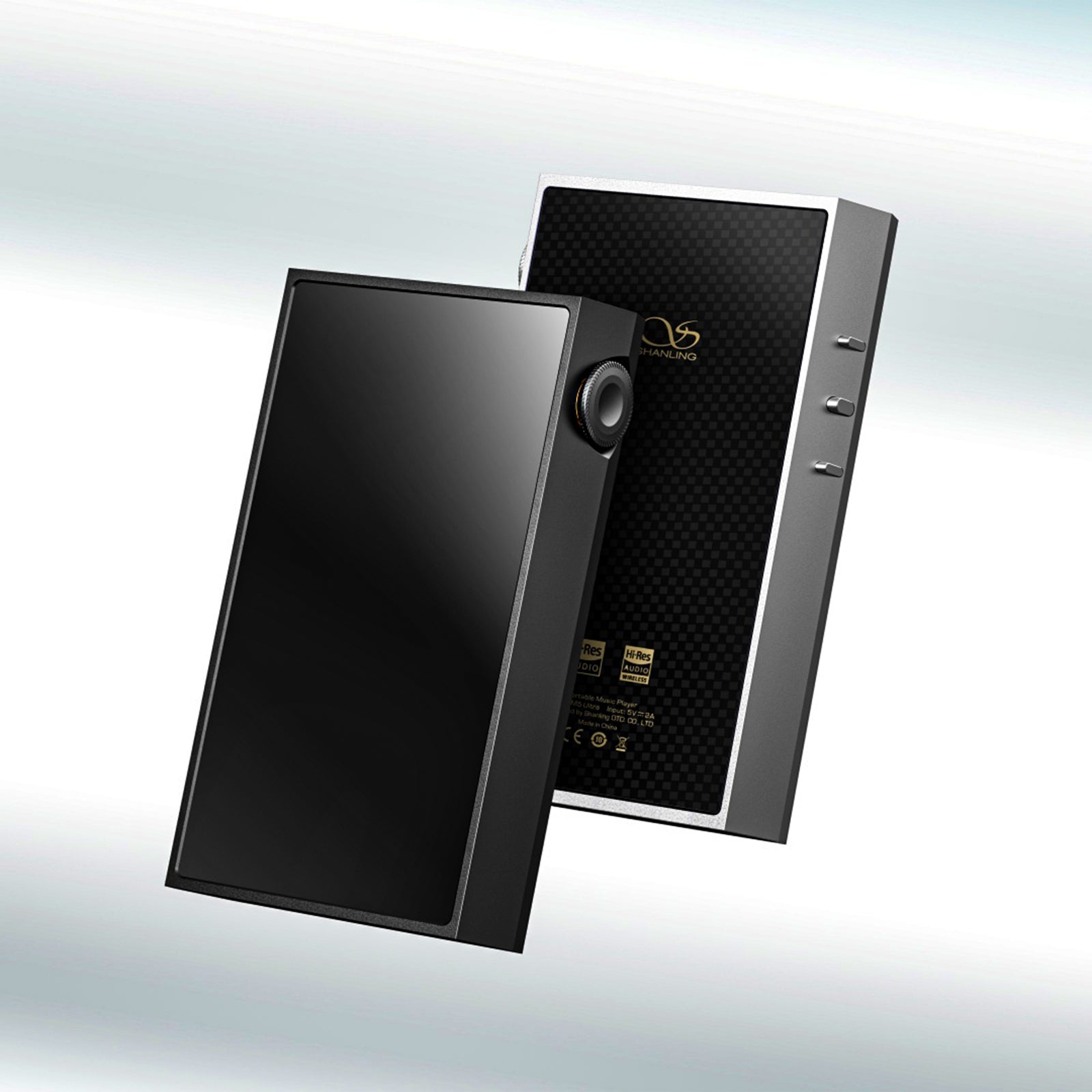

Unveiling a New Era of Design

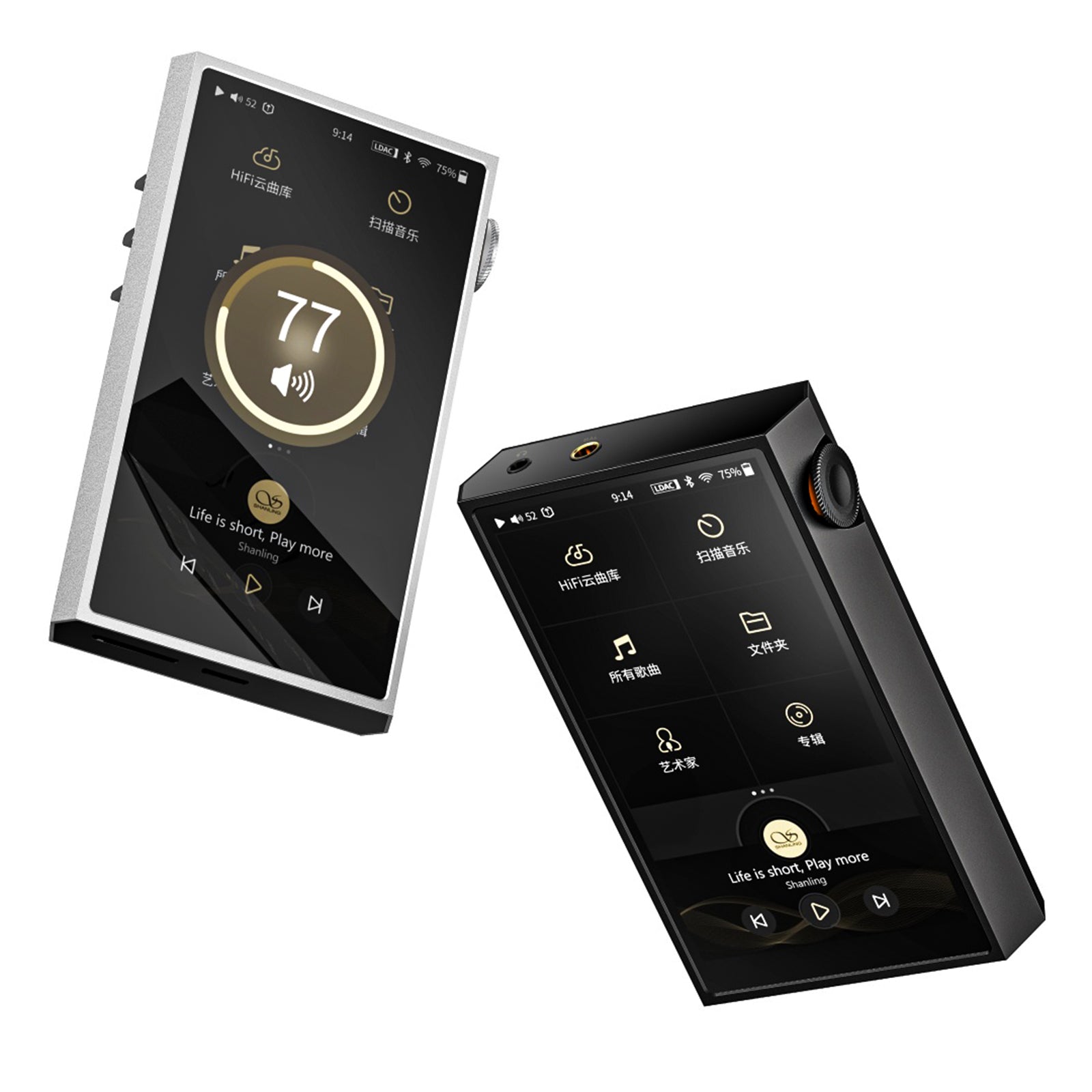

Shanling M5 Ultra sets a new standard with its bold departure from smooth round lines to embrace aggressive angular shapes and edges. Crafted with precision, its machined aluminum frame and glass panels exude sophistication and durability. The 4.7-inch HD touchscreen, trio of hardware buttons, and illuminated volume wheel ensure intuitive navigation and control.

The Latest Generation of MTouch System

Powered by the Ingenic X2000 platform and featuring the latest generation of MTouch system, M5 Ultra offers unparalleled functionality. Customize the main menu for quick access to MicroSD card files and enjoy seamless integration with the built-in Tidal Online Streaming app (coming soon with firmware update). Experience versatile playback modes, including USB DAC, DLNA, Airplay, and Bluetooth Receiver, now enhanced with Bluetooth 5.2 support.

Immersive Audio Experience

Drawing from our expertise with H7 and M9 Plus, M5 Ultra combines a balanced amplifier built around Texas Instruments TPA6120A2 and the flagship AKM AK4499EX DAC and AK4191 modulator. Enhanced with the improved I/V conversion stage from M9 Plus, M5 Ultra delivers a smooth, slightly warmed-up sound with deep sub-bass, rich soundstage, and abundant detail. With a beefed-up amplifier providing up to 1100 mW @ 32 Ohm, M5 Ultra stands as one of our most powerful portable players, rivaling our flagship M9 Plus.

Elevate Your Audio Journey

Shanling M5 Ultra redefines the boundaries of high-end portable audio, combining cutting-edge design, unparalleled functionality, and immersive sound quality. Experience the pinnacle of portable audio excellence with M5 Ultra and embark on a journey of sonic bliss like never before.

Inside the Box

  • 1 x Shanling M5 Ultra
  • User Manual

1 Year Warranty

The Shanling M5 Ultra Comes with a 1 year warranty on the Digital Audio Player only. Warranty doesn't apply to the included accessories.

Technical Details

DAC
AKM AK4499EX + AK4191
Amplifier
Dual TPA6120A
Platform
Ingenic X2000
System
MTouch developed by Shanling
Screen
4.7-inch 1280 x 720 Touchscreen
Memory
MicroSD card slot
Hi-Res Support
PCM 32 bit / 768 kHz & DSD512
USB Input
 XMOS XU316
Wi-Fi
2.4/5G, supporting DLNA, Airplay, NAS and OTA Updates
Bluetooth
Upgraded 5.2 with Bi-Directional support of LDAC, aptX HD, aptX, AAC
Companion app
Eddict Player app through SyncLink
Connectors
3.5mm Single-Ended, 4.4mm Balanced, USB-C
Battery
6000 mAh
Battery life
Up to 11 hours
Dimensions
120 x 75 x 19.5 mm
Weight
247 g
Single-Ended Output
Power: 315 mW @ 32 Ohm
THD+N: 0.0009%
Channel Separation: 75 dB
SNR: 121 dB
Output impedance: 4.7 Ohm
Balanced Output
Power: 1100 mW @ 32 Ohm
THD+N: 0.0007%
Channel Separation: 110 dB
SNR: 124 dB
Output impedance: 6.6 Ohm
