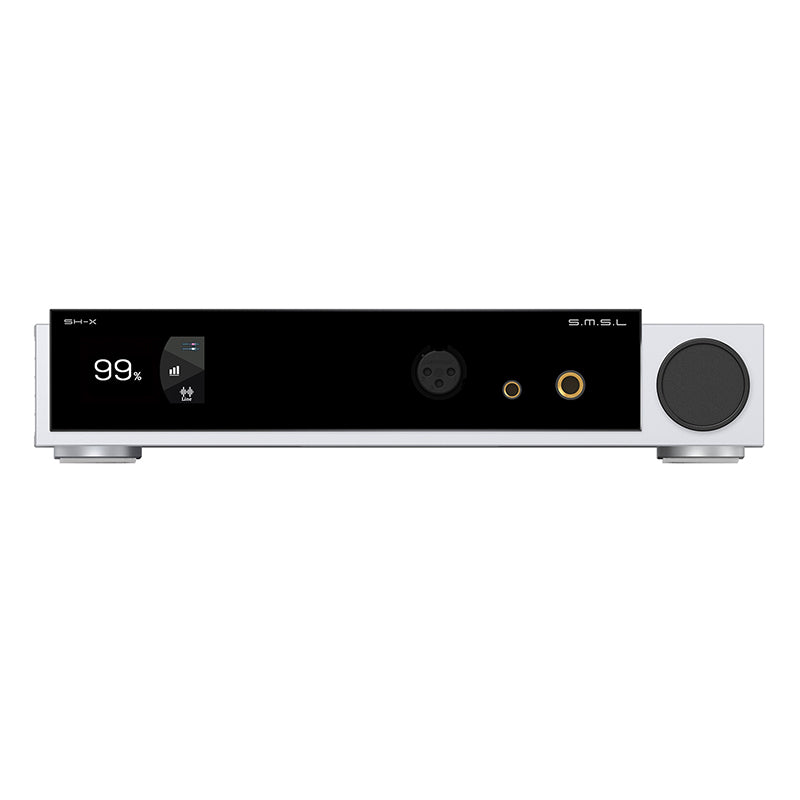

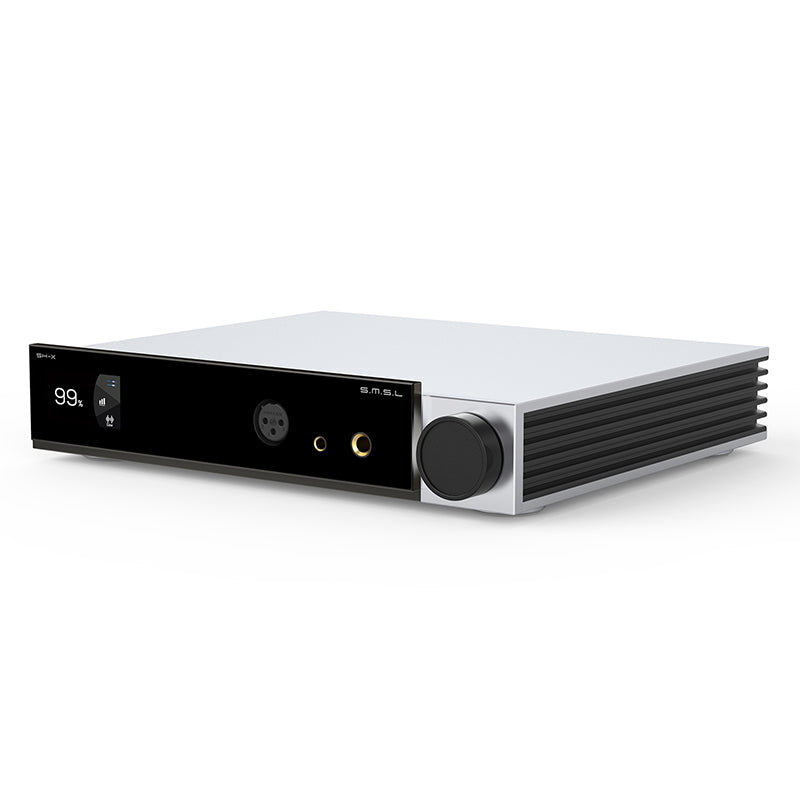

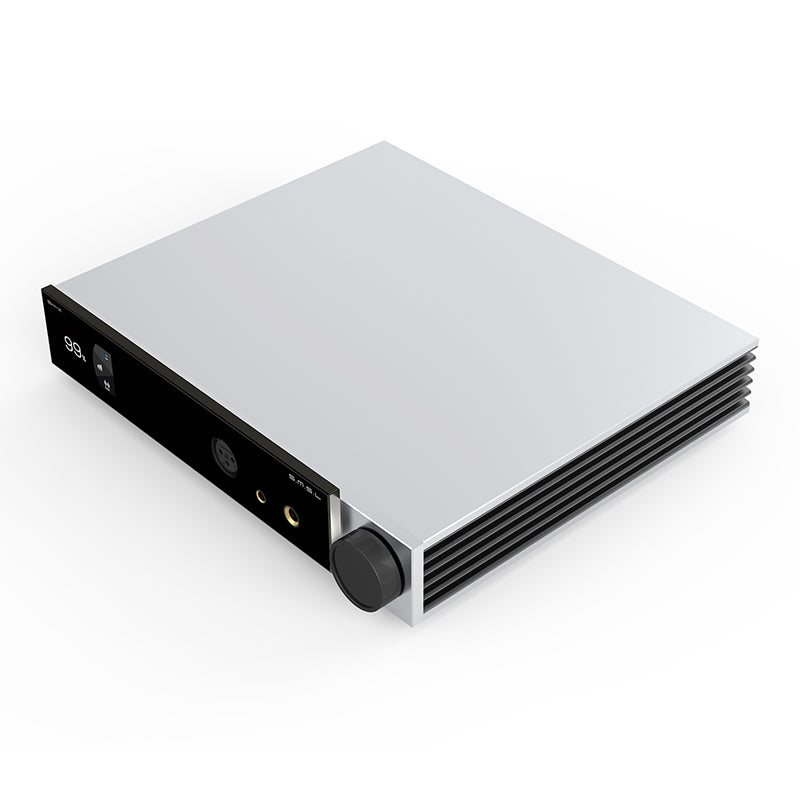

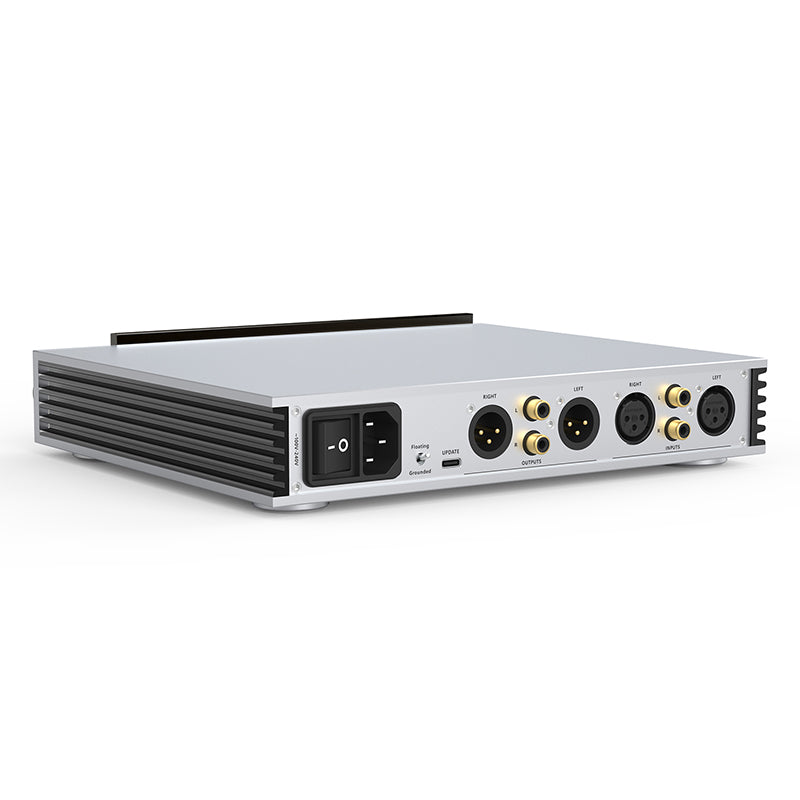

SMSL SH-X

High-Power Headphone Amplifier

  • High Power Output for Audiophile Delight
  • Advanced Op-Amp Design for Clarity
  • 3 Gain Modes for Personalized Listening
  • Versatile Preamp Functionality
  • Compact Design, Premium Sound
Regular price $699.00 USD
Sale price $699.00 USD Regular price

High Power Output for Audiophile Delight

Unleash the heart of the SH-X with an astounding 11.5 watts into 16 ohms and 5.5 watts into 32 ohms. This amplifier effortlessly accommodates the most powerful over-ear headphones, delivering an immersive and powerful audio experience.

Advanced Op-Amp Design for Clarity

Featuring 40 carefully selected low-noise op-amps per channel, totaling 80 in parallel circuitry, the SH-X ensures remarkably low noise levels. Revel in every fine detail of your music without distortion, experiencing clarity like never before.

3 Gain Modes for Personalized Listening

Tailor your audio experience with the 3-way gain switch. Choose Low Gain for IEM enthusiasts, delivering optimal performance without overwhelming low-impedance headphones.

Versatile Preamp Functionality

Beyond headphones, the SH-X transforms into a versatile preamp. Seamlessly integrate it into your existing audio system, enhancing speaker performance with the same precision as headphones.

Compact Design, Premium Sound

Designed for limited space, the SH-X complements your desktop with a compact design. The perfect companion to any desktop headphone system, it delivers premium sound without sacrificing valuable space.

Inside the Box

  • 1 x SMSL SH-X
  • User Manual

1 Year Warranty

The SMSL SH-X Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Inputs
Leather
Headphone Outputs
4.4 mm, balanced XLR, single ended 6.35
Pre-Outs
Balanced, Unbalanced
Output power
11.5W x2 @ 16Ω
5.5W x2 @ 32Ω
600 mW x2 @ 300Ω
300 mW x2 @ 600Ω
SNR
137 dB
Dynamic range
137 dB
THD+N
6e-7
Input impedance
34,000Ω
Amplifier output impedance
About 0Ω
Pre-output impedance
Balanced: 66Ω
Unbalanced: 33Ω
Frequency response
20 – 100,000Hz
Gain Settings
Balanced: -2 dB (low), 6 dB (mid), 23 dB (high)
Unbalanced: -8 dB (low), 0 dB (mid), 17 dB (high)
Power consumption
<50W
Standby power
<0.5W
Size
250X51X192mm (WxHxD)
Weight
2.42 kg
