AK4493S Decoding Chip & XMOS 3rd-Gen XU316 USB Solution

Equipped with one piece of AKM's new AK4493S chip, SMSL C100 can reach an unprecedented 0.00013% after careful adjustments. The C100 decoder also utilizes the latest 3rd-Generation XMOS XU316 solution supporting PCM 32bit/768kHz and DSD512.

High-Performance Power Filter System & CK-03 Clock System

The C100 decoder developed by SMSL features a built-in high-performance power filter system, which can achieve the best performance only using the USB interface for the power supply. Besides, there is a new self-developed CK-03 clock processing circuit, reducing clock jitter greatly.

Advanced MQA Decoding Technology

Adopting MQA technology to support MQA decoding, The C100 can receive and decode MQA audio and provide voice at the level of the master band. It is worth mentioning that SMSL C100 MQA playback does not require the use of special playback software, such as foobar2000.

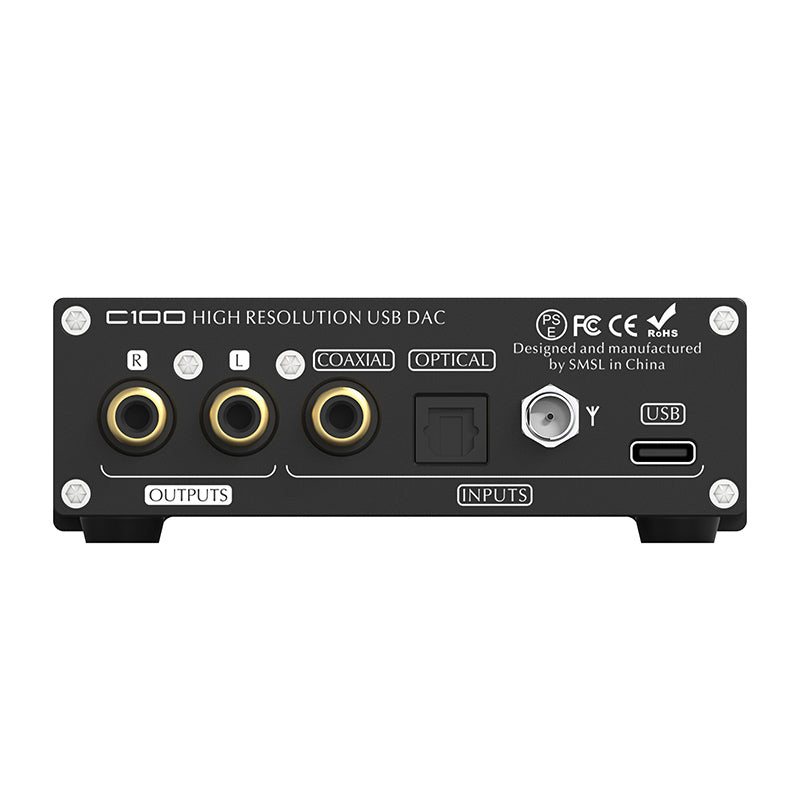

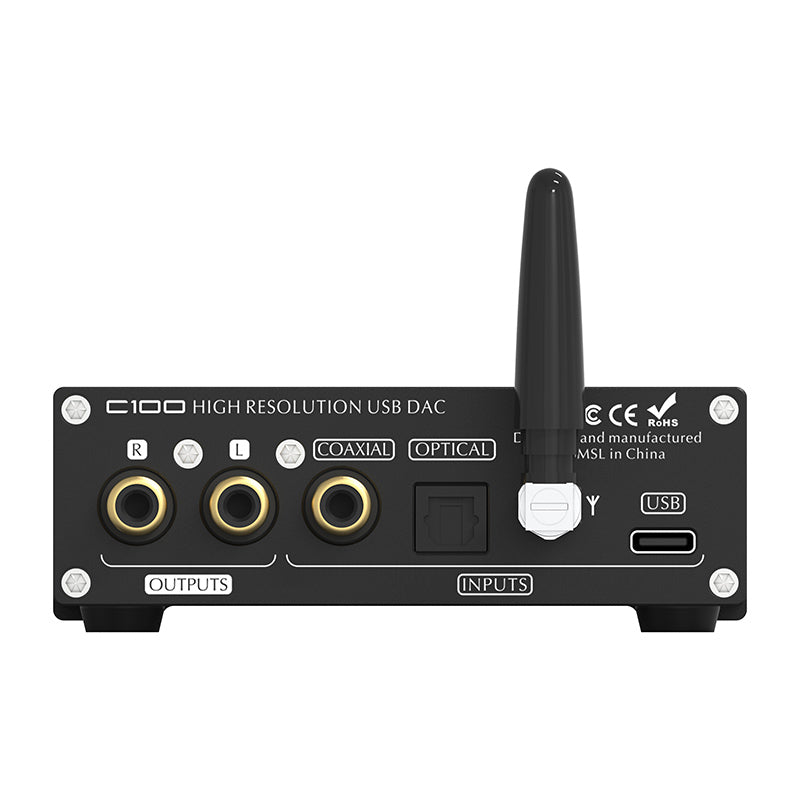

Powerful Input/Output Ports

C100 follows with USB/optical fiber/coaxial/Bluetooth input and RCA output. Besides, the USB input can support PCM 32bit/768kHz. With the help of these powerful ports, the C100 decoder can be connected to much audio equipment, such as TV, CD/DVD, mobile phone, PC, etc.

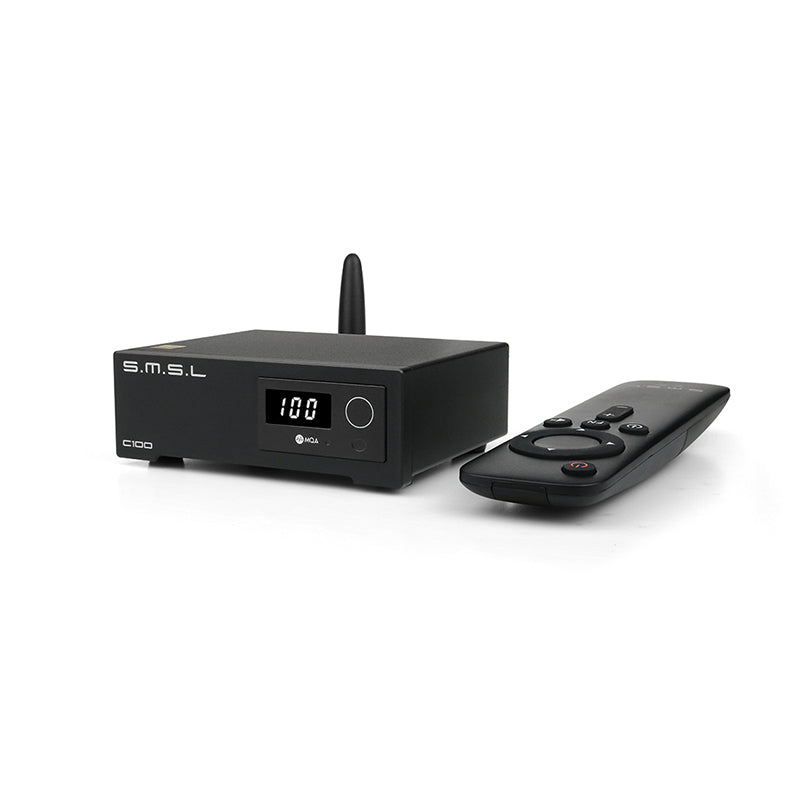

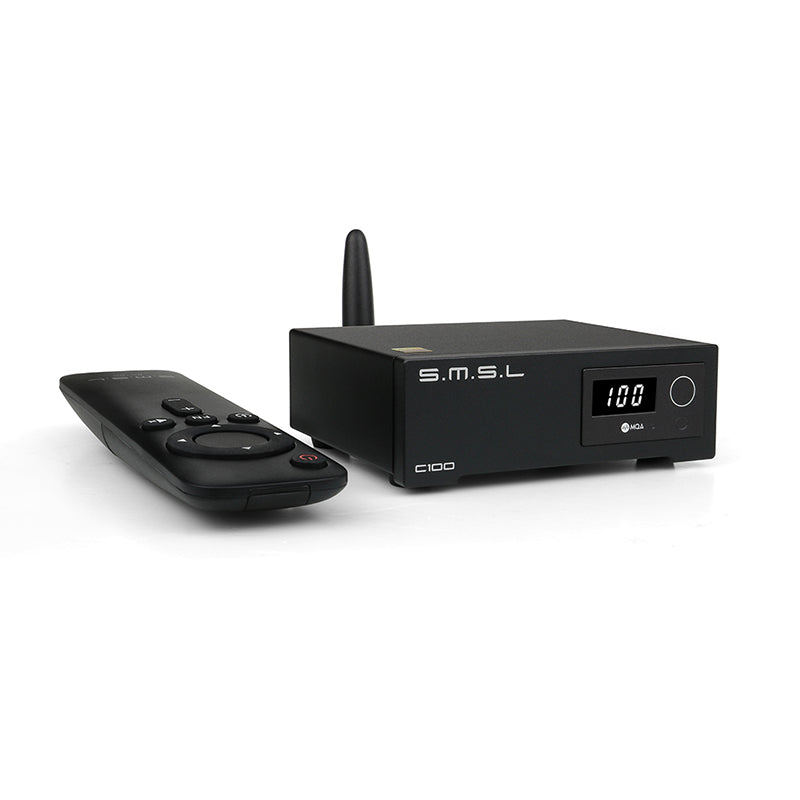

Full-Functional Remote Control & Ultra-Tiny Shape Design

Standard with a new SMSL remote control with a better feel and quality, the SMSL C100 features an ultra-tiny shape design supporting a variety of placement ways. The C100 also characterizes USB asynchronous transmission, compatible with windows 7/8/8.1/10/11, Mac OS X10.6 or above, and Linux.

Technical Details

Product model
SMSL C100
Input mode
USB/ Optical /Coaxial /Bluetooth
USB transmission
Asynchronous transmission
USB compatibility
Windows 7/ 8/8.1/10/11
Mac OS X10.6 or Later、Linux
Output Level
2.0 Vrms
THD+N
0.00013% (-117dB)
Dynamic range
121dB
SNR
121dB
Sampling rate
USB: PCM- 44TkHz-76EHz
DSD- 28224-22.5792MHz
Optical/coaxial
44.1kHz~192kHz
Bit depth
USB: 1bit - 32bt
Optical/coaxial: 16bit - 24bit
Power Consumption
<5W
Standby power
<0.1W
Size
77.5x 32 x 95mm (WxHxD)
Weight
190g/0.39lbs
Inside the Box
  • 1 x SMSL C100
  • User Manual
