High-End D/A Chip ES9038Q2M

Adopting a high-end D/A chip ES9038Q2M from ESS Technology, SMSL SU-6 features 4x high-end dual op amp OPA1612 and a large number of audio-grade components. With these high-end chips, this device can bring the perfect audio experience to users.

Qualcomm Latest Bluetooth Chip

SU-6 characterizes Qualcomm's latest Bluetooth chip, which can support LDAC 24bit/ 96kHz, APTX / HD, SBC, and AAC. Besides, it also comes with the 2nd generation XMOS solution supporting DoP256 and native DSD512, and PCM supporting up to 32bit/768kHz.

Built-In Specially Designed Low-Noise Switching Power Supply

The SMSL SU-6 employs an audio clock processing circuit and built-in specially designed low-noise switching power supplies for analog circuits. It is worth mentioning that the power source implements promote sound quality and power efficiency.

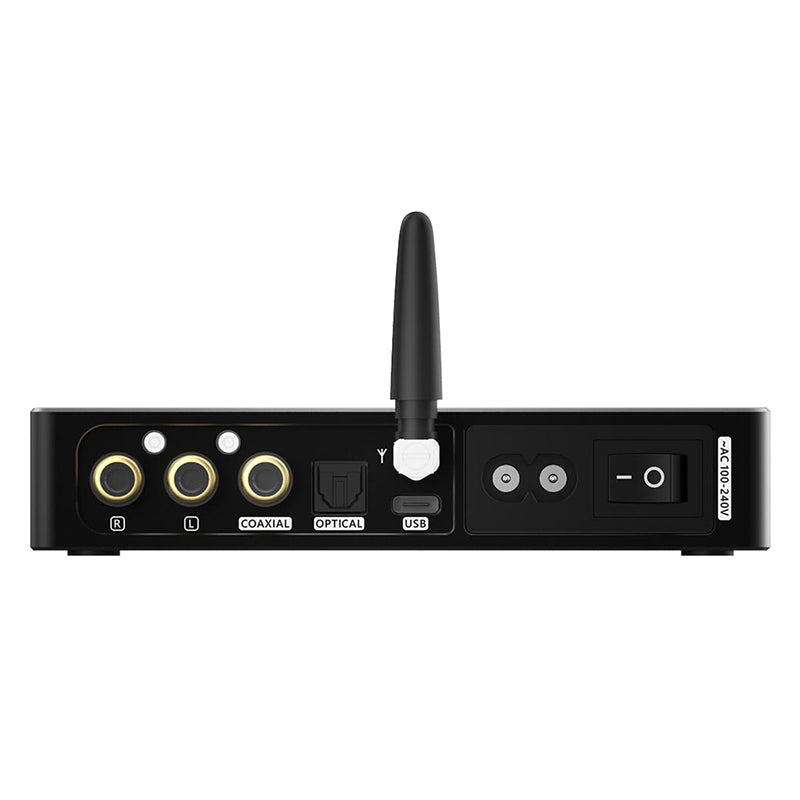

High-Quality Gold-Plated Input and Output Connection Terminals

As you can see, SU series are excellent. Especially, SMSL SU-6 features high-quality gold-plated input and output connection terminals. This device also follows with all input ports (except Bluetooth) supporting DSD transmission, coaxial and optical supports DoP64.

Mini Size Design & CNC Integrated Milling Process

The SMSL SU6 features a simple and stylish CNC integrated milling process and a tempered glass display panel that will last forever. It also comes with a Mini size design, which is very suitable for desktop use.

Technical Details

Input:
USB/ Optical / Coaxial / Bluetooth
Output:
RCA
THD+N:
0.0001%(-120dB)
Dynamic range:
RCA- 125dB
SNR:
125dB
Output impedance:
<10Ω
USB transmission:
Asynchronization
USB compatibility:
Windows 7 /8/8.1 /10, Mac OSX、Linux
Bit depth:
USB- 1bit, 16 ~ 32bit
Optical / Coaxial- 1bit, 16~24bit
Sampling rate:
●USB
PCM- 44.1 ~768kHz
DSD- 2.8224~22.5792MHz
●Optical / Coaxial
PCM- 44.1~192kHz
DSD- DSD64(DoP)
Bluetooth specification:
BT 5.0 (support SBC, AAC, aptx, aptX HD)
Power Consumption:
5W
Standby power:
<0.5W
Size:
140X28×105mm (WxHxD)
Weight:
0.35kg
Inside the Box
  • 1 x SMSL SU-6
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The SMSL SU-6 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: Expected to be available in early December

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
