MQA Full Decoding

Step into the future of audio technology with MQA Full Decoding. This revolutionary technology is designed to eliminate time-blurring distortion in recorded music. When analog sound is converted to digital, spatial details are often lost. MQA eradicates this distortion, creating an authentic 3D sound field that goes beyond conventional audio experiences.

Flagship Dual ES9039MSPRO DAC Chips

Embark on an auditory journey with the latest flagship dual ES9039MSPRO decoding chips from ESS. MQA decoding capabilities ensure the capture of every musical nuance. The USB, powered by XMOS XU-316, supports up to 32-bit/768kHz PCM and DSD512, delivering unparalleled clarity and depth.

Unmatched Internal Precision

Experience unparalleled audio precision with dual linear power supplies that segregate digital and analog units. This meticulous design ensures stable and low-noise power delivery, setting the stage for an exceptional audio journey.

Elevate Your Listening Experience

Redefine audio excellence with 21 high-end dual op-amps, meticulously crafted to elevate performance and minimize distortion to an astonishing 0.00005%. Each note is delivered with unparalleled precision, providing an immersive and crystal-clear soundstage.

Aesthetic Sophistication and Connectivity Finesse

The CK-03 Clock Processing adds finesse to your audio experience, reducing jitter for a more refined and enjoyable listening experience. Complemented by a full-fit color IPS display screen with tempered glass and an elegant high-quality aluminum alloy housing, this device stands as a testament to both simplicity and durability.

Seamless Wireless Connectivity

Embark on a wireless audio journey with the Qualcomm Bluetooth Chip, offering LDAC, APTX/HD, SBC, AAC support. This high-end wireless capability ensures an uninterrupted and high-fidelity listening experience

Reliability Meets Sophistication

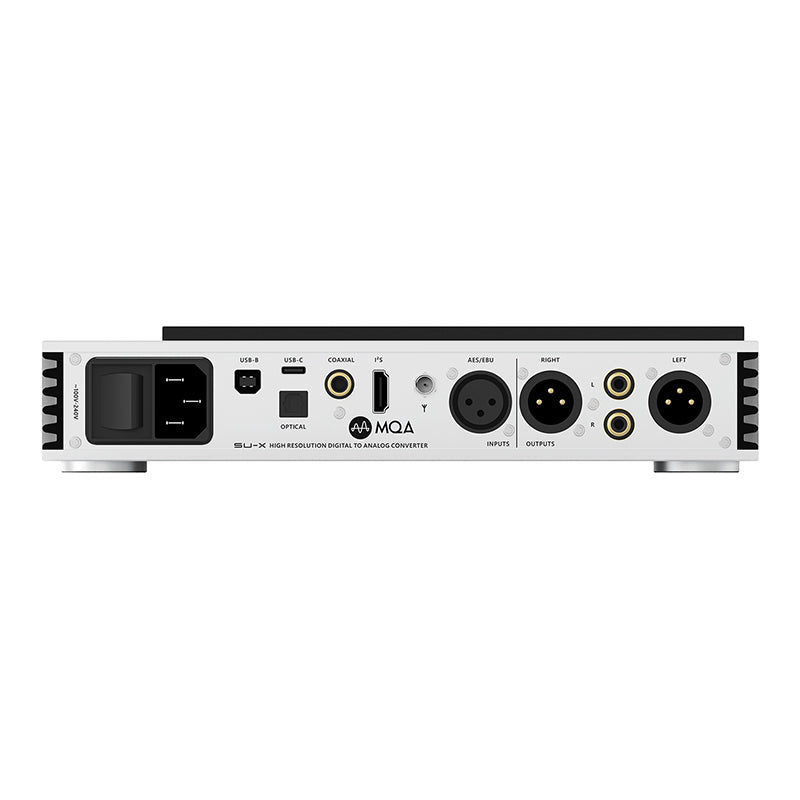

Experience seamless and reliable connectivity with gold-plated input/output terminals. These interfaces not only add sophistication but also guarantee a secure and premium connection for your audio devices.

Uncompromising Audio Quality

The JAS Hi-Res Certification, bestowed by the Japan Audio Association, recognizes and certifies the uncompromising audio quality of this device. Immerse yourself in a sonic landscape that adheres to the highest standards of sound reproduction.

Technical Details

Input
USB/Optical/Coaxial/Bluetooth/12S/AES
Output
RCA/XLR
Line output amplitude
XLR 5.2Vrms | RCA 2.5Vrms
THD+N
0.00005%(-126dB(UN-WTD)
Dynamic range
135dB(XLR) | 128dB(RCA)
SNR
135dB(XLR) | 128dB(RCA)
USB transmission
USB2.0 asynchronization
USB compatibility
Windows 7 / 8 / 8.1 / 10 / 11(driver-required) | Mac OSX10.6 above、Linux(No driver)
MQA decoder
USB / Optical / Coacial / AES
MQA-CD decoder
Optical / Coacial / AES
Sampling rate & Bit Width
USB PCM: 44.1~768kHz(32bit) | DSD: 2.8224~22.5792MHz(1bit) | Optical / Coaxial: 44.1~192kHz(24bit) | DoP: DoP256(USB), DoP64(Optical/ Coaxial/AES)
Bluetooth specification
LDAC: 24bit/96kHz(990kbps/660kbps/330kbps) | aptX-HD: 24bit/48 kHz_576kbps | aptX: 16bit/44.1 kHz_352kbps | SBC: 16bit/44.1 kHz_328kbps | AAC: 16bit/44.1 kHz_320kbps | Power Consumption: <20W | Standby power: <0.5W | Size: 250x51x217mm(WxHxD) | Weight: 2.7kg/5.95lbs
Inside the Box
  • 1 x SMSL SU-X
  • User Manual
