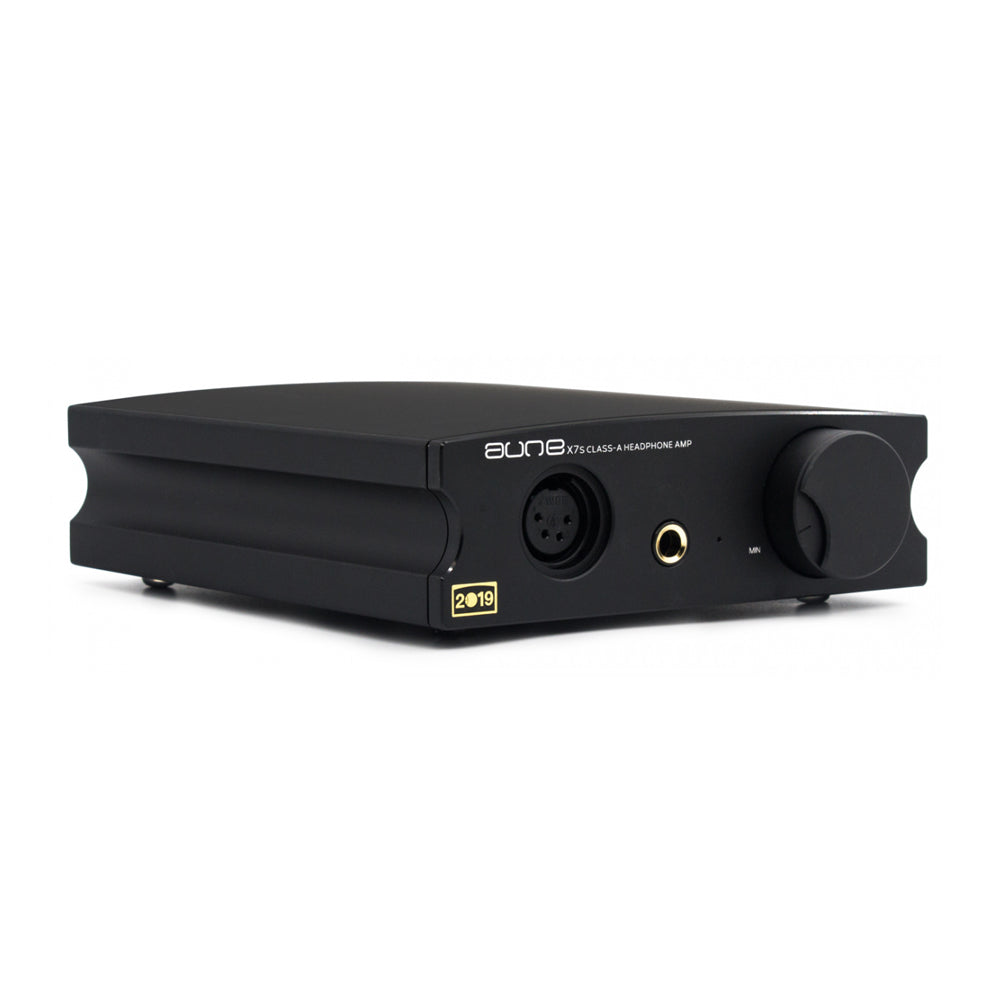

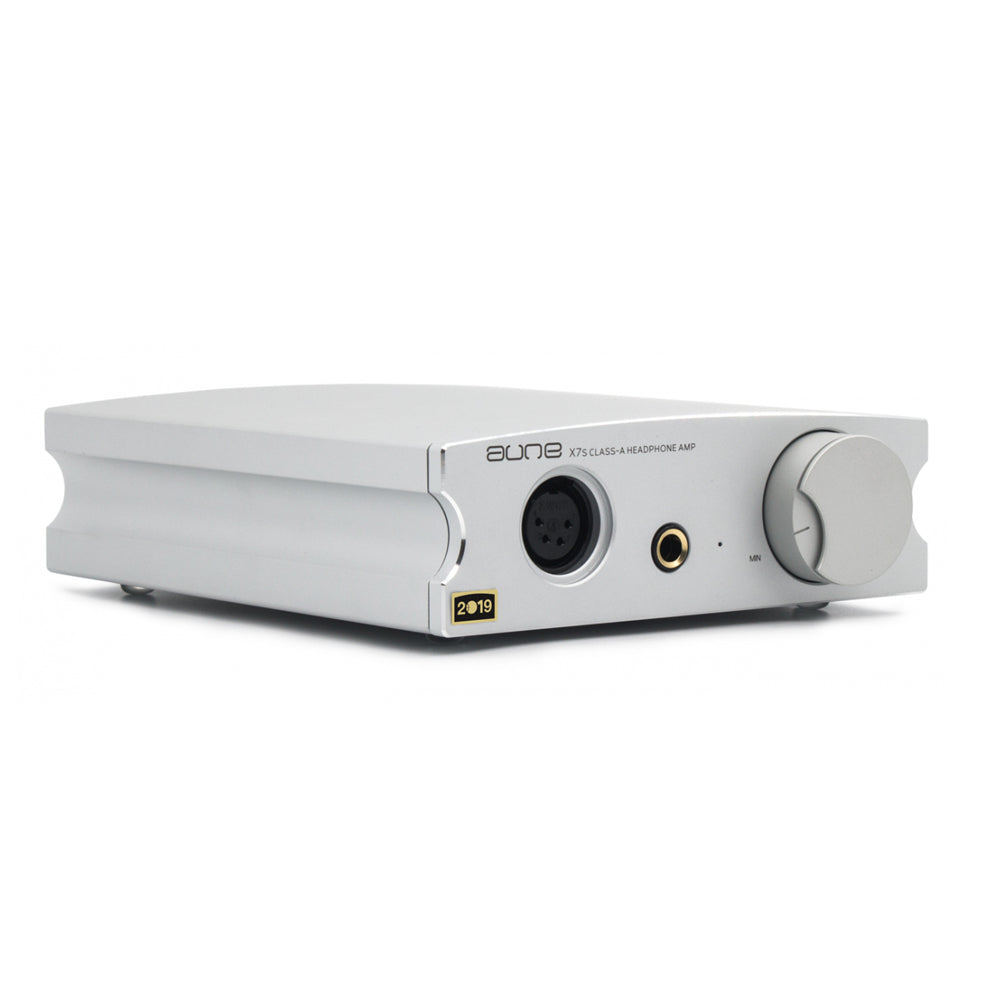

Aune X7s 2021
Class A Balance Output Audio AMP HIFI Audiophile Headphone Amplifier
- Latest Hi-Fi desktop headphone amplifier meets the most demanding requirements.
- Flexibility apply to diverse listening as study/bedroom/office.
- Also a mini high-end desktop headphone amplifier
Aune X7s 2021
Heritage
Latest Hi-Fi desktop headphone amplifier from the same designer who designed Aune's classic Panda and B1 headphone amplifier.
Compact size
Slightly larger than CD Disc, X7s’s flexibility apply to diverse listening environment as study/bedroom/office.
Powerful

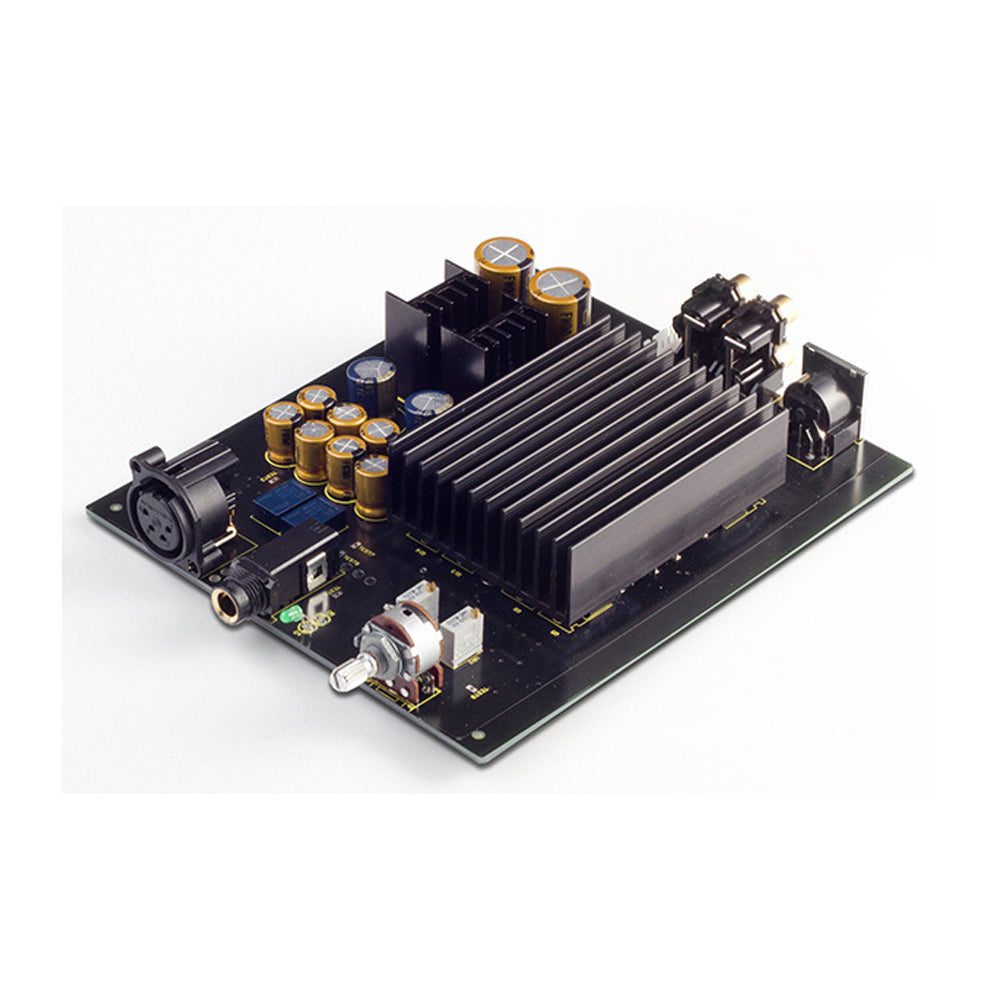

Equipped with 8 pcs power transistors that split into 4 groups for true balance output, along with ±15V regulated power supply result in a powerful driving ability.
Class A is also named as A class.
Two pcs of (or two groups of) crystal tubes of class A amplifier output stage are always in conductive state, that is to say, no matter whether there is input signal or not, they would keep conducting current all the time and make these two currents equal to peak value of AC power. At this time AC flows into load under condition of its large signal. Because of super-low infidelity of its open-loop, it is regarded as the most idealistic amplifying design of sound. Class A has merits of fullness and clearness in sound and makes triode work within linear area forever, so infidelity hardly happen to class A. It gives a very good sensitivity of listening, especially its small signal, which sounds clear, detailed and rich.
CLASS-A Function
X7s was set in Class-A mode at 38mA static current of each output transistor, it results in a full bodied, wide sound-stage and warm sound character.
Excellent Measurement Results

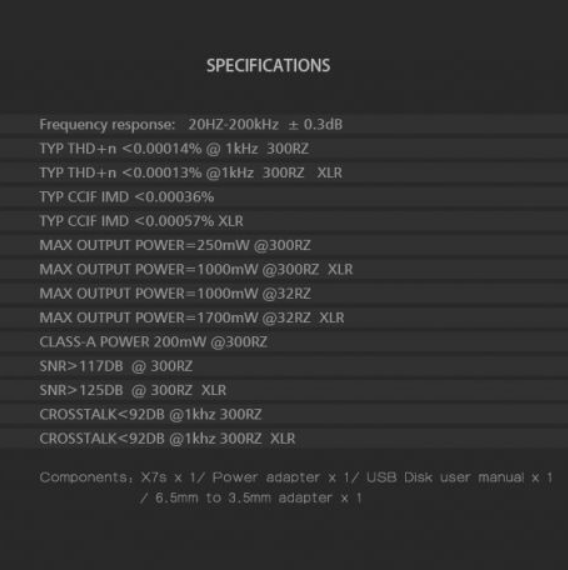

Frequency response: 20-200K±0.3dB, noise: 3uV, THD+N: 0.00013%---truly dark background.
Sound tuning
Both nature and musical, according to the real musical instruments and based on the understanding of music connotation. Various renowned headphones ware used in listening tests, such as T1,HD650,TK701,IE80,IE800,HD800,HD600,DT880,K240.
Multifunction
With three gears of gain adjust; X7s can drive most of headphones and earphones on the market.
Balance/Single-Ended Output
Four independent sub-circuits constitute the balance output that provides more realistic sound performance, two output terminals with two kinds of music style.
Technical Details
- 1 x Aune X7s 2021
- User Manual
