E1DA 9038D6K

ES9038Q2M DAC Chip 3.5mm Unbalanced Output High-Power Amplifier

    Zero-Noise Audio Performance
    Classic Design with Laser-Engraved Aluminum Case
    Portable Equipment for HiFi Enthusiasts
    Smooth Experience with Correct Usage
    PCM up to 32b/384kHz, DSD256
REVIEWS
Product Price
$129.00 USD
Subtotal:
$129.00 USD
Quantity
Terms & conditions

Free standard shipping to most countries

Free express shipping on orders over $270*. Enjoy free tax and duty paid to most countries. Please refer to our shipping FAQ to see if you apply.

Covid-19 Shipping Delay Notice

Shipping may be delayed due to covid-19 depending on your country regulations.
Free Shipping

Authenthic Products

Linsoul Audio is the authorized distributor. All products are authentic and genuine.

Free Shipping

Worldwide Free Shipping

We are located in China but send our products worldwide for free. T&Cs apply.

Warranty

1 Year Warranty

We provide 1 year warranty for the all products except the cables*.

Zero-Noise Audio Performance

According to multiple headfiers requests: 3.5mm jack unbalanced output DAC+HPA 200mW@40ohm in the same case as #9038SG3 and # 9038D. Like the previous prototypes, 9038D6K will work with Tweak app as well. The DAC has virtually zero noise modulation behavior.

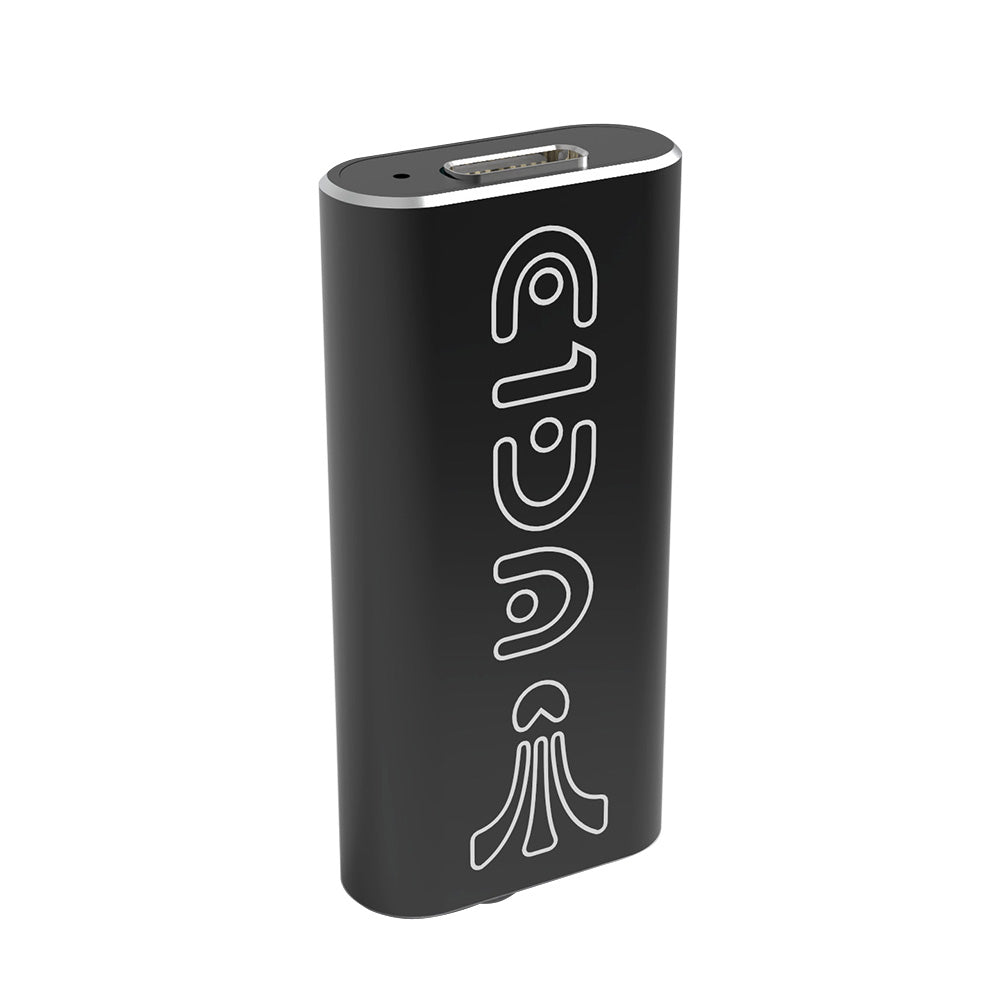

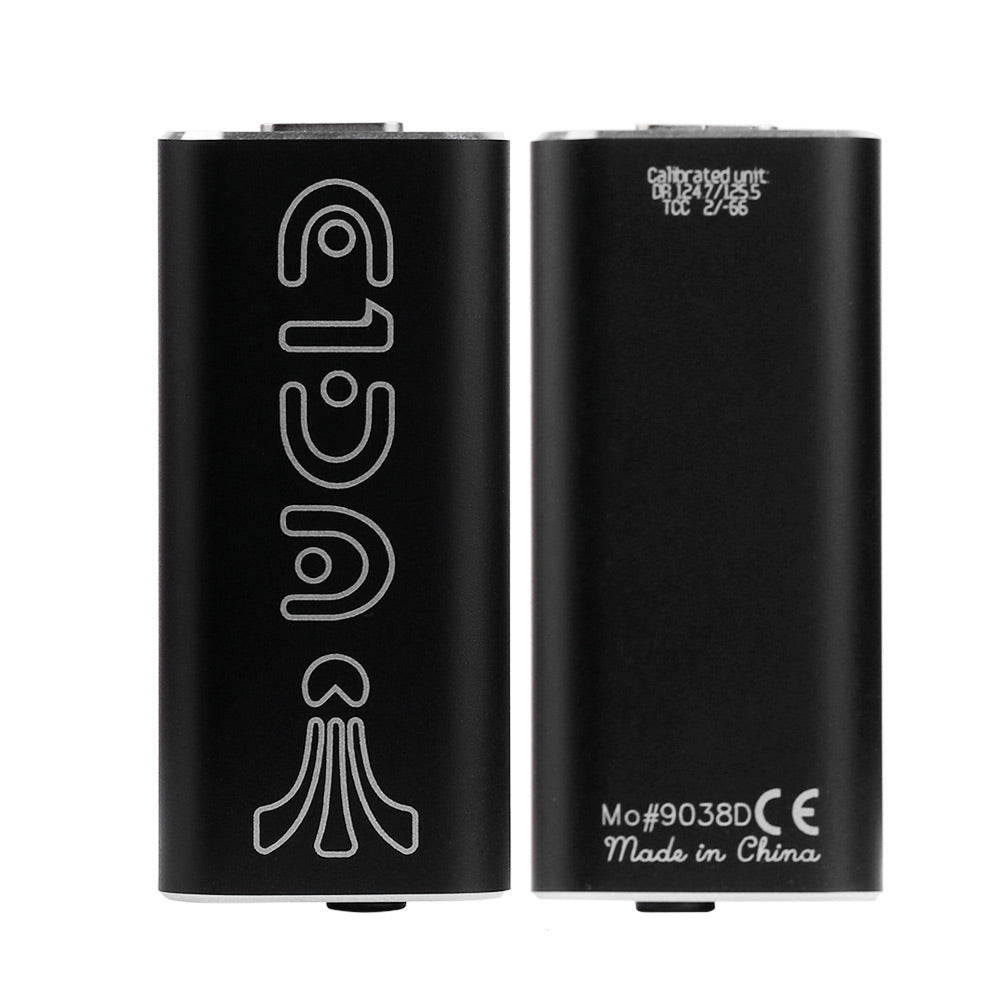

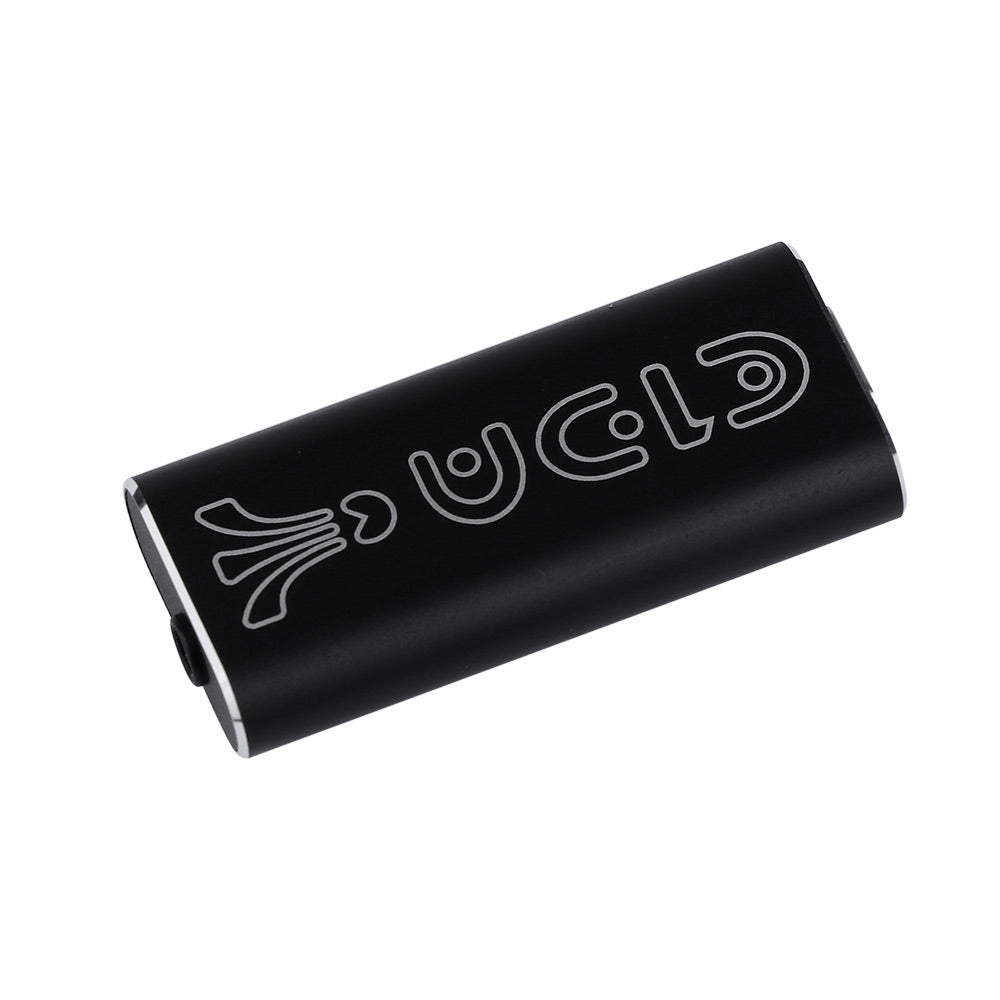

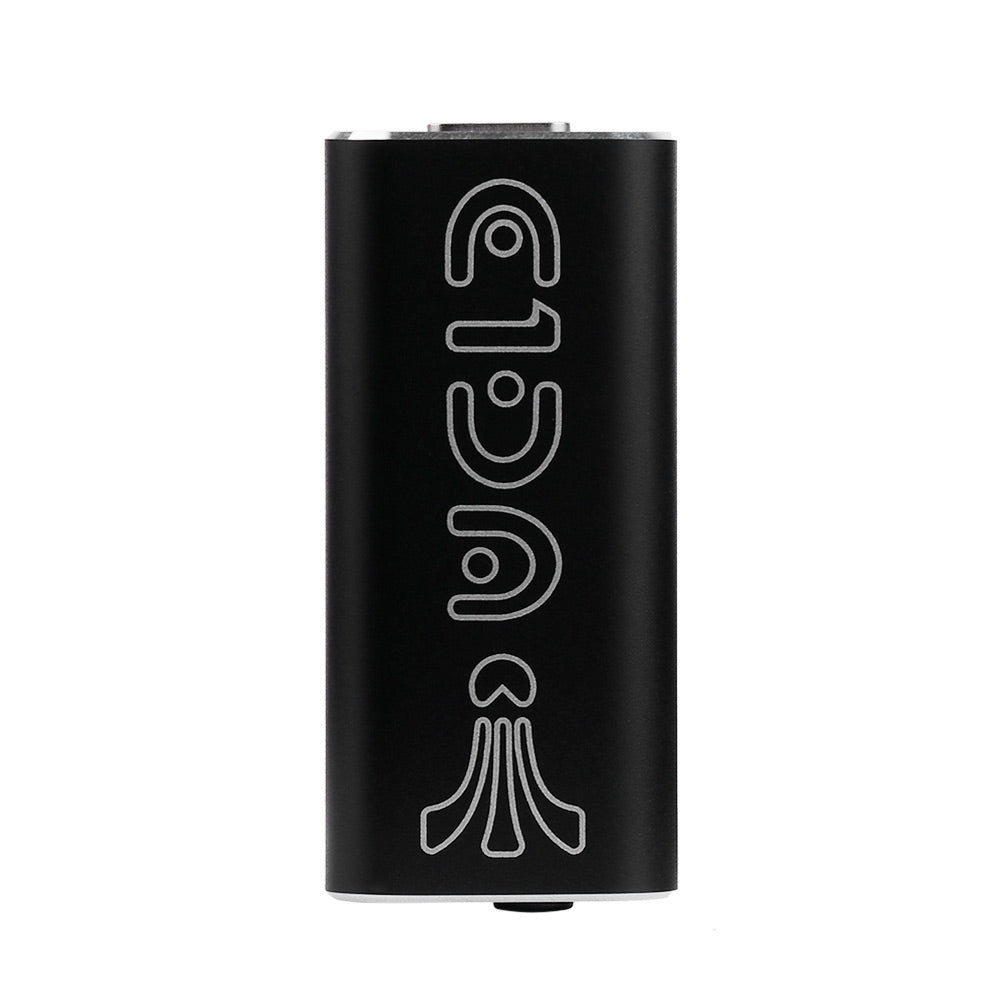

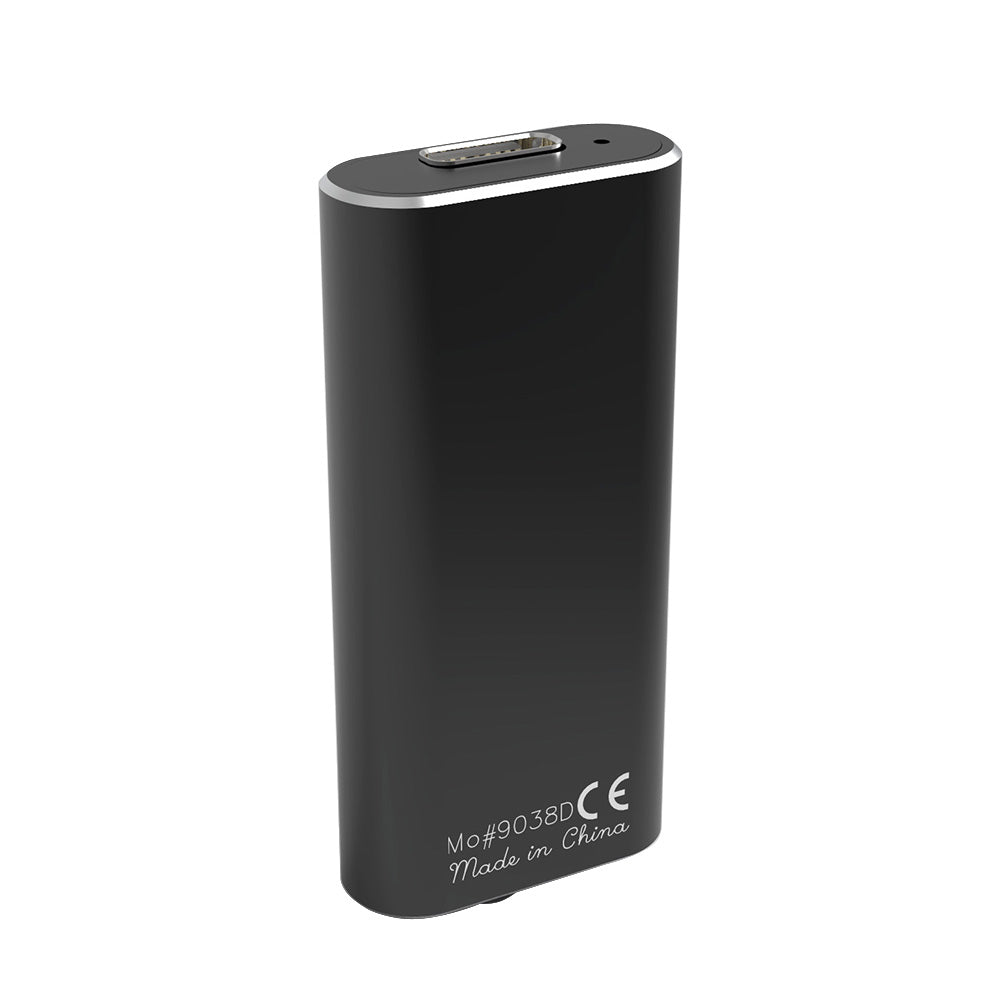

Classic Design with Laser-Engraved Aluminum Case

The 9038D6K maintained E1DA’s classical compact design and weighs only 12g. The sandblasted and black anodized aluminum case is sturdy and lightweight, while the specifics are laser-engraved and resistant to wear and tear.

Portable Equipment for HiFi Enthusiasts

The lightweight 9038D6K has performed excellently and is perfect for HiFi enthusiasts. It is suitable for daily use and to be carried around to bring high-quality audio experience with you no matter where you go.

Smooth Experience with Correct Usage

9038D6K contains a high-sensitive I/V stage that may cause audible noise when your phone uses LTE,4G, and 5G. Some newest hardware may have issues like "stuttering" with USB3(Macbook pro 2020, MS Surface 2020, Lenovo Carbone 2020, Acer SF313-52-71Y7 2020). USB audio-bridge manufacturer was informed about that and we are expecting the FW solution.

PRODUCT SPECIFICATIONS
Materials:
Sandblasted/black anodized aluminum/laser mark/ES9038Q2M/OPA1622/OPA1602 Susumu resistors, Murata C0G caps, AVX tantalum caps, Taiwanese connectors
Dimensions:
48x22x9mm
Weight:
12g
Power:
USB +5V rail no internal battery, 105mA idle current, the device contains >6000uF of capacitance for the power rails filtering
Input:
USB-C, PCM up to 32b/384kHz, DSD256 USB bridge Comtrue CT7601CR custom FW
Output:
Standard unbalanced output 3.5mm jack, HW volume control .5db/step
Output impedance:
0.07 Ohm@1000Hz Agilent U1733C
Output power:
180mW@32 Ohm@1kHz@THD=1%
120mW@16 Ohm@1kHz@THD=1%
Measured at +.5dbFS level, typical PC USB2 port powered.
The hot unit produces less power.
Frequency Response:
5-80kHz +.05/-1db@ 32b/384kHz
SNR=DR@50MHz_MCLK:
126db(A) typical, referenced to 2.75VRMS
100% units are calibrated with the result printed on the case, >124db(A) is normal grade Please note, any user with Cosmos APU may calibrate 9038D by themself for particular headphones. INAD@1kHz@-.7dbFS BW 22-22kHz 118-120+db typical for 32b/44.1kHz@no-load THD@1kHz@-.5dbFS BW 22-22kHz <.0001% typical for 24b/44.1kHz@no-load THD+N@1kHz@-2.5dbFS BW 22-22kHz .00018%, SINAD 115db typical 24b/44.1kHz@32ohm THD+N@1kHz@-7dbFS BW 22-22kHz .0005% typical for 24b/44.1kHz@16ohm (-6dbfs corresponds 120mW)
Crosstalk:
-135db@1kHz no-load
-82db@1kHz 32ohm load
Warning:
9038D6K contains a high-sensitive I/V stage that may cause audible noise when your phone uses LTE,4G,5G.
