Bluetooth 5.0 DAC.

The DAC converter uses QC3008 Bluetooth version 5.0 with an antenna to ensure less signal loss and stable transmission. It supports most Bluetooth devices such as mobile phones, laptops and tablets. The wireless connection makes the device more convenient to use. It also supports APTX

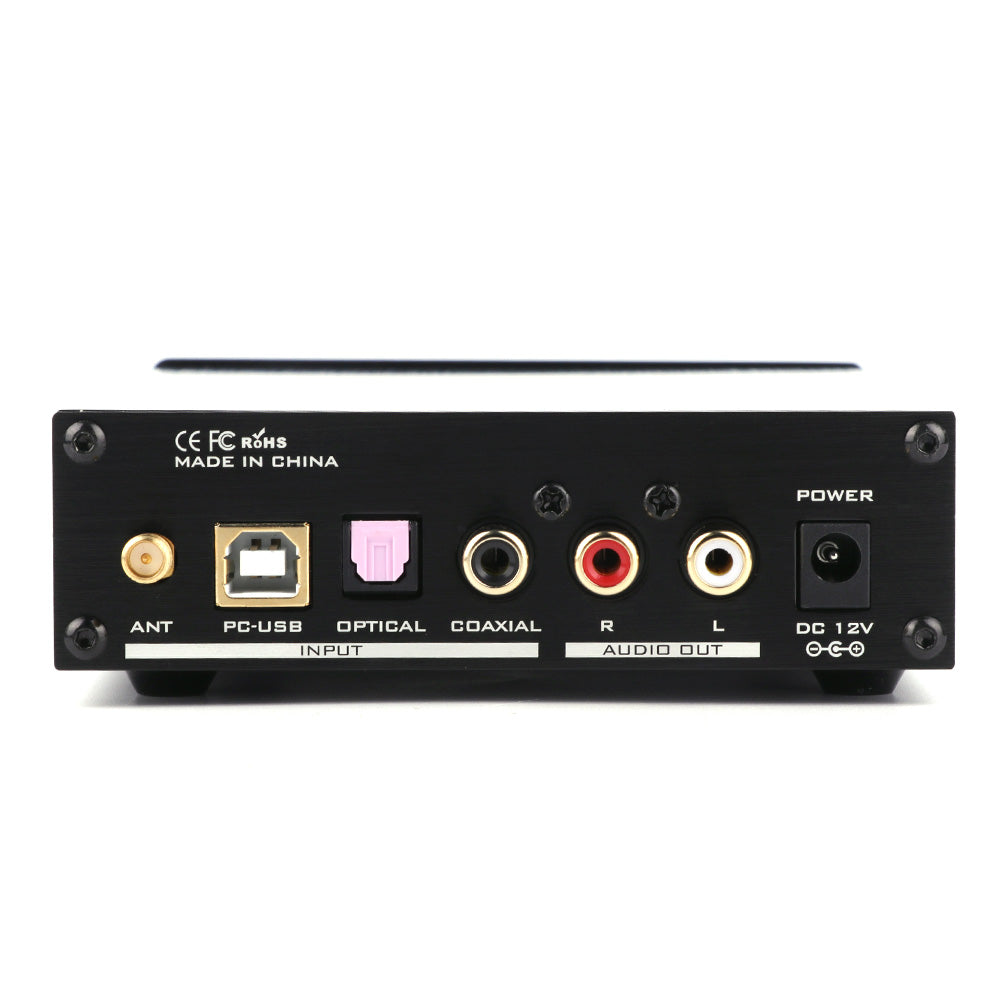

Various Types of Inputs and Outputs

With this DAC you can easily convert signals from PC-USB/optical fiber/coaxial/Bluetooth to L/R RCA and 6.35mm jack headphone analog signals. The sampling rate is up to 24Bit/192kHz. It is powered by DC 12V and can be used for PS3, PS4, Xbox, Blu-ray player, phone, laptop, HD DVD, home theater system, AV amplifier, etc. It is a nice product for home theater, conference room, appliance store and many other occasion

DAC ESS9018 Chip.

Built-in high-performance ESS9018 decoder chip supports 16Bit -24Bit/44.1kHz-192kHz sampling rate. Also equipped with CM6642 USB chip and OP275+OPA2134. All these chips ensure stable operation of the digital-to-analog audio converter when transmitting digital signals to analog signals

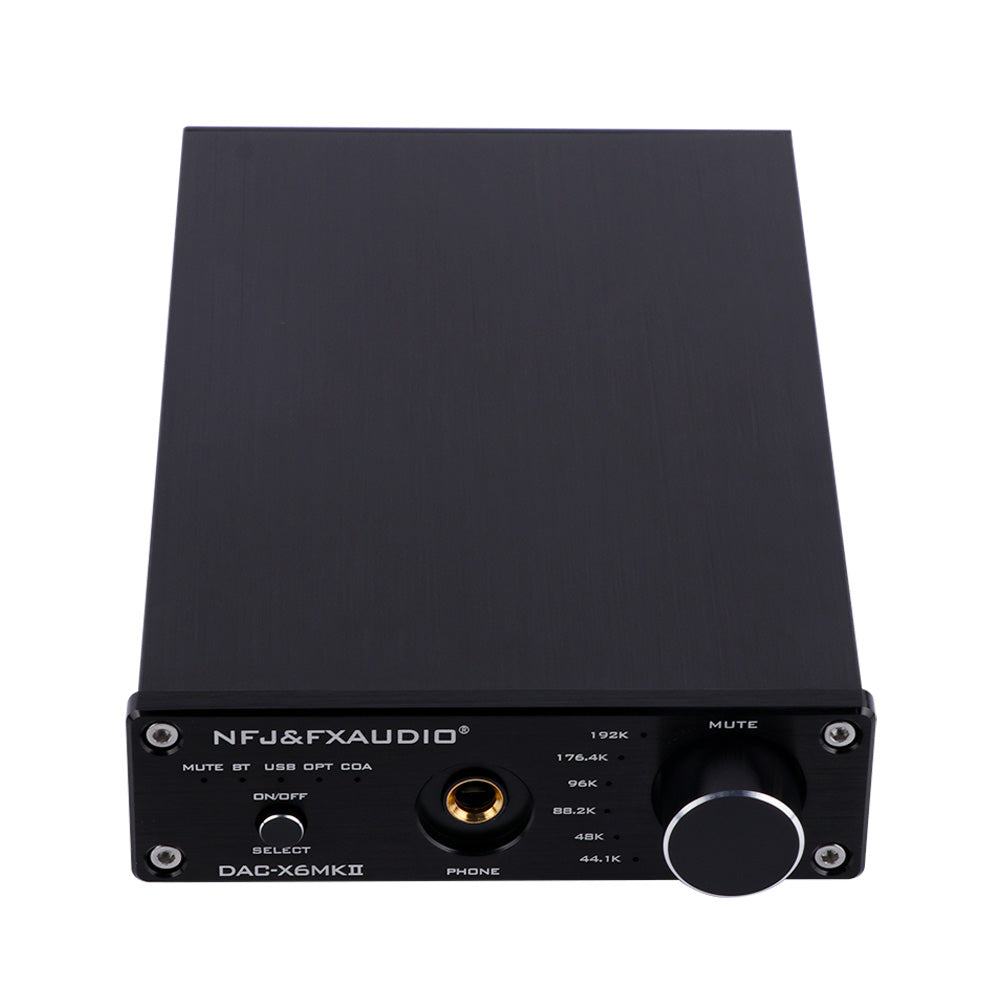

6.35mm headphone&RCA speaker/amplifier.

The DAC converter can be connected to L/R RCA amplifiers, speakers and 6.35mm jack headphones. We provide additional 6.35mm to 3.5mm headphone converters, so 3.5mm jack headphones are also available. Speakers and headphones can be connected and volume adjusted at the same time

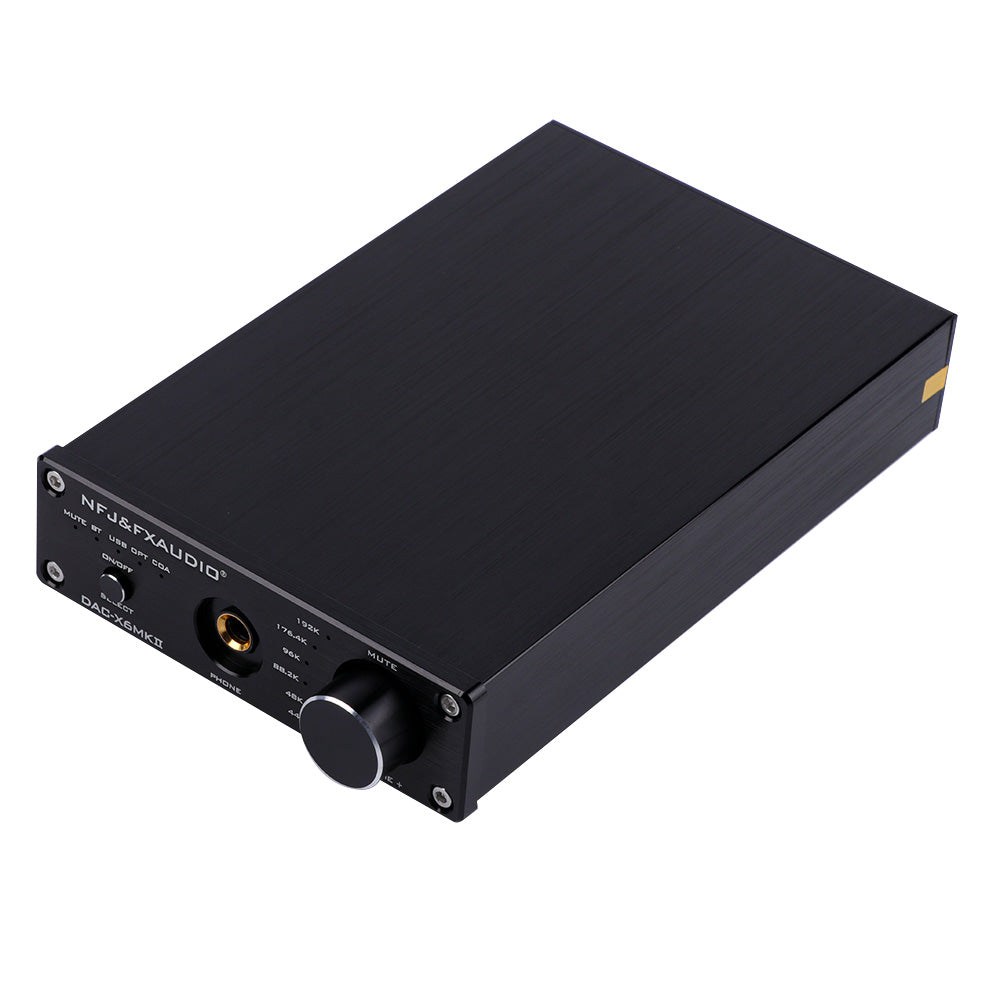

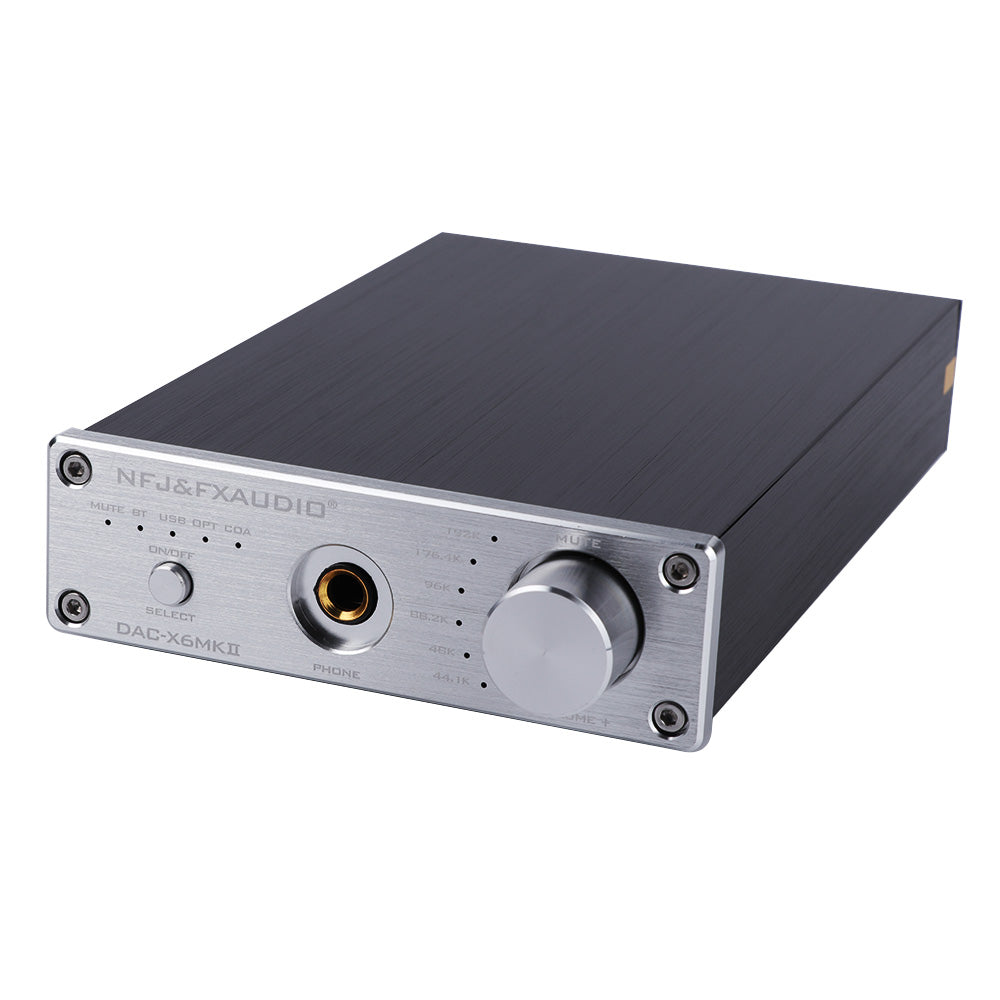

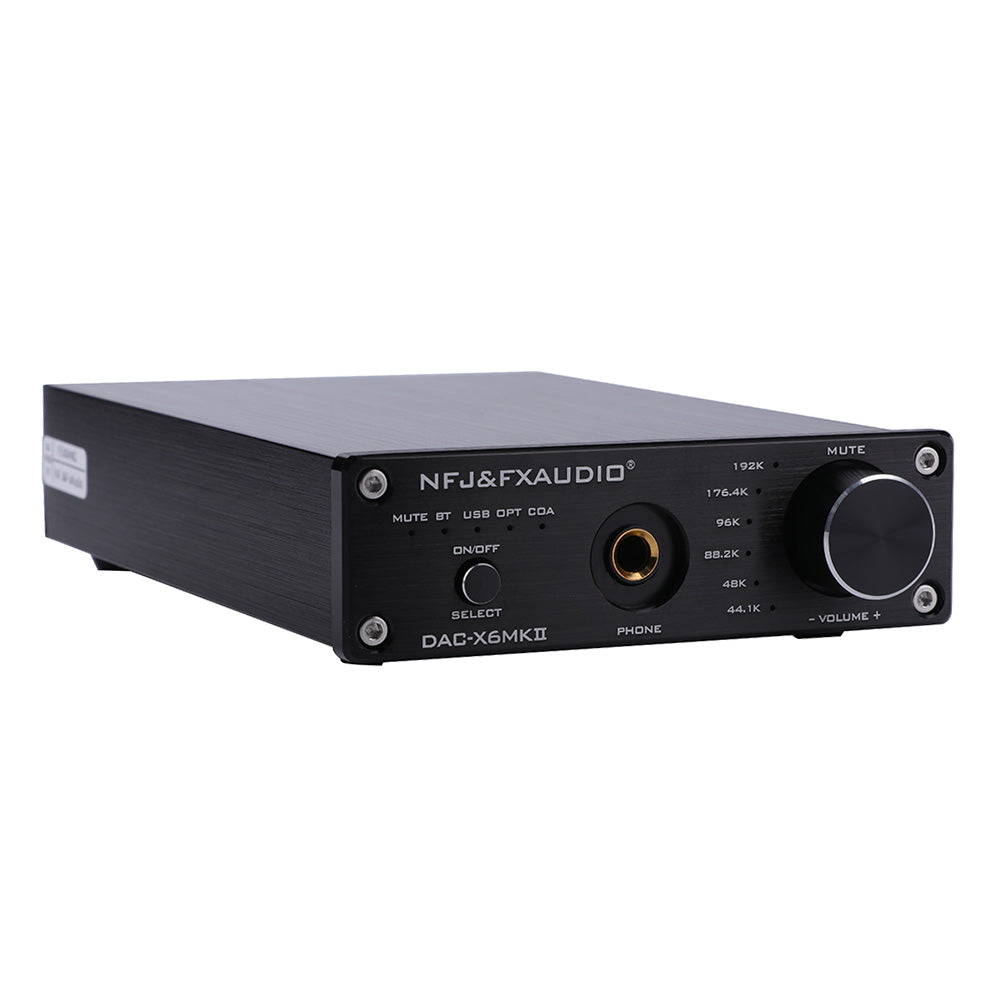

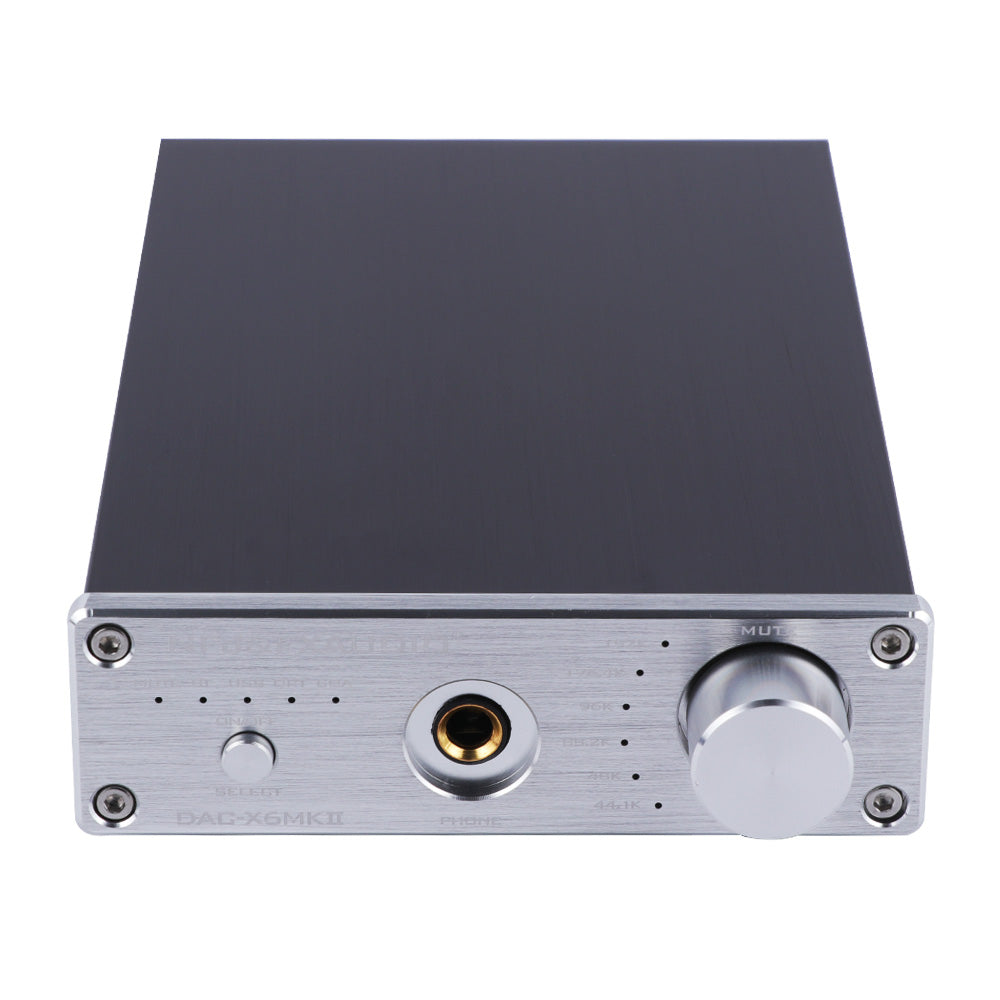

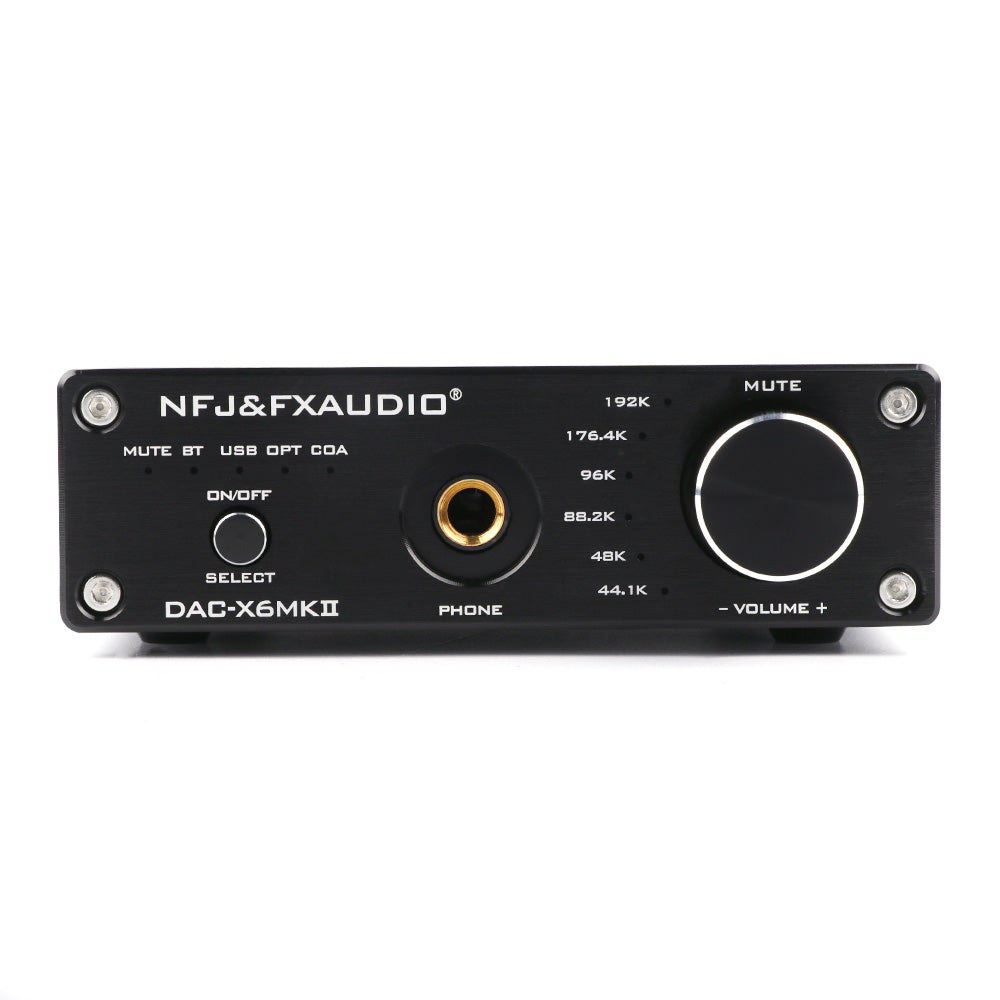

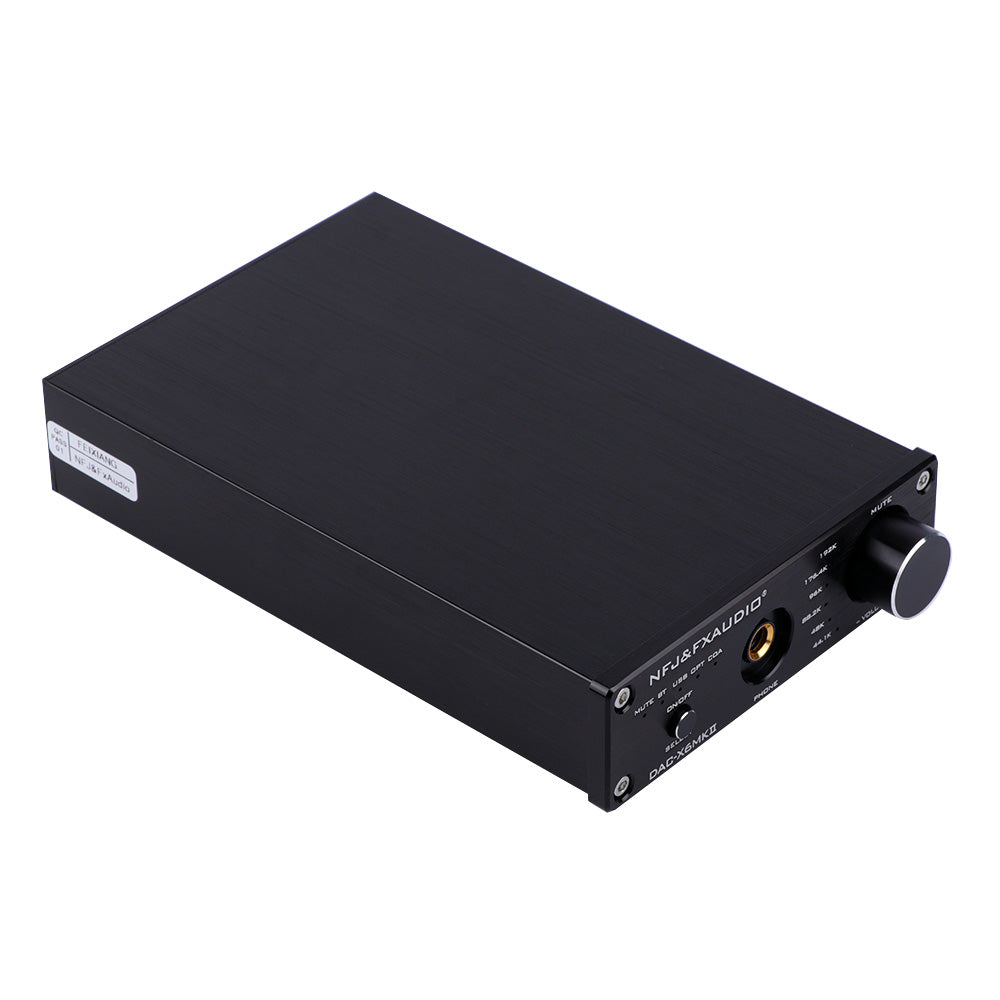

Aluminum Alloy Case..

The case is made of aluminum alloy material. It’s lightweight, durable and heat-resistant. With the gold-plated sockets, it can smoothly enhance high-definition sound signals even in long-distance broadcasting.

Technical Details

Chipset
STM8 + CM6642 + ESS9018 + TPA6120 + OPA2134 + OP275 QCC3008 (Bluetooth 5.0, support APTX)
Sampling rate
PC-USB / optical fiber / coaxial --- 24Bit / 192KHz
RCA output level
2Vrms
Amp output power
940mW @ 160 ohm; 900mW @ 32 ohm; 700mW @ 64 ohm; 450mw @ 120 ohm; 200mW @ 300 ohm.
Distortion of amp
006%
Amp SNR
112db
Amp frequency response
(+ 0, -0 5db) (20HZ-20KHZ)
Input interface
PC-USB / fiber optic / coaxial / Bluetooth
Input power
DC 12V1A
Output interface
RCA / 6. 35mm
Interface size
5.5 x 2.1mm
Product size
11.7 x 17.8 x 3.6cm

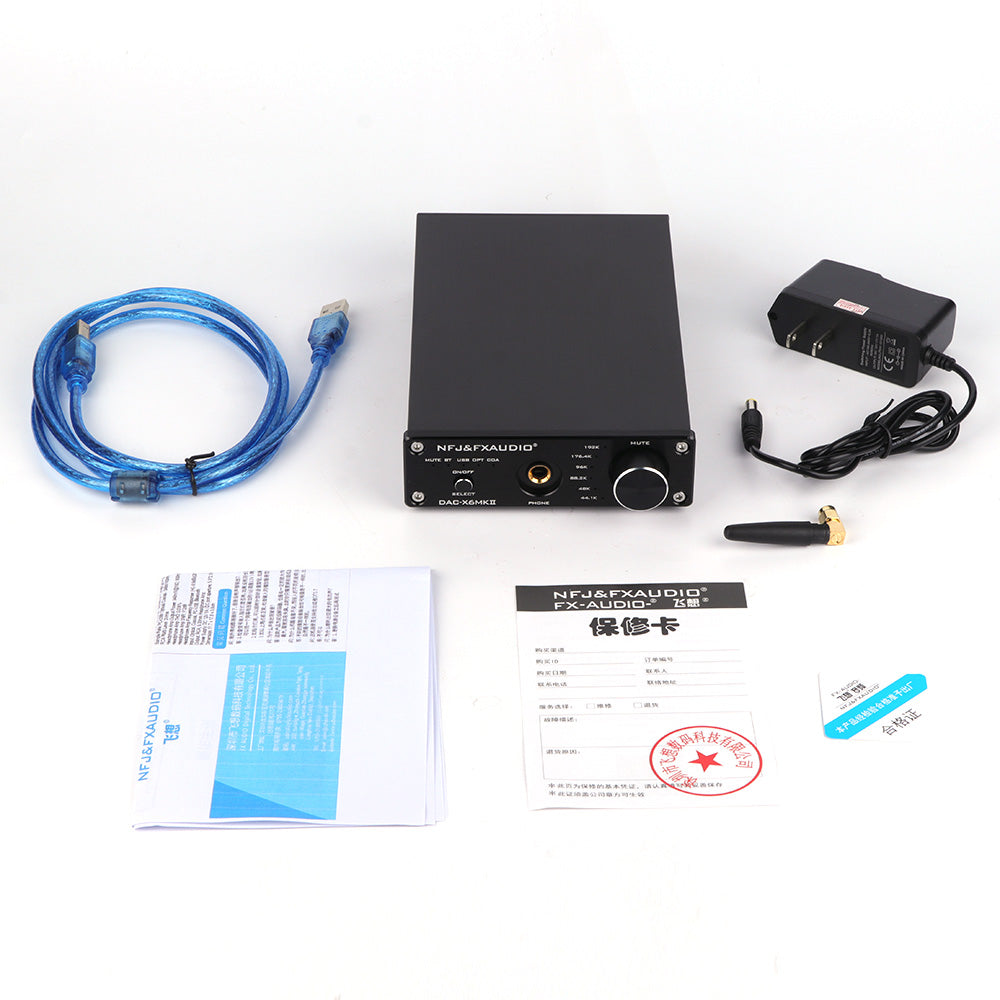

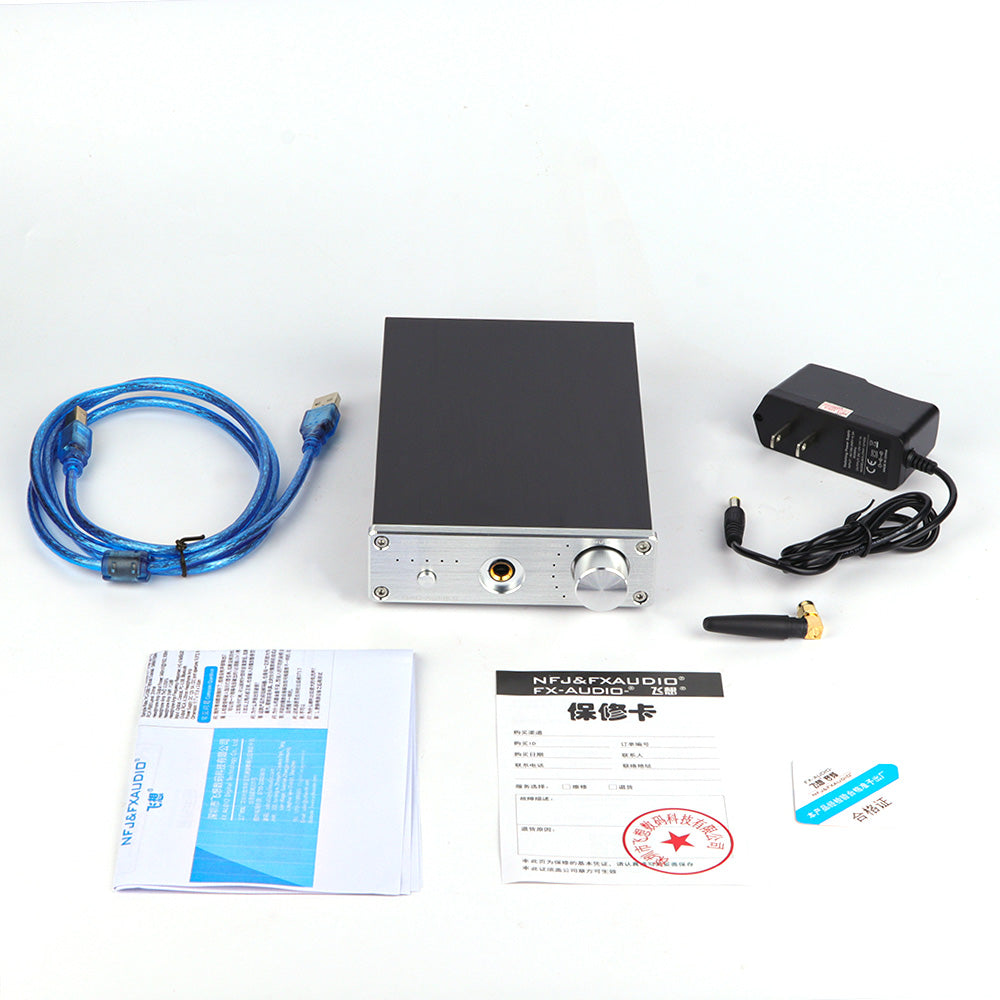

What’s in the Package?
 -1 x DAC-X6MKII -1 x power cord -1 x PC-USB cable
Inside the Box
  • 1 x FX-Audio DAC-X6 MKII
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The FX-Audio DAC-X6 MKII Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.
