The Hybrid Structure of "front tube and back stone

LD1+ adopts the so-called "front and back stone" hybrid structure in the circuit design: the front tube uses 6J1 dual vacuum tubes (WE408A/EF92 available too) and the back stone uses a buffer amplifier circuit composed of op amp + discrete components mainly composed of transistors. The sweetness of the machine also has the speed of the stone machine.

High-Value Aluminum Alloy Chassis Structure

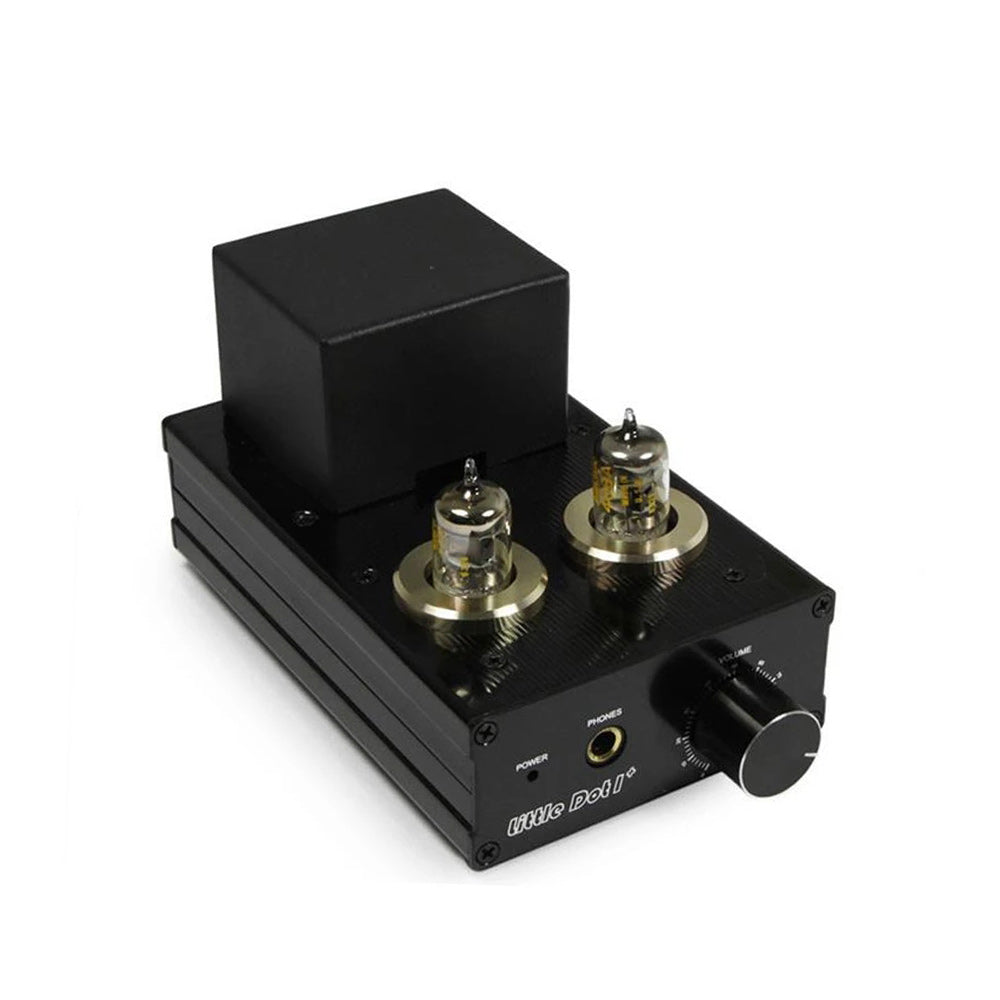

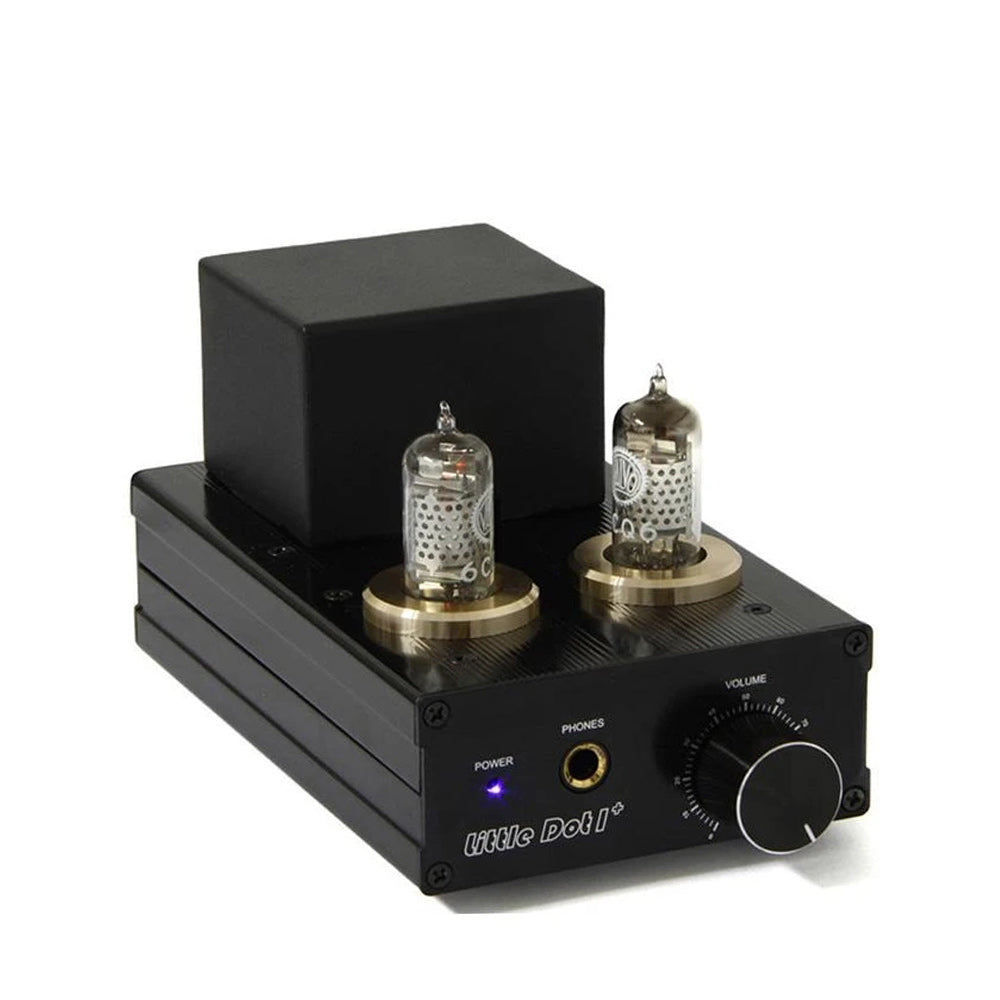

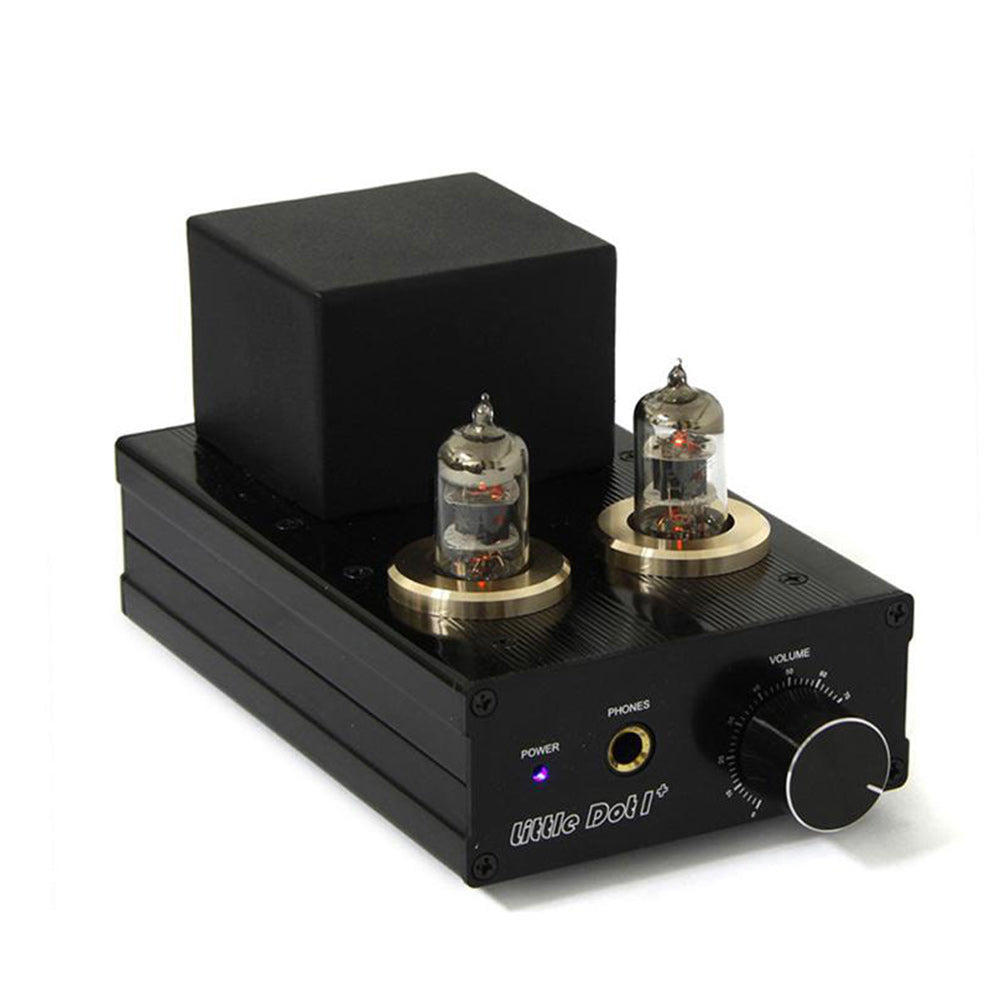

Little Dot LD1+ uses an aluminum alloy chassis structure with fine craftsmanship: the chassis adopts a secondary oxidation process with good smoothness and feel, and the electron tube is equipped with an aluminum alloy decorative ring.

More Pre-tube Options

The feature of this machine is that there are 4 tube switches inside, which are used to select different pre-tubes: WE408A/WE403A, B/EF91, 92/CV131, 138/5654/EF95/6J1 and other tubes can be used directly through the switch, bringing more fun in changing tubes.

Tips For More Info

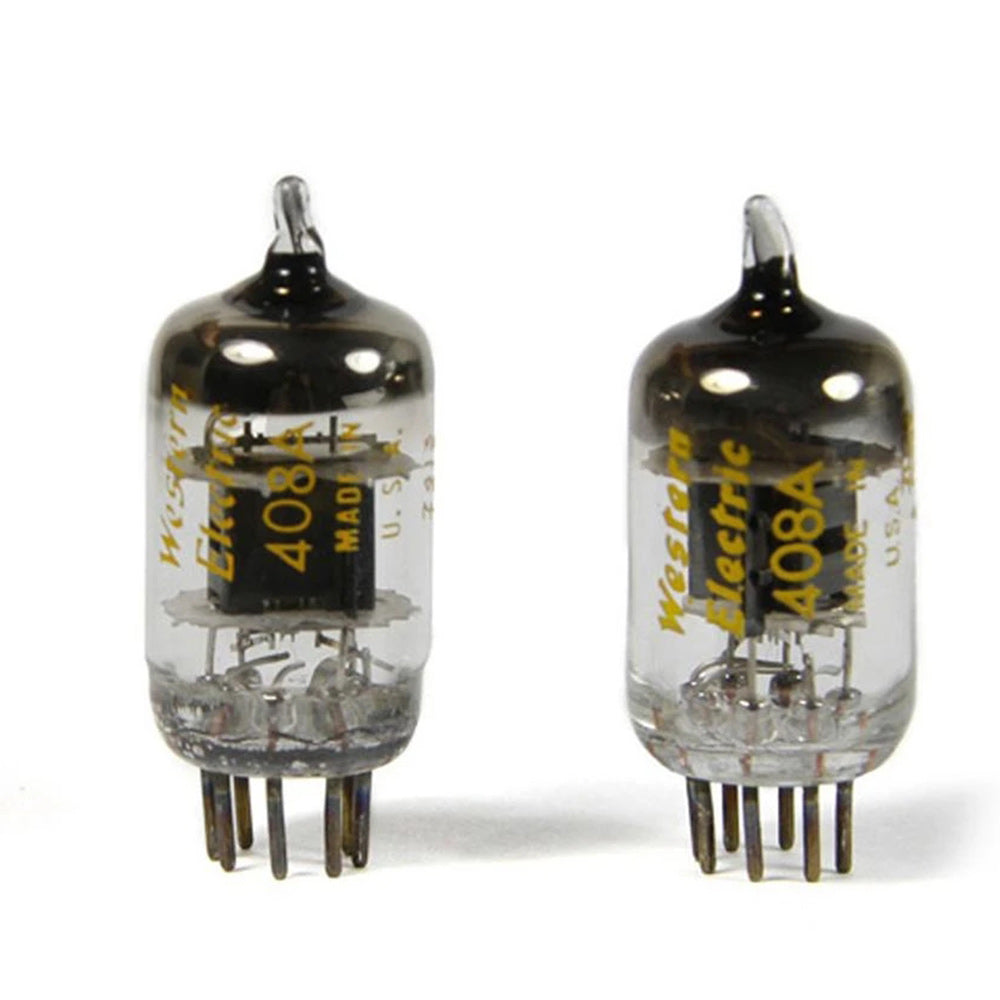

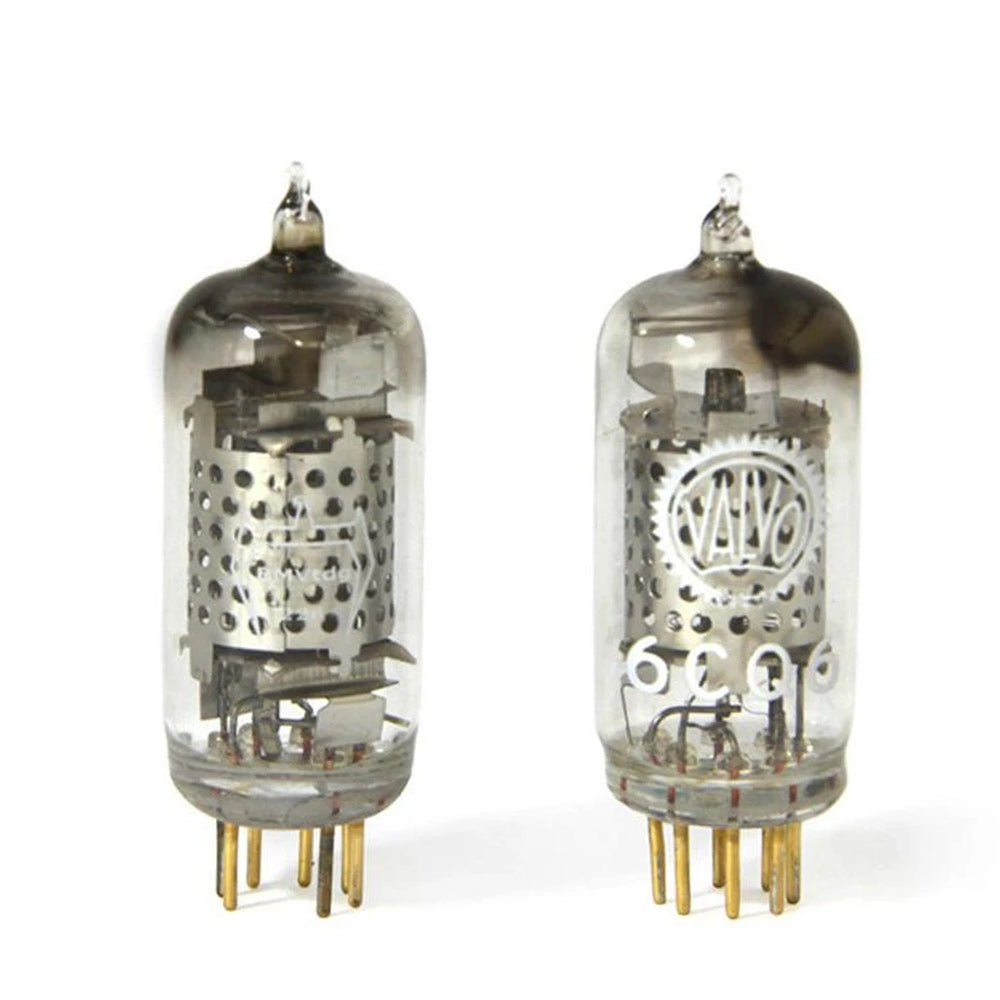

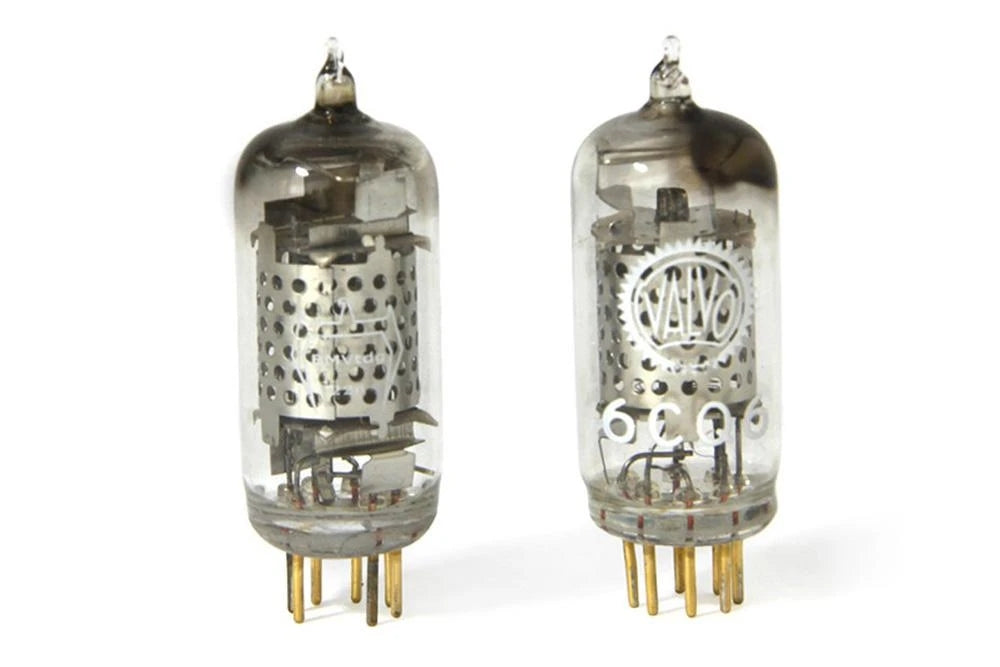

This machine has different versions according to different front tube configurations: Basic type: 6J1 (Beijing Electronic Tube Factory), Enhanced Type: EF92 or 6CQ6 (British Regal), Luxury Type: NE408A (Canada Nortel)

Technical Details

Input terminal
RCA x2
Output terminal
6.35 Headphone socket
THD+N
0.2%: 1Vrms @ 1000Hz
0.6%: 3Vrms @ 1000Hz
1.0%: 5Vrms @ 1000Hz
Signal-to-Noise
92dB
Suitable Headphone Impedance
8 - 600 ohms
Input Impedance
50K ohms
Output Power
150mW @ 300 ohms
300mW @ 120 ohms
800mW @ 32 ohms
Variable gain settings
6.5x or 3.25x
Power Consumption
15VA
Product Dimension
180mm (L) *97mm (W) *100mm (H) (7.08*3.81*3.93in)
Product Weight
1.5 kg(3.3 lbs)
Inside the Box
  • 1 x Little Dot LD I
  • User Manual
