Proprietary R2R + DSD Architecture

The Musician Pegasus presents itself as a magnificent and particularly powerful DAC, licensed Thesycon USB Driver For Windows Platform

True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters)

Taking advantage of a neat R2R architecture. Integrating the best current technologies, the device benefits from a low-noise power supply, a FIFO buffer, signal processing by FPGA and a FIR filter.

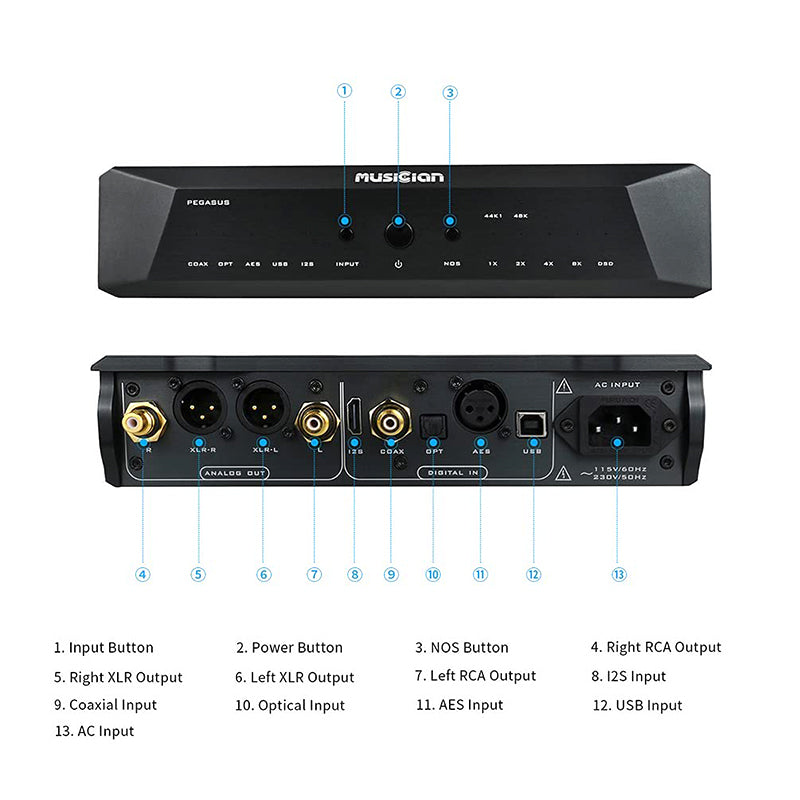

A more than complete connection system

DSD1024, PCM1536 Supports On USB & I2S Input (the audio source needs to be compatible with the native interface). The Musician Pegasus provides you with most of the connections common to today's HiFi devices. We thus find at the input of USB-B, I2S via HDMI LVDS, AES/EBU, Toslink Optics and Coaxial. On the output side, the device offers unbalanced RCA and balanced XLR, the latter output being obviously recommended to take advantage of the full potential of the device.

Warm Tips

The burn-in time of PEGASUS DACs is one week: Standby or Powered on 24/7 (300 hours), you will get the best performance after the enough aging hours.

Connecting RCA or XLR output simultaneously is not recommended, it will degrade the sound quality because they are shared. Even if the downstream equipment is on/off, the output signal will still be transmitted to the input stage of the downstream device.

If possible, please use the XLR output. As a ture balanced DAC, the XLR output of PEGASUS will be more superior.

Technical Details

Inputs
1x USB-B
1x Coaxial
1x Optical Toslink
1x AES/EBU
1x I2S via HDMI LVDS
Outputs
1x Single-ended RCA
1x Balanced XLR
Supported sampling rates
I2S / USB : PCM up to 32bit 1536kHz, DSD up to DSD1024
Others inputs : PCM up to 24bit 192kHz, DSD DoP up to DSD64
Frequency response
10Hz - 60kHz
THD+N
0.002%
SNR
123dB (A-Weighted)
Dynamic range
> 120dB
Output level
RCA : 2.2Vrms
XLR : 3.55Vrms
Supply voltage
110-240VAC, 50/60Hz
Consumption
≤ 20W
Dimensions
280 x 250 x 50mm
Weight
3.9kg
Package
1x Musician Pegasus
1x Power cable
Inside the Box
  • 1 x MUSICIAN Pegasus R2R DAC
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The MUSICIAN Pegasus R2R DAC Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 2-4 weeks

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Piotr Kopczyński
Outstanding piece of gear

I got Pegasus after owning Gustard X16 for 2+ years.
Keeping it short:
I got it to try R2R DAC, to feel this miraculous softness. To be truth I can`t hear it. What I do hear is DAC that offers incredible sound stage, bass response, detail retrieval in both mids and highs, stereo or 3D imagining.
I guess it`s not shouty on it`s own but on any kind of purely recorded music it won't be forgiving. On the other hand when music is fairly (or greatly)engineered, Pegasus will enhance listening experience to the level of pure enjoyment.
For what it costs, it`s a bargain.

My audio chain for reference:
Daphile OS>Gustard U18>Pegasus>Topping A90D> Adam Audio A77X (speakers), Dan Clarke Audio Aeon 2 Closed. All interconnects are balanced.
