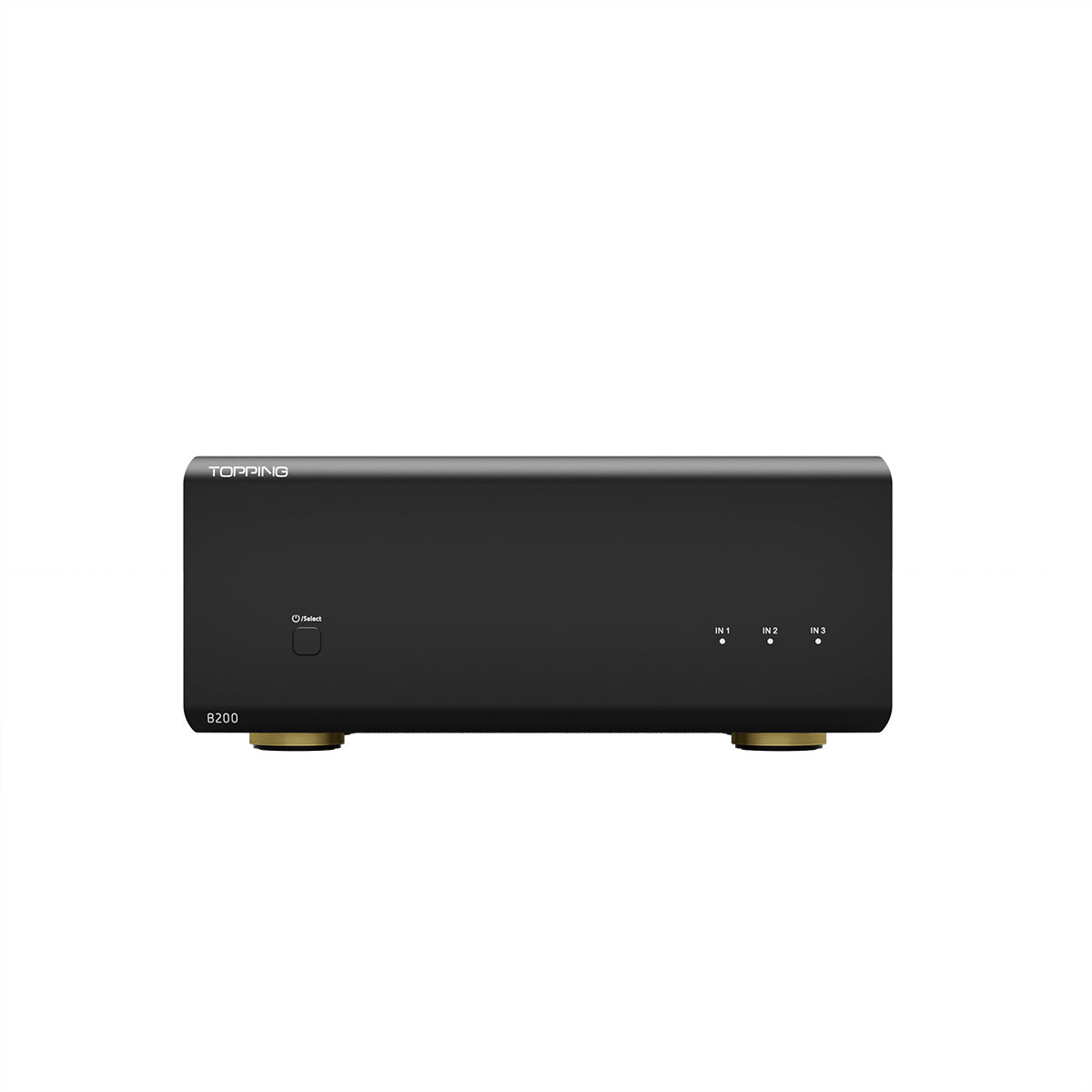

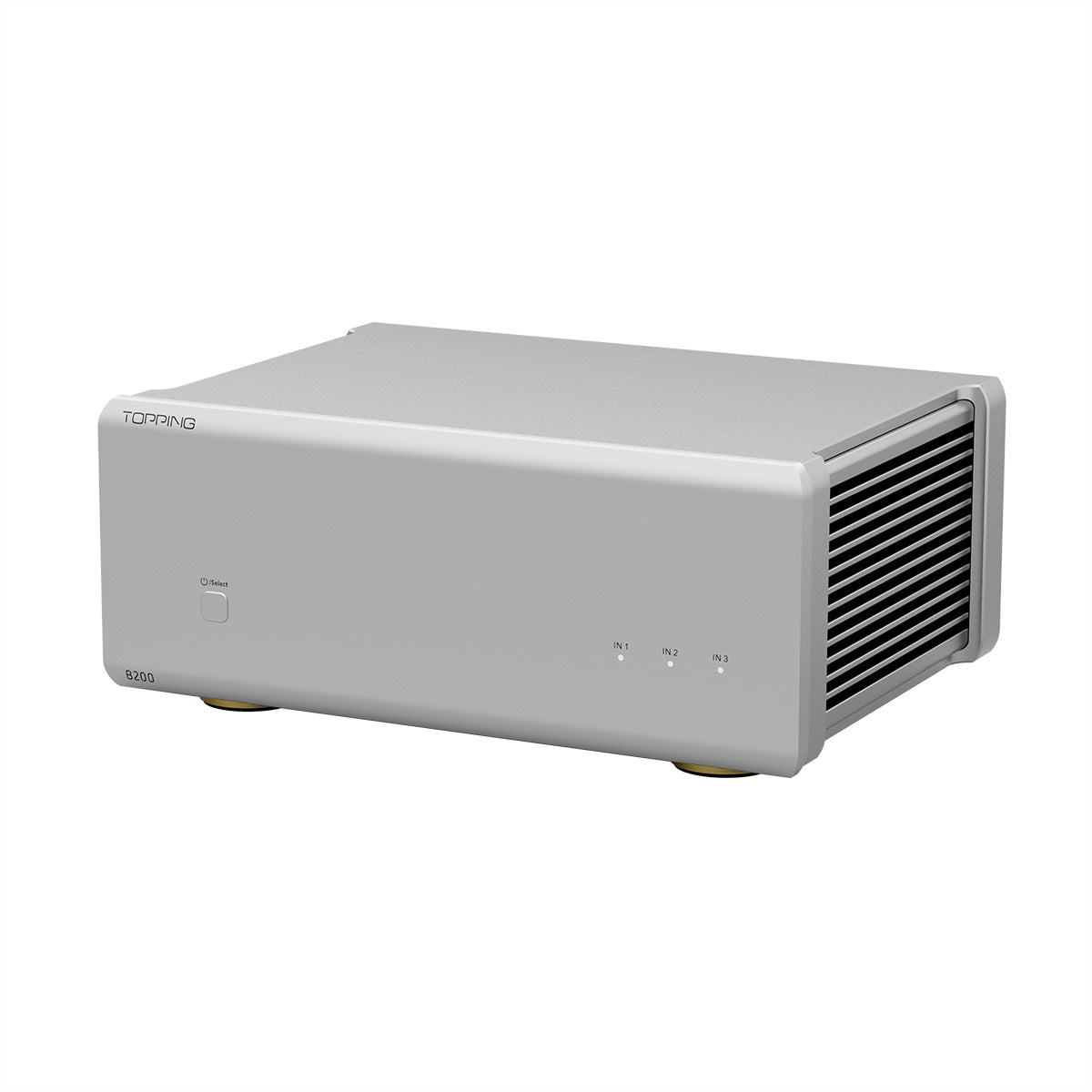

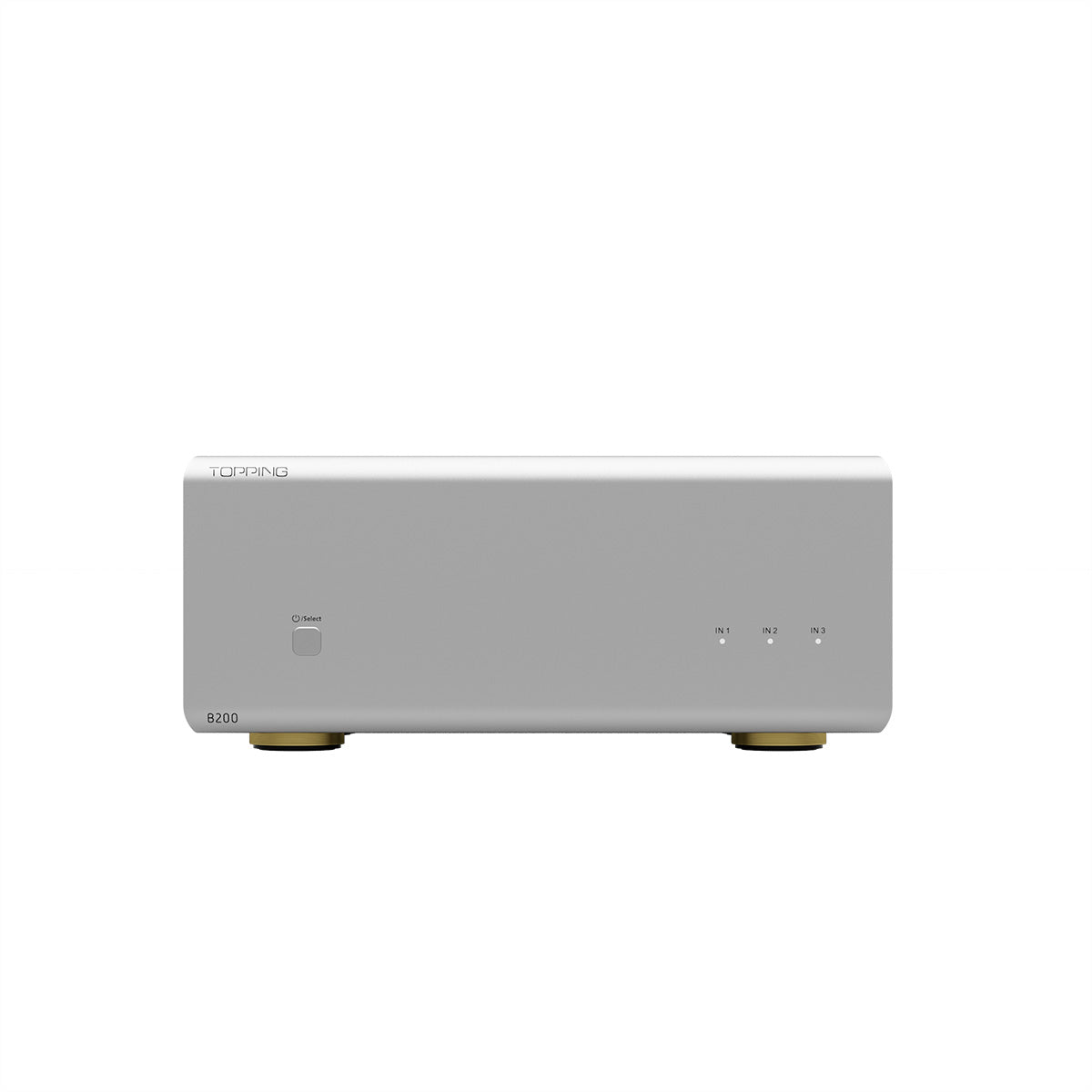

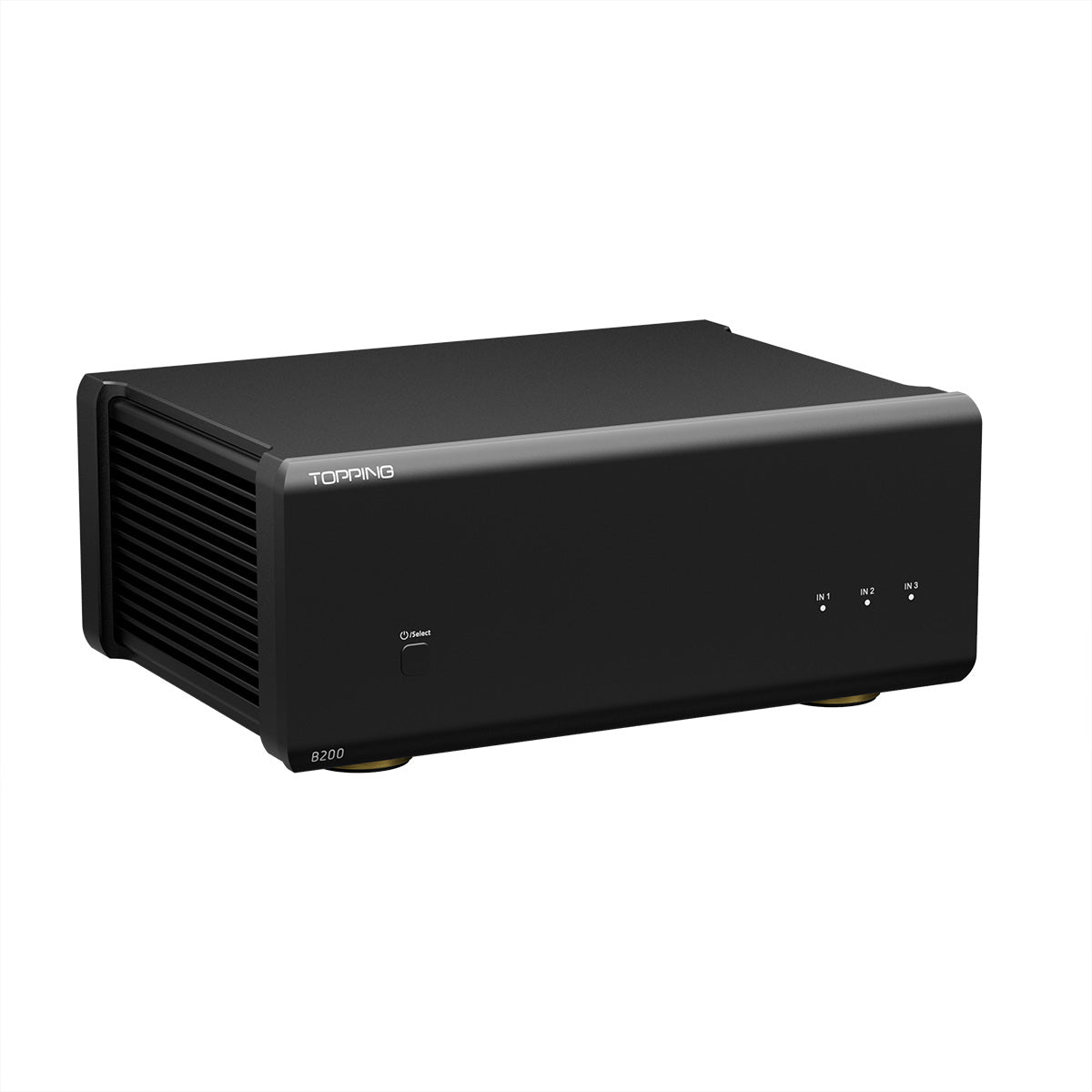

Mono Power Amplifier

  • Ultra-high Performance with High Power and Low Noise
  • Brand New NFCA Discrete Amplifier
  • Three Sets of XR/TRS Balanced Inputs
  • 200W Output Power
  • Exquisite Detail Reproduction in Music
  • Immersive Experience with High Reproduction
  • Standard Configuration for High-Power Speakers
  • 12V Trigger
Silver
Black
Regular price $599.00 USD
Sale price $599.00 USD Regular price

Ultra-high Performance with High Power and Low Noise

The TOPPING B200 is a mono pure power amplifier that combines high power output with ultra-low noise levels, delivering unparalleled auditory enjoyment.

Brand New NFCA Discrete Amplifier

The newly developed NFCA discrete power amplifier reaches a new level of pristine sound processing and reproduction. The B200, with its unprecedented 200W performance, ensures pure auditory enjoyment.

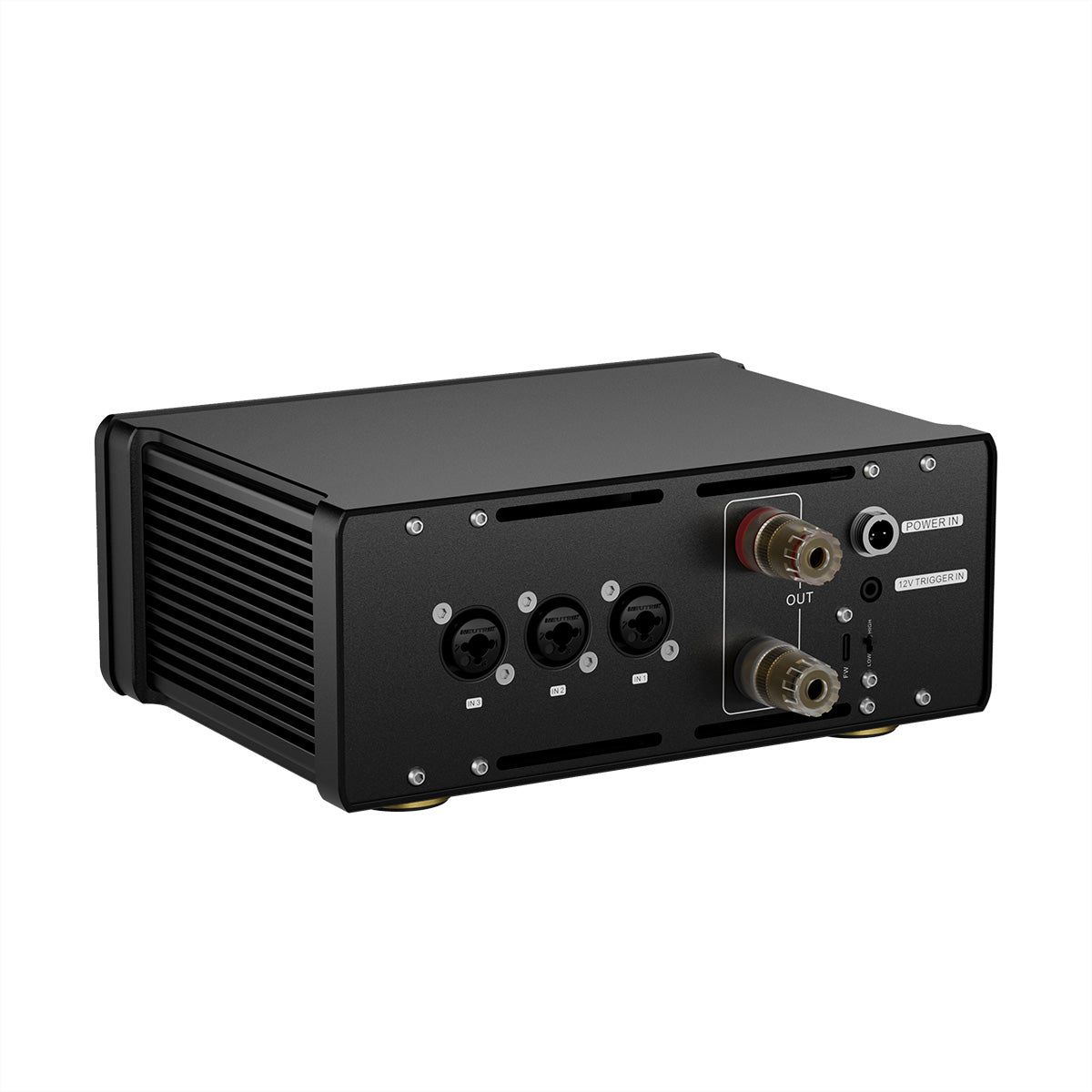

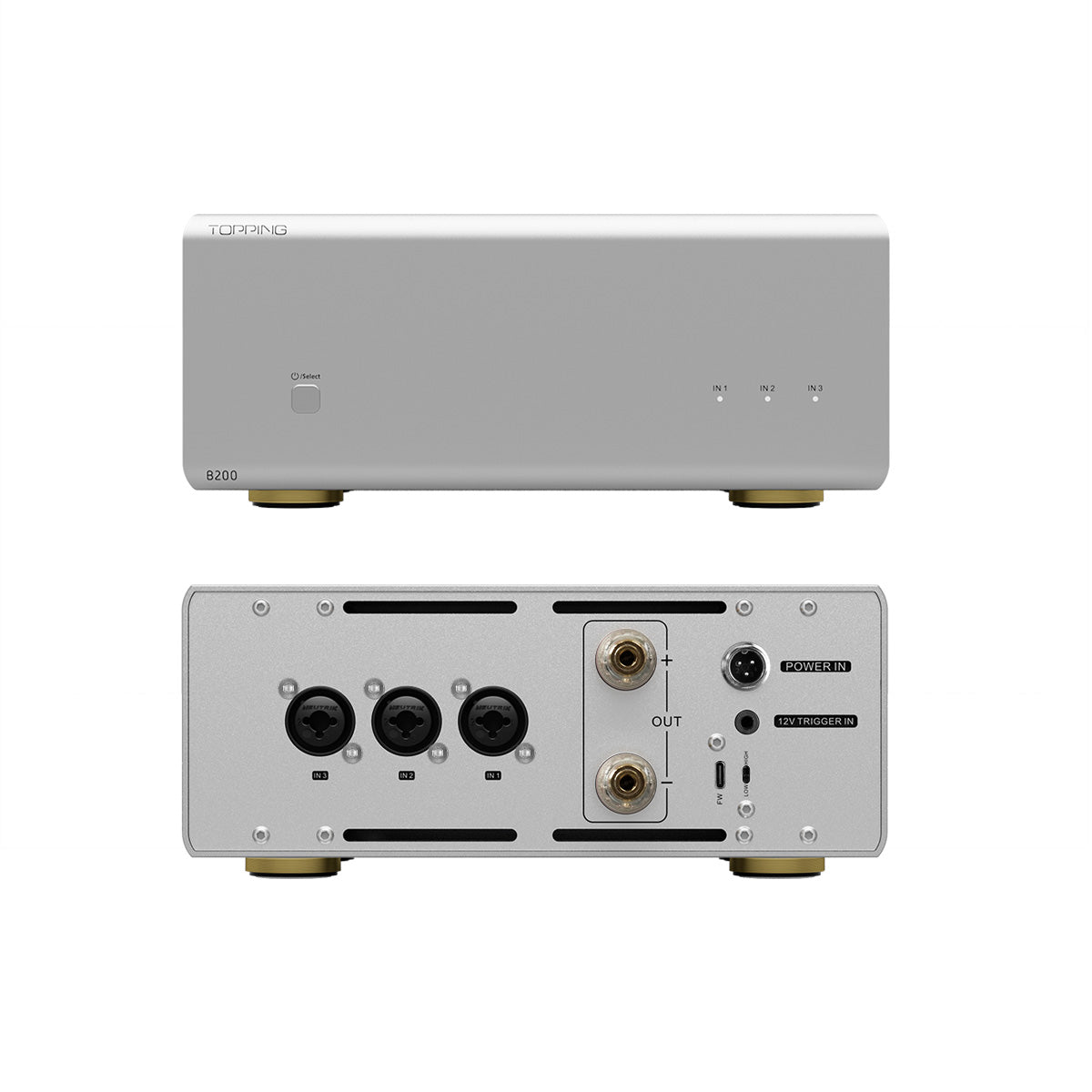

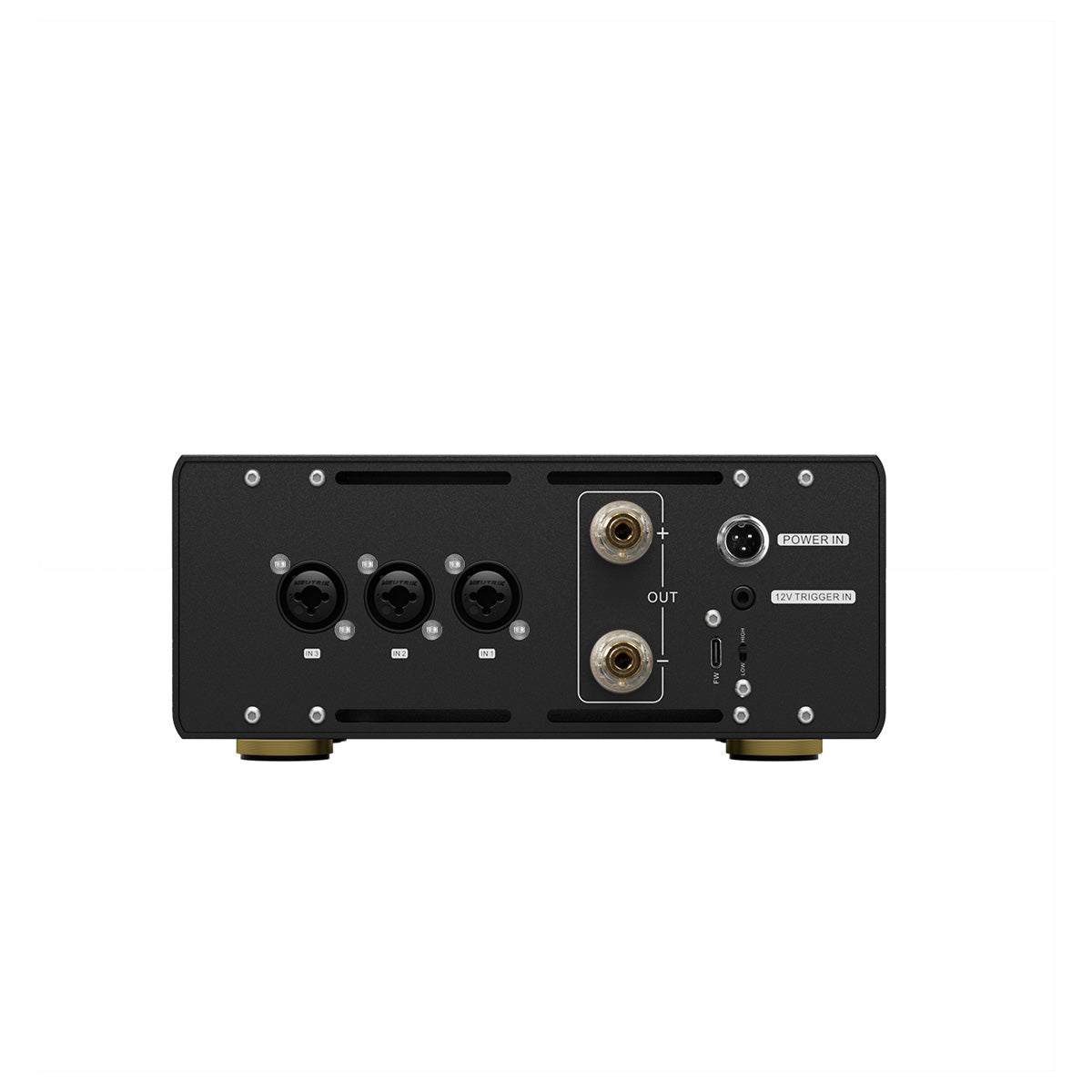

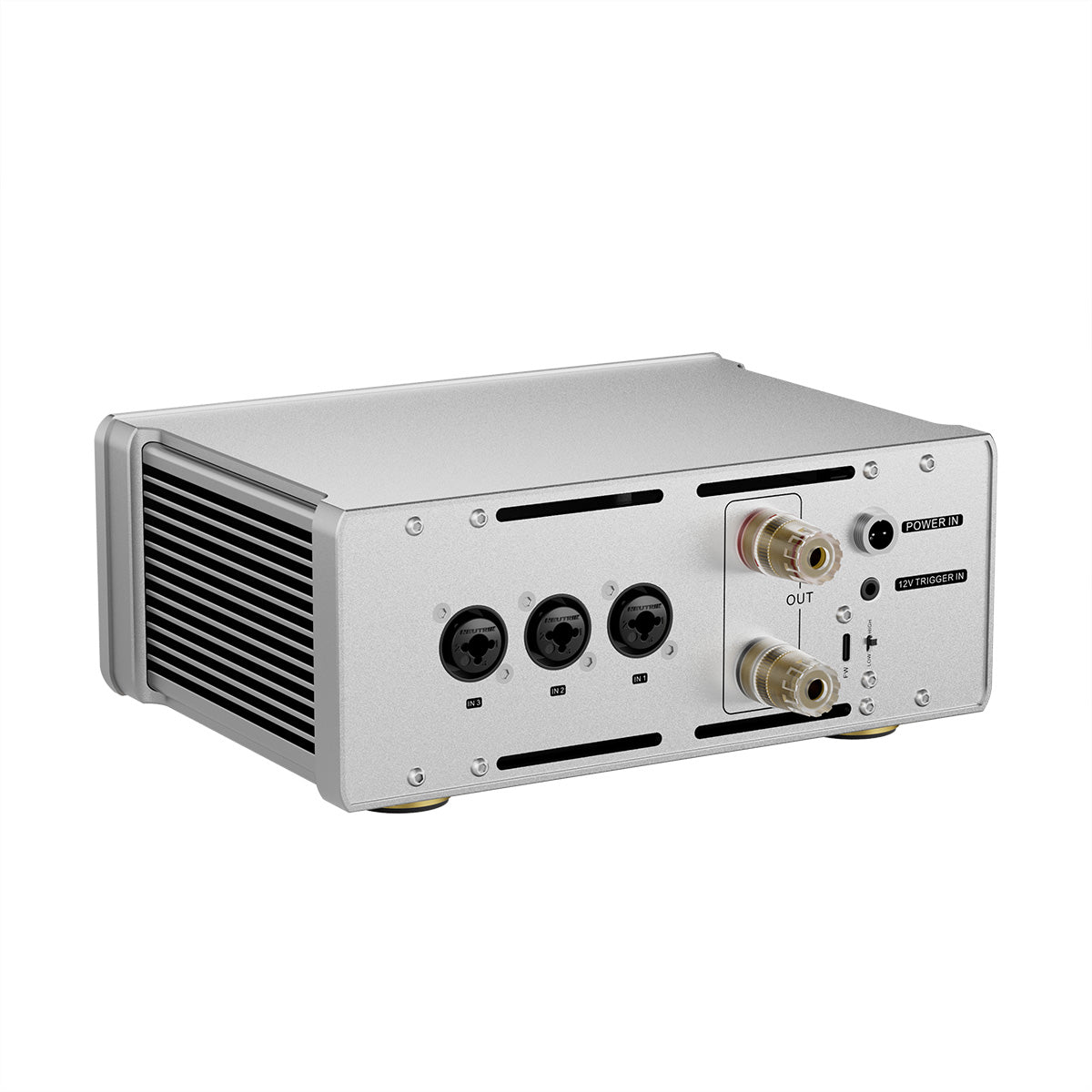

Three Sets of XR/TRS Balanced Inputs

The B200 is equipped with three sets of XR/TRS balanced inputs, providing flexibility and compatibility with various audio setups.

200W Output Power

With a powerful output of 200W, the B200 can meet the needs of a wide range of speakers. It offers high/low gain options, allowing you to choose the appropriate gain according to different environments and equipment requirements.

Exquisite Detail Reproduction in Music

The B200 boasts an impressive DNR and SNR, capturing and accurately reproducing subtle note changes and complex music levels, providing an immersive experience with high fidelity.

Immersive Experience with High Reproduction

Pairing the B200 with the D90 II SABRE results in one of the lowest distortion DAC + amplifier combinations available. They can be connected via XLR balanced cables to ensure stable signal transmission. For a stereo system, two B200s are required to drive two passive speakers respectively.

Standard Configuration for High-Power Speakers

The B200 can be paired with the Pre90, creating a high-power combo set: 1x Pre90 and 2x B200. The Pre90 offers precise volume control, remote operation, and multiple input ports.

12V Trigger

The B200 amplifier is equipped with a 12V Trigger input interface, allowing for linked power on/off with other devices. This feature enhances usability by enabling simultaneous power control for all connected devices.

Inside the Box

  • 1 x TOPPING B200
  • User Manual

1 Year Warranty

The TOPPING B200 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Input
3 x Balanced XLR / Jack 6.35mm
THD+N @1kHz (A-wt)
<0.00008% @ 4Ω 5W
<0.000075% @ 8Ω 5W
THD @ 20-20kHz (90kBW)
<0.0005% @ 4Ω 5W
<0.0004% @ 8Ω 5W
SNR (A-wt)
145dB
Dynamic Range @1kHz (A-wt)
145dB
Frequency Response
20Hz-40kHz (±0.2dB)
20Hz-100kHz (±0.4dB)
Output Level
80Vpp @ 4Ω
110Vpp @ 8Ω
AP Measured Noise Level (A-wt)
<2.3uVrms @ G=L
<3.9uVrms @ G=H
Input Sensitivity
12.5Vrms @ G=L
3.9Vrms @ G=H
Gain
11.6dB @ G=L
22.0dB @ G=H
Output Impedance
<5mΩ
Input Impedance
10ΚΩ
Output Power
200W @ 40Ω THD+N < 1%
240W @ 8Ω THD+N < 10%
200W @ 8Ω THD+N < 1%
Adapter Impedance
≥4Ω
Dimensions
22x 18.5 x 9.2mm
Note
The above data is the result of testing under the condition of AC220V 50Hz in TOPPING's laboratory.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 1 week.
