AOSHIDA D7

Bluetooth 5.1 HIFI Tube Balanced Headphone Decoder & Amplifier

    3.5mm Headphone Output & Multiple Audio Inputs
    CS4344 Decoding Chip
    96kHz HD Bluetooth transmission
    American 5725 HIFI Tube
    OLED Display With EQ Sound Effect
    Equipped With Remote Control
Regular price $179.00 USD
Sale price $179.00 USD Regular price

3.5mm Headphone Output & Multiple Audio Inputst

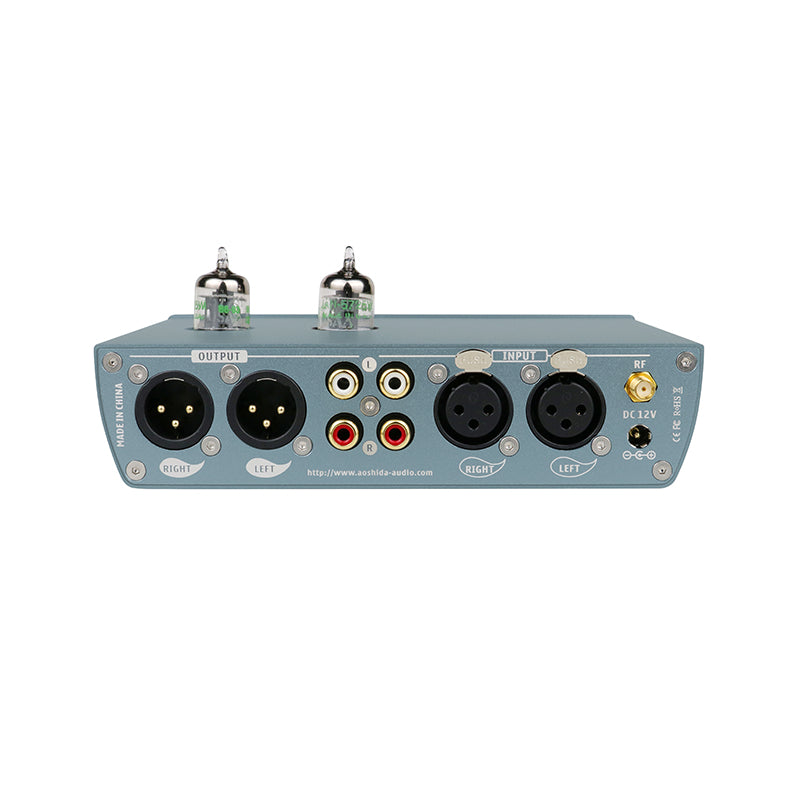

3.5mm ear amplifier interface is adopted, the output power of the headset is 120mW, and the matching impedance is 16-300Ω, which can easily promote the mainstream earphones in the market. It also supports Bluetooth, balanced XLR, RCA input, which can be connected with computer, iPod, mobile phone, MP3, TV, CD, DVD/VCD, Blu ray player, etc. in high fidelity to achieve high quality lossless audio transmission and enjoying HIFI audio quality.

CS4344 Decoding Chip

The new generation AOSHIDA D7 DAC adopts CS4344 decoding chip, which has excellent performance, richer audio details and wider dynamic range.

Bluetooth 5.1

QCC5125 Bluetooth module is adopted, supporting LDAC 96kHz/24Bit, Bluetooth connection is fast and stable, with high speed transmission and low delay.

American 5725 HIFI Tube

The electronic tube adopts the American 5725, orange tube, which softens the sound and filters out the digital feeling.The sound is warm, sweet and noiseless.

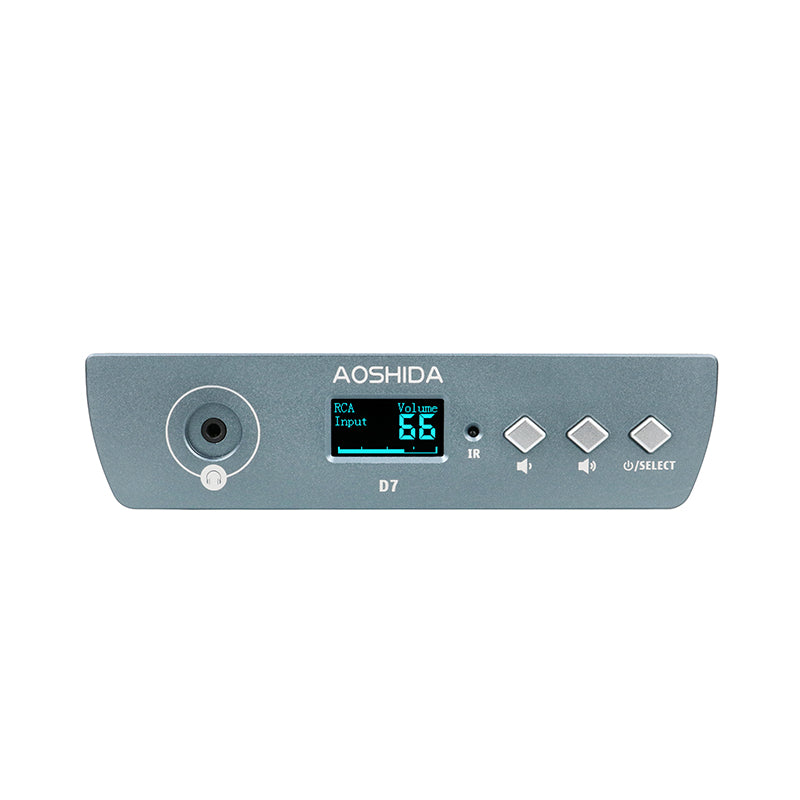

OLED Display With EQ Sound Effect

The OLED display screen is used to display the Bluetooth connection status, high and low volume and other information intuitively, so as to know the working status at any time. D7 also has EQ sound effect. Different playing methods add more playability and fun to music. More playing methods are waiting for you to explore.

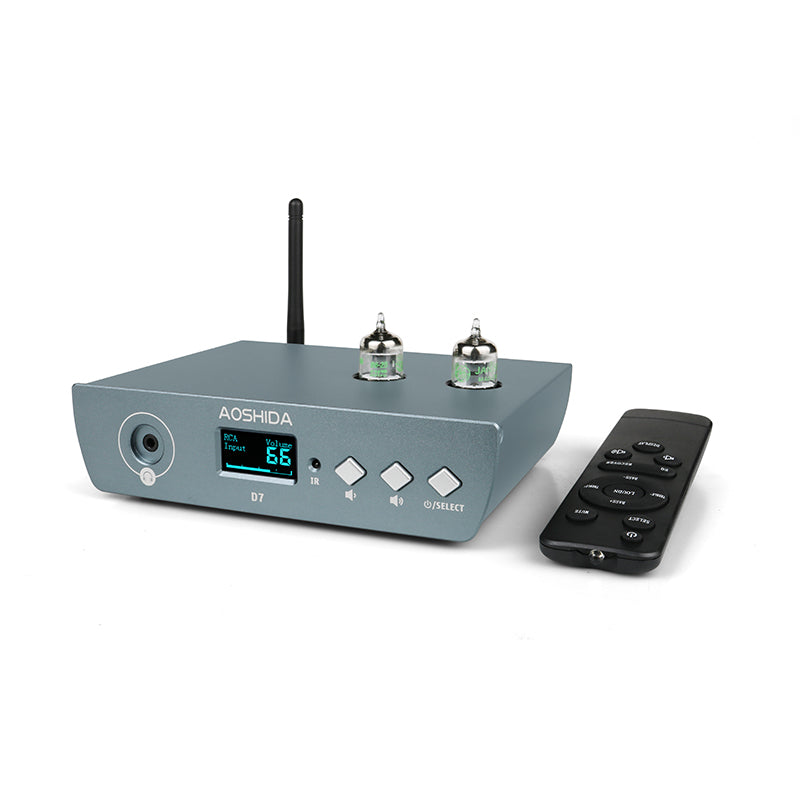

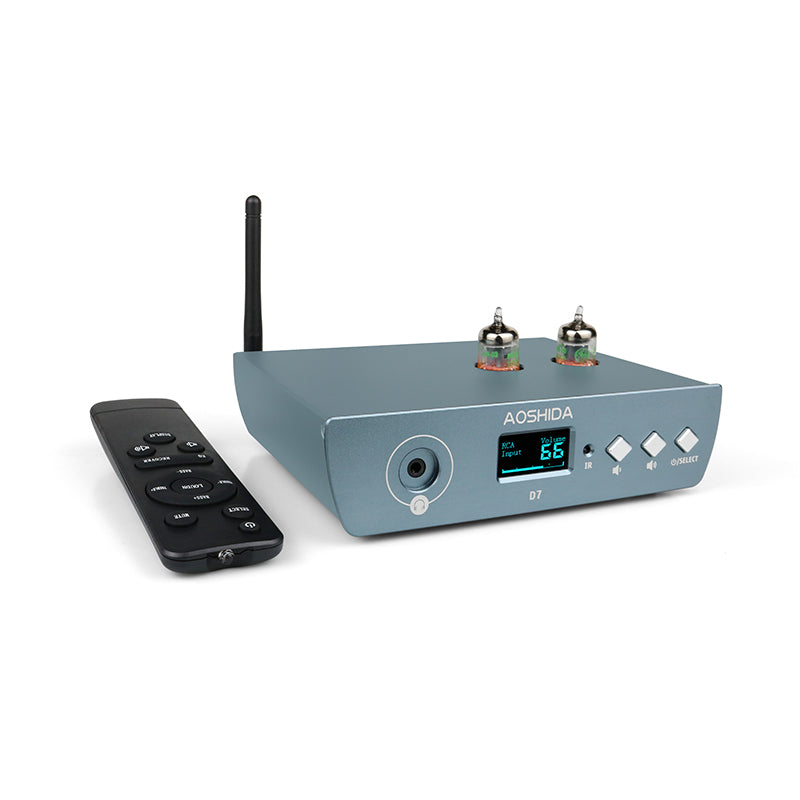

Equipped With Remote Control

With infrared technology and multi angle sensing, the transmission distance is longer, more stable, not limited by direction, and the operation is easier and more convenient.

Inside the Box

  • 1 x AOSHIDA D7
  • User Manual

1 Year Warranty

The AOSHIDA D7 Comes with a 1 year warranty on the DAC & Amplifier only. Warranty doesn't apply to the included accessories.

Technical Details

Product model
AOSHIDA D7
Bluetooth version
Bluetooth 5.1
Frequency response
20Hz ~ 20KHz( ±1dB )
Input sensitivity
1Vrms
Distortion degree
0.05%
Working voltage
DC 12V
SNR
≥103dB
Headphone impedance range
16-300Ω
Headphone output power
120mW
RCA maximum output amplitude
2V
BAL maximum output amplitude
4V
Size
170mm X 42mm X 126mm (W x H x D)
