Portable DAC and Headphone Amplifier

  • High-Resolution PCM Decoding
  • Hardware Decoding of DSD512 Audio Stream
  • ES9039Q2M Decoding Chip
  • 126dB Dynamic Range with Near-Zero Background Noise
  • Equipped with 3 Independent Power Supply Chips for Dedicated Power Delivery
  • High-Power Balanced Output Delivering 480mW
  • Precision 60-Step Volume Control with Seamless Adjustment
  • Dual Headphone Outputs: 3.5mm Single-Ended and 4.4mm Balanced
  • Interchangeable Type-C Port
  • Full Aluminum Alloy Shell with Optimized Cooling Design
Regular price $89.99 USD
Sale price $89.99 USD Regular price

Outstanding Performance

The Celest CD-20 features the flagship ES9039Q2M decoding chip, enabling PCM and DSD audio decoding with a dynamic range of 126dB and near-zero background noise. This ensures a pure and detailed audio experience, perfect for audiophiles seeking portability without sacrificing sound quality.

High Power Output

With a powerful output of up to 480mW, the CD-20 can easily pair with a variety of audio products, providing the strength needed for a rich listening experience.

Supports PCM and DSD Hardware Decoding

The CD-20 supports hardware decoding for PCM up to 32-bit/768kHz and DSD512, allowing it to handle a wide range of high-resolution audio files effortlessly.

Single-Ended and Balanced Dual Headphone Jacks

Equipped with both 3.5mm single-ended and 4.4mm balanced outputs, the CD-20 can deliver up to 4Vrms output in high-level balanced mode, meeting diverse audio needs. (Note: Do not use both jacks simultaneously.)

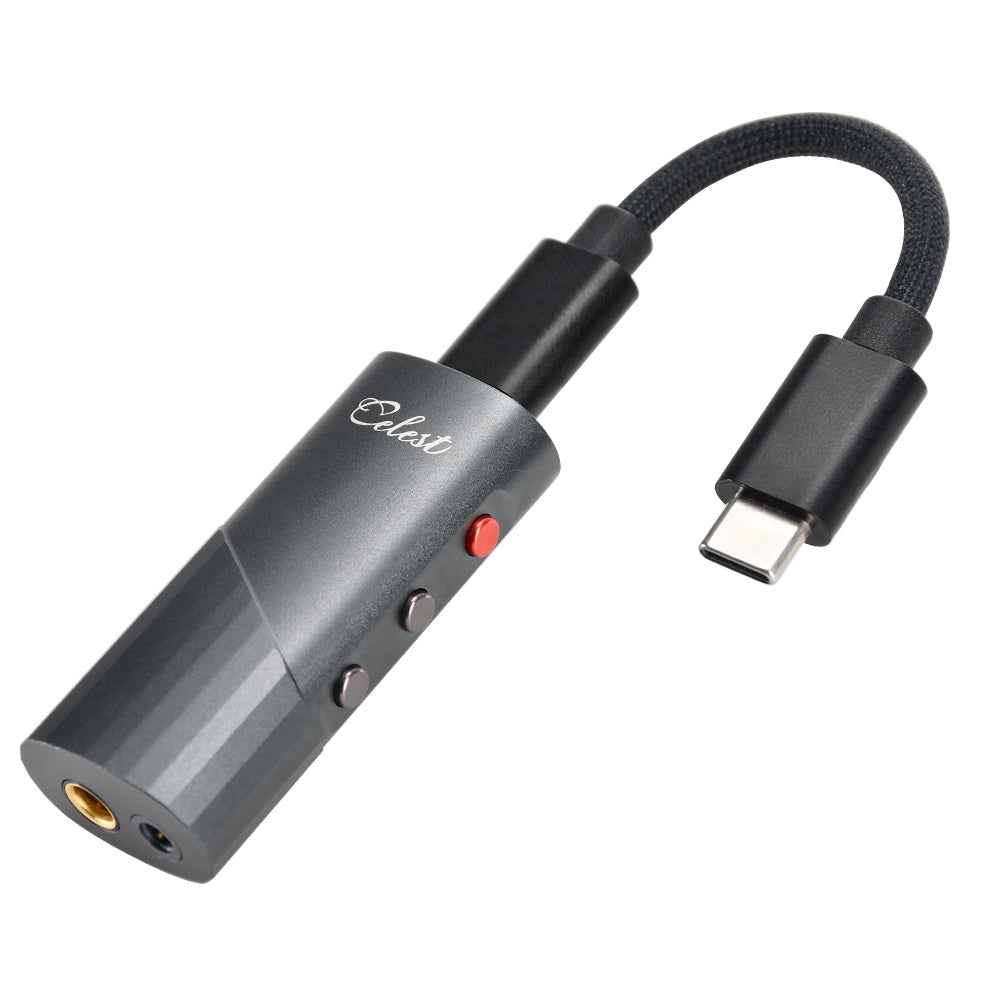

Replaceable Cable Design for Multi-Device Compatibility

The CD-20 is compatible with various systems, including Windows, Mac OS, Android, and iOS. By swapping different OTG data cables, it enables audio decoding across multiple devices, allowing for high-quality music anytime, anywhere. (Comes standard with a Type-C to Type-C cable; other cables sold separately.)

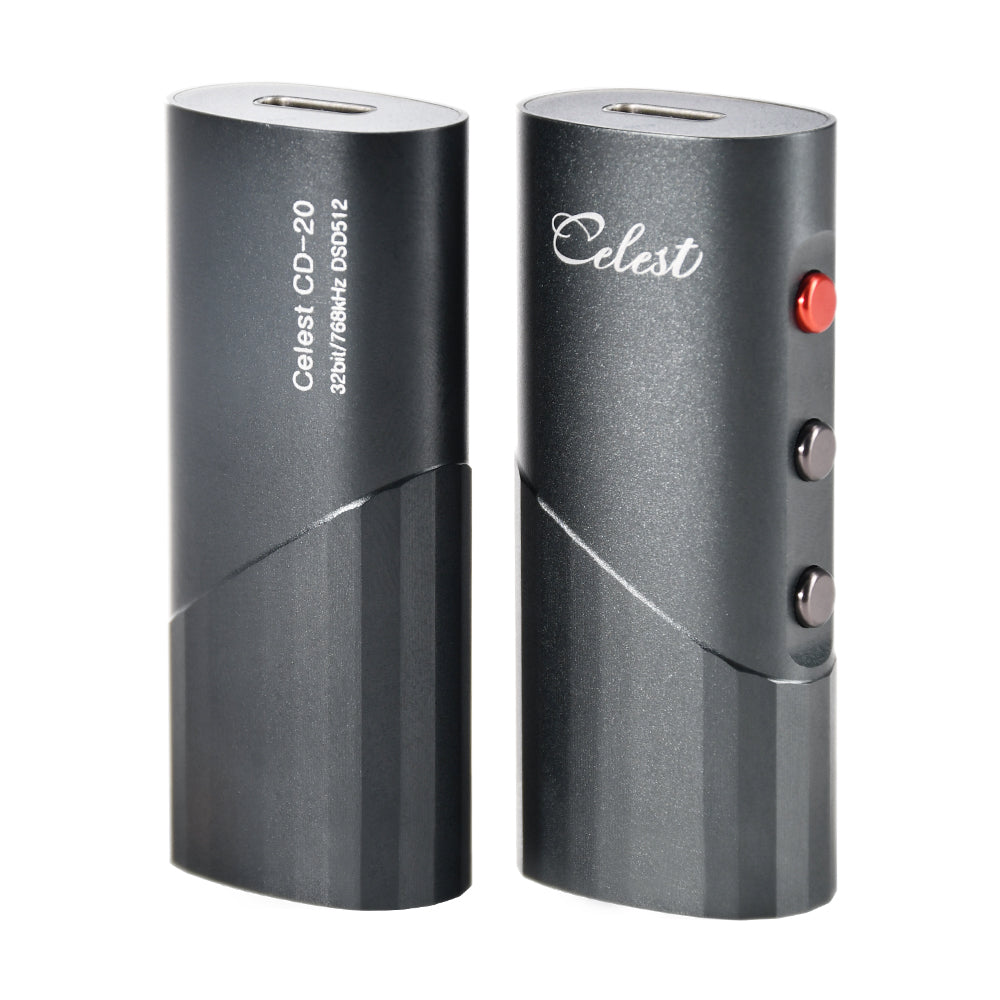

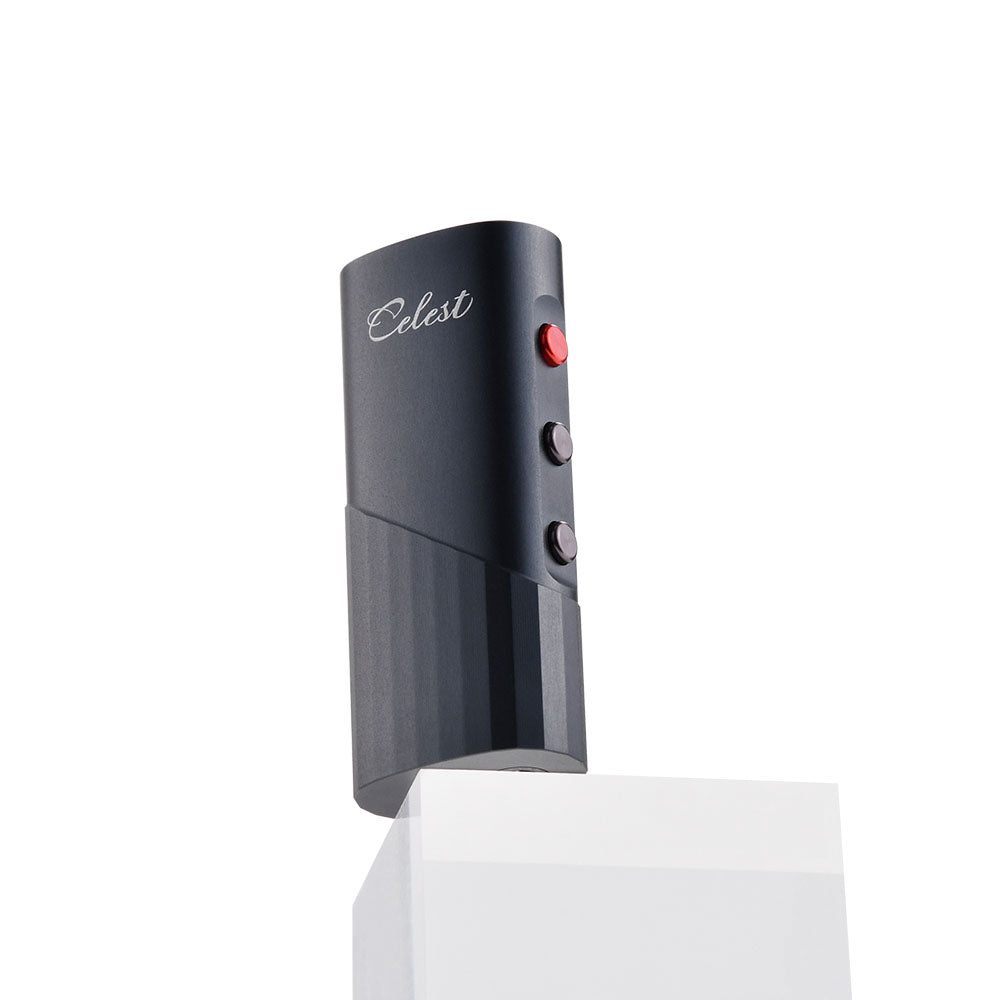

CNC Metal Unibody

The CNC metal unibody construction provides a refined texture while effectively isolating external electromagnetic interference for clearer sound quality.

Independent Button Volume Precision Control

Featuring 60 levels of independent volume control, the CD-20 helps maintain optimal sound levels and includes a power-off memory function. It also offers multimedia controls for effortless playback. (Note: Some Android devices may experience compatibility issues.)

Ultra-Compact Design, Portable HiFi

Weighing just 16.2g, the CD-20 is designed for portability, easily fitting into your pocket or bag, ensuring HiFi sound goes wherever you do.

UAC1.0 Optimized for Gaming Audio Experience

Supporting UAC1.0 mode, the CD-20 is compatible with popular gaming consoles like PS5 and Switch, enhancing your gaming experience with precise sound positioning and immersive surround effects.

Inside the Box

  • 1 x Celest CD-20
  • User Manual

1 Year Warranty

The Celest CD-20 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Brand
Celest
Model
CD-20
Color
Gunmetal
Weight
16.2g

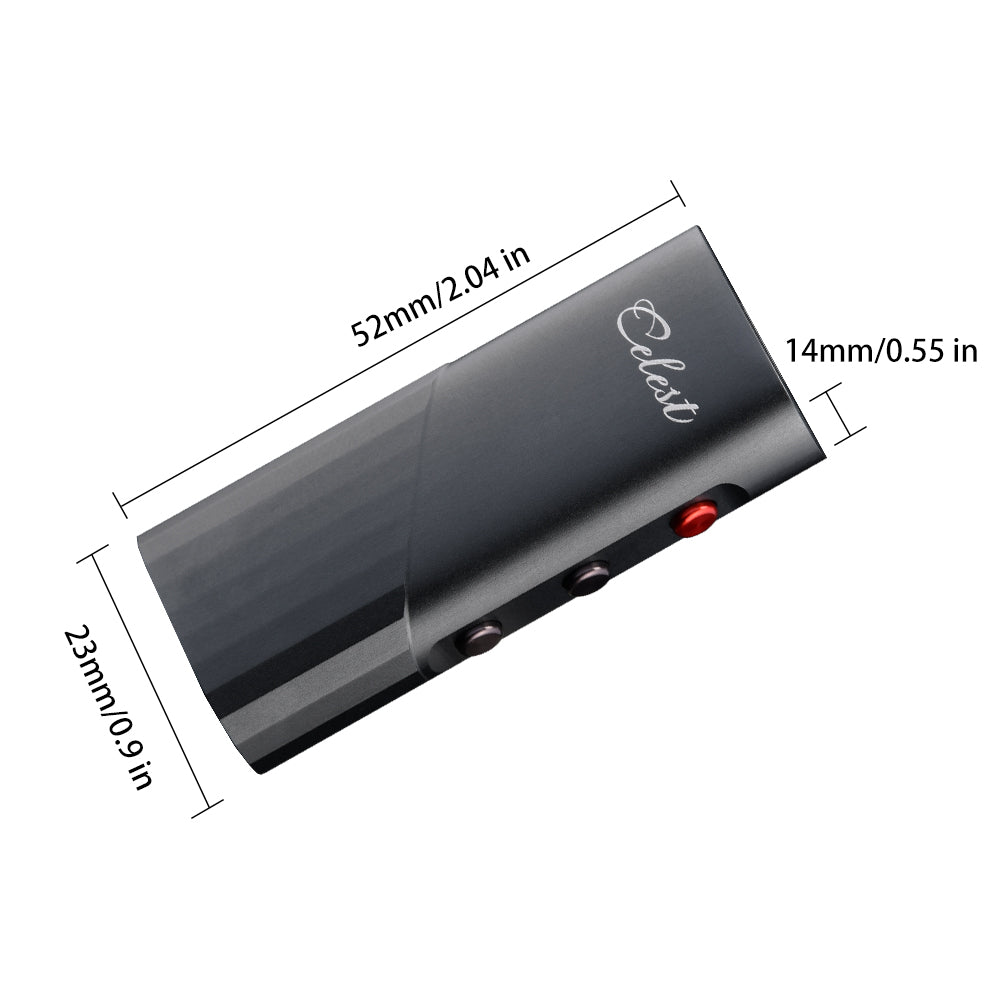

Dimensions
52*23*14mm
Plug
3.5mm single-ended + 4.4mm balanced
Output Interface
Type-C
Signal-to-Noise Ratio
123dB single-ended / 126dB balanced
Dynamic Range
123dB single-ended / 126dB balanced
Frequency Response
20Hz~80KHz
Noise Floor
<1.6uV (single-ended), <2uV (balanced)
Output Power
250mW (32Ω) single-ended, 480mW (32Ω) balanced
THD+N
<0.00056% (32Ω, single-ended), <0.00079% (32Ω, balanced)

Authentic Products

Linsoul Audio is the authorized distributor. All products are authentic and genuine.

Worldwide Free Shipping

We are located in China but send our products worldwide for free. T&Cs apply.

1 Year Warranty

We provide 1 year warranty for the all products except the cables and accessories*.

Online Support

Need help?, we are here to assist you
Monday - Friday: 09:00 – 18:00 (UTC+8)
