Precision Sound Tuning with HiFi Intentions

Part of DDHIFI’s Memory Series, the M198C refines the design principles of the M110C to deliver a more HiFi-centric listening experience. With both the DSP tuning and OCC cable optimized for clarity and balance, this cable offers an ultra-clean background and lifelike audio reproduction for critical listening.

CS43198 DAC with High-Res Decoding

At the heart of the M198C lies the CS43198 DAC chip, supporting PCM up to 384kHz/32bit and native DSD256 decoding. Paired with a high-performance USB audio bridge chip, it ensures accurate digital-to-analog conversion and supports in-line controls and microphone functionality with excellent signal integrity.

Custom 5N OCC Upgrade Cable

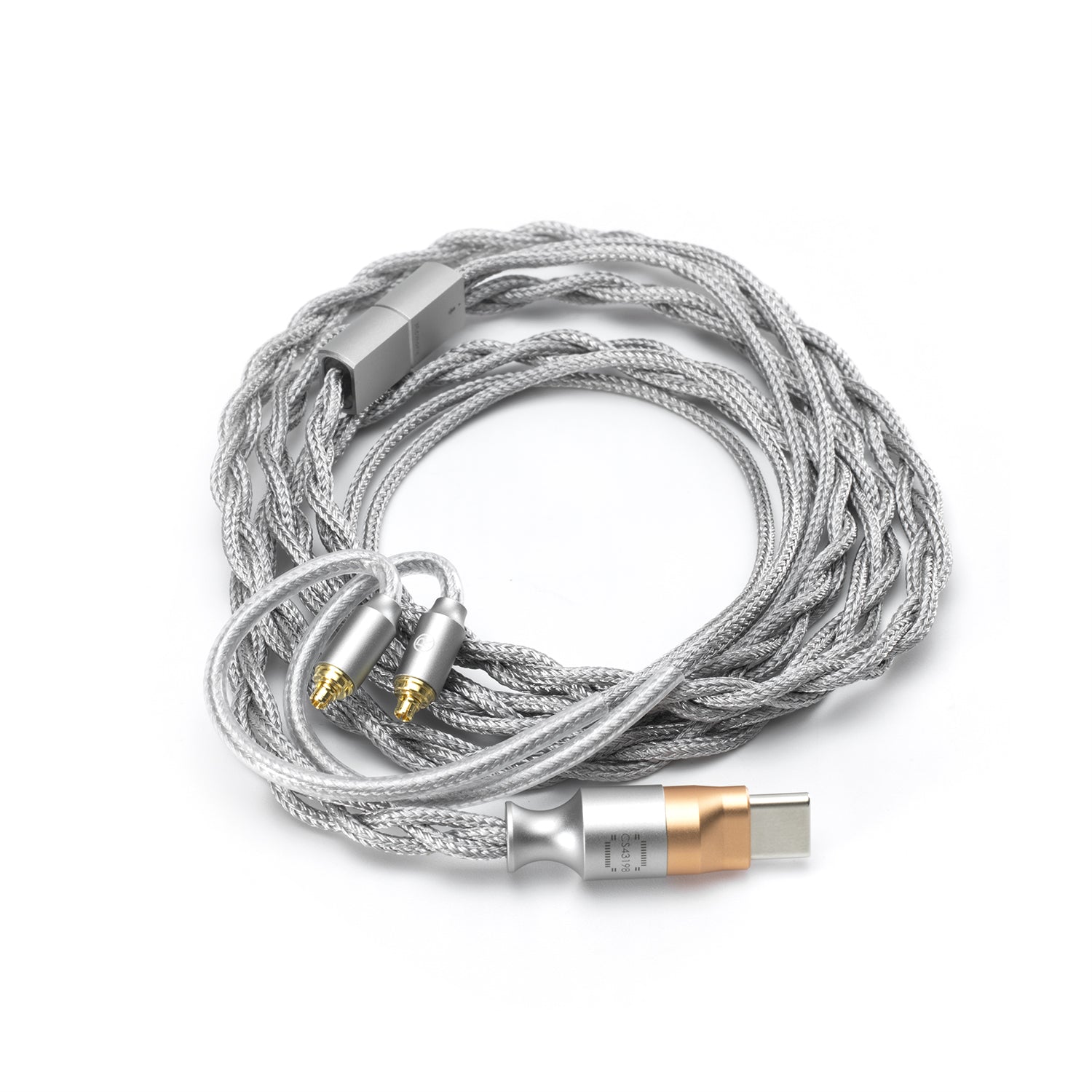

The M198C inherits the wire architecture of DDHIFI's flagship Nyx Net cable. It uses high-purity 5N OCC copper, braided for stability and softness. The nylon-braided jacket is both durable and supple, balancing performance and portability for daily use or professional monitoring.

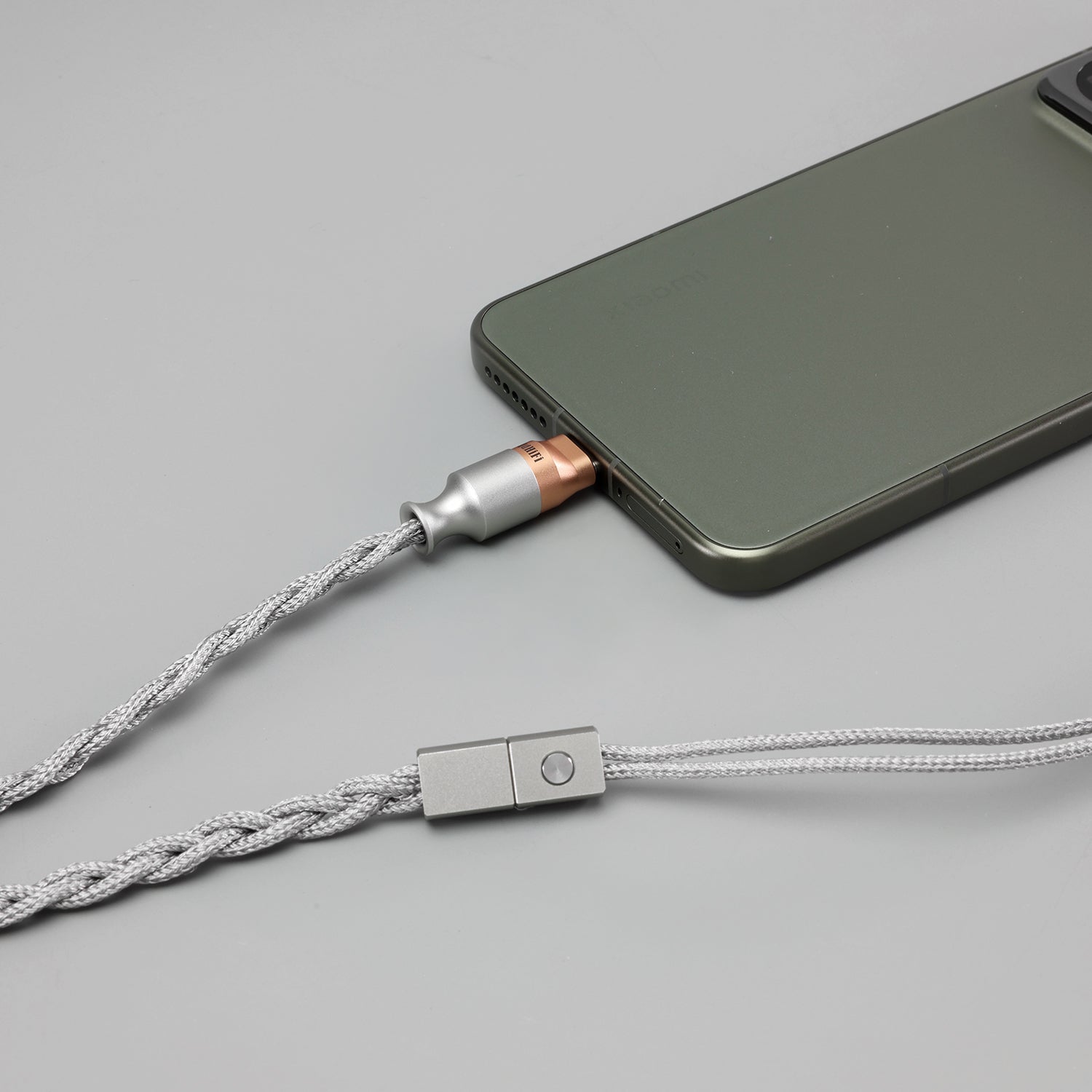

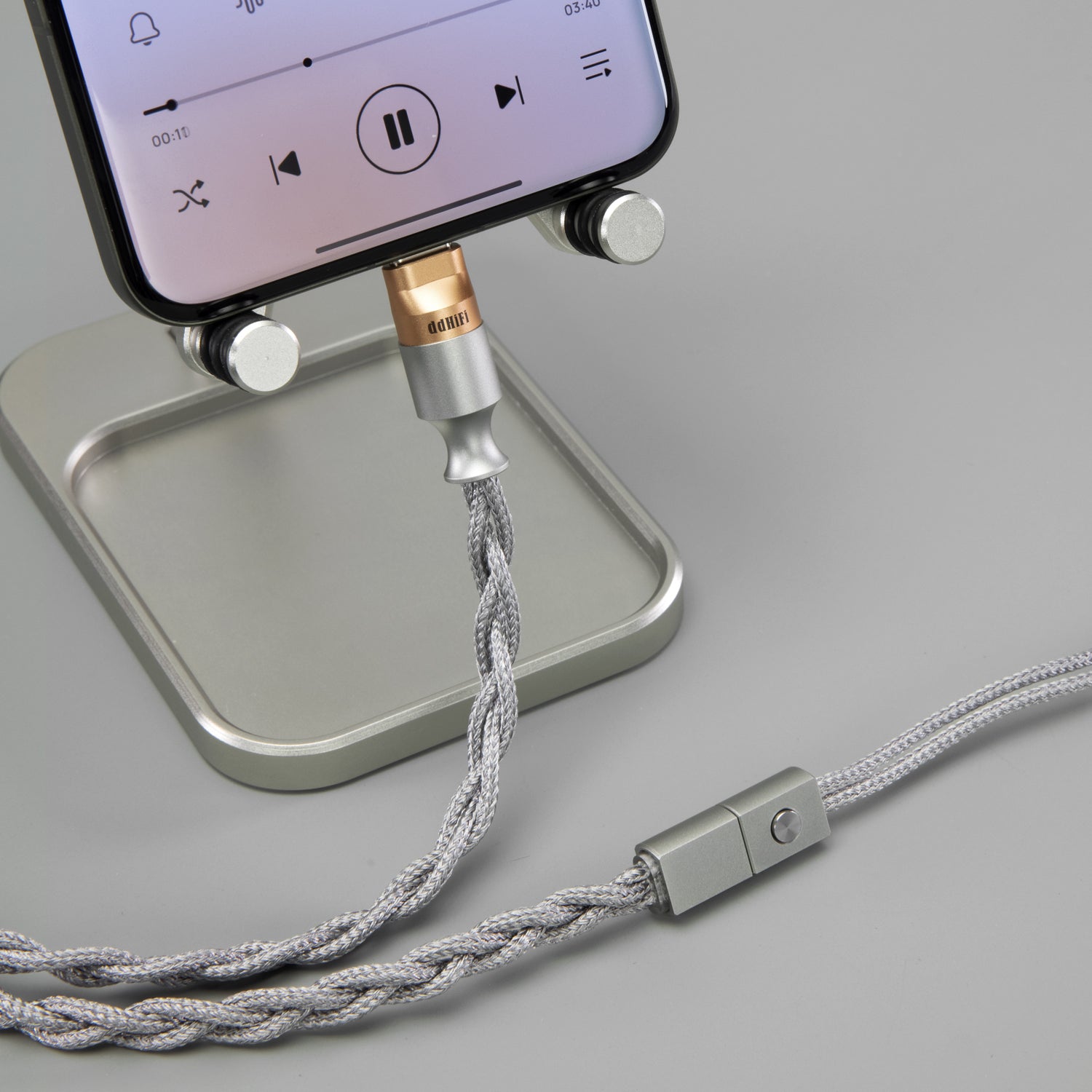

Durable CNC-Machined Components

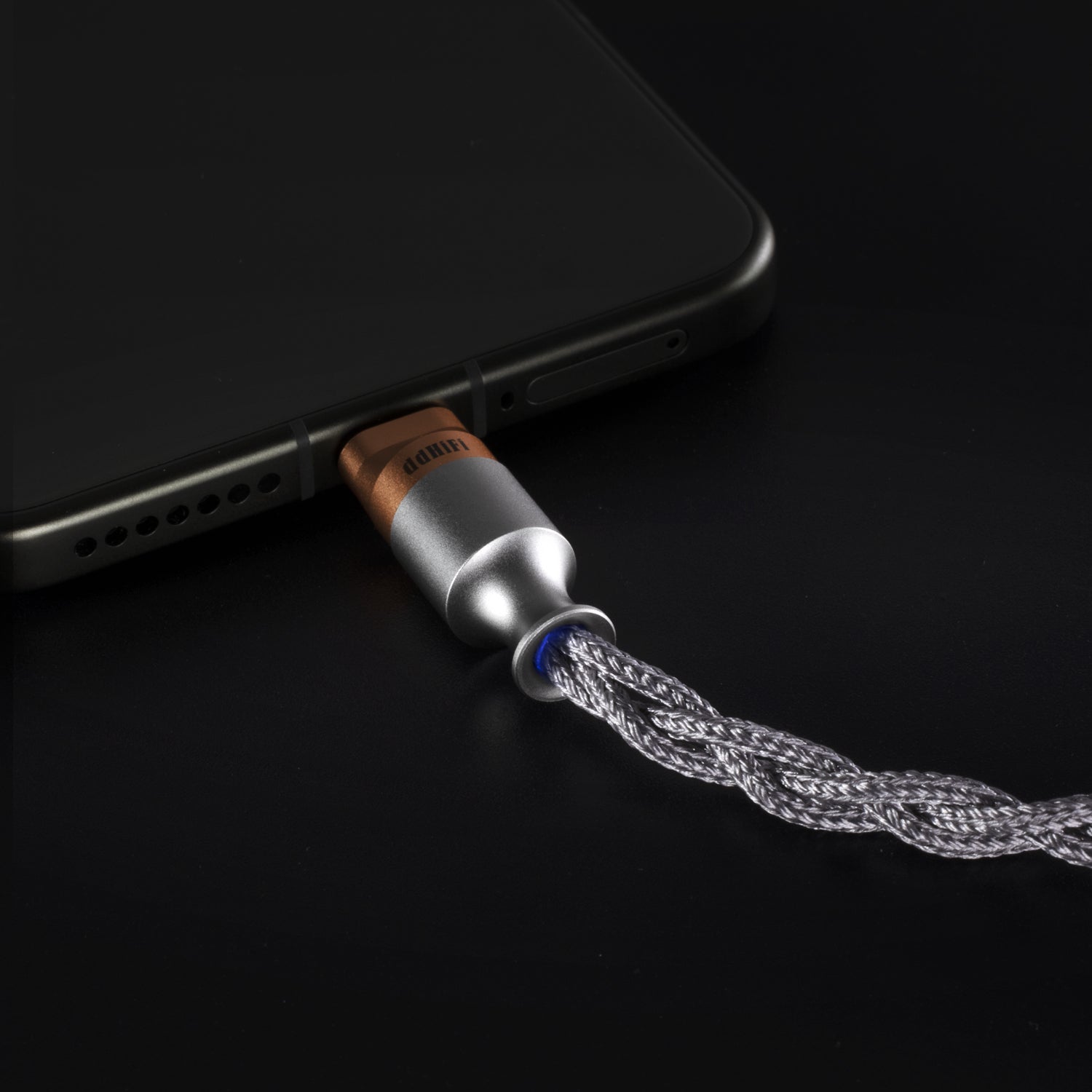

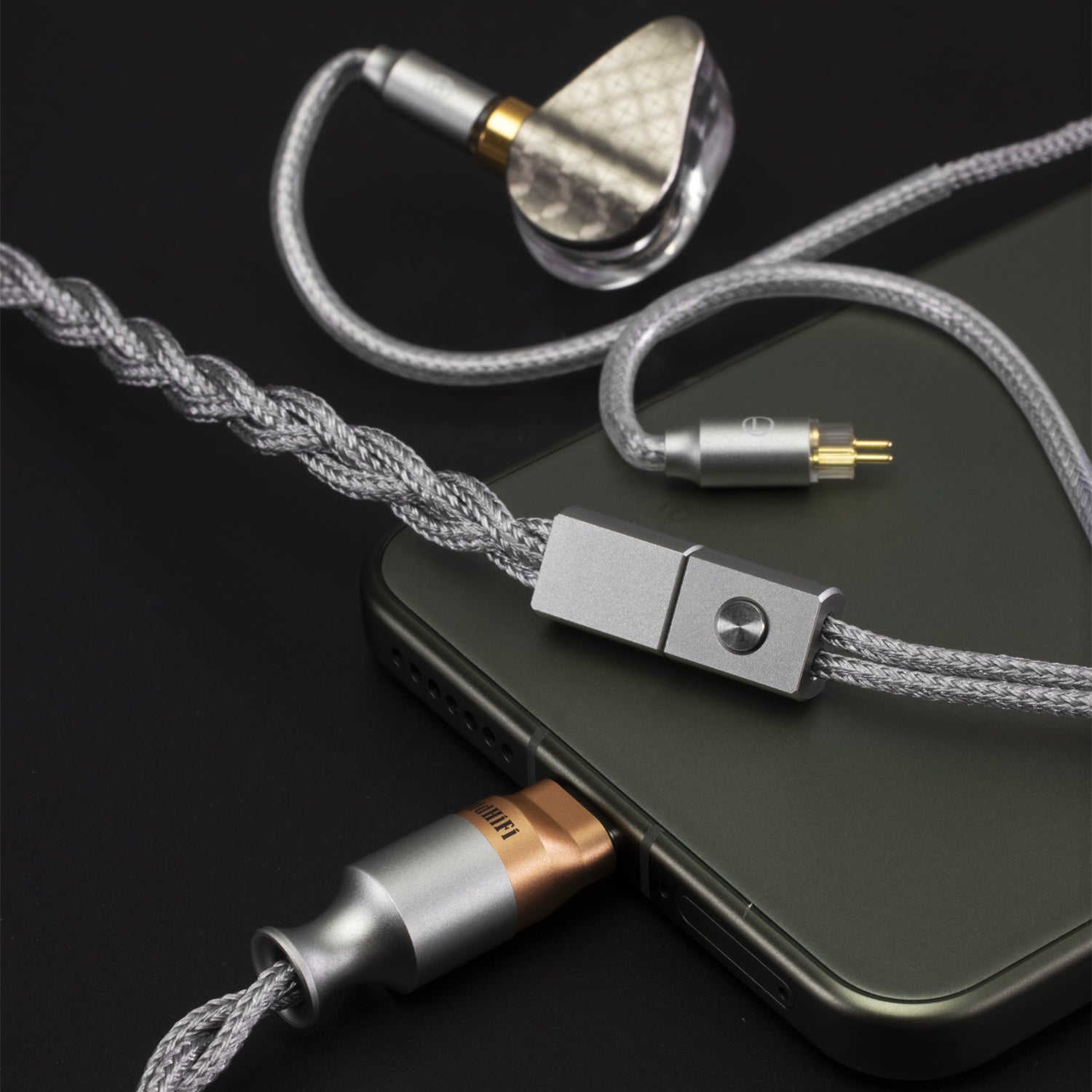

Every major hardware piece—the USB plug, Y-split, and earphone connectors—is CNC-machined from solid aluminum alloy. This not only adds rugged durability, but also offers better shielding and a sleek, cohesive aesthetic.

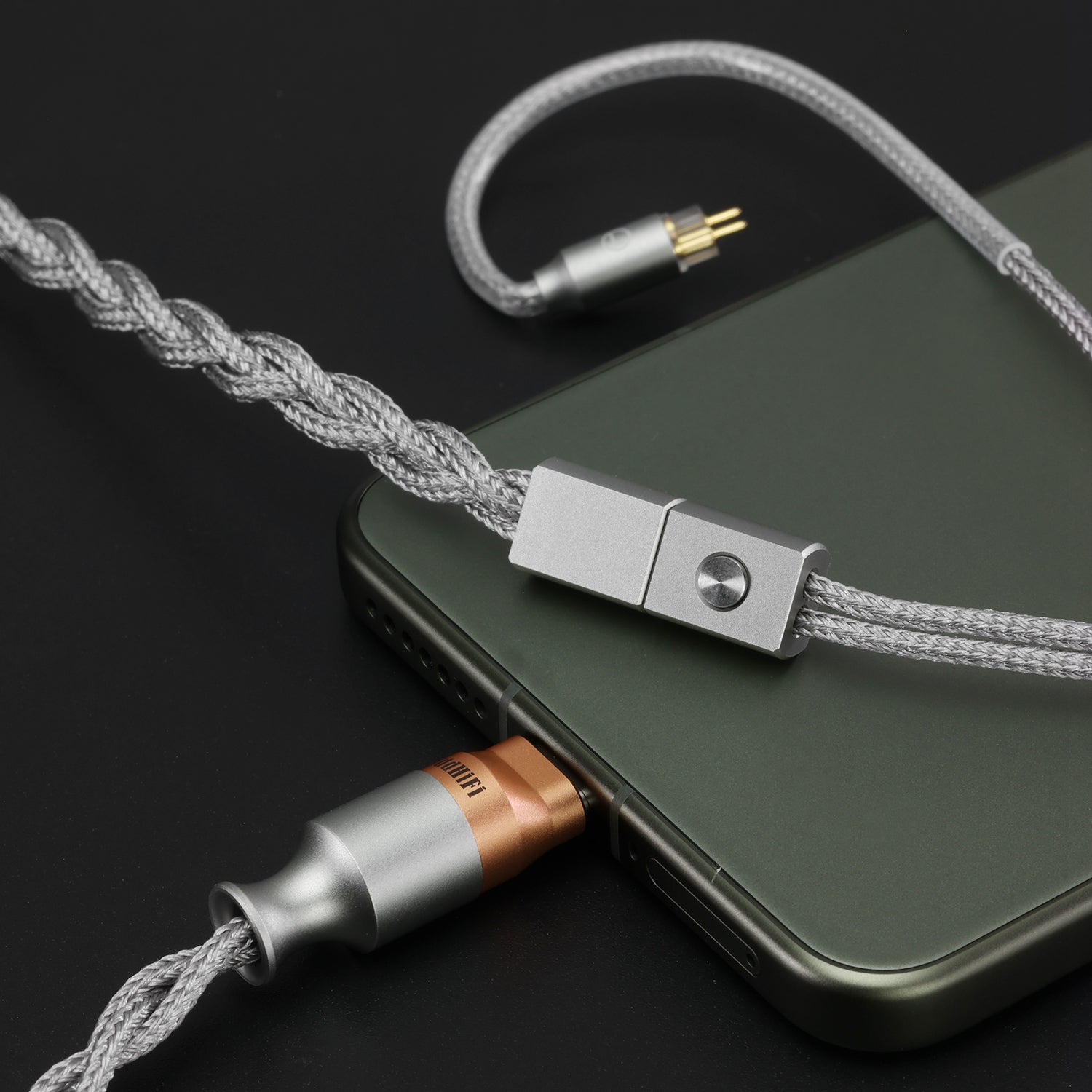

Professional-Grade In-line Microphone

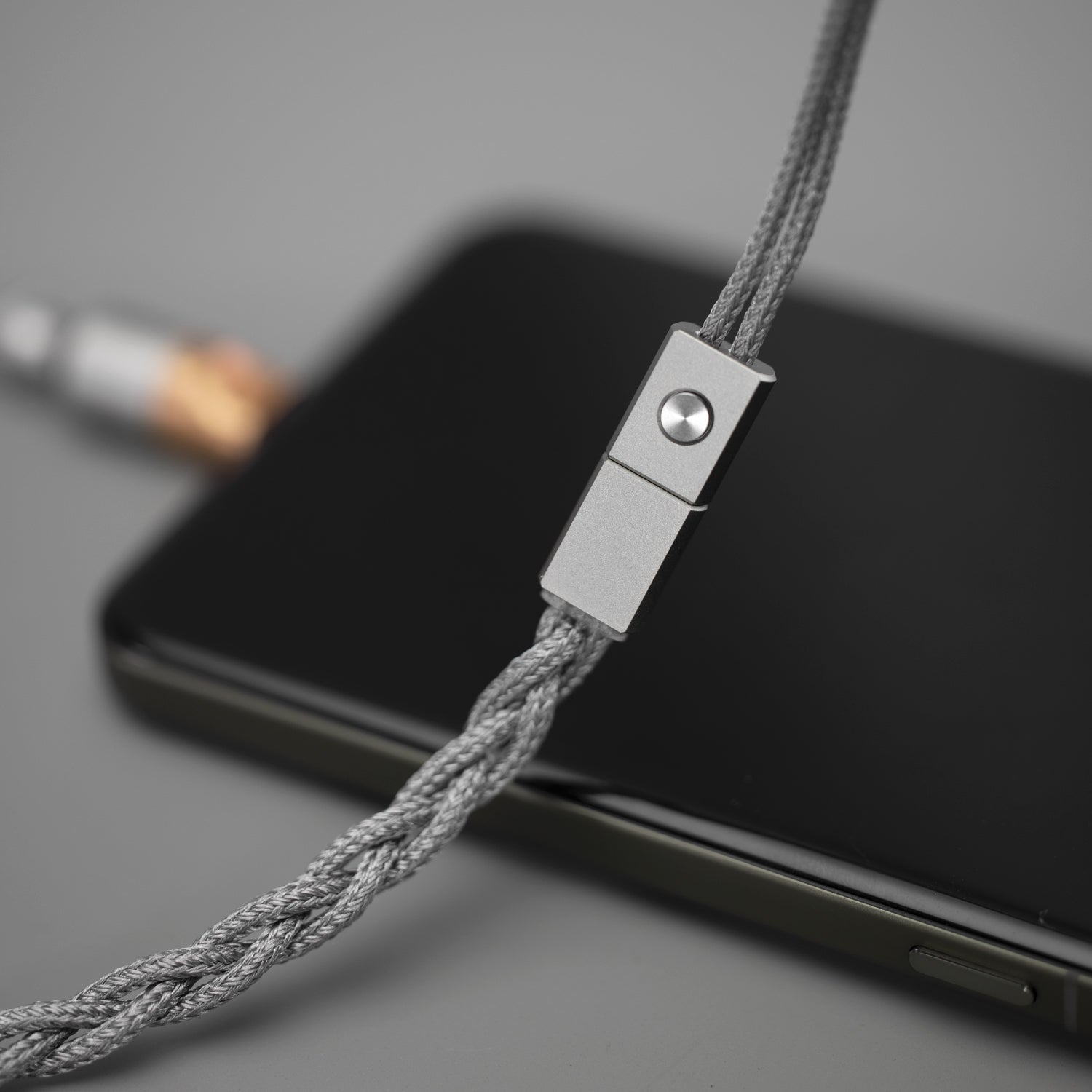

The splitter integrates a high-quality silicon MEMS mic and separate left/right OCC shielding cables for improved anti-interference. It supports calls, gaming, livestreams, and voice recording with excellent clarity and minimal crosstalk or ground loop noise.

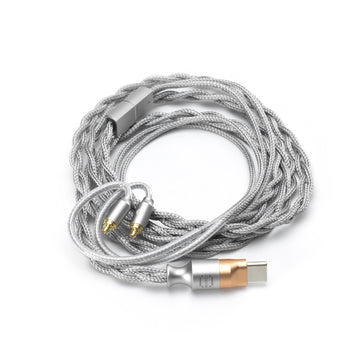

Compatible Connector Options

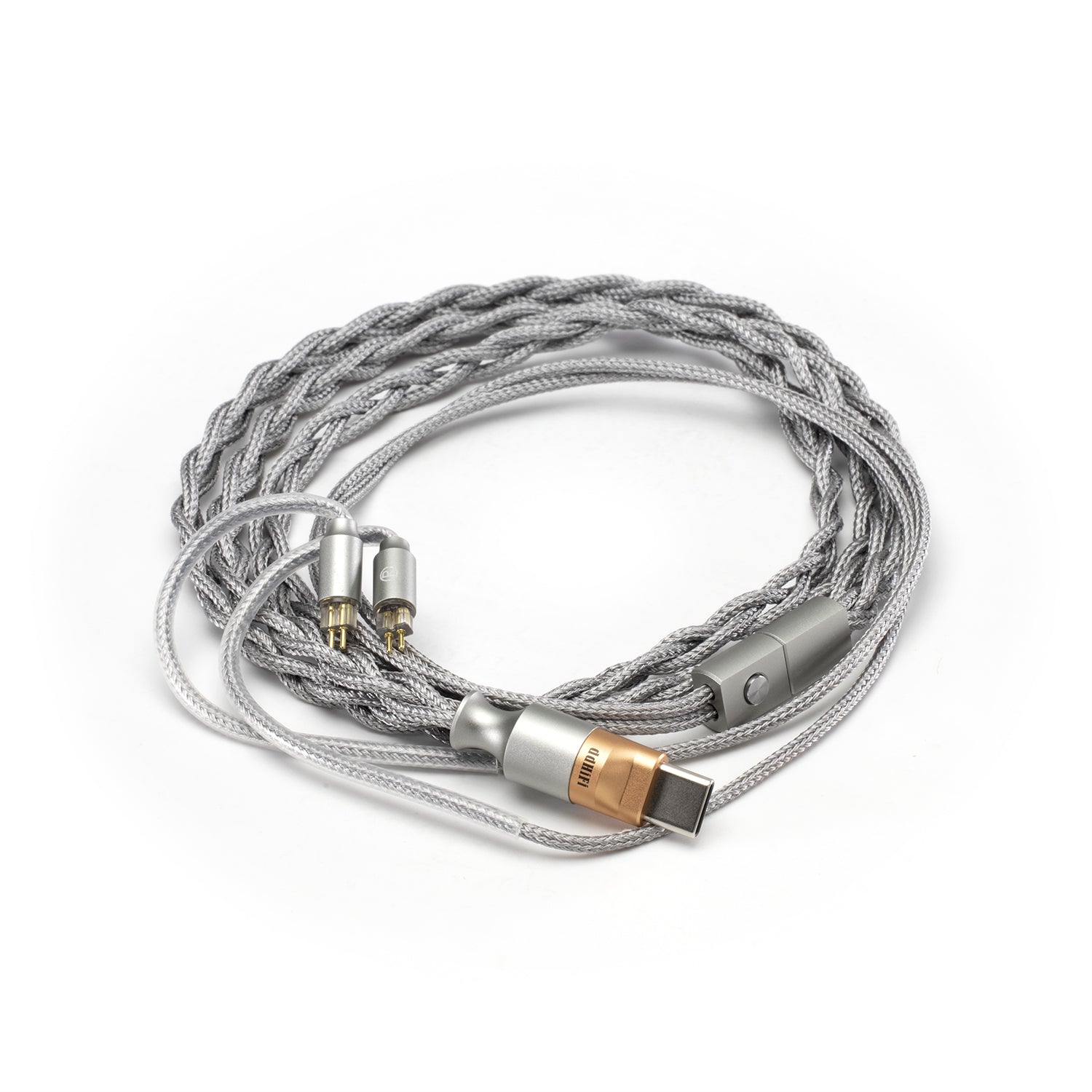

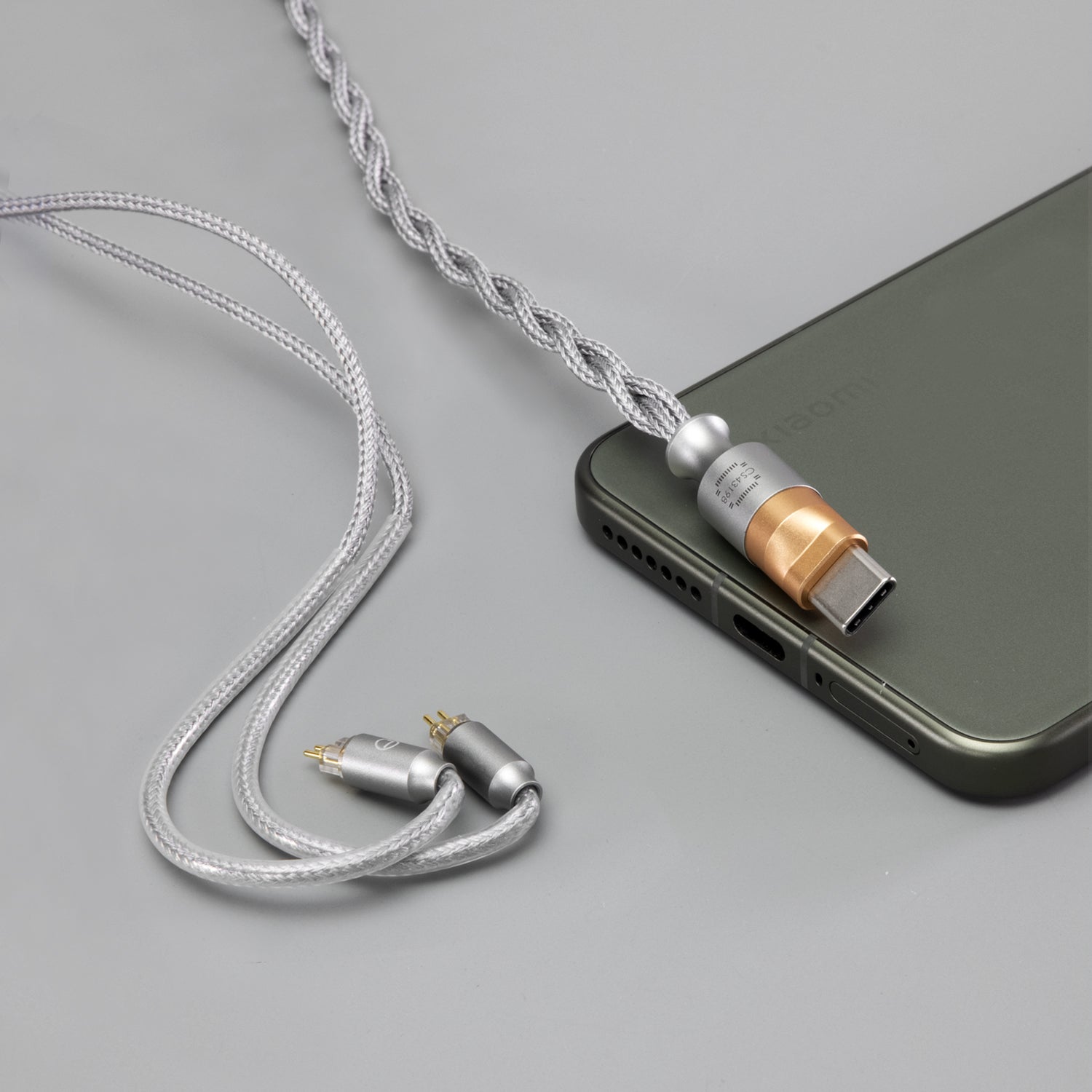

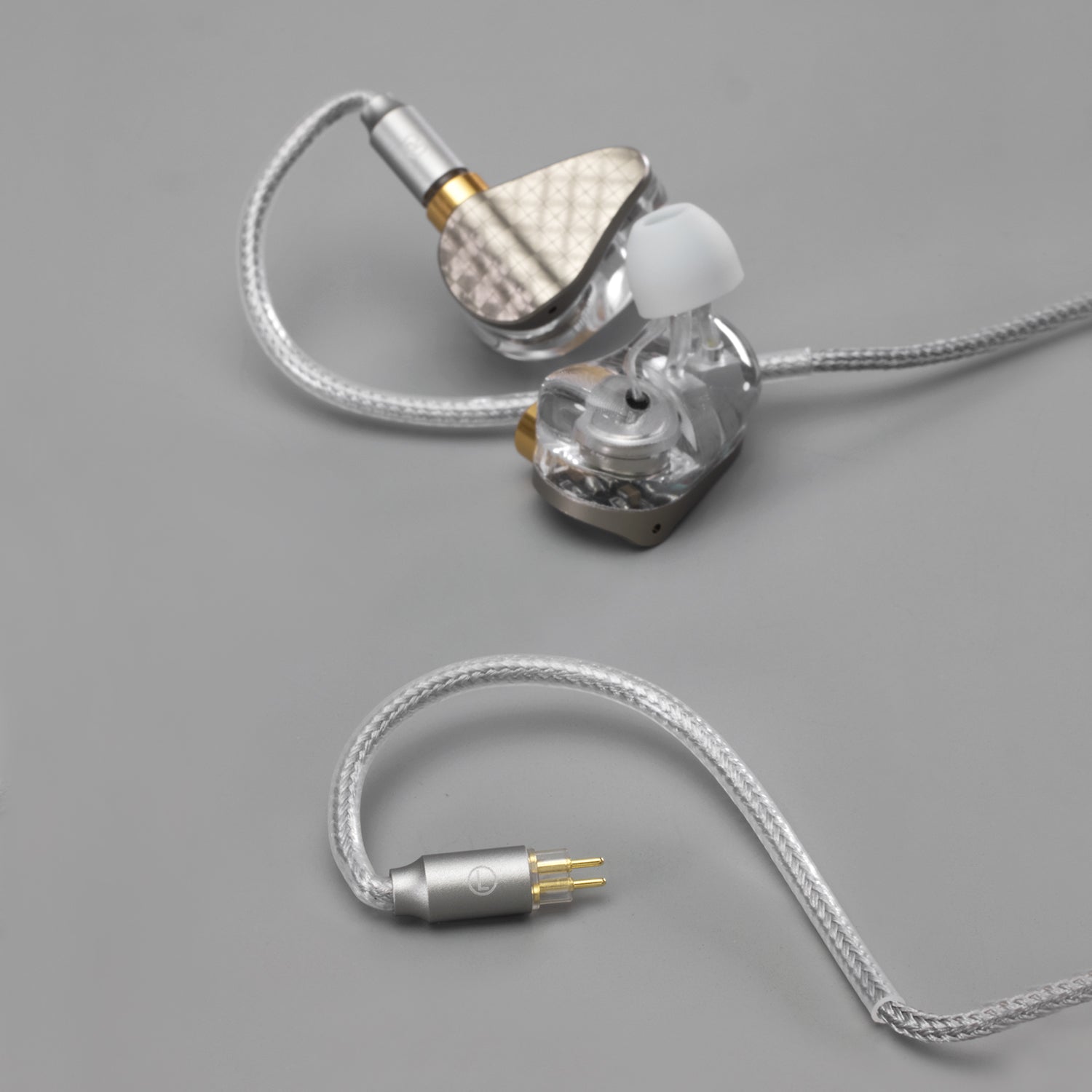

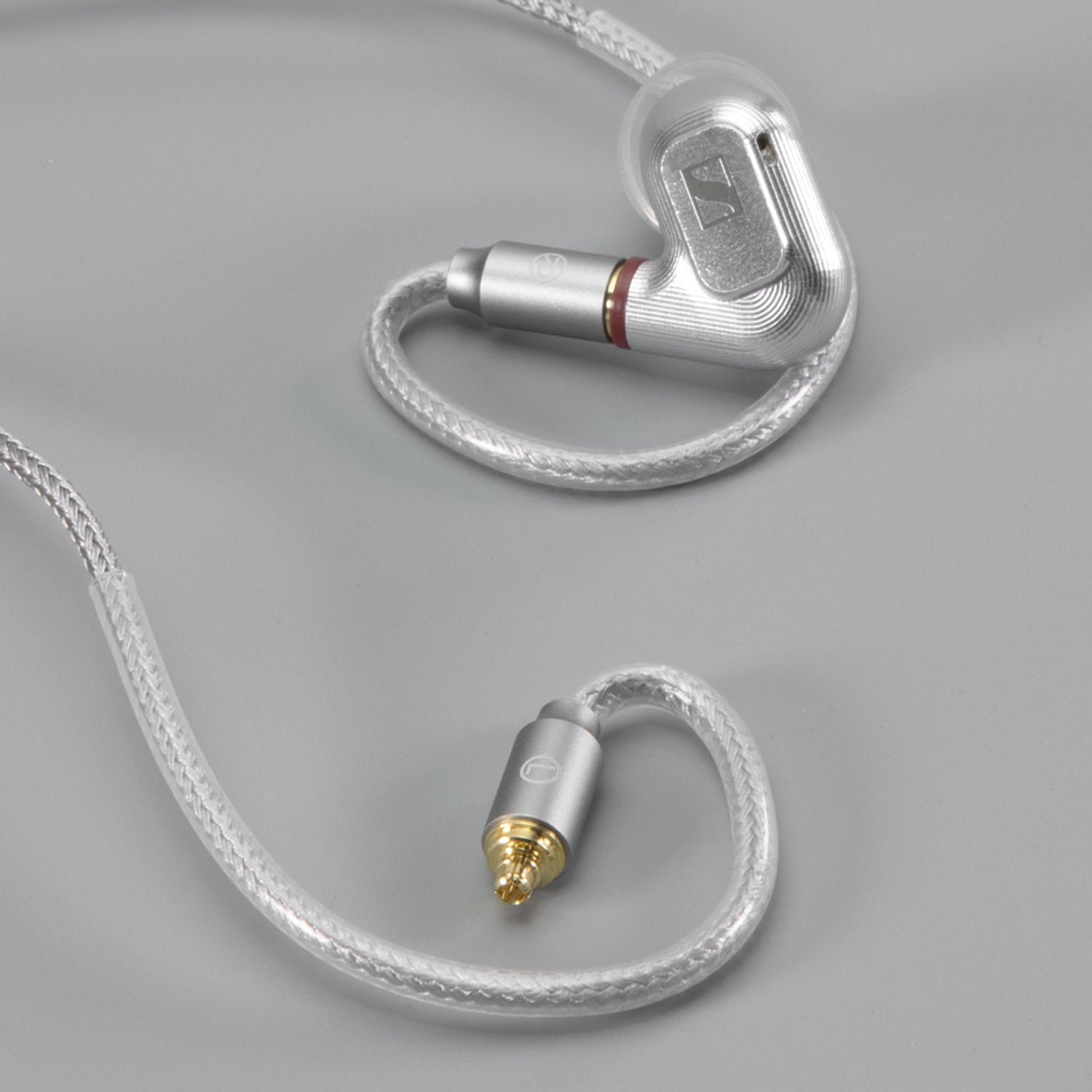

Designed for ear-hook style IEMs, the M198C is available in both standard 0.78mm 2-pin and expanded MMCX connectors—compatible with recessed MMCX earphones like the Sennheiser IE900 and Sony IER series.

Technical Details

Connector
USB-C (compatible with USB-C devices)
DAC Chip
CS43198
PCM Decoding
Up to 384kHz / 32bit
DSD Decoding
Up to DSD256
Output Power (16Ω)
≥80mW + 80mW
Output Power (32Ω)
≥38mW + 38mW
SNR
≥125dB (A-weighted, 32Ω)
Dynamic Range
≥125dB (A-weighted, 32Ω)
THD+N
<0.0003% (32Ω)
Cable Material
5N OCC braided copper
Connector Type
2Pin 0.78mm or MMCX
In-line Controls
Play/pause, track skip, mic, call support Note
Inside the Box
  • 1 x DDHIFI M198C
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

3 Month Warranty

The DDHIFI M198C Comes with a 3 month warranty.
