E1DA 9038s ESS 9038 DAC Chip
9038S IMAGE
9038S IMAGE
9038S IMAGE
9038S IMAGE
9038S IMAGE
9038S IMAGE
9038S IMAGE
9038S IMAGE
9038S IMAGE
9038S IMAGE
E1DA 9038S Gen 3
E1DA 9038S Gen 3
  • Barcode:

E1DA 9038S Gen 3

$99.99 USD

3rd Gen USB DAC Headphone Amp

    9038s G3 Susum Edition with susumu precise 0.1% resistors
    Features high-quality ES9038Q2M DAC chip with quality components

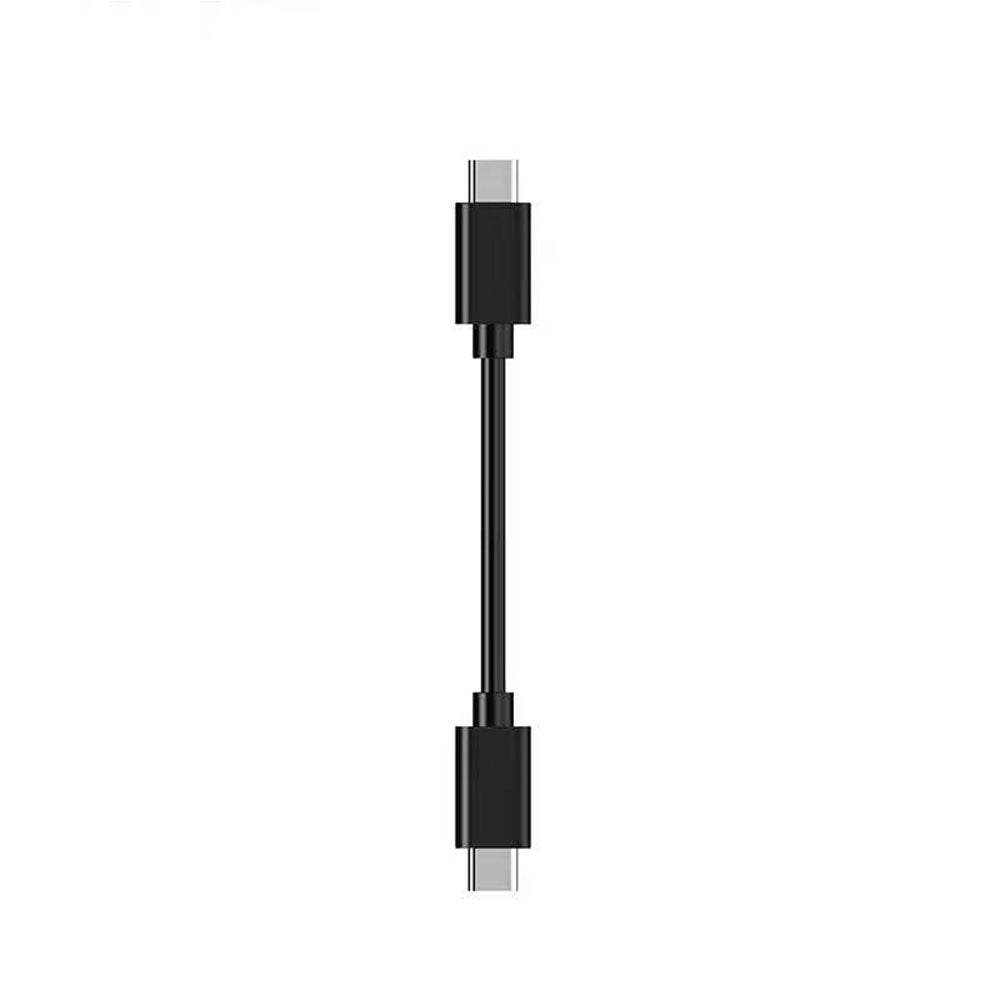

    Comes with a Type C to Type C cable
    Ultimate sound quality output with crisp clarity
    New Power-saving Standby Mode
PRODUCT FEATURES

The update of 9038S DAC+HPA.

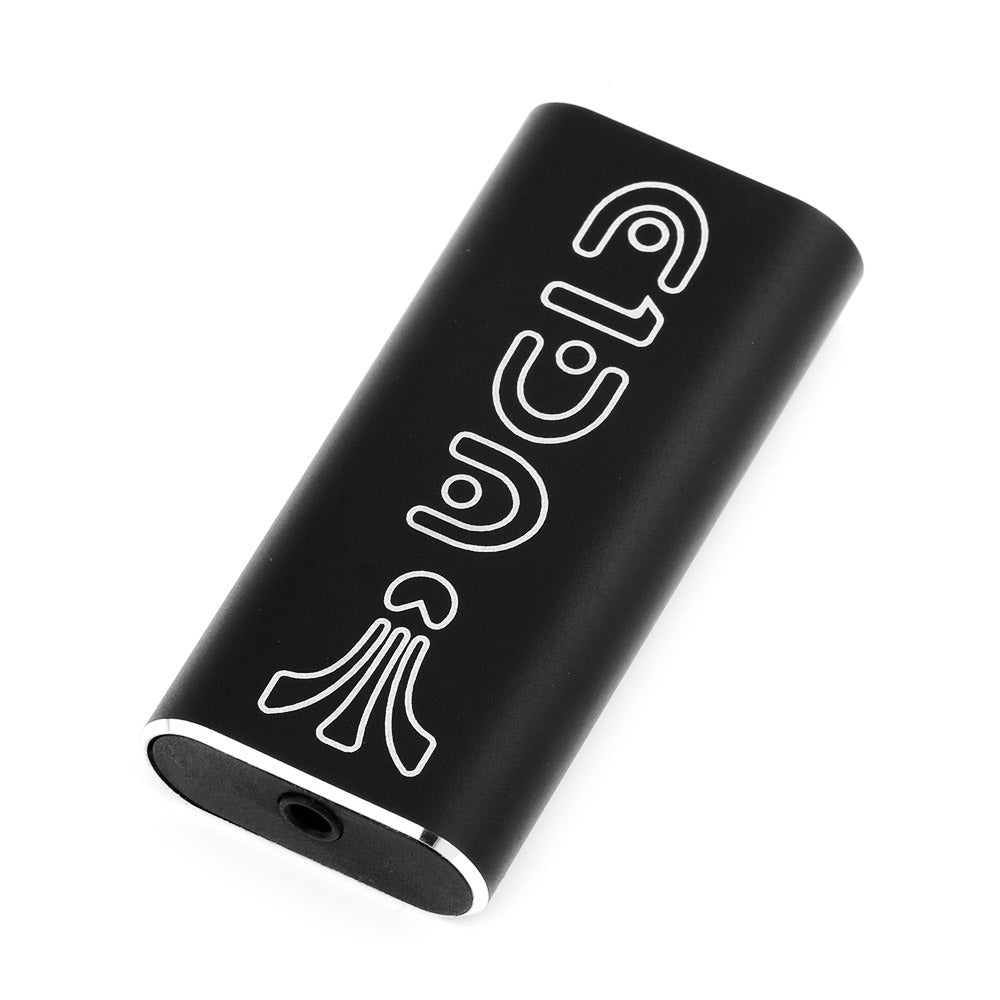

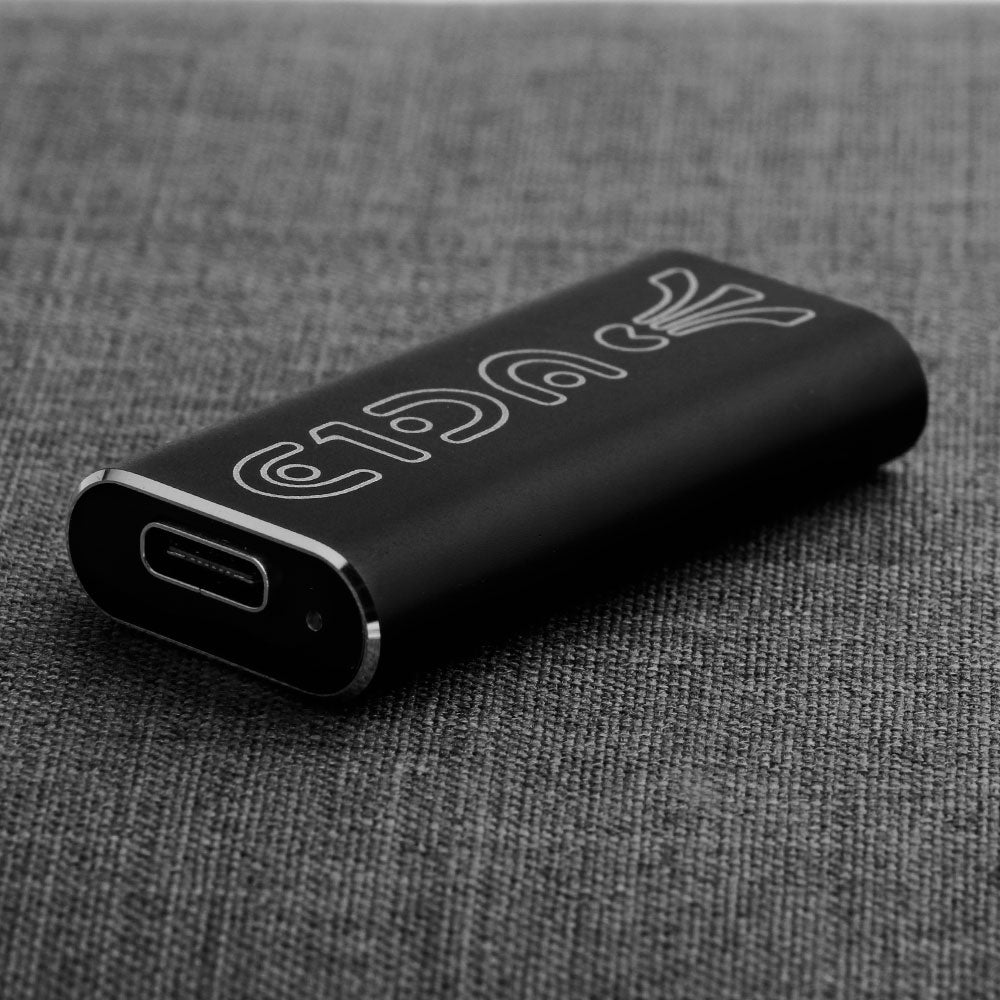

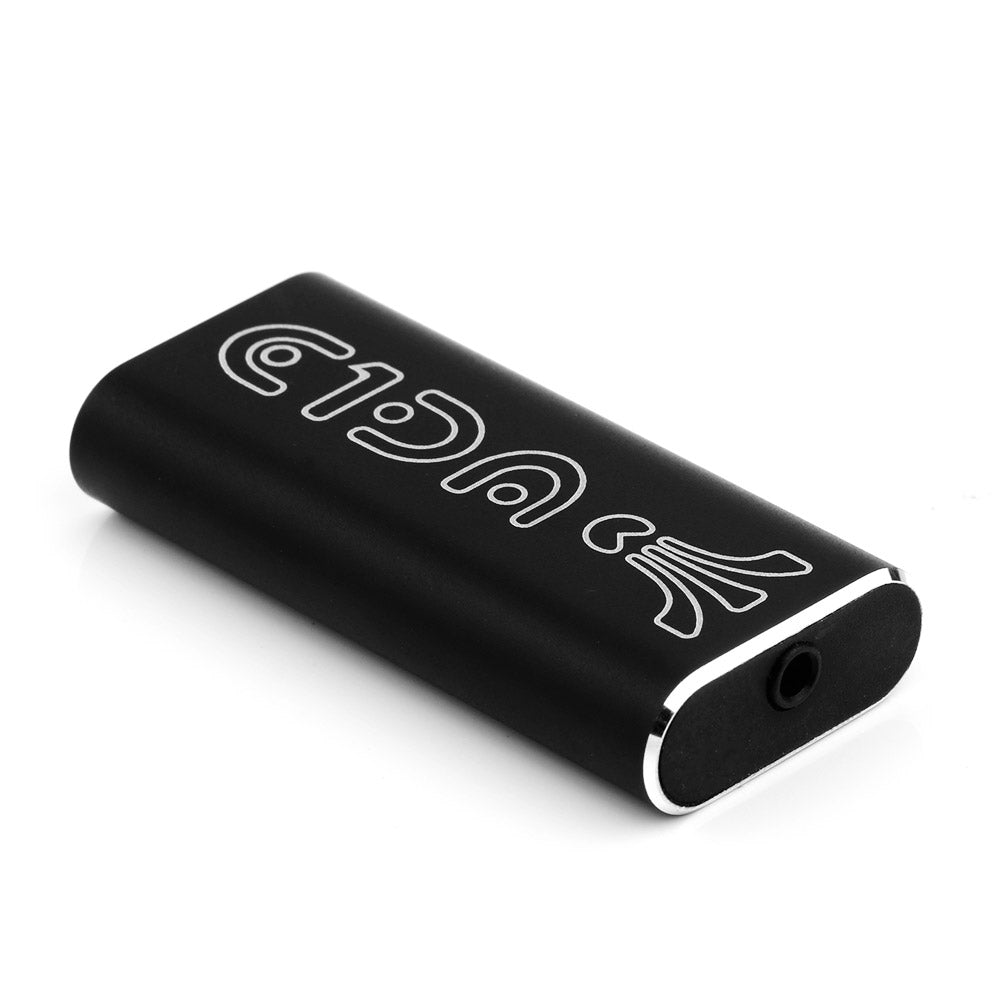

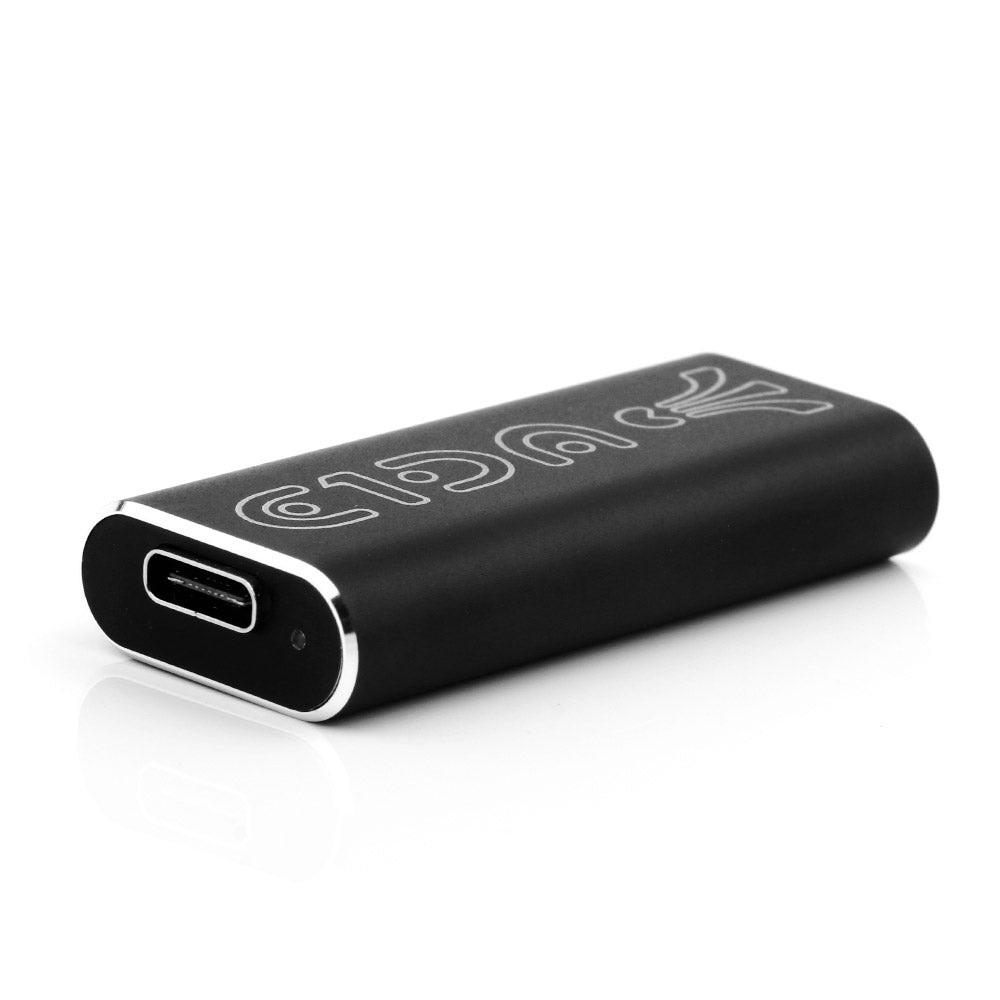

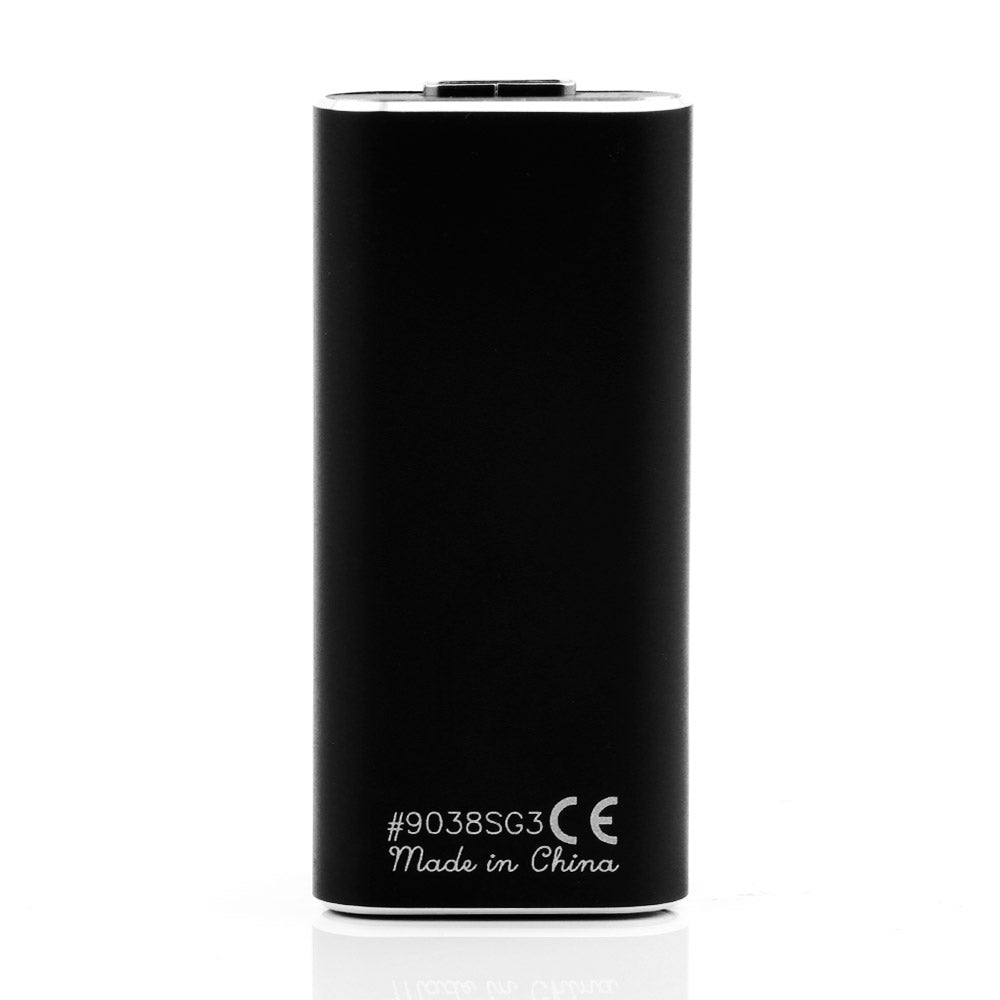

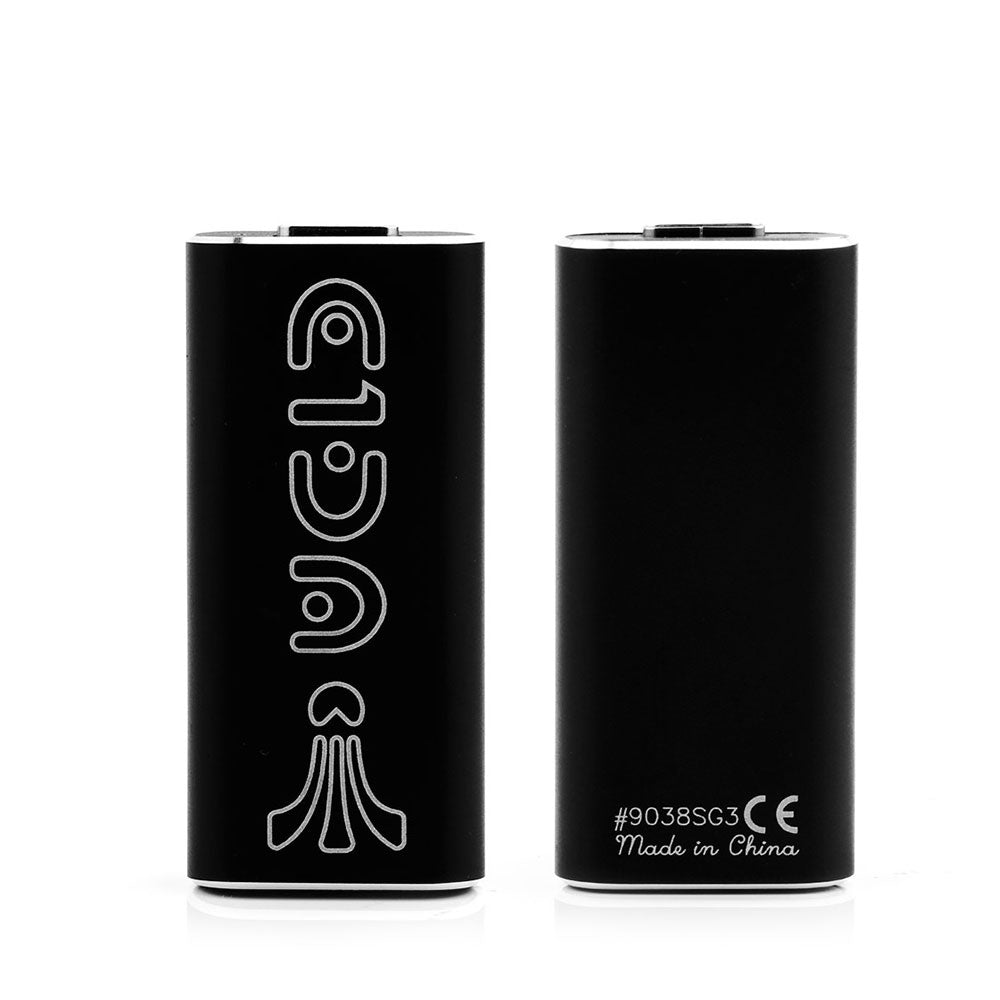

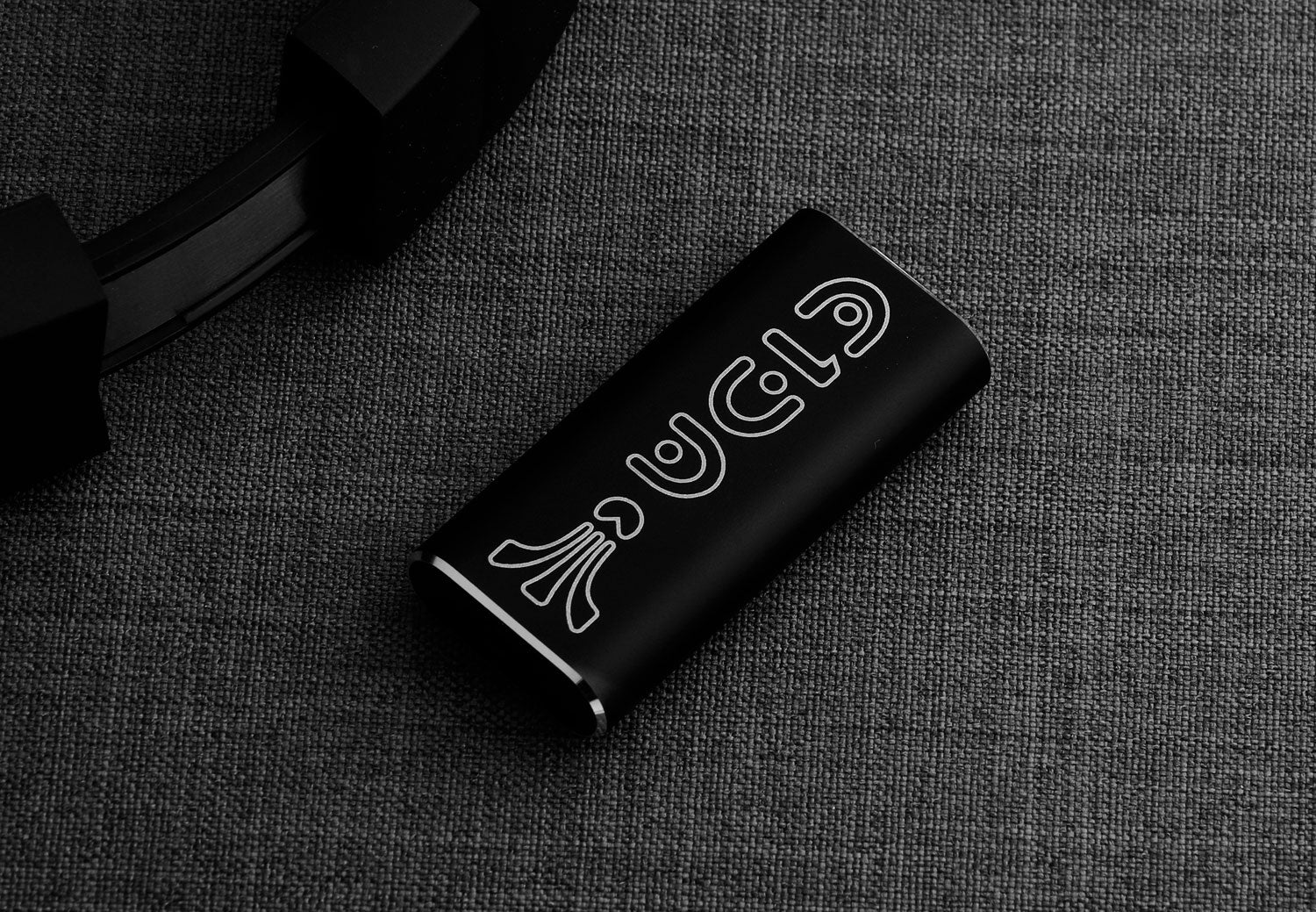

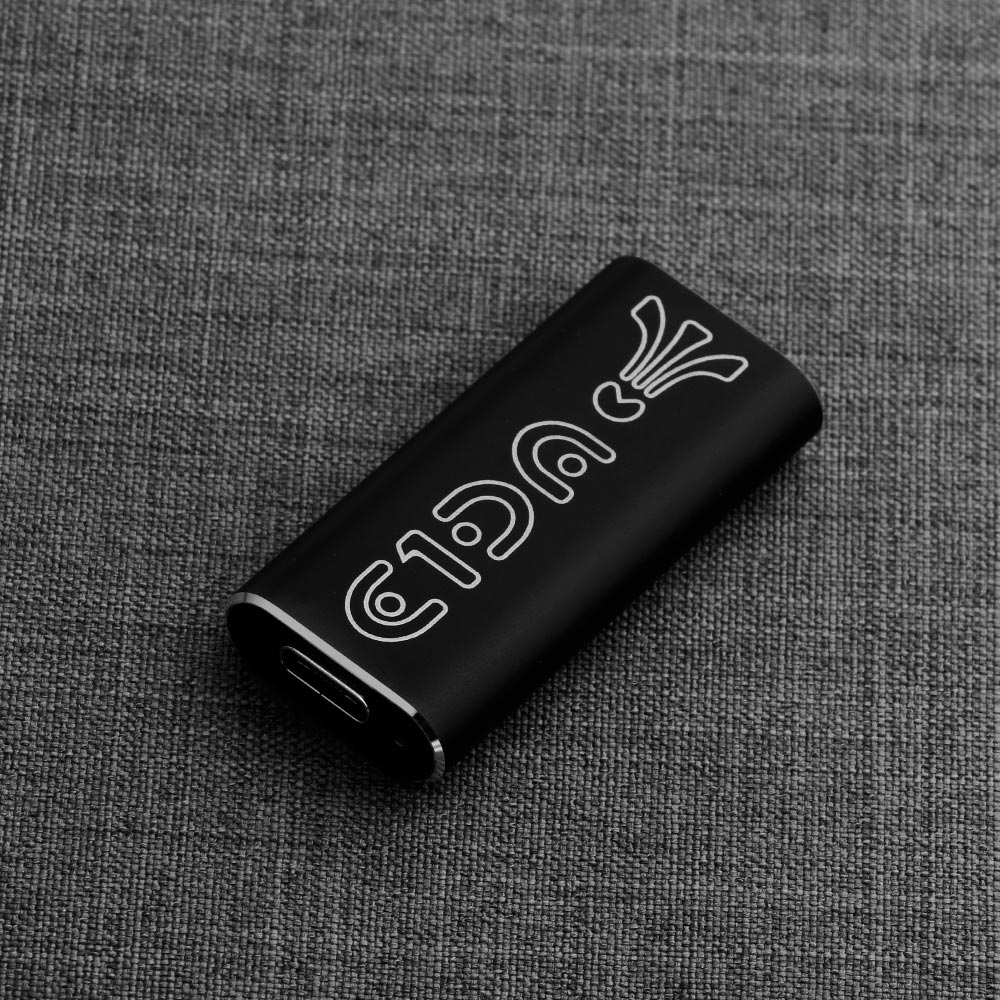

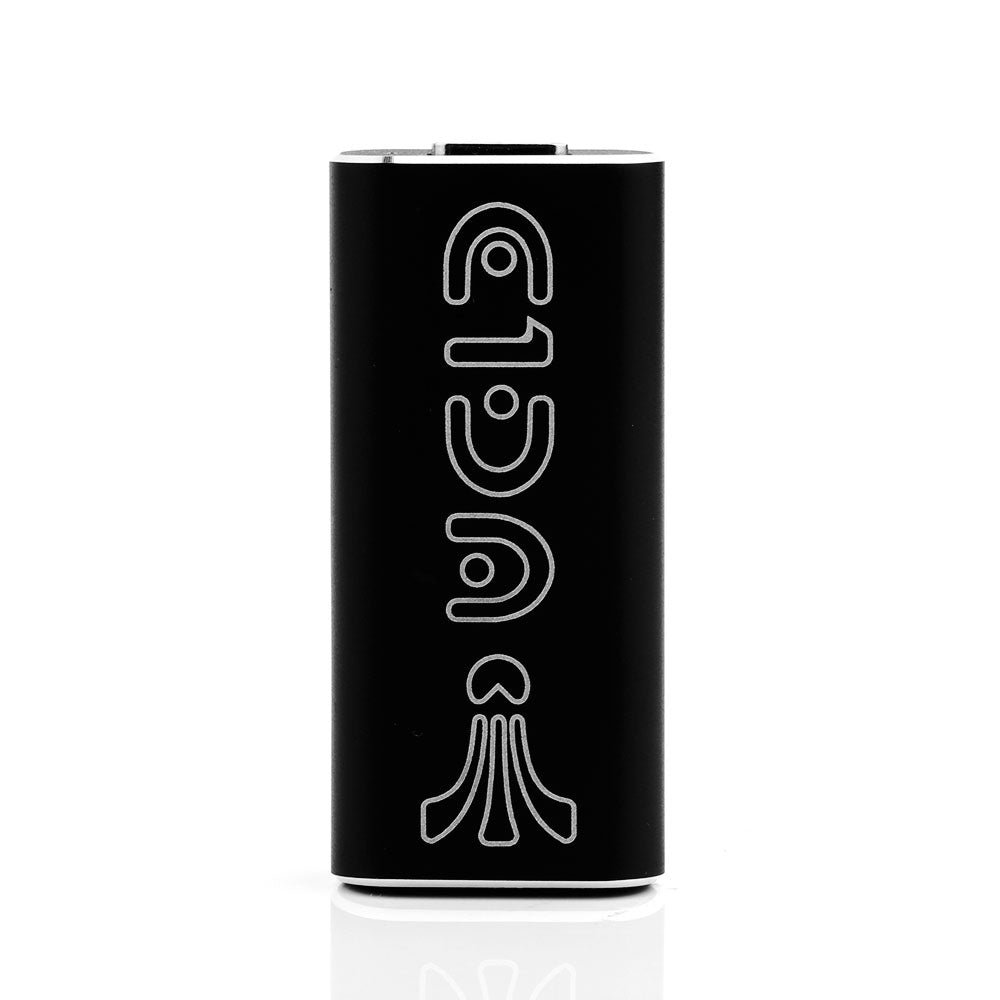

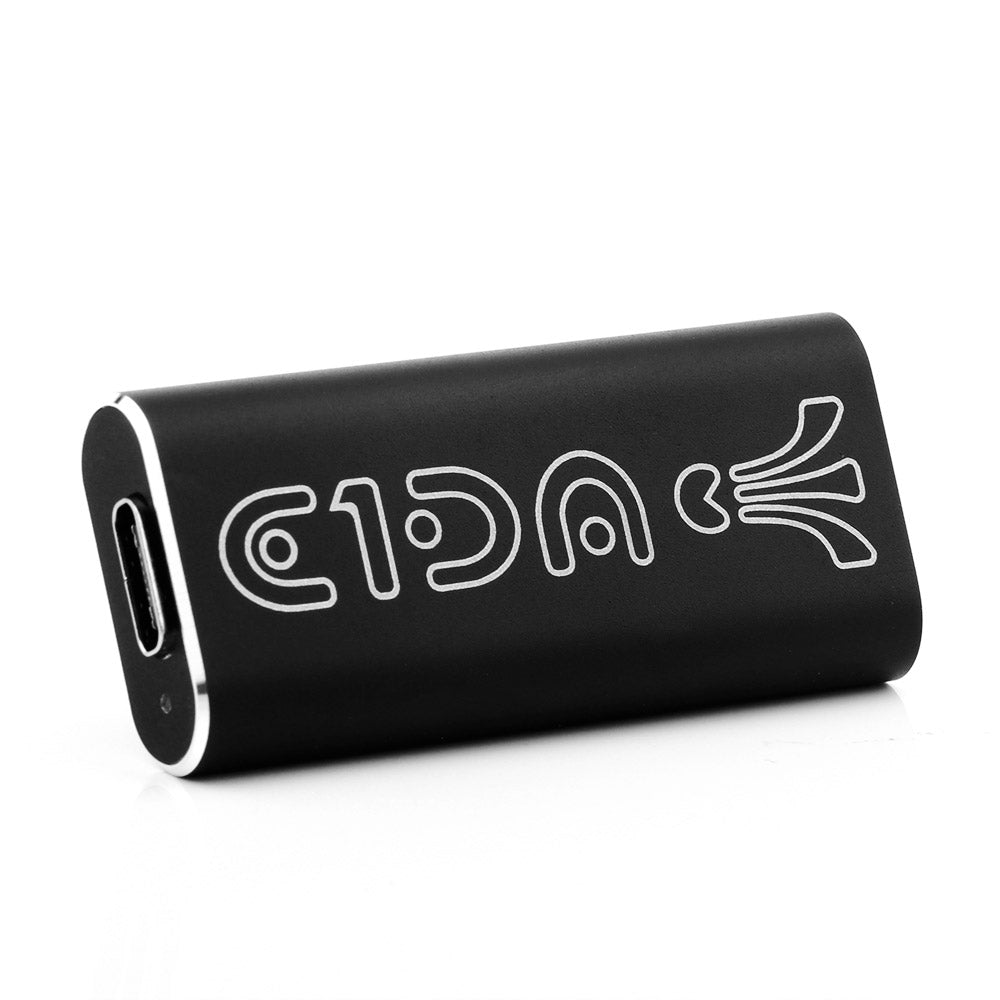

The regular update of 9038S DAC+HPA, we've named that 9038SG3. Pretty much the same sounding and specs but some major weaknesses of the G2 were improved dramatically.The new 9038S version will have a black sandblasted anodized aluminum case and caps machined with CNC(G2 used laser-cut that's not too accurate). Logo and the model name are laser marked, an elegant and reliable solution vs G2 silk print. The E1DA 9038s Gen 3 improves on the already beautiful sound output of the Gen 2. It has improved Signal to Noise Ratio, Dynamic range, and THD+N values and provides an ultimate sound quality output with crisp clarity. The output is rich with a dark background completely noise and distortion-free

Please Note: Don't use 2.5mm/3.5mm adapters as that might damage the DAC.

New USB audio bridge

The first thing is another USB audio bridge with HW Volume(UAC2->ES9038), 32/384, and DSD256 support. Sure, it's not a big deal but I don't know another portable DAC with DSD256 support for Android, only DSD128. Also, 9038SG3 got the standby mode to save your phone battery if DAC is idle > 2 minutes. Strongly reduced LTE buzzing noise aka "static", hence 9038SG3 become more and more portable. Slightly improved SNR, Dynamic Range, and THD+N. Due to PCM384 and DSD the frequency response is extended up to 100kHz(10-100000Hz +0.1/-0.3db). The output impedance is 100mohm

"E1DA Tweak" App on Android Smartphones

We have deleted audio modes and by default, you have only the Performance mode(without any delays/interruptions!). Instead, we gonna give you a lot of hardware ES9038Q2M DAC control with our new Android "E1DA Tweak" app with the preset manager, harmonics distortions compensation, Nyquist's filter selection, MasterClock frequency and more, most of these parameters could be dynamical defined depends on HW Volume, of Audio DATA Rate etc. In other words, make your own ES9038Q2M based DAC, and save that as a preset( to share this preset)! However, the app release is delayed. The new USB bridge let you update 9038SG3 FirmWare by USB, and I'll provide FW file everyone who gonna go to use the app.

SHOP WITH CONFIDENCE
Free Shipping

Authenthic Products

Linsoul Audio is the authorized distributor. All products are authentic and genuine.

Free Shipping

Worldwide Free Shipping

We are located in china but send our products worldwide for free.

Warranty

1 Year Warranty

We provide 1 year warranty for the all products except the cables*.

Support

Online Support

We reply to all support inquiries within 3 working days.

PRODUCT SPECIFICATIONS
Materials
sandblasted/anodized aluminum/ES9038Q2M/AD8397

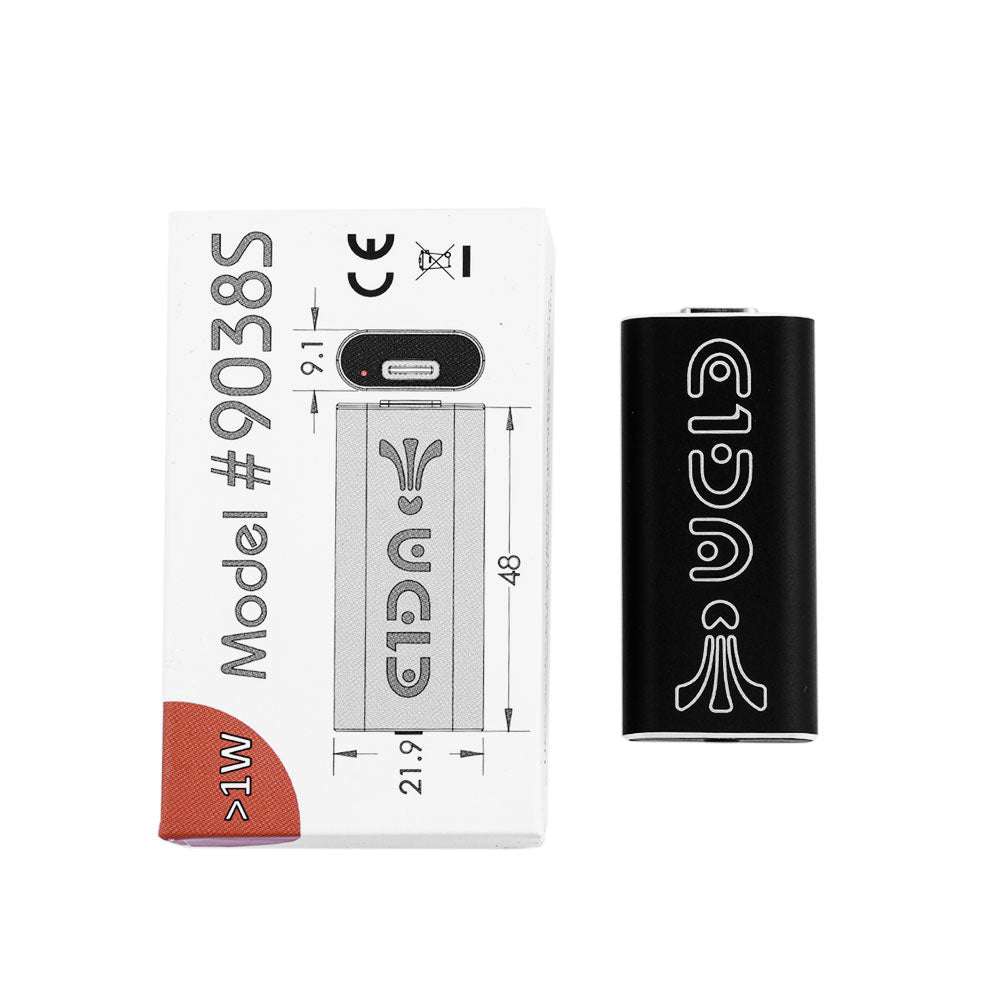

Dimensions
48x22x9mm
Weight
10g
Power
USB 5V power rail no internal battery, 90mA idle current, the device contains up to 4000uF of capacitance and IOS/Android devices can start OTG operation only with Camera_Adapter and USB OTG Y-splitter cable respectively
input
USB-C, PCM up to 24b/192kHz
Output
balanced output 2.5mm jack A&K pinout
Output power
>340mW@32Ohm@1kHz@THD=1%
Output impedance
0.05 Ohm@1000Hz Agilent U1733C​
Frequency response
10-85kHz +.05/-.2db@ 24b/192kHz
S/N ratio
-122db(A) referenced to 3.399VRMS @32ohm
THD+N
1% @+.5dbfs typical PC USB2 port powered​
Crosstalk
-125db@1kHz
WHAT'S IN THE BOX

Coming soon...

UNBOXINGS

Coming soon...

CUSTOMER REVIEWS

Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
d
d.
S Tier

LOVE this piece of hardware. Much like the others, I can attest that it is not plug and play but once you download the firmware, figure out how to assign it to your listening device (I use an Android phone), and use it with legit lossless audio files such as through UAPP and Qobuz, it is amazing how much return you get for this investment. The sound is brilliant and you should not hesitate.

R
R.
Excellent

Small portable high power DAC. I use it with USB audio player Pro and play music from Qobuz. So far I don't think there's anything we just cannot handle. I'm very happy.

A
A.R.
Simply Amazing

Just received my E1DA 9038s Gen 3 Susum 3000 Edition. Wasn't exactly plug and play. No instructions come with the device but no worries. Jump on the E1DA Discord server and get all the help you need. StaticV3 was incredible and super patient. Answered every question and assisted me along the way to get this bad boy rolling. Sound is brilliant and clean, clean, clean! So clean you really have to pay mind to the volume you are listening to. The lack of distortion allows you to turn things way up without pain caused by distortion. Fantastic piece of equipment backed up by some incredible customer service. This thing has juice. Nice clean juice all the way around. I will actually be able to use my Tin Audio P1s on the go where historically I could only use them at my desk because they take a ton of power to the face to sound as capable as they are. Great job! Everyone involved with this project should be proud!

R
R.L.
Detailed, fast, wide sound

This is an ES9038Q2M at its best!
Wonderful imaging, you can clearly detect every sound, my hip-dac is not able to reach this level.
Linsoul service is first class: the first shipping was lost, or stolen. They sent me a new device.

h
h.
Clean, Fast, Portable & Impeccable // E1DA 9038S G3

Just use UAPP or a convenient app and enjoy audio bliss on move. Fast delivery and outstanding service by Lindoul.
