ES903802M Independent Chip

At the core of the TP30 is the ES903802M, a flagship DAC chip renowned for its exceptional decoding capabilities. Supporting PCM 32bit/768kHz and DSD512, it delivers an impressive signal-to-noise ratio of 122dB, approaching a zero noise floor for pristine audio.

Dual-Port Adaptability

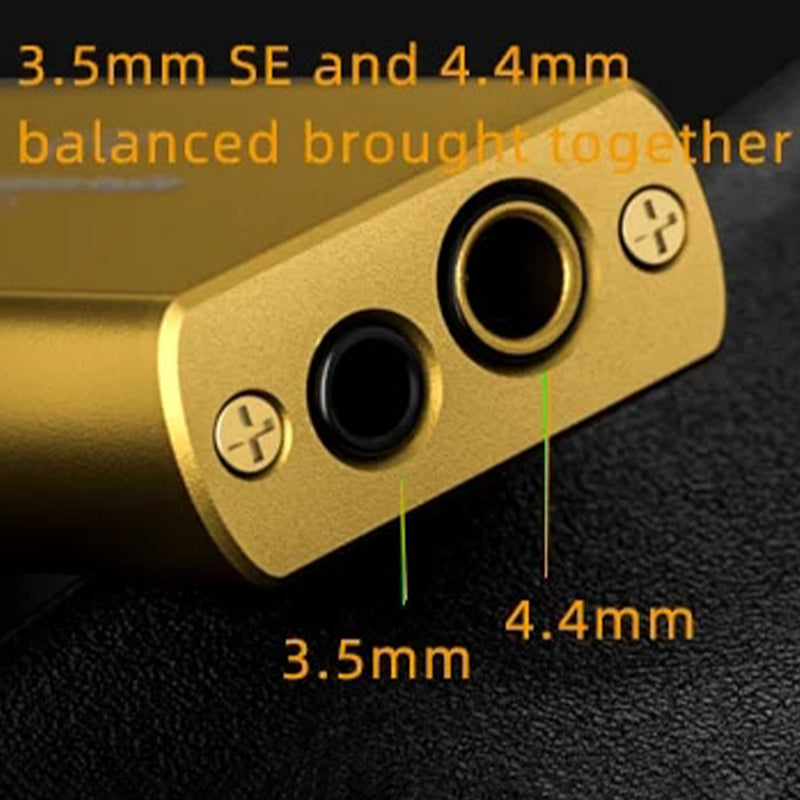

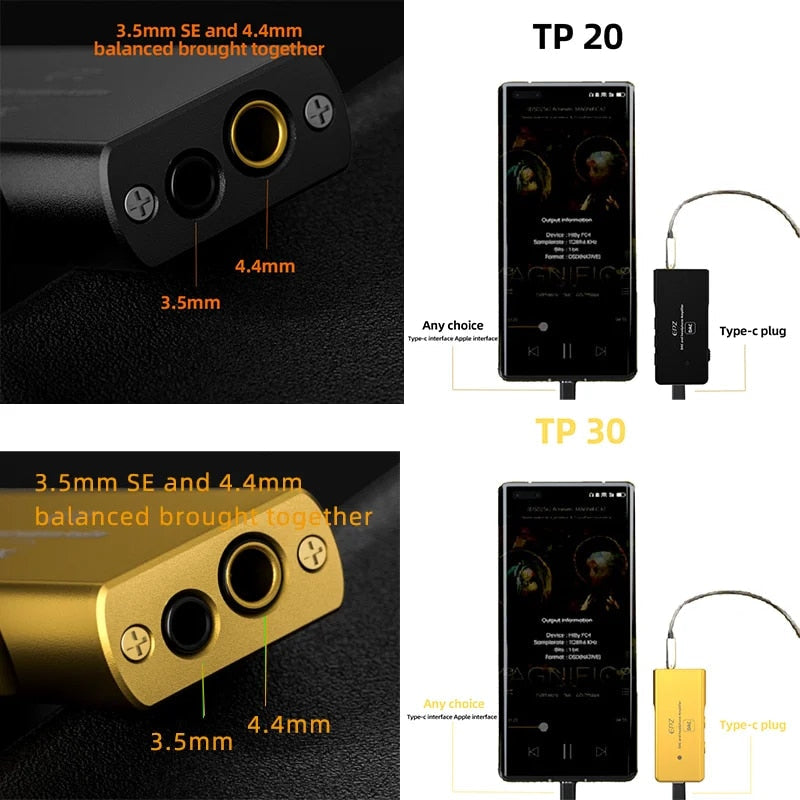

TP30 offers both 3.5mm single-ended and 4.4mm balanced dual ports, ensuring versatile connectivity. The balanced output power reaches an impressive 270mW at 32Ω, providing a robust driving force for a wide range of audio equipment.

Dual RT6863 Ear Amplifier Chips

Equipped with two RT6863 ear amplifier chips, TP30 delivers a balanced output power of 270mW at 32Ω. This design effortlessly drives high-impedance headphones, delivering stronger and more immersive sound waves.

Flexible Transmission with High-Purity Wire

The split design of TP30 includes a high-purity, single crystal copper/silver-plated mixed wire. With 8 strands for flexibility, this cable supports both C TO C and C TO Lightning connections, ensuring a pure and dynamic sound quality.

Technical Details

Single-Ended: Gain Switch Gear - High Gain
Output Power: 2Vrms@32Ω (125mW@32Ω)
Decoding: PCM 32bit/768kHz/DSD512
THD+N : 0.0017% (A-weighting@0.5V)
Frequency Response : 20Hz-48kHz
Signal-to-Noise Ratio: 122dB
Channel Separation: -75dB
Dynamic Range: 122dB
Output Impedance: 32Ω (Refers to the maximum thrust output after connecting the 32Ω headset)
DSD
Balanced: Gain Switch Gear - High Gain
Output Power: 4 Vrms max (270mW@32 ohms)
Decoding: PCM 32bit/768kHz/DSD512
THD+N: 0.0007% (A-weighting@0.5V)
Frequency Response: 20Hz-48kHz
Signal-to-Noise Ratio: 122dB
Channel Separation: -110dB
Dynamic Range: 122dB
Output Impedance: 32Ω (Refers to the maximum thrust output after connecting the 32Ω headset)
Net Weight: 56g
Size: 5.5x2.4x1.2cm
Inside the Box
  • 1 x EPZ TP30
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The EPZ TP30 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.
