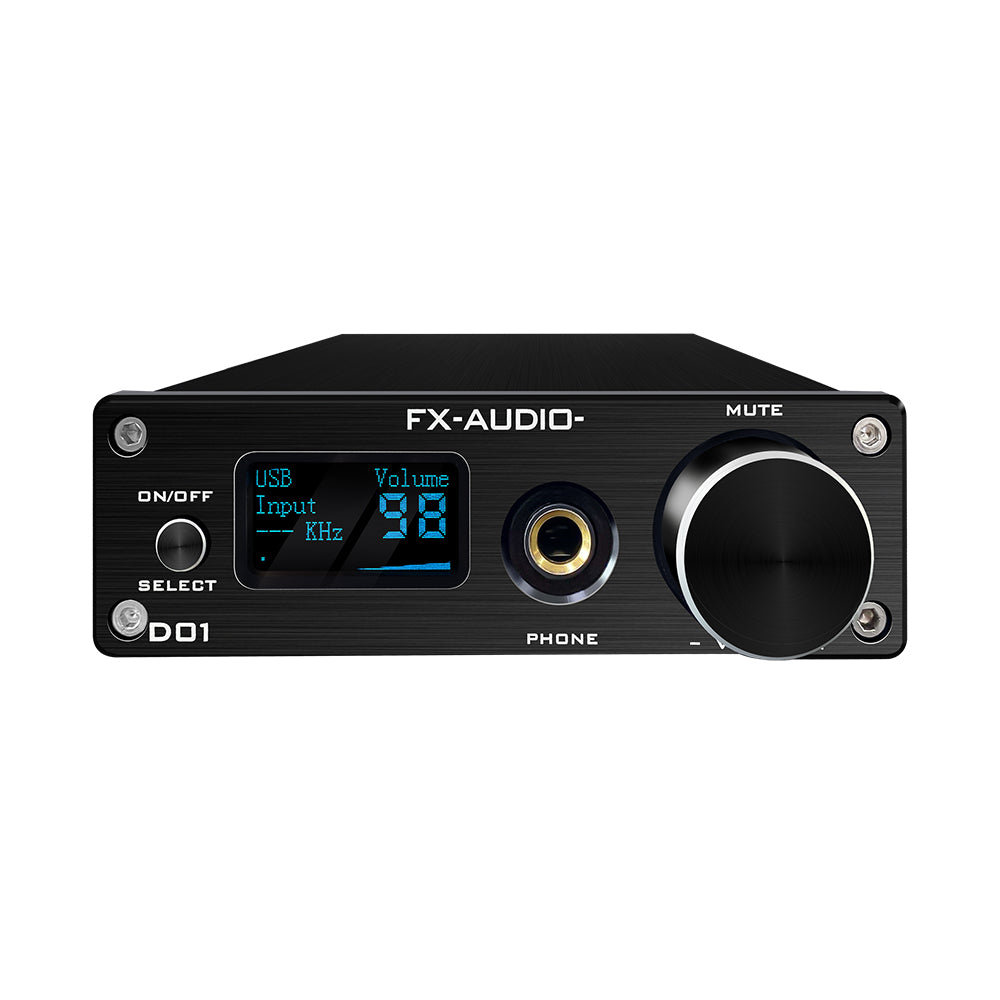

FX-Audio D01

HiFi Bluetooth 5.0 DAC Decoder Headphone Amplifier

    High-performance ES9038Q2M DAC decoder chip
    Supports 16Bit -24Bit / 44.1kHz-192kHz sampling rate
    6.35mm Interface, Aluminum Alloy Shell
Regular price $149.00 USD
Sale price $149.00 USD Regular price

High-performance Chipset

For amplifiers, sound quality is everything. D01 built-in high-performance ES9038Q2M DAC decoder chip, supports 16Bit -24Bit / 44.1kHz-192kHz sampling rate. It equipped with a powerful chipset: STM32 MCU control chip + XMOS XU208 USB chip + TPA6120A2DWPR headphone amplifier chip + LME49720NA operational amplifier chip + CSR8675 Bluetooth chip. When the digital signal is transmitted to the analog signal, all these chips can ensure the stable operation of the digital-to-analog audio converter, bringing the ultimate music enjoyment

Support Bluetooth 5.0

D01 uses CSR8675 Bluetooth 5.0 chip with antenna, supports AAC/SBC/APTX/APTX LL/APTX HD/LDAC to ensure less signal loss and stable transmission. It applies to the current mainstream Bluetooth audio devices, such as mobile phones, laptops and tablets. The wireless connection makes the device more convenient to use.

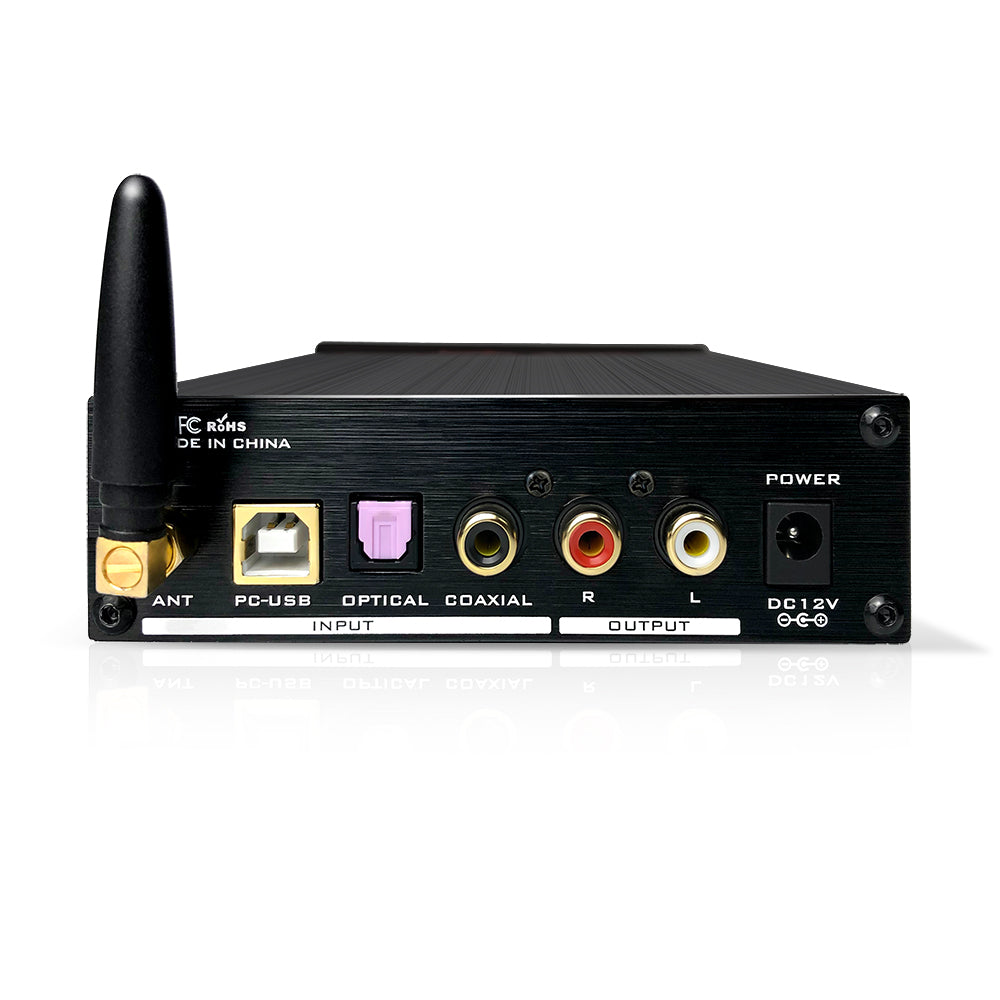

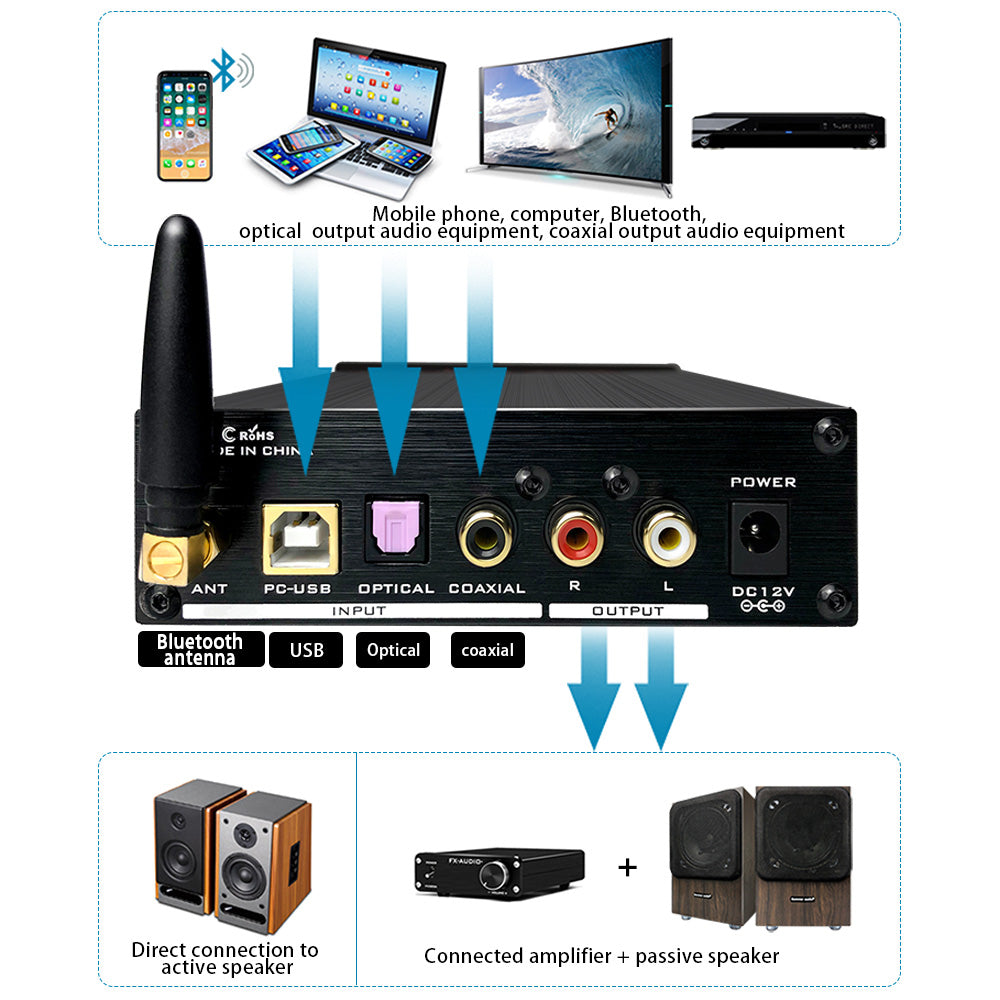

Multiple Input and Output Interfaces

 Different input methods make your choices more diversified. You can easily convert signals from PC-USB/optical /coaxial/Bluetooth to L/R RCA and 6.35mm jack headphone analog signals. The corresponding sampling rate of each input is different. The sampling rate can reach PCM 24Bit/768kH. It is a nice product for home theater, conference room, appliance store and many other occasions, let your equipment make the best use.

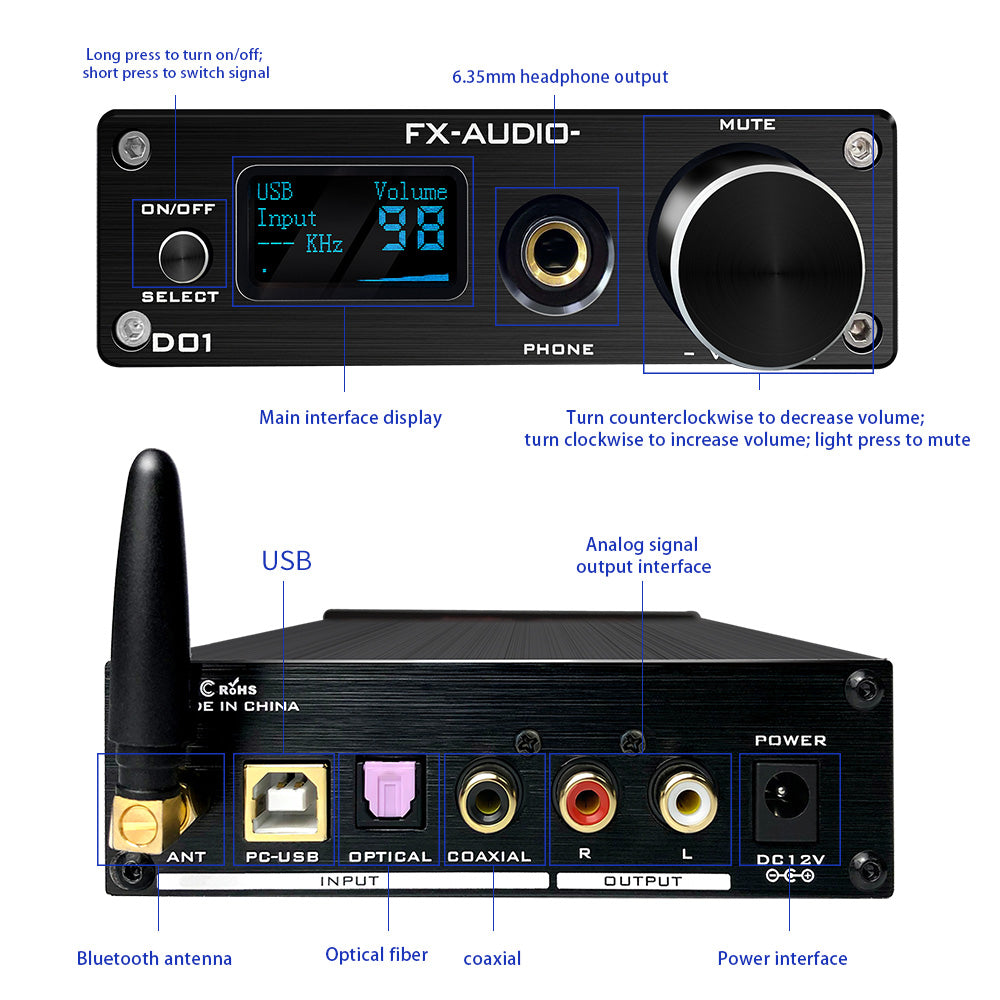

Easy to Operate

Through short press “SELECTE” you can easily switch signal and input while Long press to turn on/off. You can Turn counterclockwise to decrease volume and turn clockwise to increase volume, adjust to your favorite mode and enjoy your favorite music

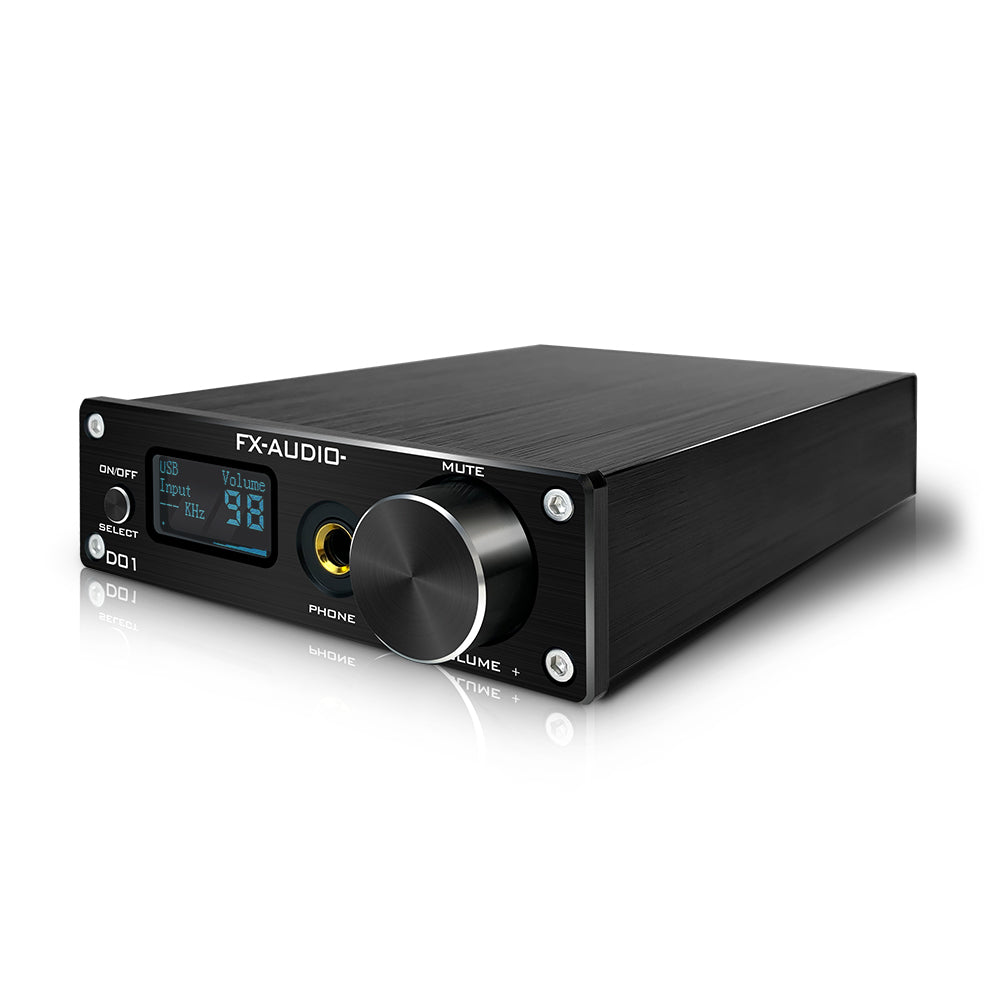

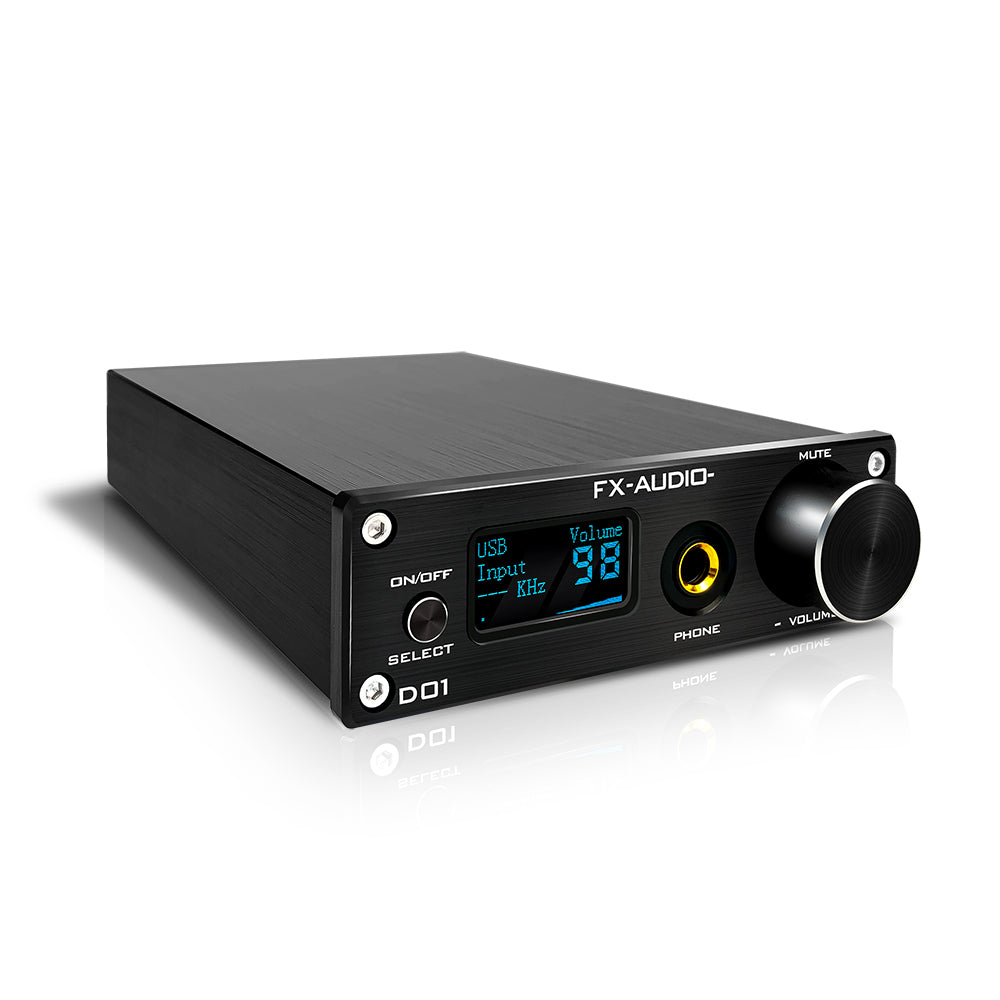

Aluminum Alloy Shell

The case is made of aluminum alloy material with oxidation process. The appearance is stylish and beautiful, and it is integrated with modern home furnishings. It’s lightweight, durable and heat-resistant. it can smoothly enhance high-definition sound signals even in long-distance broadcasting.

Inside the Box

  • 1 x FX-Audio D01
  • User Manual

1 Year Warranty

The FX-Audio D01 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Chipset
STM32+XMOSXU208+ES9038Q2M+TPA6120A2DWPR+LME49720NA+CSR8675
Line Out level output
2Vrms@0dBFS
Distortion
<0.002%@1kHz
SNR
115dB @1kHz
Dynamic range
115dB @1kHz
USB
16bit-32bit /44.1kHz-768kHz, DSD64 DSD128 DSD256 DSD512;
Coaxial/Optical
16Bit/24Bit 44.1kHz~ 192kHz;
BT
16Bit/24Bit 44.1kHz~96 kHz
Amplifier power output
400mW x2@32Ω2 THD+N< 1% 90mWx2@300ΩTHD+N<1%
Headphone distortion
<0.004%@1kHz
Headphone amplifier signal-to-noise ratio
> 110dB @1kHz
Frequency response
(+0, -0.5dB) (20Hz~ -20kHz)
Amp impedance
16Ω-300Ω
Output interface
LineOut, 6.35mm Headphone
Power supply
DC 12V1A
Product size
11.4*17.8*3.3.cm
Product weight
0.47kg

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: In-stocks will likely arrive during early February 2023.

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.

Authentic Products

Linsoul Audio is the authorized distributor. All products are authentic and genuine.

Worldwide Free Shipping

We are located in China but send our products worldwide for free. T&Cs apply.

1 Year Warranty

We provide 1 year warranty for the all products except the cables and accessories*.

Online Support

Need help?, we are here to assist you
Monday - Friday: 09:00 – 18:00 (UTC+8)

Customer Reviews

Based on 2 reviews
0%
(0)
50%
(1)
50%
(1)
0%
(0)
0%
(0)
C
C.R.
Great value for money

Honestly, hard to beat a very comfortable desktop design like this when it offers so many connections and sounds this good. For the money, it's 4 stars because the BT really is quite noisy. And the headphone jack, while very serviceable, was worth upgrading before other elements for a dedicated headphone/ pre-amp. But overall, it's a great, GREAT place to start for a desktop setup, especially if you haven't yet put your money to really good speakers. Enjoy!

I
Istvan Kosi
QA needs to be tightened

Just received the device, it works as advertised and I'm satisfied with how it sounds. There is, however, some unfortunate oversight in the design of the volume/mute knob as it tends to scrape against the case when turning and sometimes the press action (mute) is not registered.
Also, my unit arrived with deep scratches on the display (no protective film applied whatsoever) and missing accessories (no opt. cable, no RCA cable, no 6.3/3.5 jack converter). Pretty annoying since these defects and discrepancies could be prevented/screened by a simple QA check at the packaging process.
