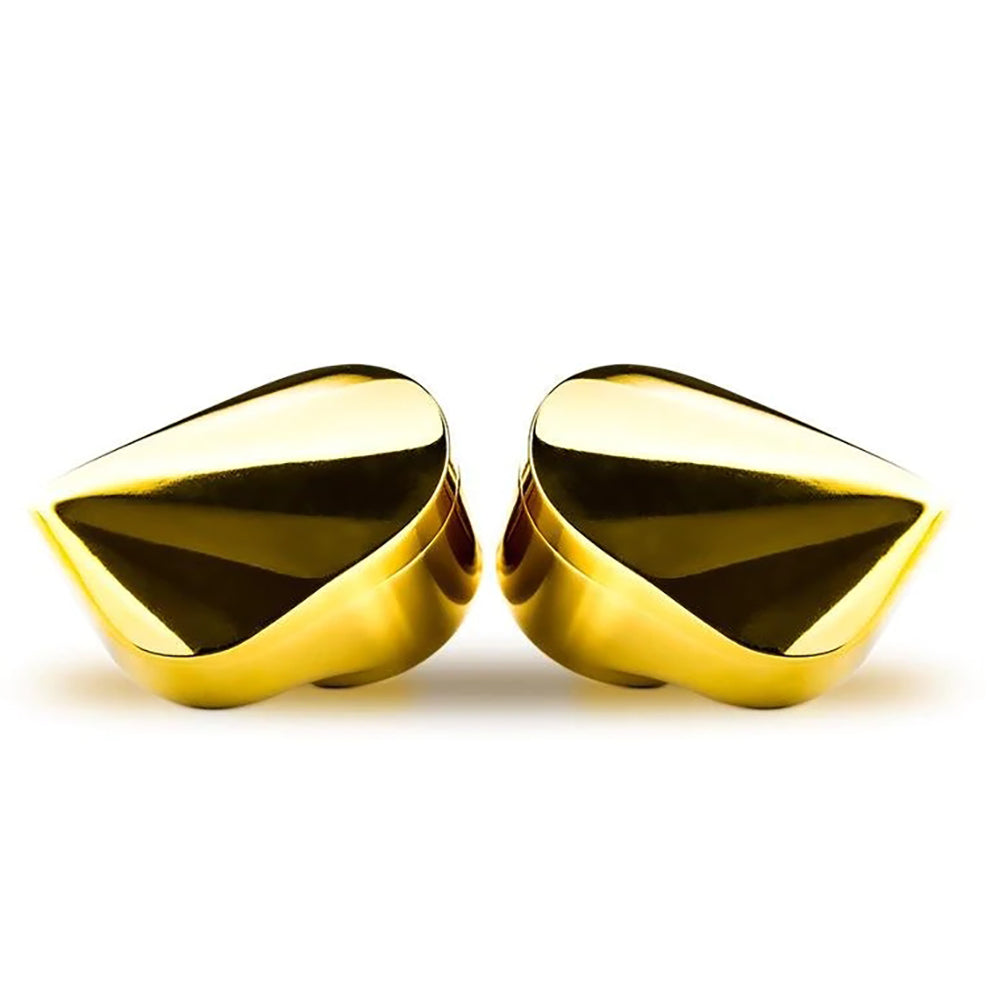

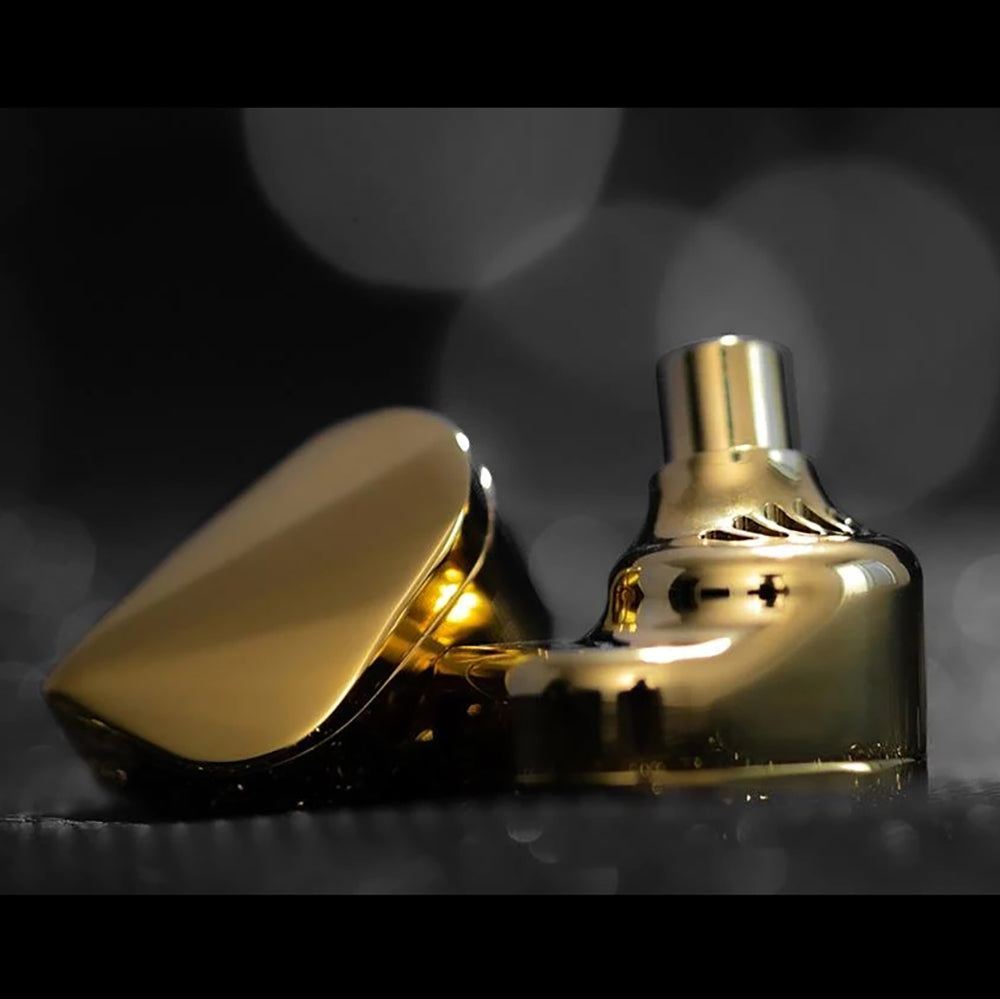

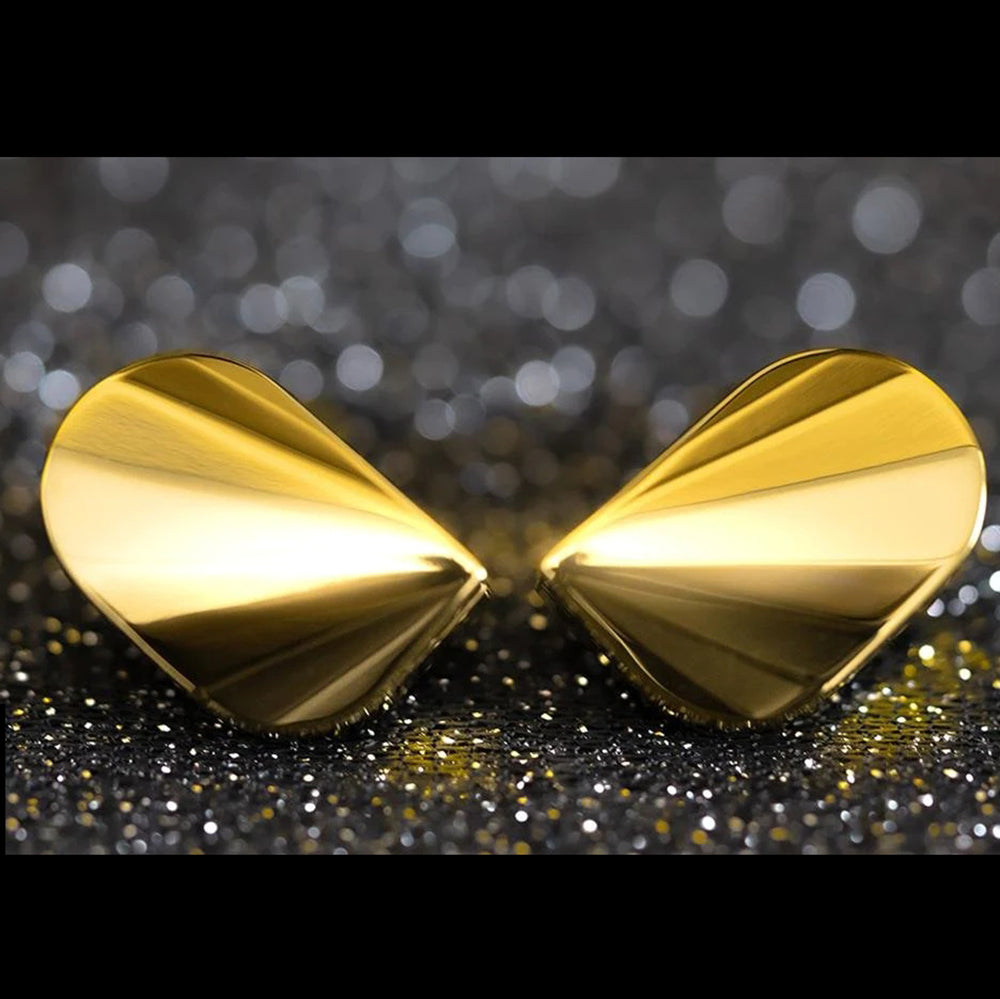

High-Quality Titanium Alloy Shell

The Moondrop Illumination earpieces are crafted professionally with outstanding precision and design. They are made with a high-precision 5-axis CNC machining process using high-quality Titanium alloy material covered with anti-scratch tin-plating. The earpieces have a lustrous gold finish to them that gives outstanding looks to them.

Patented Coupled Acoustic Chambers

The earpieces design features Moondrop Patented Coupled Acoustic Chambers that ensures smooth non-fatiguing crisp sound clarity output. The front chamber smoothens out the undesired resonance that causes harshness in treble frequencies, a special pressure relieving structure controls the bass and transient response from the driver unit.

11mm High Performance Dynamic Driver

1.6T flux N52 external magnet architecture, CNC milled high magnet conducting circuit. Coaxial 7 vents+independent brass back chamber design accurately control resonant frequency. Japan imported 0.035mm CCAW coil, lightweight suspension design. Independent copper support frame significantly reduces magnet leakage. Moondrop's professional tuning and this premium driver unit ensures a smooth, reference-grade, crisp sound clarity output with ultra-low distortion, high consistent phase across the frequency band, and wide extensions at both the ends of the frequency range. The bass response goes as low as 10Hz and the treble rises as long as to 50kHz with the Moondrop Illumination.

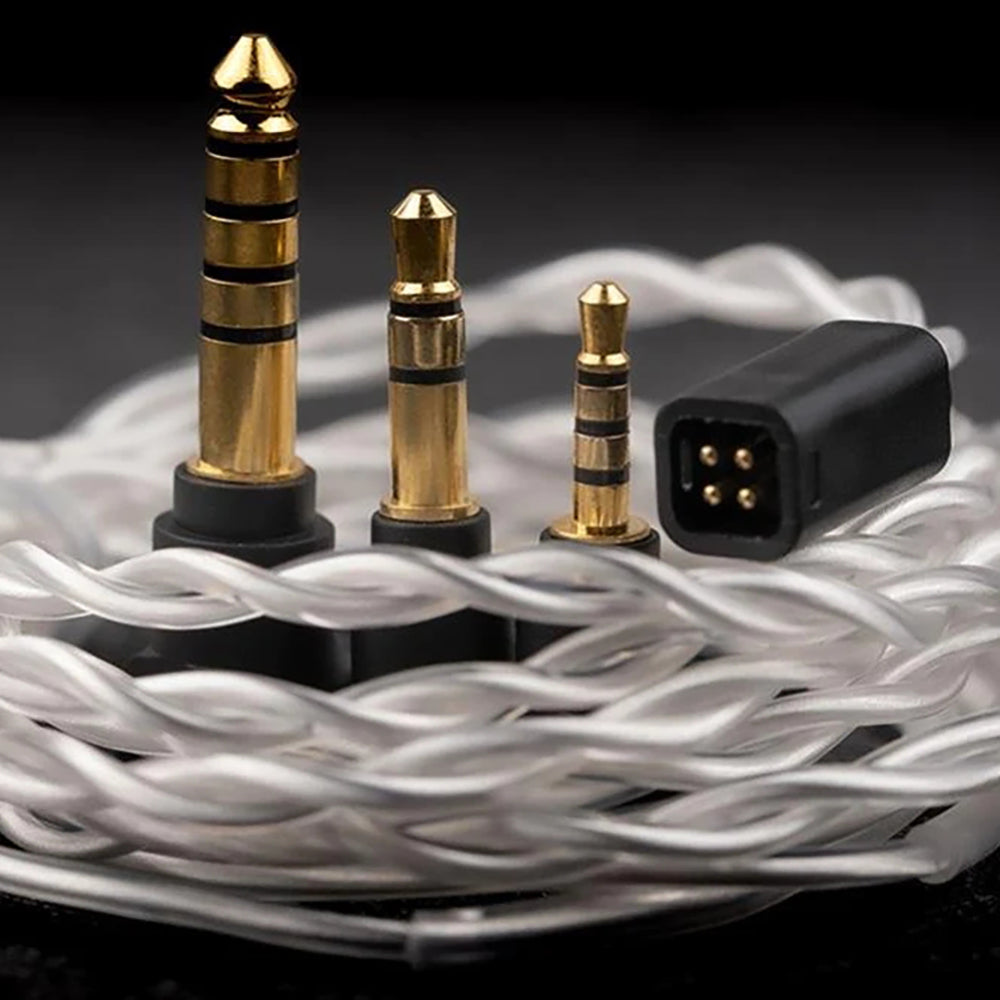

High-Purity Cable With Replaceable Termination Plugs

Illumination comes with low impedance coaxial structure cable with 6n OCC wire and SPC shielding to bring you clear, clean sound. Replaceable plugs make switching between different sockets easy.

Ergonomic Fit

Variations continues the ergonomic design of multi-unit composite earphones, which can fit the human ear canal, making it comfortable and ensuring the sound quality.

Technical Details

Frequency Response
20-20000Hz (IEC60318-4)
10-50000Hz (1/4Inch Free field Mic)
Impedance
259 @1kHz
Sensitivity
124dB/Nrms@1kHz
THD+N
≤0.3%
Housing Material
5 axis CNC milled TC4 titanium alloy with TiN plating
Transducer
Patented 11mm high efficiency/performance coupled acoustic chamber dynamic Driver
Diaphragm
Liquid Crystal polymer dome + soft high damping factor PEEK suspension
Coil
0.035mm daikoku CCAW
Magnet
High flux density N52 neodymium external magnet architecture
Damper
Patented coupled acoustic chamber structure
Socket
0.78 2pin
Cable
OCC copper with SPC shielding + replaceable plug
Inside the Box
  • 1 x Moondrop Illumination
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The Moondrop Illumination Comes with a 1 year warranty on the In-Ear Monitors and 3 month warranty on the cable.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 7-15 days

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
