Shangling UP5

$179.99 USD

Portable Bluetooth USB MQA DAC/AMP

    Advanced Qualcomm QCC5120 Bluetooth Chip
    ES9219C Dual DAC
    XMOS USB Signal Receiver
    MQA Support
    OLED Display
    Three Headphone Output Ports
    Car Mode
This Product is a Pre-order

Processing Time before shipping: In-stocks will likely arrive by the end of Jul, 2021 avg.

This is a rough estimation. It may change without prior notice.
PRODUCT FEATURES

Qualcomm Advanced Bluetooth Chip

Shanling has equipped the latest UP5 with an advanced QCC5120 Bluetooth chip that provides seamless Bluetooth V5.0 connectivity with the device. The QCC51xx series of Bluetooth chips are developed keeping in mind consumer’s demand for high-quality audio as well as extended battery life. UP5 supports most of the advanced high-resolution wireless codecs including LDAC, LHDC, AptX HD, AptX LL, AptX, and more.

High-Performance ES9219C Dual DAC Chipset

Shanling UP5 features a premium dual DAC chipset housing two ES9219C Dual DAC chips. It is the same DAC chipset they featured in their latest M3X Android Music Player. It is the premium 3rd generation DAC chip from Sabre Technologies offering quality high-resolution signal decoding with ultra-low distortion and high SNR ratings. Users get to experience a transparent and clean sound performance with the Shanling UP5.

XMOS USB Signal Receiver

Shanling UP5 is not just a Bluetooth DAC/AMP it also features an advanced XMOS USB Signal Receiver chip allowing for proper USB DAC/AMP functionality. It allows for high-resolution PCM and DSD signal decoding along with full MQA decoding support for a high-fidelity audio experience.

2.5mm+3.5mm+4.4mm Headphone Output Ports

Doesn’t matter whether you need a balanced 2.5mm or 4.4mm connection or a single-ended 3.5mm headphone output port, Shanling has equipped the UP5 with all three of them. Pair your headphones or earphones with your choice of termination option. UP5 has a rated output power rating of up to 240mW @ 32Ω of load, more than enough to power your headphones with ease.

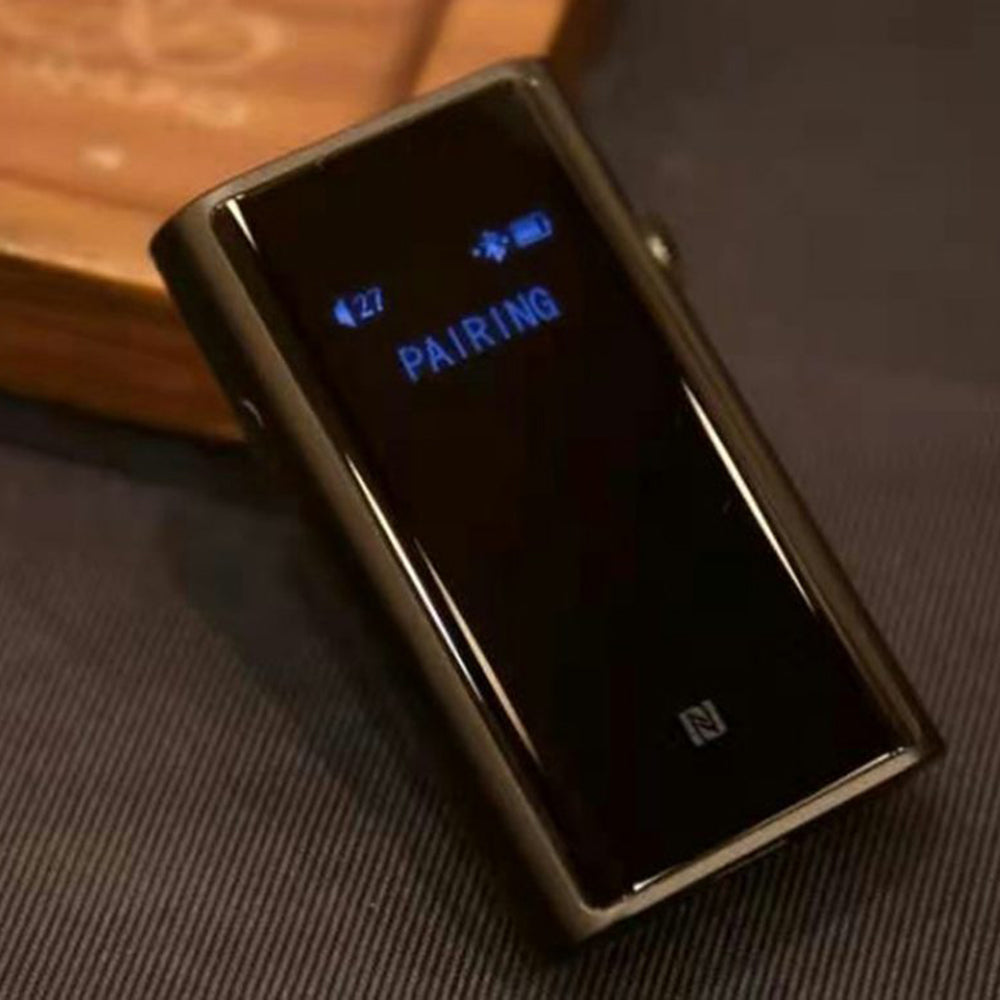

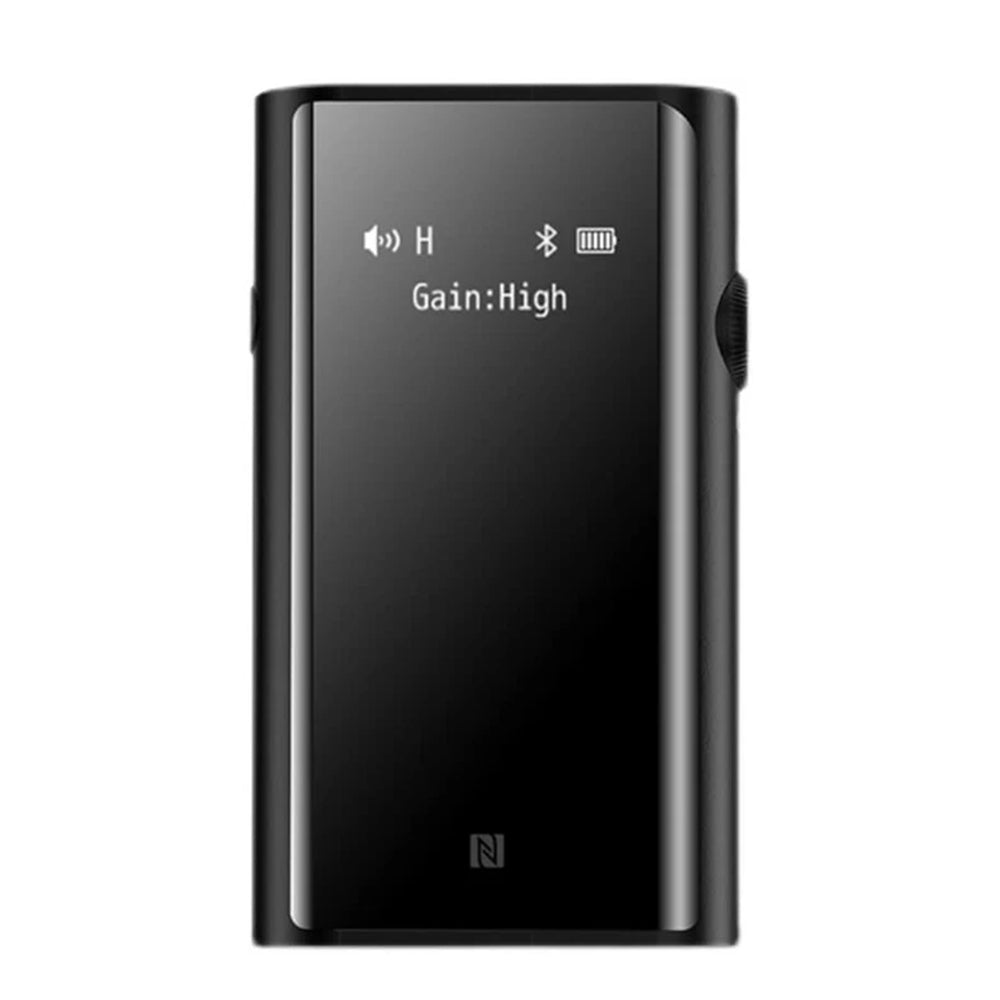

OLED Display

Shanling UP5 houses an OLED display on the front that provides easy access to settings and shows basic playback information. This is a welcome feature for portable USB DAC/AMPs available only in TOTL products.

Long Battery Life

Shanling UP5 features a 680mAh battery life. It can play music continuously for up to 15 hours on single DAC mode. Even on high-profile Dual DAC mode, it provides up to 11 hours of battery life with balanced connections.

SHOP WITH CONFIDENCE
Free Shipping

Authenthic Products

Linsoul Audio is the authorized distributor. All products are authentic and genuine.

Free Shipping

Worldwide Free Shipping

We are located in china but send our products worldwide for free.

Warranty

1 Year Warranty

We provide 1 year warranty for the all products except the cables*.

Support

Online Support

We reply to all support inquiries within 3 working days.

PRODUCT SPECIFICATIONS
DAC/AMP
2X ESS Sabre ES9219C
Outputs
3.5mm Single ended, 2.5mm & 4.4mm Balanced
Output power
-Single ended, single DAC – 90 mW@32ohm
-Single ended, dual DAC – 112 mW@32ohm
-Balanced – 240 mW@32ohm
Battery
680 mAh
Size
68 x 39 x 14.5mm
Weight
50g
