Drawer-Tray Design & Chassis

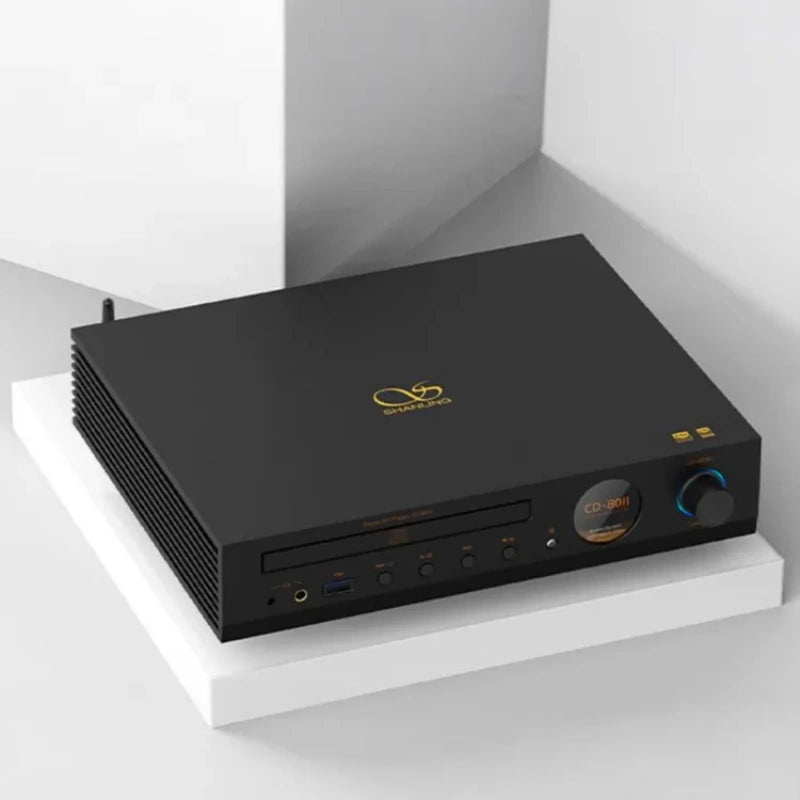

The CD80II uses a traditional drawer-style CD tray for maximum reliability and disc protection. Its unibody aluminum-alloy chassis is precision-forged to be both lightweight and exceptionally rigid, with crisp edges and a smooth finish that underscore Shanling’s commitment to mechanical craftsmanship.

Color Options & Display

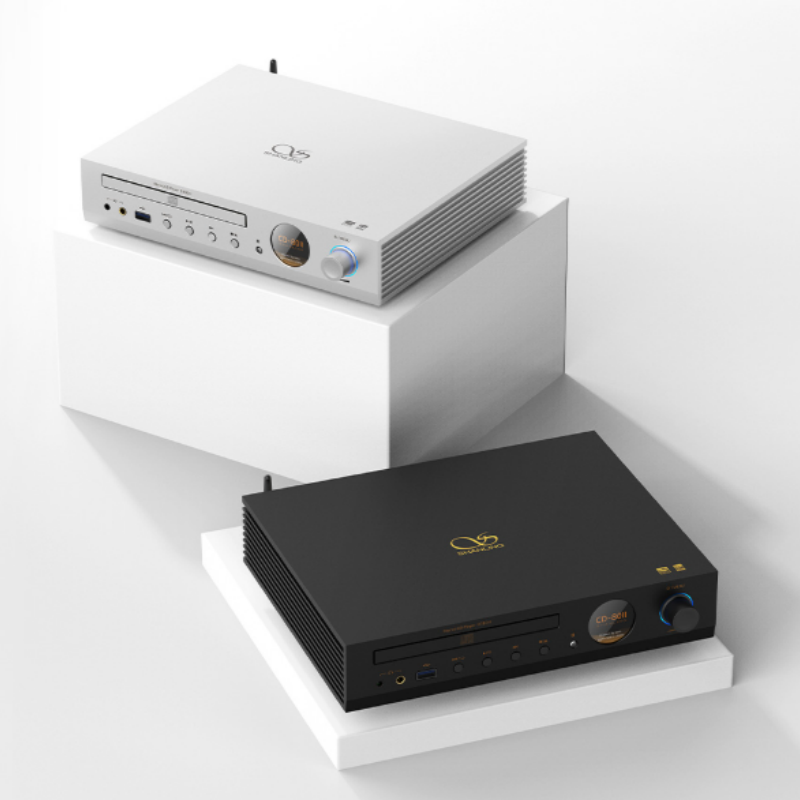

Choose between sleek Black or Silver finishes. A 1.28-inch (240×240 px) high-resolution color display presents track metadata, elapsed time, and playback settings in a clean, minimalist UI. At just 260×205×52 mm, the CD80II occupies minimal desktop space while delivering a full-featured experience.

Drive & Servo System

Shanling equips the CD80II with its fourth-generation CD-dedicated servo system—identical to that in the flagship CD-S100—mated to the HD850 transport mechanism. This pairing maintains sub-millisecond tracking accuracy and eliminates data-read errors, ensuring consistent, loss-free playback.

Digital Decoding Performance

The Cirrus Logic CS43198 DAC decodes PCM up to 384 kHz/32-bit and native DSD256, revealing microdynamic detail and expansive tonal depth. Shanling’s 37 years of tuning expertise further refine the signal path to deliver transparent, lifelike sound.

Analog Amplification

Dual SGM8262 amplifier chips reduce distortion and maintain linearity, delivering up to 850 mW @ 32 Ω balanced output while effortlessly powering both low-and high-impedance headphones.

Power Filtering

Premium Panasonic FC filter capacitors deliver ultra-low-noise power by minimizing ripple and transient artifacts. The result is a highly resolved soundstage with clear separation between instruments.

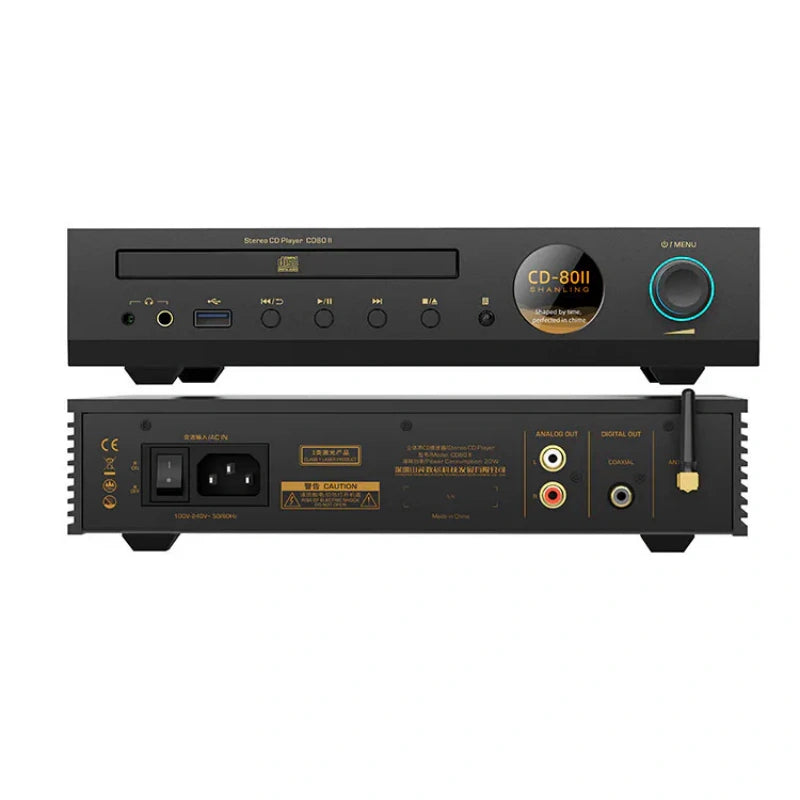

Controls & Connectivity

Control is handled by tactile front-panel buttons and a smooth rotary knob for track skipping, play/pause, and volume adjustment, with an included IR remote for on-desk convenience and Bluetooth-based operation via the Eddict Player app, which lets you browse files and manage playback from any smartphone.

Technical Details

Dimensions (W x D x H)
280 x 205 x 52 mm
Weight
2.6 kg
Platform
Ingenic X1000E
DAC
Cirrus Logic CS43198
Bluetooth Input
BT 5.0 (LDAC, AAC, SBC)
Display
1.28‑inch (240 × 240 px) color screen
Controls
Front‑panel buttons & knobs; IR remote; Eddict Player smartphone app
Supported Disc Types
CD / CD‑RW / CD‑R
USB Hi‑Res Playback
up to 384 kHz / 32‑bit, DSD256
USB File Formats
DSD, DXD, APE, FLAC, ALAC, WAV, AIFF, DTS, MP3, WMA, AAC, OGG, MP2, M4A, AC3, OPUS, TAK, CUE
RCA Line‑Out

Output Level
2.6 Vrms
Frequency Response
20 Hz – 40 kHz (‑0.2 dB)
THD + N
0.0004%
Dynamic Range
124 dB
Signal‑to‑Noise Ratio
124 dB
Output Impedance
100 Ω
Digital Coaxial (S/PDIF)
up to PCM 192 kHz / 24‑bit
3.5 mm Headphone Out

Power
215 mW @ 32 Ω
Frequency Response
20 Hz – 40 kHz (‑0.2 dB)
THD + N
0.0007%
Channel Separation
75 dB @ 32 Ω
Dynamic Range
125 dB
Signal‑to‑Noise Ratio
125 dB
Noise Floor
117 dB (< 1.4 µV)
Output Impedance
0.4 Ω
4.4 mm Balanced Headphone Out

Power
850 mW @ 32 Ω
Frequency Response
20 Hz – 40 kHz (‑0.2 dB)
THD + N
0.0007%
Channel Separation
112 dB @ 32 Ω
Dynamic Range
127 dB
Signal‑to‑Noise Ratio
127 dB
Noise Floor
113 dB (< 2.2 µV)
Output Impedance
0.7 Ω
Inside the Box
  • Quick Start Guide × 1
  • Product Manual × 1
  • Shanling Warranty Card × 1
  • RC-3T Remote Control × 1
  • Antenna × 1
  • Power Cable × 1
