Upgraded Qualcomm Snapdragon 665 SoC Chip & Latest Android 10 OS

With M9, we are be taking a big step forward in our Android platform. Moving to a newer and more powerful Qualcomm Snapdragon 665 CPU and upgrading to the Android 10, which will assure better performance and app compatibility for the foreseeable future.

Large Memory & Long Battery Life

RAM was increased to 8GB for a smoother multitasking and internal memory was upgraded to 256GB, to provide enough space for apps and their data. And at the same time, we managed to increase battery life, up to 18 hours of playback on single-ended.

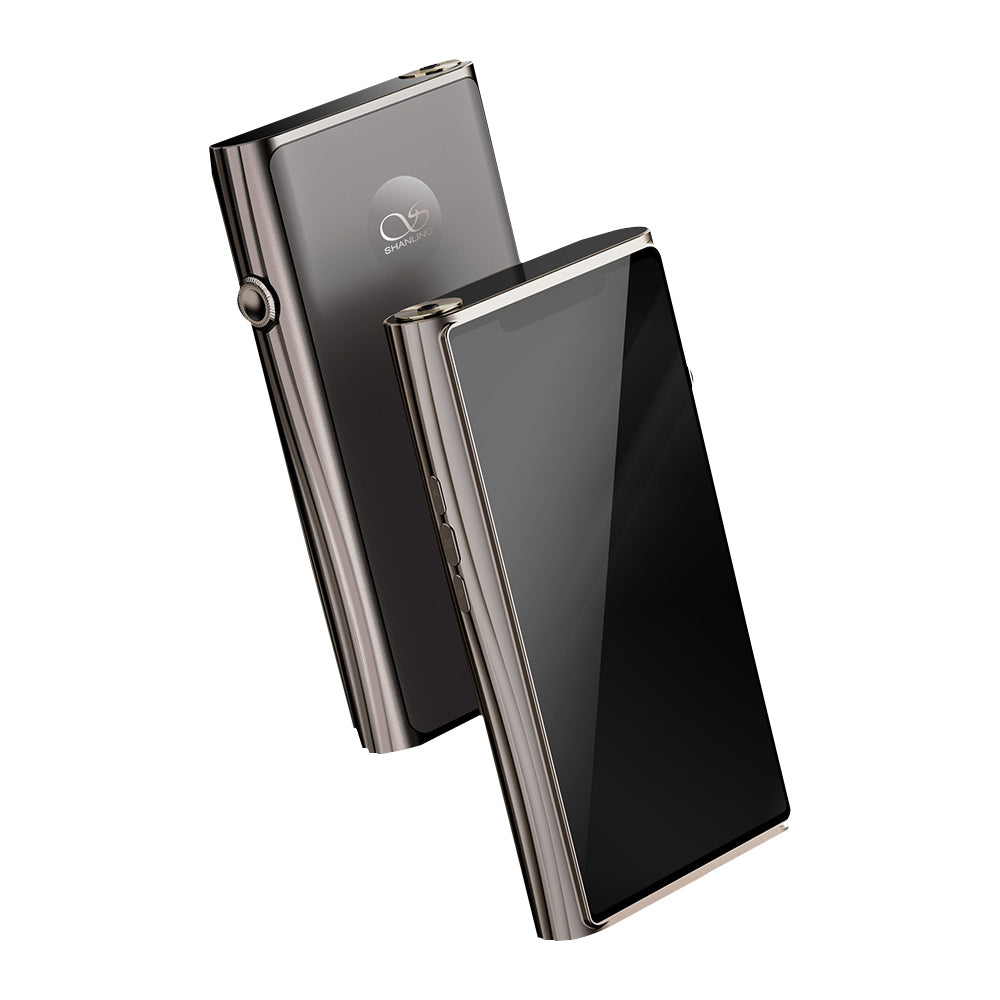

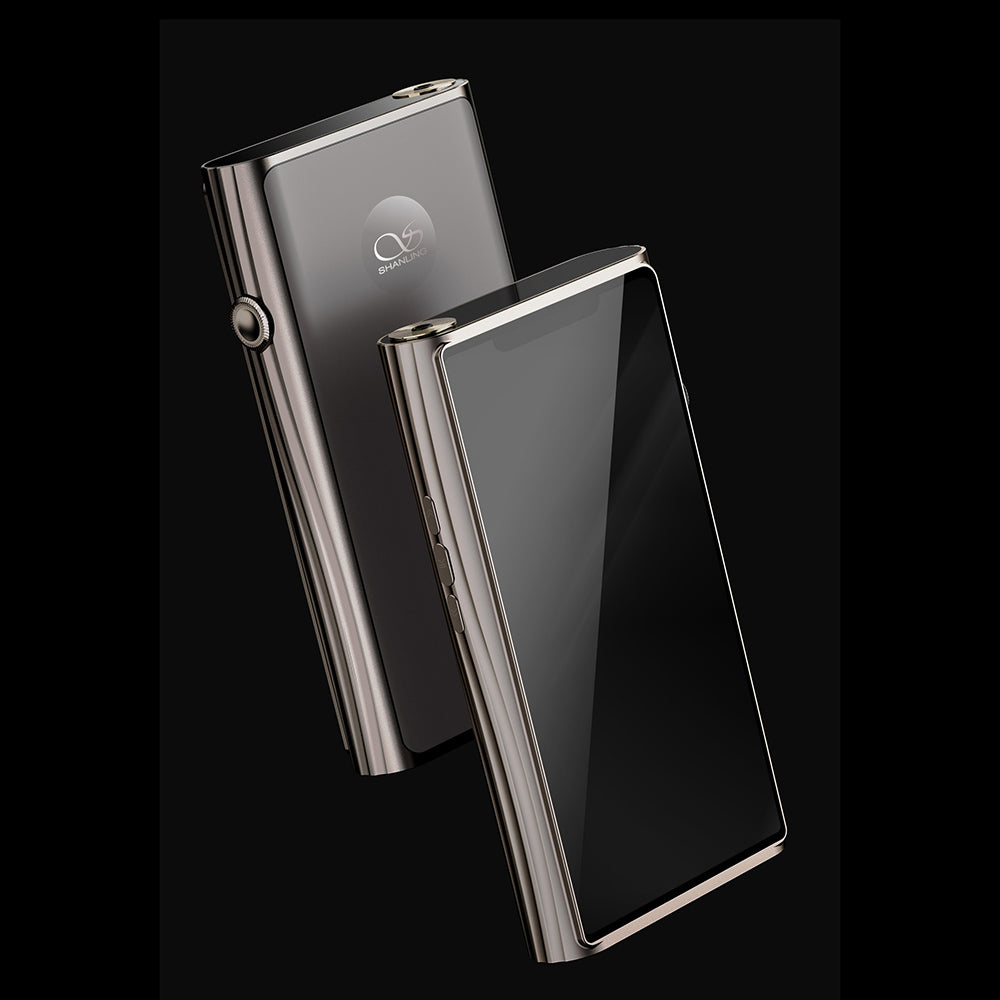

Brand-new Compact Design

M9 comes with a brand-new design, that makes it stand out among our older models and its rivals. M9 will also be our biggest portable player to date, featuring a beautiful 6-inch 2K LCD screen. We are also adding a smaller screen into the display notch, which will be showing basic information about volume, sampling or time, keeping you in control of the playback without need to turn on the main display.

Interchangeable Headphone Termination Module Design

Using the interchangeable design of headphone modules, M9 will be a excellent pairing for almost any headphones on the market. We also optimized its gain circuit to provide more power on both balanced and single ended outputs, for use with the most demanding full-size headphones.

Ultimate Performance

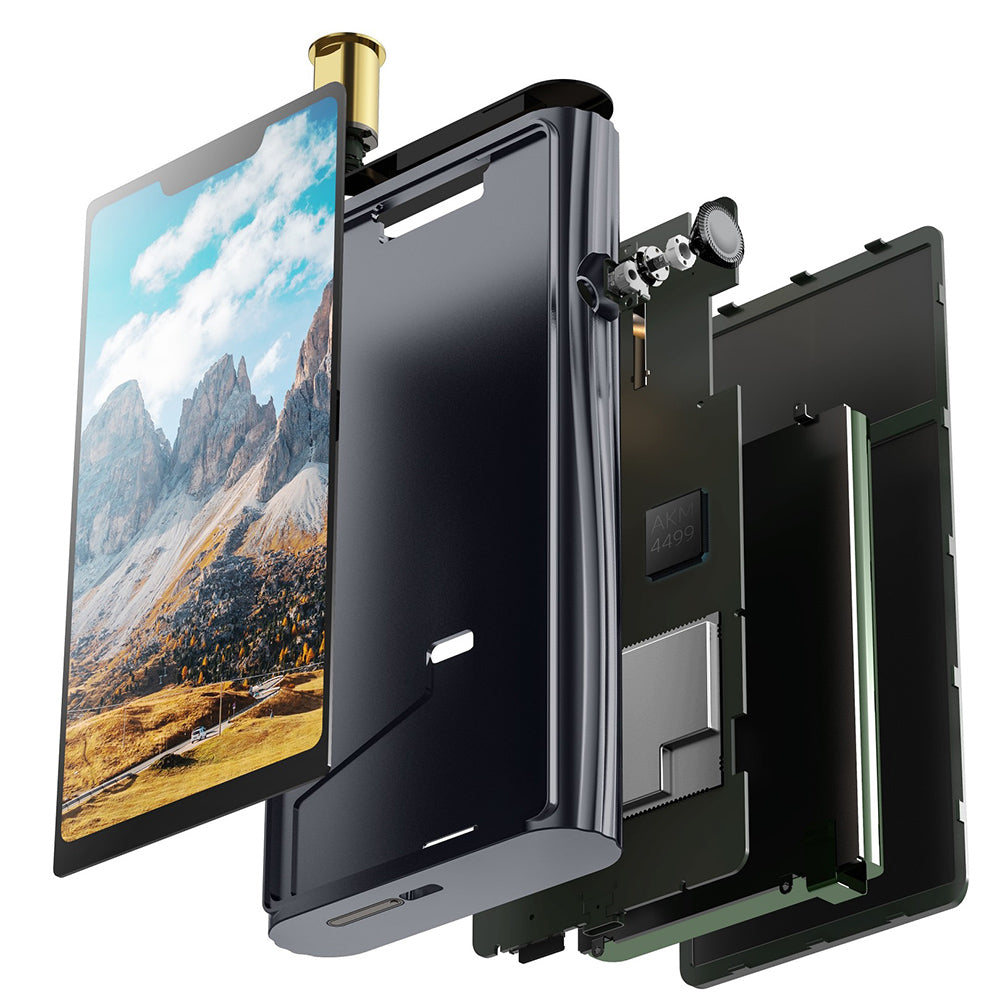

M9 will be released firstly as the AKM Limited Edition, using discontinued AKM AK4499EQ DACs, which made such a hit from our M8. Amplifier section follows our acclaimed design, combining TI OPA1612, AD ADA4610-2 and TI BUF634 in a fully balanced circuit. All newly integrated into a single board construction, with a increased number of high-quality capacitors, thicker copper connections and further improved I/V conversion stage, pushing M9's audio performance above the level set by the M8.

Technical Details

Main Screen
6-Inch 2160 * 1080 LCD with notch
Operating System
Android 10
CPU
Qualcomm Snapdragon 665
Memory
Ram 8GB, ROM 256GB + single Micro SD card slot
Hi-Res support
32/768 & DSD512 & MQA 16X
Bluetooth
Bluetooth 5.0, two-way, LDAC, LHDC, aptX HD, aptX, SBC Support
Wi-Fi
2.4G/5G, supporting DLNA, Airplay
DAC
2x AKM AK4499EQ
Amplifier
AD4610 & BUF364A & OPA1612
Output Power
Single-ended 460 mW@32Ohm // 920mW@32Ohm Balanced
Output
Interchangeable system, supporting 3.5mm, 2.5mm, 4.4mm and 3.5Pro
Output impedance
Less than 1 Ohm
Battery
8350 mAh, supporting 18W quick charging
Battery life
Up to 18 hours in single ended and 10 hours in balanced
Weight
409g
Dimensions
152 x 82 x 22 mm
Inside the Box
  • 1 x Shanling M9
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The Shanling M9 Comes with a 1 year warranty on the Digital Audio Player only. Warranty doesn't apply to the included accessories.
