About Shanling M9 Plus

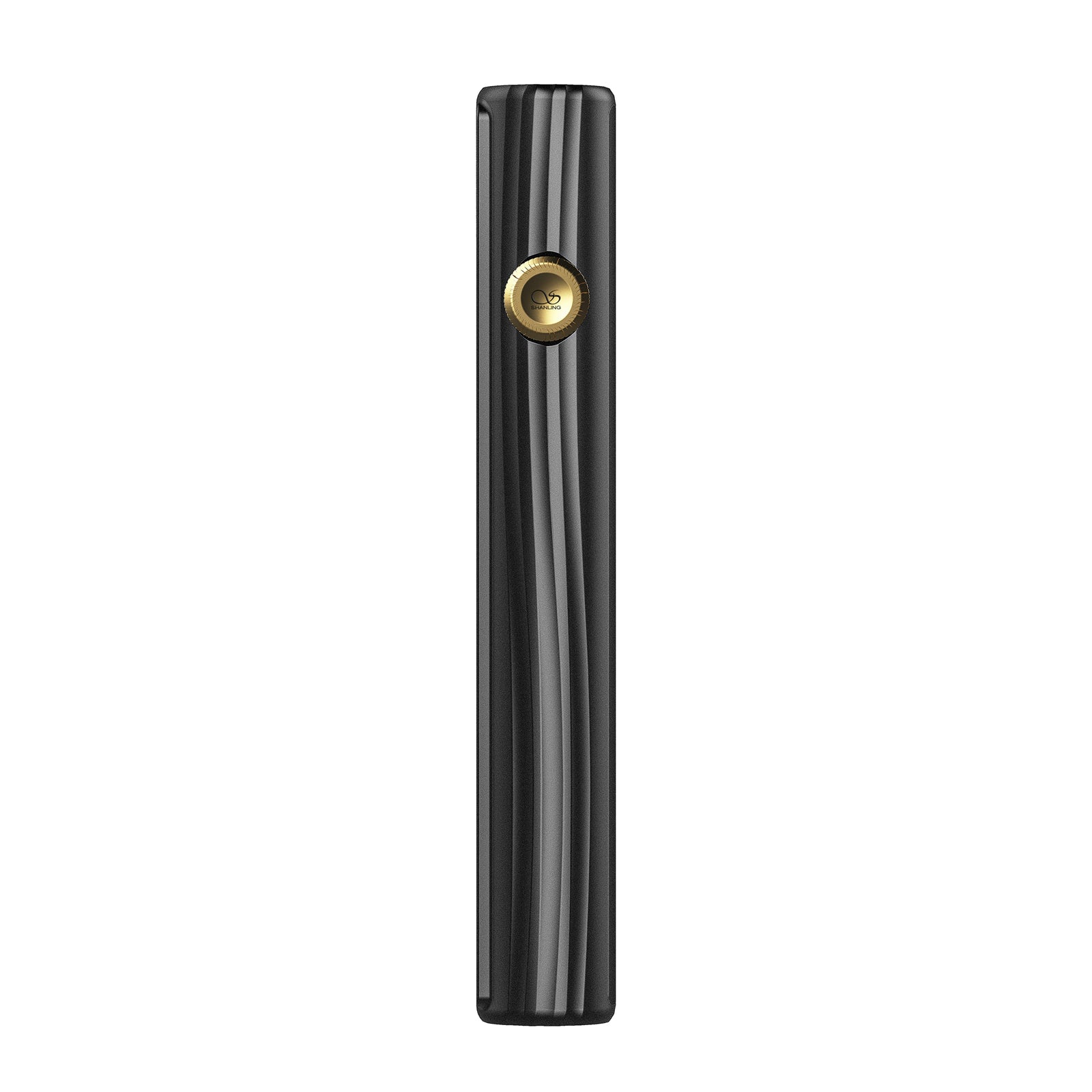

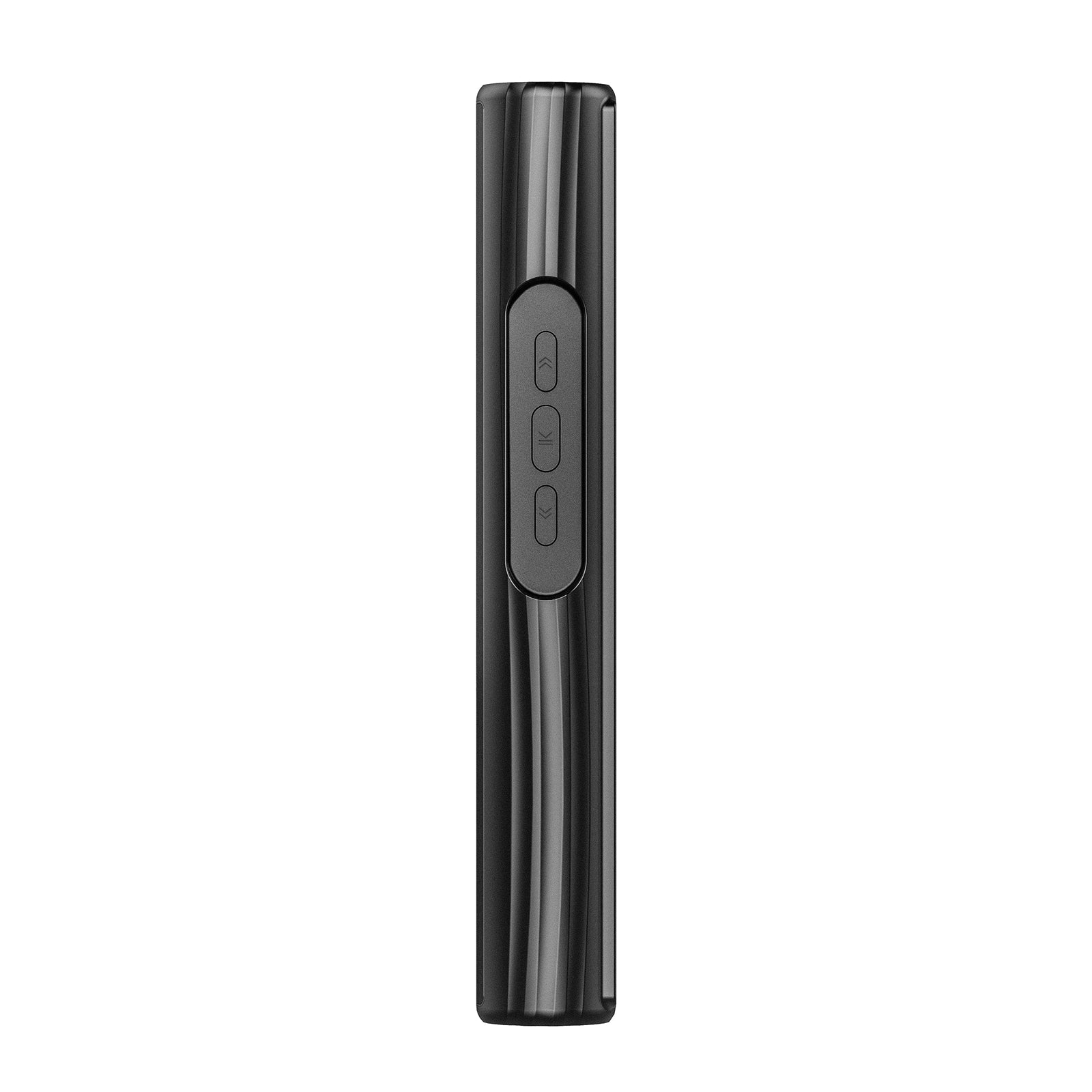

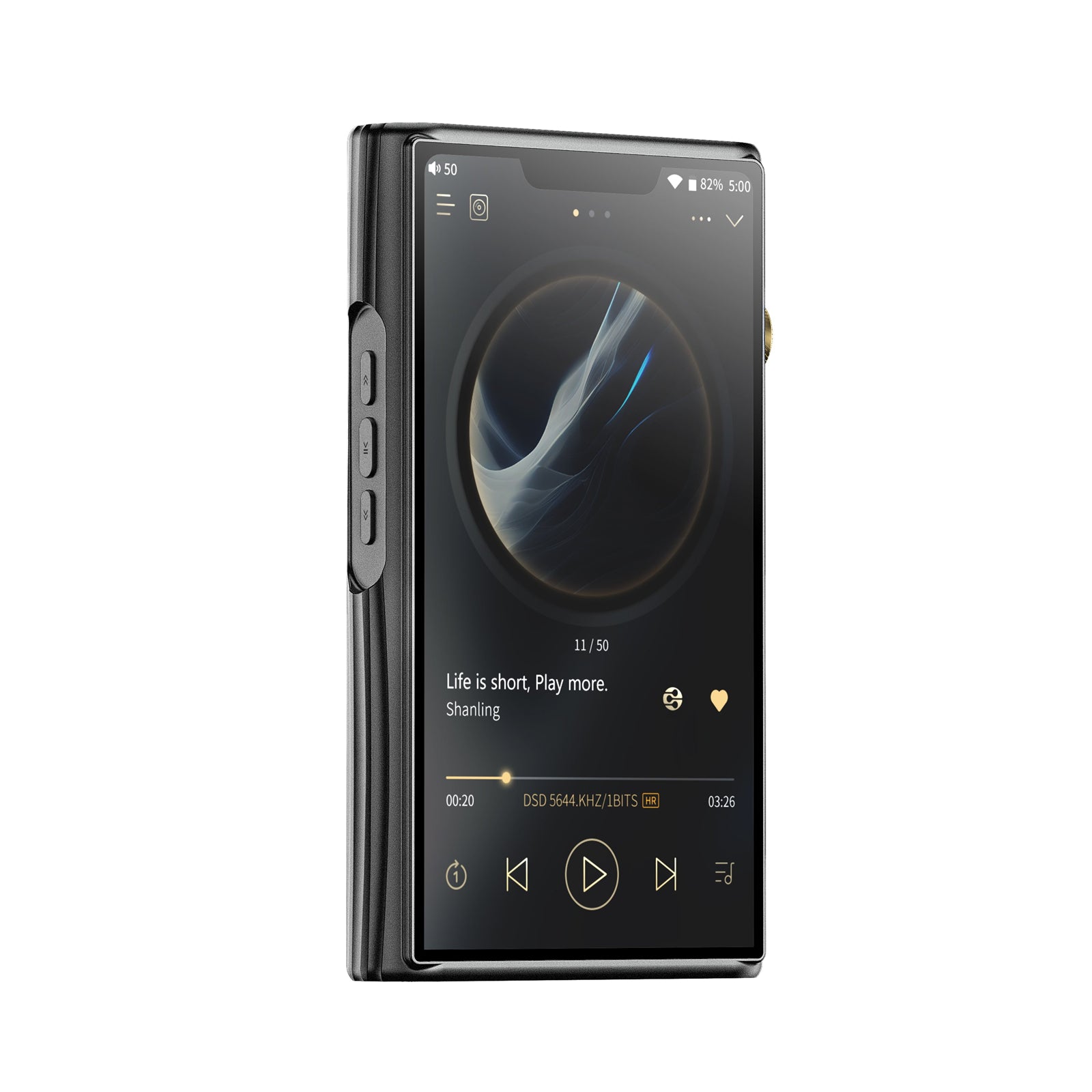

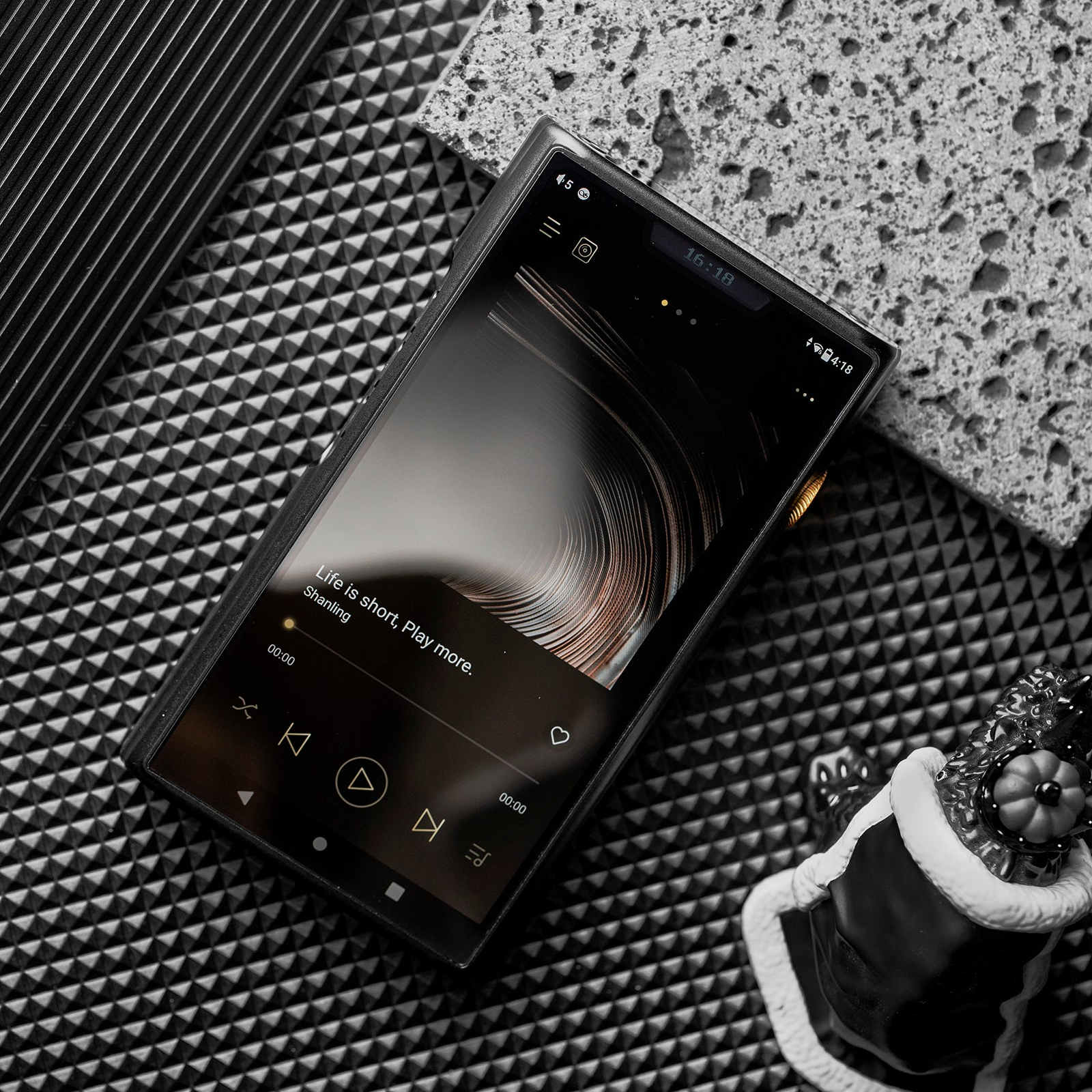

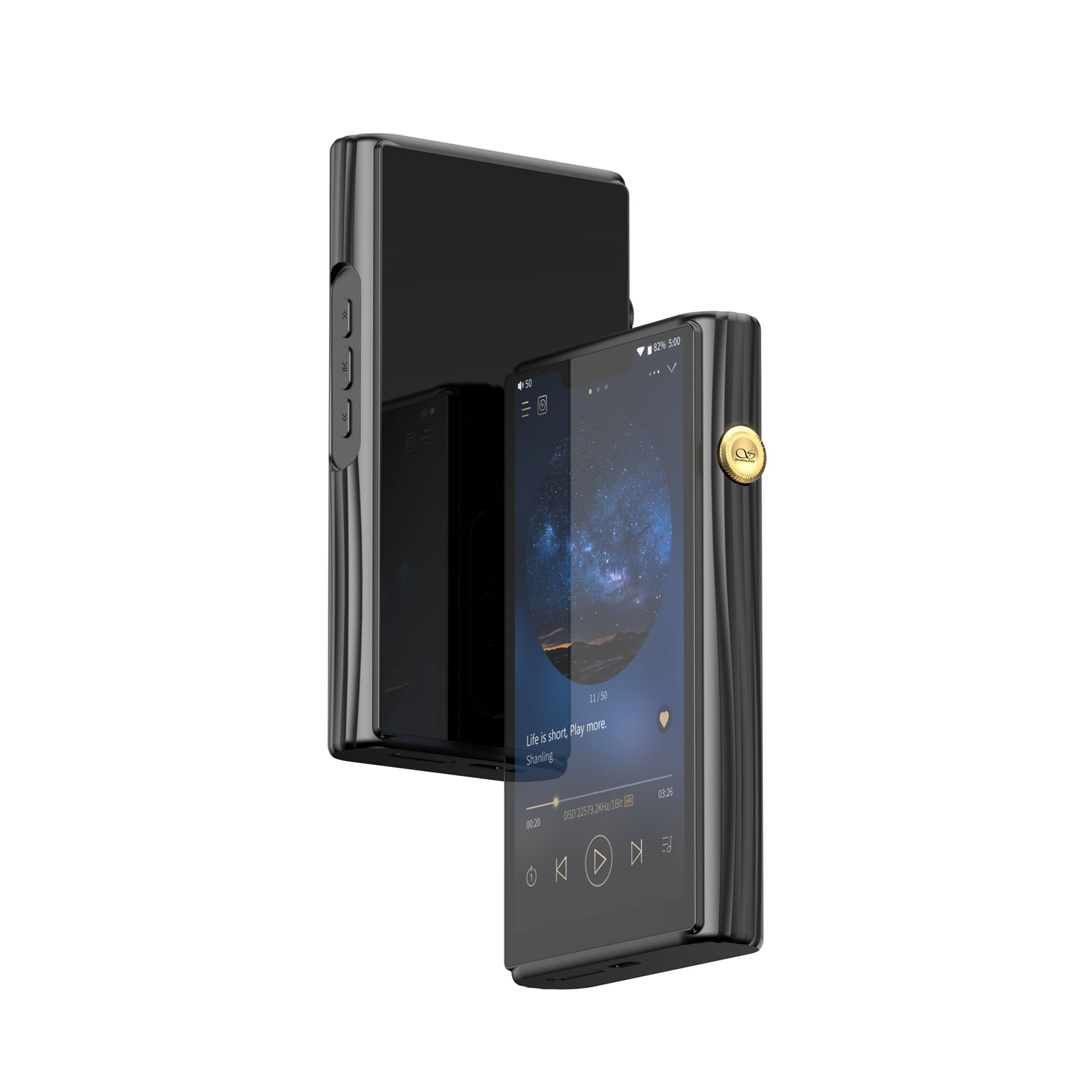

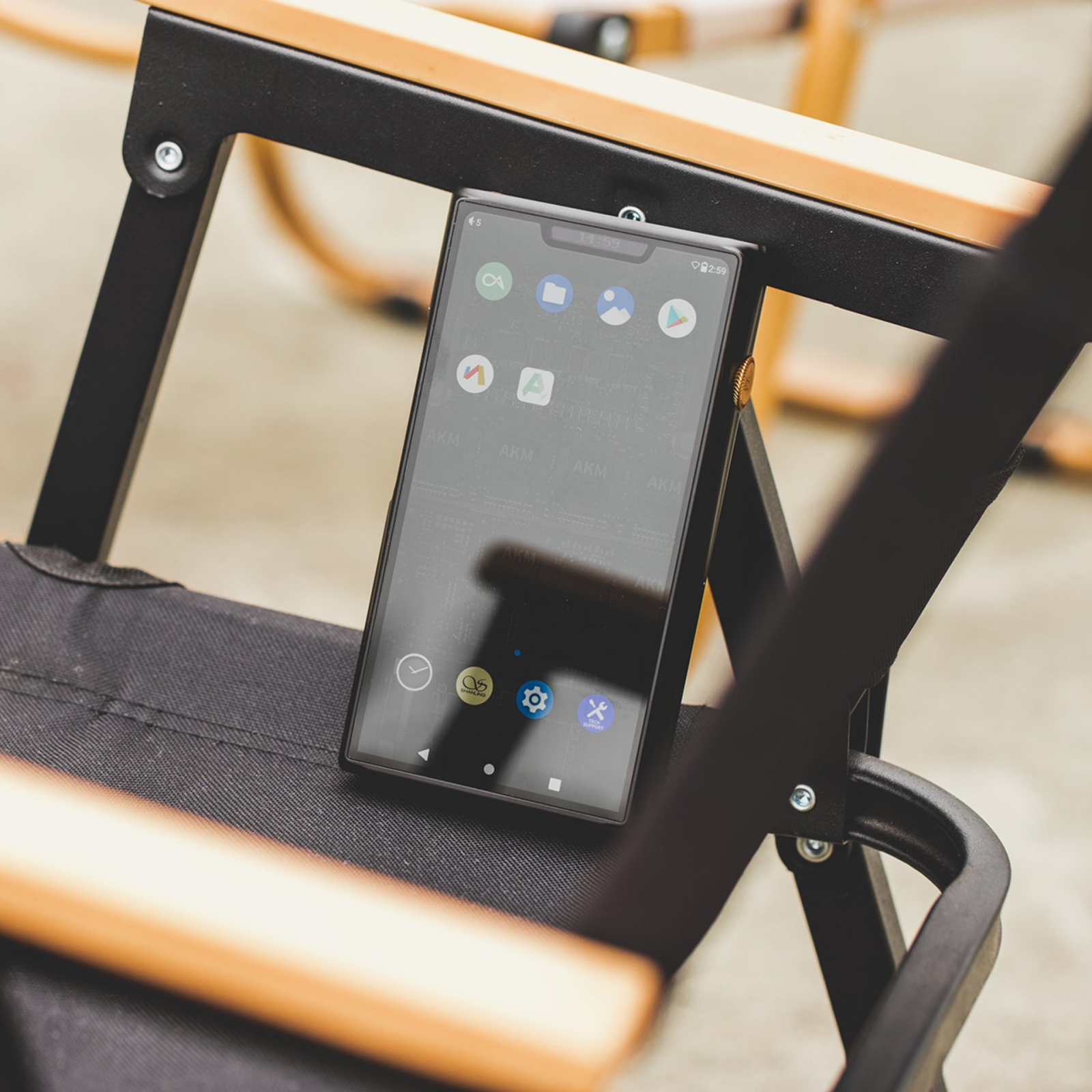

The M9 Plus has a beautiful 6-inch 2K screen, a speedy Snapdragon 665 octa-core CPU running an open Android 10 system, packing 8GB of RAM for smooth multitasking, generous 256GB of internal memory for all your apps, and support for microSD cards up to 2TB. Overall construction follows the standards set by the M9, with an expertly crafted CNC aluminum body, this time shortened by 0.5cm, for a bit more compact dimensions. Audio outputs on M9 Plus were simplified and now offer our standard combination of 3.5mm Single-ended and 4.4mm Balanced outputs.

Long-Lasting Battery and Independent Power Supply for DAC

Shanling Spirit has equipped the M9 Plus with a super high-capacity battery rated at 8350mAh. The M9 Plus has a rated battery life of up to 18 hours on the single-ended output and up to 11 hours through the balanced output. Meanwhile, M9 Plus houses an independent XC9519 power-supply chipset which is specially implemented as a power chip for the DAC section further improving the flagship DAC with a clean uninterrupted power supply.

Shanling’s Extreme Quad DAC Design

Shanling has designed its ultimate flagship M9 Plus audio player with a Quad DAC Chipset. They squeezed FOUR AKM AK4499EX DACs into a portable player, getting access to an 8-channel audio design for the totally independent balanced circuit. Quad DAC design offers an increased current output and overall improved dynamics, better SNR, and lower background noise, with all four DACs being active for the balanced output. And all accompanied by ELNA Silmic II and Panasonic Tantalum capacitors.

Upgraded Amplification Chipset

The M9 Plus adopts Shanling’s trusted in-house developed OP+BUF architecture for the amplification section. To make the sound response smoother and finer sound response with strong output power ratings, it features the MUSES 8920 J-FET and BUF634 combination. The M9 Plus produces up to 1120mW of clean output through the 4.4mm balanced port. It can drive most IEMs, Headphones with ease.

Amazing Performance

M9 Plus houses Qualcomm Snapdragon 665 Octa-core CPU. It is paired with 8GB of RAM to ensure smooth performance with multi-tasking support. The crystal oscillators are upgraded to 90.3168MHz/98.304MHz versions. The in-house developed I/V conversion circuit is now adjusted for the ADA45253 chipset.

Technical Details

Size
147mm x 82mm x 22mm
Weight
379g
Display
6-inch 1080x2160
System
Open Android 10
CPU
Qualcomm Snapdragon 665
Memory
8G RAM & 256G ROM & Micro SD card slot
DAC System
2x AKM AK4191 & 4x AKM AK4499EX
USB Input
XMOS XU316
Bluetooth Version
5.0
Bluetooth Transmitter
LDAC / LHDC 5.0 / aptX HD / aptX / SBC
Bluetooth Receiver
LDAC / SBC
WiFi
2.4G/5G, SyncLink / DLNA / AirPlay / OTA upgrade
Battery Life
18h SE /11h BAL
Battery Capacity
8350mAh, supports QC 3.0 fast charging
Output Power
Single-ended: 4.08V @ 32Ω (520mW)
Balanced: 6.0V @ 32Ω (1125mW)
Frequency Response
Single-ended: 20Hz - 40kHz (0.2dB)
Balanced: 20Hz - 40kHz (-0.2dB)
THD+N
Single-ended: 0.0008%
Balanced: 0.0007%
Separation
Single-ended: 75dB@32Ω
Balanced: 115dB@32Ω
Dynamic Range
Single-ended: 123dB
Balanced: 126dB
Signal-to-noise Ratio
Single-ended: 123dB
Balanced: 126dB
Noise Floor
Single-ended: >115dB (<1.7uV) (low gain)
Balanced: >113dB(<2.3uV) (low gain)
Output impedance
less than 1Ω
Inside the Box
  • 1 x Shanling M9 Plus
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The Shanling M9 Plus Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 10-20 working days. No cancellation of orders once ordered.
