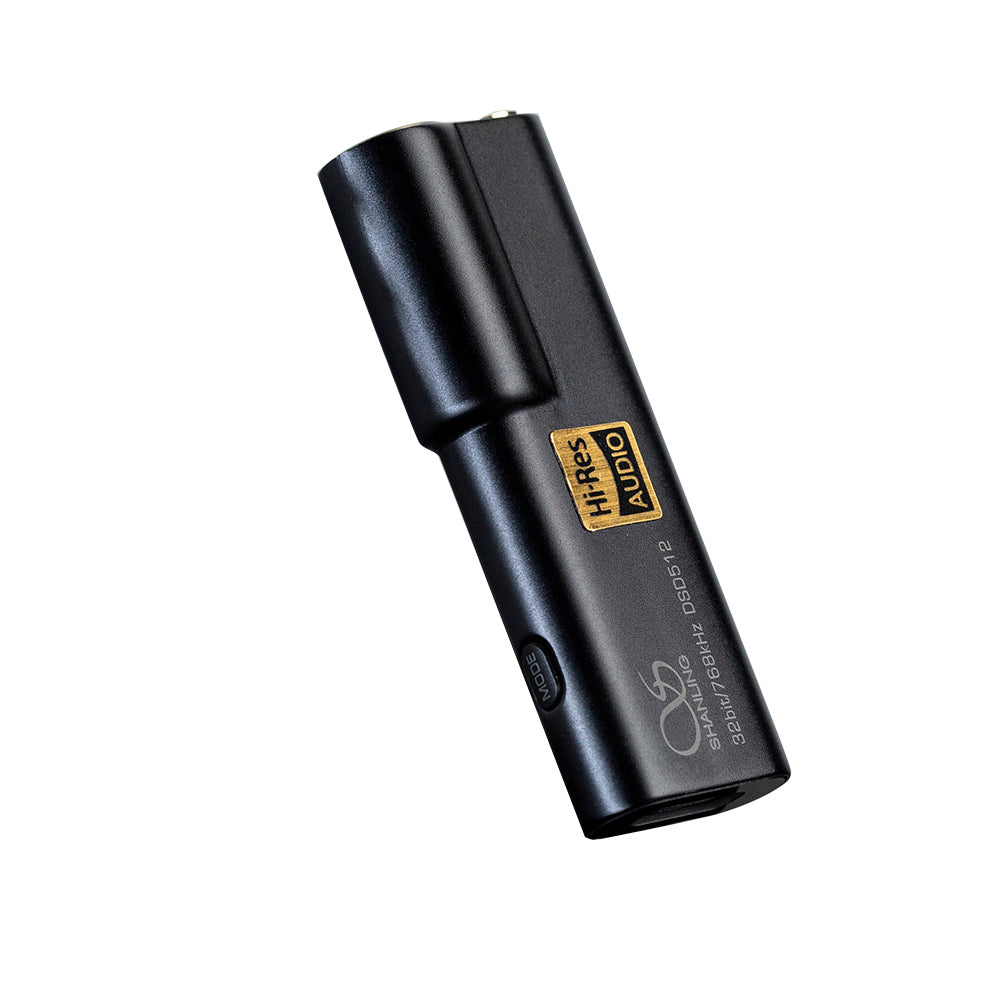

Shanling UA2 Plus

Portable Balanced Low Noise USB-C DAC Amp Dongle

    High Fidelity Audio Circuit & ESS ES9038Q2M Chip
    High Resolution DAC Amp Dongle
    Extra Low Noise
    High Purity Shielded Cable
Black
Silver
Regular price $89.00 USD
Sale price $89.00 USD Regular price

High Fidelity Audio Circuit & ESS ES9038Q2M Chip

Although very compact, the Shanling UA2 Plus features a supercharged circuit built around an ESS ES9038Q2M chip, a reference component for high fidelity applications integrating both digital to analog conversion capabilities.

High Resolution DAC

On the DAC side, the UA2 Plus is capable of playing high resolution audio files up to 32bit 768kHz and even DSD files up to DSD512 with native support.

Extra Low Noise

The output stage is articulated around an RT6838 chip capable of developing a power up to 125mW under 32 Ohm with a minimal noise level, which represents an incomparable gain in comparison with the traditional audio outputs of mobile & consumer multimedia devices.

High Purity Shielded Cable

The integrated cable has high purity copper conductors & high section ensuring excellent conductivity for your audio streams. It is solidly protected by a robust sheath and has a cotton/silver insulation specially designed to limit the capture of high frequency waves, such as those specifically present near a smartphone.

Inside the Box

  • 1 x Shanling UA2 Plus
  • User Manual

1 Year Warranty

The Shanling UA2 Plus Comes with a 1 year warranty on the DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Product type
Portable DAC
Inputs
1x USB-C
Outputs
1x Single-ended stereo Jack 3.5mm
1x Balanced stereo Jack 4.4mm
Output power
Balanced : 195mW @ 32Ω
Single-ended : 125mW @ 32Ω
Frequency response
20Hz - 50kHz (-0.5dB)
THD+N
0.0008% @32Ω (A)
Dynamic range
Balanced : 120 dB @32Ω (A)
Single-ended : 122 dB @32Ω (A)
SNR
Balanced : 116dB @32Ω (A)
Single-ended : 121dB @32Ω (A)
Crosstalk
Balanced : 109dB @32Ω
Single-ended : 76dB @32Ω
Output impedance
Balanced : 1.6 Ohm
Single-ended : 0.8 Ohm

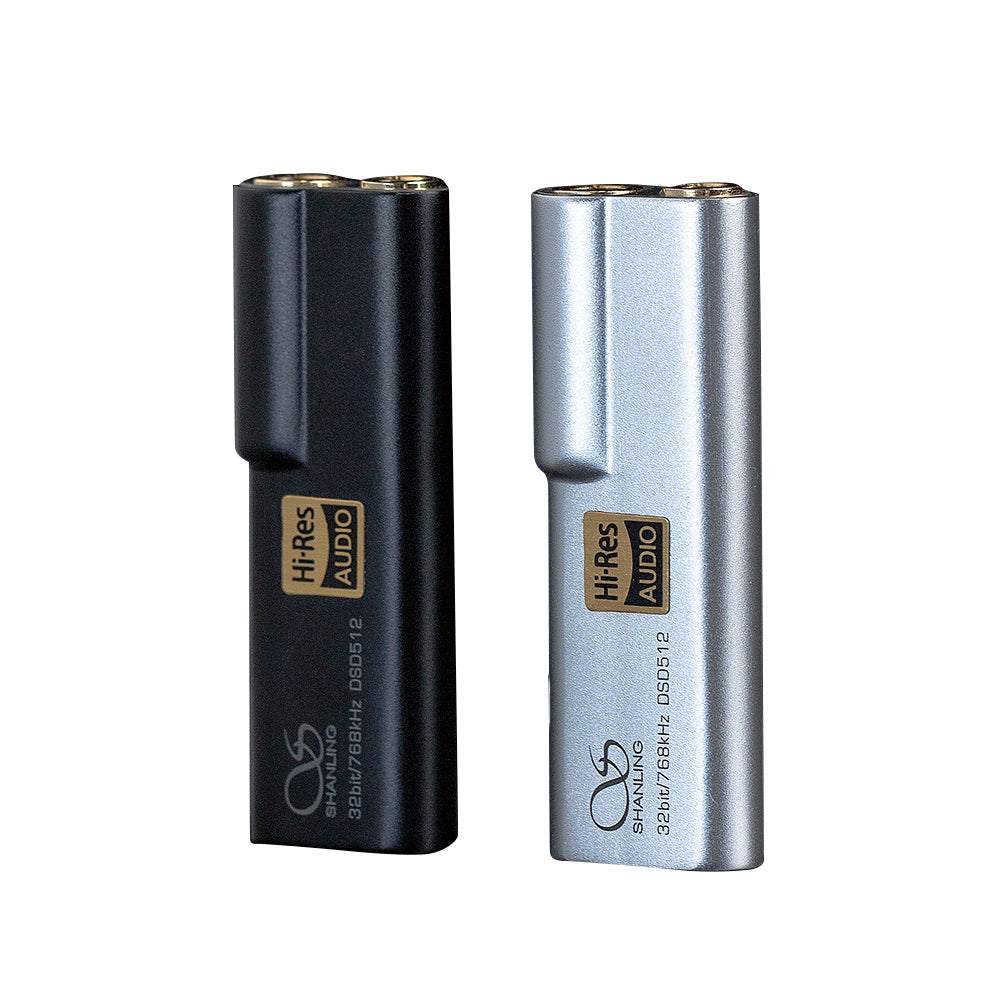

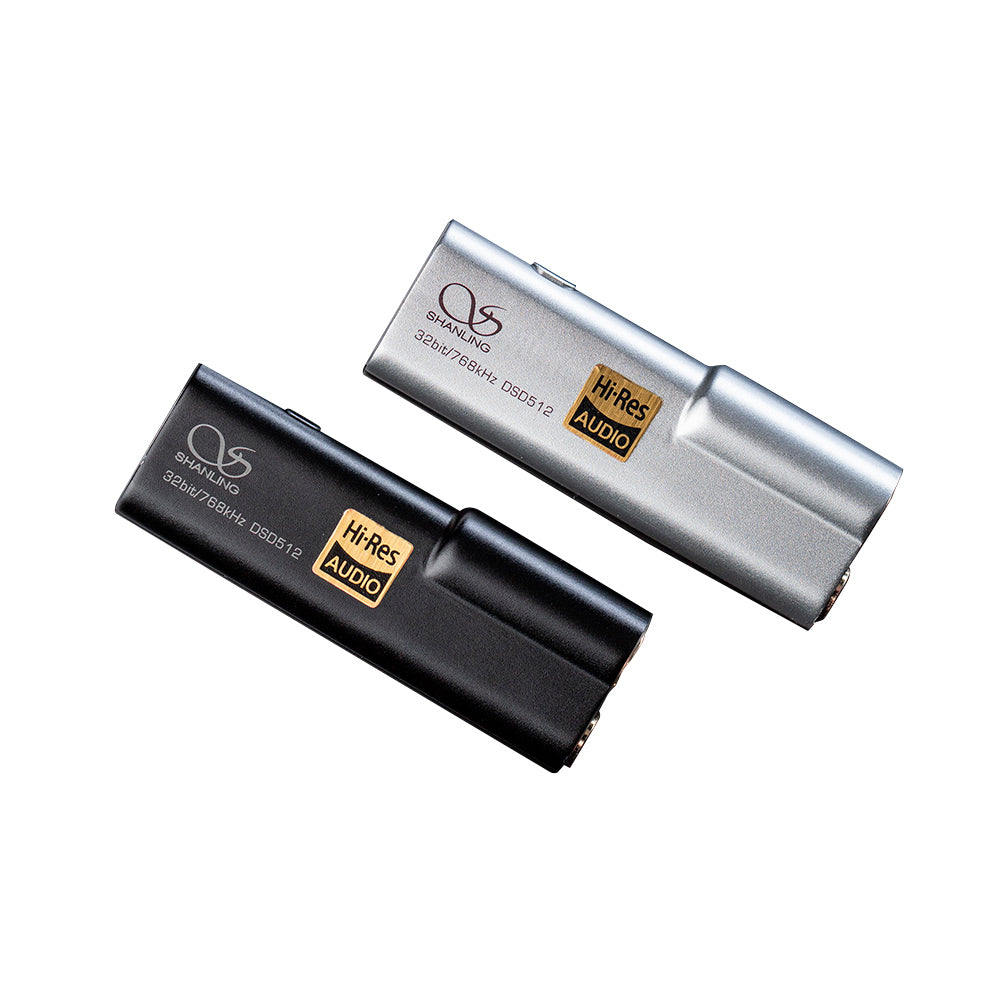

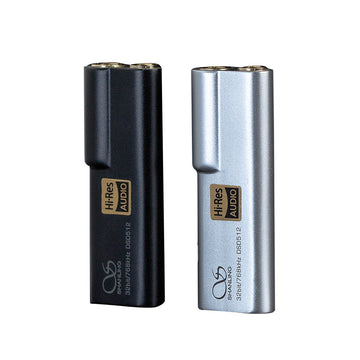

Color
Silver
Black
