Plug And Play

Introducing the Singxer UIP-1 PRO, an advanced USB Isolator designed to improve the performance and stability of USB audio devices. This product boasts full compliance with USB2.0 standards and supports hot-plug, USB1.0, and USB1.1. It is also plug-and-play, requiring no drivers to operate.

Widely Compatibility

The Singxer UIP-1 PRO provides a wide range of compatibility, including all operating systems, embedded systems, and equipment. It features an advanced ESD protection system for the USB input port, capable of withstanding up to 15,000 volts of IEC air-gap discharge. The USB input includes a USB B socket and a 5V power supply, making it versatile for use with a variety of devices.

USB 2.0 High-Speed Isolator

The isolator also supports USB 2.0 high speed with a maximum support rate of up to 480Mbps and an isolation voltage of up to 2kv RMS. This ensures that the device is capable of handling high-speed data transfer without sacrificing quality or stability.

Effective Isolation

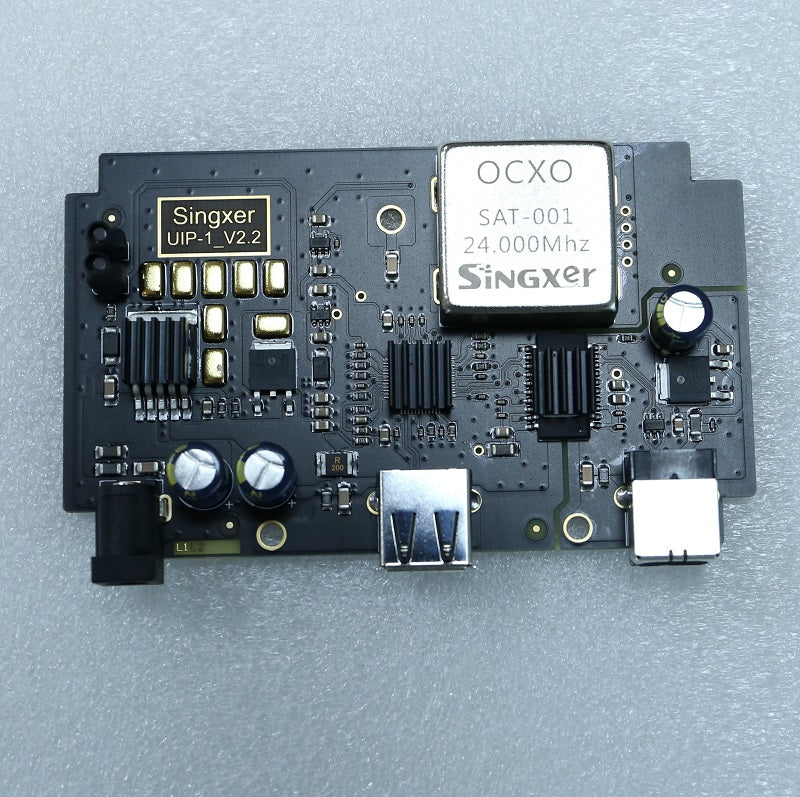

The Singxer UIP-1 PRO provides complete isolation of USB power and ground circuits, effectively removing any front-end complex noise and electromagnetic interference. By isolating the USB signal after reforming it into the USB controller chip, the device eliminates a great deal of jitter, and the use of a local quality clock output further ensures stable performance.

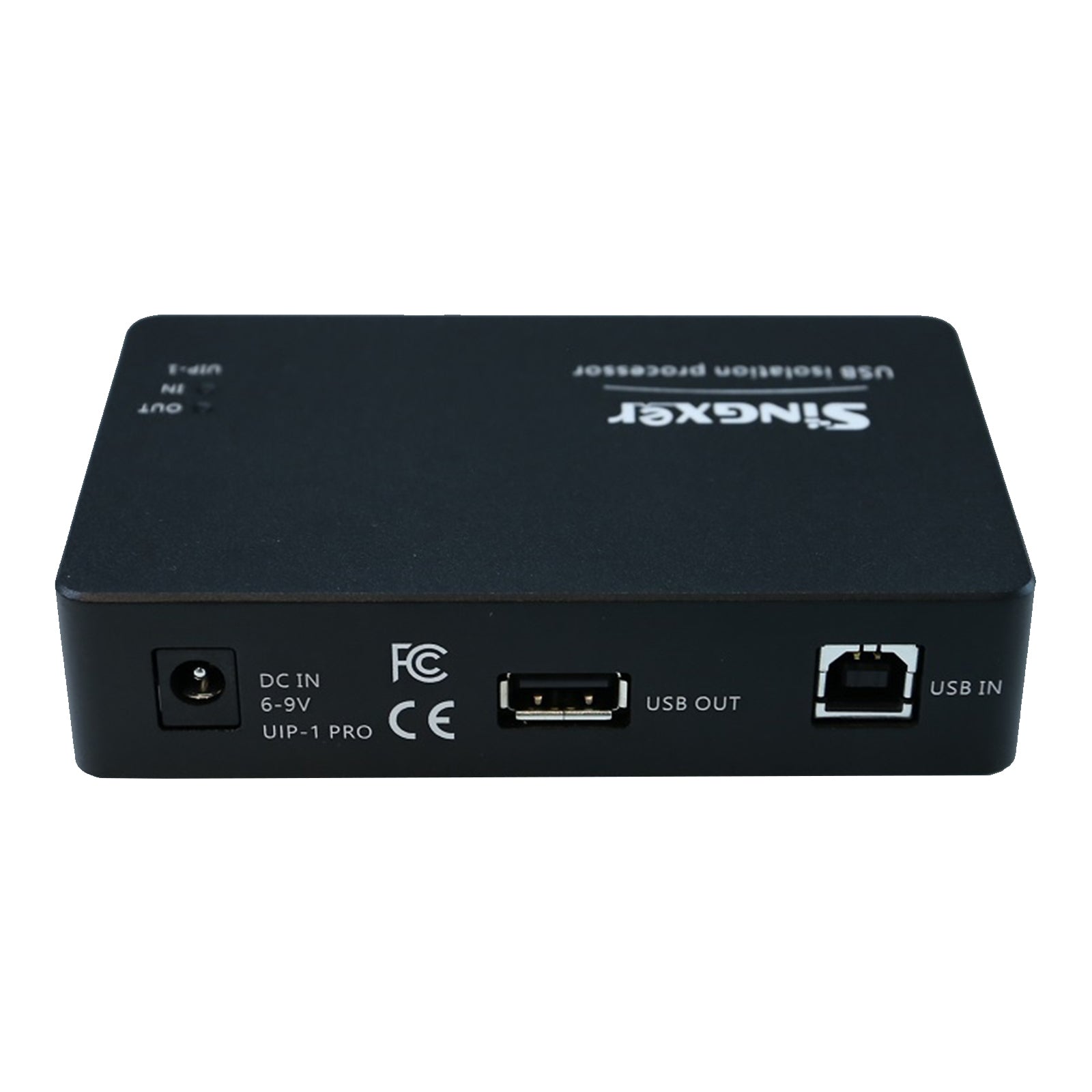

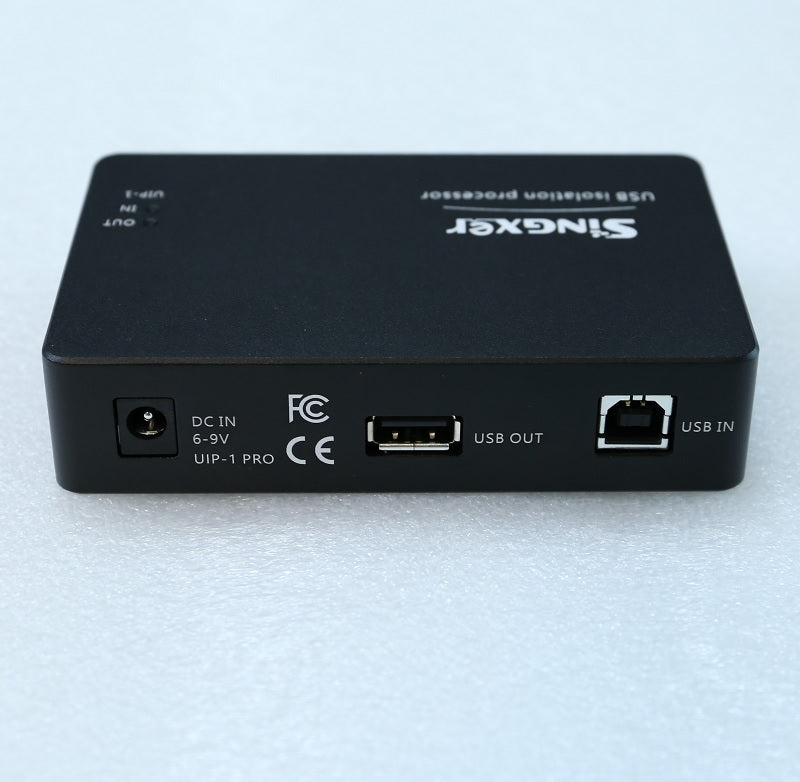

Simple USB-A Output

Upon output, the USB signal is transformed into a USB Type-A female USB output. This output is powered by a DC input with an internal low-noise voltage regulator that produces ultra-clean power with a maximum output current of up to 1A. The DC interface is a 5.5MM/2.1MM connector, with negative support for 6-9V DC input. The ideal voltage for this device is 7.5V.
When using a 5V input, the internal voltage regulator will no longer operate, but the device can still output 5V with an input voltage of more than 9V. Note that the calorific value of the device will increase under these circumstances.

Technical Details

Product Size
112mm * 72mm * 26mm
Product Weight
0.2KG
Package Size
200mm * 140mm * 60mm
Package Size
200mm * 140mm * 60mm
Package weight
0.45kg
Default Accessories
AC-DC Power adapter * 1, USB Print Cables * 1
Inside the Box
  • 1 x Singxer UIP-1 PRO
  • User Manual
