TouchFlow Control · Sonic Precision

Don’t let its size fool you — the SMSL D1 delivers true high-fidelity sound in a sleek, compact form. Designed for music, gaming, and cinema setups, it offers rich, dynamic preamp output, crystal-clear tri-band balance, and ultra-low distortion, all from a palm-sized powerhouse.

Powered by the New BD34352EKV DAC Chip

At the heart of the D1 is the next-gen BD34352EKV DAC chip, offering an exceptional 126dB SNR for studio-grade clarity. It's a breakthrough in entry-level audio—built for audiophiles, creators, and everyday listeners seeking premium digital performance.

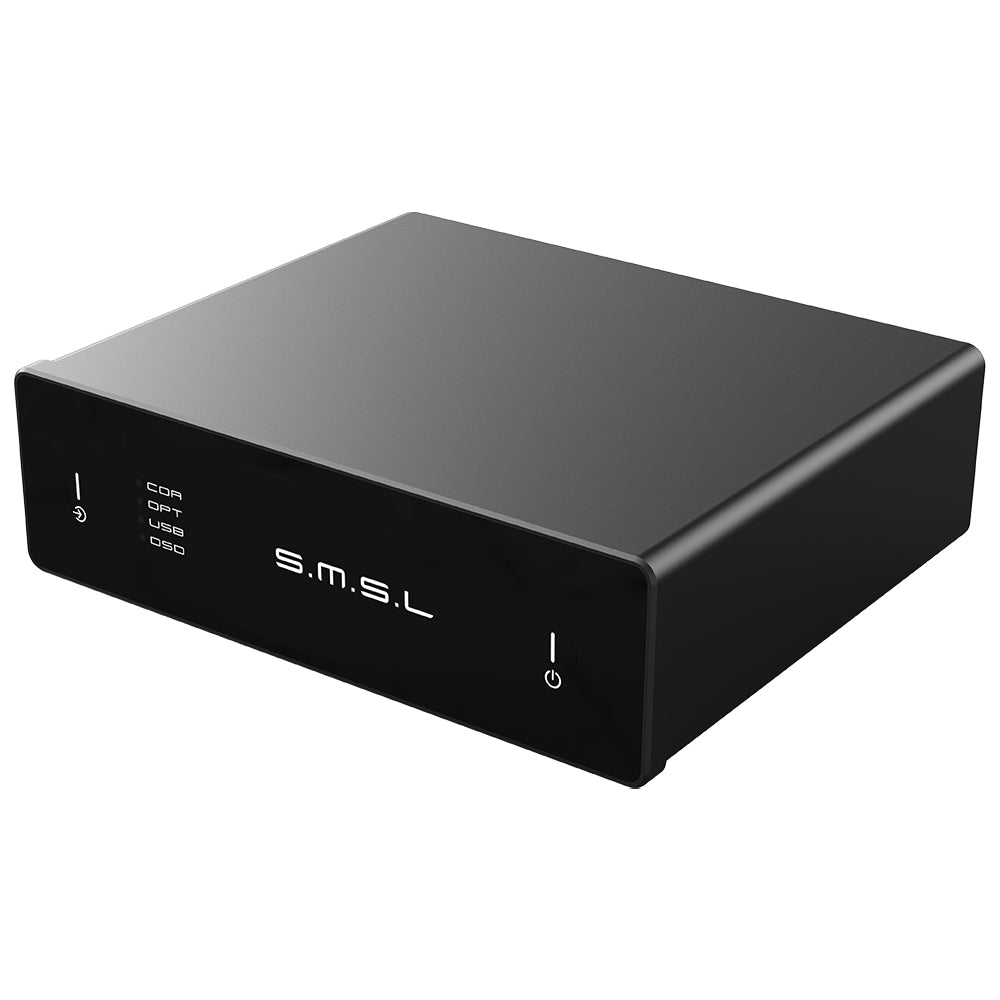

Sleek & Modern Aesthetics

Crafted from aerospace-grade aluminum alloy with a minimalist form and ultra-thin glass panel, the D1 exudes premium style. Its compact 101 × 33 × 90.1mm frame fits seamlessly into any setup, combining modern acoustics with refined industrial design.

Plug-and-Play USB Simplicity

Equipped with a USB-A to USB-C cable, the D1 connects easily to your computer or streaming device. It supports driver-free playback, and with the official driver installed, it unlocks up to 768kHz/32bit PCM and DSD512 audio for audiophile-grade listening.

Engineered for Sonic Purity

With a precision-engineered PCB, dedicated clock circuitry, and ultra-low temperature coefficient resistors, the D1 achieves an incredible 0.00038% THD. Every component is aged and tested for longevity, ensuring decades of flawless performance.

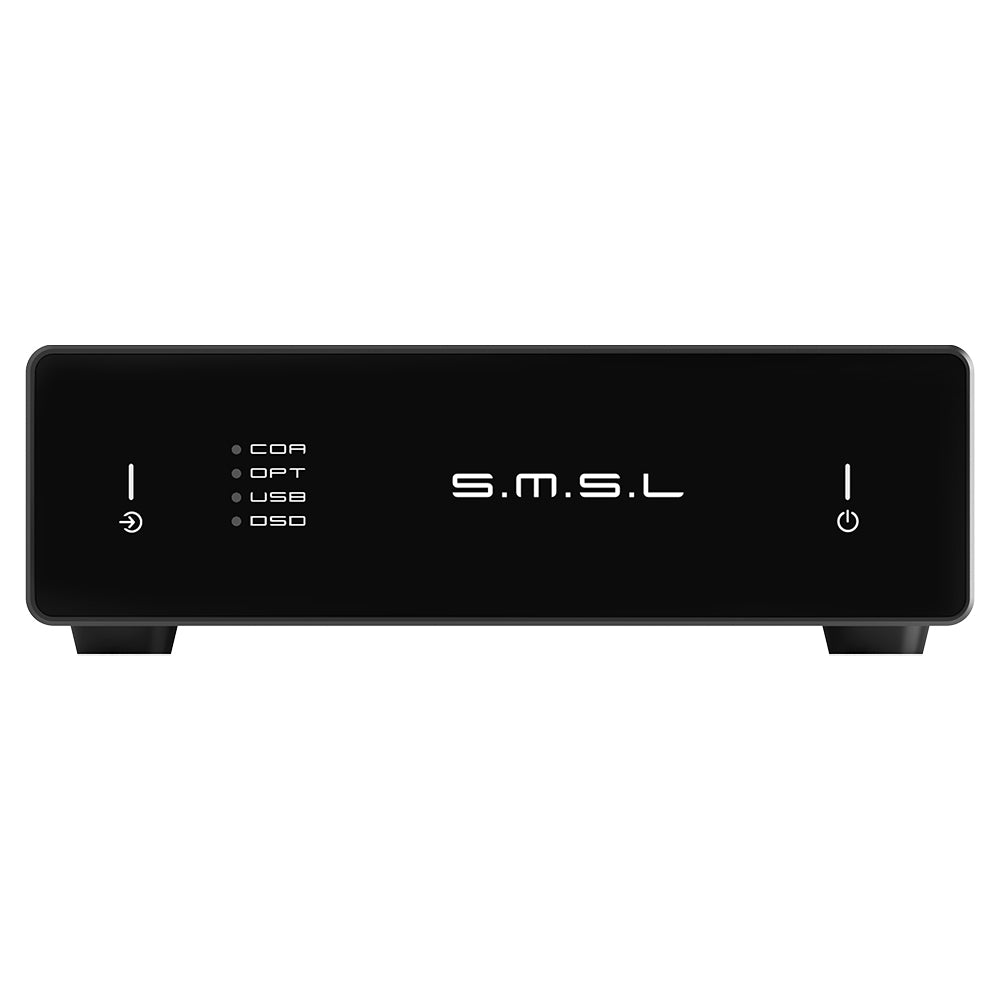

Mystic Aurora Design

Finished in midnight black with a subtle frosted glow, the SMSL D1 looks as elegant as it sounds. Beneath its acrylic front panel, ambient lighting softly pulses — a visual expression of the pure sound within.

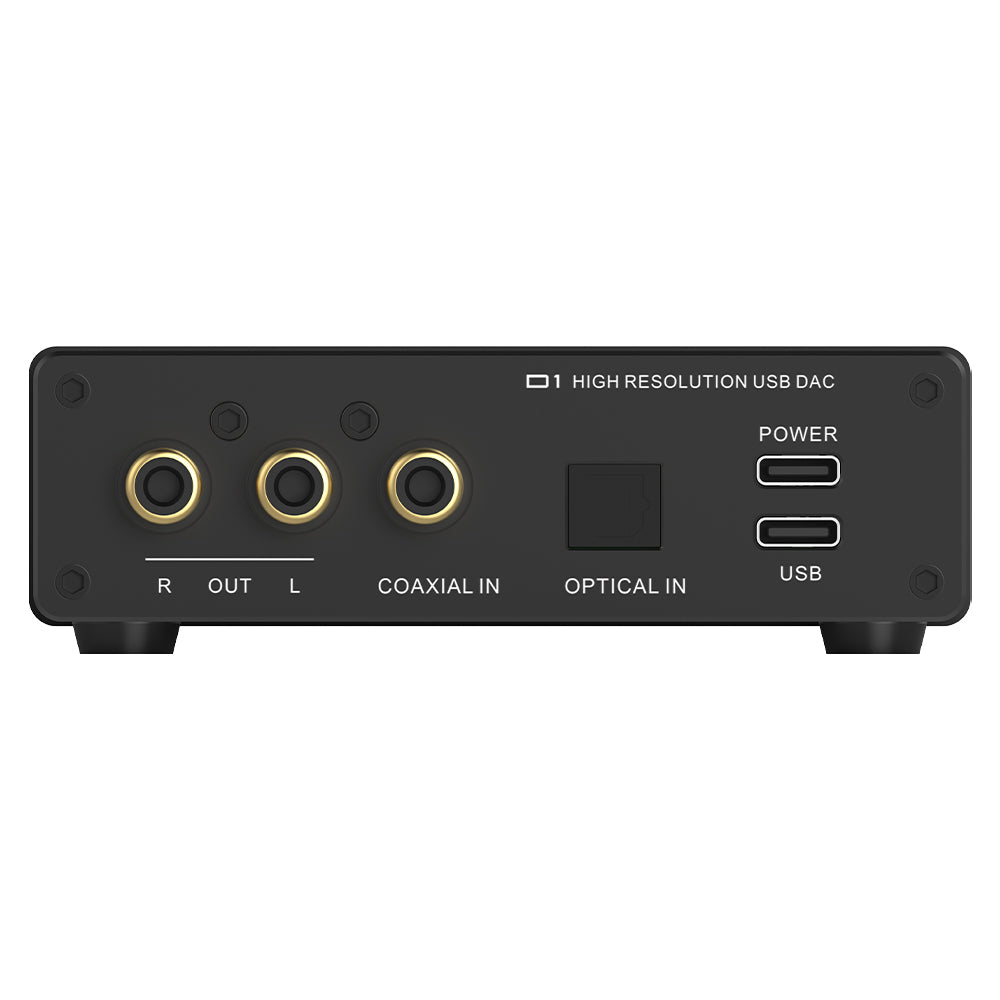

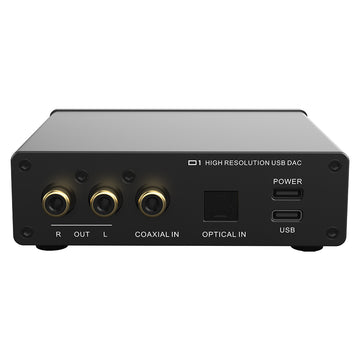

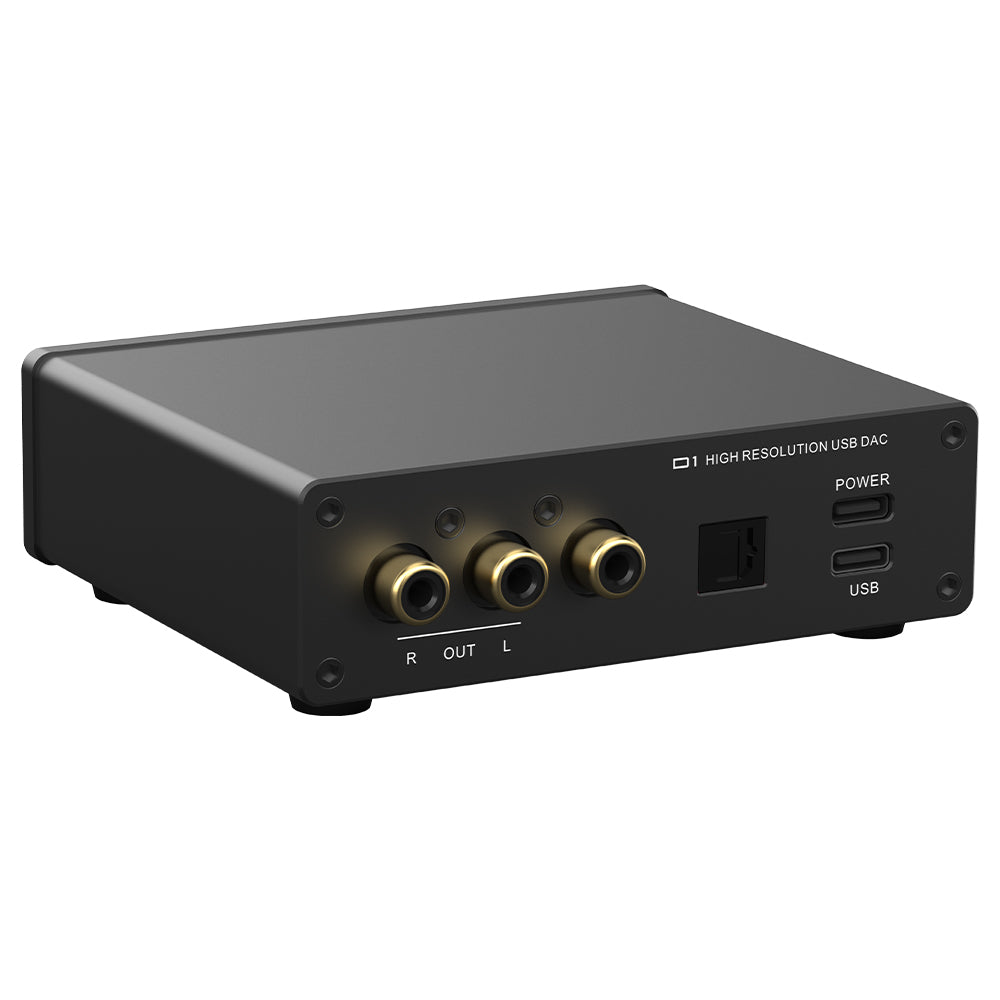

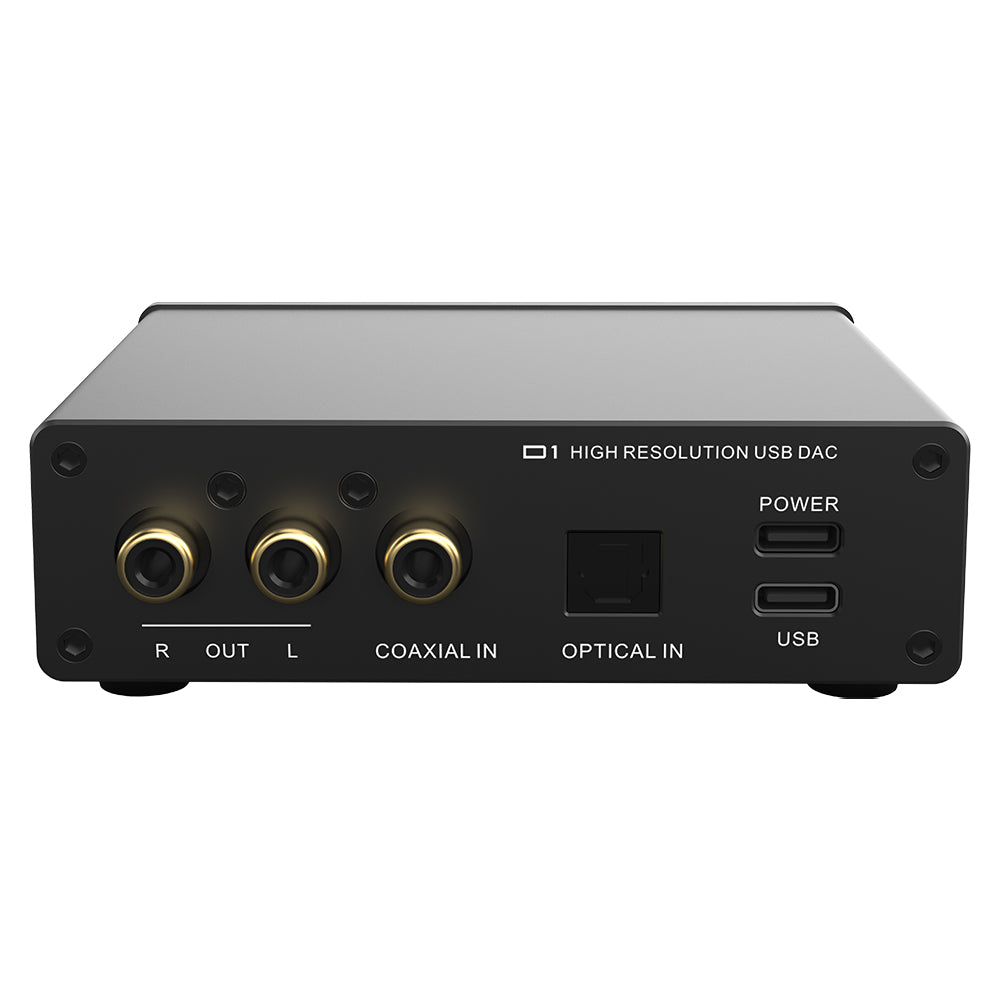

Technical Details

Inputs
USB / Optical / Coaxial
Output Level
2.0Vrms
THD+N
0.00038%
Dynamic Range
119dB
SNR
119dB
USB Transmission
Asynchronous
USB
PCM 44.1kHz–768kHz, DSD up to DSD512
Optical/Coaxial
PCM 44.1kHz–192kHz
Bit Depth
USB 1–32bit / Optical-Coaxial 16–24bit
Compatibility
Windows 7/8/10/11, macOS, Linux
Power
5V DC, <5W active / <0.1W standby
Dimensions
101 × 33 × 90.1 mm
Weight
201.1g
Inside the Box
  • 1 x SMSL D1
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The SMSL D1 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.
