Dual Cirrus Logic CS43131 DAC Chips

The SMSL D10 utilizes two Cirrus Logic CS43131 DAC chips, combined with a meticulously designed circuit, to deliver exceptional performance and purer sound quality.

Support for High-Resolution Audio

Experience high-resolution audio with support for DSD256 hard decoding and PCM 32bit/384kHz. The D10’s data status indicator lights up when playing music, ensuring highly accurate sound reproduction.

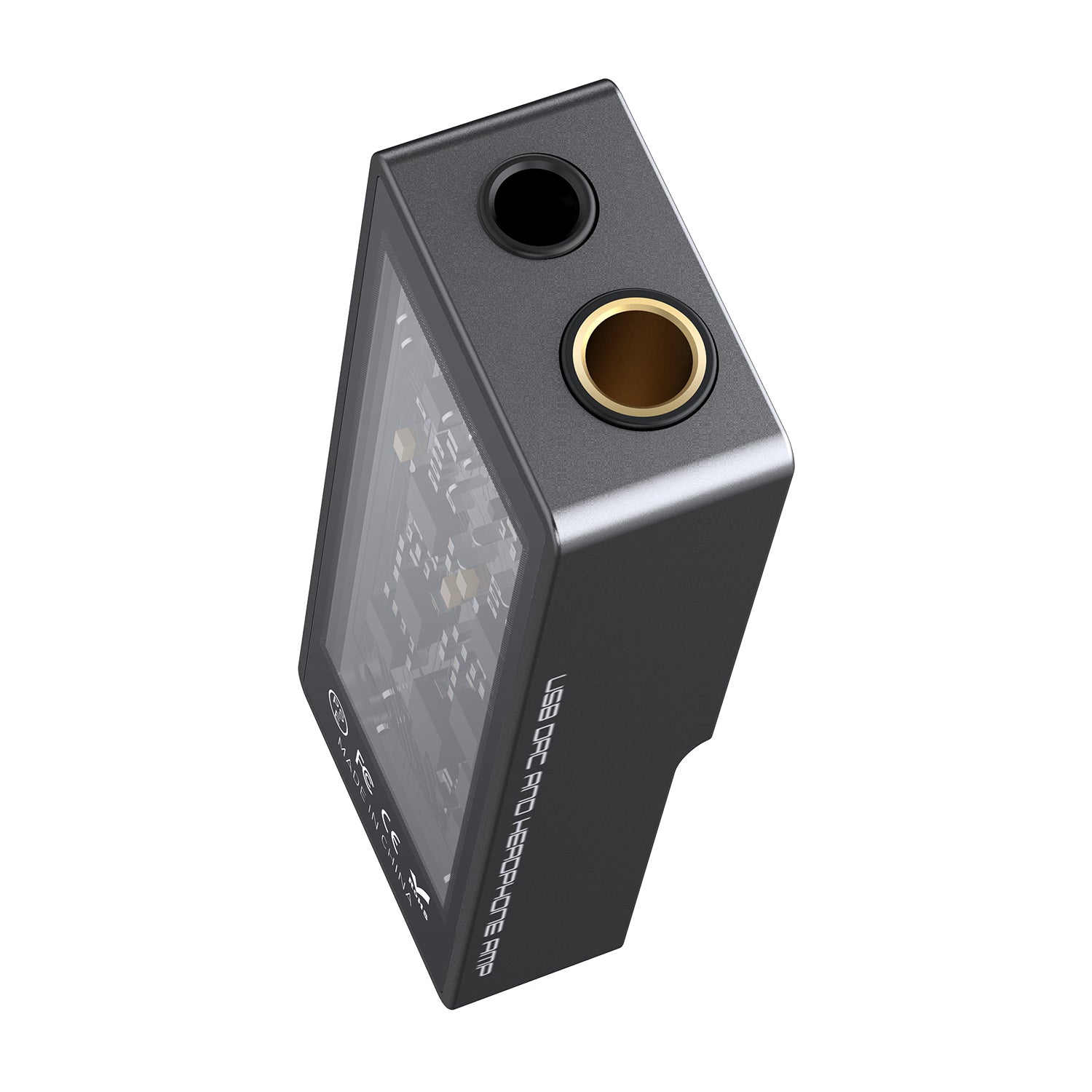

Dual Headphone Jacks: 3.5mm & 4.4mm Balanced

With output power up to 500mW @ 16Ω, the D10's headphone amplifier is suitable for most headphones, providing flexibility and superior audio quality.

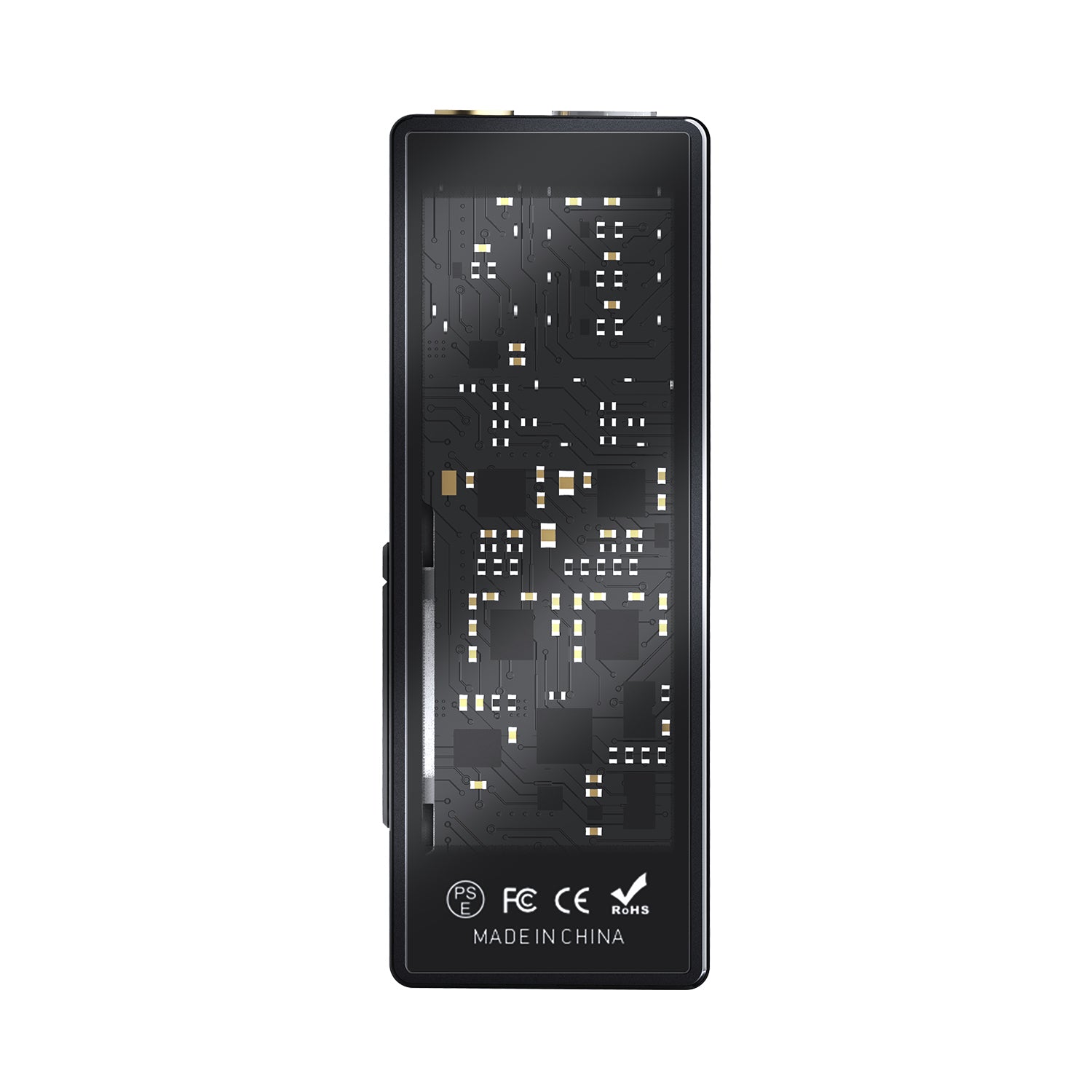

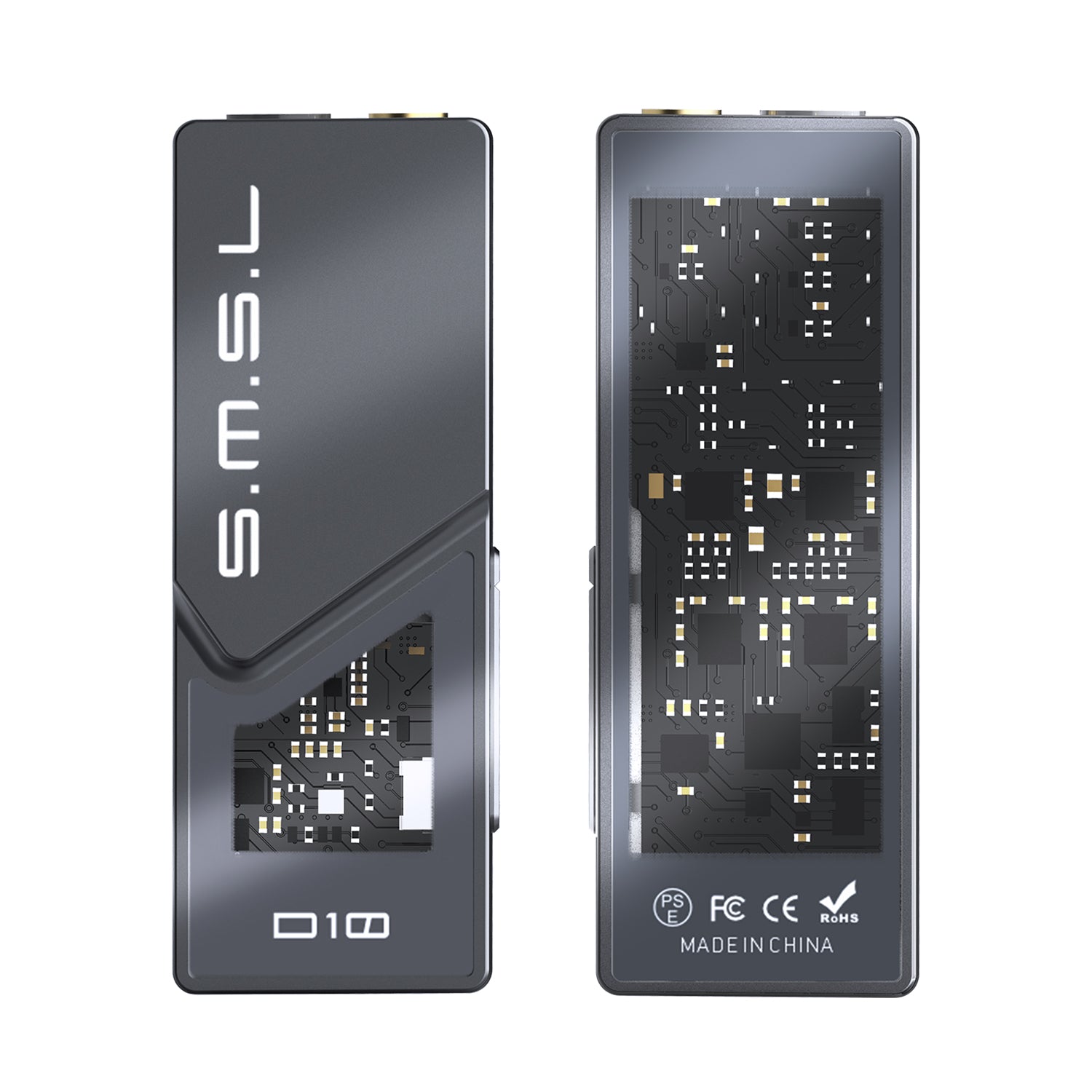

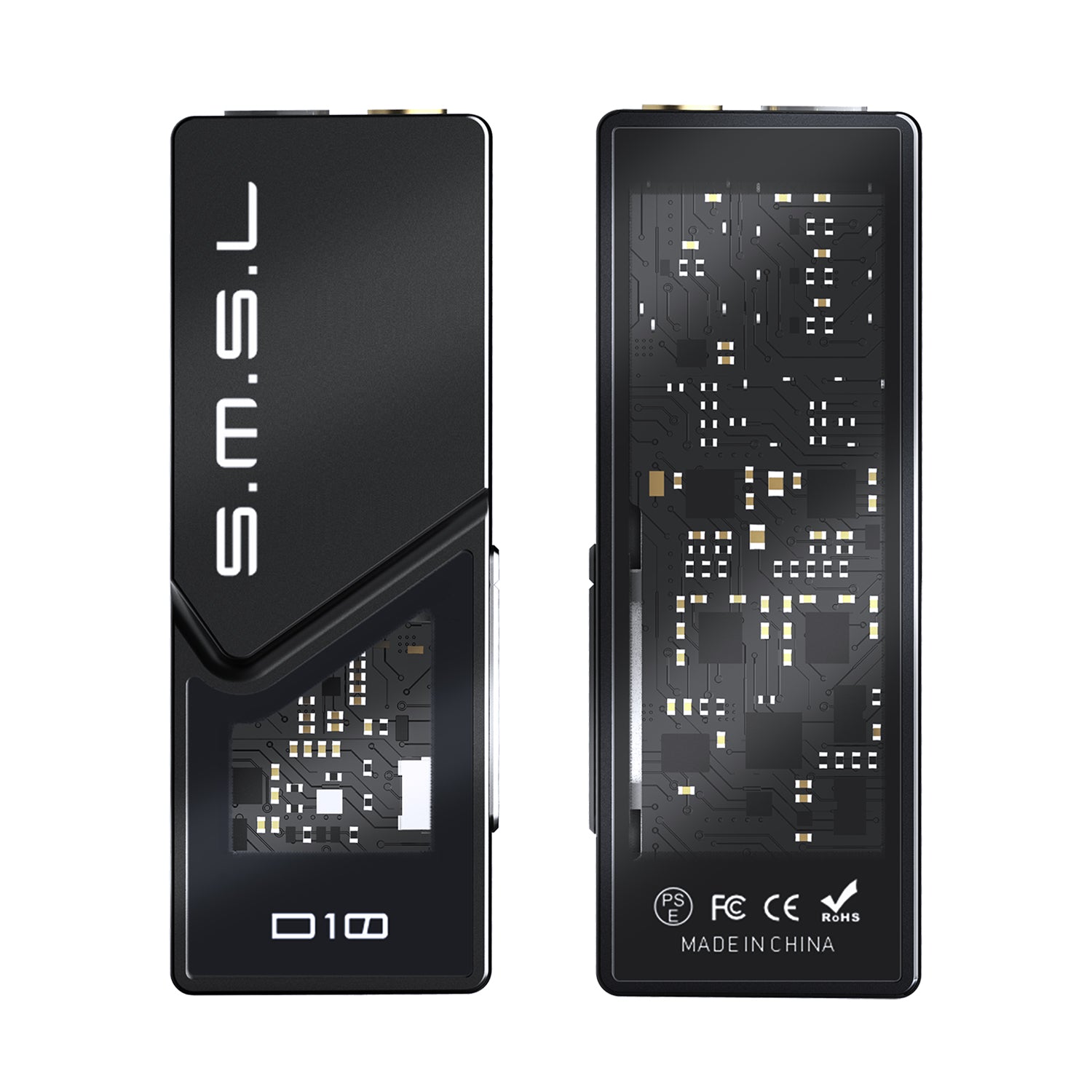

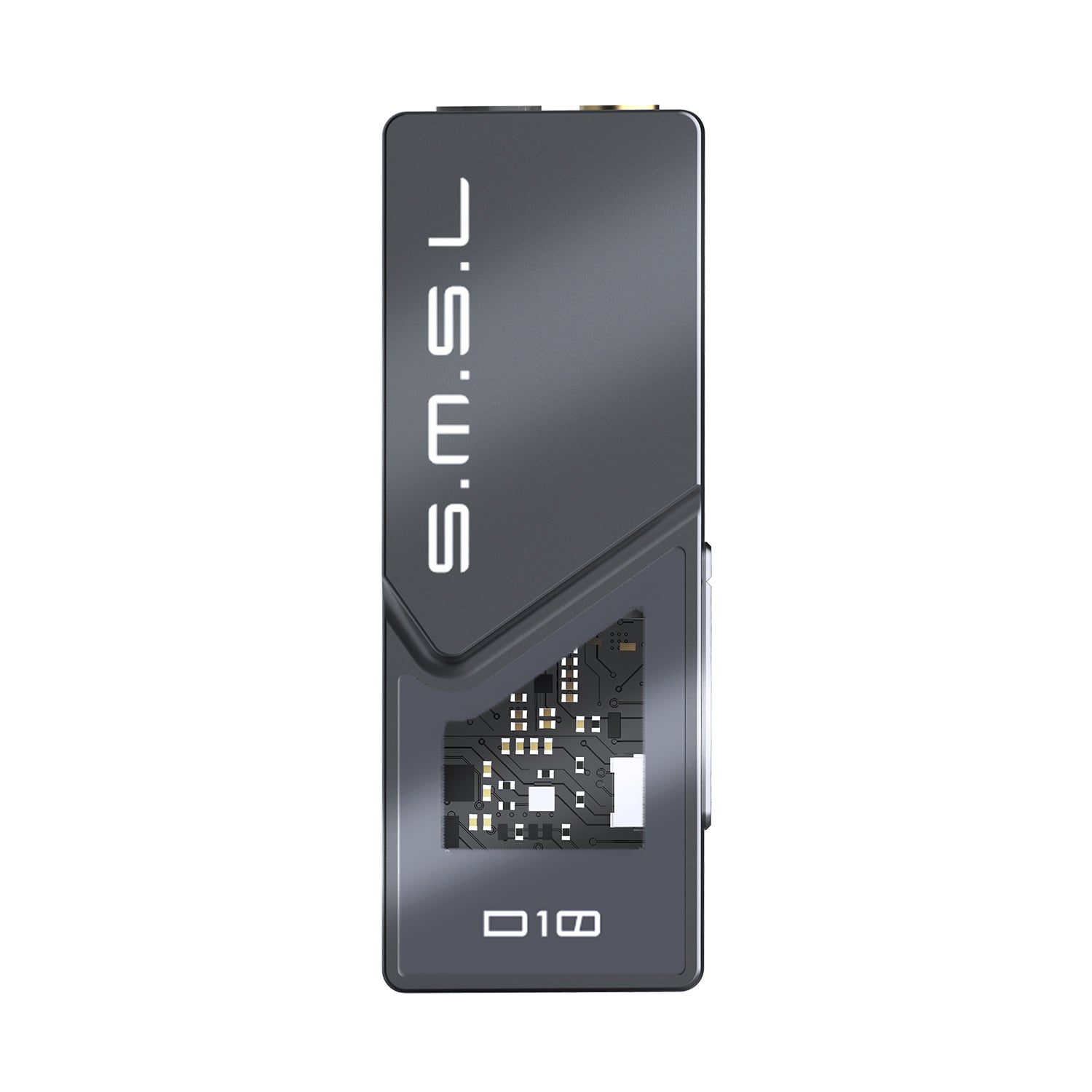

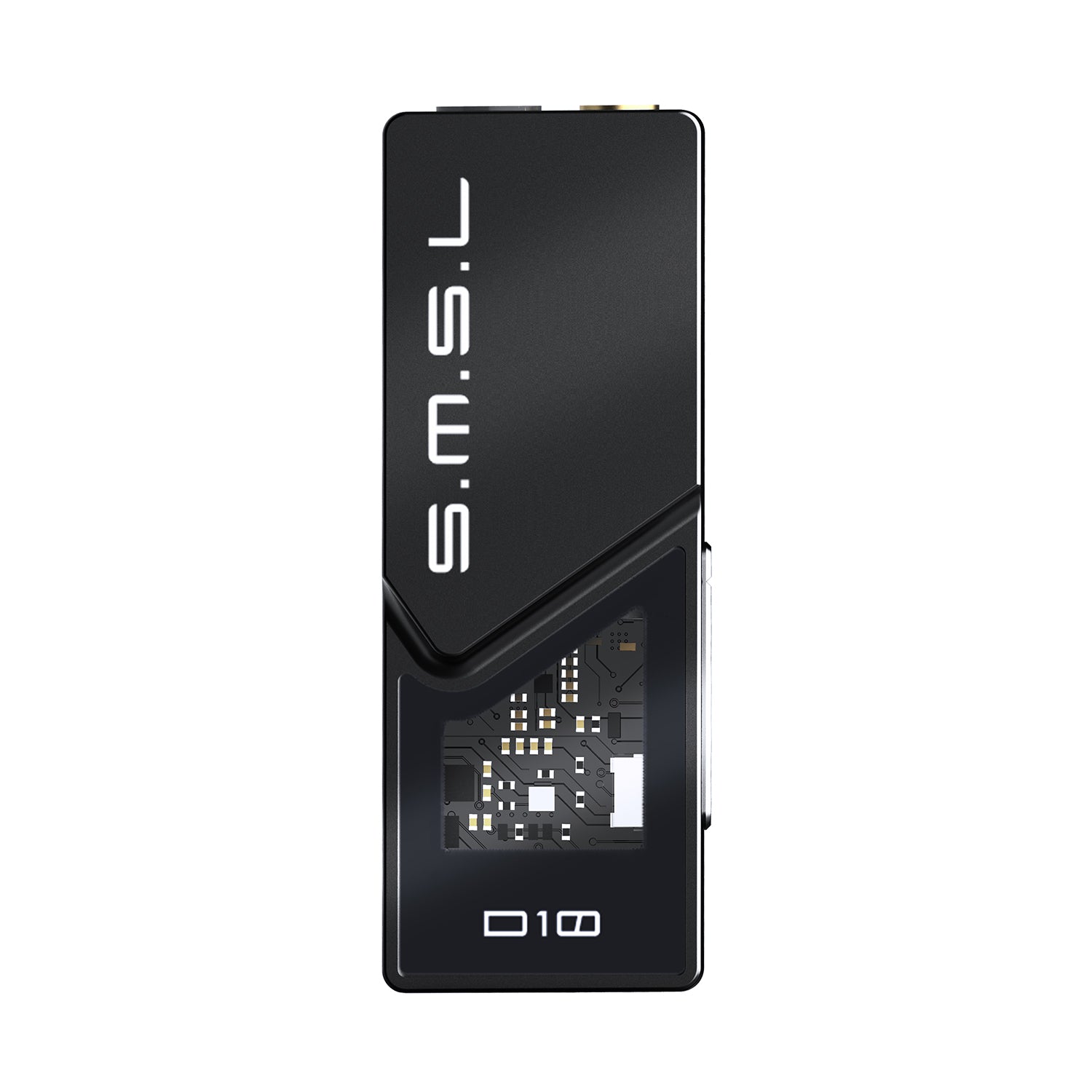

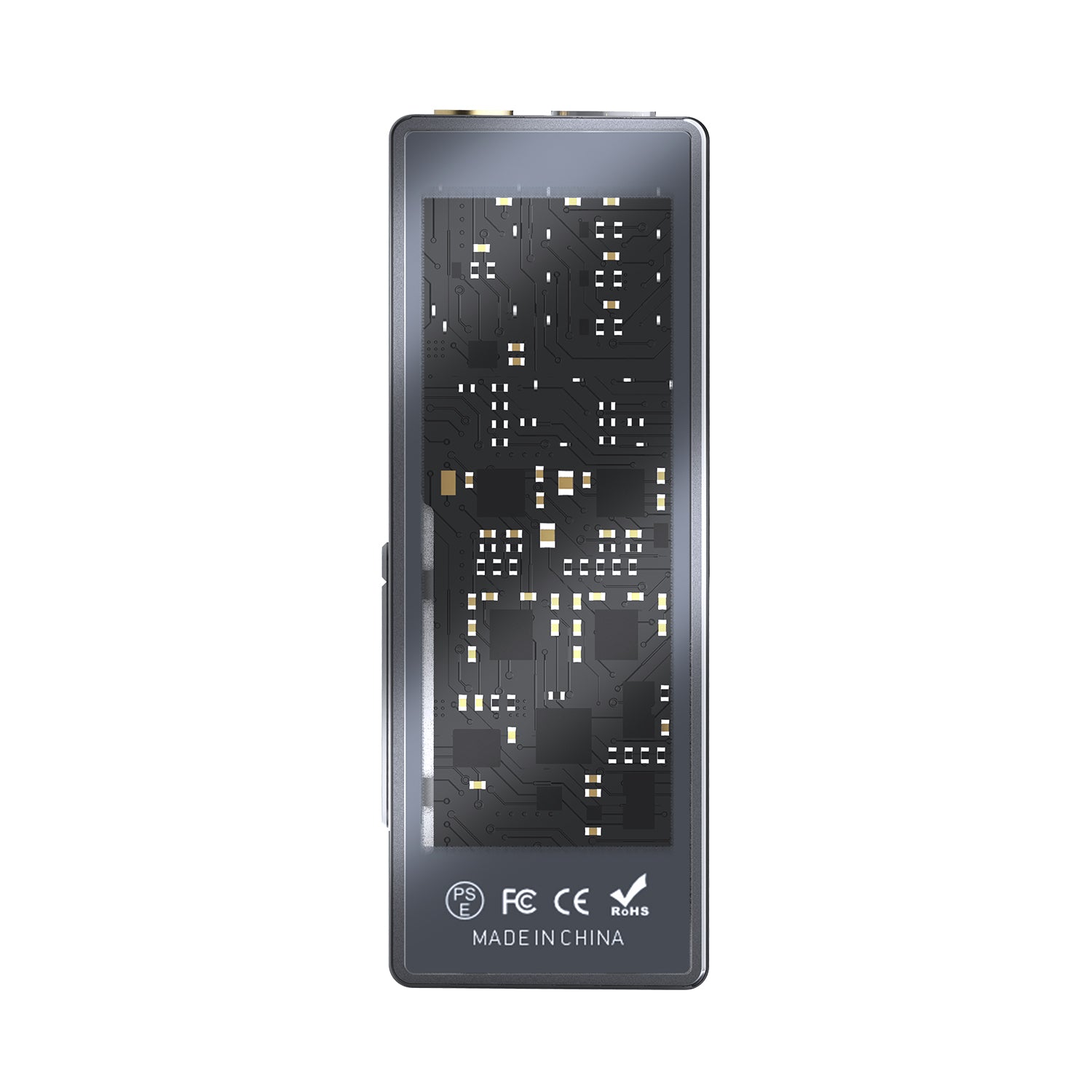

Minimalistic Design with Transparency

The SMSL D10 features a sleek, minimalistic design with a transparent window and textured aluminum housing, allowing you to see the internal chip. The side volume button offers convenient operation and control.

Versatile Usage Scenarios

The D10’s compact size and robust features make it suitable for various usage scenarios, from desktop setups to portable audio solutions.

Technical Details

Input
USB (Asynchronization)
Output
3.5mm headphone jack
4.4mm balanced headphone jack
USB Compatibility
Windows 7 / 8 / 8.1 / 10 / 11 (Needs Driver)
Mac OSX 10.6+, Linux, Android, iOS
Maximum Output Level
2 Vrms
Headphone Output Power
16Ω: 500mW
32Ω: 500mW
150Ω: 160mW
300Ω: 80mW
600Ω: 40mW
THD+N (Non-Weighting)
0.00015% (116dB)
Dynamic Range
121dB
SNR
121dB
Sampling Rate (USB)
PCM: 44.1 ~ 384kHz
DSD: 2.8224 ~ 11.2896MHz
Bit Depth (USB)
1bit, 24 ~ 32bit
Power
5V / 200mA
Size
55 x 11 x 20 mm
Weight
17.5g
Inside the Box
  • 1 x SMSL D10
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The SMSL D10 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Processing Time

This product is in Pre-order period. Pre-orders are provided for items that have not reached us and will take some time to be shipped out.

Pre-order Period: 7-10 working days. Subjected to manufacturer's updates

Note:

  • No cancellation of orders once ordered.
  • All orders to be shipped out sequentially.
