ES9039MSPRO DAC Chip & 3rd-Gen XMOS XU-316 USB Solution

Equipped with a completely new-generation DAC chip ES9039MSPRO from ESS company in the US, SMSL D400ES features the capacity of MQA hard decoding. Besides, the D400ES utilizes a brand-New 3rd Generation USB Solution, XMOS XU-316, supporting DSD512 and PCM up to 32bit/768kHz.

Eight-Channel Parallel Circuit Design & CK-03 Clock Processing Circuit

Adopting eight-channel parallel circuit design with 11 pieces of high-end dual op-amps and a large number of audiophile components, the SMSL D400ES characterizes the new self-developed CK-03 clock processing circuit, reducing clock jitter greatly.

Qualcomm Bluetooth Chip & Built-in Low-Noise Power Supply

Featuring seven digital filter modes for PCM signals, the D400ES employs high-end Bluetooth chip from Qualcomm, supporting LDAC (24bit/96kHz), APTX/HD, SBC, and AAC. With multiple low-noise regulated power supplies, the SMSL can provide a stable, reliable and funny low-noise power supply system.

High-Tech All-Aluminum Alloy Housing

The D400ES features a high-grade appearance with an integrally formed aluminum alloy shell, which effectively prevents oxidation. The use of non-magnetic raw materials can not only shield the interference of external magnetic fields but also have no magnetic fields. It is also worth mentioning that the D400ES features exquisite workmanship and delicate touch.

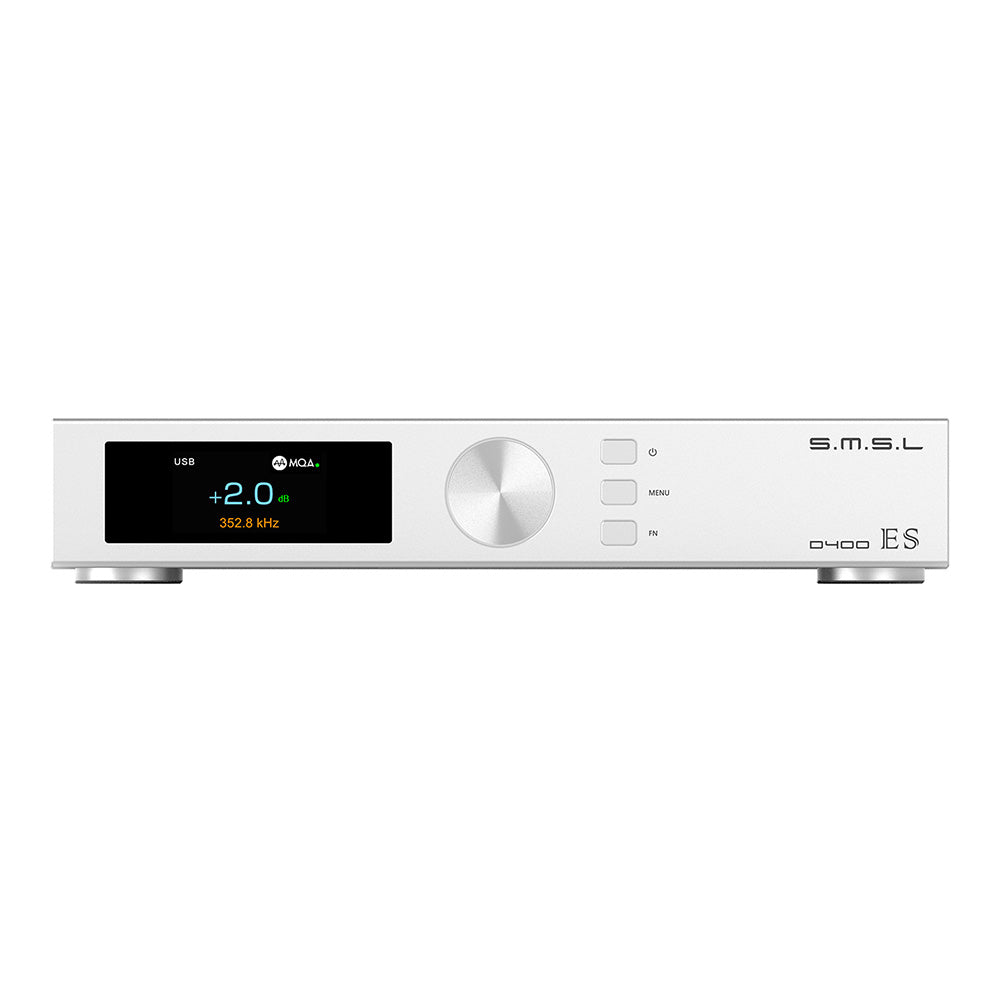

Full Lamination Display & Full-Featured Remote Control

Combined with fully laminated tempered glass display panel, the SMSL D400ES characterizes a higher light transmittance to highlight the simplicity and beauty. Standard with a compact and durable remote control, it can help manipulate this device fast and convenient.

Technical Details

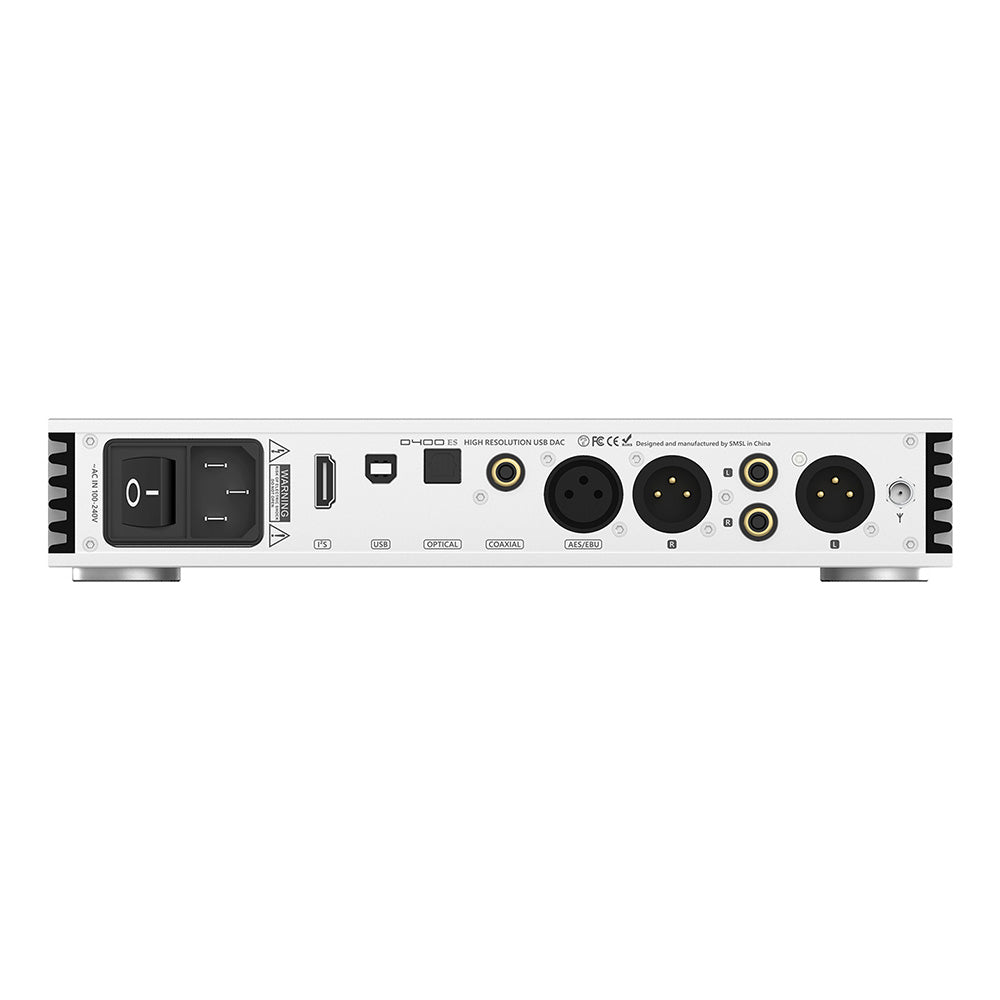

Input:
USB / Optical / Coaxial / Bluetooth / I2S /AES
Output:
RCA /XLR
Line output amplitude:
XLR 5.2Vrms
RCA 2.5Vrms
THD+N:
0.00005% (-125dB) (UN-WTD)
Dynamic range:
1.33dB (XLR), 128dB (RCA)
SNR:
1.33dB (XLR), 127dB (RCA)
USB transmission:
USB 2.0 Asynchronization
USB compatibility:
Windows 7 / 8/ 8.1/10(Needs Driver)
Mac OSX10.6 or Later、Linux (Driverless)
MQA decoder:
USB / Optical / Coaxial / AES
MQA-CD decoder:
Optical / Coaxial / AES
Sampling rate & Bit Width:
USB 2.0 Asynchronization
USB compatibility:
USB: PCM-44.1~768kHz(32bit)
DSD: 2.8224 ~22.5792MHz(1bit)
Optical / Coaxial: 44.1 ~192kHz(24bit)
DoP: DoP256(USB), DoP64(Optical / Coaxial)
Bluetooth:
5.0
LDAC:
24bit/96kHz (990kbps/660kbps/330kbps)
aptX-HD:
24bit/48 kHz_576kbps
aptX:
16bit/44.1kHz_352kbps
SBC:
16bit/44.1kHz_328kbps
AAC:
5bit/44.1 kHz_320kbps
Power Consumption:
<10W
Standby power:
0.5w
Size:
240×188x43mm (WxHxD)
Weight:
1.8kg / 3.97lb
Inside the Box
  • 1 x SMSL D400ES
  • User Manual
