High-tech decoding chips
The SMSL DO200 features two marvelous ES9068AS chips from the American ESS company paired with five high-end dual op amp OP1612A and a large number of audio-grade components. ES9068AS has been applied in some high-end products, with excellent technical indicators, MQA hard solution function, and relatively low power consumption characteristics. This chipset provides distortion-free and high-quality sound rich with details, and both USB and SPDIF can support MQA decoding function and MQA-CD.
Excellent CNC Aluminum Alloy Shell
The DO200 MKⅡ features an excellent visual appearance with a tempered glass display panel on the screen and an integrally formed aluminum alloy shell, which effectively prevents oxidation. The use of non-magnetic raw materials can not only shield the interference of external magnetic fields but also have no magnetic fields. And the screen has higher transmittance and longer service life. It is also worth mentioning that the DO200 MKⅡ features exquisite workmanship and delicate touch.
Low-Noise Power Supply
The DO200 MKⅡ follows with low noise power supply featuring the specially designed discrete component. With built-in shielding, the power supply can be stabilized. And it can improve power efficiency and lower power consumption.
Firmware Upgrade Function
The SMSL DO200 MKⅡUSB interface integrates the firmware upgrade function, meaning you can upgrade the firmware as you wish. Last but not least, firmware can be upgraded independently!
Full-Function Remote Control

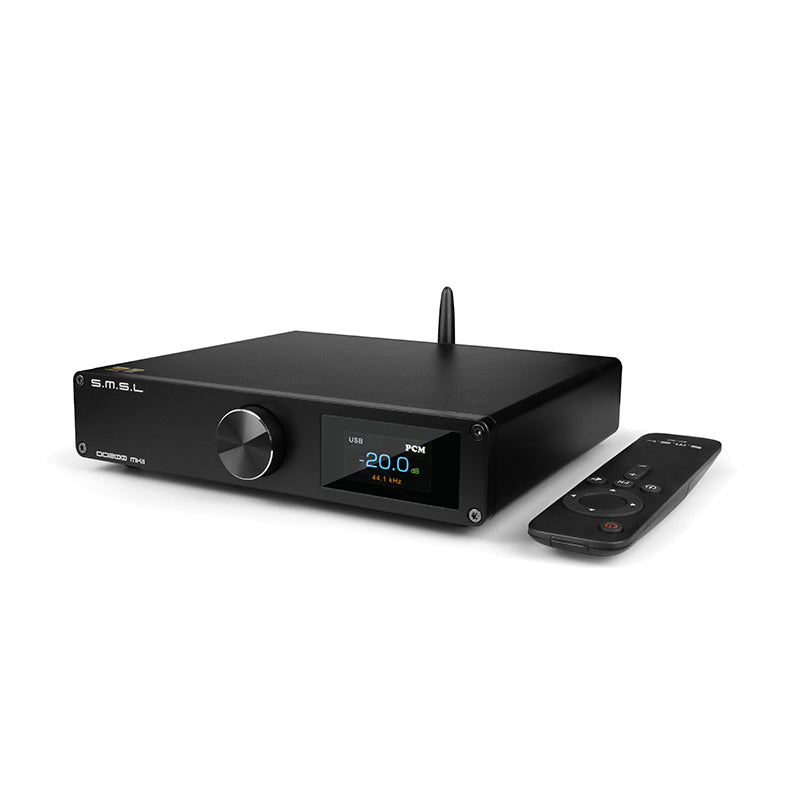

SMSL DO200 MKⅡ characterizes a function knob with a high-res color IPS display on the front featuring screen off function. It also equipped with SMSL new remote control which follows with better handle and better quality.
Technical Details
THD+N: 0.00008%(-122dB)
Dynamic range:XLR 129dB
RCA :125dB
SNR:128dB
Output impedance: 100Ω
Input: USB/ Optical /Coaxial /Bluetooth /2S/AES/EBU
Output: RCA / XLR
USB transmission: Asynchronization
Bit depth USB: 1bit, 16-32bit
Optical/ Coaxial/AES/EBU: 1bit,16~24bit
Sampling rate:USB / 12S
Optical /Coaxial/AES/EBU
PCM: 44.1-192kHz
DSD: DSD64(DoP)
Bluetooth specification
BT 5.0 (Support SBC/AAC/APTX/APTX HD/LDACN)
Power Consumption: 5w
Standby power: <0.5w
Size: 210 x43×185mm (WxHxD)
Machine weight: (Including remote control) 1.2KG
Packing weight: 1.9KG
- 1 x SMSL DO200 MKII
- User Manual
