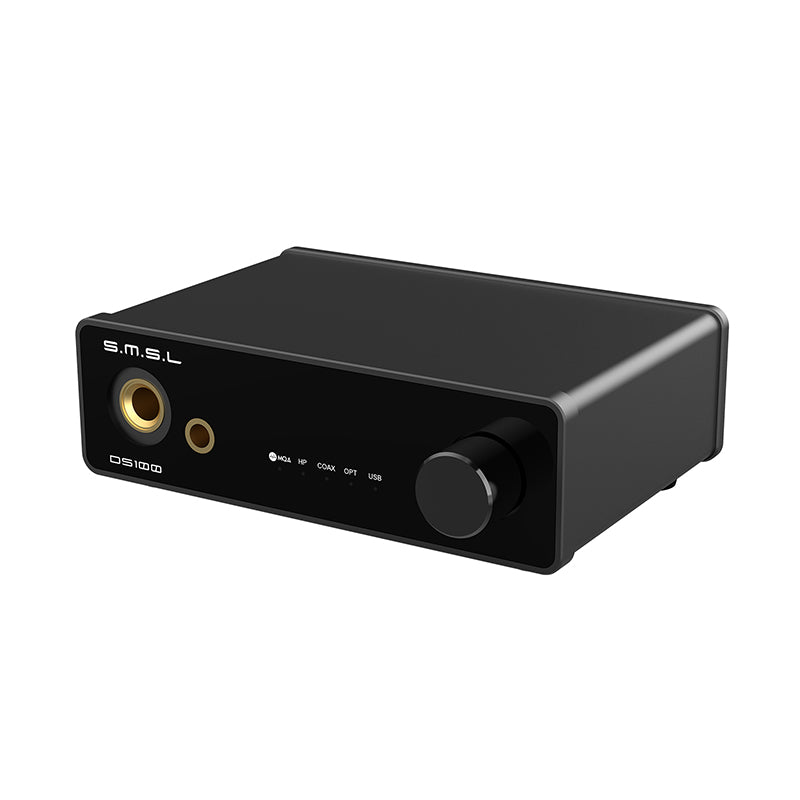

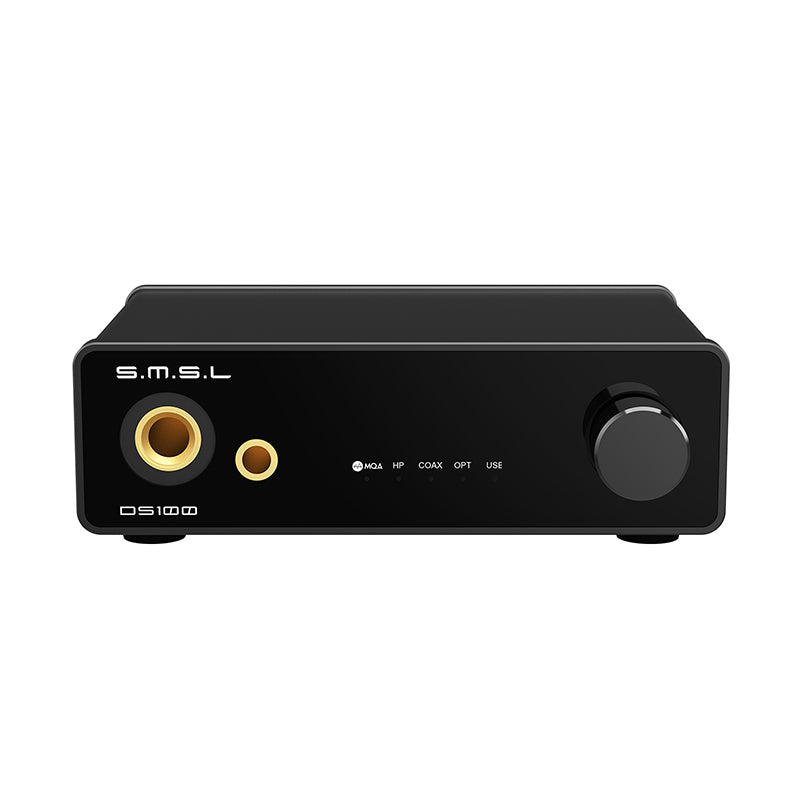

SMSL DS100

MQA CS43131 Headphone Amplifier and DAC

  • Supports MQA/MQA-CD Decoding
  • Cirrus Logic CS43131
  • CNC Machining Techniques
  • Premium Connectivity Options
  • Experience the Versatility of DS100
  • With 6.35mm, 4.4mm Balanced Headphone Output
  • Unparalleled Audio Performance
Regular price $89.99 USD
Sale price $89.99 USD Regular price

Supports MQA/MQA-CD Decoding

Analog sound often suffers from time blurring when converted to a digital signal, which obscures transient signals and diminishes the authenticity of the listening experience. MQA technology eliminates this distortion, creating a true 3D sound field that redefines your auditory perception. Unlock the potential with MQA. Traditional digital audio filters can compromise time resolution, resulting in pre- and post-transient hum. MQA technology significantly reduces these vibrations, preserving the integrity of the original recording and encapsulating the sound with remarkable precision. Enhance your audio experience with MQA Decoder: Expand MQA files to provide superior sound quality that surpasses CD quality. Products equipped with MQA decoders offer seamless integration with music streaming services and media players like Roon, delivering unparalleled audio fidelity.

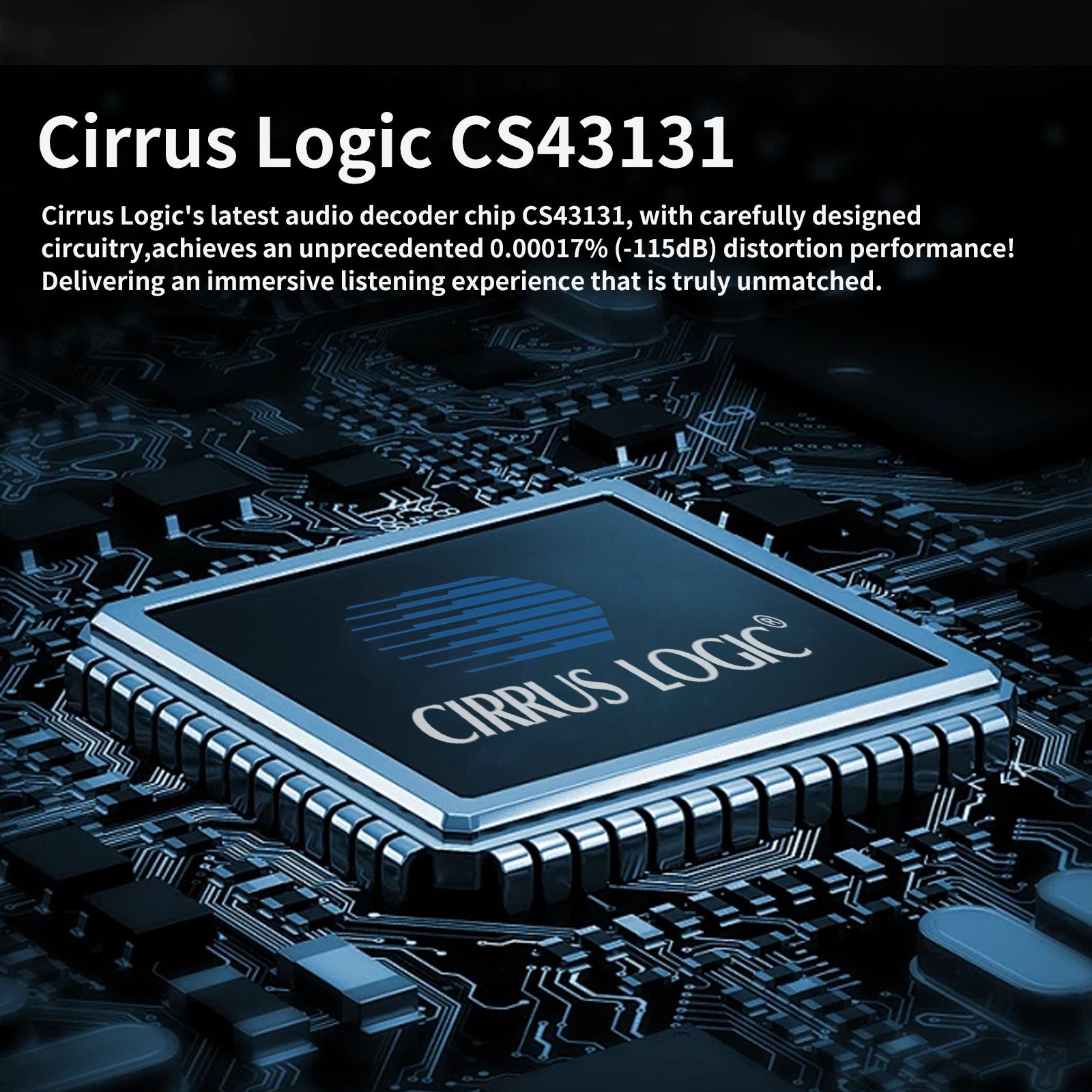

Cirrus Logic CS43131

Building on this commitment to audio excellence, the DS100 is powered by the Cirrus Logic CS43131 audio decoder chip, achieving an unprecedented distortion performance of 0.00017% (-115dB). This ensures an immersive listening experience that captures every nuance of the music with unmatched clarity.

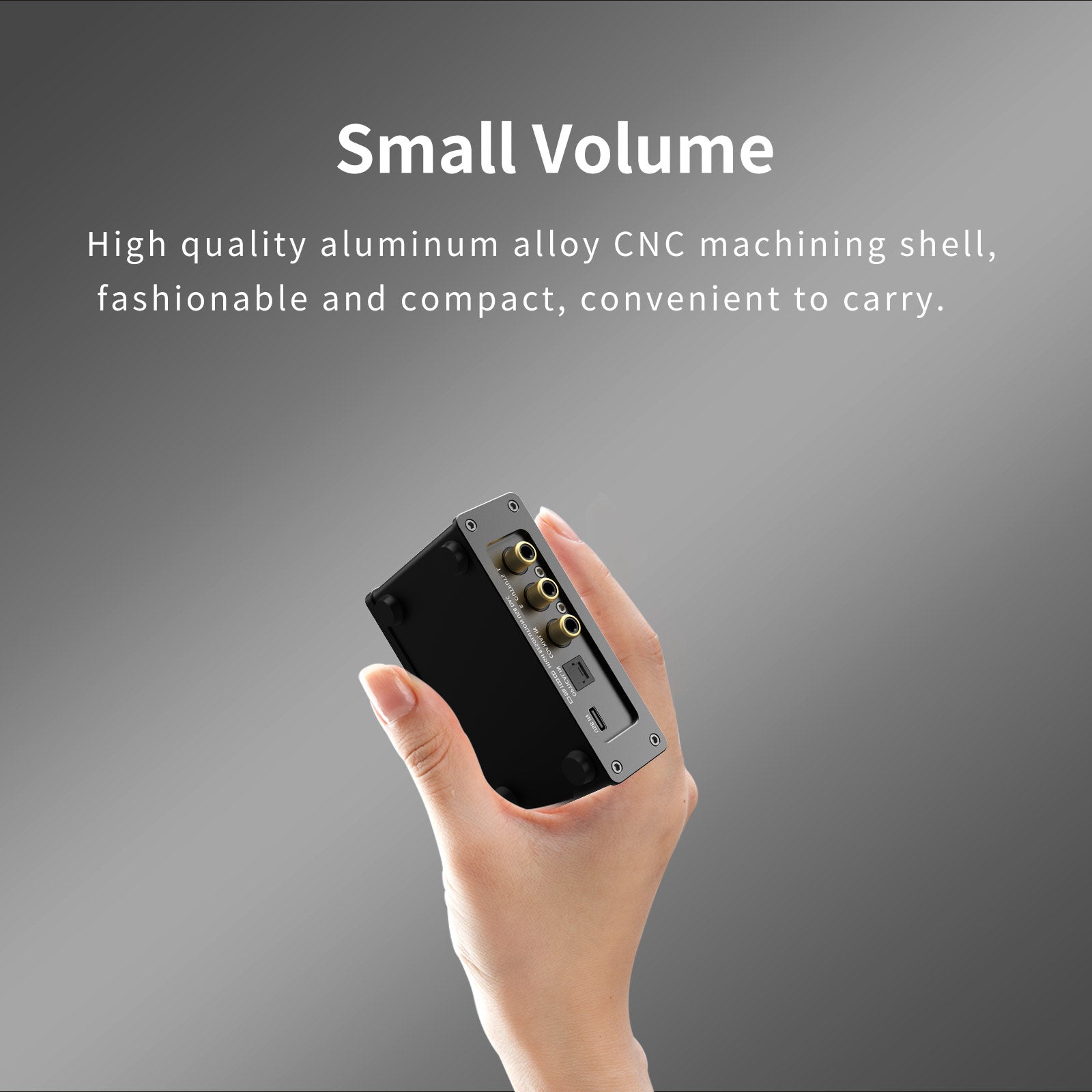

CNC Machining Techniques

Crafted from high-quality aluminum alloy using CNC machining techniques, the DS100 features a sleek and compact design that is both fashionable and portable, allowing you to enjoy high-fidelity audio on the go.

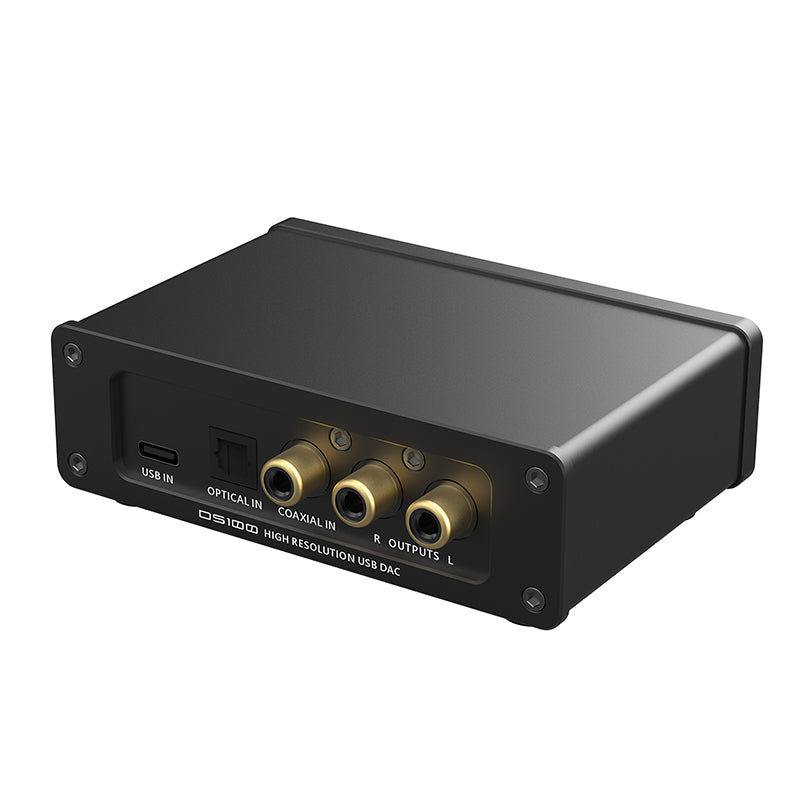

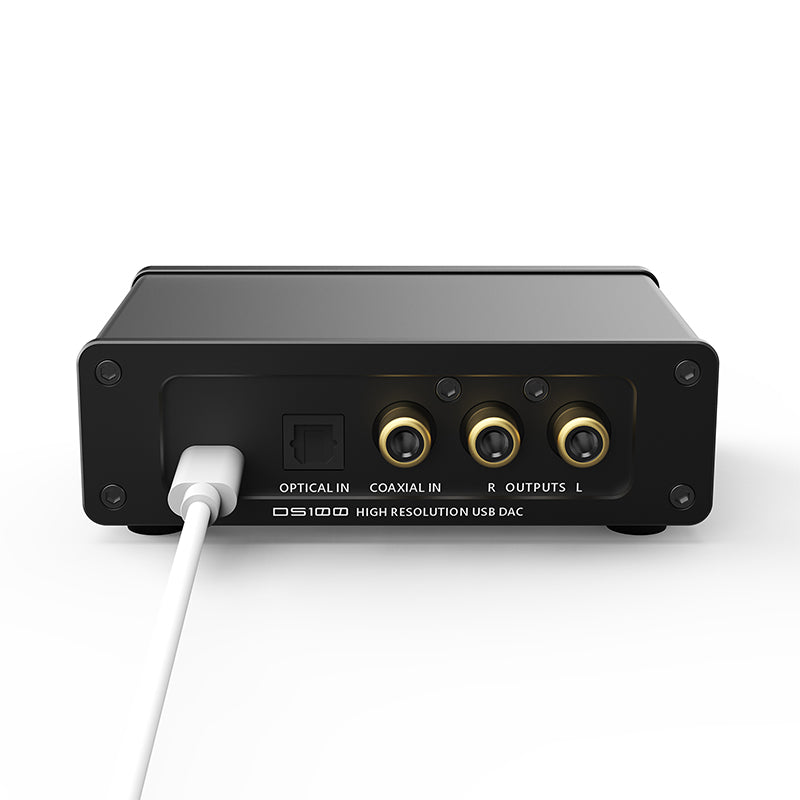

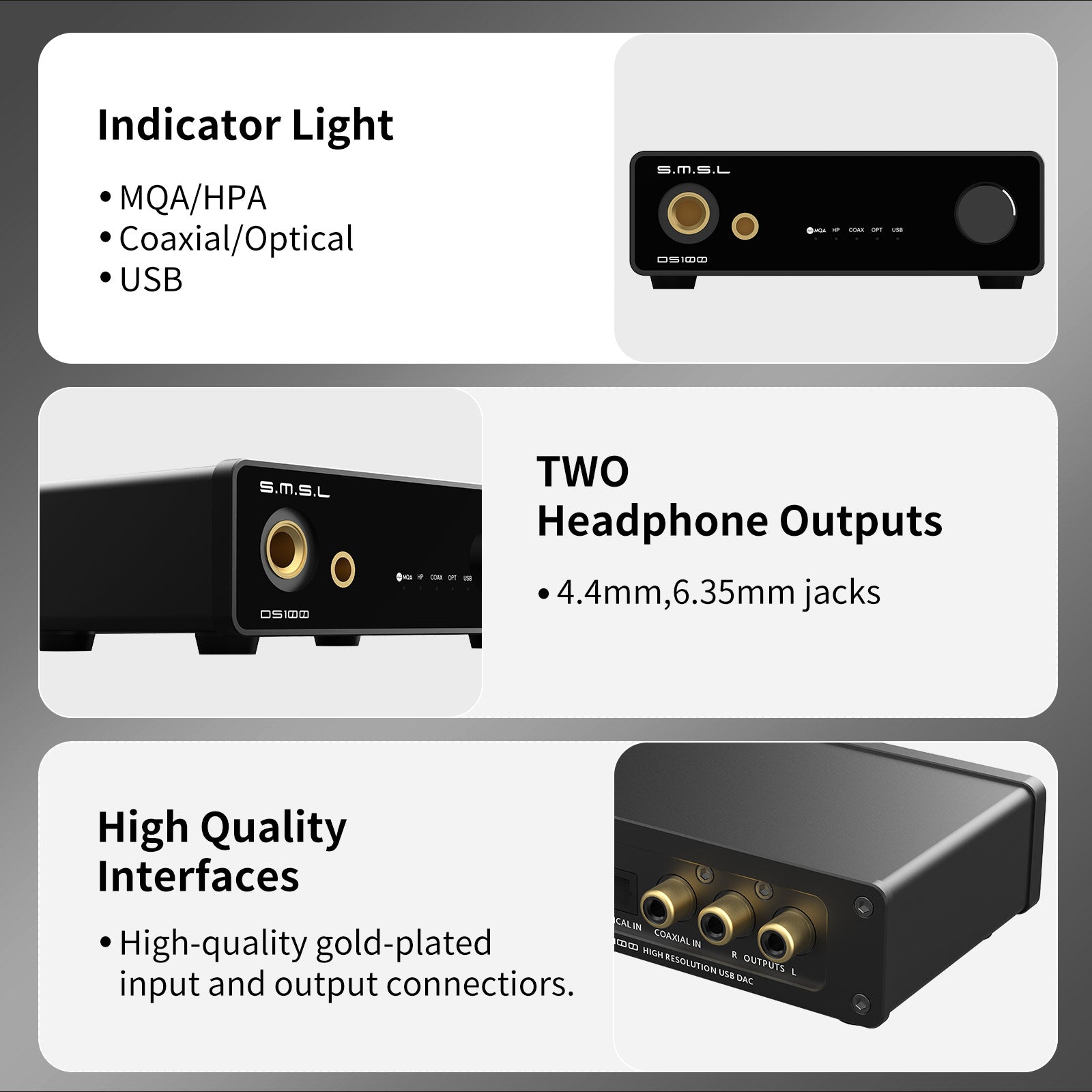

Premium Connectivity Options

Equipped with high-quality gold-plated input and output connectors, the DS100 ensures reliable and high-fidelity audio transmission. Whether you're connecting to headphones, speakers, or other devices, expect nothing less than exceptional sound quality.

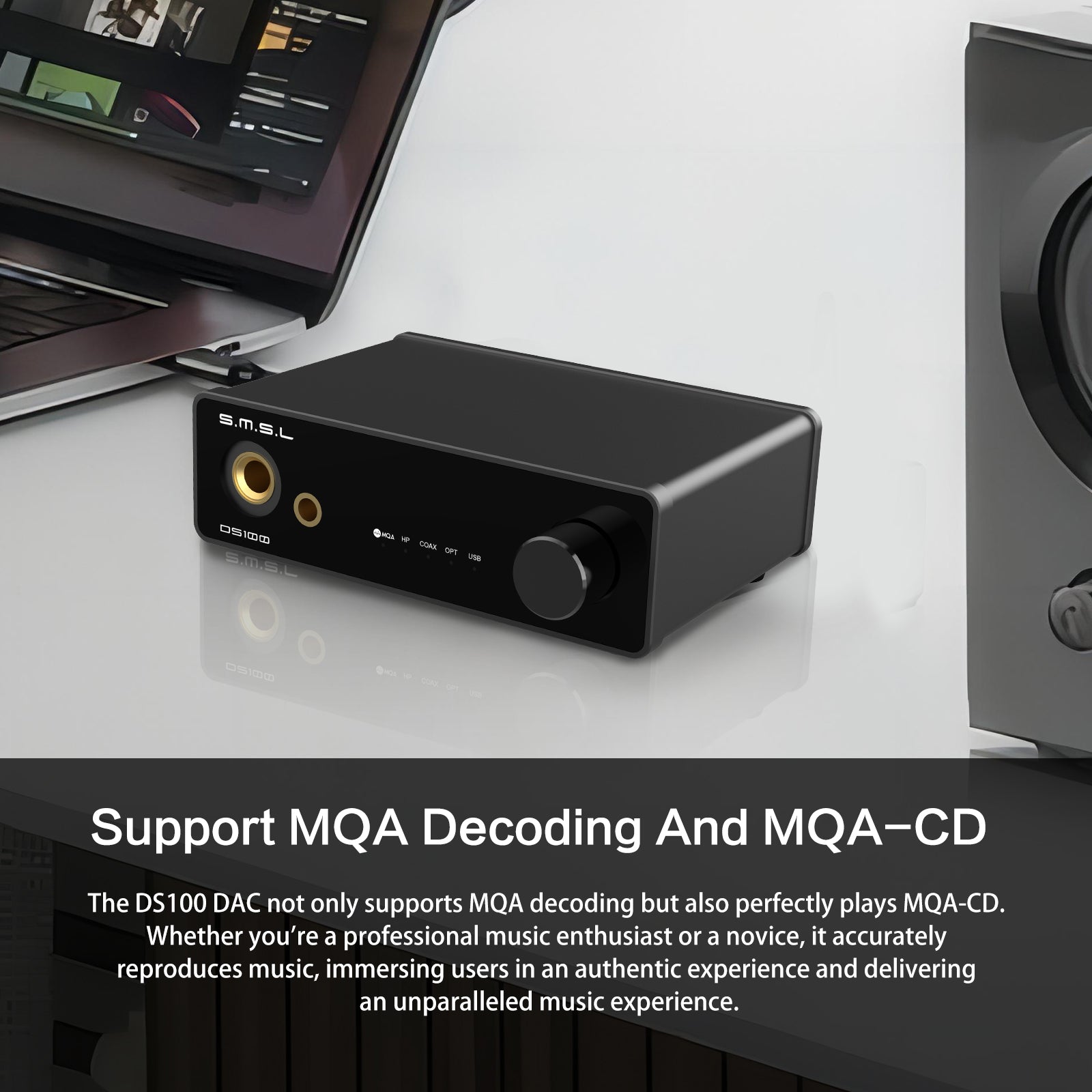

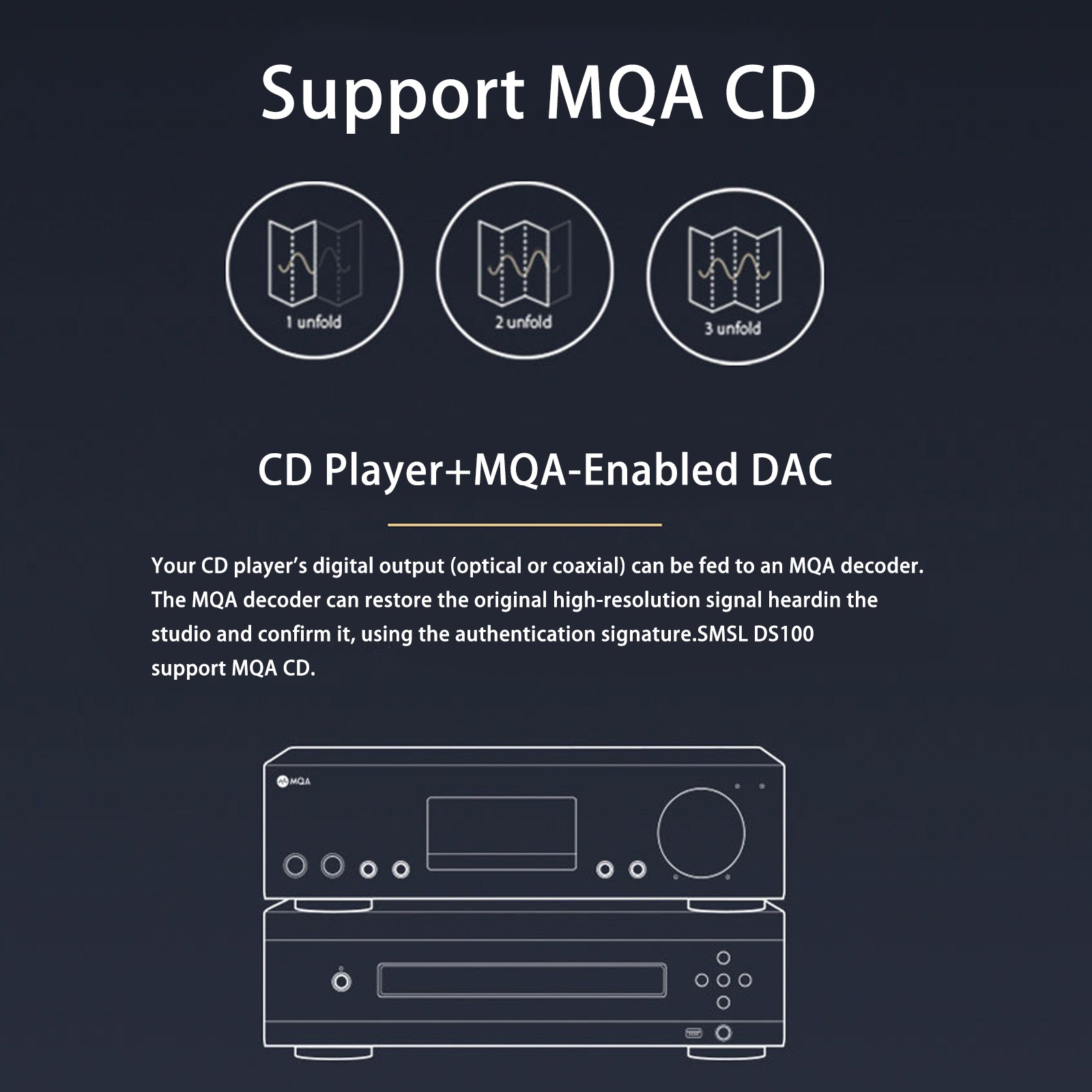

Experience the Versatility of DS100

Not only does the DS100 support MQA decoding, but it also flawlessly plays MQA-CD, offering an authentic and immersive music experience for both professional and casual listeners alike.

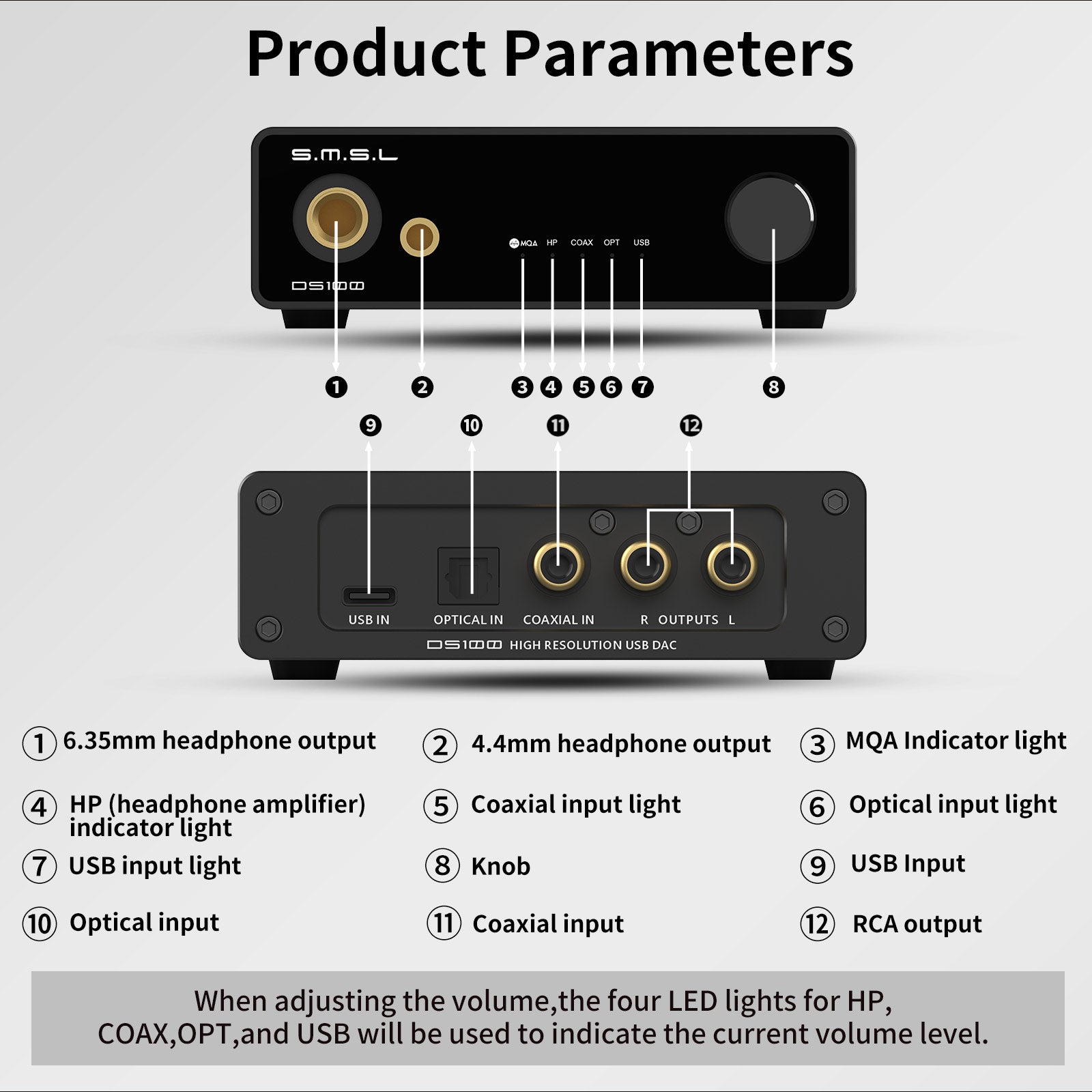

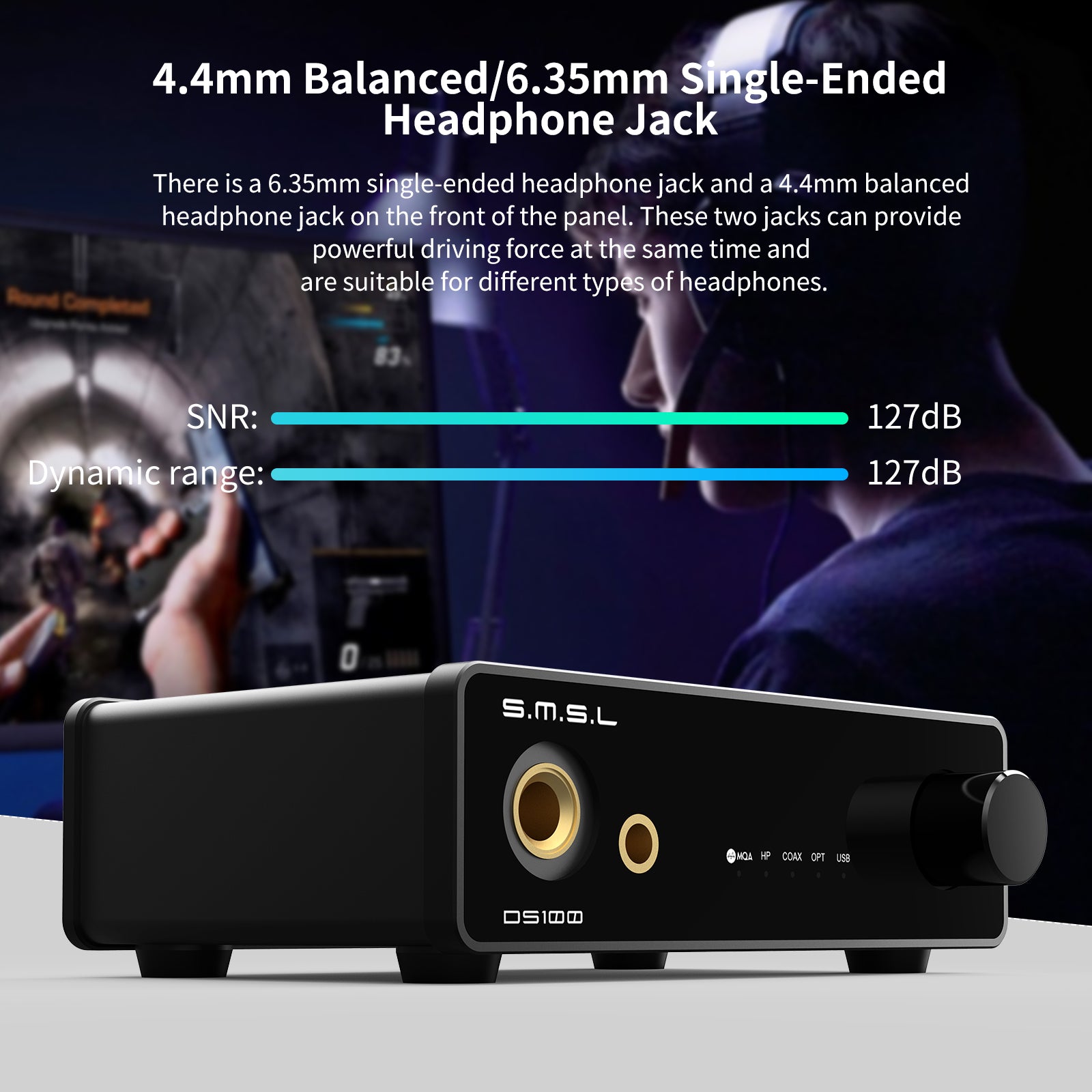

With 6.35mm, 4.4mm Balanced Headphone Output

Featuring both a 6.35mm single-ended headphone jack and a 4.4mm balanced headphone jack, the DS100 provides powerful driving force for a wide range of headphones, ensuring optimal performance regardless of your preferred audio setup.

Unparalleled Audio Performance

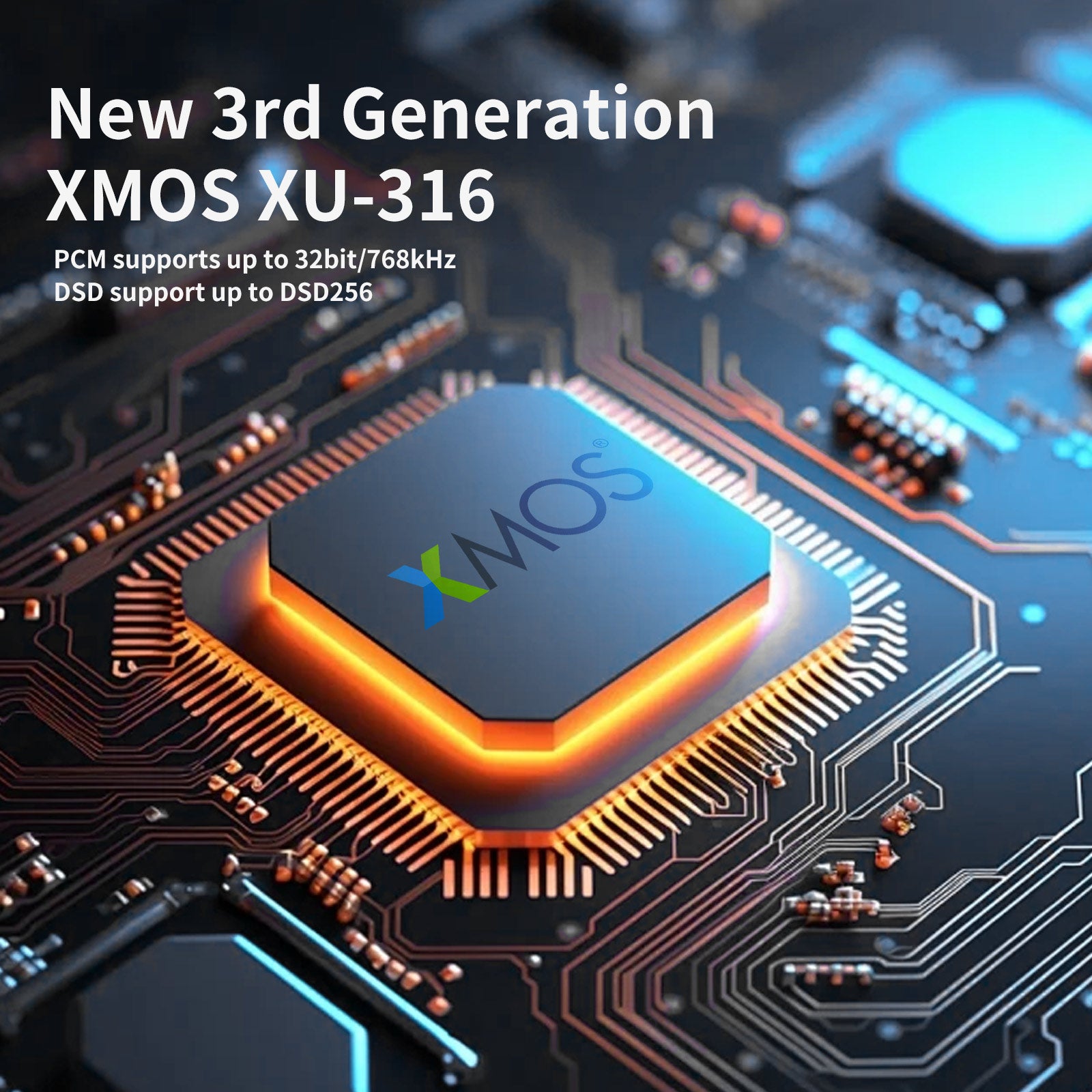

Powered by the XMOS XU-316 PCM chip, the DS100 supports up to 32bit/768kHz PCM and DSD256, ensuring crystal-clear audio reproduction and an immersive listening experience like no other.

Inside the Box

  • 1 x SMSL DS100
  • User Manual

1 Year Warranty

The SMSL DS100 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

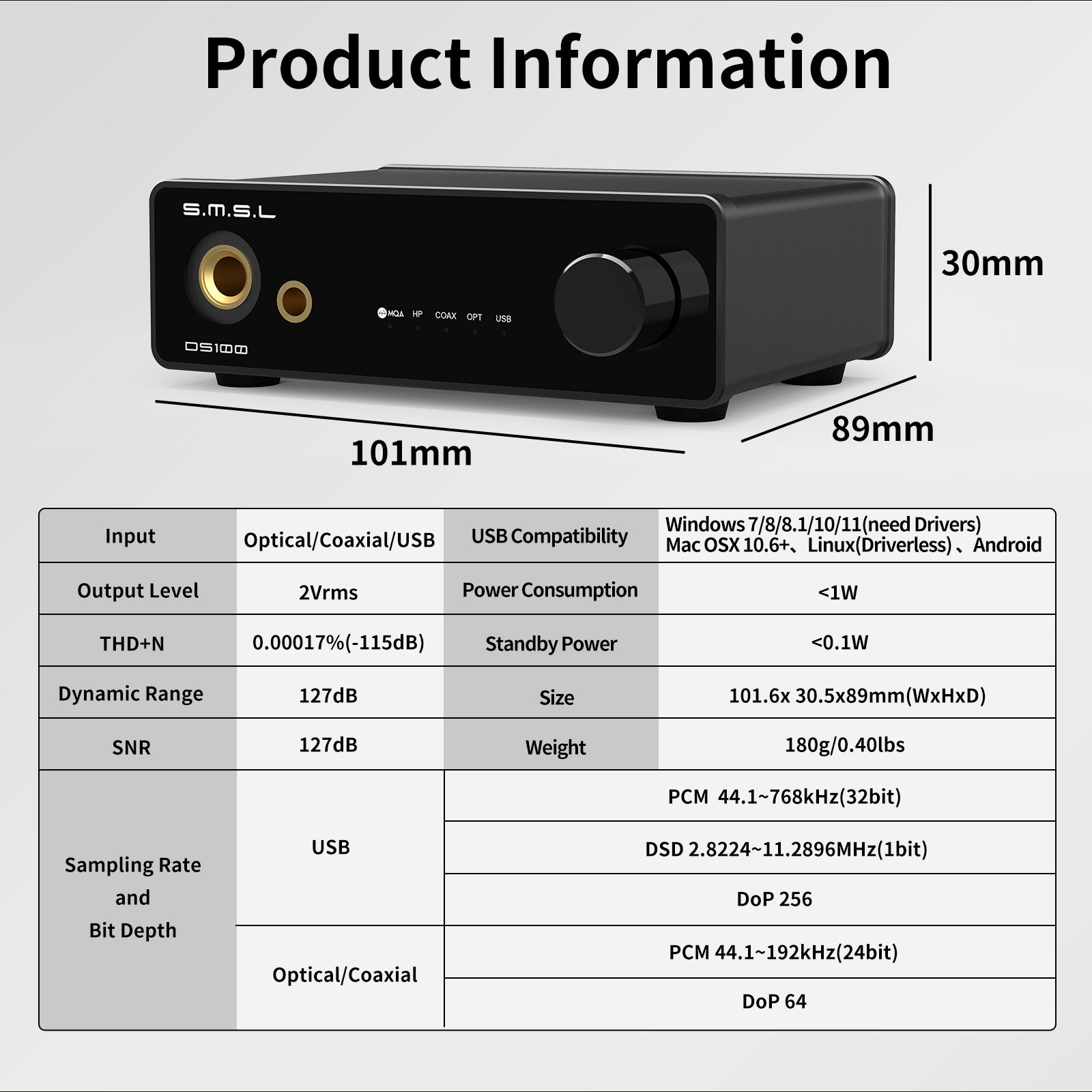

Technical Details

Input
USB, Optical, Coaxial
Output Level
2Vrms
THD+N
0.00017% (-115dB)
Dynamic Range
127dB
SNR (Signal-to-Noise Ratio)
127dB
USB Compatibility
Windows 7/8/8.1/10/11 (requires drivers), MacOS X 10.6+, Linux (driverless), Android
Power Consumption
<1W
Standby Power
<0.1W
Size
101.6 x 30.5 x 89mm (W x H x D)
Weight
180g / 0.40lbs
Sampling Rate and Bit Depth
USB: PCM 44.1~768kHz (32bit), DSD 2.8224~11.2896MHz (1bit), DoP 256
Optical/Coaxial: PCM 44.1~192kHz (24bit), DoP 64

Processing Time
