Selectable Inputs & Outputs

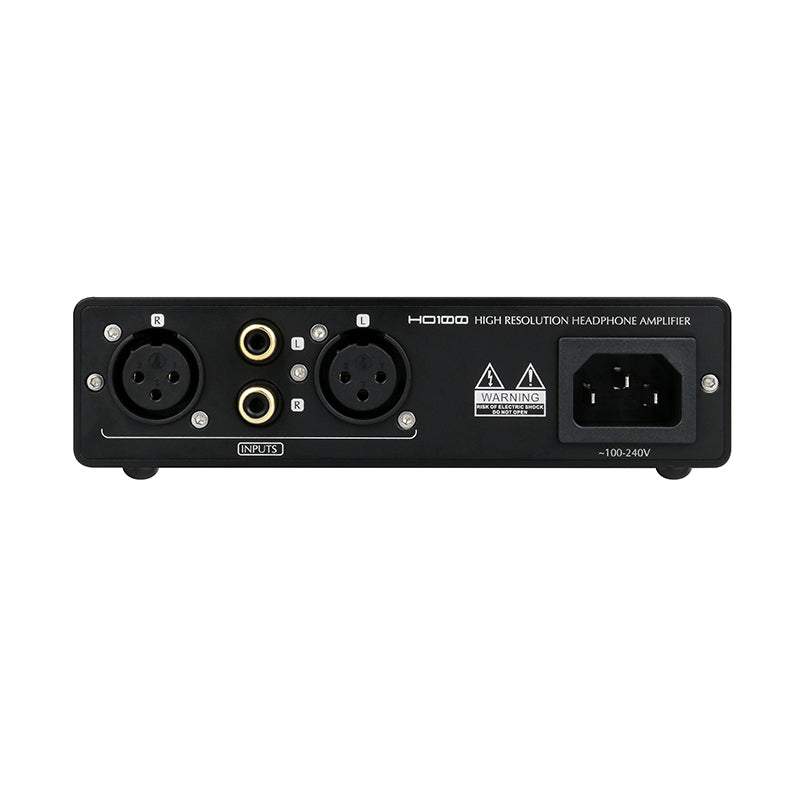

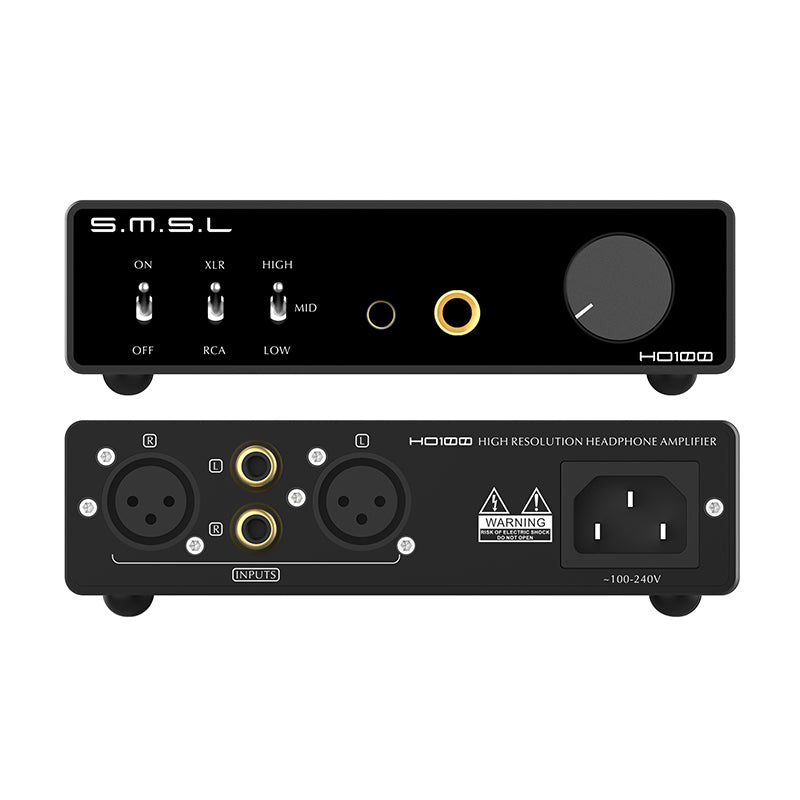

SMSL HO100 has XLR and RCA input modes; 6.35mm (Unbalanced) and 4.4mm (Balanced) headphone outputs, which meet the needs of different headphones and Hifi systems.

Three Gain Modes For Selection

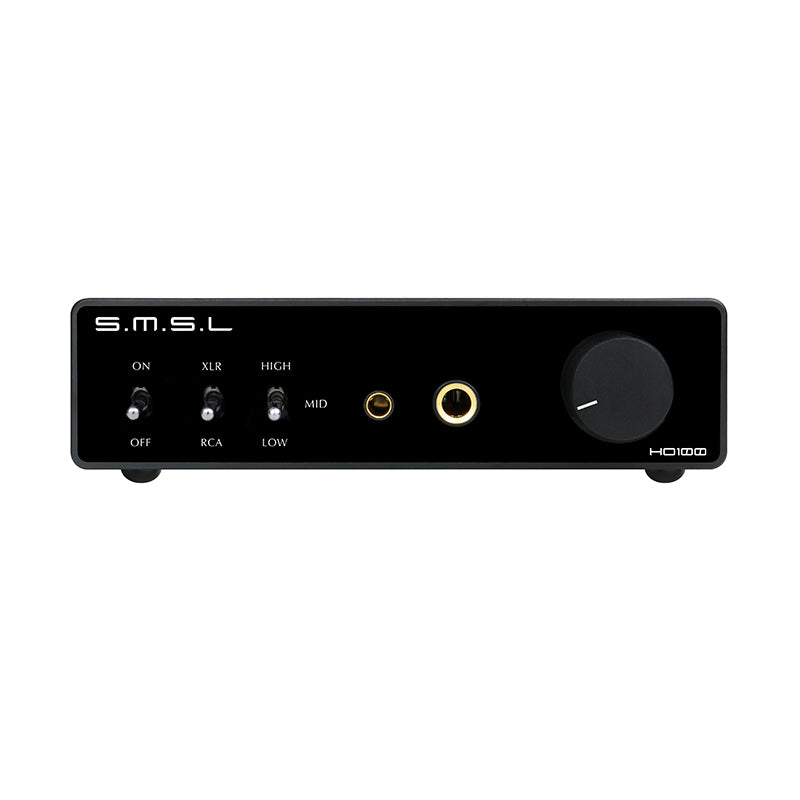

Using the classic toggle switch rotary button, there are high, mid and low 3 gain mode for adjustment and meet different music style.

High Power Output

3W into 16Ω, 1.5W into 32Ω, which meet most headphones on the market. The amp output impendance near 0Ω.

Ultra Low Distortion/Low Noise Design

The distortion of HO100 is as low as 0.000006%; and it is designed with low noise power supply, so that the output noise is as low as 1.3uV (APX555B measured value, not equivalent.)

A Perect Set with SMSL DO100 DAC

SMSL DO100 and HO100 have fully matched design languages and styles. The DO100 uses ES9038Q2Mx2 dac chips, supports PCM,DSD decoding.

Technical Details

Specifications
Model: SMSL HO100
Input: Unblanced*1,Balanced*1
Headphone Output
6.35mm Unblanced*1
4.4mm Balanced*1
Output Power
>3W*2 (16Ω)
1.5W*2 (32Ω)
200mW*2 (300Ω)
100mW*2 (600Ω)
SNR: 134dB
Dynamic Range: 134dB
Output Noise: 1.3uV
THD+N: -123dB, 0.000006% (1kHz,32Ω)
THD: < -125dB, 0.00005%
Input Impedance: 47kΩ
Amp Output Impendance: Near 0Ω
Frequency Response: 20Hz-500kHz (-3dB)
Gain
Low: -9.5dB
Mid: 0dB
High: 15.5dB
Power Consumption(EN60065): < 30W
Power Consumption in Standby Mode: < 0.5W
150*128*39mm (L*W*H)
Weight: 560g / 1.23Lbs
Accessories:
1*SMSL HO100
1* Power Cord
1*User manual
1*Warranty Card
Inside the Box
  • 1 x SMSL HO100
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The SMSL HO100 Comes with a 1 year warranty on the DAC only. Warranty doesn't apply to the included accessories.
