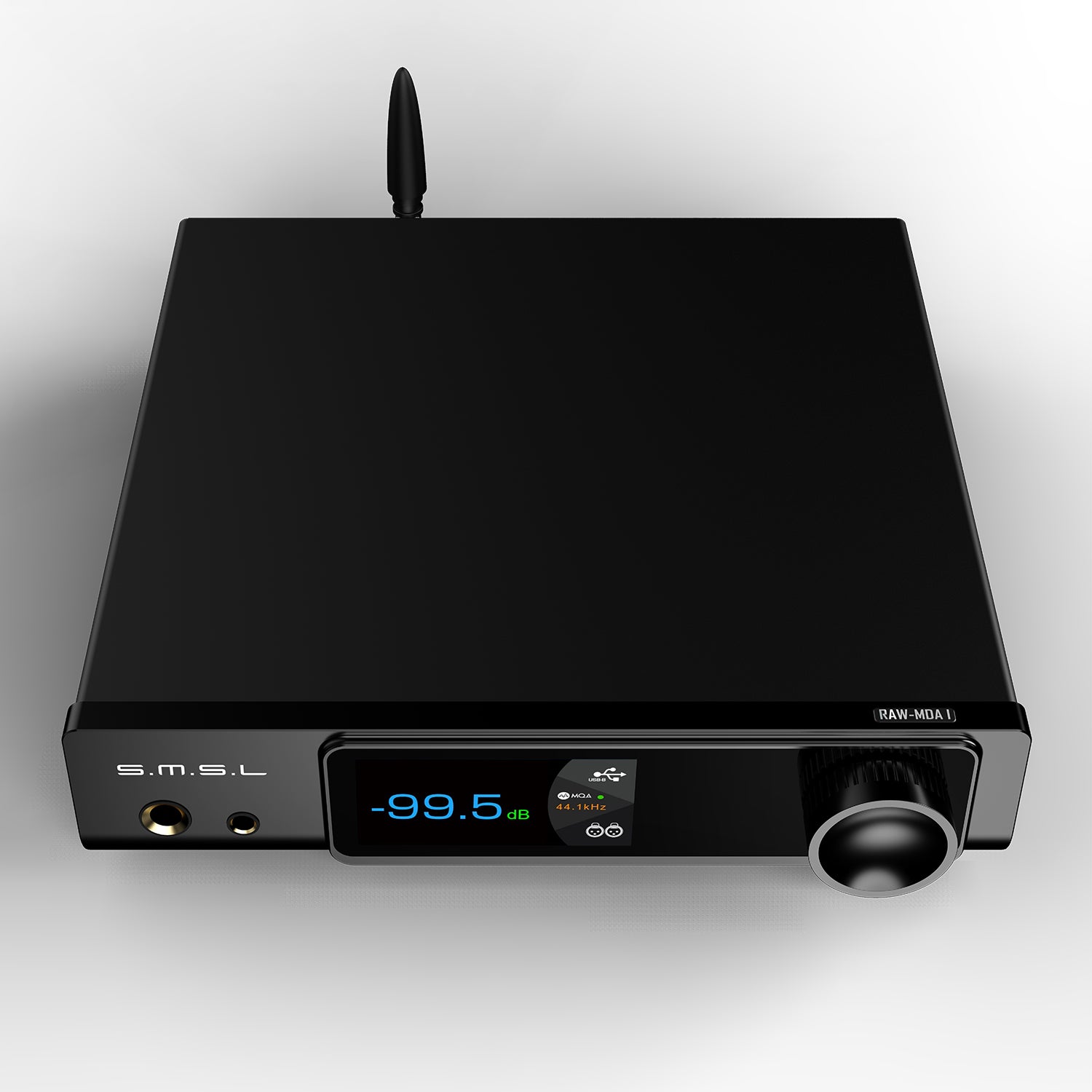

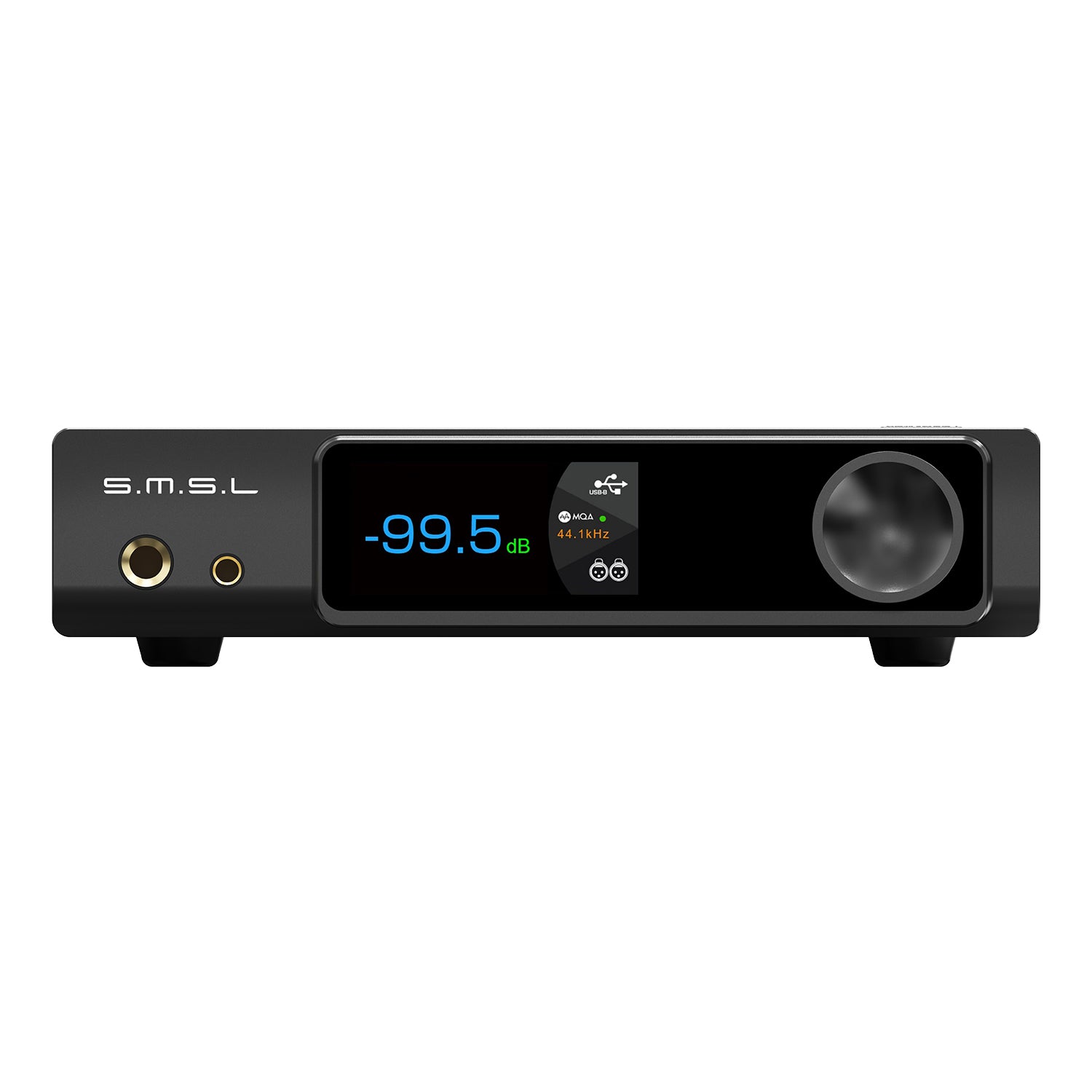

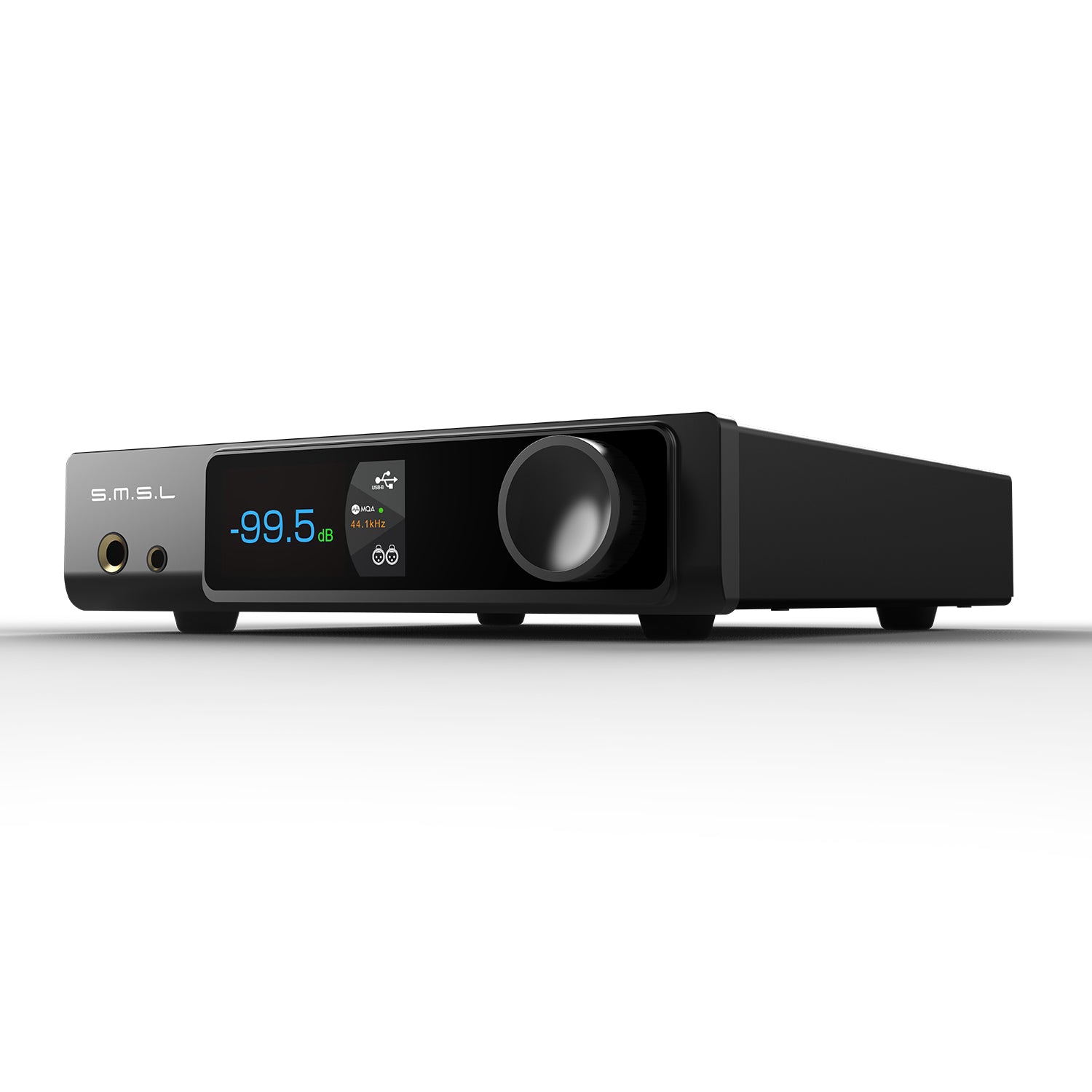

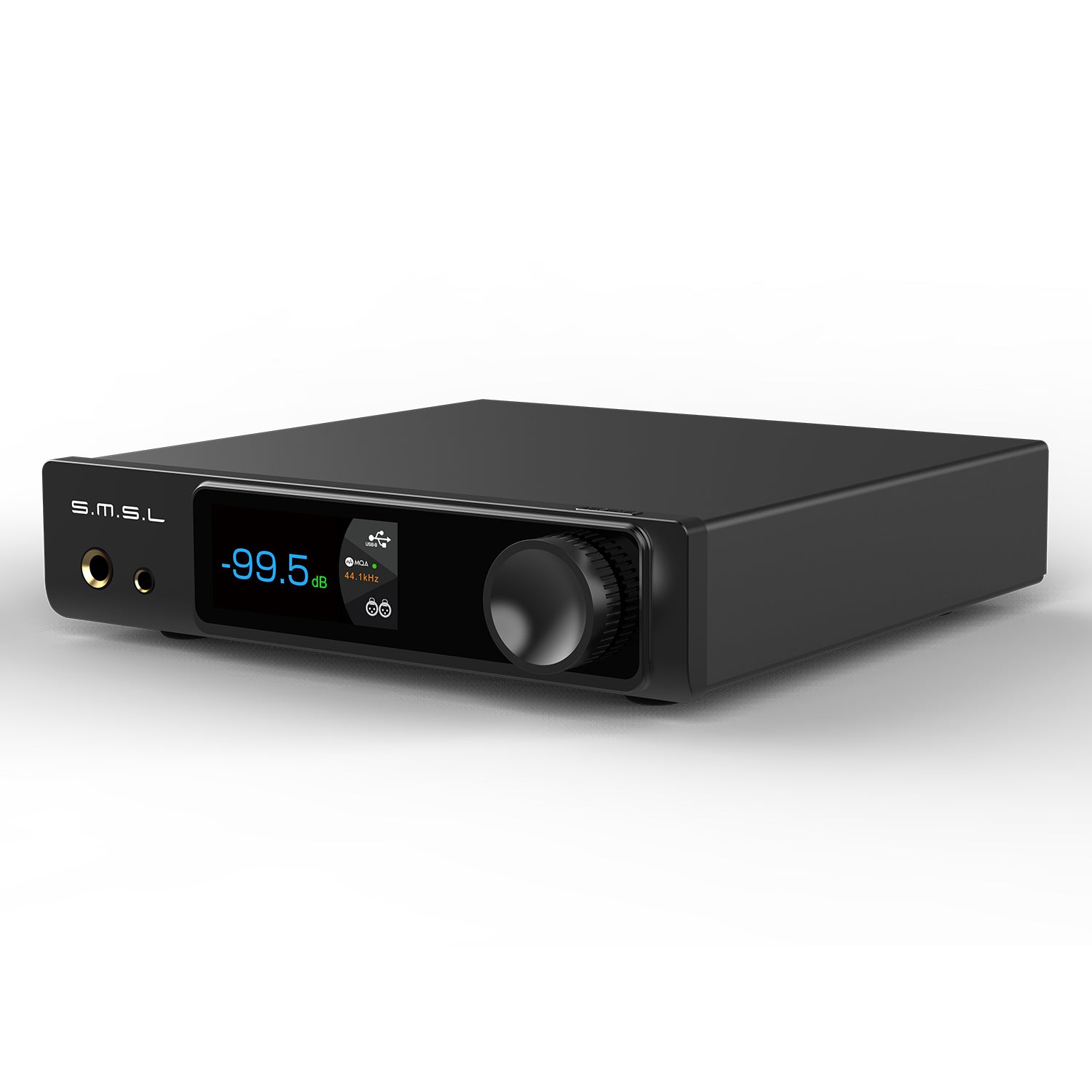

SMSL RAW-MDA1

Dual ES9039Q2M MQA Certified Bluetooth DAC

  • Latest-Generation Dual-DAC Chipset
  • 3rd-Gen XMOS USB Processor
  • Certified For MQA and MQA-CD Decoding
  • Outstanding Performance with Specially-Developed Audio Clock Architecture
  • High-Power Amplification Circuit and Connectivity Options
Regular price $279.99 USD
Sale price $279.99 USD Regular price

Latest-Generation Dual-DAC Chipset

The SMSL RAW-MDA1 is equipped with a high-end dual DAC arrangement, featuring two units of ESS Sabre’s latest ES9039Q2M DAC chips. These chips deliver class-leading audio signal decoding, ensuring true high-resolution audio processing with ultra-low distortion.

3rd-Gen XMOS USB Processor

The RAW-MDA1 incorporates a 3rd generation XMOS USB signal processor with an XMOS XU316 16-core processor. This advanced technology allows for smooth sound signal transmission and decoding, supporting PCM 32-Bit/768kHz and DSD512 audio signals. With USB1.1 and USB2.0 dual-mode connectivity, the device is compatible with most devices, including gaming consoles.

Certified For MQA and MQA-CD Decoding

Fully certified for MQA and MQA-CD decoding, the SMSL RAW-MDA1 ensures studio-level sound performance when paired with an MQA CD-Player. Enjoy the highest quality audio reproduction available with this certification.

Outstanding Performance with Specially-Developed Audio Clock Architecture

The RAW-MDA1 features a specially developed audio clock processing circuit, providing ultimate performance with ultra-low jitter issues in signal processing. This design ensures a pristine audio experience, maintaining the integrity of your sound.

High-Power Amplification Circuit and Connectivity Options

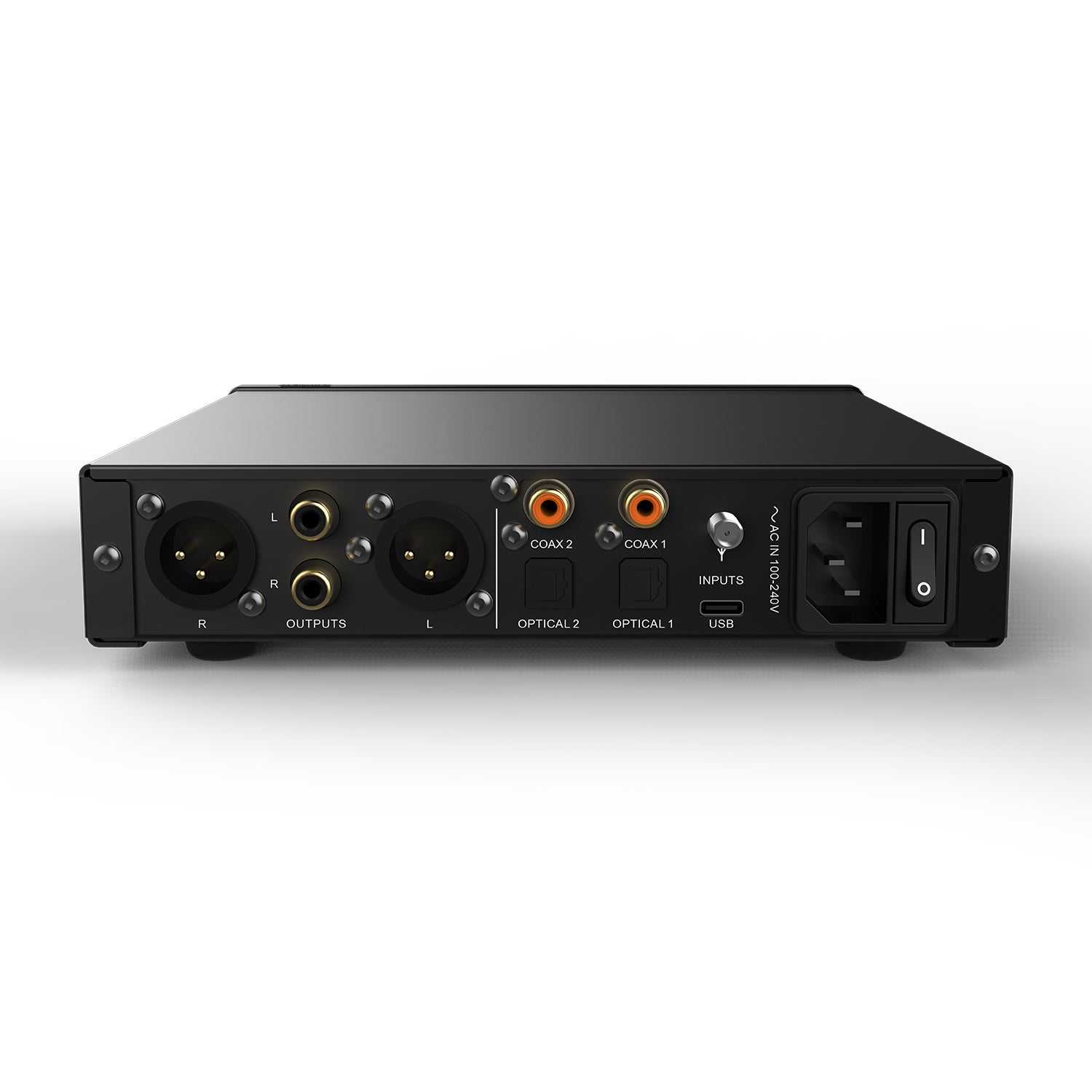

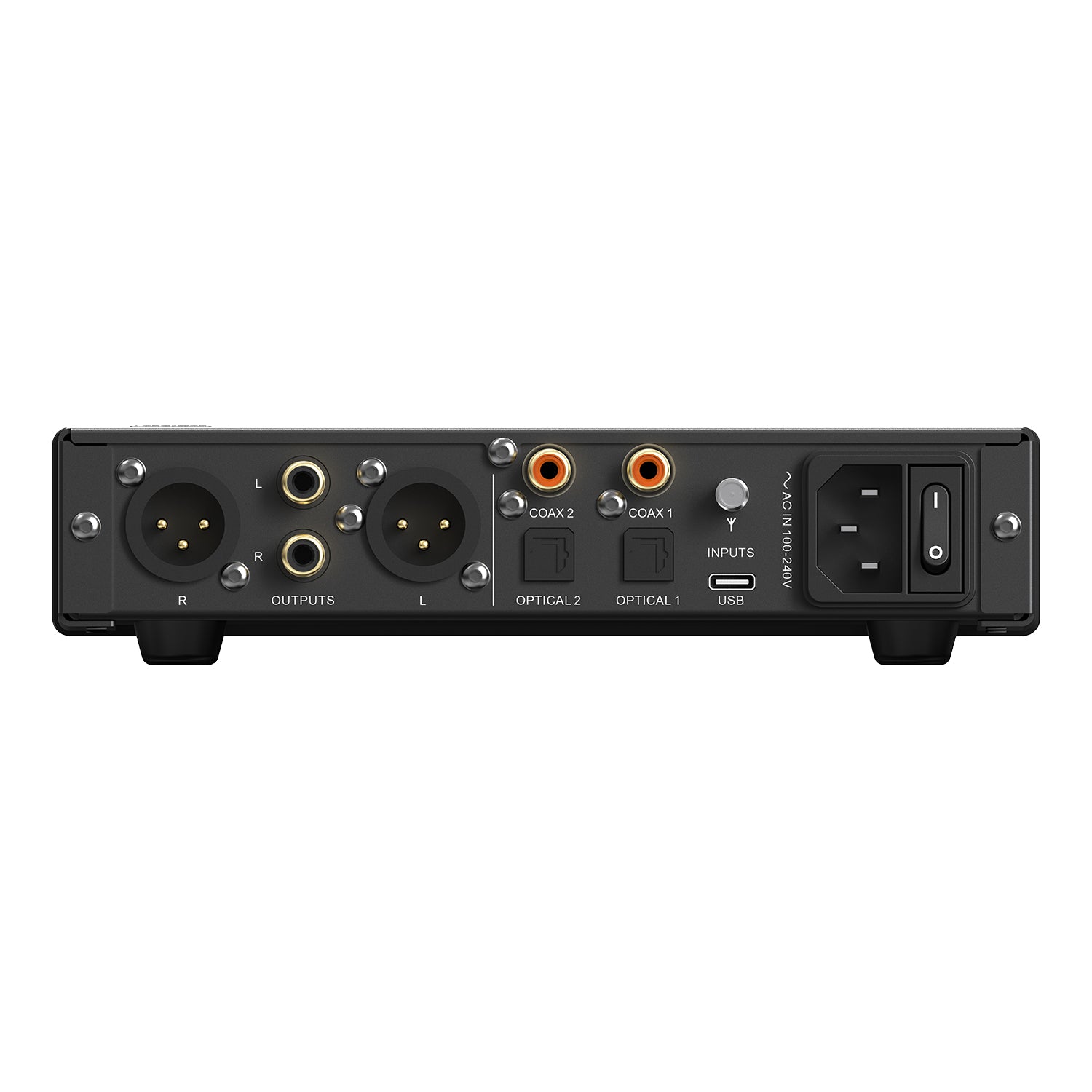

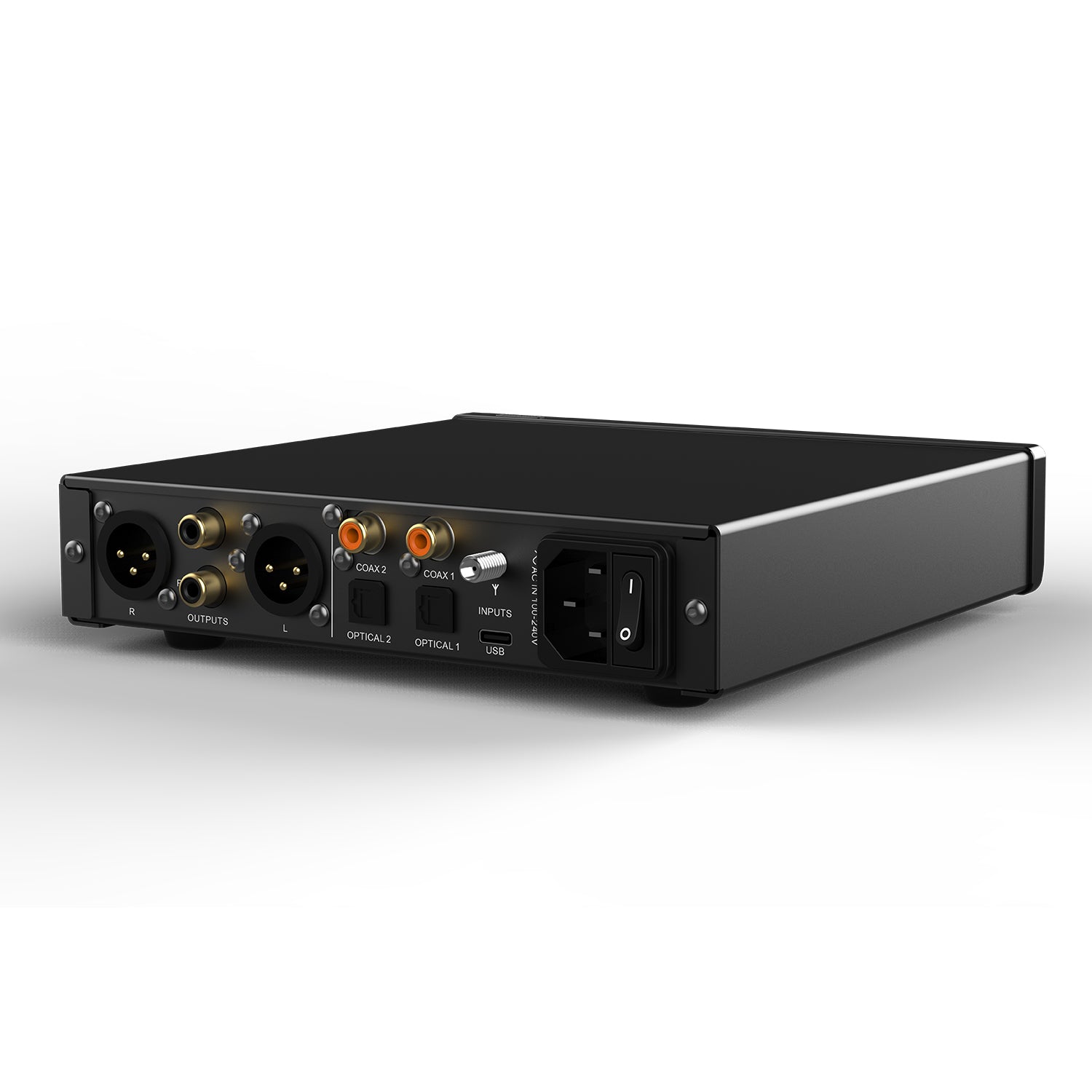

With a high-power output circuit housing six OPA1612A powerful amplification chips, the RAW-MDA1 ensures a strong output of up to 2.5W per channel through its 4.4mm balanced output. It includes 6.35mm single-ended and 4.4mm headphone output ports, along with line-out functionality via XLR and RCA output ports. Additionally, the device features high-definition Bluetooth connectivity with a Qualcomm chipset supporting Bluetooth V5.1 and high-resolution transmission protocols like LDAC, AptX HD, and AptX Adaptive for smooth wireless signal input.

Inside the Box

  • 1 x SMSL RAW-MDA1
  • User Manual

1 Year Warranty

The SMSL RAW-MDA1 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Input
USB/Optical x2/Coaxial x2/Bluetooth
Output
RCA/XLR/HEADPHONE
THD+N
0.00005%(-124.5db non-Weighting)
Line output amplitude
XLR 5.2Vrms
RCA 2.5Vrms
HP 8.2Vrms
Headphone output power
16Ω 2.5Wx2
32Ω 1.7Wx2
Output lmpedance
LINE OUT 100Ω
HP OUT Near 0Ω
Dynamic range
XLR 132dB
RCA 127dB
HP 122dB
SNR
XLR 132dB
RCA 127dB
HP 122dB
USB transmission
Asynchronization
USB compatibility
Windows 7/8/8.1/10/11(Needs Driver)
Mac 0SX10.6 or Later、Linux(Driverless)
MQA decoder
USB/Optical/Coaxial
Bluetooth specification
5.1(Support SBC,aptX,aptX HD,LDAC)
Power Consumption
<30W
Standby power
<0.5W
Size
189x45x179mm(WxHxD)
Weight
1.02kg/2.24lbs
