Latest DSP & 2nd Gen XMOS

The SMSL VMV A2 comes with the latest DSP chip paired with an ST high-power amplifier chip, carefully designed and debugged, whose distortion is as low as 0.00008%. Besides, VMV A2 features the second-generation XMOS solution, meaning that the PCM sampling rate supports up to 32bit/768kHz, DSD supports up to DSD512, and the exclusive custom driver supports Native DSD.

Audiophile ADC Chip PCM1804

The SMSL VMV A2 characterizes the American Tl audiophile ADC chip PCM1804 adopting the analog audio signal input interface, with a filter circuit composed of 3 low-noise operational amplifiers OPA1678. This all-digital power amplifier can also have a good sound performance with the analog audio signal input.

Professional LLC Resonant Power Supplies

SMSL VMV A2 adopts the professional LLC resonant power supplies that are more suitable for power amplifiers, matching active PFC circuits and advanced EMI filter networks to stabilize the power output and reduce the interference of the power grid. It is also coupled with a complete protection circuit such as heat dissipation to ensure a stable and reliable power supply.

Multiple EQ Modes

The SMSL VMV A2 features built-in various EQ modes with treble/bass adjustment function to meet users’ needs. It is easy to match different speakers and music. There are eight EQ modes, including direct, tone, SDB, bass, super bass, pock, soft, and clear.

Qualcomm Bluetooth Solutions

The VMV A2 follows with Qualcomm Bluetooth Solution, which supports UAT/ LDAC/ aptX-HD/ AAC/ SBC encoding format and up to 24bit / 192kHz audio. And it is also effective in 0-10 meters distance.

Technical Details

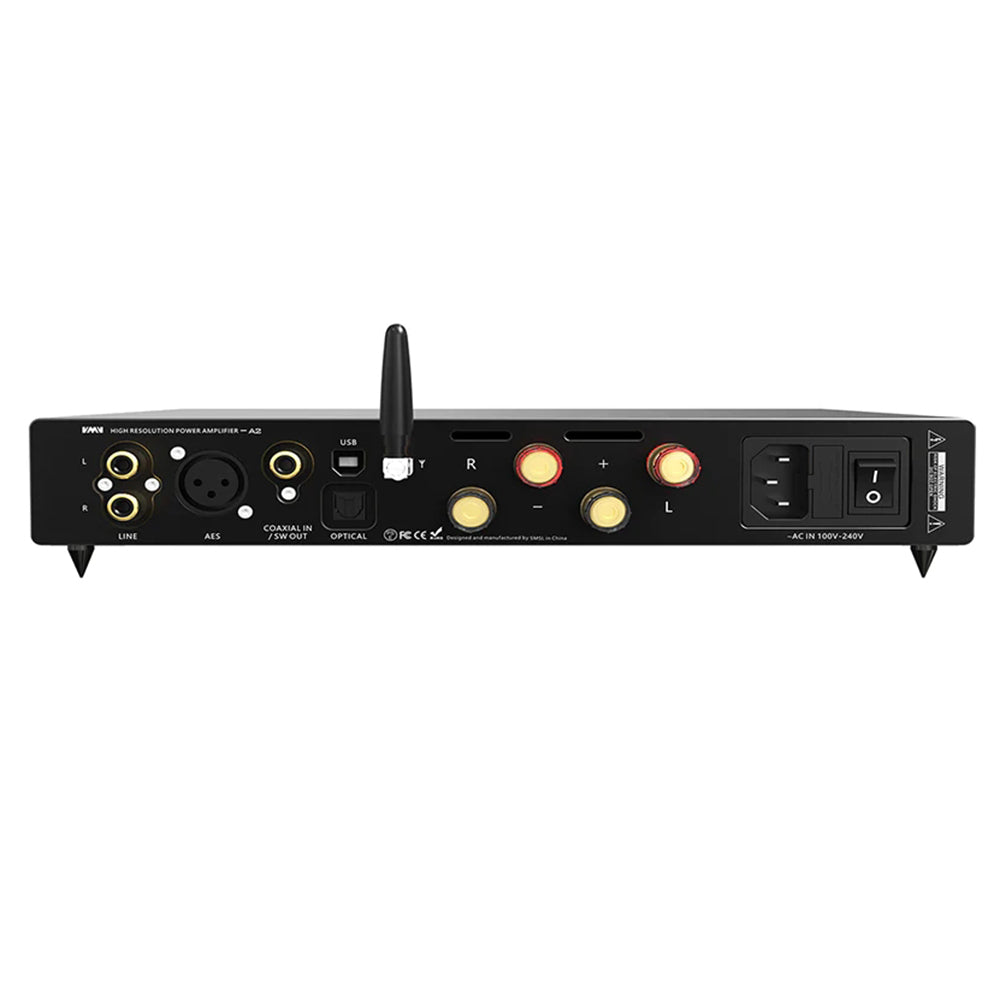

Input interface:
USB/optical/Bluetooth/ coaxial/balanced digital/ line input
THD+D:
0.0008%
SNR:
115dB
Channel separation:
108dB
Output Power:
200Wx2(4Ω)/ 100Wx24(8Ω)
USB transmission Method:
Asynchronous transmission
USB compatibility:
Windows 7/8/81/10, Mac OSX, Linux
Bit Depth:
USB/PS 1bit, 16-32bit
Optical/Coaxial 1bit, 16-24bit
Sampling Rate:
•USB / PS
PCM: 44.1-768kHz
DSD: 2.8224-22.5792MHz
•Optical/Coaxial
PCM: 44.1-192kHz
Bluetooth format:
UAT: 24bit/192kHz (1200kbps/900kbps/600kbps)
LDAC: 24bit/96kHz {990k bps/660kbps/330kbps)
aptX-HD: 24bit/48 kHz_576kbps
aptX: 16bit/44.1 kHz_352kbps
SBC: 16bit/44.1 kHz_328kbps
AAC: 16bit/44.1kHz_320kbps
Volume:
280x843x255mm (WxHxD)
Weight:
2.6kg
Inside the Box
  • 1 x SMSL VMV A2
  • User Manual
