TANCHJIM SPACE

Dual CS43131 Decoding Chips Desktop Digital to Analog Convertor

    Dual High-Performance CS43131 DAC Chips
    Powerful Output Ports
    Type-C Interchangeable Design & Nonlinear Volume Control
    Standard High-quality OTG cable
    Large Dynamic Range & Exquisite Design
Regular price $89.99 USD
Sale price $89.99 USD Regular price

Dual High-Performance CS43131 DAC Chips

Featuring dual-path decoding architecture, TANCHJIM SPACE can independently work for the left and right channels of SPACE, and support fully balanced four-channel decoding. It is worth mentioning that the SPACE can greatly reduce the interference between channels and make the sound purer.

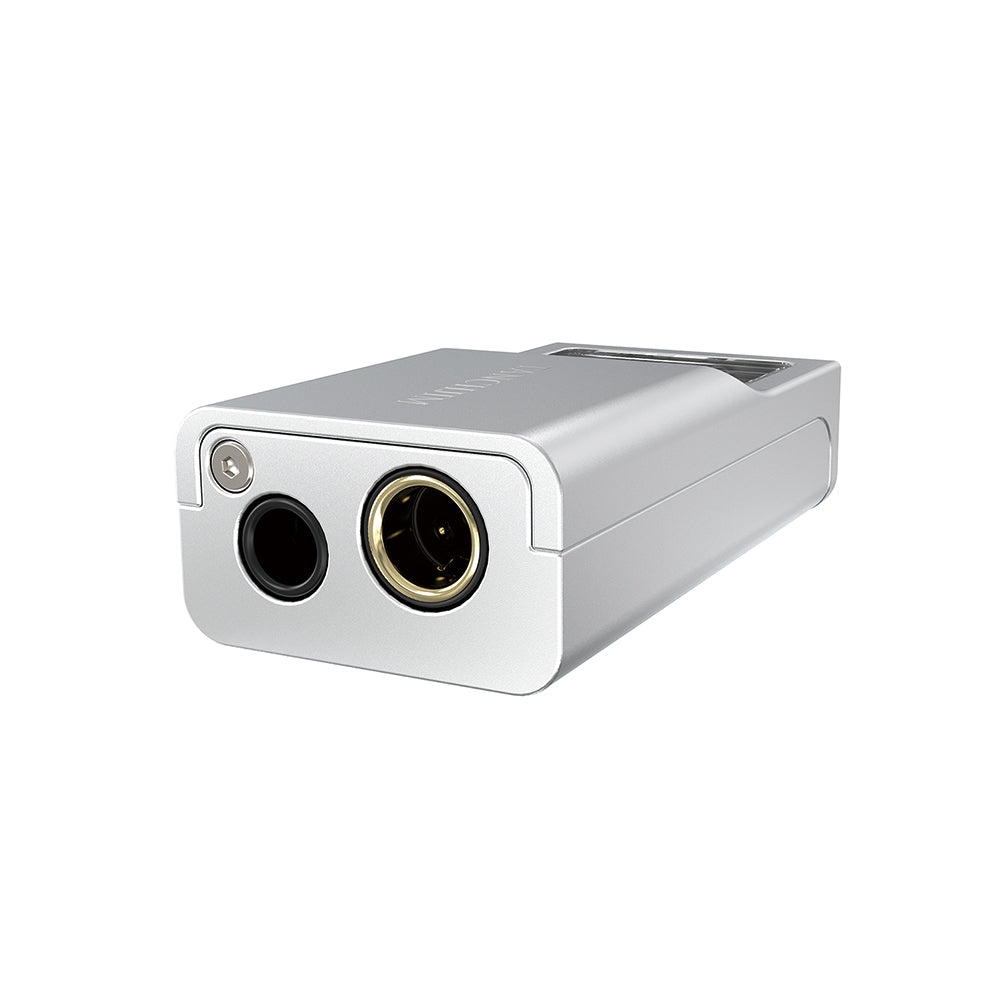

Powerful Output Ports

Characterizing perfect compatibility, SPACE combines with both 3.5mm single-ended and a 4.4mm balanced out, which feature the powerful performance. With the help of high/low gain setting, this device is able to drive all kinds of portable headphones easily for meeting daily needs.

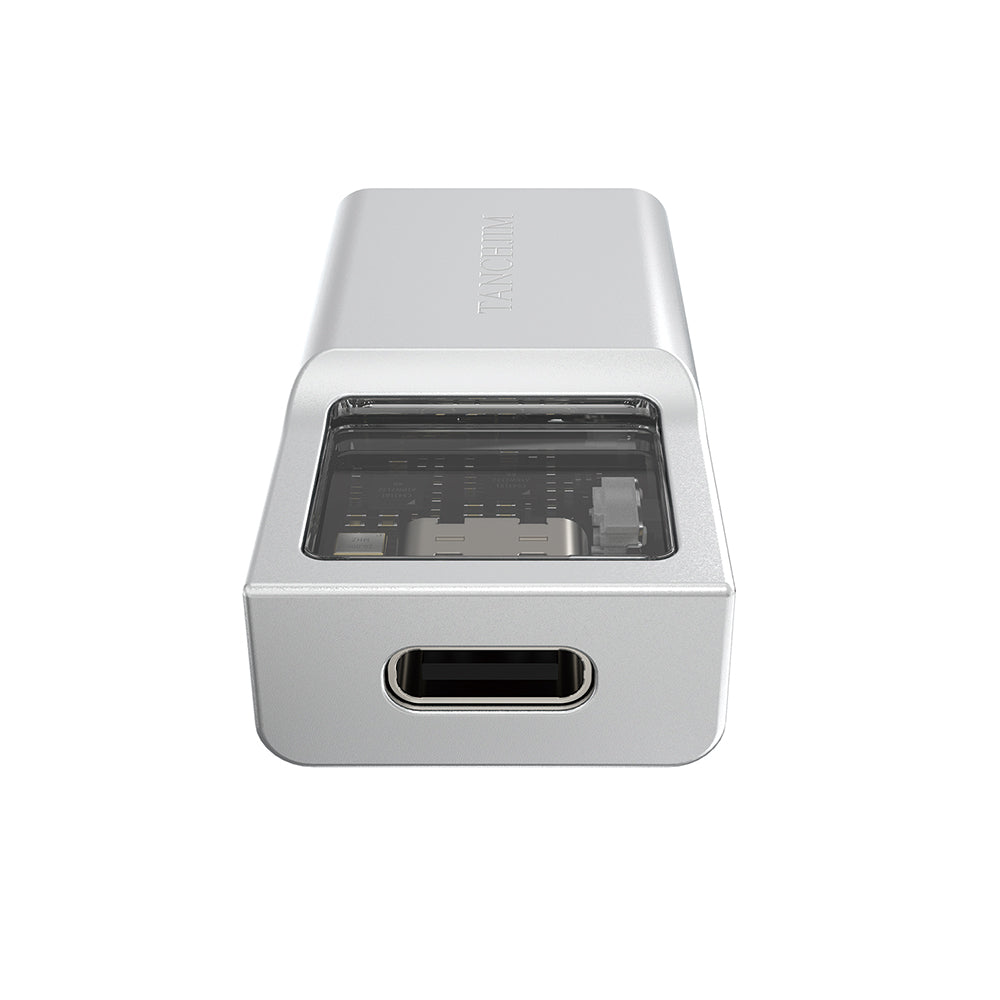

Type-C Interchangeable Design & Nonlinear Volume Control

TANCHJIM SPACE adopts Type-C interchangeable design to support the mainstream devices. Users can realize high-performance decoding of Android devices, IOS devices and PC by replacing different OTG cable. Besides, the SPACE is optimized for common in-ear headphones. There will be more volume range than that of common devices, providing a more accurate volume level.

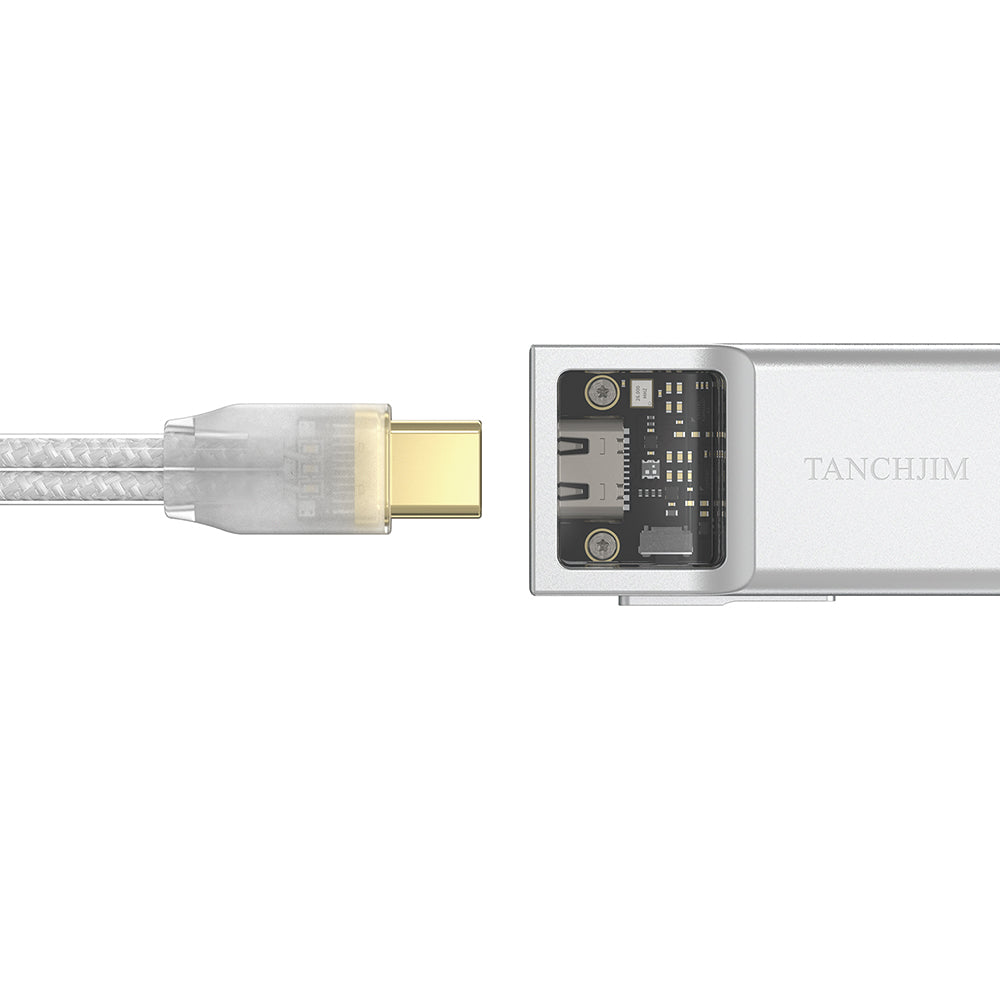

Standard High-quality OTG cable

The standard OTG cable of SPACE adopts two-strands of single crystal copper silver-plated material arranged in parallel as the core. Besides, the digital signal transmission cable and the power supply cable are independently shielded by copper silver-plated shielding layer in structure. Compared with woven cable without shielding-layer, the standard cable has stronger anti-interference ability, which makes the transmission more accurate and more efficient.

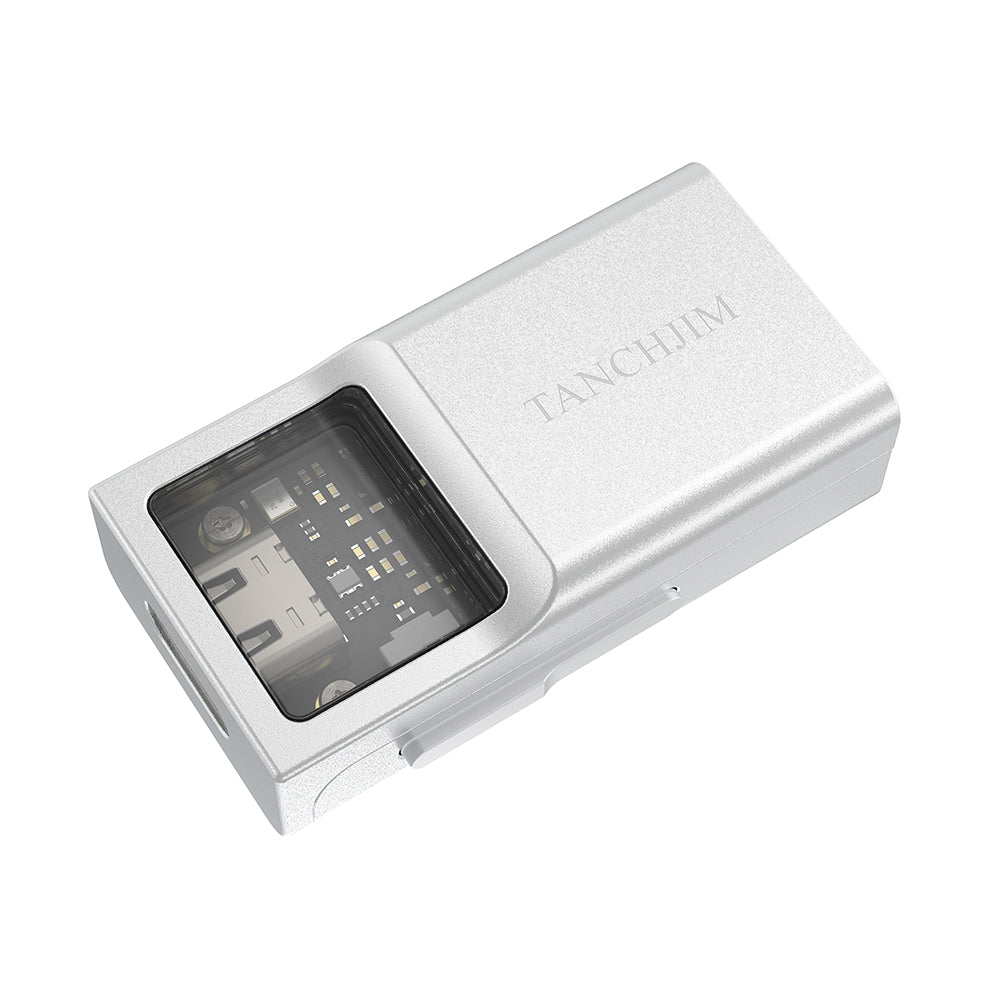

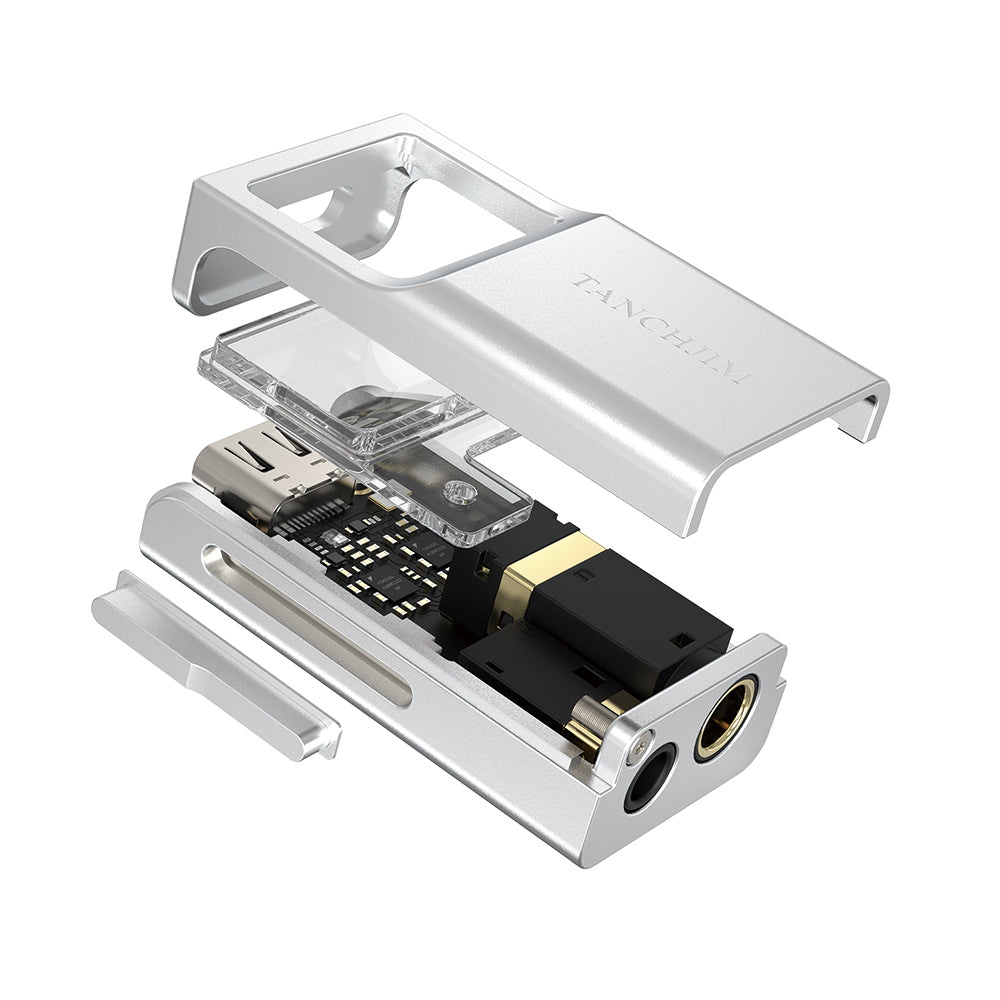

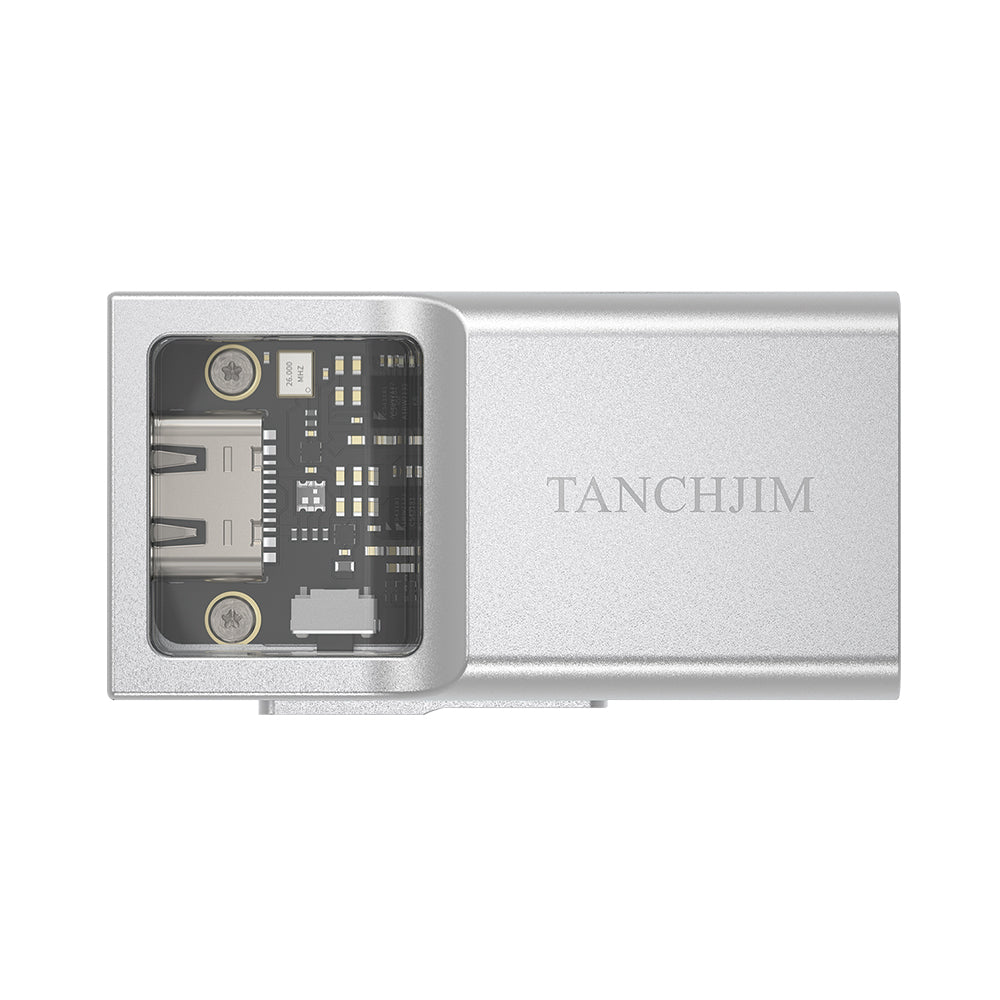

Large Dynamic Range & Exquisite Design

Thanks to the high-performance circuit design and excellent materials, the single-ended output of SPACE boosts a dynamic range of 127dB, and the balanced output offers a large dynamic range of 132dB. Besides, equipped with aviation grade aluminum alloy CNC housing transparent window design, the TANCHJIM SPACE presents the internal configuration clearly. The volume can be easily controlled due to the special button design.

Inside the Box

  • 1 x TANCHJIM SPACE
  • User Manual

1 Year Warranty

The TANCHJIM SPACE Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.

Technical Details

Brand:
TANCHJIM
Model:
SPACE
Origin:
Dongguan, China
Color:
Silver
Weight:
14.8g
Size:
4.1*2.1*1.2cm
Headphone port:
3.5mm SE / 4.4mm Bal
Input port:
USB Type-C
Frequency response:
6hz-85Khz
Background noise:
1.3uV (BAL)
1.1uV (UNBAL)
Dynamic-Range / BAL:
132dB
THD+N:
0.00017% (BAL)
0.00019% (UNBAL)
UNBAL:
127dB (AES17 20Khz, Awt)
Output power:
4Vrms (BAL High), 2Vrms (BAL Low)
2Vrms (UNBAL High), 1Vrms (UNBAL Low)
