Powerful 4 x CS43198 DAC Chips

What changes can a quad DAC brings? The answer is in TOPPING newly launched D30 PRO. With the use of 4*CS43198 chips, it provides a total of 8 full balanced channels, each of which is arranged in parallel by 4 conventional balanced channels. The increase in output capability will bring changes in the sound and the spec will be improved

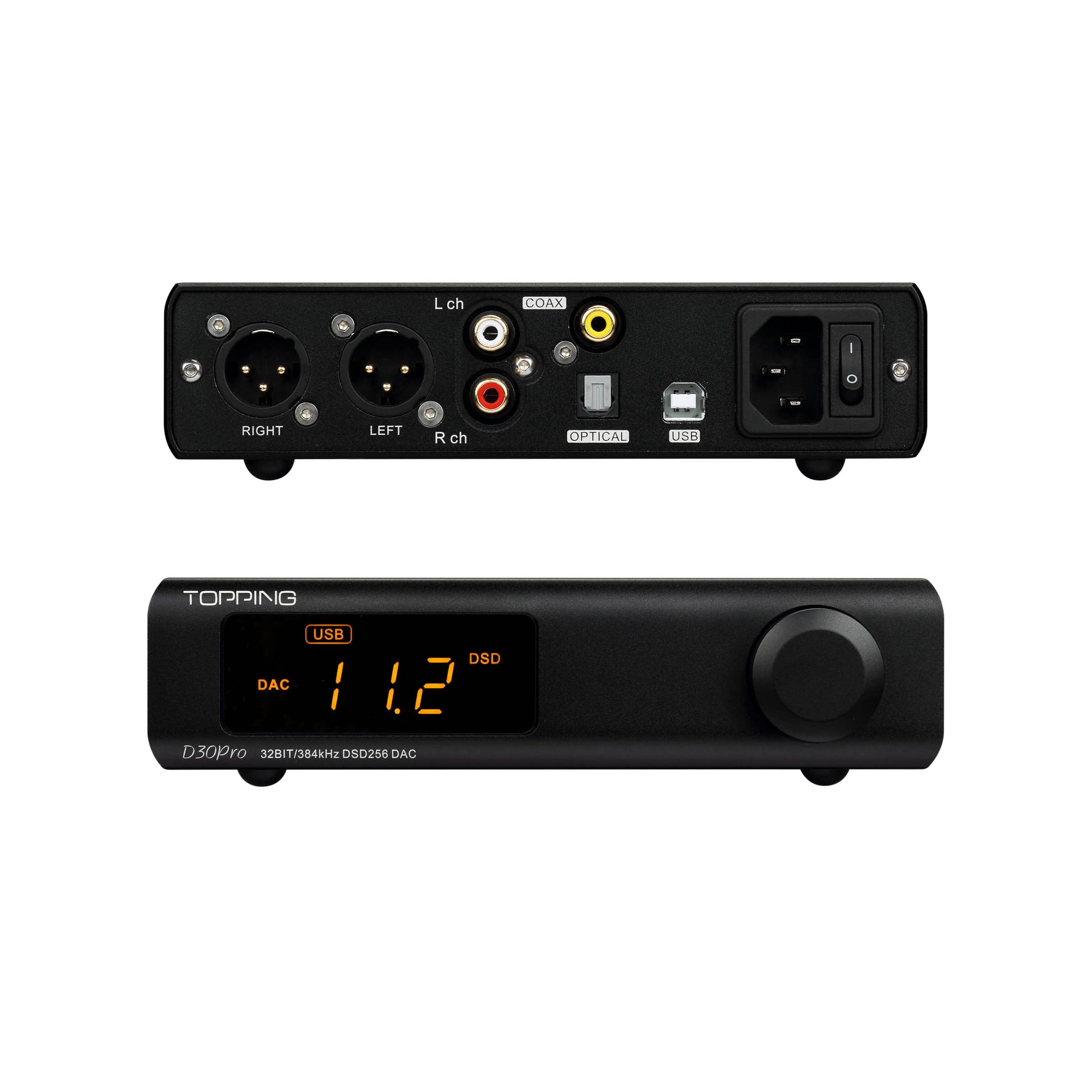

Optical/Coaxial/USB Inputs, RCA/XLR Output

D30 Pro support USB/ Coaxial/ Optical inputs, USB maximum support PCM 32bit/ 384kHz, DSD256 (Native), DSD128 (Dop); D30pro has full balanced XLR output and single ended RCA output. You can choose XLR only,"RCA only" or XLR+RCA output to meet different usage in the multiple systems.

Preamplifier Function

D30 pro has preamplifier function so you can control the output volume on the front panel or use remote control. It¡¯s noise is lower than other similar products making it suitable for connecting to power amplifiers or monitor speakers while also help you leave the budget of a preamp.

What Effort We¡¯ve Made

CPLD focusing on clock processing and digital signal optimization, restoring what t he digital signal should be. We use up to 8 independent LDOs to supply power to different loads, so there is no longer interference between different loads. Both RCA and XLR have reached the 120dB SINAD, so that RCA transmission can also have same excellent performance as XLR. .

Made it A Combo

While we are releasing D30 Pro, we also have A30 Pro at the same time which will be the best partner for D30 Pro. TOPPING A30 Pro Headphone Amp + TOPPING D30pro DAC combination have specifically redesigned NFCA module and custom functions for better resolution and output for your HiFi system

Technical Details

USB IN
PCM:44.1kHz-384kHz/16bit-32bit
DSD:DSD64-DSD256(Native),DSD64-DSD128(Dop)
COAX/OPT IN
PCM:44.1kHz-192kHz/16bit-24bit
DSD:DSD64(Dop)
Line Out RCA
THD+N@A-wt: <0.0001%@1kHz
THD@No-wt 45kBw: <0.0004%@20-20kHz
SNR@A-wt: 127dB@1kHz
Dynamic Range@A-wt: 127dB@1kHz
Frequency Response: 20Hz-20kHz(±0.1dB) / 20Hz-40kHz(±0.3dB)
Output Voltage: 2Vrms@0dBFS
Noise@A-wt: <0.9uVrms
Crosstalk: -116dB@1kHz
Output Impedance: 20Ω
Line Out XLR
THD+N@A-wt: <0.00009%@1kHz
THD@No-wt 45kBw: <0.0004%@20-20kHz
SNR@A-wt: 132dB@1kHz
Dynamic Range@A-wt: 132dB@1kHz
Frequency Response: 20Hz-20kHz(±0.1dB) / 20Hz-40kHz(±0.3dB)
Output Voltage: 4Vrms@0dBFS
Noise@A-wt: <1.1uVrms
Crosstalk: -145dB@1kHz
Output Impedance: 40Ω
Product Dimension
-17.4*13.8*4.5cm
Whats in the Package?
-1 x D30 Pro
-1 x USB Cable
-1 x AC Cable
-1 x Remote Control
-1 x User Manual
-1 x Warranty Card
Inside the Box
  • 1 x TOPPING D30 Pro
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The TOPPING D30 Pro Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.
