Flagship ES9038PRO DAC Chip

Utilizing ESS¡¯ flagship ES9038PRO DAC chip, the TOPPING DM7 decodes 32-bit files with 130dB of dynamic range and <0.00009% THD+N.

Full 8-Channel Output, Easy To Use

In Windows 10 and 11, the DM7 can be used in stereo without a driver or used in 8 channels with a driver. On a Mac, the DM7 can be used without a driver and freely configured with up to eight channels.

Perfectly Pairs With The TOPPING LA90

The DM7's fully-balanced TRS outputs can be connected to powered monitors or the TOPPING LA90 Class AB power amplifier.

Backwards Compatibility

The DM7 is backwards compatible with 6-channel, 4-channel, and 2-channel systems, covering 7.1, 6.1, 5.1, and 2.0 applications. It supports both Windows and Mac devices. With Windows systems, it works in 2-ch mode until you upgrade the system with the latest driver.

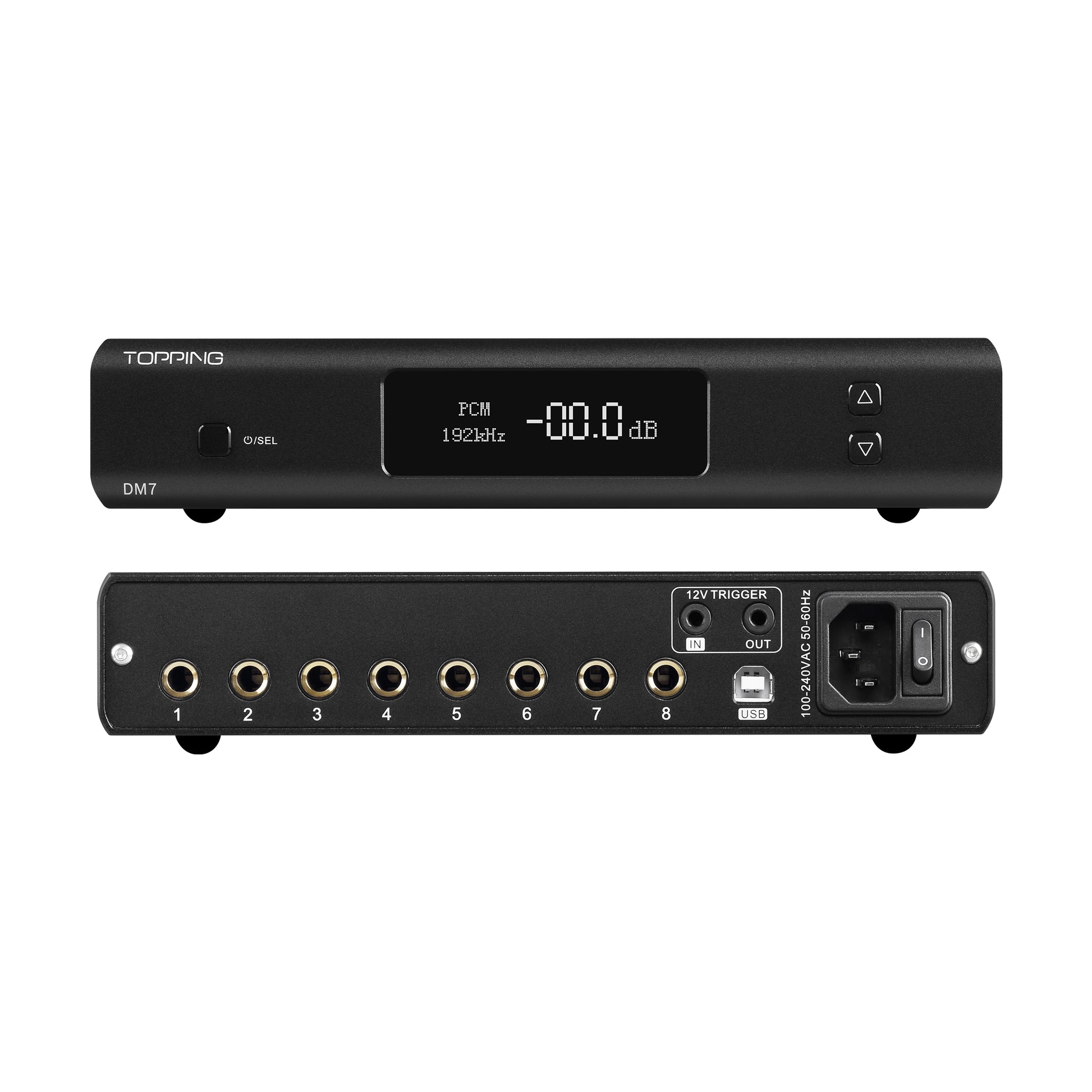

12V Trigger In/Out

Turn the DM7 on and off with other devices synchronously using the 12V trigger interface. Simply connect the 12V trigger interface with a compatible device; when you turn one on, the other turns on, and vice versa.

High Resolution Audio

The DM7 supports PCM audio streams up to 32bit 192kHz as well as native DSD up to DSD128 and DoP64, thus covering the vast majority of audio streams used.

Technical Details

Decoding Specs
32-Bit/192kHz PCM, DSD128 natively, DSD64(DoP)
THD+N(A-Weighted)
<0.00009% @ 1kHz
THD @ 90kBw(no-weighted)
<0.0002%@20Hz-20kHz
SNR
130dB
Dynamic Range
130dB
Frequency Response
20Hz-40kHz
Output Level
4.0Vrms(4V mode), 5.0Vrms(5V mode)
Noise(A-Weighted)
<1.5uVrms
Crosstalk@1kHz
-143dB
Channel Balance
<0.3dB
Output Impedance
100Ω
Inside the Box
  • 1 x TOPPING DM7
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The TOPPING DM7 Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.
