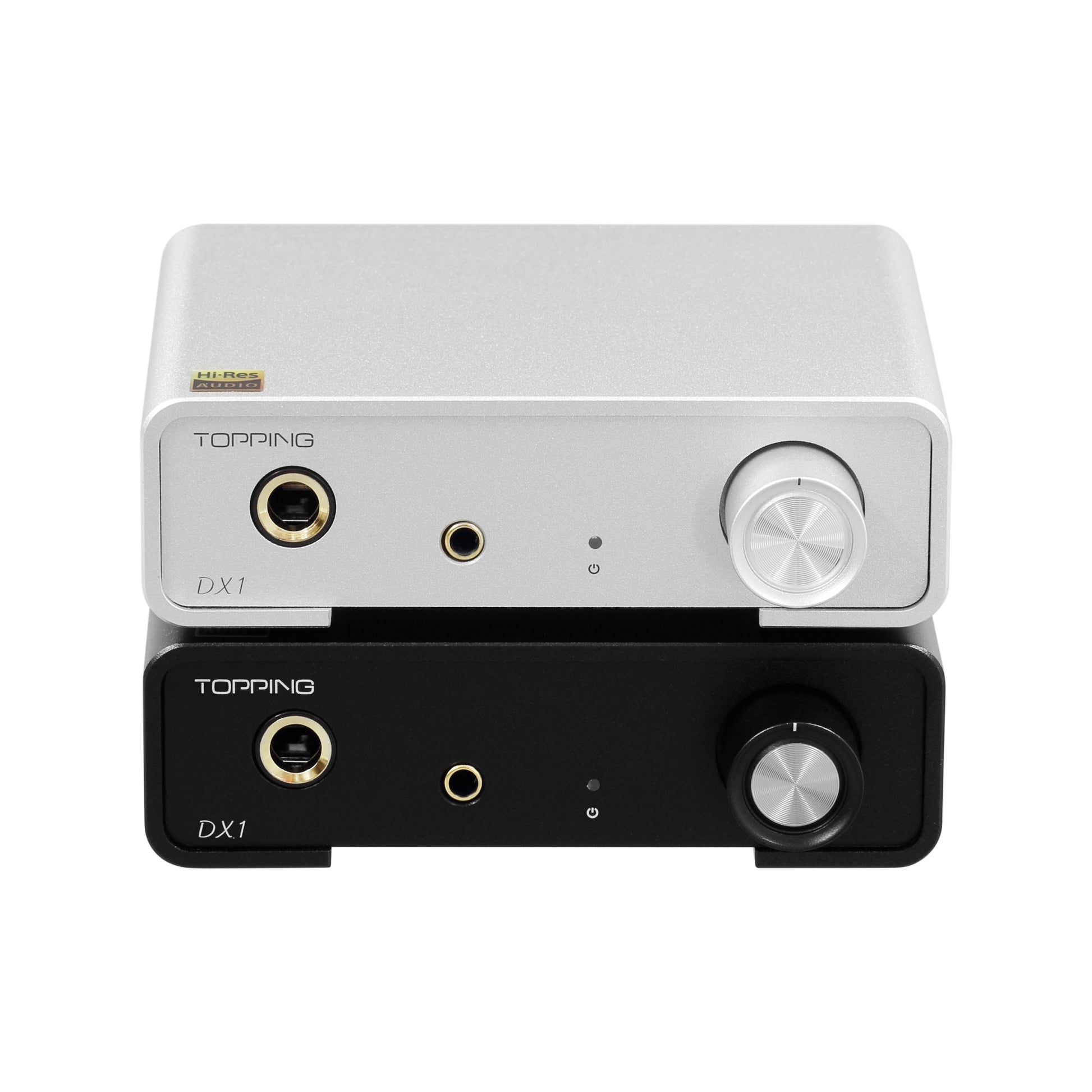

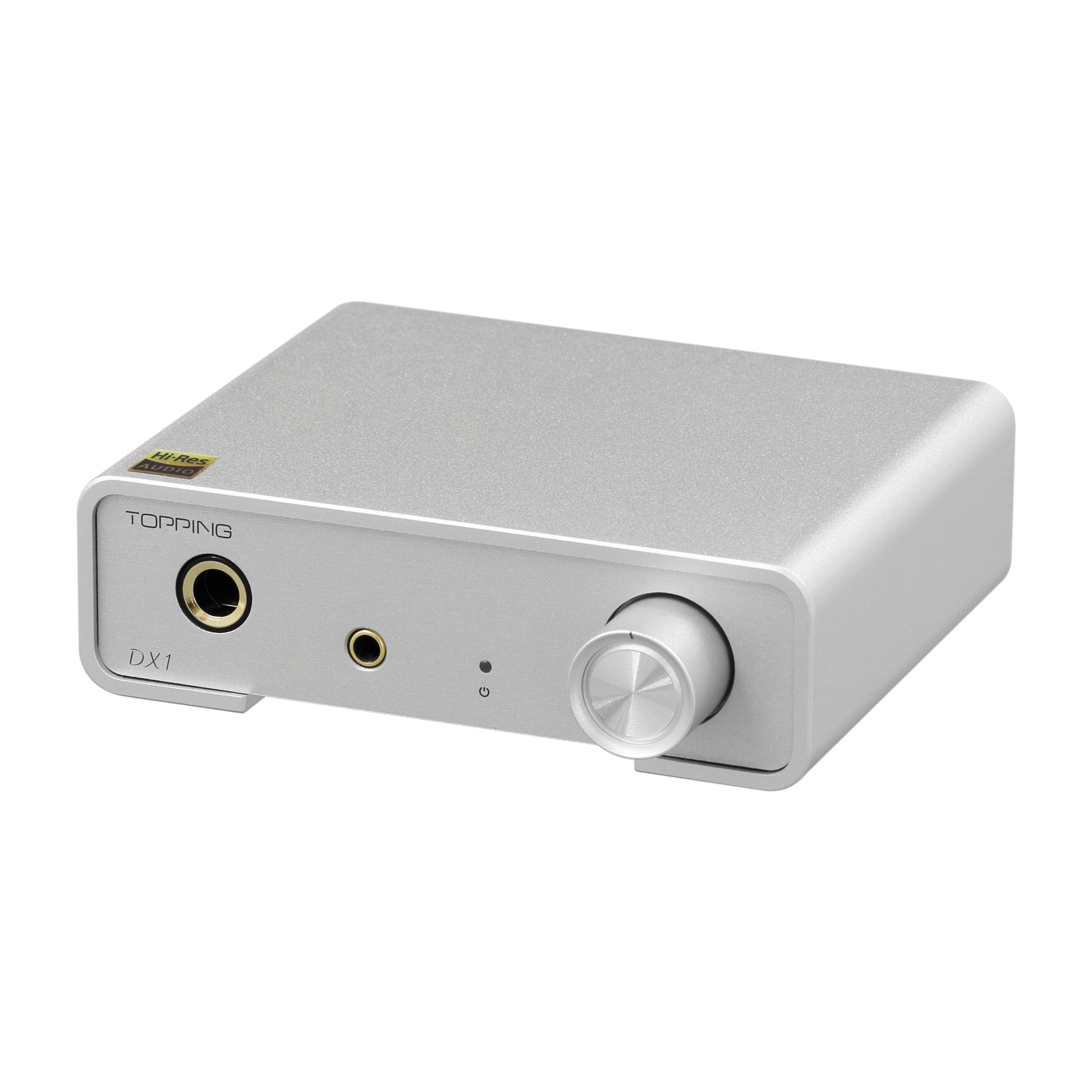

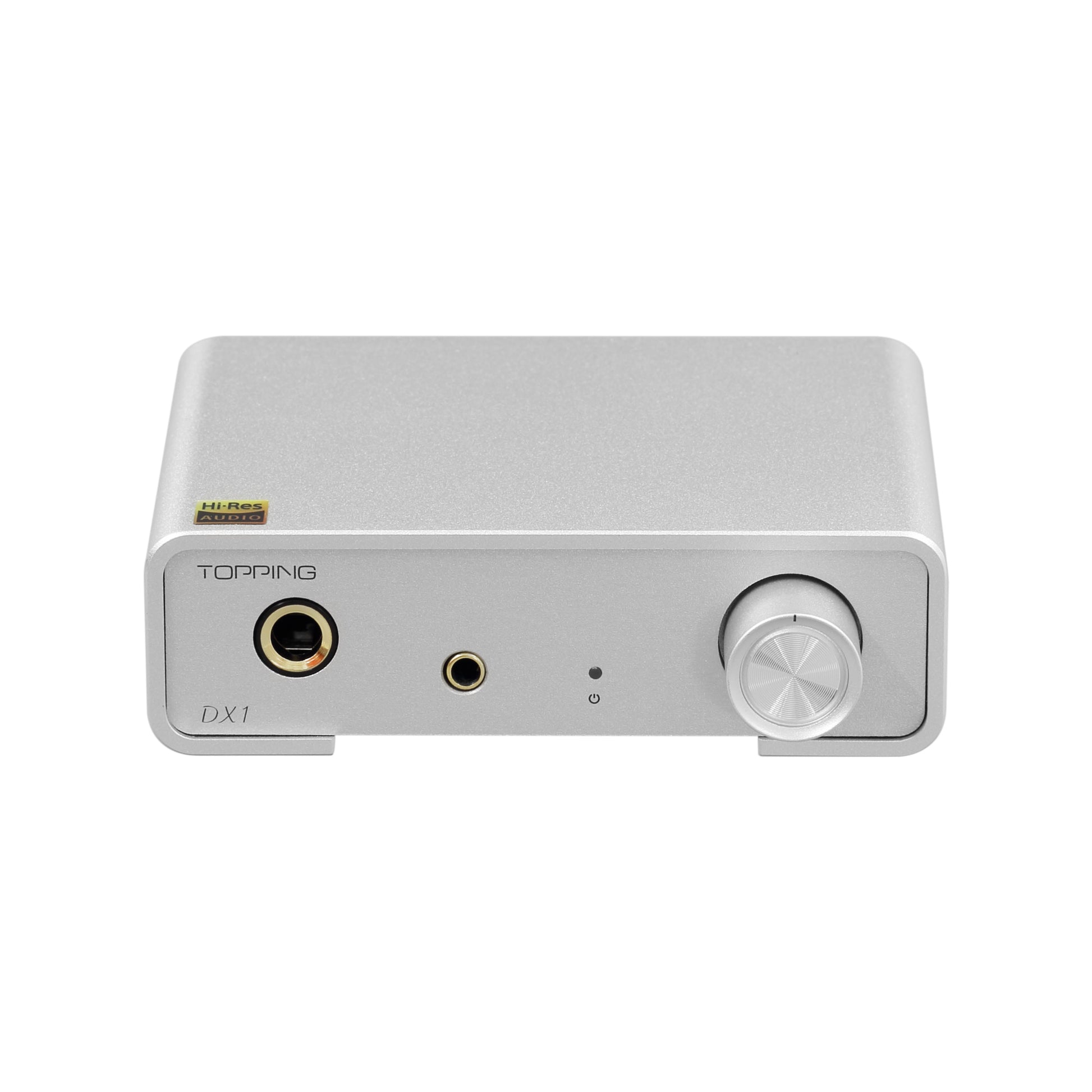

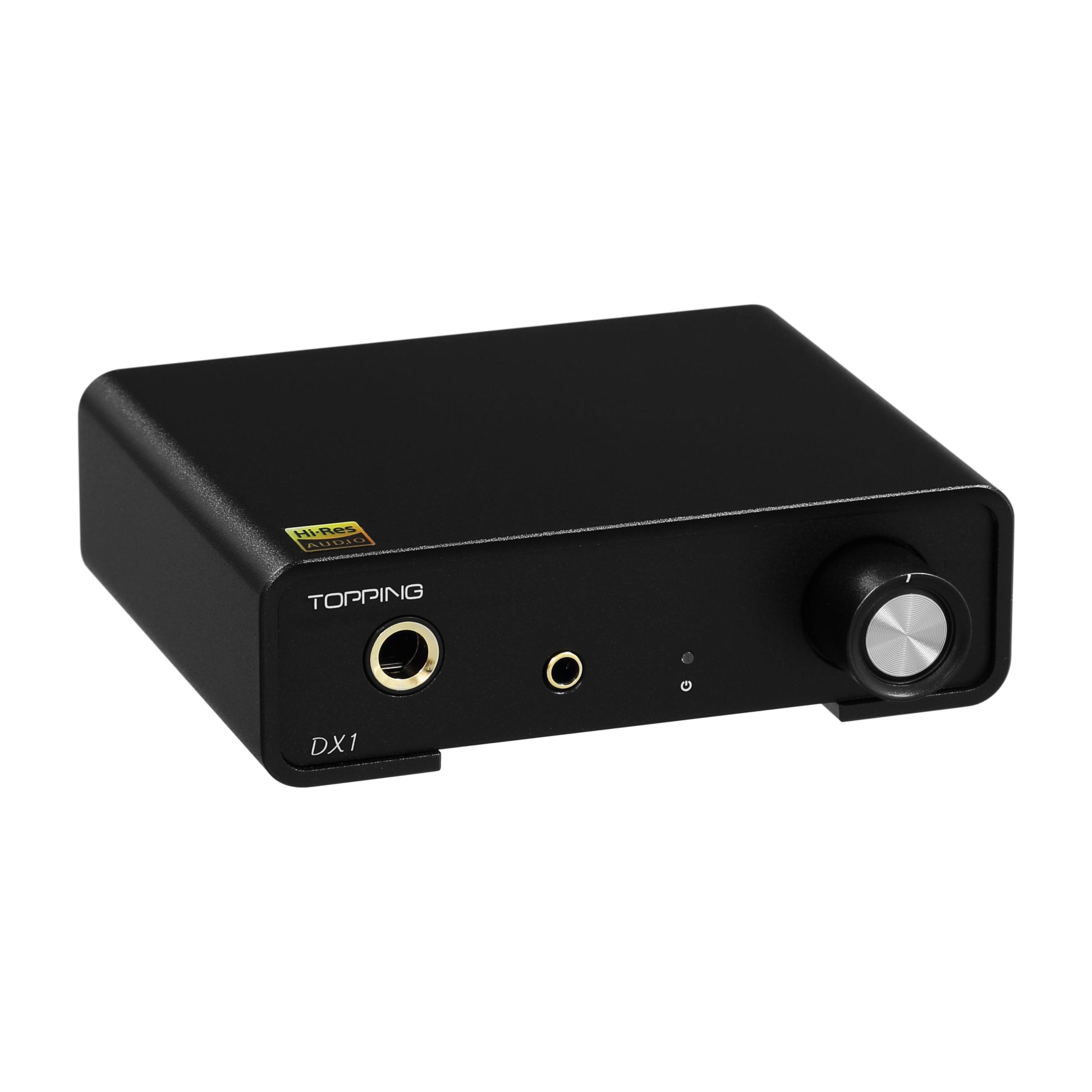

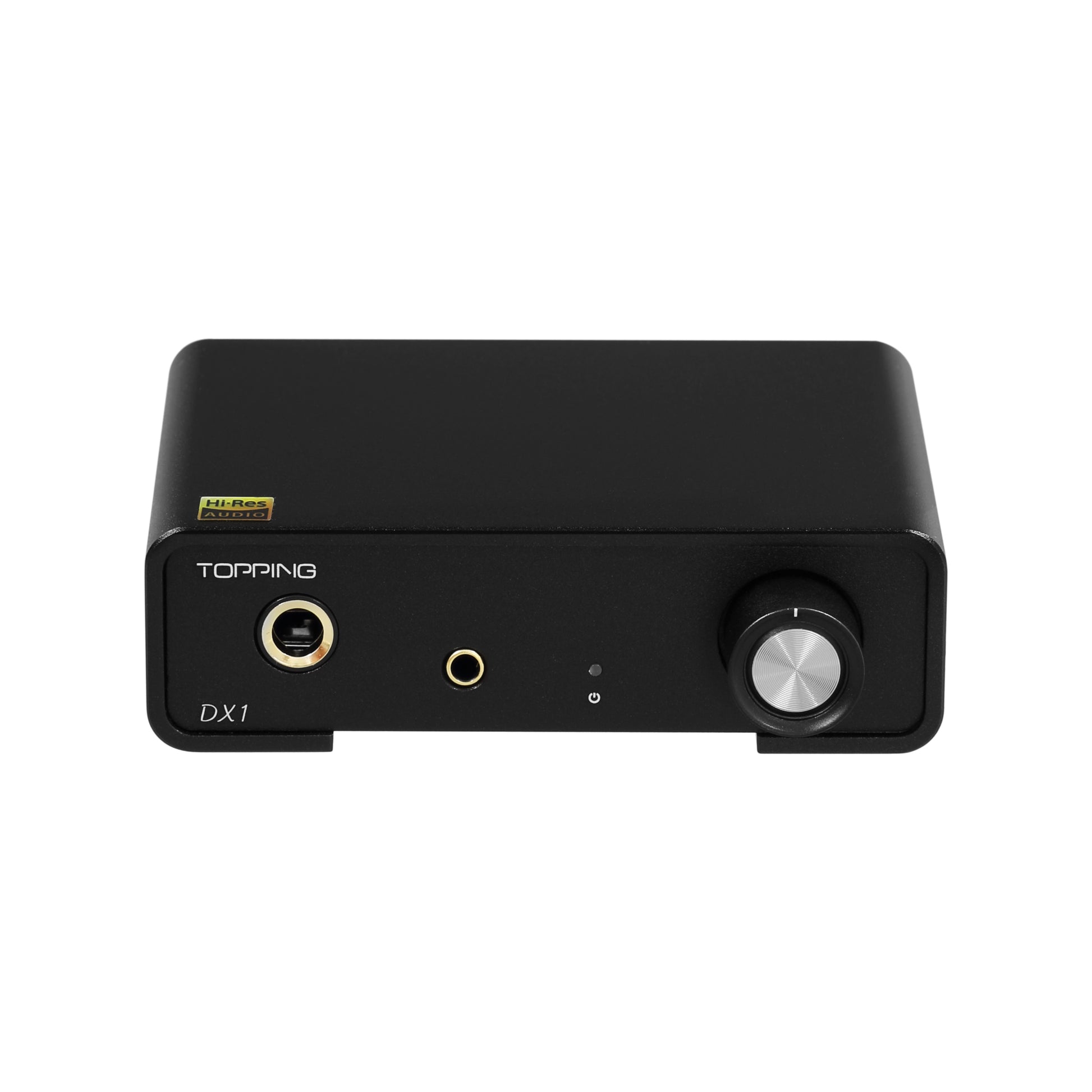

TOPPING DX1
High-Resolution Support DSD256 PCM384 Decoder Amplifier
- New-Generation AK4493S DAC Chip
- Superb clean performance with Ultra-low distortion
- Supports high-resolution 32-Bit/384kHz PCM and native DSD256
- XMOS high-performance XU208 USB Receiver
- Hi-Res Audio Certified
- Dual Headphone outputs, 6.35mm and 3.5mm
- Plug & Play,No Adapter Required
TOPPING DX1
New-Generation AKM DAC Chip
Topping has equipped the latest DX1 with the latest generation AKM DAC chipset. It houses the AK4493S DAC chip from AKM¡¯s Velvet Sound technology, it¡¯s a 32-bit DAC upgraded from the classic AK4493. It helps the DX1 to provide crisp high-resolution audio signal decoding.
High-Resolution Audio Decoding
Topping DX1 is an all-in-one solution for all your Hi-Fi needs. The device supports high-resolution PCM and DSD signal decoding bringing an authentic high-resolution audio experience to your desktop. It has an XMOS XU208 USB receiver chip that provides 32-Bit/384kHz and Native DSD256 signals.
Plug & Play, No Adapter Required
Topping DX1 is widely compatible with a range of desktop devices. It doesn¡¯t require any additional power adapter and works directly off your sources like Windows/Ma/Linux and even Android devices.
Discrete LNRD Circuit
In order to reduce noise from USB power, DX1 features a Discrete LNRD circuit(low noise reference driver). It filters out the noise and interference of USB 5V power and provides a clean and stable power supply to the device.
Compact Size, Powerful Output
Topping DX1 is a powerful device, it packs a punch in its compact size. It has a powerful output rating of up to 280mW @ 32¦¸ of load. It has two level gain modes, Low and High. Easily power your IEMs and HPs with the DX1.
Technical Details
Product type: DAC and headphone amplifier
DAC chi: AKM AK4493S

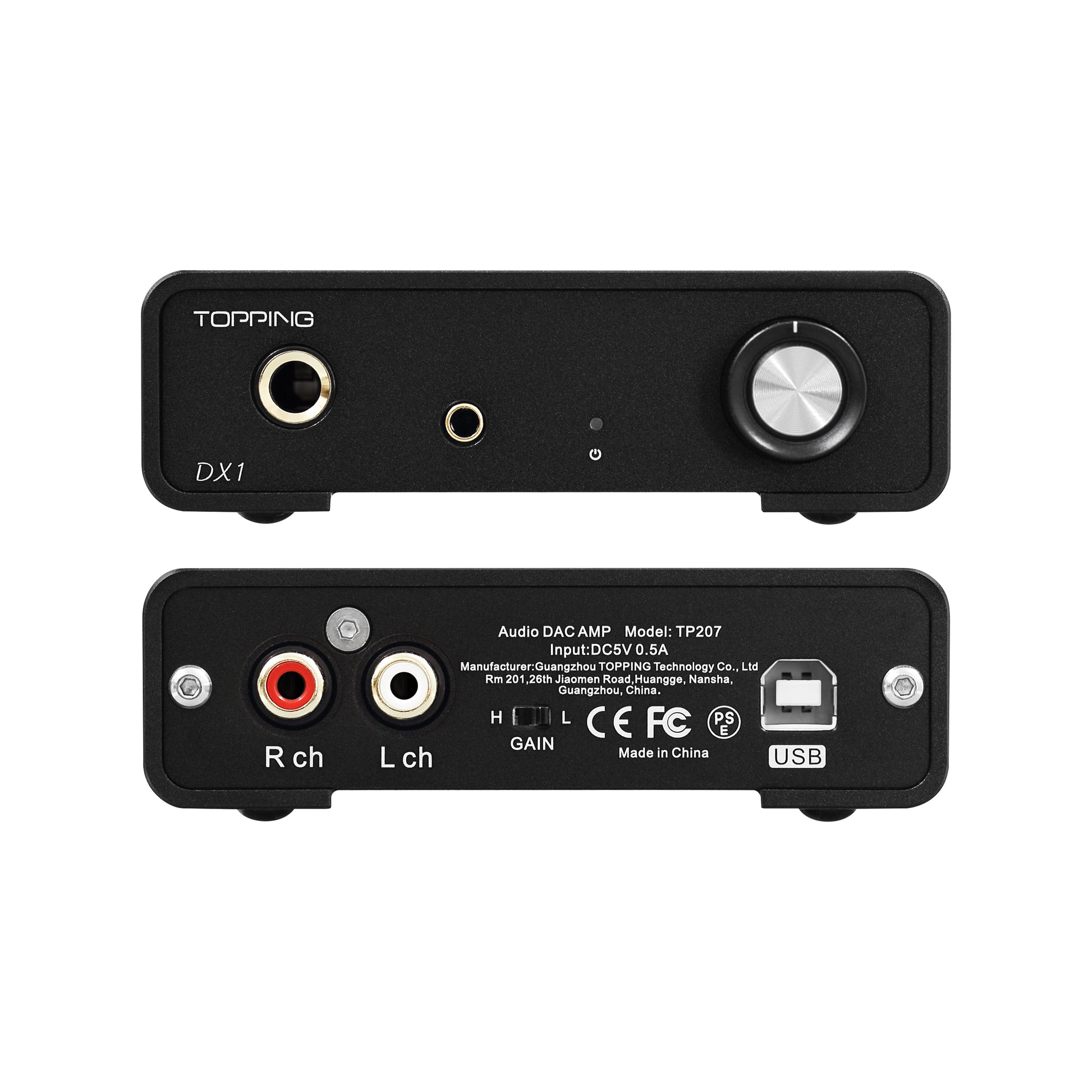

Input: 1x USB-B
Outputs:
1x Stereo RCA line out (fixed volume)
1x Jack 3.5mm headphone output
1x Jack 6.35mm headphone output
Supported sampling rates:
PCM up to 32bit 384kHz
Native DSD up to DSD256
DSD DoP up to DSD128
THD @ 20Hz-20kHz, 90kBw:< 0.0006%
SNR @ 1kHz, A-Weighted:120dB
Dynamic range @ 1kHz, A-Weighted:120dB
Frequency repsonse:
20Hz - 20kHz (±0.3dB)
20Hz - 40kHz (±0.7dB)
Output level: 2.0Vrms @ 0dBFS
Crosstalk @ 1kHz:-112dB
Channel balance: 0.3dB
Output impedance:22Ω
< 0.0003% @ 200mW, 32Ω
< 0.0002% @ 45mW, 300Ω
THD @ 20Hz-20kHz, 90kBw:
< 0.003% @ 200mW, 32Ω
< 0.001% @ 45mW, 300Ω
SNR @ Max Out, 1kHz, A-Weighted:118dB
Dynamic range @ 1kHz, A-Weighted:118dB
Frequency response:
20Hz - 20kHz (±0.3dB)
20Hz - 40kHz (±0.7dB)
Output level:
2.2Vpp @ G=L
11Vpp @ G=H
Noise @ A-Weighted:< 1.0µVrms
Crosstalk @ 1kHz:-86dB
Gain:
-2dB (Vrms/FS) @ G=L
12dB (Vrms/FS) @ G=H
Output impedance :< 0.5Ω
Output power:
2x 280mW @ 32Ω, THD+N <0.1%
2x 190mW @ 64Ω, THD+N <0.1%
2x 51mW @ 300Ω, THD+N <0.1%
Load impedance :> 8Ω
1x USB-B cable
- 1 x TOPPING DX1
- User Manual
