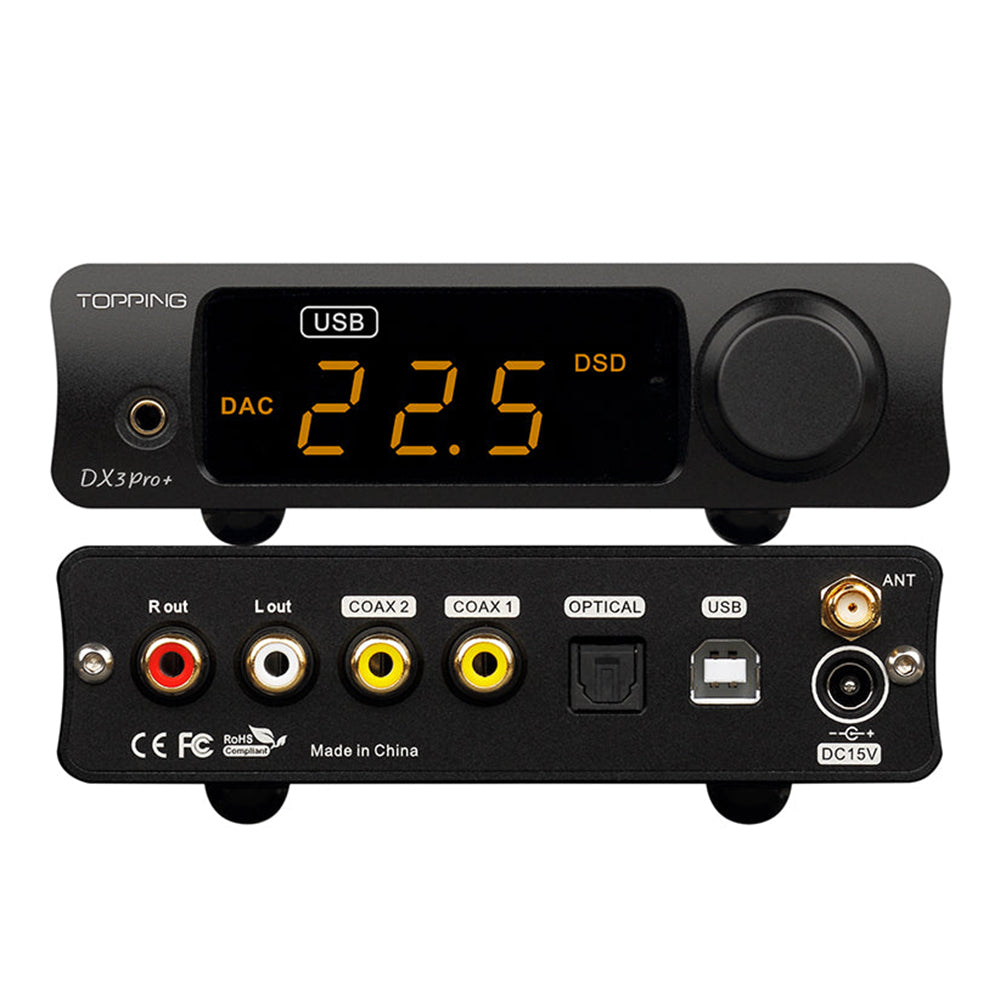

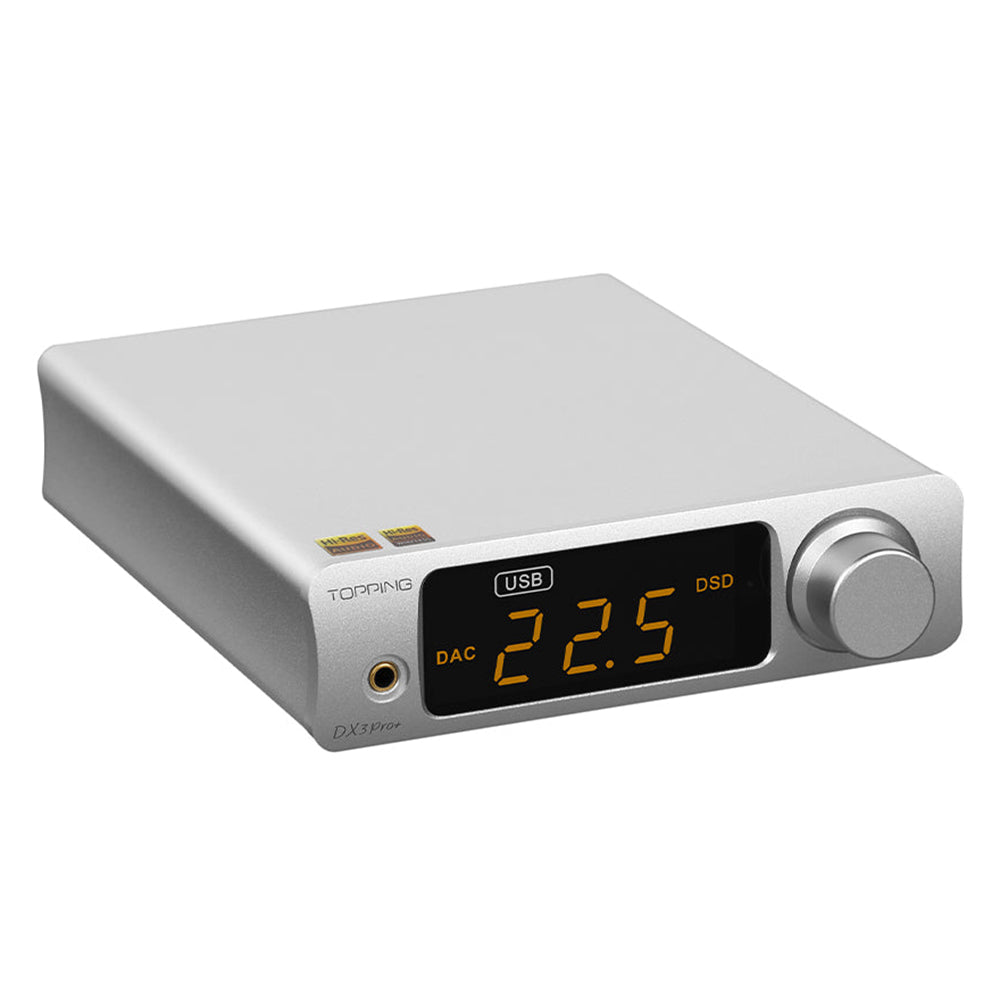

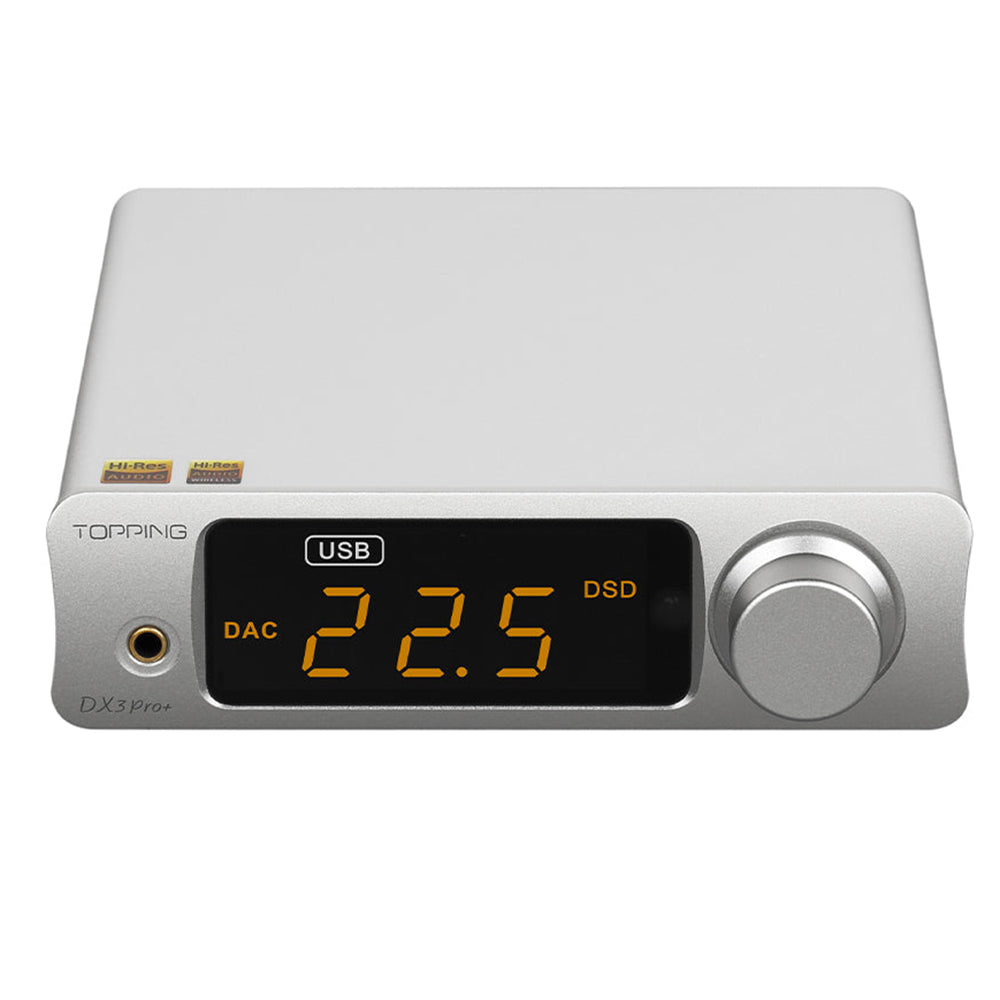

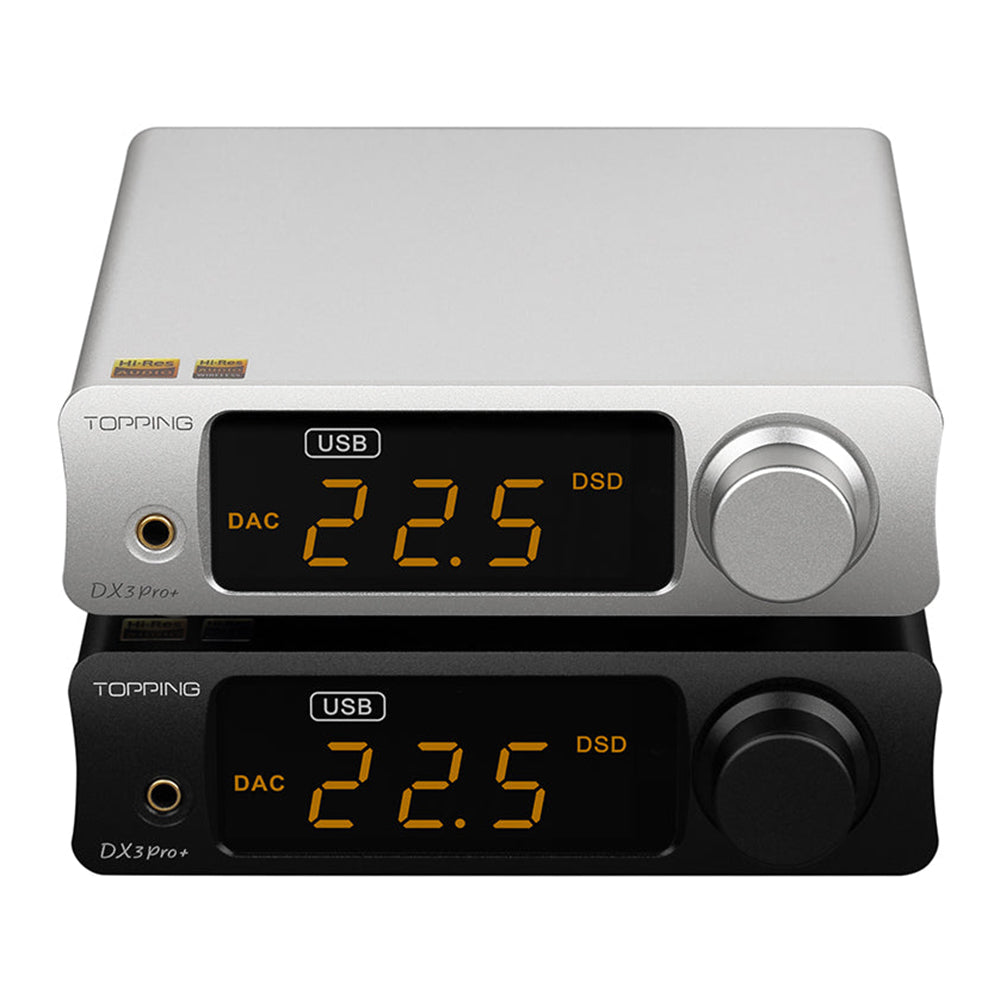

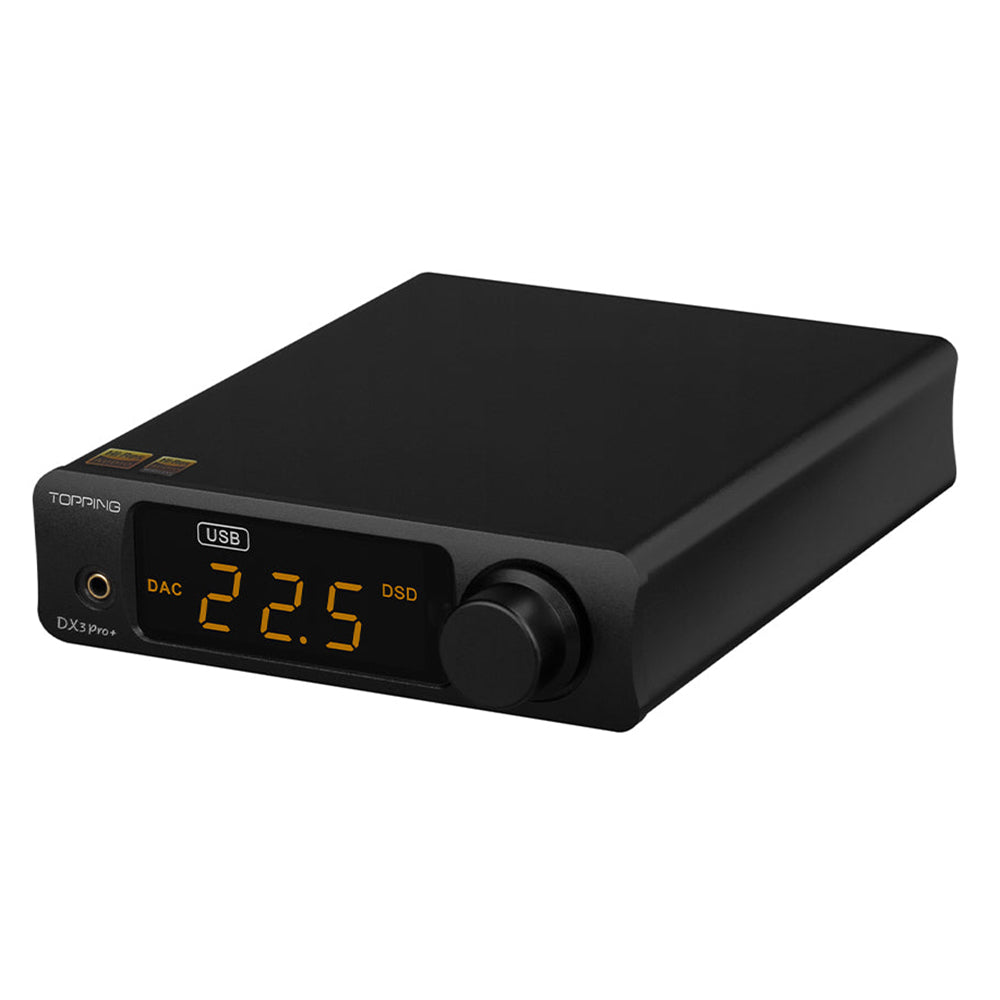

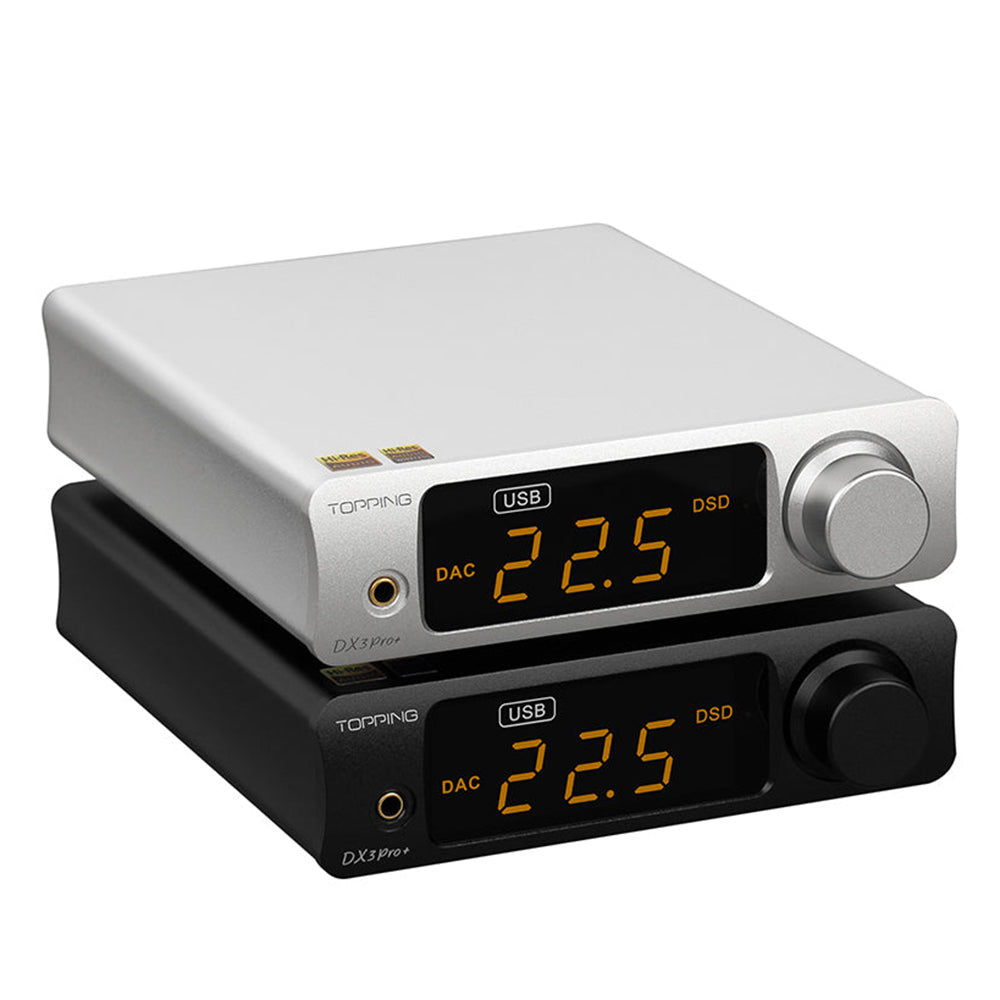

TOPPING DX3 Pro+
Updated Headphone Bluetooth DAC Remote Amplifier Pre-Amplifier
- Bluetooth 5.0 LDAC Transmission
- Plug and Play, Turn Your Pc into a HIFI Source
- NFCA Circuit & High-performance DAC Circuit
- DAC+ Headphone amp application & Pre-amplifier application
- High performance and Bluetooth DAC application
TOPPING DX3 Pro+
Bluetooth 5.0 LDAC Transmission
DX3Pro+ has the certification of Hi-Res Audio Wireless and LDAC. It uses newest QCC5125 chipset to support LDACIAAC/SBCIAPTX/APTX LL/APTX HD protocol. In order to get better sound quality from Bluetooth, the built-in DAC of QCC5125 is abandoned and its digital signal to ES9038Q2M can be connected to decode.
Plug and Play, Turn Your Pc into a HIFI Source
DX3Pro+ adapts 2nd generation 8 core XMOS XU208, and USB supports up to PCM32bit768kHz and DSD512native. It also has a wide range of compatibility including Windows 10£¬MAC, Linux, IOS, Android, all of which can be plug and play. Even in the face of higher-end ASIO applications, for instance, MAC drive-free, Win10 with customized Thesycon ASIO driver DX3Pro+ can do a good job. That is why PC can become a professional HIFI source.
NFCA Circuit & High-performance DAC Circuit
The new DX3Pro+ characterizes the NFCA circuit optimized for this unit, giving the ultra-low noise and distortion. It also fits with high sensitivity IEMs and power-hungry high impedance headphones perfectly. DX3Pro+ provides two gain settings, which greatly expands the range of headphone adaptation. However not all ES9038Q2M DACs are created equally. With careful engineering and full attention to details from out engineering team, 0.00015%THD+N can be achieved. This provides pristine sound quality. When ultra-low jitter for all inputs, jitter is no longer worried.
DAC+ Headphone amp application & Pre-amplifier application
Connecting the digital signal and the headphone to DX3Pro+, it will serve as a DAC+ Headphone amp, bringing you every detail of music. DX3Pro+ also features a simple Pre-amp function that you can use to adjust the volume. The digital volume adjustment will not have any imbalance between the left and right channels. When you only need a simple DAC, DX3Pro+'s output mode can be set to be DAC, then it could serve as a simple DAC. Screen is play current sampling rate wildly and volume will keep outputting 2Vrms.
High performance and Bluetooth DAC application
Whether it is Apple IOS device, Android device or media player, as long as it supports OTG external sound card, it can be connected to the USB input of DX3Pro+ to make it be their external high-performance DAC. Connecting the Bluetooth of the phone, tablet or notebook to DX3Pro+£¬and matching the power amplifier£¬active speakers or headphones to the DX3Pro+'s output, then DX3 Pro+ becomes your Bluetooth Headphone amp / Bluetooth DAC. You can easily enjoy the high quality music and convenience brought by Bluetooth5.0. If your device supports LDAC transmission£¬you will get even better experience.
Technical Details
COAX / OPT IN：44.1kHz-192kHz/
BT IN：AACISBC / APTXIAPTXLL / APTX HDLDAC
COAX / OPT IN：Not supported
BT IN：Not supported
COAX / OPT IN: DSD64
BT IN:Not supported
THD@20-20kHz (90kBW):<0.00020%
SNR@1kHz (A-wt):122dB
Dynamic Range@1kHz(A-wt):122dB
Frequency Response:
20Hz-20kHz(+0.3dB)
20Hz-40kHz(+0.7dB)
Output Level:2.1Vrms @0dBFS
Noise (A-wt):<1.8uVrms
Channel Crosstalk @1kHz:-137dB
Channel Balance:0.3 dB
Output lmpedance:20Ω
<0.00015%@Output=1500mw(32Ω)
<0.00013%@Output=160mw(300Ω)
THD@20-20kHz(90kBW):
<0.0005%@Output=1500mw (32)
<0.0005%@Output=160mW (300Ω)
SNR@MAX OUT 1kHz(A-wt):120dB
Dynamic Range@1kHz(A-wt):120dB
Frequency Response:20Hz-20kHz(±0.3dB)
Frequency Response:20Hz-40kHz(+0.7dB)5.5Vpp @G=L
Output Level:21.5Vpp@G=H
Noise (A-wt)：
<2.1uVrms @G=L
<7.0uVrms @G=H
Channel Crosstalk @1kHz：-90dB
Gain:
6.0dB (Vrms/FS) @G=L
19dB (Vrms/FS) @G=H
Output Impedance:<0.1Q
Output Power：
1800mWx2@32Ω THD+N<0.1%
900mW x 2@64Ω THD+N<0.1%
250mW x 2@300Ω THD+N<0.1%
Adapter lmpedance：>8Ω
- 1 x TOPPING DX3 Pro+
- User Manual
