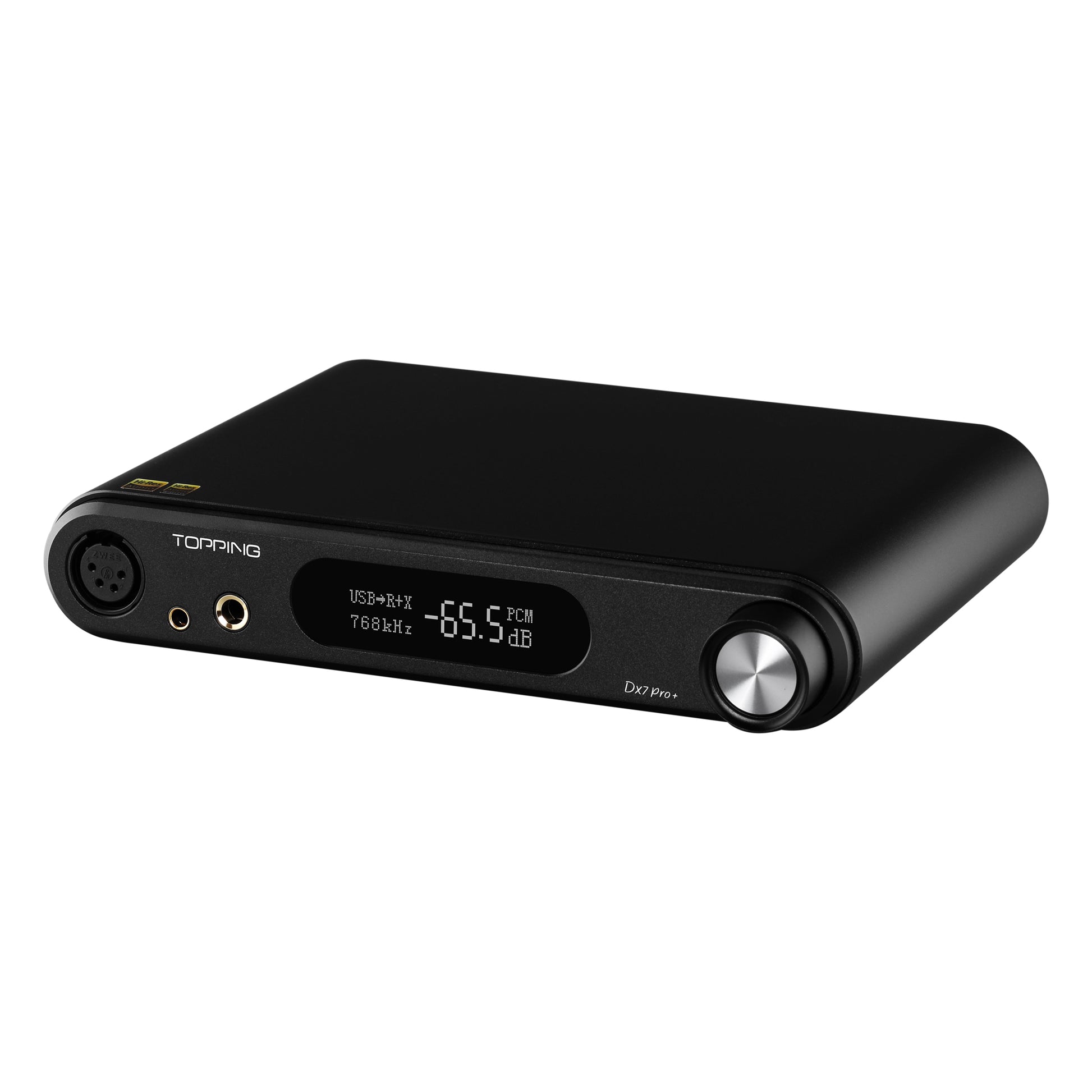

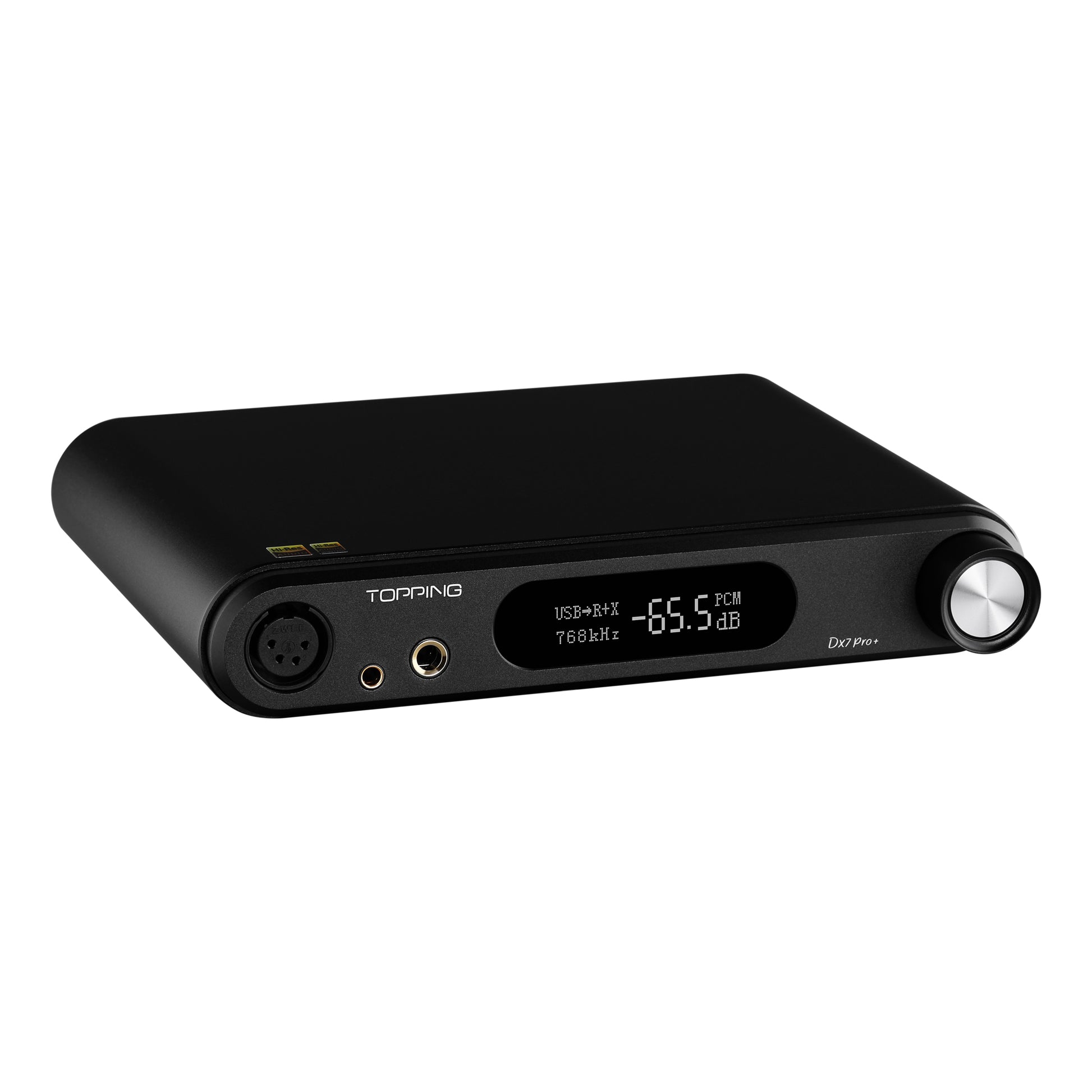

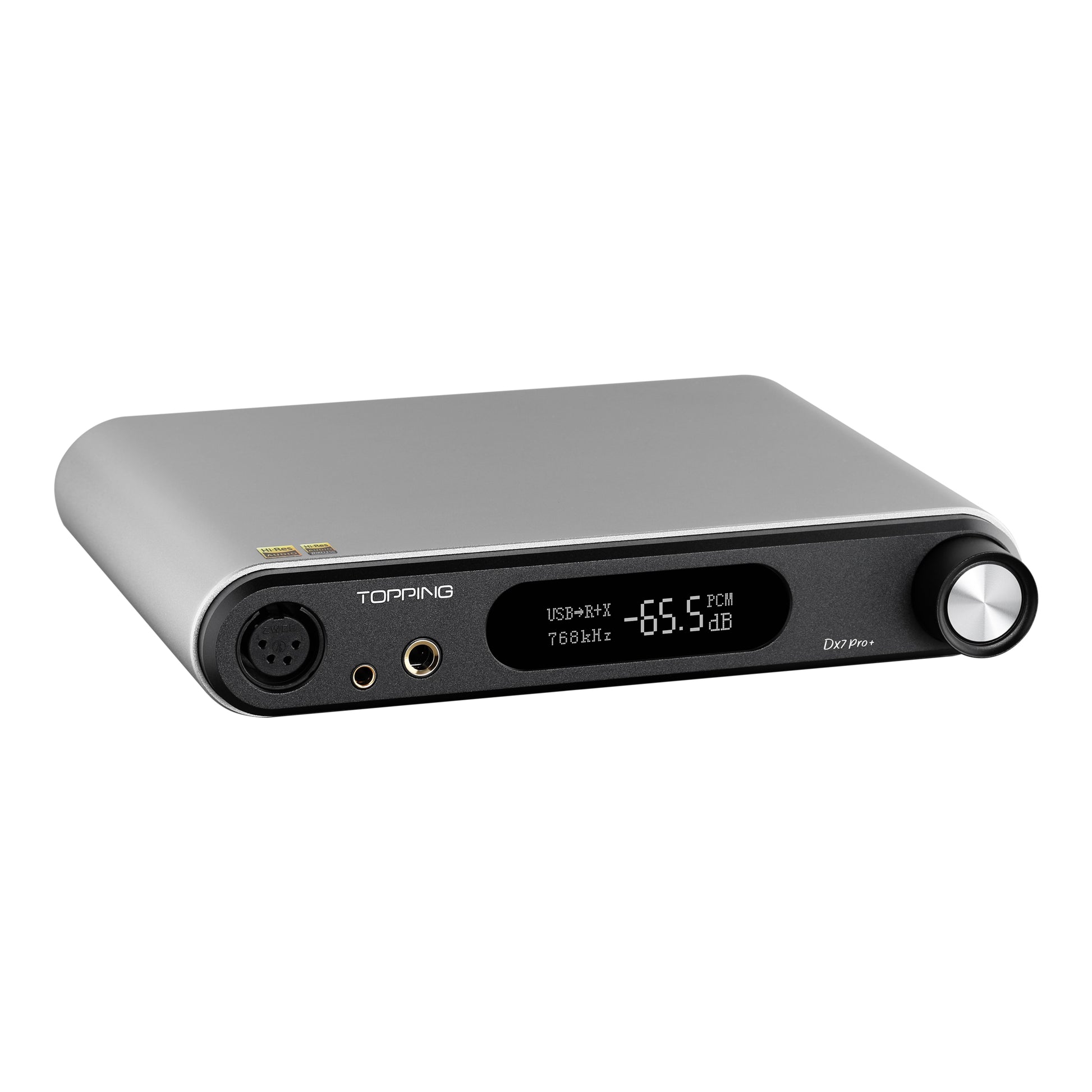

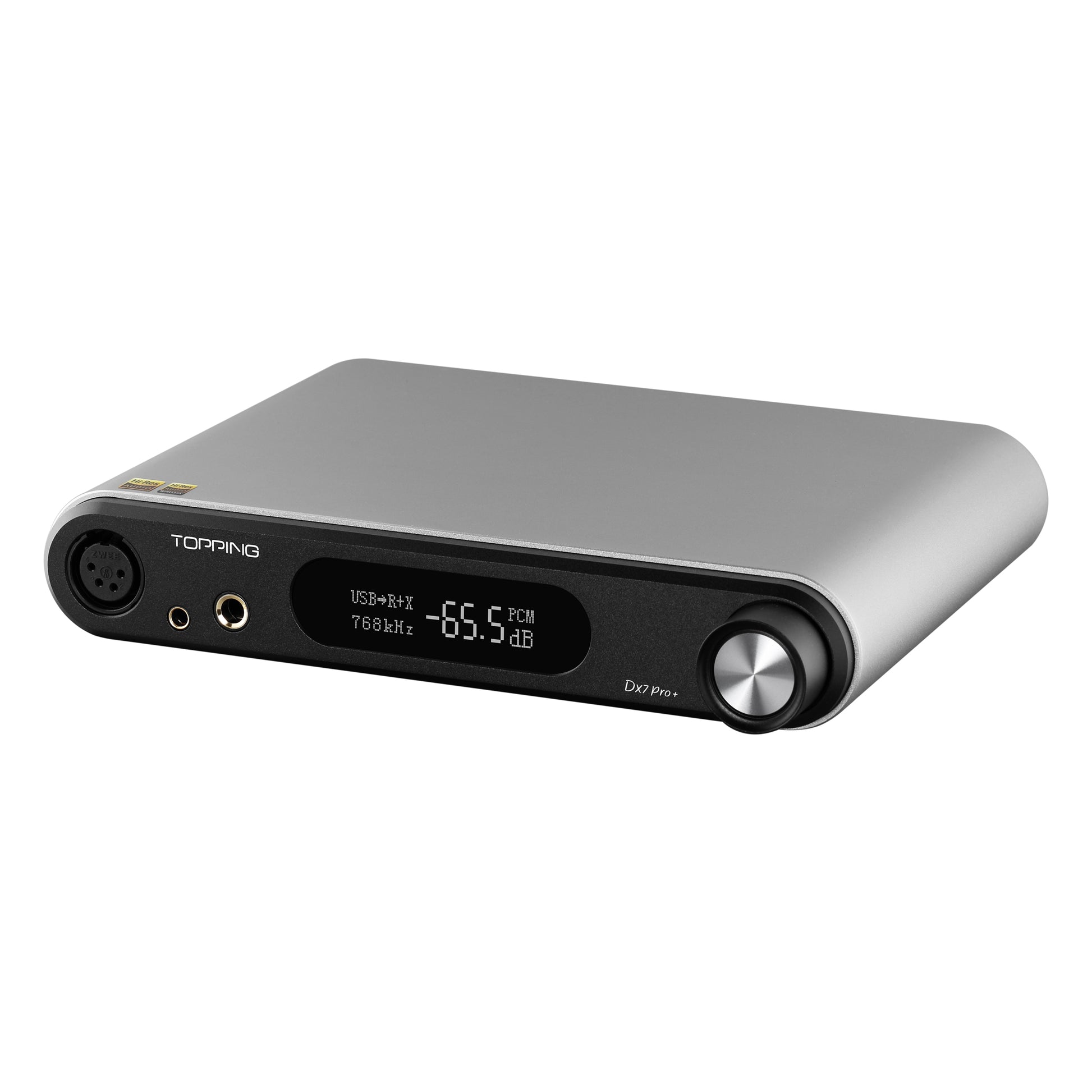

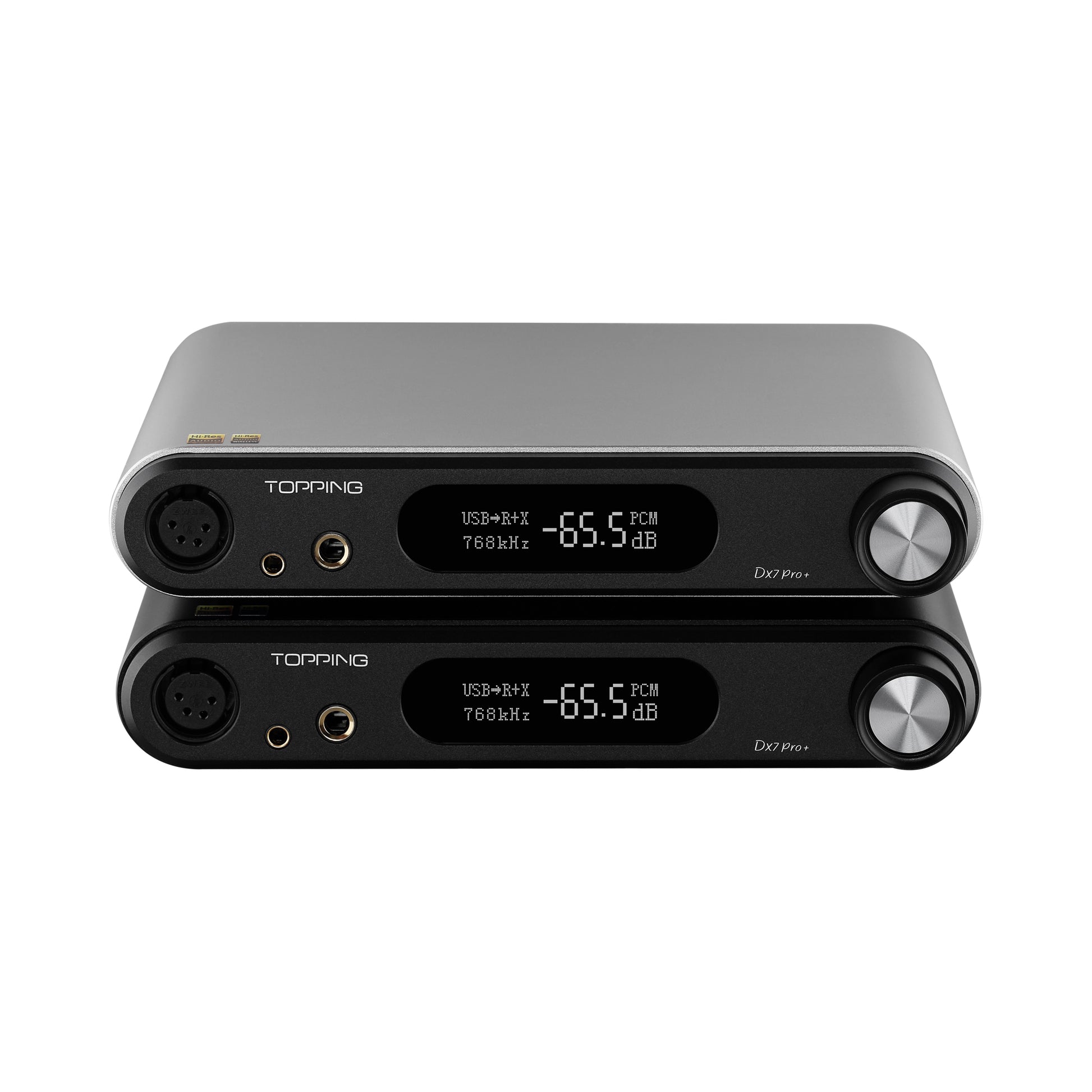

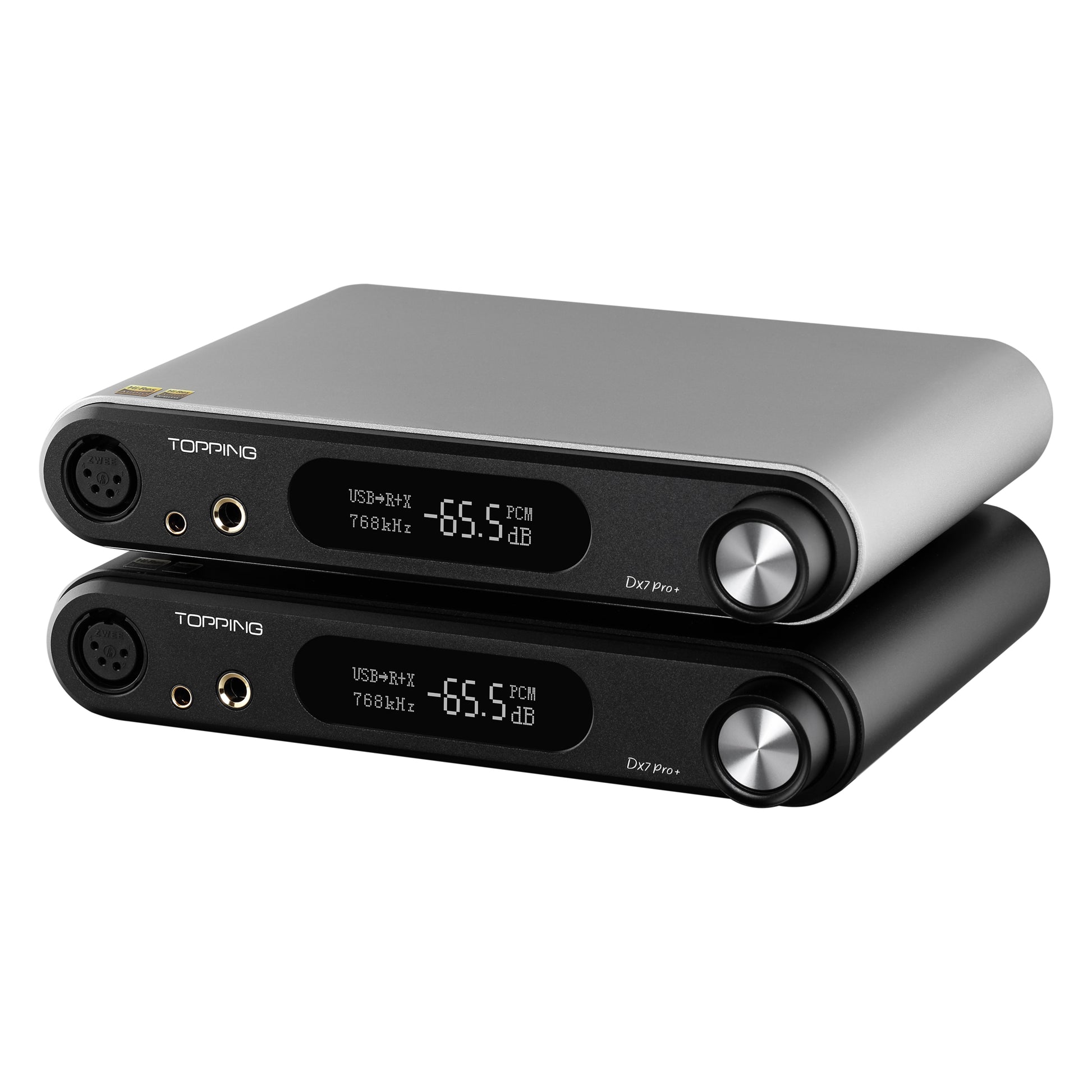

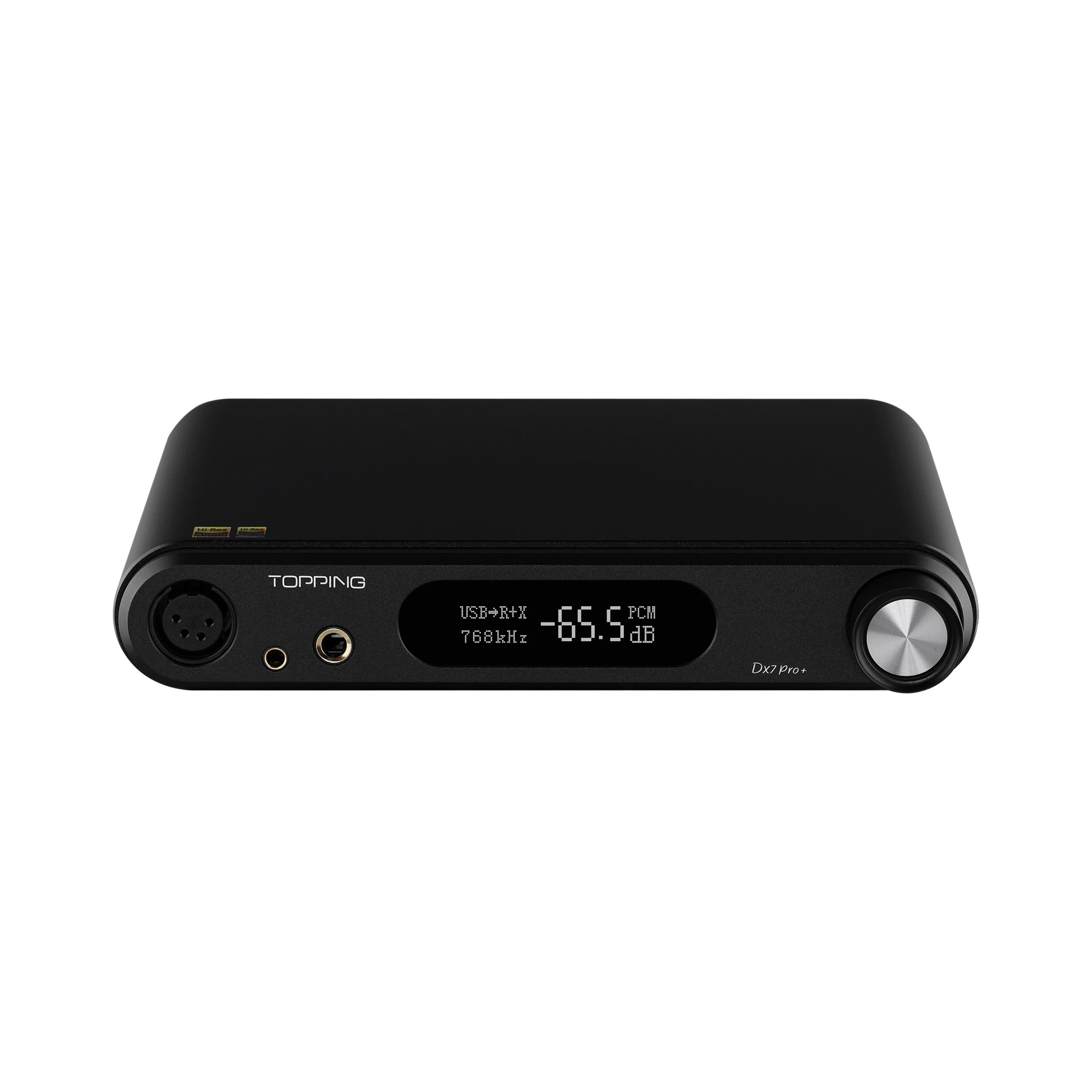

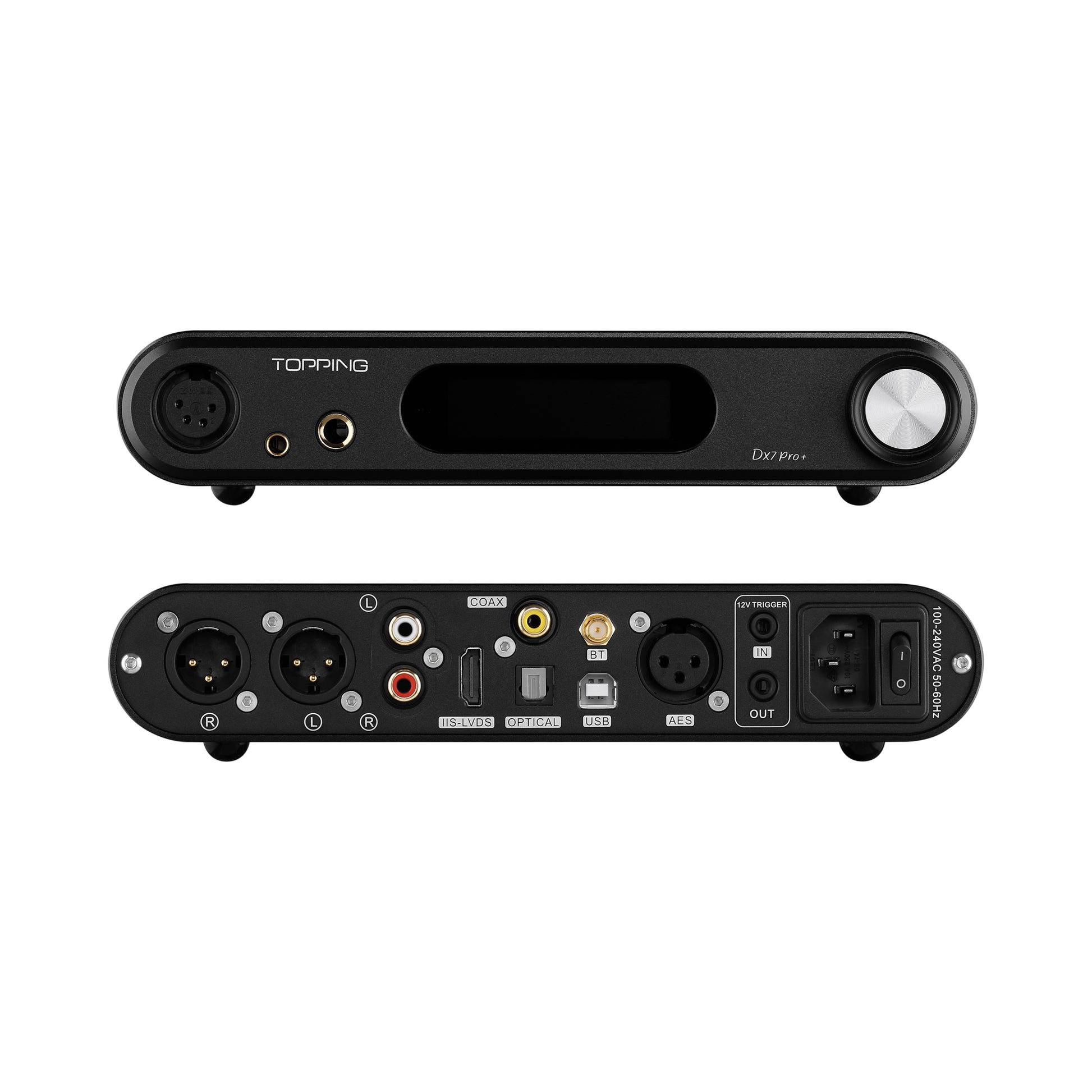

TOPPING DX7 Pro+
Bluetooth5.1 ES9038PRO Hi-Res Headphone Desktop Decoder Amplifier
- 4-PIN-XLR, 4.4mm and 6.35mm output jacks
- Plug and play
- Flagship DAC chip
- Brand-new I/V conversion circuit
- All-new design
- Built-in NFCA Headphone AMP
TOPPING DX7 Pro+
4-PIN-XLR, 4.4mm and 6.35mm output jacks
DX7 Pro+ has 3 output headphone jacks of 4-PIN-XLR, 4.4mm and 6.35mm to meet different usages. Besides, with the help of 2 gain setting, DX7 Pro+ could reach even wider adaption of different headphones.
Plug and play
DX7 Pro+ has a wide range of compatibility: Windows 10 and above, MAC,Linux, IOS, Android can be plug and play. DX7 Pro+ uses 2nd generation 8 coreXMOS XU208, USB supports up to PCM32bit768kHz and DSD512 native.
Flagship DAC chip
DX7 Pro+ uses ESS SABRE ES9038PRO, with 32bit Hyper-stream architecture, achieves ultra-high performance in the audio field. Each channel of the DX7 Pro+ will be arranged in parallel by 4 conventionall balanced channels. This makes the performance of DX7 Pro+ even better.
Brand-new I/V conversion circuit
TOPPING designed brand-new I/V conversion circuit with better audio reproduction. The unique circuit design provides lower distortion and lower noise while occupying less space.
All-new design
TOPPING has redesigned the DX7 Pro+ inside and out. Not only will it feature TOPPING¡¯s ultra-clean NFCA module and updates to the audio circuit, but the chassis design is based on the Red Dot Award-winning design of the TOPPING DX5. The DX7 Pro+ outpaces its predecessor in category after category. It uses the most up-to-date Bluetooth 5.1 chip with LDAC support. It also has 70% better noise performance, 100% stronger output power, and 99% lower output impedance.
Built-in NFCA Headphone AMP
The new DX7 Pro+ has the NFCA circuit optimized for this unit, giving the ultra low noise and distortion. It pairs with high sensitivity IEMs and power hungry high impedance headphones nicely.
Technical Details
COAX/OPT/AES IN: 24-bit/192kHz PCM, DSD64 (DoP)
IIS IN: 32-bit/768kHz PCM, DSD512 Native, DSD256 (DoP)
BT IN: LDAC, AAC, SBC, aptX, aptX LL, aptX HD, aptX Adaptive
THD+N @1kHz (A-wt): <0.00008%
THD @20-20kHz 90kBW: <0.0008%
SNR @ 1kHz (A-wt): 127dB
Dynamic range @ 1kHz (A-wt): 127dB
Frequency response: 20H-20kHz (±0.1dB), 20Hz-40kHz (±0.3dB)
Output level: 2.1Vrms@0dBFS
Noise @A-wt: <1.0uVrms
Channel crosstalk: -126dB@1kHz
Channel balance: 0.3dB
Output impedance: 100Ω
XLR：
THD+N @1kHz (A-wt): <0.00006%
THD @20-20kHz 90kBW: <0.0003%
SNR @ 1kHz (A-wt): 133dB
Dynamic range @ 1kHz (A-wt): 133dB
Frequency response: 20H-20kHz (±0.1dB), 20Hz-40kHz (±0.3dB)
Output level: 4.2Vrms@0dBFS
Noise @A-wt: <1.0uVrms
Channel crosstalk: -139dB@1kHz
Channel balance: 0.3dB
Output impedance: 100Ω
THD+N @1kHz (A-wt): <0.00009% @150mW (32Ω), <0.00007% @ 15mW (300Ω)
THD @20-20kHz 90kBW: <0.0006 @150mW (32Ω), <0.0004% @15mW (300Ω)
SNR @max out 1kHz (A-wt): 127dB @1kHz
Dynamic range @1kHz (A-wt): 127dB @1kHz
Frequency response: 20Hz-20kHz (±0.1dB), 20Hz-40kHz (±0.3dB)
Output level: 6.2Vpp (low gain), 27.8Vpp (high gain)
Noise @A-wt: <1.4uVrms (low gain), <2.5uVrms (high gain)
Channel crosstalk: -120dB @1kHz
Gain: 6.9dB (low gain), 20dB (high gain)
Channel balance: 0.3dB
Output impedance: <0.1Ω
Output power：
1900mW x2 @32Ω THD+N<1%
1350mW x2@64Ω THD+N<1%
320mW x2@300Ω THD+N<1%
Load impedance: >8Ω

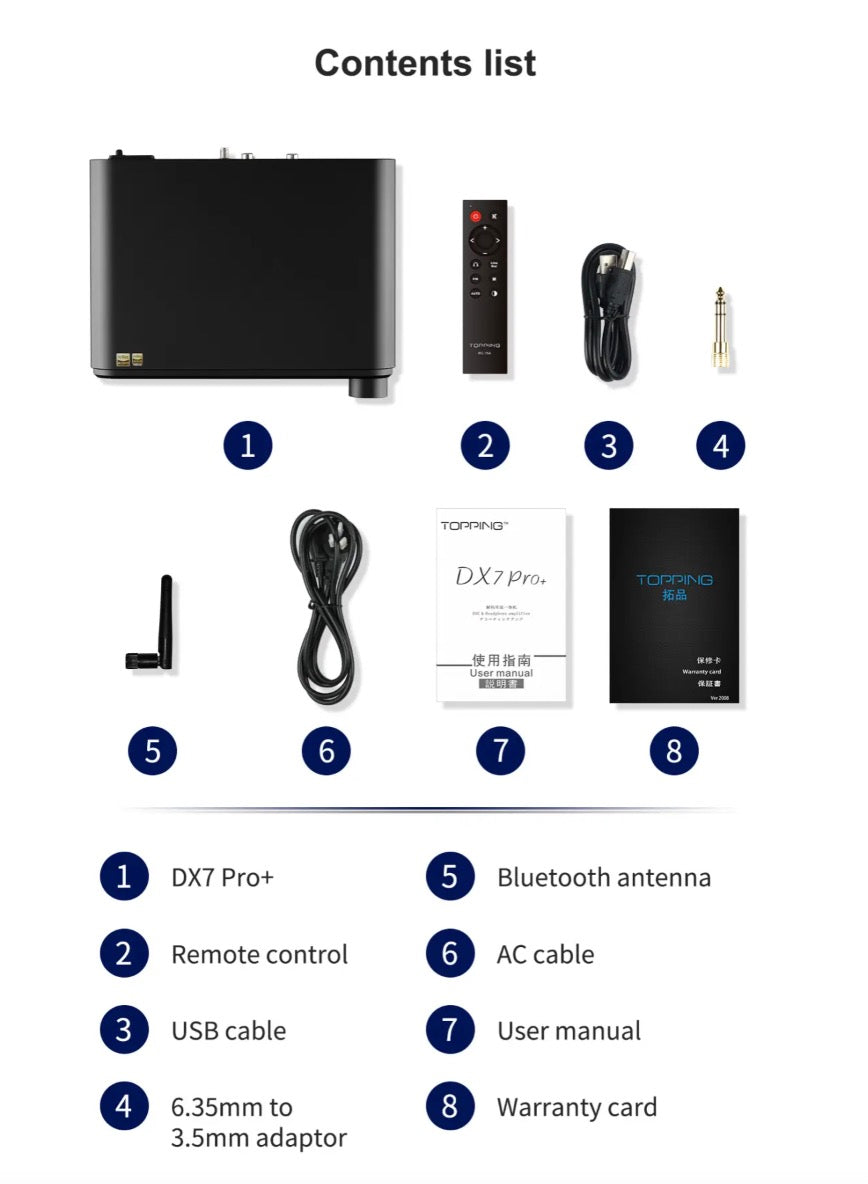

- 1 x TOPPING DX7 Pro+
- User Manual
