TOPPING E30 II: 2x AK4493S Decoder DAC

Topping E30 II is the latest take on entry-level budget Desktop DAC from Topping. As a successor to the highly-acclaimed E30 DAC, the latest E30 II adopts the latest launched AKM DAC chips. It features a digital signal processing circuit that enables the E30 II to deliver class-leading performance in decoding high-resolution audio signals. Topping E30 II brings a tremendous increase in the performance quality achieving lower distortion ratings, higher dynamic range, and signal-to-noise ratio compared to the predecessor model. Topping E30 II can be the next DAC that will serve you with an authentic Hi-Res audio performance without breaking the bank.

TOPPING L30 II: NFCA Modules UHGF Technology Headphone Amplifier

Topping L30 II is a brand new desktop headphone amplifier that is designed with an NFCA(Nested Feedback Composite Amplifier) module circuit. It produces a powerful signal amplification with a super clean performance. It is suitable for both highly sensitive IEMs and high-power requiring full-sized headphones. The Topping L30 II works flawlessly with the brand new E30 II making them a perfect stack for audiophiles.

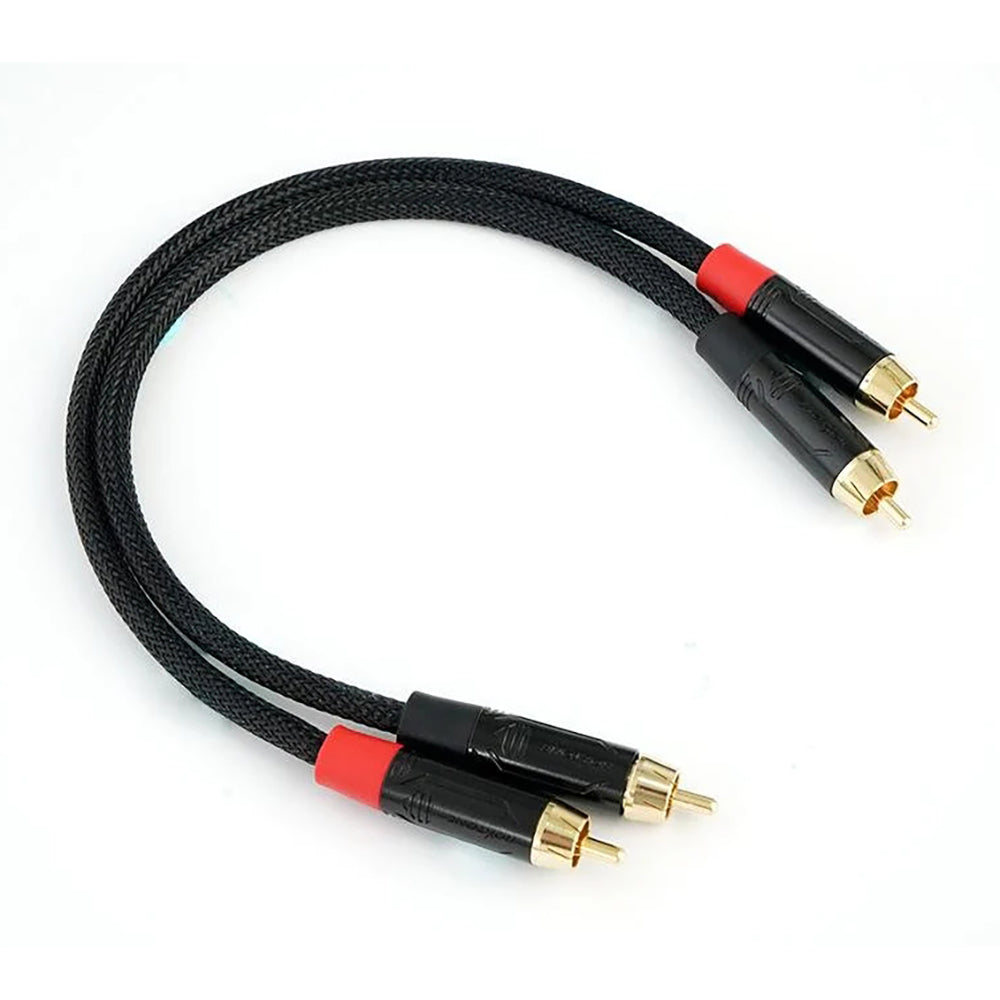

High-Quality RCA Upgrade Cable

SKW RCA-to-RCA cable is a premium RCA upgrade cable to bring the best performance out of your desktop audio chain. This is a high-end RCA upgrade cable built with multiple shielding, high-quality polished metal, and gold-plated connectors offering supreme quality performance without any outside interference. Experience a full spectrum of sound come to life with the SKW RCA To RCA connector cable in your desktop chain.

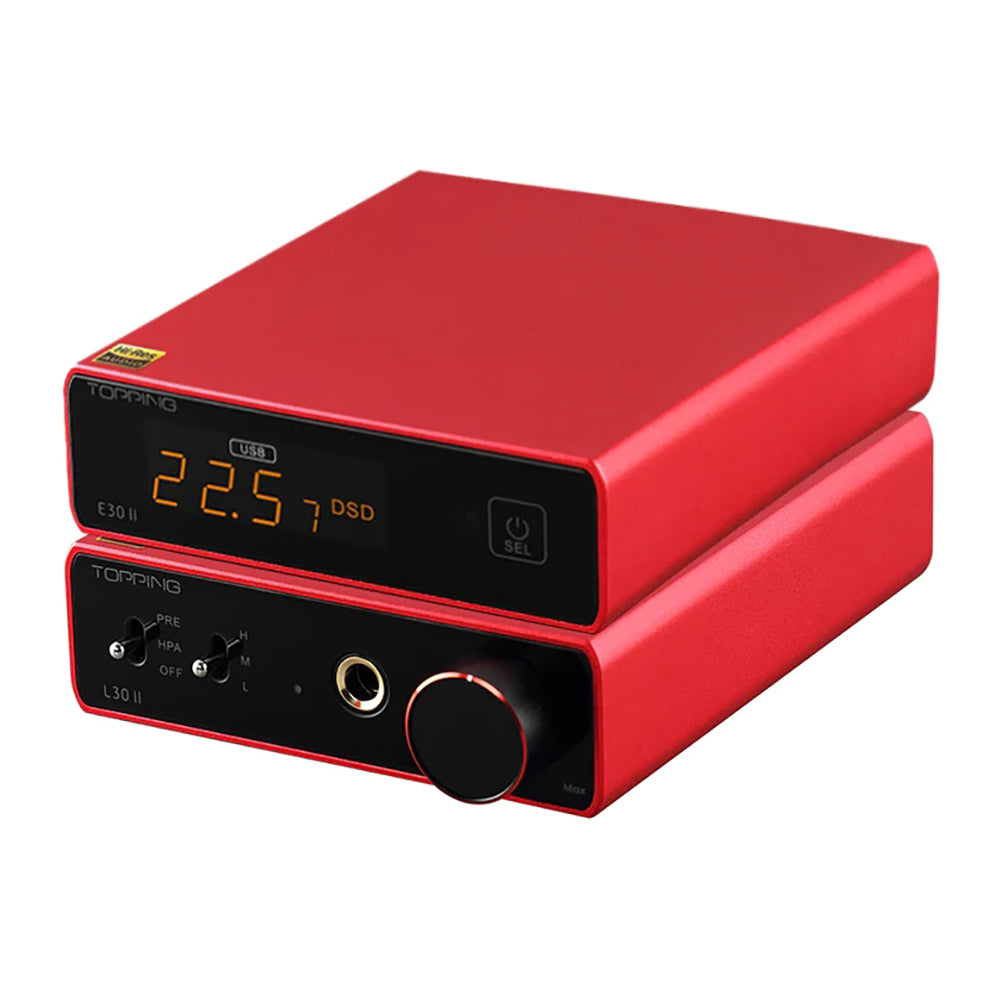

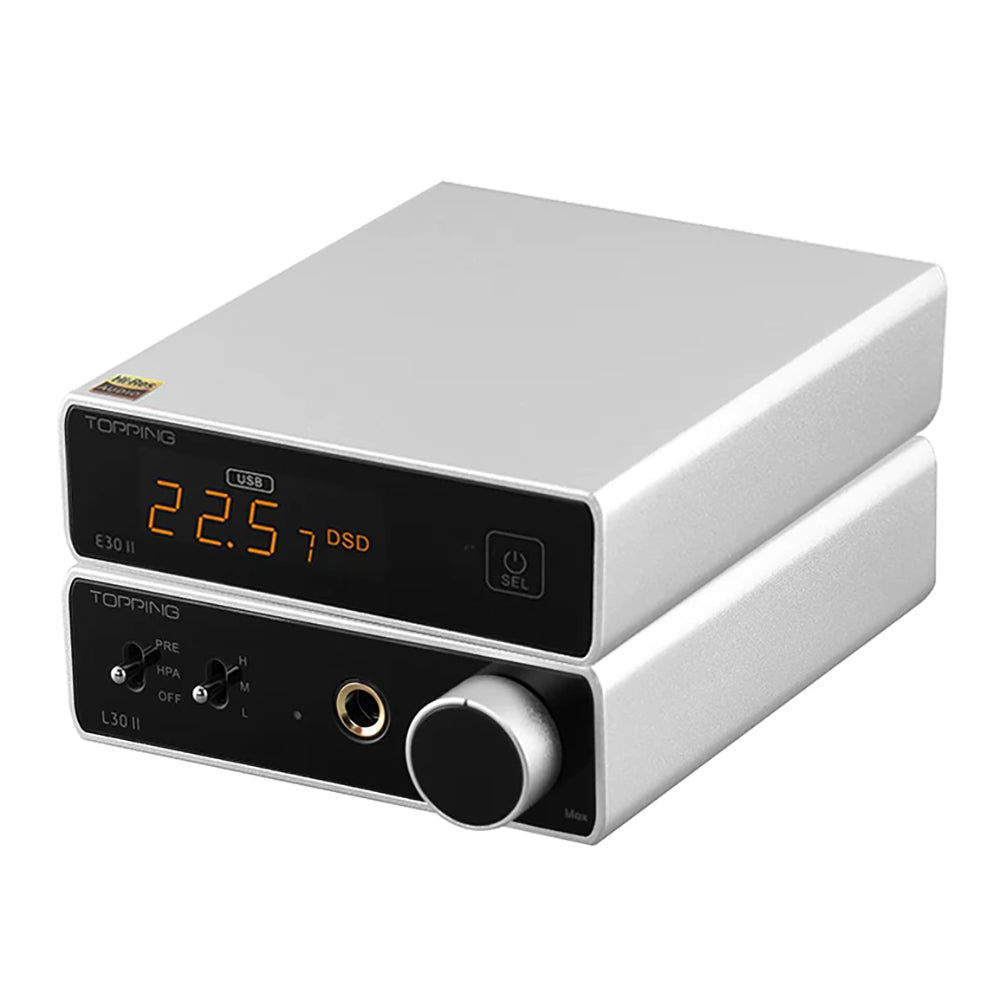

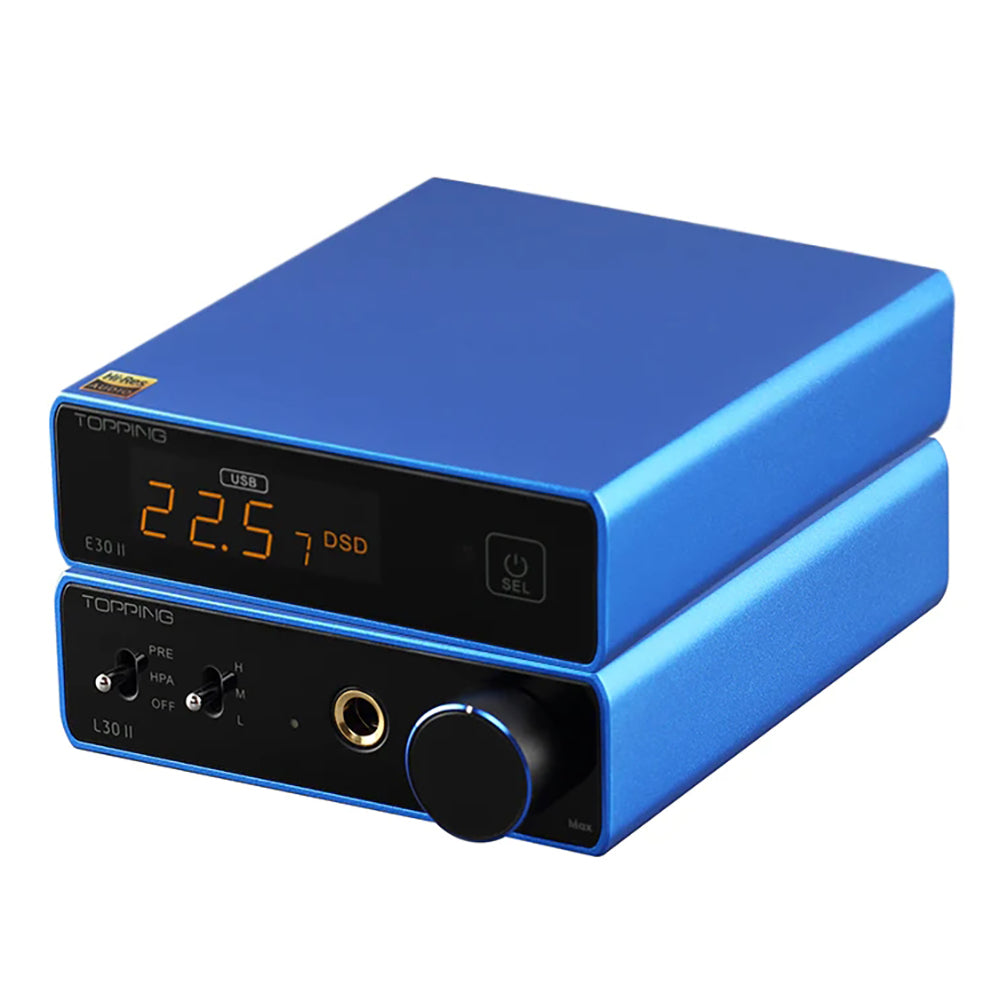

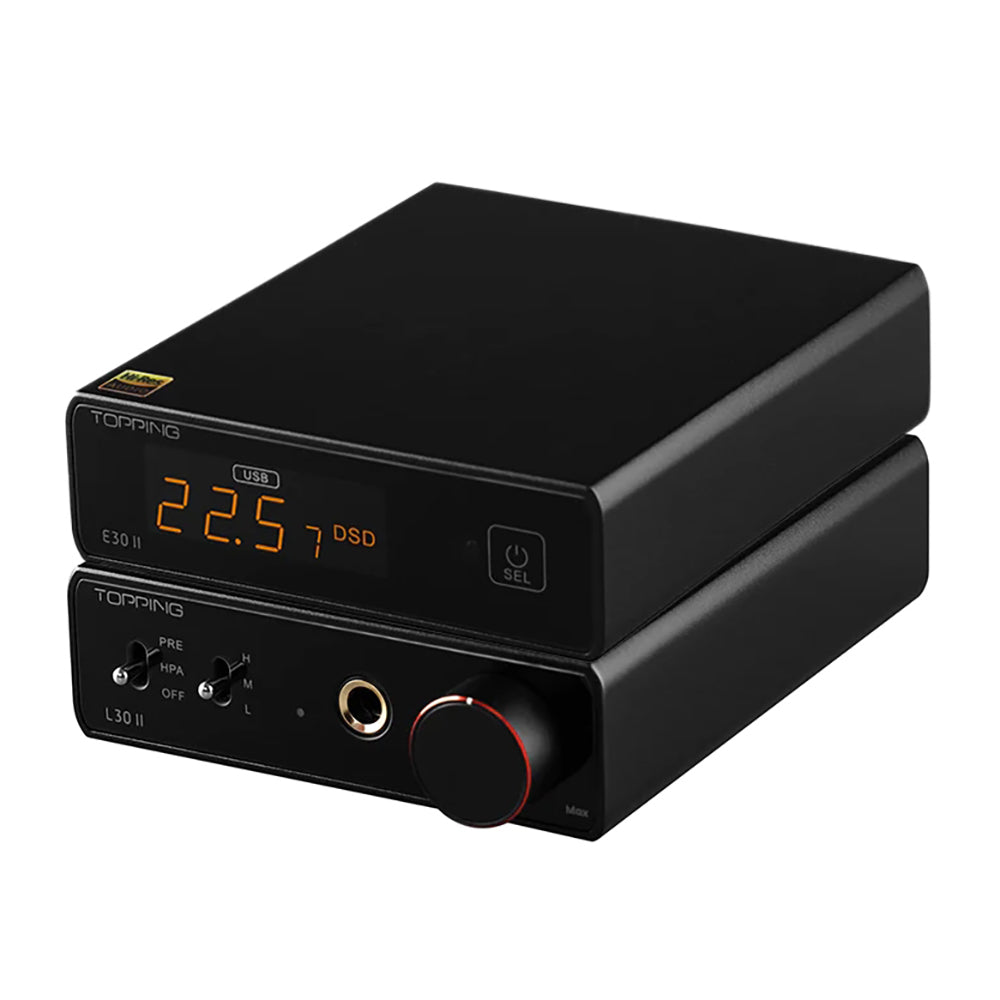

The perfect Combo

L30 II will be the best headphone amplifier for E30 II. L30 Il and E30 Il have fully matched design languages and styles, L30 Il is suitable for almost all kinds of headphones.

Technical Details

Technical Specs(TOPPING E30 II)
Decoding: PCM up to 32-Bit/768kHz, DSD Native DSD512, DoP DSD256
Decoding(Coax/Optical): PCM Up to 24-Bit/192kHz
THD+N(A-Wt): <0.00015%
SNR: 123dB
Dynamic Range: 123dB
Frequency Response: 20Hz-40kHz(±0.8dB)
Output Level: 2.1Vrms
Noise: <1.5uVrms
Channel Crosstalk: -132dB
Channel Balance: <0.3dB
Output Impedance: 20Ω
Technical Specs(TOPPING L30 II)
THD+N: <0.00006%
SNR: 144dB
DNR: 144dB
Frequency Response: 20Hz-40kHz
Output Level: 14Vpp(low gain), 31Vpp(mid gain), 37Vpp(high gain)
AP measure Noise level: <0.7uVrms(low gain)
Actual noise level: <0.3uVrms(low gain)
Channel crosstalk: -92dB
Input Sensitivity: 25Vrms(low gain), 11.2Vrms(mid gain), 2.0Vrms(high gain)
Gain: -14dB/0dB/16.5dB
Output Impedance: <0.1Ω
Output Power: 3.5Wx2@16Ω, 2.7Wx2@32Ω, 2Wx2@64Ω, 560mWx2@300Ω
Load Impedance: >8Ω
Technical Specs(RCA Cable)
Cable Cable: Single Crystal Copper(OCC)
OD: 7.0MM
Inside the Box
  • 1 x TOPPING E30 II+L30 II+RCA Cable Combo
  • User Manual

30-Day Return Policy

You may return any non-customized product that is still factory sealed, within 30 days upon receiving it. For items that are damaged, incorrect, or faulty upon delivery, Linsoul will assess the issue and provide a solution accordingly.

1 Year Warranty

The TOPPING E30 II+L30 II+RCA Cable Combo Comes with a 1 year warranty on the AMP & DAC only. Warranty doesn't apply to the included accessories.
