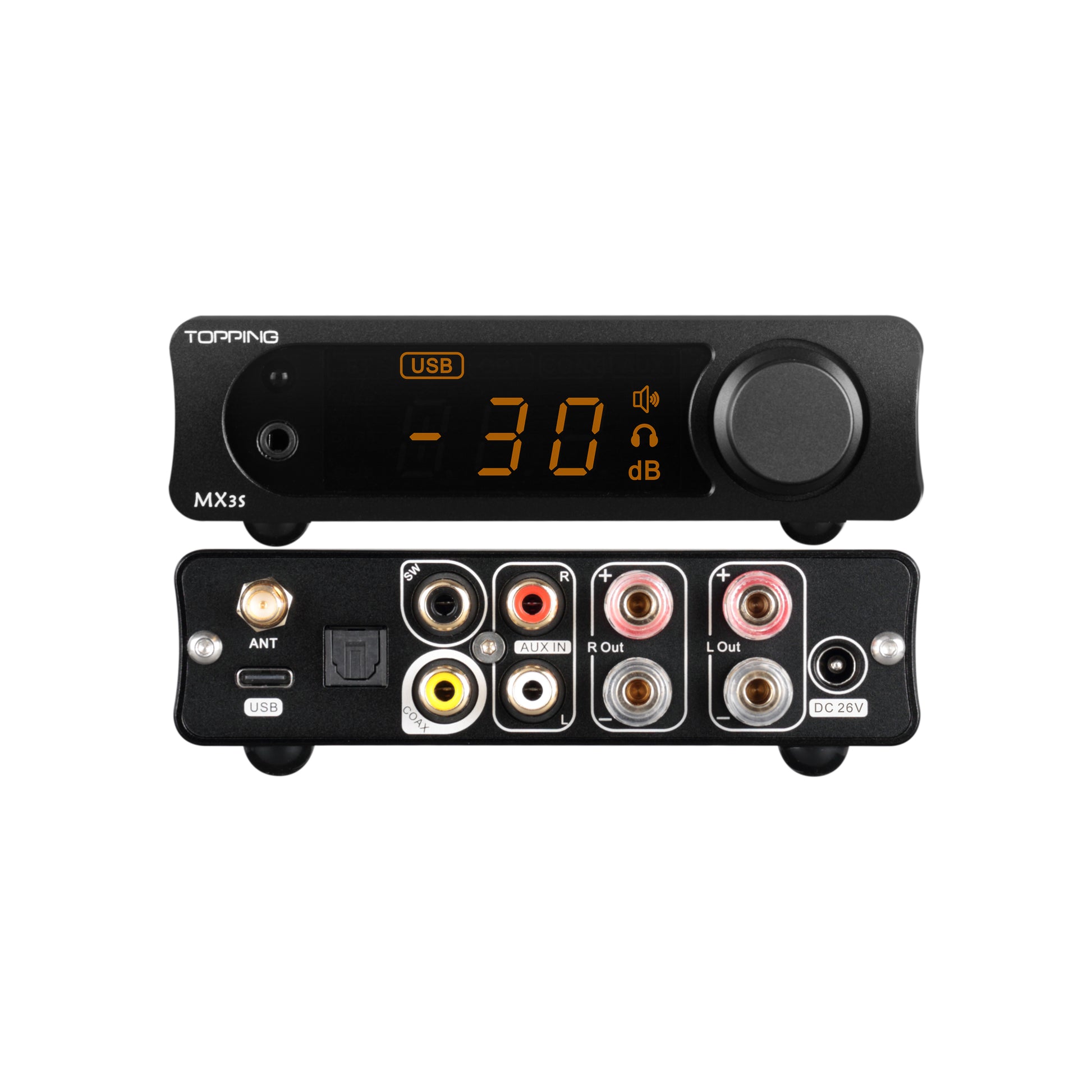

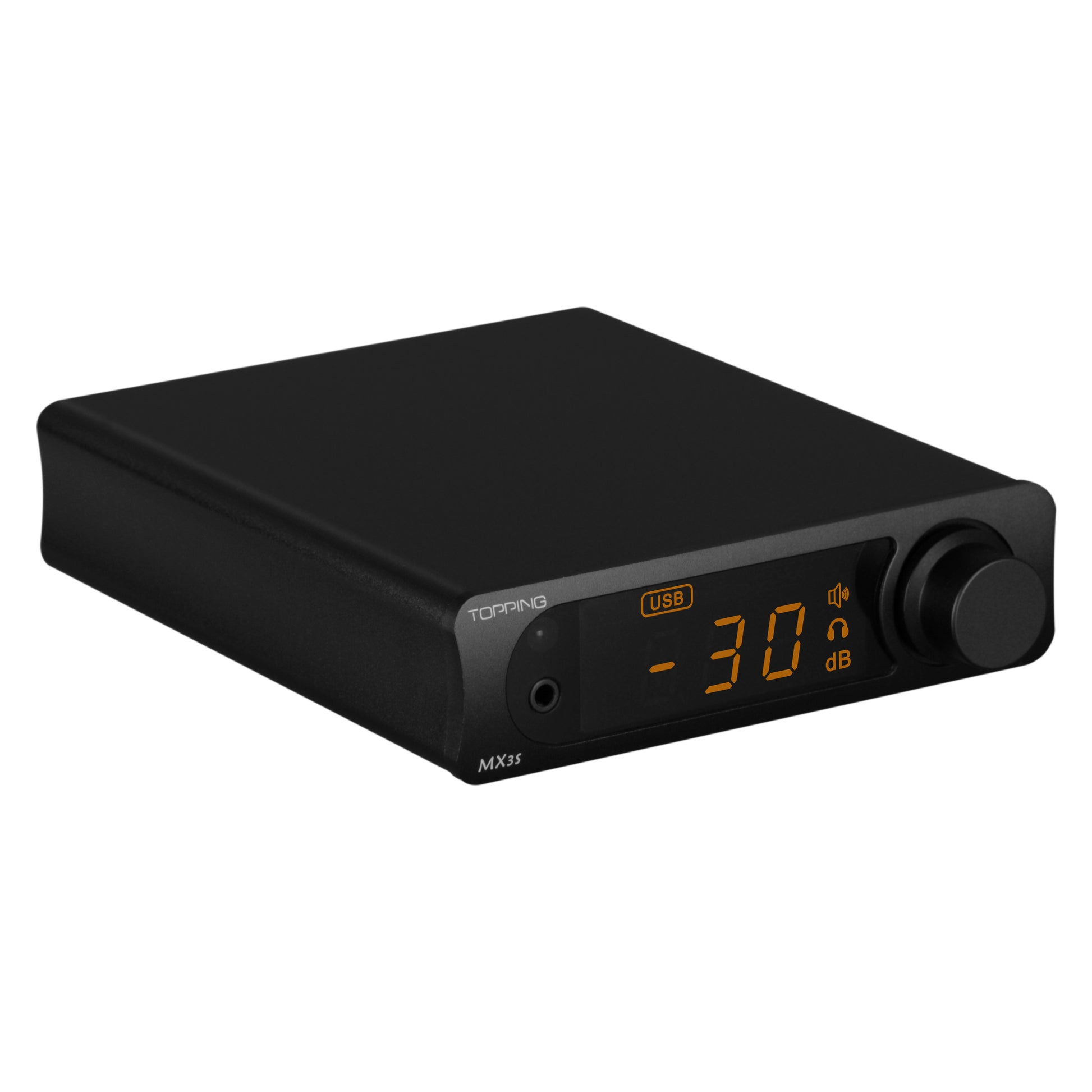

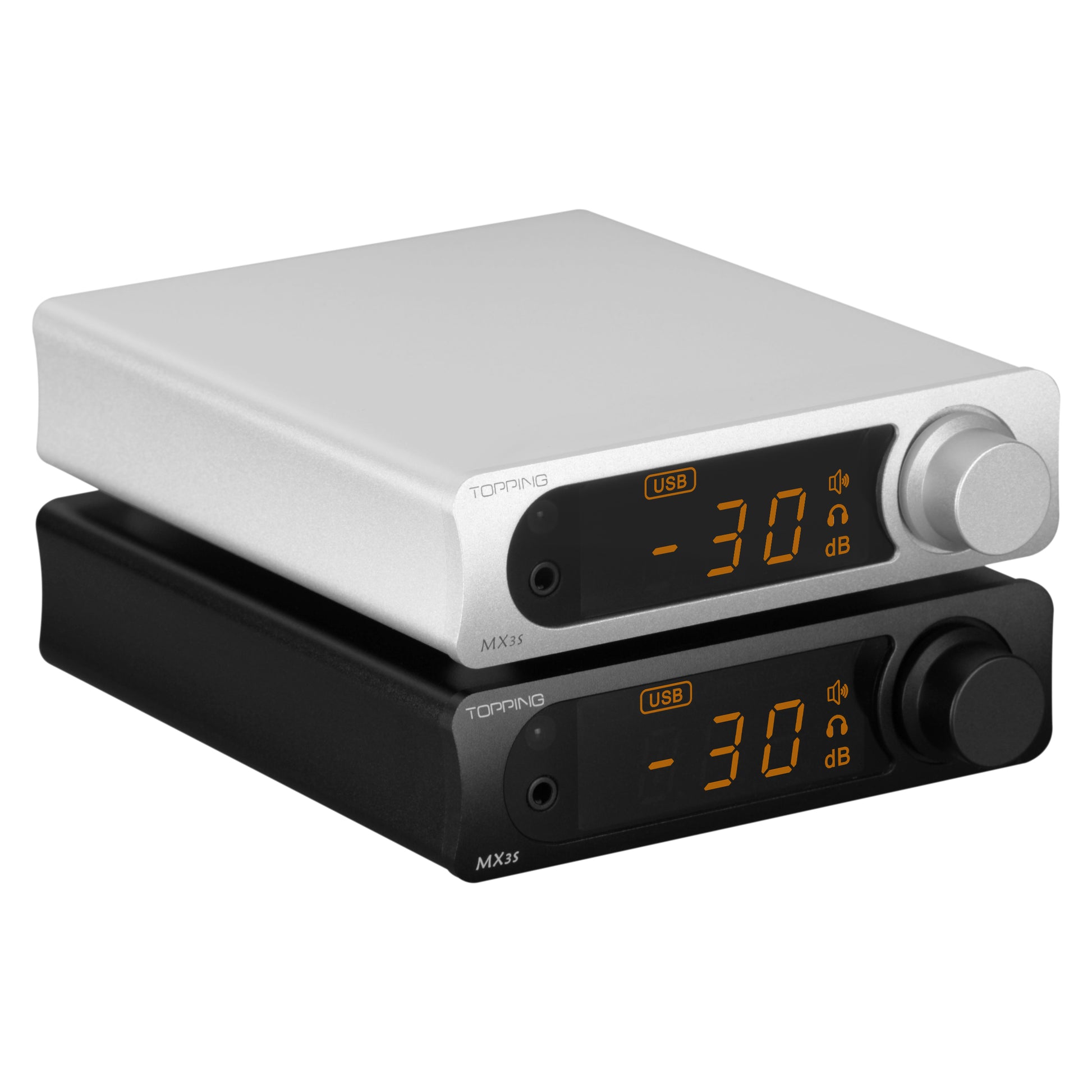

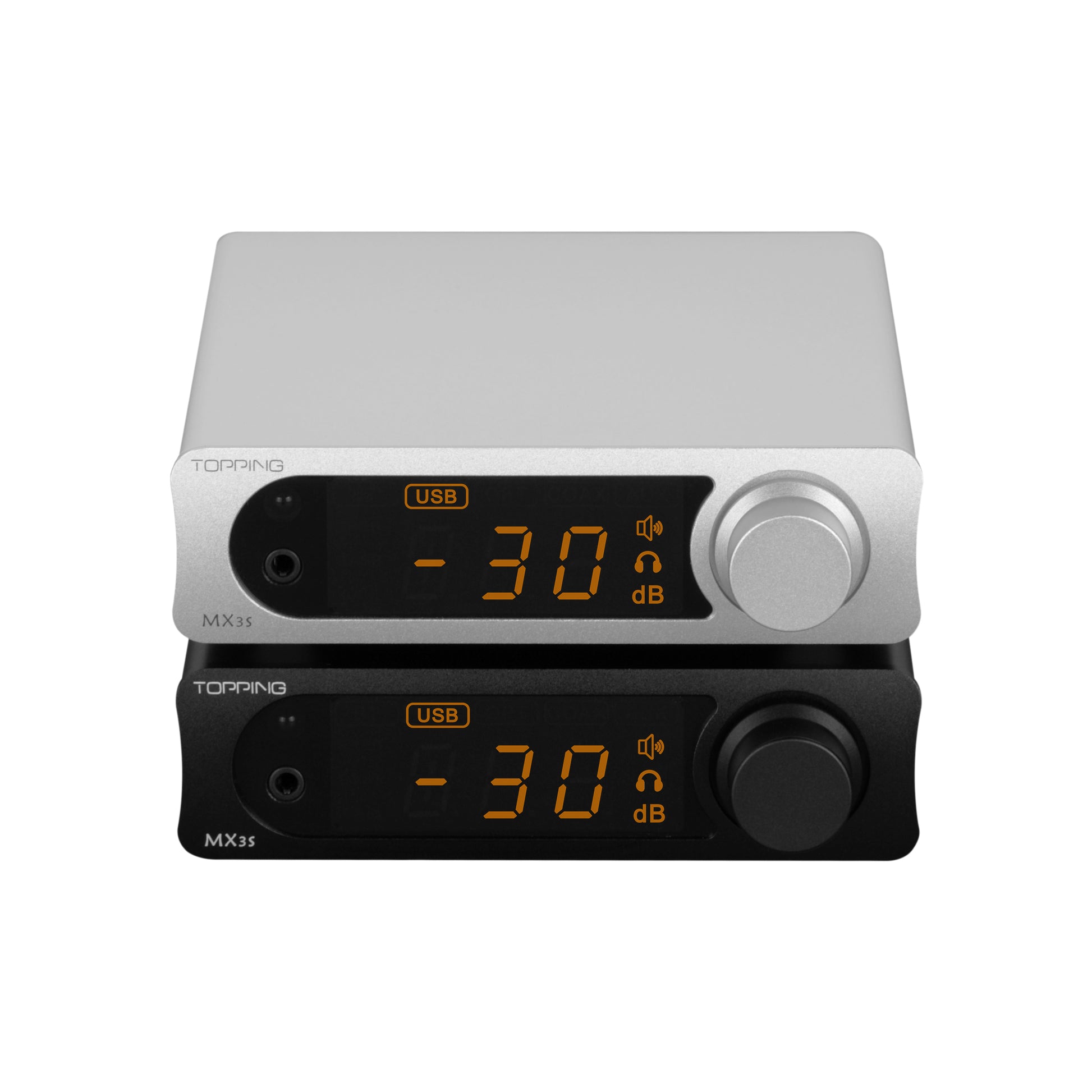

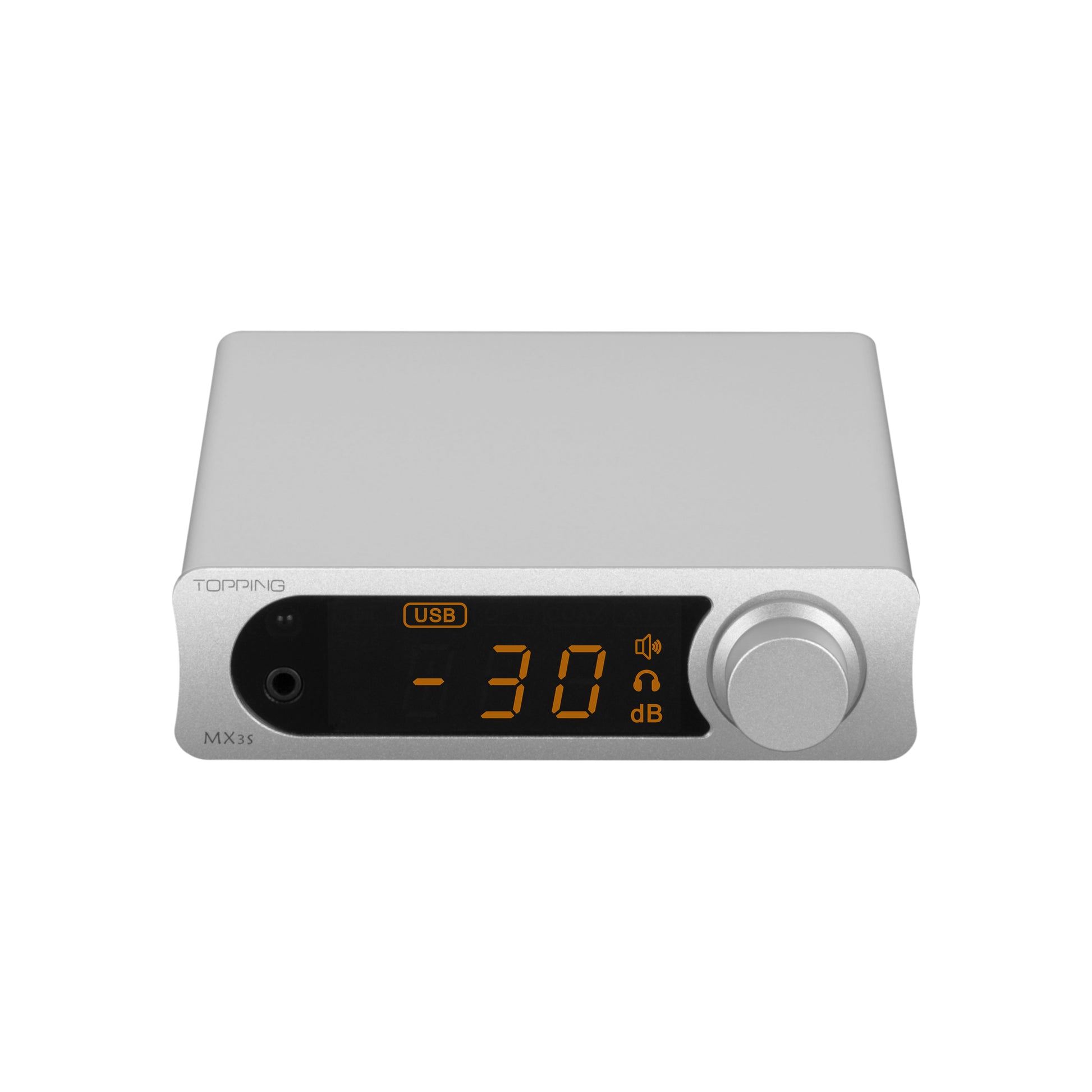

TOPPING MX3s
Buildt-in Bluetooth USB Decktop DAC & Power Amplifier
- Built-in AKM DAC Chipset.
- Bass & Treble EQ Settings.
- Supports Bluetooth Signal Input.
- High-definition Bluetooth codecs support(LDAC, AptX HD, AptX, AAC, SBC).
- High-Power Merus Class D Speaker Output.
- High-Power Headphone Output.
- Digital USB, Optical, & Coaxial Inputs.
TOPPING MX3s
Outstanding Audio Performance
Topping MX5 brings excellent performance with USB, optical fiber, coaxial, and Bluetooth input, featuring built-in ESS SABRE HIFI DAC with XMOS XU208 & Qual-comm QcC3031. It allows the MX5 to easily access various audio sources, including computers, set-top boxes, CD players, mobile phones, tablets, etc.
More Optimized NFCA Circuit Operation
The MX5 is marked by the NFCA circuit optimized for this unit, giving ultra-low noise and distortion. lt also pairs with high sensitivity IEMs and power-hungry high impedance headphones nicely. Therefore, the built-in headphone amp allows us to enjoy music exclusively without disturbing others.
Large and Stable Input Application Range
Topping MX5 expand the scope of application. In addition to supporting various digital inputs, MX5 supports not only fully balanced TRS and single-ended RCA analog inputs, but Auto On/Off function. When a valid signal is detected, it will be turned on immediately. Even when the signal is lost, it will automatically shut down or turn to standby mode within a specific time. Besides, for analog signals of different strengths, MX5 provides three options of sensitivity to ensure that the signal can be accurately detected.
Marvelous Built-in EQ function
The MX5 characterizes built-in EQ function so that we can adjust treble and bass, which provide adjustable ranges from -10dB to +10dB respectively. One of the most salient features of Topping MX5 is user-friendly custom setting memories, called C1 and C2. The current input or output selection, volume setting, bass sets, treble sets, and gain setting all can be memorized by long press. And short press to call out in subsequent applications. It is worth mentioning that MX5's screen can automatically close and only display the current input without any operation for 30 seconds. MX5 also can be set to display the volume in percentage or dB.
Merus Class D Amplifier
With the help of Infineon Merus Class D amplifier, MX5 can output 70W x2 under 4-ohm load with 10% distortion, and 55W x2 under 4-ohm load with 1% distortion. Under an 8-ohm load, 10% distortion can output 42W x 2, and 1% distortion can output 35W x2, which can meet daily use. To adapt to input signals with different strengths, MX5 designs two steps gain settings for both power amplifier and headphone amplifier. These gains can be set on the remote control.
Technical Details
USB: 24-bit/192kHz
Coax/opt: 24-bit/192kHz
Bluetooth: AAC, SBC, aptX, aptX HD, aptX Adaptive
MX3s headphone amplifier specs
THD+N@1kHz (A-wt)
USB/OPT/COAX: <0.003% @270mW (300Ω) / <0.001% @30mW (300Ω)
AUX: <0.003% @270mW (32Ω) / <0.001% @30mW (300Ω)
Bluetooth (aptX adaptive): <0.003% @270mW (32Ω) / <0.002% @30mW (300Ω)
SNR @ 1kHz (A-wt)
USB/OPT/Coax: 115dB
AUX: 127dB
Bluetooth: 115dB
Dynamic range @1kHz (A-wt)
USB/OPT/Coax: 115dB
AUX: 127dB
Bluetooth: 115dB
Frequency response
USB/OPT/Coax: 20Hz - 20kHz (+0.1dB/-0.3dB)
AUX: 20Hz - 20kHz (+0.1dB/-0.1dB)v Bluetooth: 20Hz - 20kHz
Output level
USB/OPT/Coax: 3.4Vpp (low gain) / 15.6Vpp (high gain)
AUX: 10.2Vpp (low gain) / 14.4Vpp (high gain)
Bluetooth: 3.4Vpp (low gain) / 15.6Vpp (high gain)
Noise (A-wt)
USB/OPT/Coax: <2.0uVrms (low gain) / <7.0uVrms (high gain)
AUX: <2.0uVrms (low gain) / <7.0uVrms (high gain)
Bluetooth: <2.0uVrms (low gain) / <7.0uVrms (high gain)
Channel crosstalk
USB/OPT/Coax: -90dB
AUX: -90dB
Bluetooth: -90dB
Input sensitivity
USB/OPT/Coax: 0dBFS (low gain) / 0dBFS (high gain)
AUX: 4.2Vrms (low gain) / 1.2Vrms (high gain)
Bluetooth: 0dBFS (low gain) / 0dBFS (high gain)
Gain
USB/OPT/Coax: 2dB (low gain) / 14.8dB (high gain)
AUX: -0.2dB (low gain) / 12.6dB (high gain)
Bluetooth: 2dB (low gain) / 14.8dB (high gain)
Output impedance: <0.5Ω
Output power
700mW x2 @32Ω THD+N <1%
400mW x2 @64Ω THD+N<1%
100mW x2 @300Ω THD+N<1%
Load impedance: >8Ω
MX3s power amplifier specs
THD+N@1kHz (A-wt)
USB/OPT/COAX: <0.005% @5W (4Ω) / <0.004% @5W (8Ω)
AUX: <0.005% @5W (4Ω) / <0.004% @5W (8Ω)
Bluetooth (aptX adaptive): <0.005% @5W (4Ω) / <0.004% @5W (8Ω)
SNR @ 1kHz (A-wt)
USB/OPT/Coax: 110dB
AUX: 110dB
Bluetooth: 110dB
Dynamic range @1kHz (A-wt)
USB/OPT/Coax: 110dB
AUX: 110dB
Bluetooth: 110dB
Frequency response
USB/OPT/Coax: 20Hz - 20kHz (+0.1dB/-0.5dB)
AUX: 20Hz - 20kHz (+0.1dB/-01.5dB)
Bluetooth: 20Hz - 20kHz
Output level
USB/OPT/Coax: 40Vpp (4Ω) / 44Vpp (8Ω)
AUX: 40Vpp (4Ω) / 44Vpp (8Ω)
Bluetooth: 40Vpp (4Ω) / 44Vpp (8Ω)
Noise (A-wt)
USB/OPT/Coax: <60uVrms (low gain) / <100uVrms (high gain)
AUX: <60uVrms (low gain) / <100uVrms (high gain)
Bluetooth: <60uVrms (low gain) / <100uVrms (high gain)
Channel crosstalk
USB/OPT/Coax: -90dB
AUX: -90dB
Bluetooth: -90dB
Input sensitivity
USB/OPT/Coax: -2.0dBFS (low gain) / -8dBFS (high gain)
AUX: 1.0dBFS (low gain) / 0.5dBFS (high gain)
Bluetooth: -2.0dBFS (low gain) / -8dBFS (high gain)
Gain
USB/OPT/Coax: 26.5dB (low gain) / 32.5dB (high gain)
AUX: 24dB (low gain) / 30dB (high gain)
Bluetooth: 26.5dB (low gain) / 32.5dB (high gain)
Output impedance: <0.2Ω
Output power
62W x2 @4Ω THD+N<10%
50W x2 @4Ω THD+N<1%
40W x2 @8Ω THD+N<1%
30W x2 @8Ω THD+N<1%
Load impedance: 4-8Ω
- 1 x TOPPING MX3s
- User Manual
