Great Sound, Visible Tech

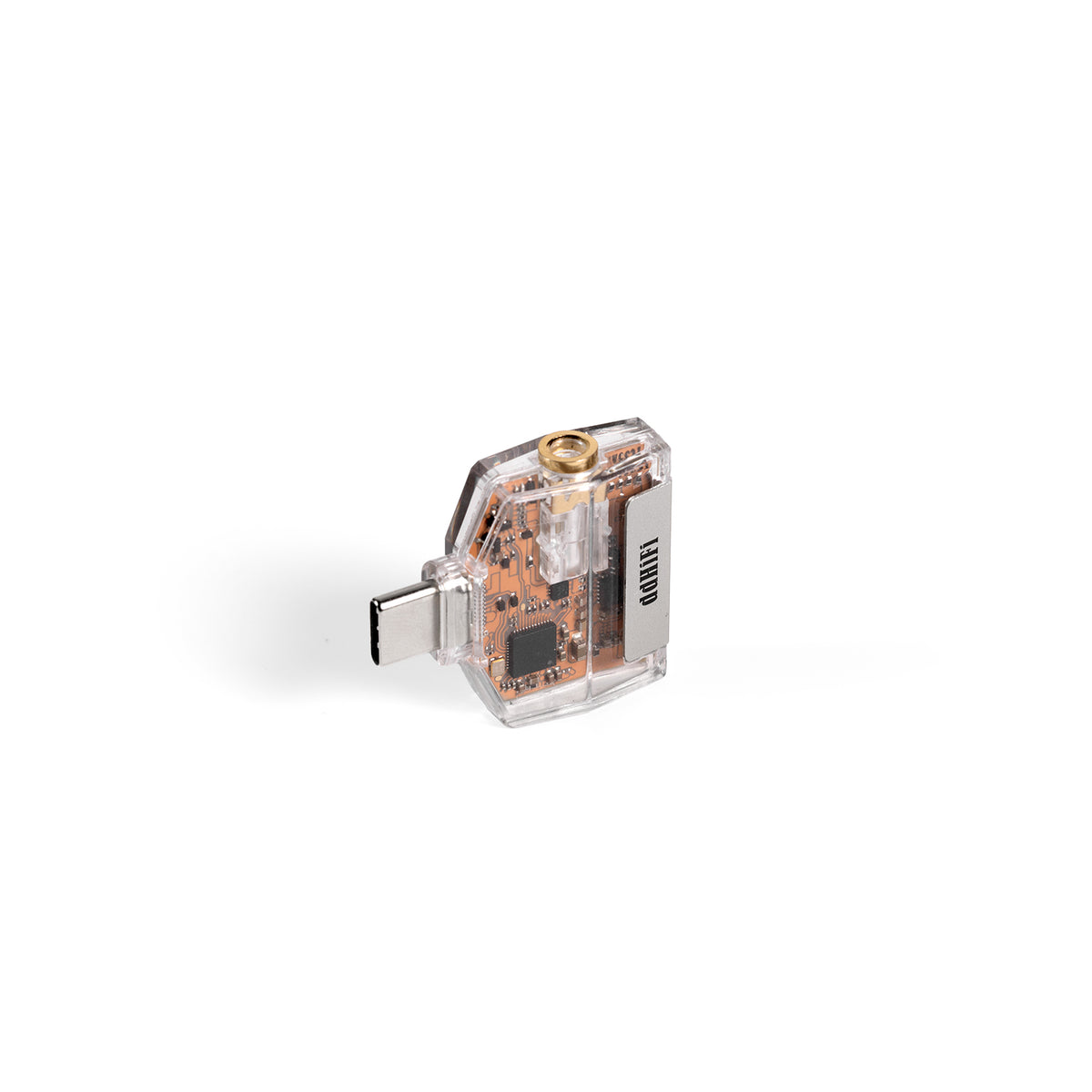

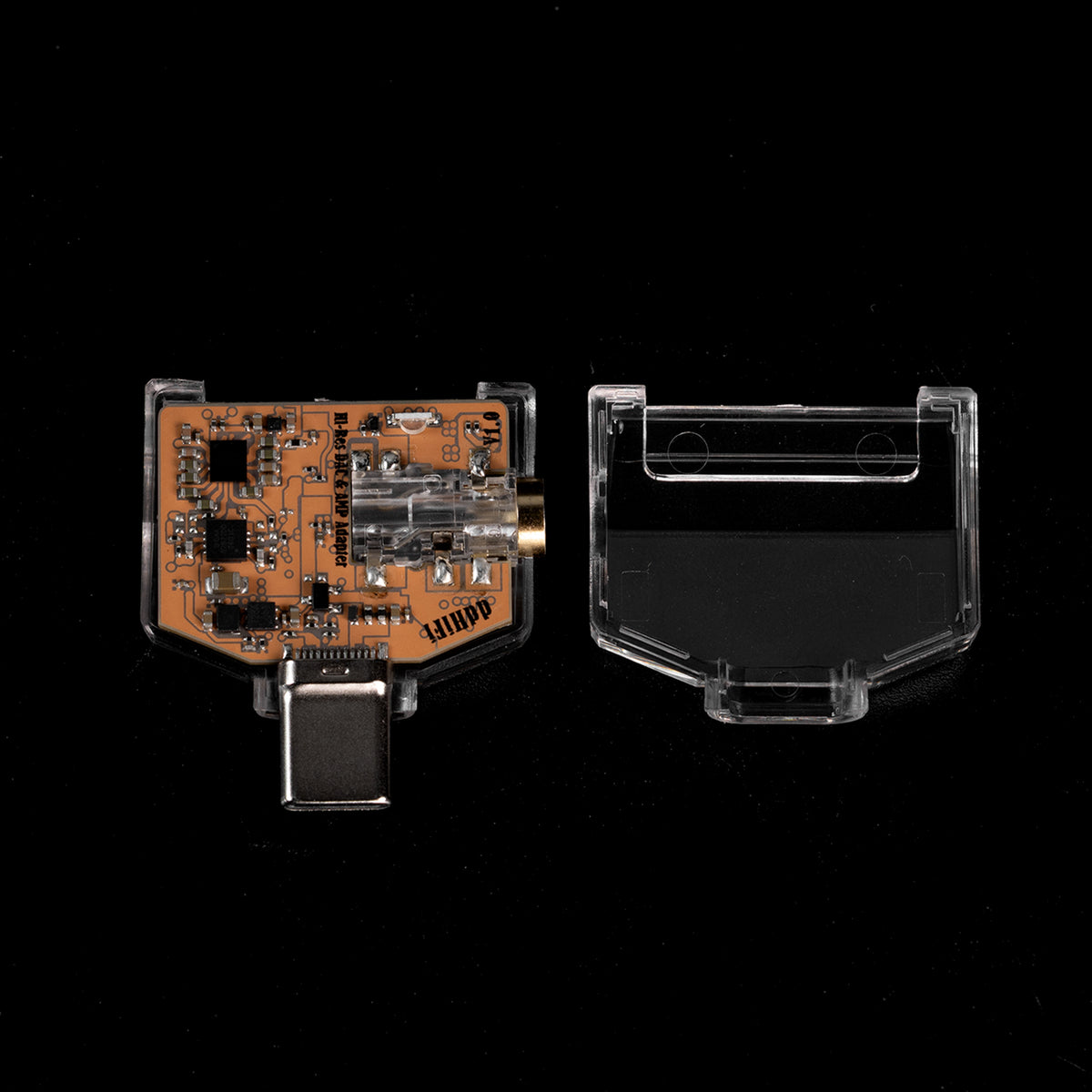

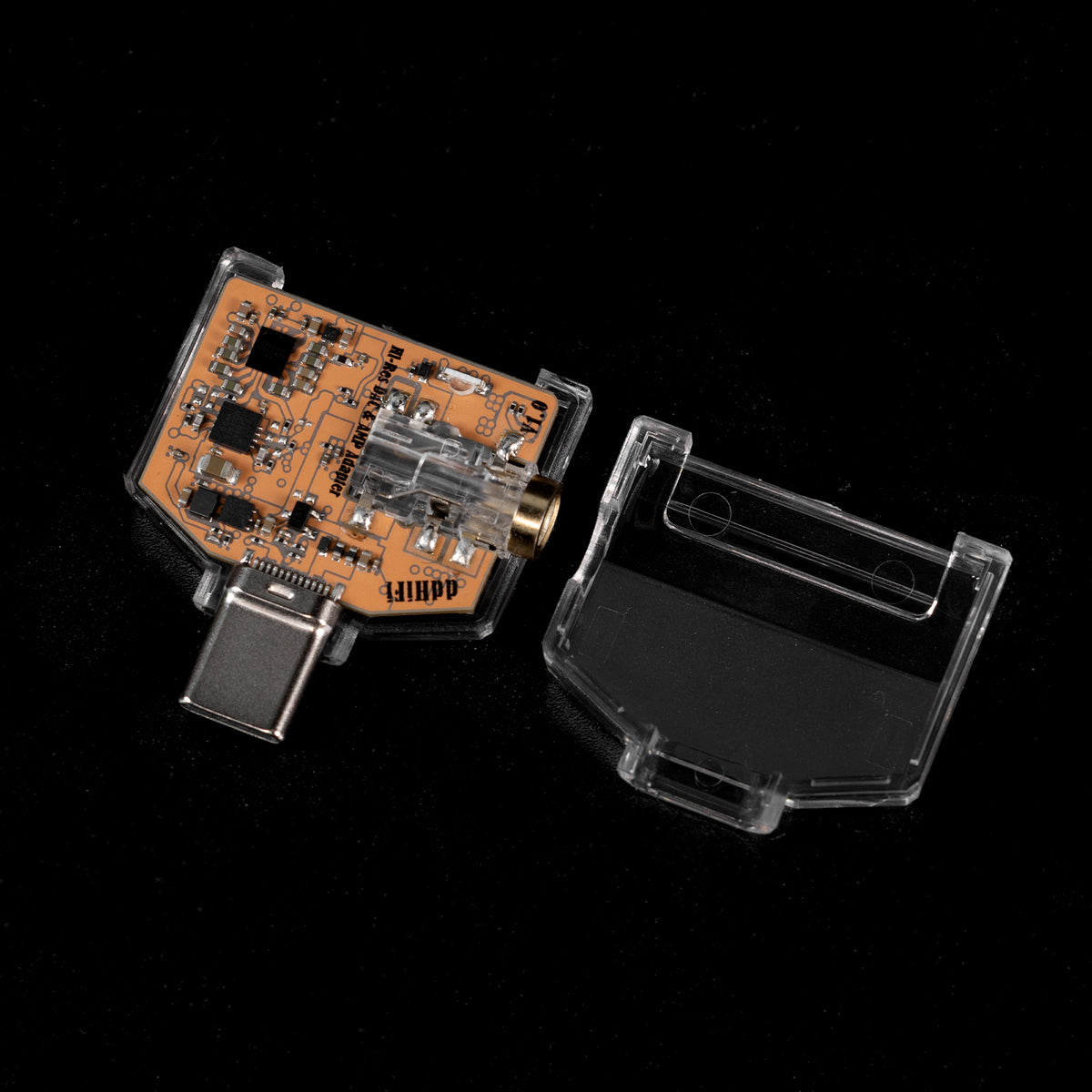

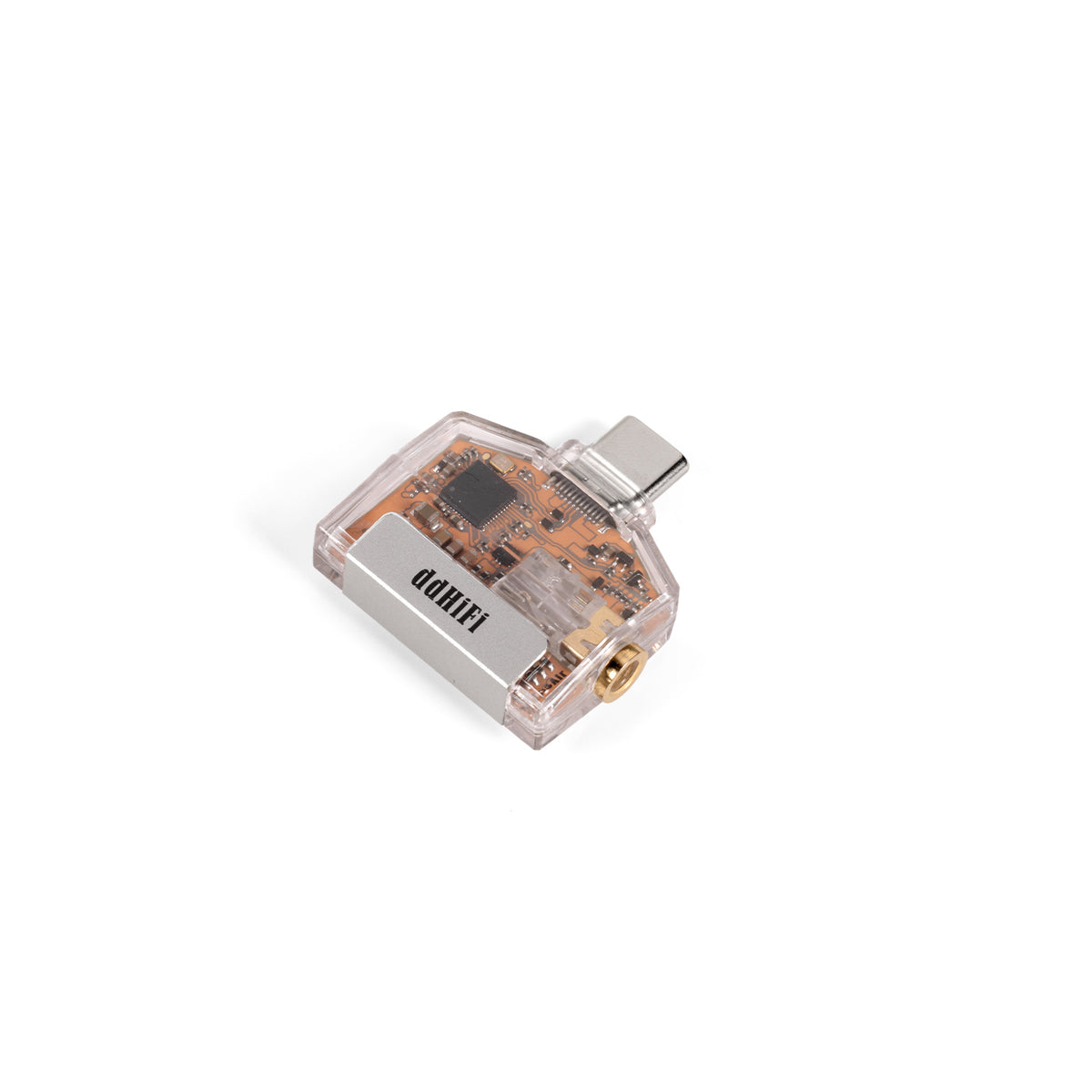

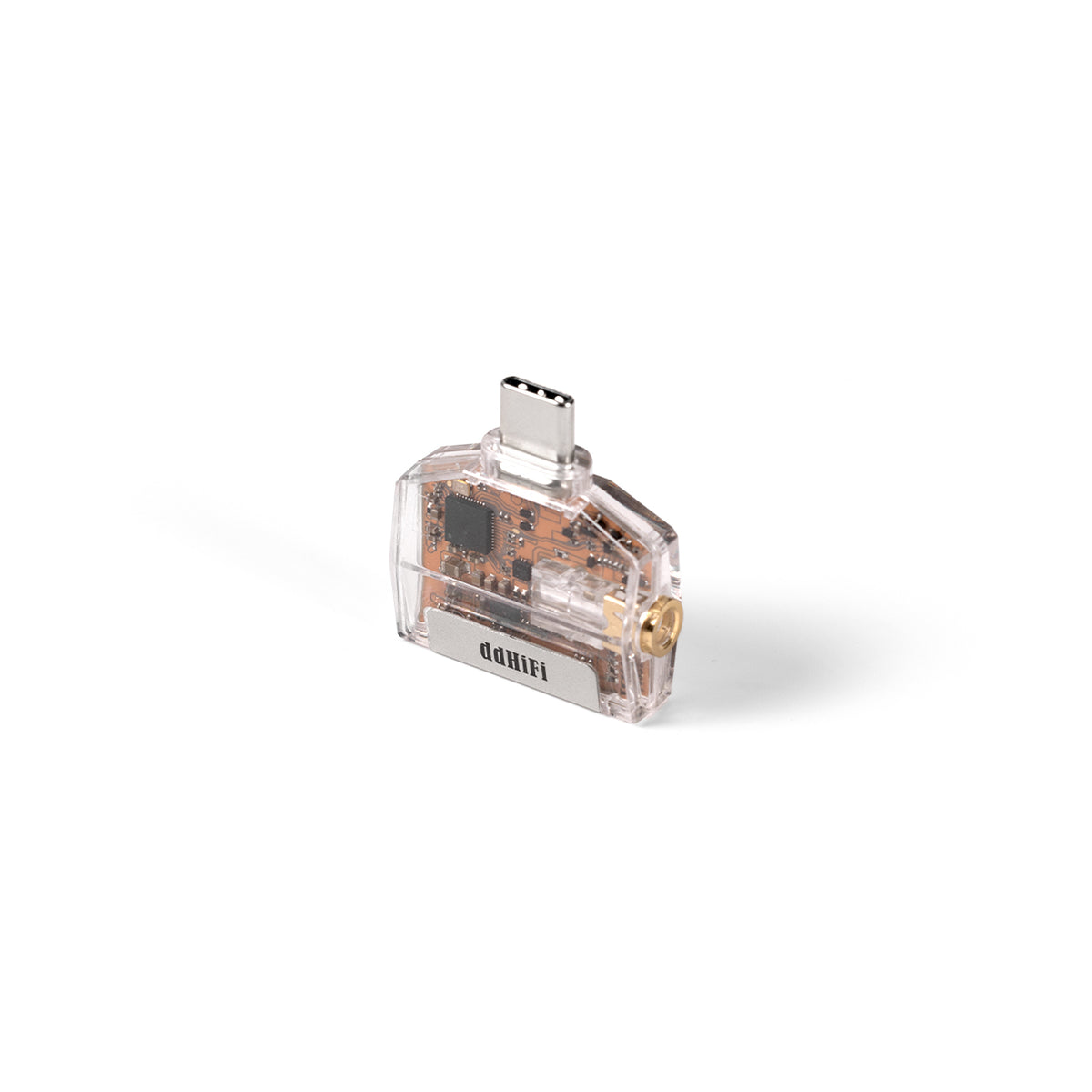

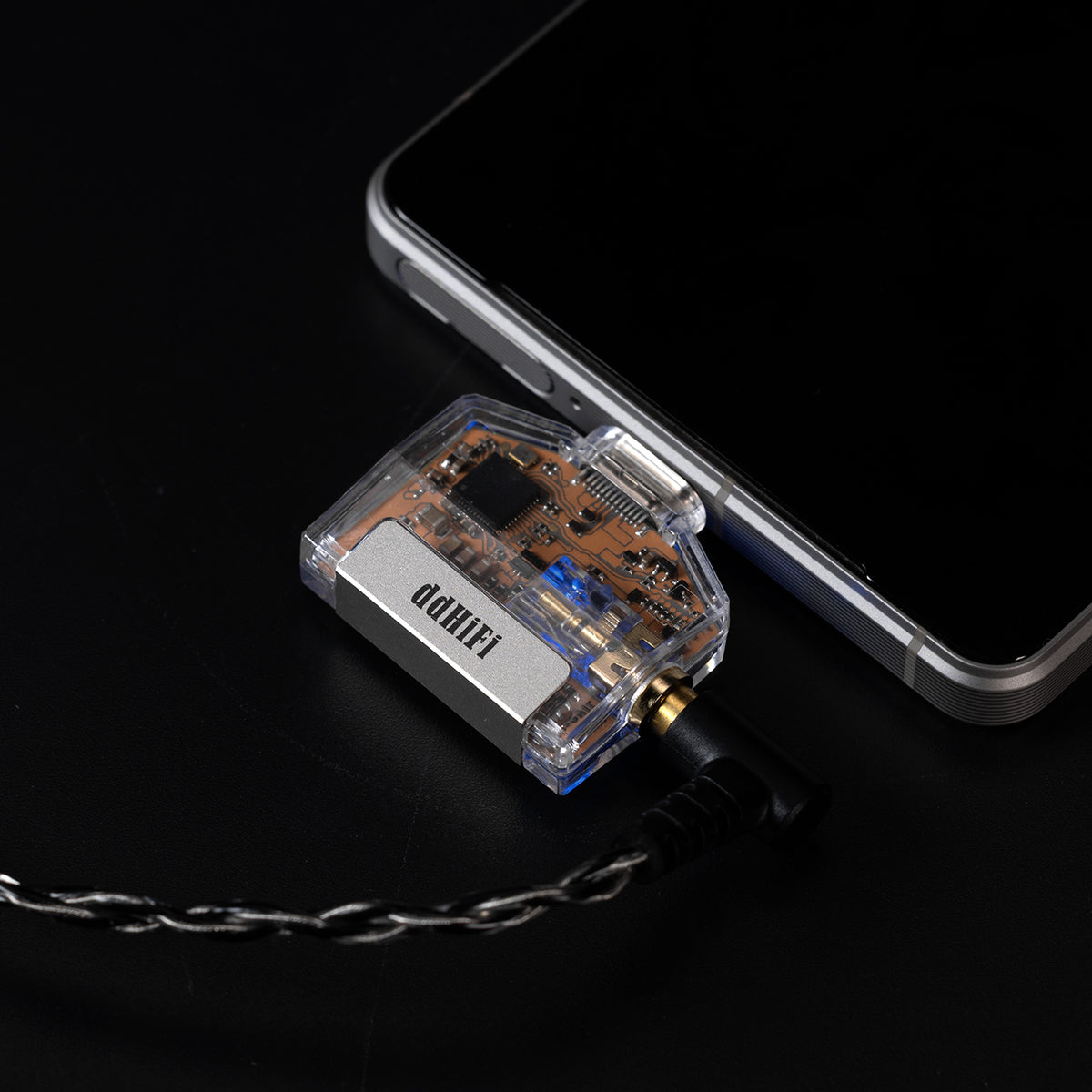

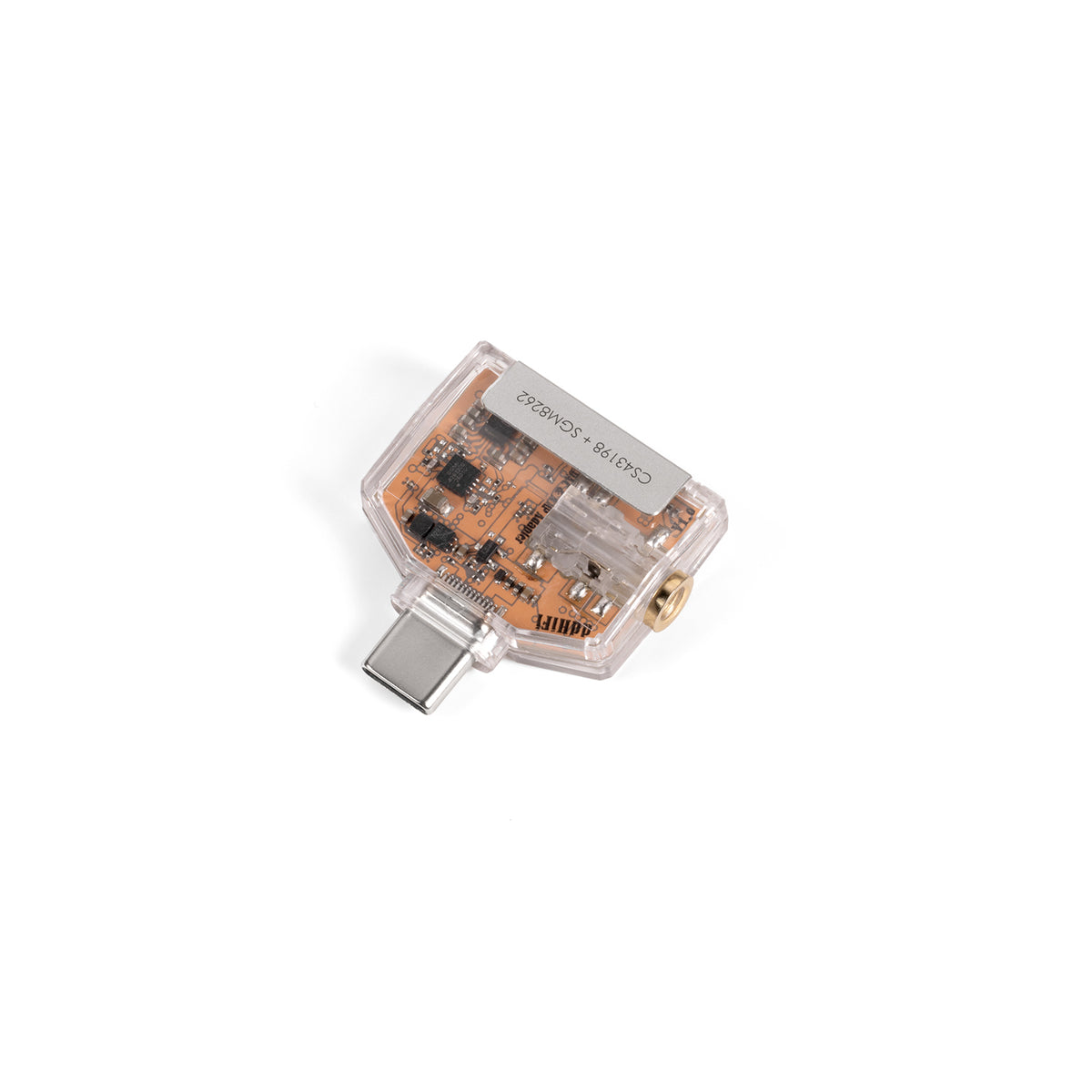

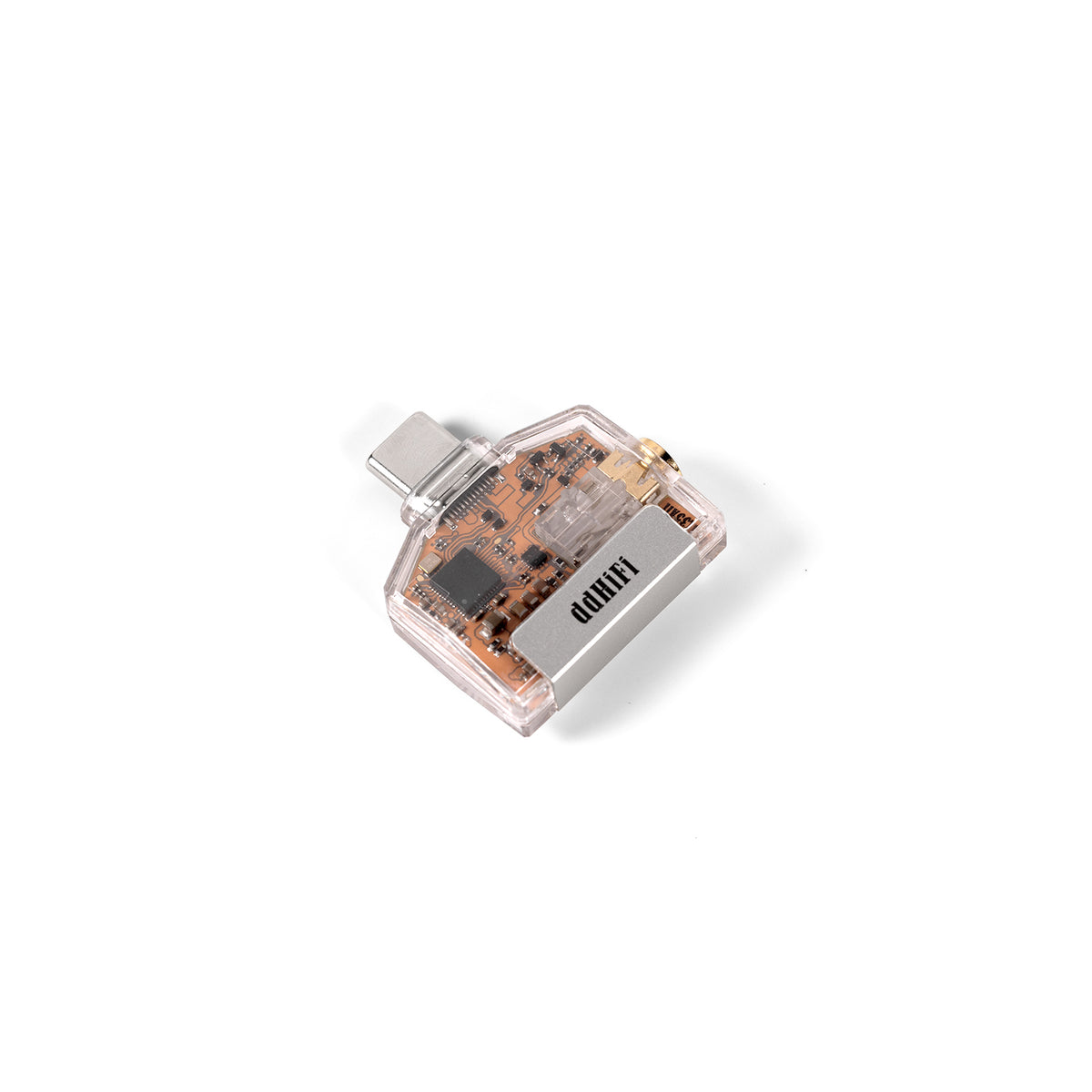

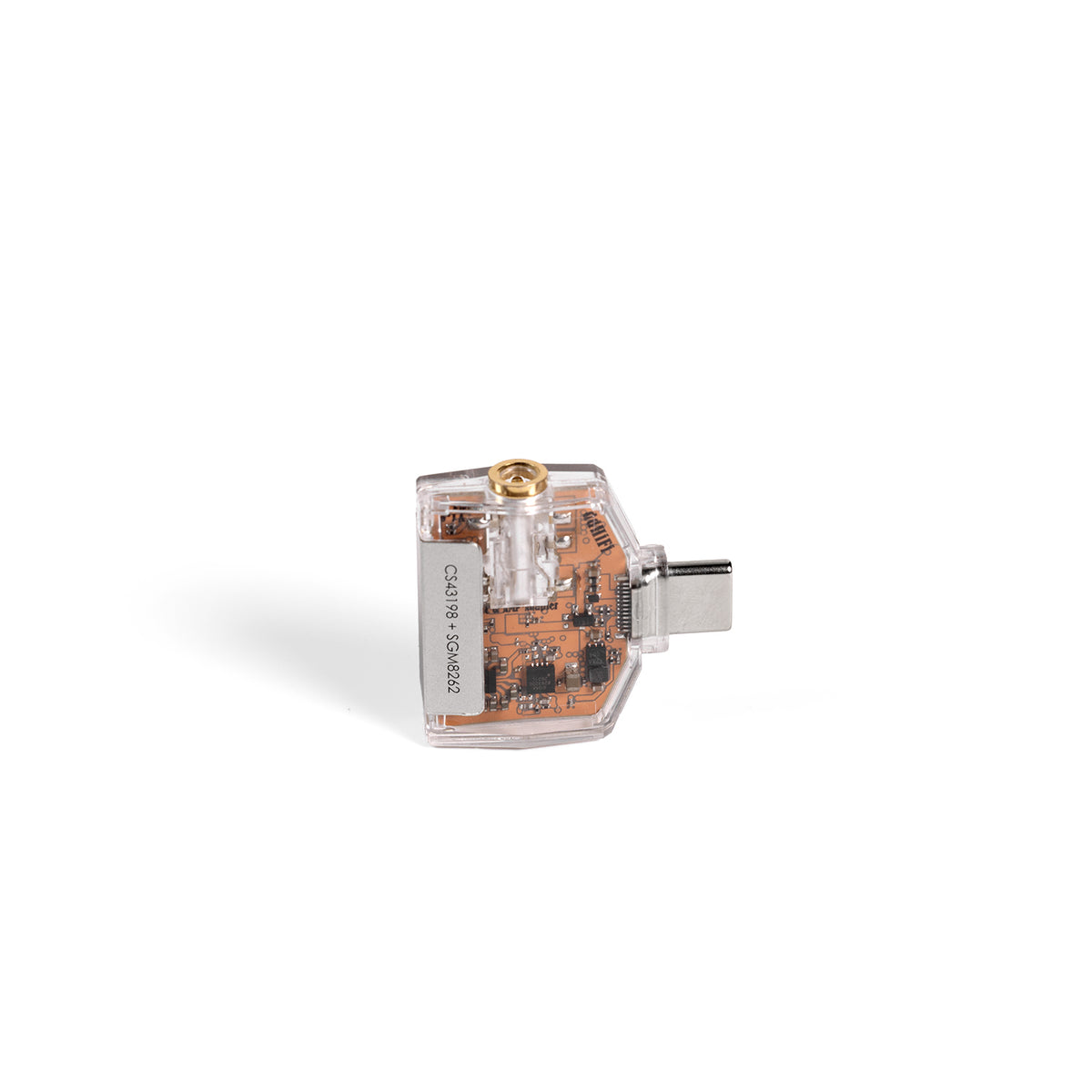

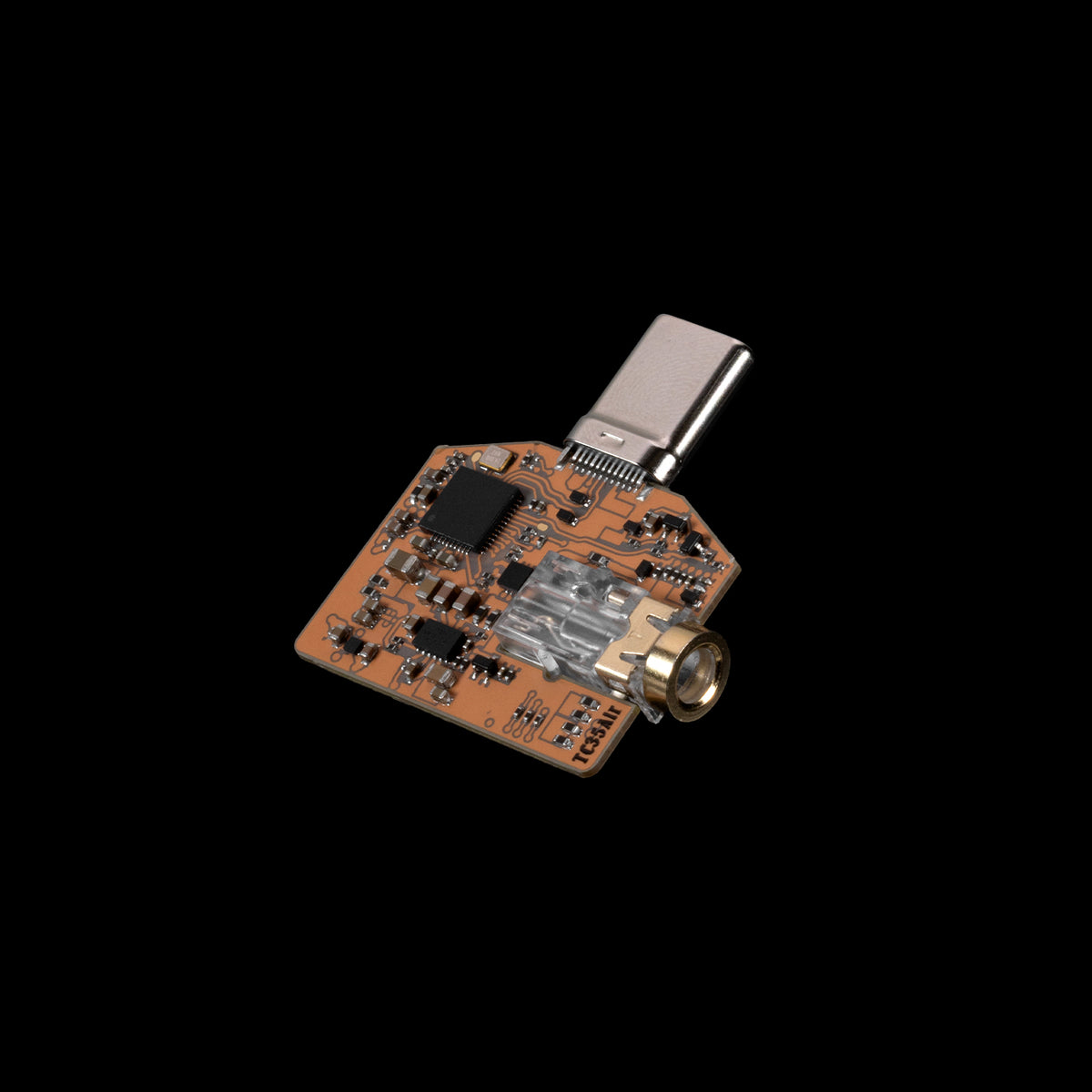

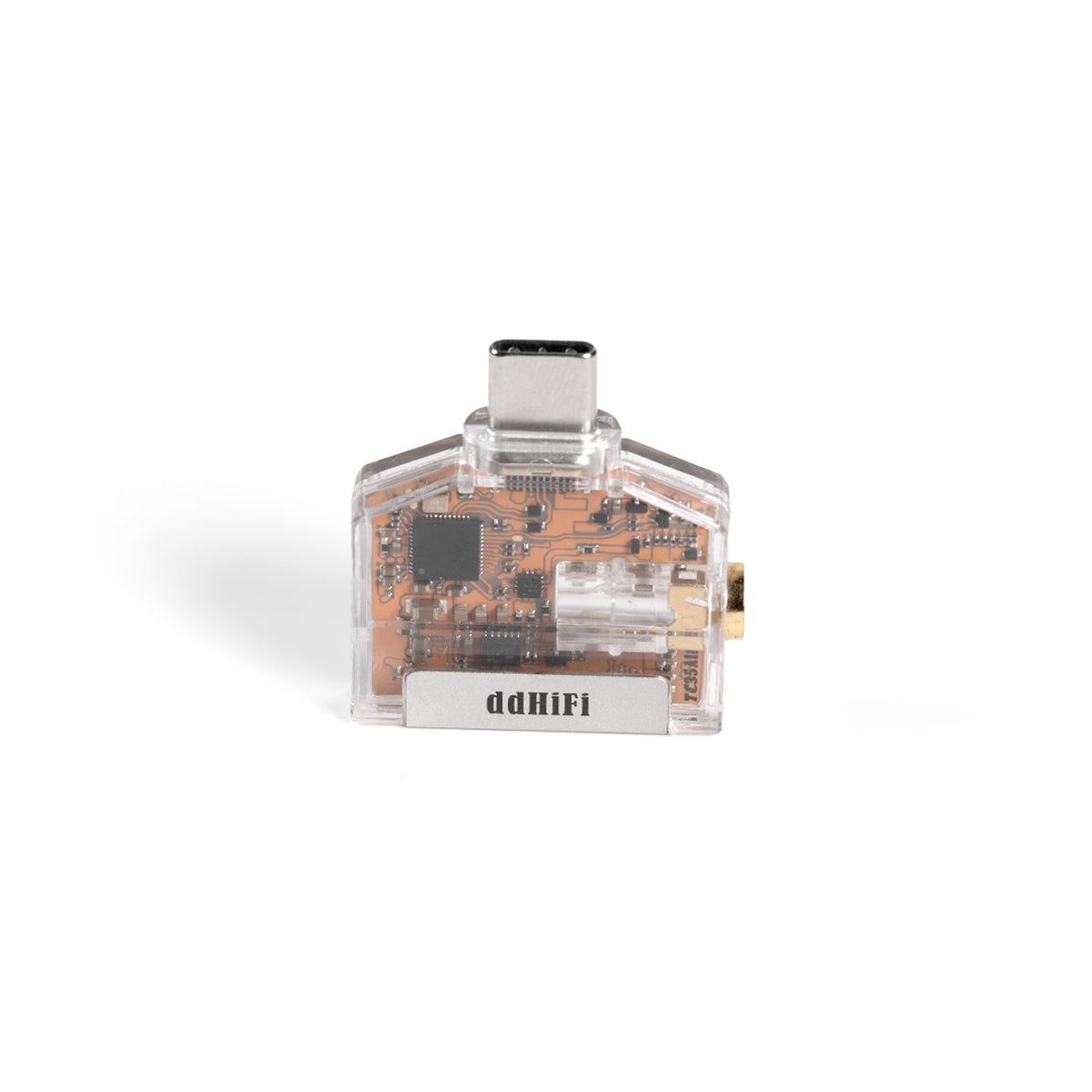

The TC35Air Hi-Res DAC & Amp delivers high-sample-rate lossless decoding. Equipped with CS43198 DAC chip and SGM8262 discrete op-amp, precisely arranged on a coin-sized PCB. The transparent headphone jack and status LED are visible through the clear PC housing, showcasing the internal circuitry and technological aesthetics.

Ideal Companion for Lossless Mobile Audio

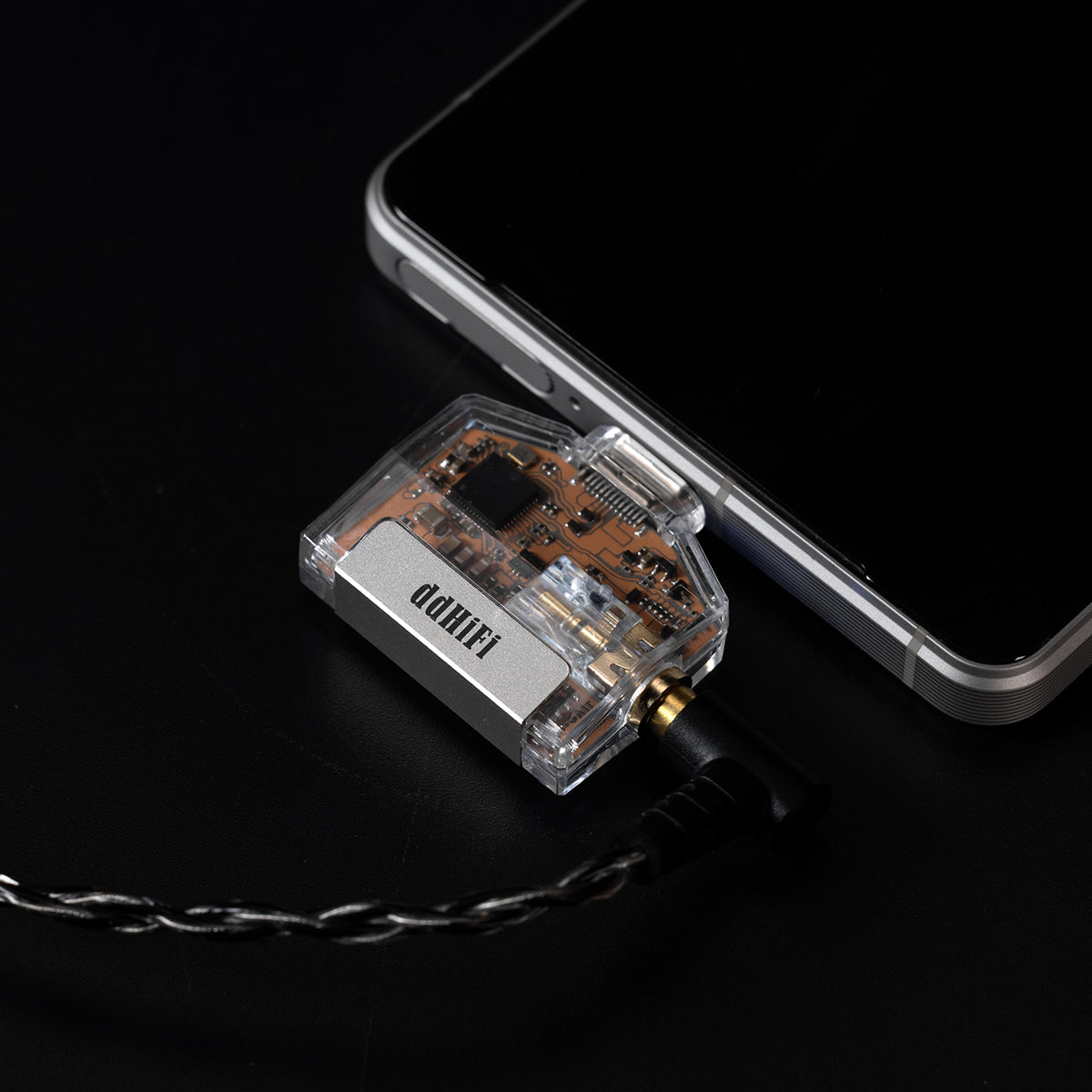

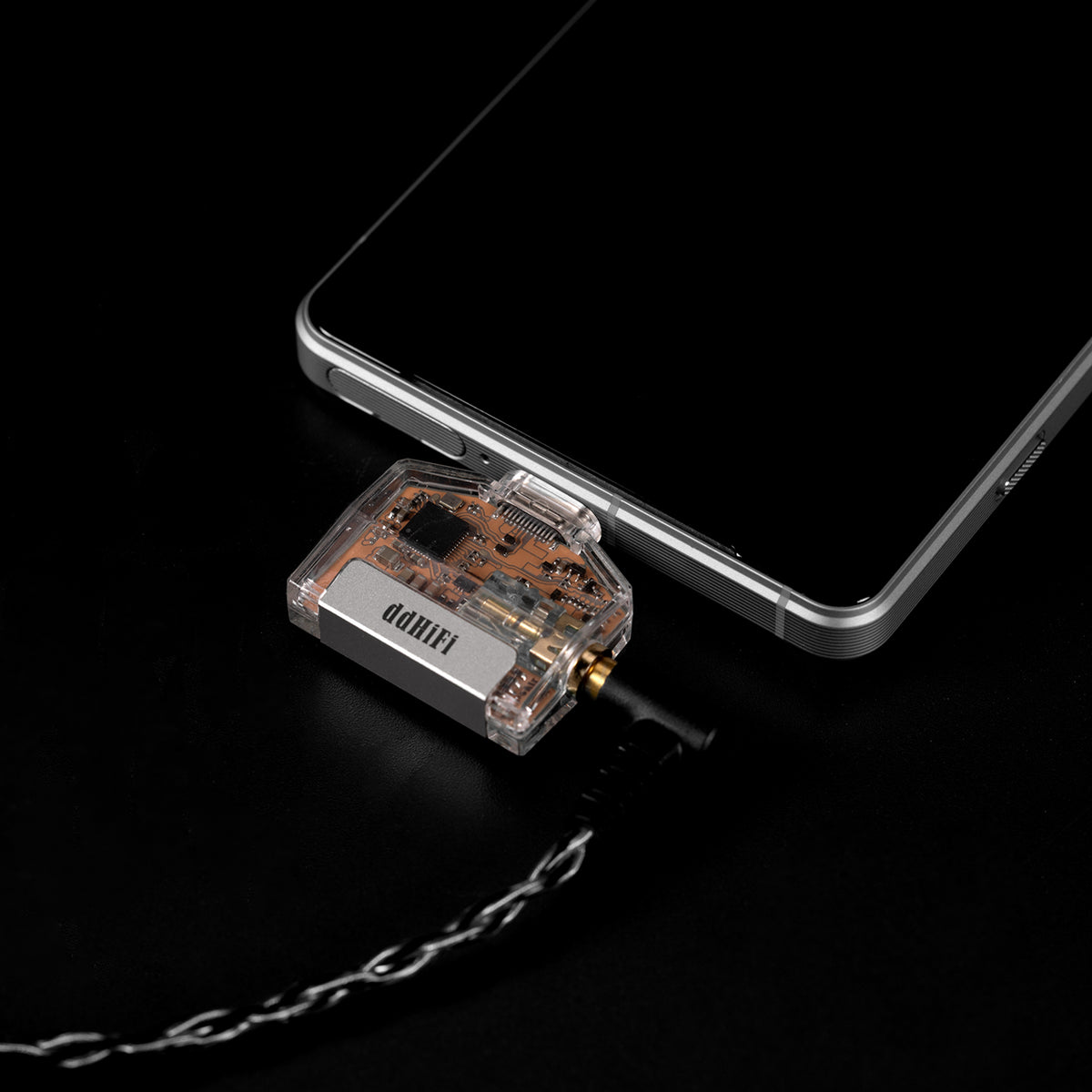

There is a wide selection of portable daily-use 3.5mm wired earphones on the market that support lossless playback. As smartphones phase out the 3.5mm jack and retain only USB-C ports, a Hi-Res DAC & Amp becomes essential to drive earphones and fully restore lossless audio sources.

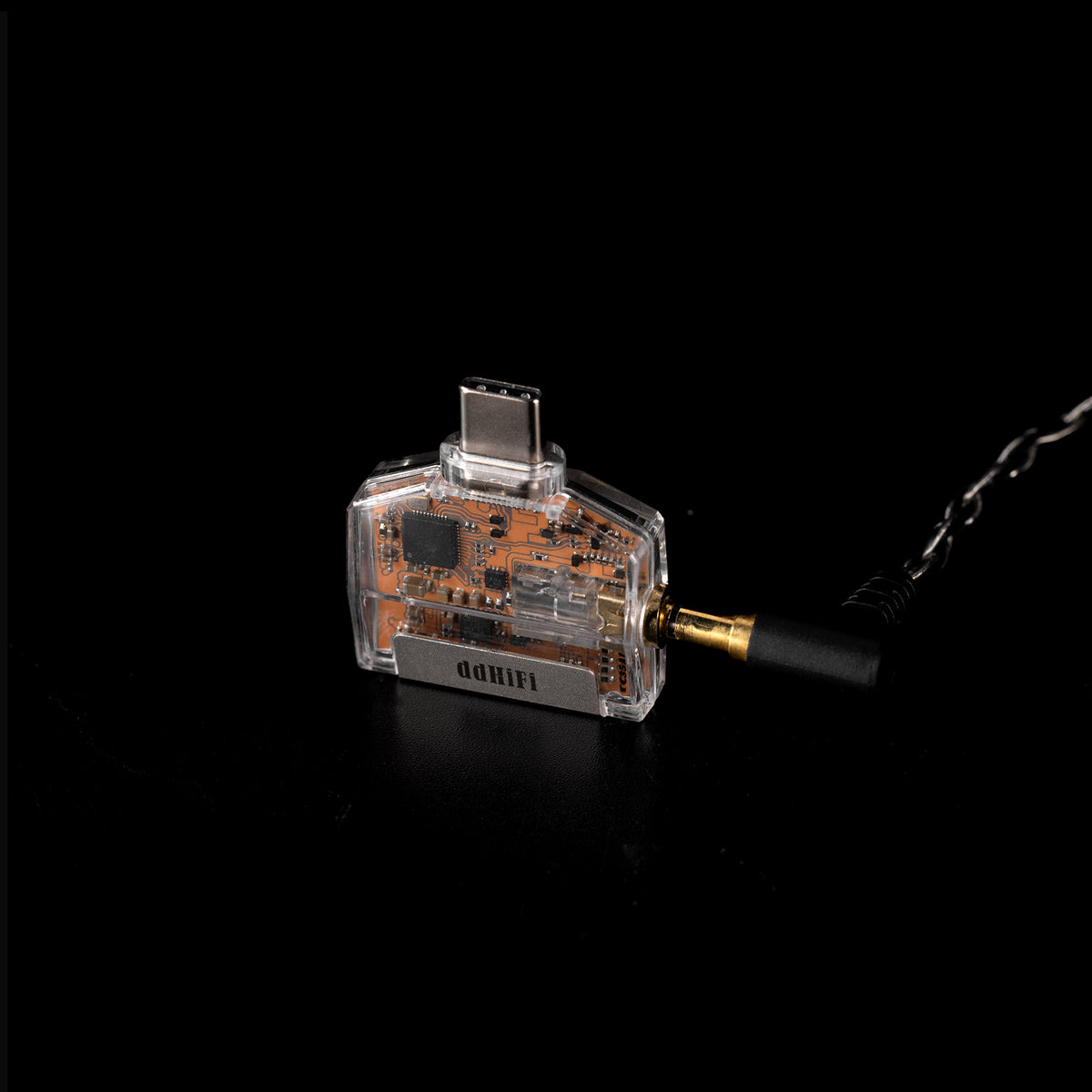

Works with 3.5mm Inline Control Earphones

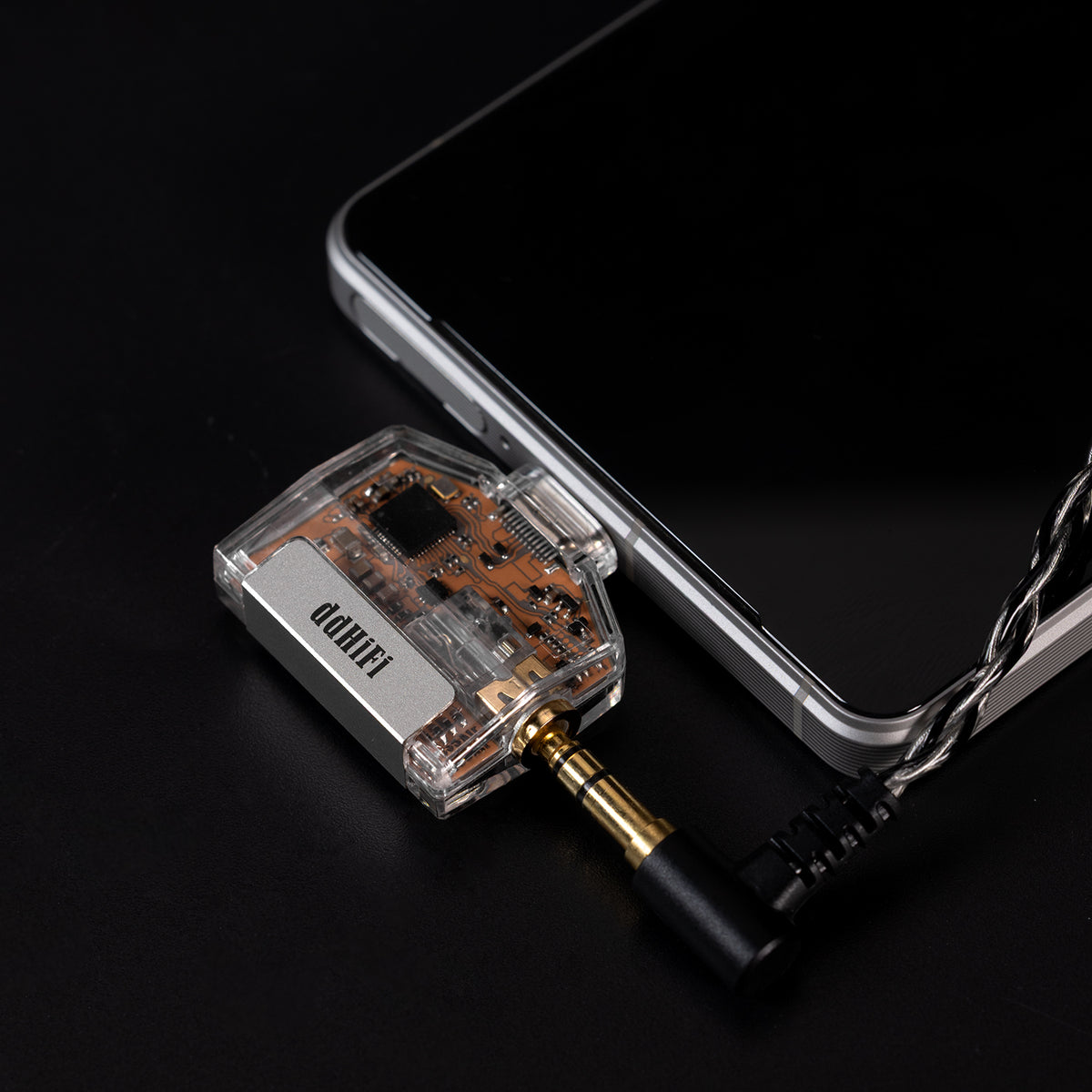

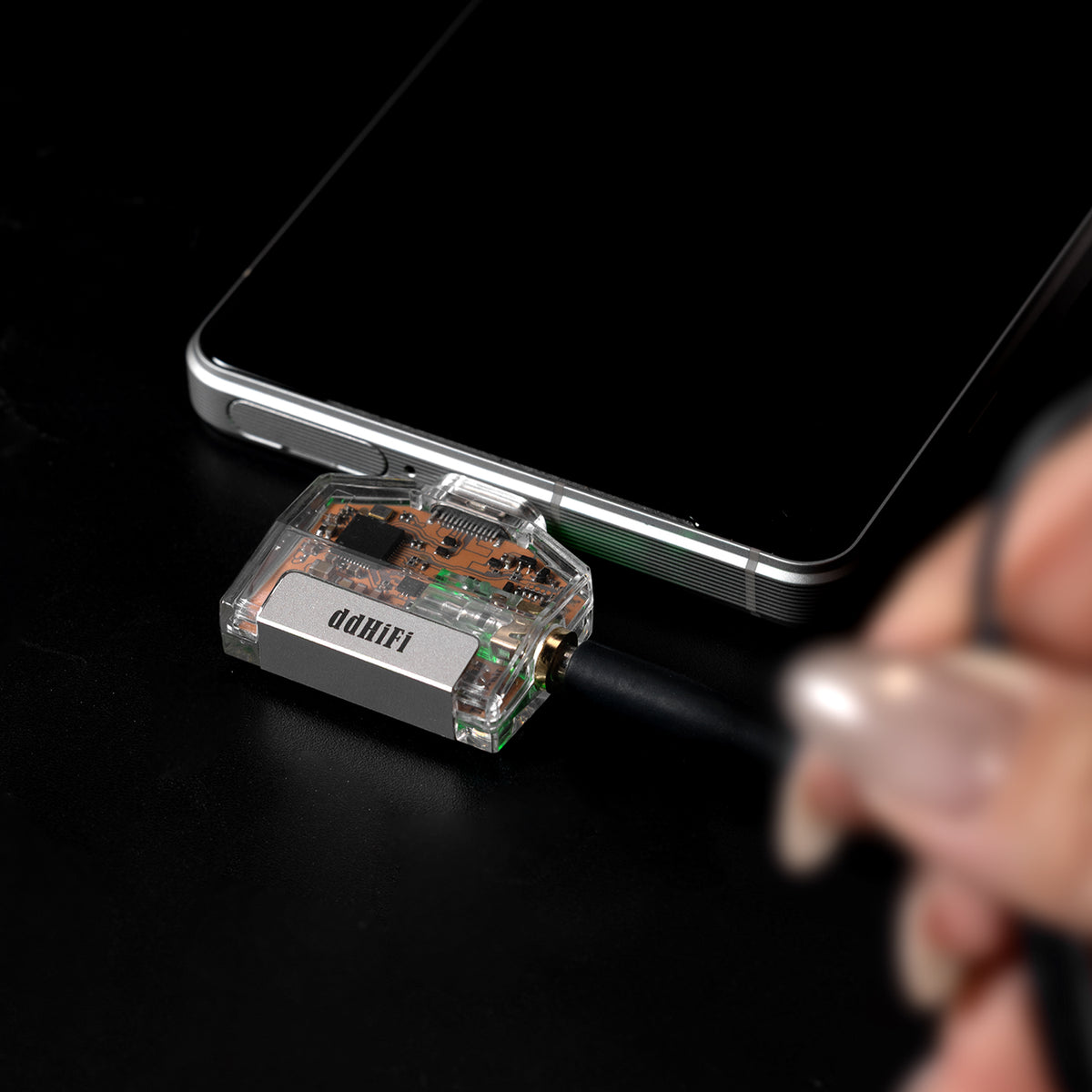

A detection switch sits inside the earphone jack. The unit turns on automatically when you insert an earphone plug. TC35Air works with CTIA-standard 3.5mm inline-control earphones. The inline controller handles play/pause and volume adjustment. Earphone cables with microphones support voice interaction and calls.

ddHiFi Link App Support

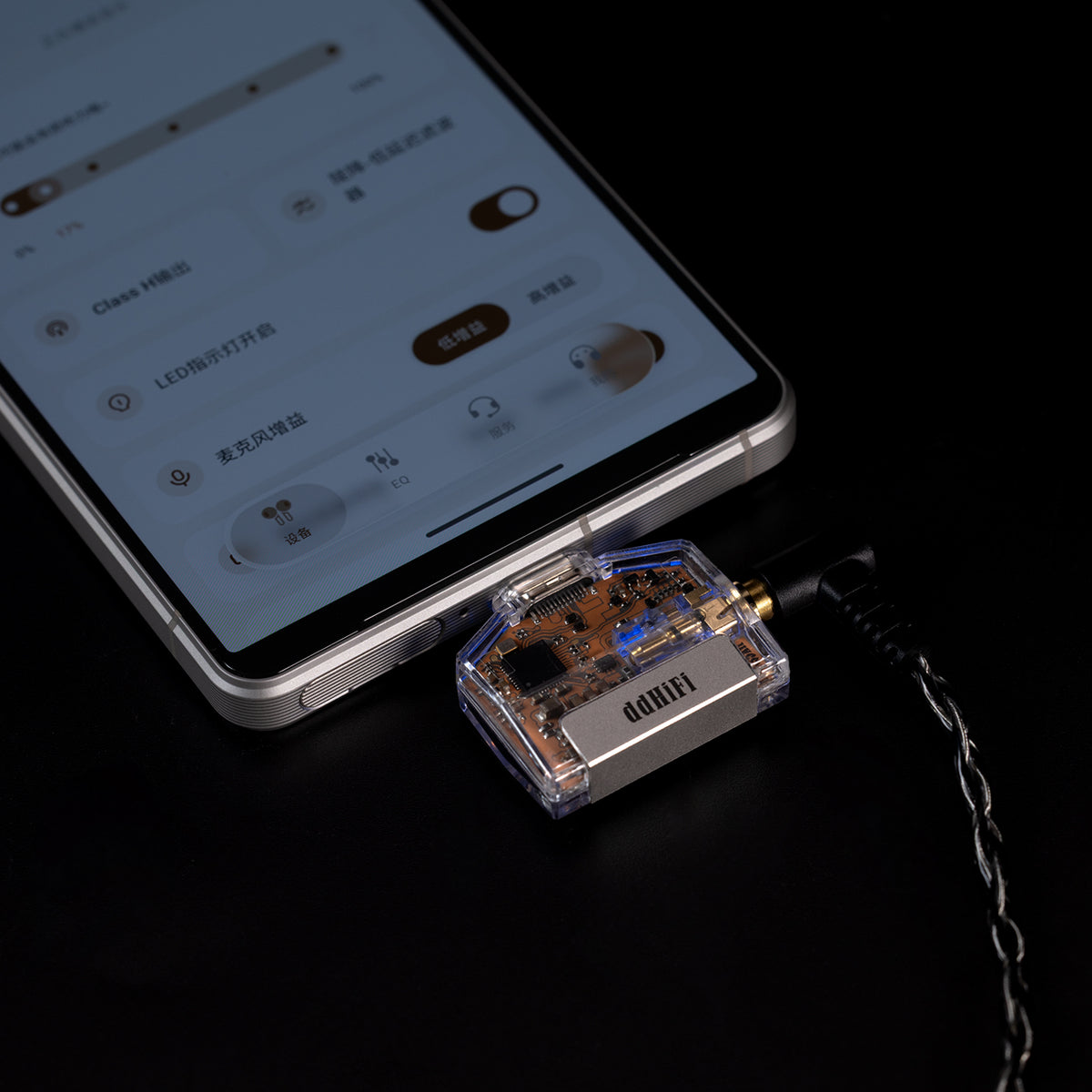

On Android phones, the TC35Air supports multiple settings via the ddHiFi Link App. Available options include indicator light control, filter selection and output gain adjustment. Custom 8-band EQ setting is also supported.

Technical Details

DAC Chip
CS43198
Op-Amp Chip
SGM8262
Housing Material
Transparent PC
Output Power
210mW (32Ω load)
Max Supported Sampling Rate
24bit/384kHz
Native DSD Support
DSD64 / DSD128 / DSD256
Headphone Output
3.5mm Stereo
Inline Mic & Control
CTIA Standard
App Control
ddHiFi Link (Android Only)
Dimensions
28.8 × 25.4 × 10.4 mm
Weight
Approx. 6g
Inside the Box
  • 1 x ddHiFi TC35Air
  • User Manual
